Chiral and Achiral Copper(II) Carboxyphosphonates Supramolecular
Structure: Synthesis, Structures, Surface Photovoltage and Magnetic
Properties
ChengꢀQi Jiao,† Zhou Zhao,† Chao Ma,† ZhenꢀGang Sun*,†, DaꢀPeng Dong*,‡, YanꢀYu Zhu,† and Jing
Li†
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
† School of Chemistry and Chemical Engineering, Liaoning Normal University, Dalian 116029, P. R. China
‡ School of Physics and Materials Engineering, Dalian Nationalities University, Dalian 116600, P. R. China
ABSTRACT: Five chiral and achiral copper(II) carboxyphosphonates, namely, [Cu(4ꢀcppH)(2,2'–bipy)(H2O)] (1:
R-1 and S-1), [Cu9(4ꢀcpp)6(2,2'ꢀbipy)6] (2), [Cu3(4ꢀcpp)2(2,2'ꢀbipy)2] (3), [Cu3(4ꢀcpp)2(1,10ꢀphen)2]·4H2O (4) and
[Cu(4ꢀcppH)(1,10ꢀphen)]·H2O (5), had been hydrothermally synthesized. Among them, 1 showed an unexpected 1D
chiral helical chain from achiral carboxyphosphonate ligand by spontaneous resolution. In 2, the interconnection of
{CuN2O3}, {CuO4} and {CPO3} polyhedra formed a 1D chain. Such chains were further connected to a 2D layer
through the carboxyphosphonates ligands. 3 and 4 were isostructural and exhibited a 2D layer, which were
constructed from {CuO3N2}/{CuO4} polyhedra and the carboxyphosphonate ligands. In 5, the interconnection of
neighboring {CuN2O3} polyhedra formed a dimer. These dimers were connected with the carboxyphosphonate ligands
to form a chain. Interestingly, the homochiral copper(II) phosphonate (Rꢀ1 or Sꢀ1) could be obtained by utilizing the
(+)ꢀcinchonine or (ꢀ)ꢀcinchonidine as a chiral inducing agent, confirmed by CD spectra. Besides, the surface
photovoltage (SPV) properties of 1–5 revealed that they had positive SPV responses. The magnetic data indicated that
1, 2, 4 and 5 showed the presence of ferromagnetic couplings between magnetic centers.
1. INTRODUCTION
Coordination polymers (CPs) have been paid much attention due to their interesting structures and
potentially applications.1ꢀ10 As an important class of CPs materials, metal phosphonates have been
rapidly researched in recent decades, mainly due to the diversities of structures and potential
utilizations in catalysis, magnetism, ion exchange, proton conductivity, molecular recognition,
photochemistry and so on.11ꢀ23 Therefore, rationally designing and synthesizing metal phosphonates
with an intriguing diversity of structures and properties have become particularly important. Studies of
metal phosphonates have shown that the introduction of biꢀ and multifunctional phosphonic acids with
subꢀfunctional groups (–NH2, –OH, and –COOH) can provide many coordination modes, resulting in
new structure types of metal phosphonates and bringing interesting properties.24ꢀ30 Recently, the results
of our and other groups indicate that the introduction of a second organic ligand, such as oxalate,
1
ACS Paragon Plus Environment

Crystal Growth & Design
Page 2 of 28
1
2
3
4
5
sulfonic acid, carboxylic acid, 2, 2′ꢀbipy, 1, 10ꢀphen and 4, 4′ꢀbipy, have provided an effective synthetic
strategy of new metal phosphonates with interesting structures and properties.31ꢀ36
Recently, incorporating different dn electron configuration of transition metal ions into their
structures can make them become ideal for use in developing new multifunctional materials. To date, a
large amount of transition metal phosphonates have been synthesized, some of which display
interesting properties such as magnetism, luminescence and catalysis behaviors.37ꢀ41 However, reports
about the photoelectric properties of these materials are scarce. Among these photoelectric properties,
surface photovoltage spectroscopy (SPS) as a useful tool can be used to study the photophysics of the
excited states and the surface charge behavior of the sample.42ꢀ45 To date, reports about this aspect have
mainly focused on the coordination compounds with phthalocyanines or porphyrins as ligands,
however, investigating the properties of coordination polymers is not common. We reported the first
example on the surface photovoltage properties of metal phosphonates.46 Following the seminal work,
a serial of metal phosphonates analogues were investigated.47ꢀ49 But the systematic study about the
relationships between the properties and structures is the first report. Furthermore, the mixed ligands
and the other transition metal hybrid compounds with layered, chain, and 3D network structures can be
built by the use of additional bidentate metal linkers such as 1, 10ꢀphen, 2, 2′ꢀbipy, and 4, 4′ꢀbipy.50ꢀ53
Generally, the 1, 10ꢀphen and 2, 2′ꢀbipy ligands can act as the chelating ligands and provide potential
sites for π–π stacking interactions which not only increase the dimensionality of the polymerization, but
also improve the properties of the photovoltage and magnetic.54ꢀ56
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
On the other hand, chiral CPs have attracted extensive attentions for their potential utilizations in
nonlinear optics, enantioselective processes and so on.57ꢀ64 Among them, metal phosphonates are good
candidates for the construction of chiral materials. Despite lots of metal phosphonates have been
reported in recent years, however, few chiral metal phosphonates have been obtained. There are two
basic methods to obtain chiral metal phosphonates: (1) the use of enantiopure phosphonate
ligands,25,65ꢀ73 (2) spontaneous resolution.22,46,74ꢀ78 The most effective method is to use enantiopure
phosphonate ligand, but the chiral agent is usually expensive and often require complex synthesis. The
approach for the synthesis of chiral metal phosphonates from spontaneous resolution on crystallization
without any chiral auxiliary usually can result in chiral conglomerate. However, a racemic
conglomerate is usefulness in an enantioselective process, therefore, it is a challenge for the chemist to
make chiral crystals and control the process which obtains the excess enantiomeric of the desired
chirality in the bulk solid. Recently, it has been found that the absolute chirality of the racemic
conglomerate can be controlled by chiral induction in different chemical systems, in which the
coordinate bonding between chiral additive and framework metal sites involved.79ꢀ81 Herein, using
2
ACS Paragon Plus Environment

Page 3 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
4–carboxyphenylphosphonic acid (4ꢀcppH3) as the phosphonate ligand and 2, 2′ꢀbipy or 1, 10ꢀphen as
the second metal linker, five chiral and achiral copper(II) carboxyphosphonates had been prepared,
namely, [Cu(4ꢀcppH)(2,2'–bipy)(H2O)] (1: R-1 and S-1), [Cu9(4ꢀcpp)6(2,2'ꢀbipy)6] (2),
[Cu3(4ꢀcpp)2(2,2'–bipy)2] (3), [Cu3(4ꢀcpp)2(1,10ꢀphen)2]·4H2O (4) and [Cu(4ꢀcppH)(1,10ꢀphen)]·H2O
(5). Among them, 1 is an unexpected 1D chiral helical chain, which can be synthesized as a
conglomerate by spontaneous resolution. More importantly, the homochiral copper(II) phosphonate
(R-1 or S-1) can be obtained by the method of chiral induction through using the (+)ꢀcinchonine or
(ꢀ)ꢀcinchonidine chiral inducer. Here, we studied the synthesis, structures, and surface photovoltage and
magnetic properties of 1, 2, 4 and 5. The structure and magnetic property of 3 have been reported by
Zubieta’s group,82 therefore, the surface photovoltage property of 3 is only described.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2. EXPERIMENTAL SECTION
2.1. Materials and Physical Measurements. The 4ꢀcarboxyphenylphosphonic acid (4ꢀcppH3) was
prepared according to the literature.83All other chemicals were purchased from commercial sources and
used without any further purification. IR spectra were measured on a Bruker AXS TENSOR–27 FT–IR
spectrometer with KBr pellets from 4000 to 400 cmꢀ1. The contents of Cu, P and C, H, N were
determined by using an inductively coupled plasma (ICP) atomic absorption spectrometer and a
PE–2400 elemental analyzer, respectively. The powder Xꢀray diffraction data were collected on a
Bruker AXS D8 Advance diffractometer using Cu–Kα radiation (λ = 1.5418 Å) in the 2θ range from 5
to 60° with a scanning rate of 3°/min and a step size of 0.02°. Circular dichroism (CD) spectra were
measured on a BioLogic MOSꢀ500 spectrodichrometer using KBr pellets. The solid UV–Vis absorption
spectra were recorded on a HITACHIUꢀ4100 spectrophotometer. Photoelectric properties (SPS and
FISPS) measurements were conducted with the sample in a sandwich cell (ITO/sample/ITO) with the
light sourceꢀmonochromatorꢀlockꢀin detection technique. Magnetic measurements of the samples were
performed on a Quantum Design SQUID (MPMSXLꢀ7) magnetometer. Data were corrected for the
diamagnetic contribution calculated from Pascal constants.
2.2. Synthesis Methods. Preparation of [Cu(4ꢀcppH)(2,2'–bipy)(H2O)] (1). Cu(Ac)2·H2O (0.085 g,
0.43 mmol), 4ꢀcppH3 (0.05 g, 0.26 mmol) and 2,2′ꢀbipy (0.068 g, 0.44 mmol) were dissolved in 10 mL
water, and then stirred for about 60 min at RT. The mixture (pHinitial = 4.4) was sealed in a 20 mL
Teflon–lined stainless steel autoclave, and heated at 100 °C for 48 hours. Cooling to RT, blue rodlike
crystals of 1 were obtained (yield 30.5 % based on Cu). Anal. Calc. for C17H15CuN2O6P: C, 46.63; H,
3.45; N, 6.40; P, 7.07; Cu, 14.51. Found: C, 46.66; H, 3.42; N, 6.43; P, 7.03; Cu, 14.56 %. IR (KBr,
3
ACS Paragon Plus Environment

Crystal Growth & Design
Page 4 of 28
1
2
3
4
cm−1): 3385(br), 3103(w), 3072(w), 1575(s), 1528(s), 1427(m), 1382(s), 1305(w), 1222(w), 1110(s),
1003(w), 943(m), 842(w), 738(m), 720(w), 586(w), 535(w), 481(w), 445(w).
5
6
7
8
9
Preparation of [Cu(4ꢀcppH)(2,2'–bipy)(H2O)] (R-1 and S-1). Crystals of R-1 and S-1 were obtained
according to the same method as that of 1 by using (+)–cinchonine (10% mole ratio relativet to the
ligand) and (ꢀ)–cinchonidine (10% mole ratio relative to the ligand) as the chiral adducts, respectively.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Preparation of [Cu9(4ꢀcpp)6(2,2'–bipy)6] (2). Cu(Ac)2·4H2O (0.10 g, 0.50 mmol), 4ꢀcppH3 (0.05 g,
0.26 mmol) and 2,2′ꢀbipy (0.068 g, 0.44 mmol) were dissolved in 10 mL water. The resulting solution
(pHinitial = 4.5) was stirred for about 60 min at RT, sealed in a 20 mL Teflon−lined stainless steel
autoclave, and heated at 120 °C for 48 hours. Cooling to RT, blue block crystals of 2 were obtained
(yield 38.7 % based on Cu). Anal. Calcd for C102H72Cu9N12O30P6: C, 45.32; H, 2.68; N, 6.22; P, 6.87;
Cu, 21.15; Found: C, 45.23; H, 2.78; N, 6.28; P, 6.79; Cu, 21.10 %. IR (KBr, cm−1): 3435(br), 3106(w),
3042(w), 1585(s), 1534(s), 1396(s), 1310(w), 1246(w), 1147(s),1089(s), 1019(s), 846(w), 766(s),
730(m), 650(w), 599(w), 551(m).
Preparation of [Cu3(4ꢀcpp)2(2,2'–bipy)2] (3). 3 was prepared by a similar method with 1 excepting
that heated at 160 °C for 48 hours. The pH value was adjusted to 4.4ꢀ6.0 by adding 1M NaOH (pHinitial
= 4.4). Cooling to RT, blue block crystals of 3 were obtained (yield 50.6 % based on Cu). Anal. Calc.
for C34H24Cu3N4O10P2: C, 45.32; H, 2.68; N, 6.22; P, 6.87; Cu, 21.15. Found: C, 45.35; H, 2.65; N,
6.18; P, 6.91; Cu, 21.18 %. IR (KBr, cm−1): 3043(w), 1585(s), 1533(s), 1395(s), 1147(s), 1093(s),
1018(s), 845(w), 770(m), 732(m), 603(w), 558(m), 468(m).
Preparation of [Cu3(4ꢀcpp)2(1,10ꢀphen)2]ꢁ4H2O (4). Cu(Ac)2·H2O (0.10 g, 0.50 mmol), 4ꢀcppH3
(0.05 g, 0.26 mmol) and 1,10ꢀphen (0.08 g, 0.44 mmol) were dissolved in 10 mL distilled water. The
pH value was adjusted to 4.4–6.0 by adding 1M NaOH (pHinitial = 4.4). The resulting solution was
stirred for about 60 min at RT, sealed in a 20 mL Teflon−lined stainless steel autoclave, and heated at
160 °C for 48 hours. Cooling to RT, green block crystals of 4 were obtained (yield 62.5 % based on Cu).
Anal. Calc. for C38H32Cu3N4O14P2: C, 44.69; H, 3.16; N, 5.49; P, 6.07; Cu, 18.67. Found: C, 44.73; H,
3.13; N, 5.45; P, 6.11; Cu, 18.70 %. IR (KBr, cm−1): 3391(br), 3066(w), 1585(m), 1508(s), 1427(s),
1237(m), 1176(m), 1124(w), 1086(w), 912(m), 851(m), 777(w), 723(m), 596(w), 526(w), 468(m).

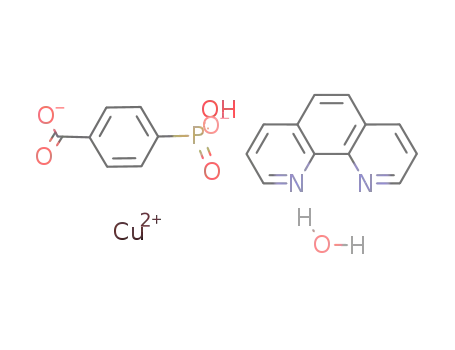

Preparation of [Cu(4ꢀcppH)(1,10ꢀphen)]ꢁH2O (5). 5 was prepared by a similar method with 4
excepting that heated at 80 °C for 72 hours. The pH value was adjusted to 4.6–6.0 by adding 1M NaOH
4
ACS Paragon Plus Environment

Page 5 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
(pHinitial = 4.4). Cooling to RT, blue plate crystals of 5 were obtained (yield 66.3 % based on Cu). Anal.
Calcd for C19H15CuN2O6P: C, 49.41; H, 3.27; N, 6.07; P, 6.71; Cu, 13.76. Found: C, 49.45; H, 3.24; N,
6.10; P, 6.68; Cu, 13.81 %. IR (KBr, cm−1):3435(br), 3066(w), 1585(s), 1540(m), 1389(s),
1140(s),1041(w), 928(w), 851(m), 777(w), 723(s), 558(w), 468(w).
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3. Crystal Structure Determination. Data collections for 1–5 were performed on the Bruker AXS
Smart APEX II CCD X–diffractometer equipped with graphite monochromated MoKα radiation (λ =
0.71073 Å) at 293 ± 2K. The empirical absorption corrections were applied by using the SADABS
program. The structures were solved by direct methods and refined by full–matrix least squares fitting
on F2 by SHELXS–97.84 All non–hydrogen atoms were refined anisotropically. The hydrogen atoms of
organic ligands were located geometrically and fixed isotropic thermal parameters. For 4 and 5, the
hydrogen atoms for the lattice water molecules were fixed through Fourier electron density and fixed
isotropic thermal parameters. Crystal data and structural refinements for 1–5 were given in Table 1.
Selected bond lengths were summarized in Table S1 (Supporting Information).
Table 1
3. RESULTS AND DISCUSSION
3.1. Syntheses. Five copper(II) carboxyphosphonates had been hydrothermally synthesized, utilizing
4ꢀcarboxyphenylphosphonic (4ꢀcppH3) and similar Nꢀdonor ligands (2, 2′ꢀbipy or 1, 10ꢀphen). In order
to obtain good crystals for Xꢀray diffraction analyses, the optimal method of synthesizing was
researched. Firstly, the reaction temperature played an important part in the formation of five
compounds. 3 and 4 were obtained at 160 °C, while 1, 2 and 5 were prepared at 100, 120 and 80 °C,
respectively. Secondly, the pH value had also a strong effect on the formation of the targeted
compounds. 1 and 2 were only prepared in the initial pH value (4.4 for 1 and 4.5 for 2). The other pH
value would lead to the formation of 3. 3–5 could be obtained in different yields and qualities when the
reaction mixture was adjusted to a certain pH value (4.4ꢀ6.0 for 3 and 4 and 4.6ꢀ6.0 for 5). The most
quality crystals could be prepared when the pH value was adjusted to 5.0 for 3, 4.8 for 4 and 5.5 for 5,
respectively. A lower pH (<4.4 or 4.6) resulted in powder, while a higher pH (>6.0) leaded to a large
amount of uncharacterized precipitate and very small amount of single crystals. In the absence of (+)ꢀor
(ꢀ)ꢀcinchonidine, the mixture of R-1 and Sꢀ1 was observed. Interestingly, homochiral crystals could be
5
ACS Paragon Plus Environment

Crystal Growth & Design
Page 6 of 28
1
2
3
4
5
6
7
8
9
obtained by adding 10 mol % of (+)ꢀ or (ꢀ)ꢀcinchonidine, respectively. R-1 was prepared by the
addition of (+)ꢀcinchonine whose crystal space group was the same as 1. The structural analysis of
randomly selected crystals from the same batch suggested that these crystals had the same homochiral
characteristic (Table S1, Supporting Information). Similarly, Sꢀ1 was got by chiralityꢀinducing effect in
the presence of (ꢀ)ꢀcinchonidine, and the cell dimensions were similar to 1 and R-1. The powder XRD
and simulated XRD patterns of 1–5 were shown in Figures S1–S5 in the Supporting Information. All
the peaks of 1–5 could be indexed to their respective simulated XRD patterns, which indicated 1–5
were pure phases.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 1
Figure 1
3.2. Crystal Structures Analysis. Crystal Structures of 1 (R-1 and S-1). 1 (R-1 and S-1) crystallized
in the monoclinic chiral space group P21 with Flack parameters of 0.043(18) and 0.095(17),
respectively (Table 1). As depicted in Figure 1a, R-1 and S-1 had perfect mirror image; herein, we took
R-1 as an example. There were one Cu(II) ion, one 4ꢀcppH2ꢀ anion, one 2, 2'ꢀbipy molecule and one
coordinated water molecule in the asymmetric unit of R-1 (Figure 1a, left). The Cu(II) ion exhibited a
distorted tetragonal pyramidal geometry. Four basal positions were occupied by N1, N2, O1A and O4
atoms from one 2, 2'ꢀbipy molecule and two equivalent 4ꢀcppH2ꢀ anions, respectively. The Cu–O
distances were 1.910(3) and 1.978(3) Å, whereas Cu–N distances were 2.024(4) and 2.044(4) Å. The
axial site was occupied by one water molecule (O6) with an elongated Cu–O6 distance [2.270(4) Å]
(Table S2, Supporting Information). The Cu–O/N distances accorded with those reported for other
Cu(II) phosphonates.85 The carboxyphosphonate ligand adopted a bidentate coordinated mode, which
was rare in metal carboxyphosphonate (Scheme 1). It only bridged two Cu ions through paraꢀcarboxyl
group and phosphonate group. Futhermore, the phosphonate oxygen atom (O3) of the 4ꢀcppH2− anion
was protonated.
As shown in Figure 1b (left), the {CuN2O3} polyhedra crossꢀlinked through the carboxyphosphonate
ligands formed a 1D leftꢀhand helical chain with the pitch of 6.96 Å along bꢀaxis. The neighboring
chains were extended together through π−π interactions between the adjacent 2, 2'ꢀbipy rings (distances
= 3.695 and 3.781 Å), resulting in a 2D supramolecular network (Figures 1c and 1d). The asymmetric
unit and helical chain of S-1 were also shown in Fig. 1a and 1b (right) for comparison.
6
ACS Paragon Plus Environment

Page 7 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
Crystal Structure of 2. 2 crystallized in the triclinic space group Pꢀ1 (Table 1). There were five
crystallographically independent Cu(II) ions, three 4ꢀcpp3− anions and three 2, 2′ꢀbipy ligands in the
asymmetric unit of 2 (Figure 2). The Cu1, Cu2 and Cu4 ions were all five coordinated by two
phosphonate oxygen atoms (O1 and O2A for Cu1, O7 and O11 for Cu2 and O8 and O12 for Cu4) from
two separate 4ꢀcpp3− anions, one carboxylate oxygen atom (O9B for Cu1, O15C for Cu2 and O5E for
Cu4) from one 4ꢀcpp3− anion and two nitrogen atoms (N1 and N2 for Cu1, N3 and N4 for Cu2 and N5
and N6 for Cu4) from the 2, 2′ꢀbipy ligand. The Cu3 ion had a plane coordination environment. The
four coordination positions were filled with two phosphonate oxygen atoms (O3 and O6) from two
separate 4ꢀcpp3− anions and two carboxylate oxygen atoms (O10D and O14C) from two 4ꢀcpp3− anion.
The occupancy of Cu5 ion was 0.5. The Cu5 ion was fourꢀcoordinated by four oxygen atoms (O4C,
O4E, O13 and O13F) from four separate 4ꢀcpp3−anions. The Cu–O/N distances ranged from 1.879(16)
to 2.293(16) Å (Table S2, Supporting Information). All three 4ꢀcpp3− anions adopted the same
pentadentate coordinated mode. They bridged five Cu atoms through its all five oxygen atoms,
therefore, all oxygen atoms were monodentate (Scheme 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2
The 2D Cu–phosphonate layer was observed in 2. As shown in Figure 3a, the {CuN2O3}/{CuO4}
polyhedra and {CPO3} tetrahedra were alternately connected into a chain. Such chains were further
connected to a 2D layer through the phosphonate ligands in the bc–plane. This kind of connections
resulted in forming a regular window. The window was formed by 18–atom rings, including two Cu
atoms, two P atoms, four O atoms and ten C atoms. The dimension of the window is 6.9 Å (O11–O11)
× 3.5 Å (C45–C47) on the basis of structure data. These neighboring layers were further extended into
a 3D supramolecular structure with assistance of the π−π interactions (distances = 3.835–3.992 Å)
between the adjacent 2, 2'ꢀbipy rings (Figure 3b).
Figure 3
Figure 4
7
ACS Paragon Plus Environment

Crystal Growth & Design
Page 8 of 28
1
2
3
4
5
6
7
8
9
Crystal Structures of 3 and 4. 3 and 4 were isomorphous and featured a similar 2D layer structure
except that the second ligands were different (2, 2'ꢀbipy 3, 1, 10ꢀphen 4) (Figure 5, Figures S6–S8,
Supporting Information). The structure of 3 had been reported by Zubieta’s group,82 hence, only the
structure of 4 would be described as an example. 4 crystallized in the triclinic space group P–1 (Table
1). Each asymmetric unit consisted of two crystallographically distinct Cu(II) ions, one 4ꢀcpp3− anion,
one 1, 10ꢀphen molecule and two lattice water molecules (Figure 4). The Cu1 ion had a distorted
square–pyramidal geometry. The four basal plane were occupied by two phosphonate oxygen atoms
(O1 and O2A) from two separate 4ꢀcpp3− anions and two nitrogen atoms (N1, N2) from one 1, 10ꢀphen
molecule. The remaining apical position was occupied by one carboxylate oxygen atom (O5) from one
4ꢀcpp3− anion. The Cu1–O5 distance [2.263(2) Å] was apparently longer than the other Cu1–O/N
distances [1.897(2)–2.039(3) Å]. The occupancy of Cu2 ion was 0.5, which had a plane coordination
environment by four oxygen atoms (O3C, O3D, O4 and O4E) from four separate 4ꢀcpp3− anions. The
Cu–O distances were 1.947(2) and 1.971(2) Å (Table S2, Supporting Information). The
carboxyphosphonate ligand was a pentadentate ligand, binding five Cu atoms through its all five
oxygen atoms, therefore, all oxygen atoms were monodentate (Scheme 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 5
The {CuN2O3} square–pyramidal and {CuO4} plane were interconnected through {CPO3} tetrahedra
to form a 1D chain along a–axis. These neighboring 1D chains were bridged through the 4ꢀcpp3− anions
into a 2D layer in the ab–plane (Figure 5a). This kind of connections resulted in forming two types of
windows. The two windows were both formed by 18–atom rings, including two Cu atoms and two
4ꢀcpp3− ligands. Because of the coordinated environments of two Cu atoms were different, the sizes of
two windows were slightly different. The dimensions of the windows are 8.6 Å (O3–O3) × 3.0 Å
(C3–C3) for A window, and 7.0 Å (O2–O2) × 3.6 Å (C6–C7) for B window on the basis of structure
data. Such neighboring layers were extended together through π−π interactions between the adjacent 1,
10ꢀphen rings (distances = 3.397 Å), resulting in a 3D supramolecular strcture (Figure 5b).
Figure 6
8
ACS Paragon Plus Environment

Page 9 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
Crystal Structure of 5. 5 crystallized in the triclinic P–1 space group (Table 1). Each asymmetric unit
included one crystallographically independent Cu(II) ion, one 4ꢀcppH2− anion and one 1, 10ꢀphen
molecule (Figure 6). The Cu(II) ion displayed a distorted square–pyramidal coordination geometry. The
basal positions were occupied by two oxygen atoms (O1A and O4B) from two separate 4ꢀcppH2−
anions and two nitrogen atoms (N1, N2) from one 1, 10ꢀphen molecule. The apical position was filled
with O1 from another 4ꢀcppH2− anion. The Cu–O/N distances ranged from 1.955(2) to 2.414(2) Å
(Table S2, Supporting Information). Each 4ꢀcppH2− group in 5 served as a tridentate ligand, linking
three Cu atoms using one of its three phosphonateoxygens (O1) and one carboxyl oxygen atom (O4).
Furthermore, the phosphonate oxygen atom (O2) of the 4ꢀcppH2− anion was protonated (Scheme 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 7
As shown in Figure 7a, the interconnection of neighboring {CuN2O3} polyhedra formed a dimer.
These dimers were interconnected to form a chain through the carboxyphosphonate ligands along the
bꢀaxis. As shown in Figure 7c and Figure 7d, two types of stacking interactions were found in 5: one
was the pointꢀtoꢀface C−H−π interaction (distance = 2.681 Å) between the hydrogen atoms of the 1,
10ꢀphen rings and the benzene rings of the carboxyphosphonate ligands along the a–axis, and the other
was the π−π stacking interaction (distance = 3.513 Å) between the adjacent 1, 10ꢀphen rings along the
cꢀaxis. As a result, the above C−H−π and π−π interactions finally resulted in forming a 3D
supramolecular network structure (Figure 7b).
3.3. Structural Discussion. It was noteworthy that 1–5 showed different structures, although the
same phosphonate ligand and similar Nꢀdonor ligands (2, 2′ꢀbipy or 1, 10ꢀphen) were applied. This
could be explained as followed: Firstly, the different pH values had remarkable effects on product
formation. Under the initial pH value condition (4.4/4.5), the phosphonate ligand was partly
deprotonation (4ꢀcppH2−), the expected lowꢀdimensional structures 1 and 5 (1D) were obtained. With
the increase of the pH value (4.5–6.0), the phosphonate ligand was entirely deprotonation (4ꢀcpp3−), the
resulting 2–4 showed 2D layer structures. Thus, the pH value made a difference in the formation of the
final structures due to successive deprotonation of the phosphonate ligand with increasing pH value,
which resulted in an increased dimensionality of the asꢀsynthesized compounds. Secondly, it was
interesting that 1 exhibited a 1D chiral helical chain by spontaneous resolution in the absence of chiral
inducer. The phosphonate ligand adopted a “linear” shape86 and acted a simple bidentate bridge to link
9
ACS Paragon Plus Environment

Crystal Growth & Design
Page 10 of 28
1
2
3
4
5
6
7
8
9
two Cu(II) ions via paraꢀcarboxyl group and phosphonate group, forming a chiral helical chain with a
certain angle (O1–Cu–O4 = 94.81º). The remaining three positions were filled with one water molecule
and two nitrogen atoms from one Nꢀdonor ligand. The two coordinated molecules did not affect the
structure of the chiral helical chain, thus, the characteristic of chiral could be kept. This overall result
indicated that the “linear” shape and suitable pH value were believed to be the main reason for the
chirality of 1.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.4. Circular Dichroism. To study the enantiomeric optical activity of the crystals, the solidꢀstate
circular dichroism spectrum (CD) were investigated. As shown in Figure S9, randomly selected single
crystals of 1 from the same batch crystallized in the absence of chiral inducer displayed dichroic signal
with positive or negative Cotton effect. Results of the CD spectra and singleꢀcrystal studies identified
that the sample was a conglomerate which confirmed that spontaneous resolution occurred during the
forming process of crystallization. The CD spectra of bulk crystals in the presence of (+)ꢀcinchonine or
(ꢀ)ꢀcinchonidine exhibited a positive and negative mirror image dichroic signal at similar wavelength,
thus it indicated that the homochiral crystallization could be controlled by chiral induction (Figure 8).
Figure 8
3.5. Surface Photovoltage Properties. The surface photovoltage spectra were measured from 300 to
800 nm, which were shown in Figure 9. The UV–Vis spectra of all compounds were also recorded in a
form of solid from 200 to 800 nm (Figures S10–S14, Supporting Information). Broad response bands
of 1 and 5 were similar (Figure 9a and Figure 9e). Three response bands were observed by the
treatment of Origin 7.0 program. The bands at 327 and 350 nm for 1, 325 and 371 nm for 5 were
identified as the LMCT transitions of the O→Cu and N→Cu, while the bands at 675nm for 1, and 705
nm for 5 were ascribed to the d→d* transitions of Cu(II) ions. Four absorption bands were observed in
the UV–Vis absorption spectra of 1 and 5, respectively (Figure S10 and Figure S14, Supporting
Information). The bands at 236 nm for 1, 236 nm for 5 were attributed to the π→π* transitions of
ligands, while the bands at 303 and 315 nm for 1, 294 and 342 nm for 5 were identified as the LMCT
transitions of the O→Cu and N→Cu. Bands at 713 nm for 1, and 666 nm for 5 were ascribed to the
d→d* transitions of the Cu(II) ions.
Two response bands were observed in the SPS of 2 (Figure 9b). Four response bands were obtained
by the treatment of Origin 7.0: 333, 461, 470 and 652 nm. The three bands at 333, 461 and 470 nm
10
ACS Paragon Plus Environment

Page 11 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
were identified as the LMCT transitions of the O→Cu and N→Cu. The bands at 652 nm were ascribed
to the d→d* transitions of Cu(II) ions. Six absorption bands of 2 were found in the UV–Vis spectrum
(Figure S11, Supporting Information). The band at 236 nm was attributed to the π→π*transitions of
ligands, while the bands at 301 and 423 nm were identified as the LMCT transitions of the O→Cu and
N→Cu. In addition, the band at 718 nm was ascribed to the d→d* transitions of the Cu(II) ions.
The SPS of 3 and 4 were also similar with two response bands within 300–800 nm. By careful
differentiation through Origin 7.0 program, the response bands of 3 and 4 contained four filial bands,
respectively (Figure 9c and Figure 9d). Three response bands at 322, 372 and 463 nm for 3, 337, 392
and 462 nm for 4 were ascribed to the transition caused by LMCT (O→Cu and N→Cu). The response
bands at 728 nm for 3, and 657 nm for 4 were identified as the d→d* transitions of the Cu(II) ions. Five
absorption bands of 3 and 4 were found in the UV–Vis spectra (Figure S12 and Figure S13, Supporting
Information). The bands at 229 nm for 3, 225 nm for 4 were attributed to the π→π* transitions of
ligands. Three bands at 288, 312 and 372 nm for 3, 303, 329 and 349 nm for 4 were ascribed to the
LMCT transitions of the O→Cu and N→Cu. In addition, the bands at 682 nm for 3, 700 nm for 4 were
identified as the d→d* transitions of the Cu(II) ions.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In comparison with the SPS responses of 1–5 (Figure 9f), the conclusions were shown below: (1) All
five compounds showed positive SPS response bands from 300 to 800 nm, which exhibited that they
possessed certain surface photovoltage properties. The results indicated that the SPS and the UV–Vis
spectra were also basically consistent; (2) The structures of compounds could affect intensity of SPS
bands. The more dimensional was beneficial for supplying more electrons diffuse to the surface,
resulting in the enhancement of the SPS response intensities. 2–4 possessed a 2D layer structure, while
1 and 5 exhibited an infinite 1D chain structure. Therefore, the SPS intensities of 2–4 were higher than
those of 1 and 5. In addition, strong π−π stacking interactions in all five compounds made a difference
in transferring electrons or holes. Compared 4 with 3, the π−π stacking interactions (3.397 Å) of 4 were
stronger than those of in 3 (3.868 and 3.991 Å), which were beneficial to the increase of the SPV
response intensities. However, 1 only possessed a 2D layer structure, which resulted in the lowest
intensity of the SPS of 1.
Figure. 9
11
ACS Paragon Plus Environment

Crystal Growth & Design
Page 12 of 28
1
2
3
4
5
6
7
8
The FISPS of 1–5 between 300 and 800 nm were measured under the condition of external electric
fields at –5, 0, and +5 V, respectively (Figure 10). As seen from the figure, the SPV response intensities
increased with the positive fields increasing, in contrast, they reduced with the external negative fields
increasing. The FISPS confirmed that it was the typical characteristic of pꢀtype semiconductors.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure. 10
3.6. Magnetic Properties. The magnetic susceptibility data of 1, 2, 4 and 5 were measured from 2 to
300 K at 1000 Oe (Figure 11). For 1, the χT value was 0.42 cm3 mol−1 K at 300K, which was slightly
larger than the spinꢀonly value of 0.38 cm3 mol−1 K expected for an uncoupled Cu(II) (S = 1/2),
assuming that g = 2.00 (Figure 11a). Upon further cooling, the χT value kept a constant until 80 K.
Below the temperature, it increased rapidly to 0.56 cm3 mol−1 K at 3.5 K, and then dropped abruptly.
The overall magnetic behavior indicated the ferromagnetic interactions between Cu(II) and Cu(II)
centers. The magnetic susceptibility data were fitted by the Curie–Weiss law at 2−300 K, which gave C
= 0.42 cm3 mol−1 K and θ = 1.01 K. The positive θ value further demonstrated the ferromagnetic
coupling interactions between the paramagnetic centers. The field dependence of the magnetization was
measured from 0 to 50 kOe at 1.8 K (Figure S15, Supporting Information). The magnetization values at
50 kOe is 0.99 Nβ, which accorded with the ferromagnetic results of 1.00 Nβ calculated from MS =
gSCu with g = 2.00.
As shown in Figure 11b, the χT value at 300 K was 3.47 cm3 mol−1 K for 2, which was larger than
the spinꢀonly value of 3.38 cm3 mol−1 K for the uncorrelated nine Cu(II) (S = 1/2) with g = 2.00. Below
the temperature, the χT value gradually increased to reach a maximum value of 5.20 cm3 mol−1 K at 3.7
K. Upon further lowing, the χT value decreased to 4.17 cm3 mol−1 K at 2.0 K. The magnetic
susceptibility data obeyed the Curie–Weiss law at 2–300 K, which gave C = 3.33 cm3 mol−1 K and θ =
1.05 K. The positive θ value indicated the presence of ferromagnetic coupling between neighboring
metal centers. As illustrated in Figure S16 (Supporting Information), the fieldꢀdependent magnetization
of 2 was measured at 1.8 K in the field (0–50 kOe). The magnetization increased gradually with the
applied magnetic field and reached a value of 9.23 Nβ at 50 kOe, which was in agreement with the
saturation magnetization value of 9.0 Nβ expected for MS= gSCu with g = 2.00.
12
ACS Paragon Plus Environment

Page 13 of 28
Crystal Growth & Design
1
2
3
4
5
Figure. 11
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
At 300 K, the χT value was 1.29 cm3 mol−1 K for 4 (Figure 11c), which was slightly larger than the
theoretical value of 1.13 cm3 mol−1 K for the uncoupled three Cu(II) (S = 1/2, g = 2.00). Upon cooling,
the χT value gradually increased to a maximum value around 2 K, indicating the presence of
ferromagnetic coupling. The plot of 1/χ versus T obeyed the CurieꢀWeiss law at 2–300 K, which gave C
= 1.28 cm3 mol−1 K and θ= 0.95 K. At 1.8 K, the isothermal magnetization gradually increased with the
applied magnetic field and reached a saturated value of 3.03 Nβ at 50 kOe, which accorded with the
calculated value (3.00 Nβ for three Cu(II)). This observation suggested the ferromagnetic interactions
(Figure S17, Supporting Information).
For 5, the χT value was 0.43 cm3 mol−1 K at 300 K, a slightly larger than the theoretical value for one
independent Cu(II) assuming g = 2.00 (Figure 11d). Upon further cooling, the χT value underwent a
slowly increase, and reached a maximum value at 2.0 K. The magnetic susceptibility data obeyed the
Curie–Weiss law at 2–300 K with C = 0.43 cm3 mol−1 K and θ= 1.14 K. As illustrated in Figure S18
(Supporting Information), the M(H) curve indicated that the magnetization value was 1.07 Nβ at 50
kOe, which was consistent with the theoretical value calculated from MS = gSCu with g = 2.00. These
behaviors indicated the presence of ferromagnetic couplings between magnetic centers.
4. CONCLUSIONS
In summary, five copper(II) carboxyphosphonates had been successfully synthesized by using the
4ꢀcarboxyphenylphosphonic (4ꢀcppH3) and similar Nꢀdonor ligands (2, 2′ꢀbipy or 1, 10ꢀphen) under
hydrothermal conditions. The pH value and reaction temperature had a strong effect on the formation
of the targeted compounds. Furthermore, the π−π stacking interactions could also make a difference in
constructing the structure of compound and transferring electrons or holes of SPV. Therefore, all five
compounds exhibited different supramolecular structures. 2–5 possessed 3D supramolecular structures,
while 1 had a 2D supramolecular structure. It was noteworthy that 1 exhibited an unexpected 1D chiral
helical chain by spontaneous resolution. Furthermore, the homochiral copper(II) phosphonate (Rꢀ1 or
Sꢀ1) could be obtained by utilizing the (+)ꢀcinchonine or (ꢀ)ꢀcinchonidine as a chiral inducing agent. As
far as we known, it was first to obtain homochiral compound through the symmetrical achiral
carboxyphosphonates ligand by chiral inducer. Our results indicated that selecting the inexpensive and
13
ACS Paragon Plus Environment

Crystal Growth & Design
Page 14 of 28
1
2
3
4
5
6
7
8
9
symmetrical achiral ligands could be also used to prepare the chiral compound. Besides, the SPS and
FISPS of 1–5 indicated that they had positive SPV responses and exhibited pꢀtype semiconductor
characteristics. The results of magnetic measurement revealed that 1, 2, 4 and 5 indicated the presence
of ferromagnetic couplings between magnetic centers, which showed that these compounds had the
potential in semiconductor and magnetism composite materials.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ASSOCIATED CONTENT
Supporting Information. X−ray crystallographic files in CIF format for 1−5. Table S1: Crystal data
and refinement results for randomly selected crystals of 1, R-1 and S-1 with space group P21. Figures
S1–S5: The experimental and simulated powder XRD patterns of 1–5. Figures S6–S8: ORTEP
representation of a selected unit and crystal structure of 3. Figure S9: Solidꢀstate CD spectra of 1
recorded by seven randomly selected single crystals from the same batch. Figures S10–S14: The
UV–Vis absorption spectra of 1–5. Figures S15–S18: Field dependence of magnetization of 1, 2, 4 and
5 at 1.8 K. Figures S19–S23: The IR spectra of 1–5. Figures S24–S28: The TGA curves of 1–5. Table
S2: Selected bond lengths [Å] for 1–5. CCDC1419419 (1), 1494081 (R–1), 1492194 (S–1), 1492193
(2), 1419420 (3), 1419421 (4) and 1419422 (5) contain the supplementary crystallographic data for this
paper. These data can be obtained free of charge www.ccdc.cam.ac.uk/conts/retrieving.html (or from
the Cambridge Crystallographic Data Center, 12, Union Road, Cambridge CB21EZ, UK; fax: (+44)
1223–336–033; e–mail: deposit@ccdc.cam.ac.uk).
AUTHOR INFORMATION
Corresponding Author
*(Z.S.) Eꢀmail: szg188@163.com.
*(D.D.) Eꢀmail: dpdong@dlnu.edu.cn.
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENT
This work is supported by the National Natural Science Foundation of China (Grant No. 21371085 and
21301023).
14
ACS Paragon Plus Environment

Page 15 of 28
Crystal Growth & Design
1
2
3
4
5
REFERENCES
(1) Kitagawa, S.; Kitaura, R.; Noro, S. Angew. Chem. Int. Ed.
, 43, 2334ꢀ2375.
2004
6
7
8
9
(2) Murray, L. J.; Dinca, M.; Long, J. R. Chem. Soc. Rev. 2009, 38, 1294ꢀ1314.
(3) Li, J. R.; Kuppler, R. J.; Zhou, H. C. Chem. Soc. Rev. 2009, 38, 1477ꢀ1504.
(4) Ma, L. Q.; Abney, C.; Lin, W. B. Chem. Soc. Rev. 2009, 38, 1248ꢀ1256.
(5) Chen, B. L.; Xiang, S. C.; Qian, G. D. Acc.Chem.Res. 2010, 43, 1115ꢀ1124.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(6) Stock, N.; Biswas, S. Chem. Rev.
, 112, 933ꢀ969.
2012
(7) Furukawa, H.; Cordova, K. E.; O’Keeffe, M.; Yaghi, O. M. Science. 2013, 341, 974ꢀ986
(8) Li, D. S.; Zhao, J.; Wu Y. P.; Liu, B.; Bai, L.; Zou, K.; Du, M. Inorg. Chem. 2013, 52, 8091ꢀ8098.
(9) Li, D. S.; Wu, Y. P.; Zhao, J.; Zhang, J.; Lu, J. Y. Coord. Chem. Rev. 2014, 261, 1ꢀ27.
(10) Hu, B. L.; Wang, C. Y.; Wang, J. X.; Gao, J. K.; Wang, K.; Wu, J. S.; Zhang, G. D.; Cheng, W. Q.;
Venkateswarlu, B.; Wang, M. F.; Lee, P. S.; Zhang, Q. C. Chem. Sci. 2014, 5, 3404ꢀ3408.
(11) Clearfield, A. Curr. Opin. Solid State Mater. Sci. 2002, 6, 495ꢀ506.
(12) Maeda, K. Microporous Mesoporous Mater. 2004, 73, 47ꢀ55.
(13) Mao, J. G. Coord. Chem. Rev. 2007, 251, 1493ꢀ1520.
(14) Fu, R. B.; Hu, S. M.; Wu, X. T. CrystEngComm. 2011, 13, 2331ꢀ2335.
(15) Clearfield, A.; Demadis, K. Metal Phosphonate Chemistry: From Synthesis to Applications,
Royal Society of Chemistry, Oxford, 2012, pp164.
(16) Huang, J.; Bao, S. S.; Ling, L. S.; Zhu, H.; Li, Y. Z.; Pi, L.; Zheng, L. M. Chem. Eur. J. 2012, 18,
10839ꢀ10842.
(17) Colodrero, R. M. P.; Papathanasiou, K. E.; Stavgianoudaki, N.; OliveraꢀPastor, P.; Losilla, E. R.;
Aranda, M. A. G.; LeónꢀReina, L.; Sanz, J.; Sobrados, I.; ChoquesilloꢀLazarte, D.; GarcíaꢀRuiz, J.
M.; Atienzar, P.; Rey, F.; Demadis, K. D.; Cabeza, A. Chem. Mater. 2012, 24, 3780ꢀ3792.
(18) Gagnon, K. J.; Perry, H. P.; Clearfield, A. Chem. Rev. 2012, 112, 1034ꢀ1054.
(19) Zheng, Y. Z.; Evangelisti, M.; Tuna, F.; Winpenny, R. E. P. J. Am. Chem. Soc. 2012, 134,
1057ꢀ1065.
(20) Zhai, F. P.; Zheng, Q. S.; Chen, Z. X.; Ling, Y.; Liu, X. F.; Weng, L. H.; Zhou, Y. M.
CrystEngComm. 2013, 15, 2040ꢀ2043.
(21) Begum, S.; Wang, Z. Y.; Donnadio, A.; Costantino, F.; Casciola, M.; Valiullin, R.; Chmelik, C.;
Bertmer, M.; Kärger, J.; Haase, J.; Krautscheid, H. Chem. Eur. J. 2014, 20, 8862ꢀ8866.
(22) BazagaꢀGarcía, M.; Papadaki, M.; Colodrero, R. M. P.; OliveraꢀPastor, P.; Losilla, E. R.;
NietoꢀOrtega, B.; Aranda, M. Á. G.; ChoquesilloꢀLazarte, D.; Cabeza, A.; Demadis, K. D. Chem.
15
ACS Paragon Plus Environment

Crystal Growth & Design
Page 16 of 28
1
2
3
Mater. 2015, 27, 424ꢀ435.
(23) Bao, S. S.; Li, N. Z.; Taylor, J. M.; Shen, Y.; Kitagawa, H.; Zheng, L. M. Chem. Mater. 2015, 27,
8116ꢀ8125.
4
5
6
7
8
9
(24) Hix, G. B.; Turner, A.; Kariuki, B. M.; Tremayne, M.; MacLeanc, E. J. J. Mater. Chem. 2002, 12,
3220ꢀ3227.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(25) Ngo, H. L.; Lin, W. B. J. Am. Chem. Soc. 2002, 124, 14298ꢀ14299.
(26) Bauer, S.; Stock, N. Angew. Chem. Int. Ed. 2007, 46, 6857ꢀ6860.
(27) Chen, Z. X.; Zhou, Y. M.; Weng, L. H.; Zhao, D. Y. Cryst. Growth Des. 2008, 8, 4045ꢀ4053.
(28) Demadis, K. D.; Famelis, N.; Cabeza, A.; Aranda, M. A. G.; Colodrero, R. M. P.; InfantesꢀMolina,
A. Inorg. Chem. 2012, 51, 7889ꢀ7896.
(29) Zhou, T. H.; He, Z. Z.; Xu, X.; Qian, X. Y.; Mao, J. G. Cryst. Growth Des. 2013, 13, 838ꢀ843.
(30) Fu, R. B.; Hu, S. M.; Wu, X. T. Cryst. Growth Des. 2014, 14, 6197ꢀ6204.
(31) Song, J. L.; Mao, J. G. Chem. Eur. J. 2005, 11, 1417ꢀ1424.
(32) Tong, F.; Sun, Z. G.; Chen, K.; Zhu, Y. Y.; Wang, W. N.; Jiao, C. Q.; Wang, C. L.; Li, C. Dalton
Trans. 2011, 40, 5059ꢀ5065.
(33) Chen, K.; Sun, Z. G.; Zhu, Y. Y.; Liu, Z. M.; Tong, F.; Dong, D. P.; Li, J.; Jiao, C. Q.; Li, C.; Wang,
C. L. Cryst. Growth Des. 2011, 11, 4623ꢀ4631.
(34) Chandrasekhar, V.; Goura, J.; Sañudo, E. C. Inorg. Chem. 2012, 51, 8479ꢀ8487.
(35) Sheikh, J. A.; Adhikary, A.; Jena, H. S.; Biswas, S.; Konar, S. Inorg. Chem. 2014, 53, 1606ꢀ1613.
(36) Kondo, A.; Satomi, T.; Azuma, K.; Takeda, R.; Maeda, K. Dalton Trans. 2015, 44, 12717ꢀ12725.
(37) Fu, R. B.; Hu, S. M.; Wu, X. T. CrystEngComm. 2013, 15, 8937ꢀ8940.
(38) Sen, R.; Saha, D.; Mal, D.; Brandão, P.; Rogez, G.; Lin, Z. Eur. J. Inorg. Chem. 2013, 5020ꢀ5026.
(39) Zheng, T.; ClementeꢀJuan, J. M.; Ma, J.; Dong, L.; Bao, S. S.; Huang, J.; Coronado, E.; Zheng, L.
M. Chem. Eur. J. 2013, 19, 16394ꢀ16402.
(40) Goura, J.; Bag, P.; Mereacre, V.; Powell, A. K.; Chandrasekhar, V. Inorg. Chem. 2014, 53,
8147ꢀ8154.
(41) Yang, X. J.; Bao, S. S.; Ren, M.; Hoshino, N.; Akutagawa, T.; Zheng, L. M. Chem. Commun.
2014, 50, 3979ꢀ3981.
(42) Kronik, L.; Shapira, Y. Surf. Sci. Rep. 1999, 37, 1ꢀ206.
(43) Wang, D. J.; Zhang, J.; Shi, T. S.; Wang, B. H.; Cao, X. Z.; Li, T. J. J. Photochem. Photobiol. A:
Chem. 1996, 93, 21ꢀ25.
(44) Lin, Y. H.; Wang, D. J.; Zhao, Q. D.; Yang, M.; Zhang, Q. L. J. Phys. Chem. B. 2004, 108,
3202ꢀ3206.
16
ACS Paragon Plus Environment

Page 17 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
(45) Jin, J.; Gong, Y. Y.; Li, L.; Han, X.; Meng, Q.; Liu, Y. H.; Niu, S. Y. Spectrochim. Acta, Part A:
Molecular and Biomolecular Spectroscopy. 2015, 137, 856ꢀ863.
(46) Dong, D. P.; Sun, Z. G.; Tong, F.; Zhu, Y. Y.; Chen, K.; Jiao, C. Q.; Wang, C. L.; Li, C.; Wang, W.
N. CrystEngComm. 2011, 13, 3317ꢀ3320.
9
(47) Li, C.; Jiao, C. Q.; Sun, Z. G.; Chen, K.; Wang, C. L.; Zhu, Y. Y.; Zhu, J.; Zhao, Y.; Zheng, M. J.;
Sun, S. H.; Chu, W.; Tian, H. CrystEngComm. 2012, 14, 5479ꢀ5486.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(48) Sun, S. H.; Sun, Z. G.; Zhu, Y. Y.; Dong, D. P.; Jiao, C. Q.; Zhu, J.; Li, J.; Chu, W.; Tian, H.;
Zheng, M. J.; Shao, W. Y.; Lu, Y. F. Cryst. Growth Des. 2013, 13, 226ꢀ238.
(49) Sun, T.; Jiao, C. Q.; Li, W. Z.; Sun, Z. G.; Ma, C.; Zhu, Y. Y.; Ma, M. X.; Luo, H.; Zhang, X. W.;
Wang, M. L. RSC Adv. 2015, 5, 26410ꢀ26419.
(50) Li, J. T.; Cao, D. K.; Liu, B.; Li, Y. Z.; Zheng, L. M. Cryst. Growth Des. 2008, 8, 2950ꢀ2953.
(51) DeBurgomaster, P.; Darling, K.; Jones, S.; Zubieta, J. Inorg. Chim. Acta. 2010, 364, 150ꢀ156.
(52) Chen, Z. X.; Yang, H. Y.; Deng, M. L.; Ling, Y.; Weng, L. H.; Zhou, Y. M. Dalton Trans. 2012, 41,
4079ꢀ4083.
(53) Taddei, M.; Costantino, F.; Ienco, A.; Comotti, A.; Daud, P. V.; Cohend, S. M. Chem. Commun.
2013, 49, 1315ꢀ1317.
(54) Kan, W. Q.; Ma, J. F.; Liu, Y. Y.; Yang, J.; Liu, Bo. CrystEngComm. 2012, 12, 2268ꢀ2277.
(55) Chandrasekhar, V.; Goura, J.; Duthie, A. Inorg. Chem. 2013, 52, 4819ꢀ4824.
(56) Taddei, M.; Costantino, F.; Vivani, R.; Sangregorio, C.; Sorace, L.; Castelli, L. Cryst. Growth Des.
2012, 12, 2327ꢀ2335.
(57) Seo, J. S.; Whang, D.; Lee, H.; Jun, S. I.; Oh, J.; Jeon, Y. J.; Kim, K. Nature. 2000, 982ꢀ986.
(58) Kesanli, B.; Lin, W. B. Coord. Chem. Rev. 2003, 246, 305ꢀ326.
(59) PérezꢀGarcía, L.; Amabilino, D. B. Chem. Soc. Rev. 2007, 36, 941ꢀ967.
(60) Qiu, S. L.; Zhu, G. S. Coord. Chem. Rev. 2009, 253, 2891ꢀ2911.
(61) Morris, R. E.; Bu, X. H. Nat. Chem. 2010, 2, 353ꢀ361.
(62) Yoon, M.; Srirambalaji, R.; Kim, K. Chem. Rev. 2012, 112, 1196ꢀ1231.
(63) Liu, Y.; Xi, X. B.; Ye, C. C.; Gong, T. F.; Yang, Z. W.; Cui, Y. Angew. Chem. Int. Ed. 2014, 53,
13821ꢀ13825.
(64) Zhang, S. Y.; Wojtas, L.; Zaworotko, M. J. J. Am. Chem. Soc. 2015, 137, 12045ꢀ12049.
(65) Fredoueil, F.; Evain, M.; BujoliꢀDoeuff, M.; Bujoli, B. Eur. J. Inorg. Chem. 1999, 1077ꢀ1079.
(66) Evans, O. R.; Ngo, H. L.; Lin, W. B. J. Am. Chem. Soc. 2001, 123, 10395ꢀ10396.
(67) Shi, X.; Zhu, G. S.; Qiu, S. L.; Huang, K. L.; Yu, J. H.; Xu, R. R. Angew. Chem. Int. Ed. 2004, 43,
6482ꢀ6485.
17
ACS Paragon Plus Environment

Crystal Growth & Design
Page 18 of 28
1
2
3
(68) Yue, Q.; Yang, J.; Li, G. H.; Li, G. D.; Chen, J. S. Inorg. Chem. 2006, 45, 4431ꢀ4439.
(69) Liu, X. G.; Zhou, K.; Dong, J.; Zhu, C. J.; Bao, S. S.; Zheng, L. M. Inorg. Chem. 2009, 48,
1901ꢀ1905.
4
5
6
7
8
9
(70) Liu, X. G.; Huang, J.; Bao, S. S.; Li, Y. Z.; Zheng, L. M. Dalton Trans. 2009, 38, 9837ꢀ9842.
(71) Wang, T. T.; Bao, S. S.; Huang, J.; Li, Y. Z.; Zheng, L. M. Dalton Trans. 2013, 42, 1842ꢀ1847.
(72)Cai, Z. S.; Bao, S. S.; Ren, M.; Zheng, L. M. Chem. Eur. J. 2014, 20, 17137ꢀ17142.
(73) Liu, X. G.; Bao, S. S.; Huang, J.; Otsubo, K.; Feng, J. S.; Ren, M.; Hu, F. C.; Sun, Z. H.; Zheng, L.
M.; Wei, S. Q.; Kitagawa, H. Chem. Commun. 2015, 51, 15141ꢀ15144.
(74) Hou, S. Z.; Cao, D. K.; Li, Y. Z.; Zheng, L. M. Inorg. Chem. 2008, 47, 10211ꢀ10213.
(75) Dong, D. P.; Liu, L.; Sun, Z. G.; Jiao, C. Q.; Liu, Z. M.; Li, C.; Zhu, Y. Y.; Chen, K.; Wang, C. L.
Cryst. Growth Des. 2011, 11, 5346ꢀ5354.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(76) Diwu, J.; AlbrechtꢀSchmitt, T. E. Chem. Commun. 2012, 48, 3827ꢀ3829.
(77) Zhang, X. L.; Cheng, K.; Wang, F.; Zhang, J. Dalton Trans. 2014, 43, 285ꢀ289.
(78) Zhu, H.; Huang, J.; Bao, S. S.; Ren, M.; Zheng, L. M. CrystEngComm 2013, 15, 10316ꢀ10322.
(79) Jing X.; He, C.; Dong, D. P.; Yang, L. L.; Duan, C. Y. Angew. Chem. Int. Ed. 2012, 51,
10127ꢀ10131.
(80) Bishtand, K. K.; Suresh, E. J. Am. Chem. Soc. 2013, 135, 15690ꢀ15693.
(81) Yao, R. X.; Cui, X.; Wang, J.; Zhang, X. M. Chem. Commun. 2015, 51, 5108ꢀ5111.
(82) DeBurgomaster, P.; Liu, H. X.; O’Connor, C. J.; Zubieta, J. Inorg. Chim. Acta 2010, 363,
330ꢀ337.
(83) Rueff, JeanꢀMichel.; Perez, O.; Leclaire, A.; CouthonꢀGourvès, H.; Jaffrès, PaulꢀAlain. Eur. J.
Inorg. Chem. 2009, 4870ꢀ4876.
(84) Sheldrick, G. M. SHELXTL–97, Program for X–ray Crystal Structure Solution and Refinement,
University of Göttingen, Germany, 1997.
(85) Chandrasekhar, V.; Senapati, T.; Clérac, R. Eur. J. Inorg. Chem. 2009, 1640ꢀ1646.
(86) Wen, Y. H.; Sheng, T. L.; Xue, Z. Z.; Sun, Z. H.; Wang, Y. L.; Hu, S. M.; Huang, Y. H.; Li, J.; Wu,
X. T. Cryst. Growth Des. 2014, 14, 6230ꢀ6238.
18
ACS Paragon Plus Environment

Page 19 of 28
Crystal Growth & Design
1
2
3
4
Table 1 Crystal data and structure refinements for 1−5
5
6
7
compounds
1
R-1
S-1
2
3
4
5
8
9
empirical formula
C17H15N2O6PCu
C17H15N2O6PCu
C17H15N2O6PCu
C102H72N12O30P6Cu C34H24N4O10P2Cu3
C38H32N4O14P2Cu3
C19H15N2O6P
10
11
12
13
14
15
16
17
18
9
fw
901.13
1021.24
461.84
437.82
monoclinic
P21
437.82
monoclinic
P21
437.82
2703.40
crystal system
space group
a (Å)
monoclinic
P21
triclinic
triclinic
triclinic
triclinic
P–1
P–1
P–1
P–1
9.9344(12)
6.9602(8)
12.1272(14)
90
9.956(4)
6.963(3)
12.160(5)
90
9.9610(14)
6.9692(10)
12.1510(17)
90
12.3245(12)
12.7459(12)
17.0579(16)
84.3110(10)
81.020(2)
64.188(2)
2381.2(4)
1
8.379(8)
9.639(8)
9.845(9)
86.109(15)
84.481(15)
89.695(11)
789.6(12)
1
8.3986(2)
9.8134(3)
12.0312(3)
104.270(2)
99.452(2)
91.452(2)
945.70(4)
1
9.5303(6)
10.5398(6)
10.7556(6)
100.2730(10
105.0200(10
112.3810(10
917.27(9)
2
b (Å)
19 c (Å)
20
α (deg)
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
β(deg)
γ(deg)
V (Å3)
Z
92.614(2)
90
92.652(7)
90
92.685(2)
90
837.67(17)
2
842.1(6)
2
842.6(2)
2
ρcalcd (g·cm−3)
1.736
1.727
1.726
1.885
1.895
1.793
1.672
ꢀ
(mm–1)
1.439
1.432
1.431
2.163
2.174
1.835
1.320
date collected
4789
4521
4690
13693
3994
7170
5255
unique date, Rint
3084, 0.0338
2689, 0.0480
100.0 %
1.010
2805, 0.0400
99.8 %
9737,0.0461
98.5%
2756, 0.0351
99.5 %
3322, 0.0228
99.8 %
3748, 0.0111
98.6 %
completeness to theta = 26.49 99.3 %
GOF on F2
R1[a], wR2[b](I>2σ (l))
R1[a], wR2[b] (all data)
aR1 = Σ (|F0|–|FC|) /Σ |F0|; bwR2 = [Σw (|F0|–|FC|) 2/Σw F0 ] 1/2
0.994
1.015
1.036
1.008
1.016
1.070
0.0390, 0.0671
0.0548,0.0731
0.0436, 0.0715
0.0405, 0.0742
0.0520, 0.0788
0.0592, 0.1175
0.2316, 0.1621
0.0539, 0.1215
0.0897, 0.1316
0.0331, 0.0916
0.0397, 0.0959
0.0358, 0.09
0.0456, 0.10
0.0600, 0.0770
2
.
19
ACS Paragon Plus Environment

Crystal Growth & Design
Page 20 of 28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 1. Coordination modes of the 4ꢀcppH3 ligands in 1–5.
20
ACS Paragon Plus Environment

Page 21 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. (a) ORTEP representation of a selected unit of Rꢀ1 (left) and Sꢀ1 (right). The thermal ellipsoids are drawn at
the 50% probability level. All H atoms and lattice water molecules are omitted for clarity; (b) A 1D helix chain of Rꢀ1
(left) and Sꢀ1 (right) viewed along the b–axis; (c) The 2D layer molecular structure of Rꢀ1 via the π−π stacking
interactions; (d) The π−π stacking interactions between the adjacent 2, 2'ꢀbipy rings with the faceꢀtoꢀface distances of
3.695 and 3.781 Å.
Figure 2. ORTEP representation of a selected unit of 2. The thermal ellipsoids are drawn at the 50% probability level.
All H atoms and lattice water molecules are omitted for clarity.
21
ACS Paragon Plus Environment

Crystal Growth & Design
Page 22 of 28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3. (a) The layer structure of 2 viewed in bc–plane; (b) The 3D supramolecular structure of 2 via the π−π
stacking interactions between the adjacent 2, 2'ꢀbipy rings with the faceꢀtoꢀface distances of 3.835–3.992 Å.
Figure 4. ORTEP representation of a selected unit of 4. The thermal ellipsoids are drawn at the 50% probability level.
All H atoms and lattice water molecules are omitted for clarity.
22
ACS Paragon Plus Environment

Page 23 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Figure 5. (a) The layer structure of 4 viewed in ab–plane; (b) The 3D supramolecular structure of 4 via the π−π
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
stacking interactions between the adjacent 1, 10ꢀphen rings with the faceꢀtoꢀface distances of 3.397 Å.
Figure 6. ORTEP representation of a selected unit of 5. The thermal ellipsoids are drawn at the 50% probability level.
All H atoms and lattice water molecules are omitted for clarity.
23
ACS Paragon Plus Environment

Crystal Growth & Design
Page 24 of 28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 7. (a) A 1D double chain along the b–axis; (b) The 3D supramolecular structure of 5 via the π−π stacking
interactions; (c) The C−H−π stacking interactions along a–axis; (d) The π−π stacking interactions along c–axis.
Figure 8. Solidꢀstate CD spectra of Rꢀ1 and S-1.
24
ACS Paragon Plus Environment

Page 25 of 28
Crystal Growth & Design
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 9. The SPS of 1 (a), 2 (b), 3 (c), 4 (d) and 5 (e); (f) A comparative SPS of 1−5.
Figure 10. The FISPS of 1 (a), 2 (b), 3 (c), 4 (d) and 5 (e).
25
ACS Paragon Plus Environment

Crystal Growth & Design
Page 26 of 28
1
2
3
4
5
6
(a)
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(b)
(c)
26
ACS Paragon Plus Environment

Page 27 of 28
Crystal Growth & Design
1
2
3
4
5
(d)
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Figure 11. Temperatureꢀdependent magnetic susceptibilities of 1 (a), 2 (b),4 (c) and 5 (d) in the temperature range of
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2–300 K under an applied field of 1000 Oe.
27
ACS Paragon Plus Environment

Crystal Growth & Design
Page 28 of 28
1
2
3
4
5
"For Table of Contents Use Only"
6
7
8
9
Chiral and Achiral Copper(II) Carboxyphosphonates Supramolecular
Structure: Synthesis, Structures, Surface Photovoltage and Magnetic
Properties
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ChengꢀQi Jiao,† Zhou Zhao,† Chao Ma,† ZhenꢀGang Sun*,†, DaꢀPeng Dong*,‡, YanꢀYu Zhu,† and Jing
Li†
Five chiral and achiral copper(II) carboxyphosphonates with 2D/3D supramolecular structures had been
hydrothermally synthesized with different reaction temperature and pH value. It was noteworthy that 1 exhibited an
unexpected 1D chiral helical chain by spontaneous resolution. More importantly, the homochiral copper(II)
phosphonate (R-1 or S-1) could be obtained by the method of chiral induction through using the (+)ꢀcinchonine or
(ꢀ)ꢀcinchonidine chiral inducer. Besides, the surface photovoltage (SPV) and magnetic properties of these compounds
were also investigated.
28
ACS Paragon Plus Environment
