458 JOURNAL OF CHEMICAL RESEARCH 2012
Table 1 Screening of catalysts for the model reaction in
t-BuOH/H2O under the ultrasonic irradiation a
DMSO-d6 at room temperature (20 2 °C). 1H and 13C chemical shifts
are quoted in parts per million downfield from TMS. ESI MS were
recorded on a Bruker Esquire 3000. High-resolution mass spectra (HR
MS) were performed on a MicrOTOF-Q II mass spectrometer with an
ESI source (Waters, Manchester, UK).
Synthesis of the target molecules (5a–g); general procedure
Substituted terminal alkyne (0.3 mmol) and 3 (0.3 mmol) were sus-
pended in t-BuOH/H2O (3 mL, 1:1, v/v) in a 10 mL round-bottomed
flask followed by Cu(OAc)2·H2O (10 mol%) and sodium ascorbate
(20 mol%). The mixture was sonicated in a laboratory ultrasonic
cleaning bath. After completion of the reaction, as indicated by TLC,
the reaction mixture was diluted with 10 mL water, and the precipitate
was collected and washed with cold water and saturated ammonium
chloride as a grey solid. The crude product was purified by column
chromatography on silica gel using ethyl acetate /petroleum ether
(2:1, v/v) as eluent.
Copper salts
Reductant
Time/min Yield/%b
Cu(OAc)2·H2O
Cu(OAc)2·H2Oc
CuSO4·5H2O
CuBr2
CuCl2·2H2O
CuI
Sodium ascorbate
25
36 (h)
40
95
94
83
68
67
86
71
85
Sodium ascorbate
Sodium ascorbate
Sodium ascorbate
70
Sodium ascorbate
80
–
–
–
55
CuBr
CuCl
55
55
a Reaction conditions: 0.1 mmol azide, 0.1 mmol terminal
alkyne, 30 °C.
1-(2-Hydroxy-4-methoxyphenyl)-2-{4-[(4-chlorophenoxy)methyl]-
1H-1,2,3-triazol-1-yl}ethan-1-one (5a): White solid, m.p. 156–158
°C, IR (KBr, vmax): 2939, 2845, 1631, 1578, 1509, 1202, 1132, 823,
b Isolated yield.
c In absence of ultrasound irradiation condition.
1
807, 777 cm−1. H NMR (400 MHz, CDCl3): δ = 3.87 (s, 3H, CH3),
5.23 (s, 2H, CH2), 5.80 (s, 2H, CH2), 6.47 (d, J = 2.0 Hz, 1H, ArH),
6.52 (dd, J1 = 4.0 Hz, J2 = 8.0 Hz, 1H, ArH), 6.92 (d, J = 12 Hz, 2H,
ArH), 7.23 (d, J = 12 Hz, 2H, ArH), 7.64 (d, J = 8.0 Hz, 1H, ArH),
7.78 (s, 1H, CH), 11.90 (s, 1H, OH). 13C NMR (100 MHz, CDCl3):
δ = 54.3, 55.8, 62.2, 101.2, 108.9, 111.1, 116.1, 124.8, 126.2, 129.4,
130.3, 144.2, 156.8, 165.8, 167.2, 192.9. ESI MS m/z: 374 [M + H]+.
1,3-dipolar cycloaddition reaction catalysed by Cu(OAc)2·H2O/
sodium ascorbate was completed in 25 minutes in 95% yield
(Table 1). In comparison to Cu(OAc)2·H2O/sodium ascorbate,
lower catalytic efficiencies were observed for other catalysts,
among which CuCl2·2H2O/sodium ascorbate showed the
lowest (67% yield) in 80 minutes and CuSO4·5H2O/sodium
ascorbate the highest (83% yield). Therefore, Cu(OAc)2·H2O/
sodium ascorbate was chosen as the catalyst.
Under the optimised reaction conditions mentioned above,
more paeonol derivatives linked with 1,2,3-triazoles ring were
synthesised by using various substituted terminal alkynes. As
can be seen from Table 2, in all cases, a series of new paeonol
derivatives linked with 1,2,3-triazoles moiety were obtained in
good yields.
HR MS m/z: 374.0904 [M
374.0908).
+
H]+, (Calcd for C18H17ClN3O4
1-(2-Hydroxy-4-methoxyphenyl)-2-{4-[(3-methylphenoxy)methyl]-
1H-1,2,3-triazol-1-yl}ethan-1-one (5b): White solid, m.p. 116–
118 °C, IR (KBr, vmax): 2946, 2920, 2843, 1638, 1625, 1583, 1504,
1205, 1132, 831, 801, 748 cm−1. 1H NMR (400 MHz, CDCl3): δ = 2.33
(s, 3H, CH3), 3.87 (s, 3H, CH3), 5.25 (s, 2H, CH2), 5.79 (s, 2H, CH2),
6.47 (d, J = 2.4 Hz, 1H, ArH), 6.52 (d, J = 8.0 Hz, 1H, ArH), 6.79
(t, J = 8.0 Hz, 3H, ArH), 7.16 (t, J = 8.0 Hz, 1H, ArH), 7.64 (d, J =
8.0 Hz, 1H, ArH), 7.78 (s, 1H, CH), 11.92 (s, 1H, OH). 13C NMR
(100 MHz, CDCl3): δ = 21.5, 54.3, 55.8, 61.9, 101.2, 108.8, 111.1,
111.6, 115.6, 122.1, 129.3, 130.4, 139.6, 158.2, 165.7, 167.2, 193.1.
ESI MS m/z: 354 [M + H]+. HR MS m/z: 354.1462 [M + H]+, (Calcd
for C19H20N3O4 354.1454).
2-(4-Cyclopropyl-1H-1,2,3-triazol-1-y)-1-(2-hydroxy-4-methoxyphenyl)-
ethan-1-one (5c): White solid, m.p. 148–150 °C, IR (KBr, vmax): 2951,
2826, 2850, 1643, 1623, 1572, 1518, 1185, 819 cm−1. 1H NMR
(400 MHz, CDCl3): δ = 0.89 (m, 2H, CH2), 0.95 (m, 2H, CH2), 1.96
(m, 1H, CH), 3.87 (s, 3H, CH3), 5.72 (s, 2H, CH2), 6.46 (d, J = 2.4 Hz,
1H, ArH), 6.51 (dd, J1 = 2.4 Hz, J2 = 8.0 Hz, 1H, ArH), 7.40 (s, 1H,
CH) 7.64 (d, J = 8.0 Hz, 1H, ArH), 11.96 (s, 1H, OH). 13C NMR
(100 MHz, CDCl3): δ = 6.7, 7.8, 54.2, 55.7, 101.2, 108.8, 111.2, 121.7,
130.5, 150.6, 165.7, 167.1, 193.5. ESI MS m/z: 274 [M + H]+. HR MS
m/z: 274.1190 [M + H]+, (Calcd for C14H16N3O3 274.1192).
1-(2-Hydroxy-4-methoxyphenyl)-2-[4-(4-propylphenyl)-1H-1,2,3-
triazol-1-yl]ethan-1-one (5d): White solid, m.p. 163–164 °C, IR (KBr,
vmax): 2950, 2867, 2843, 1633, 1581, 1507, 1464, 1213, 829, 813 cm−1.
1H NMR (400 MHz, CDCl3): δ = 0.94 (t, J = 6.0 Hz, 3H, CH3), 1.64
(m, 2H, CH2), 2.60 (t, J = 8.0 Hz, 2H, CH2), 3.87 (s, 3H, CH3), 5.82
(s, 2H, CH2), 6.47 (d, J = 8.0 Hz, 1H, ArH), 6.52 (dd, J1 = 4.0 Hz,
J2 = 8.0 Hz, 1H, ArH), 7.24 (s, 1H, CH), 7.26 (s, 1H, CH), 7.67 (d,
J = 8.0 Hz, 1H, ArH), 7.76 (d, J = 8.0 Hz, 2H, ArH), 7.89 (s, 1H, CH),
11.97 (s, 1H, OH). 13C NMR (100 MHz, CDCl3): δ = 13.8, 24.4, 37.8,
54.3, 55.7, 101.2, 108.8, 111.2, 121.2, 125.7, 127.8, 128.9, 130.4,
142.9, 148.3, 165.8, 167.2, 193.2. ESI MS m/z: 352 [M + H]+. HR MS
m/z: 352.1662 [M + H]+, (Calcd for C20H22N3O3 352.1661).
In summary, a highly efficient synthesis of paeonol deriva-
tives linked with 1,2,3-triazole in t-BuOH/H2O was developed
by using Cu(OAc)2·H2O/sodium ascorbate as the catalyst
system with the help of ultrasound irradiation.
Experimental
All the chemicals were obtained from Tianjin Kermel Chemical
Reagent Co., Ltd. and used as received. All melting points were deter-
mined on a YUHUA X-3 melting point apparatus and are reported
uncorrected. Sonication was performed in a Kunshan KQ-250B ultra-
sonic cleaner with a frequency of 40 kHz and a power 150 W. The
reaction flasks were located in the maximum energy area in the
cleaner, and the temperature of the reaction solution was controlled at
30 °C by the addition or removal of the bath water. IR spectra were
recorded on a Bio-rad FTS-40. 1H, 13C spectra were recorded on
a Bruker Avance 400 MHz spectrometer operating at 400.13 and
100.61 MHz, respectively. NMR spectra were recorded in CDCl3 or
Table 2 Paeonol derivatives linked with 1,2,3-triazole moiety
(5a–g)a
2-[4-(4-Ethylphenyl)-1H-1,2,3-triazol-1-yl]-1-(2-hydroxy-4-methoxy-
Entry
R
Yield/%b
phenyl)ethan-1-one (5e): White solid, m.p. 168–170 °C, IR (KBr, vmax):
1
2934, 2843, 1622, 1566, 1500, 1460, 1199, 847, 813 cm−1. H NMR
5a
5b
5c
5d
5e
5f
4-ClC6H5.O.CH2.
3-CH3C6H5.O.CH2.
C3H5.
85
86
69
89
89
88
88
(400 MHz, CDCl3): δ = 1.24 (t, J = 8.0 Hz, 3H, CH3), 2.66 (dd, J1 =
4.0 Hz, J2 = 8.0 Hz, 2H, CH2), 2.60 (t, J = 8.0 Hz, 2H, CH2), 3.87 (s,
3H, CH3), 5.81 (s, 2H, CH2), 6.47 (d, J = 2.4 Hz, 1H, ArH), 6.52 (dd,
J1 = 4.0 Hz, J2 = 8.0 Hz, 1H, ArH), 7.26 (s, 1H, CH), 7.28 (s, 1H, CH),
7.67 (d, J = 8.0 Hz, 1H, ArH), 7.77 (d, J = 8.0 Hz, 2H, ArH), 7.89 (s,
1H, CH), 11.97 (s, 1H, OH). 13C NMR (100 MHz, CDCl3): δ = 15.5,
28.6, 54.3, 55.7, 101.2, 108.8, 111.2, 121.2, 125.8, 127.8, 128.3,
130.4, 144.5, 148.3, 165.8, 167.2, 193.2. ESI MS m/z: 338 [M + H]+.
HR MS m/z: 338.1500 [M + H]+, (Calcd for C19H20N3O3 338.1505).
4-CH3CH2CH2C6H5.
4-CH3CH2C6H5.

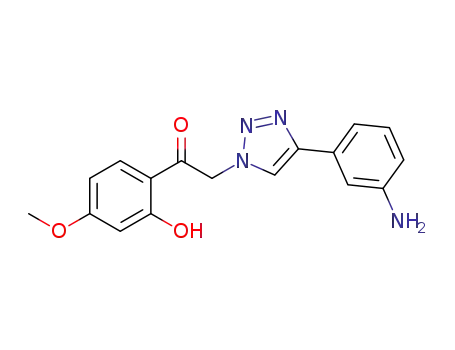

3-NH2C6H5.
5g
4-CH3C6H5.
a Reaction conditions: 0.3 mmol azide, 0.3 mmol terminal
alkyne, 30 °C.
b Isolated yields.
