Synthesis of arylbenziodoxoles using pseudocyclic benziodoxole triflate and arenes

Article abstract of DOI:10.24820/ARK.5550190.P011.324

An acid activated pseudocyclic hypervalent iodine reagent, 2-[hydroxy(trifluoromethanesufonyloxy)]-iodobenzoic acid, can easily react with various arenes in the presence of trifluoromethanesulfonic acid to produce pseudocyclic diaryliodonium triflate salt

Full text of DOI:10.24820/ARK.5550190.P011.324

The Free Internet Journal
for Organic Chemistry
Paper
Archive for
Arkivoc 2020, part iv, 0-0
Organic Chemistry
to be inserted by editorial office
Synthesis of arylbenziodoxoles using pseudocyclic benziodoxole triflate and
arenes
Akira Yoshimura,*a,b Scott M. Larson,a Gunnar B. Frahm,a Christopher D. Huss,a Gregory T. Rohde,c Victor N.
Nemykin,d Mekhman S. Yusubov,b Akio Saito,e and Viktor V. Zhdankin
a Department of Chemistry and Biochemistry, University of Minnesota Duluth, Duluth, Minnesota 55812, USA
b Tomsk Polytechnic University, 634050 Tomsk, Russia
c Marshall School, Duluth, Minnesota 55811, USA
d Department of Chemistry, University of Manitoba, Winnipeg, MB R3T 2N2, Canada
e Division of Applied Chemistry, Institute of Engineering, Tokyo University of Agriculture and Technology,
2-23-16 Naka-cho, Koganei, Tokyo 184-8588, Japan
Email: ayoshimu@d.umn.edu
Received mm-dd-yyyy
Dates to be inserted by editorial office
Abstract
Accepted mm-dd-yyyy
Published on line mm-dd-yyyy
An acid activated pseudocyclic hypervalent iodine reagent, 2-[hydroxy(trifluoromethanesufonyloxy)]-
iodobenzoic acid, can easily react with various arenes in the presence of trifluoromethanesulfonic acid to
produce pseudocyclic diaryliodonium triflate salts. This synthetic procedure proceeds under mild conditions to
afford the respective iodonium salts in moderate to good yields. Several pseudocyclic diaryliodonium triflate
salts structures have been confirmed by X-ray crystallography. Obtained products can be easily converted to
cyclic hypervalent iodine(III) compounds, arylbenziodoxolones, in moderate to good yields under basic
conditions.
Keywords: Hypervalent iodine reagent, pseudocyclic diaryliodonium salts, arylbenziodoxolones, benziodoxole,
cyclization
DOI: https://doi.org/10.24820/ark.5550190.p011.324
Page 1
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
Introduction
Hypervalent iodine compounds have been used as efficient oxidizing reagents and employed in many
conversion reactions in organic synthesis. Diaryliodonium salts are one of the most important classes of
hypervalent iodine(III) reagents, and many attractive reactions using them have been reported.1-11 In
particular, most of these compounds are commonly used as the electrophilic aryl transfer reagents toward
various organic substrates, resulting in the synthesis of various aryl derivatives.12-17 Diaryliodonium salts are
also used as benzyne precursor reagents, and many benzyne mediated reactions utilizing these reagents have
been reported.18,19 While numerous reaction examples using diaryliodonium salts are well-known, a number
of synthetic studies on them have also been reported.12 A typical synthetic method of diaryiodonium salts is to
combine common hypervalent iodine(III) reagents with aromatic compounds under appropriate conditions. As
a developed synthetic example, the diaryliodonium compounds can be prepared from iodoarenes and
aromatic compounds by treatment with suitable oxidants.
Recently, various pseudcyclic hypervalent iodine(III) compounds have been prepared and investigated.20,21
Most of these compounds have higher stability and improved reactivity in comparison to their respective non-
cyclic hypervalent iodine(III) reagents.22-36 Previously, our group has reported the preparation, structure, and
reactivity of 2-[hydroxy(trifluoromethanesulfonyloxy)]-iodobenzoic acid (IBA-TfOH), which is the pseudocylcic
analogue compound of [hydroxy(trifluoromethanesulfonyloxy)iodo]benzene PhI(OH)OTf.37-40 The novel IBA-
TfOH reagent showed better reactivity as well as higher stability than PhI(OH)OTf. In our previous experiment,
the reactivity of IBA-TfOH using mesitylene was investigated as an efficient approach to the pseudocyclic
diaryliodonium triflate (Scheme 1).37
Scheme 1. Reaction of IBA-TfOH using mesitylene.
However, the reactivity towards other arenes using IBA-TfOH has not been reported. In the present study,
we report the optimization and scope for the preparation of pseudocyclic diaryliodonium triflates from IBA-
TfOH reagents with various arenes in the presence of trifluoromethanesulfonic acid. The obtained products
can be further converted to the cyclic hypervalent iodine(III) compounds, arylbenziodoxolones, under mild
basic conditions.41,42
Results and Discussion
We investigated the preparation of pseudocyclic diaryliodonium triflate 3a using IBA-TfOH 1 and benzene 2a in
different solvents based on our previous results (Table 1). In the initial study, the reaction was performed in
2,2,2-trifluoroethanol (TFE) in the absence of TfOH under our previously reported condition resulting in no
desired product 3a, and the reagent 1 was recovered from the reaction mixture (entry 1). The reaction using
Page 2
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
excess amount of benzene 2a in TFE or dichloromethane condition also did not produce the desired product
3a (entries 2 and 3). Addition of TfOH as an additive in dichloromethane dramatically improved the reaction to
give the desired product 3a in quantitative yield (entry 4). Screening of various solvents in the presence of
TfOH has demonstrated that dichloromethane is the best solvent in this transformation reaction (entries 4-10).
Decreasing the amount of benzene 2a from 56.0 to 4.0 equivalents did not affect the yield of product 3a
(entries 4, 11-13). Further decreasing the amount of benzene 2a led to a reduced yield of product 3a (entries
14-16).
Table 1. Optimization of synthesis of pseudocyclic diaryliodonium triflate 3a.a
Entry
1c
2c
3c
4
5
6
7
8
Benzene 2a (equiv.)
1
Solvent
TFE
TFE
3a (%)b
0d
56
56
56
56
56
56
56
56
56
10
5
0d
CH2Cl2
CH2Cl2
TFE
MeCN
AcOEt
Heptane
ClCH2CH2Cl
CHCl3
CH2Cl2
CH2Cl2
CH2Cl2
CH2Cl2
CH2Cl2
CH2Cl2
0d
>99
0d
0d
0d
0d
9
80
82
>99
>99
>99
84
10
11
12
13
14
15
4
3
2
1
79
58
16
a
Reaction conditions: IBA-TfOH 1 (1 equiv.), benzene 2a (1–56 equiv.) and TfOH (0–1.2 equiv.) in various
solvent (2.0 mL) at room temperature for 24 hours. b Yield of isolated product. c In the absence of TfOH. d IBA-
TfOH 1 was recovered from the reaction mixture.
By using the optimal conditions, we have investigated the conversion of various substituted arenes 2 to
the respective pseudocyclic diaryliodonium triflates 3. In general, the reaction of arenes with either electron-
donating or electron-withdrawing substituents gave the corresponding desired products 3a-l in moderate to
good yields. The reaction with sterically bulky ortho-substituted arenes also gave the pseudocyclic
diaryliodonium triflates 3 in moderate to good yields (Table 2). Structures of pseudocyclic diaryliodonium
triflates 3a, 3f and 3k were established by X-ray crystallography (Figure 2). According to the X-ray data, the
Page 3
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
pseudocyclic diaryliodonium structures with strong intramolecular interaction between iodine and oxygen
atoms were observed.20,30,31,37,43 The triflate oxygen atom was also involved in a weak intermolecular
interaction with iodine atom resulting in a pseudo-square planar coordination of hypervalent iodine center.
Table 2. Preparation of pseudocyclic diaryliodonium triflates 3 using IBA-TfOH 1 with various arene 2.a
a
Reaction conditions: IBA-TfOH 1 (1 equiv.), arene 2 (4 equiv.) and TfOH (1.2 equiv.) in dichloromethane at
room temperature for 24 hours.
Page 4
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
Figure 1. X-ray crystal structure of 3a (CCDC 2021394), 3f (CCDC 2021395) and 3k (CCDC 2021393). Thermal
Ellipsoids were drawn at the 50% probability level. Hydrogen atoms bonded to carbon atoms and water
molecules in 3a and 3f were removed for clarity. Iodine-oxygen close contact distances in Å: 3a I…O(BA) =
2.619(3), I…O(OTf) = 2.950(4); 3f I…O(BA) = 2.623(7), I…O(OTf) = 3.150(7); 3k I…O(BA) = 2.635(6), I…O(OTf) =
2.838(6).
Next, we investigated a one-pot preparation of pseudocyclic diaryliodonium triflate 3a from benzene 2a
and IBA-TfOH 1 generated in situ from 2-iodosylbenzoic acid 4a with trifluoromethanesulfonic acid (Scheme
2). This reaction gave the pseudocyclic diaryliodonium triflate 3a in quantitative yield (eq. 1).37 Compared to
the previously reported method for preparation of pseudocyclic diaryliodonium triflates, our one-pot
procedure was able to afford these products in comparable yields.44 As expected, the reaction of substituted
iodosylbenzoic acids 4b,c under one-pot method resulted in the corresponding compounds 3m,n in good
yields (eq. 1).45 Furthermore, we have found that 3a could be prepared in moderate yield from 2-iodobenzoic
acid and benzene using m-chloroperoxybenzoic acid in the presence of trifluoromethanesulfonic acid (eq. 2).41
Scheme 2. One-pot synthesis of pseudocyclic diaryliodonium triflates.
Finally, we have demonstrated that the obtained pseudocyclic diaryliodonium triflates could be converted
to arylbenziodoxolones.41,42,46,47 In particular, the treatment of 3a with sodium bicarbonate could lead to

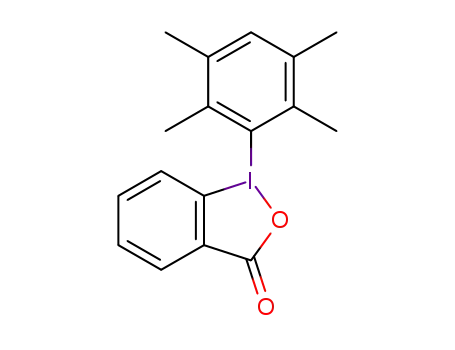

phenylbenziodoxolone 6a in quantitative yield. Following this strategy, we performed the reaction of
substituted pseudocyclic diaryliodonium triflates 3a-n resulting in the desired arylbenziodoxolones 6a-n in
moderate to good yields (Table 3).
Table 3. Preparation of arylbenziodoxolones 6 from pseudocyclic diaryliodonium triflates 3.a
Page 5
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
a Reaction conditions: Pseudocyclic diaryliodonium triflates 3 in saturated NaHCO3 aqueous –dichloromethane
(1:2) at room temperature for 1 hour. b The isomeric ortho and para products were detected.
Conclusions
In summary, we have prepared the pseudocyclic diaryliodonium triflates from IBA-TfOH and arenes in the
presence of TfOH. The structure of several products 3 was confirmed by X-ray crystallography. The
combination of 2-iodosylbenzoic acid and trifluoromethanesulfonic acid, or 2-iodobenzoic acid and m-
chloroperoxybenzoic acid in the presence of trifluoromethanesulfonic acid generates IBA-TfOH in-situ, which
can be used for the preparation of pseudocyclic diaryliodonium triflates. Furthermore, the produced
pseudocyclic diaryliodonium triflates can be easily converted to the respective arylbenziodoxolones under
mild basic condition.
Page 6
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
Experimental Section
General. All reactions were performed under dry argon atmosphere with flame-dried glassware.
Dichloromethane was distilled from CaH2 immediately prior to use. All commercial reagents were ACS reagent
grade and used without further purification. Melting points were determined in an open capillary tube with a
Mel-temp II melting point apparatus. Infrared spectra were recorded on a PerkinElmer 1600 series FT-IR
spectrophotometer. NMR spectra were recorded on a Varian Inova 500, 300 MHz and Bruker 400 MHz NMR
spectrometer (1H NMR and 13C NMR). X-ray crystal analysis was performed by Rigaku RAPID II XRD Image Plate
using graphite-monochromated Cu or Mo K radiation ( = 1.54187 or 0.71073 Å) at 125 or 173 K. Please see
the cif file for more detailed crystallography information. Hypervalent iodine reagents, IBA-TfOH 1,39, 2-
Iodosylbenzoic acids 4a-b48, and 4c49 were prepared according to the reported procedure.
General procedure for preparation of pseudocyclic diaryliodonium triflates 3 using IBA-TfOH 1 and arenes 2.
Arenes 2 (0.80 mmol), and trifluoromethanesulfonic acid (30 mg, 0.20 mmol) were added to a solution of IBA-
TfOH 1 (83 mg, 0.20 mmol) in dichloromethane (1 mL). The reaction was stirred at room temperature for 24
hours. After completion of the reaction, the solvent was removed under reduced pressure and the solid
product was washed with diethyl ether several times then dried in vacuum to give the pure compound 3.
2-Carboxyphenyl(phenyl)iodonium triflate (3a).44 Reaction of benzene 2a (62 mg, 0.80 mmol) according to
general procedure afforded 98 mg (99%) of product 3a isolated as a white solid: mp 230.5-231.4 °C (lit.44; mp
198-220 °C); IR (KBr) cm-1 3479, 3075, 3052, 1674, 1586, 1472, 1444, 1292, 1163, 1023, 911, 745; 1H NMR (300
MHz, CD3CN):  8.40 (dd, J 7.5 Hz, 1.5 Hz, 1H), 8.17 (d, J 8.4 Hz, 2H), 7.96 (t, J 7.5 Hz, 1H), 7.84-7.66 (m, 4H),
7.07 (d, J 8.4 Hz, 1H); 13C NMR (75 MHz, CD3CN):  169.0, 138.1, 137.5, 134.1, 133.3, 132.7, 131.7, 129.7,
1
126.3, 120.9 (q, JCF = 318.2 Hz), 114.3, 109.2; 19F NMR (282 MHz, CD3CN):  -79.4; HRMS (APCI-positive
ionization): calcd for C13H10IO2 ([M-OTf]+): 324.9725, found: 324.9741.
Single crystals of product 3a suitable for X-ray crystallographic analysis were obtained by slow evaporation of
acetonitrile solution. For details on crystal structure of compound 3a see the CIF file in Supporting
Information. Selected crystallographic data for 3a: Monoclinic, P21n, a = 11.5802(10) Å, b = 9.0047(10)) Å, c =
16.6435(18), = 95.433(7) Å, V = 1727.7(3) Å3, Z = 4, R (I>2.0/(I)) = 0.0469, Rw (all) = 0.0760, CCDC 2021394.
2-Carboxyphenyl(mesityl)iodonium triflate (3b).37 Reaction of mesitylene 2b (96 mg, 0.80 mmol) according to
general procedure afforded 103 mg (100%) of product 3b isolated as a white solid: mp 187.6-190.5 °C (lit.37;
1
mp 185.3-186.6 °C); IR (KBr) cm-1 3456, 3073, 3026, 1684, 1585, 1465, 1440, 1289, 1169, 1034, 990, 750; H
NMR (300 MHz, CD3CN):  8.38 (d, J 7.5 Hz, 1H), 7.77 (t, J 7.5 Hz, 1H), 7.70-7.62 (m, 1H), 7.84-7.66 (m, 4H),
7.34 (s, 2H), 6.93 (t, J 8.1 Hz, 1H), 2.50 (s, 6H), 2.44 (s, 3H); HRMS (ESI-positive ionization): calcd for C16H16IO2
([M-OTf]+): 367.0195, found: 367.0205.
2-Carboxyphenyl(2,5-dimethylphenyl)iodonium triflate (3c). Reaction of 1,4-dimethylbenzene 2c (75 mg,
0.80 mmol) according to general procedure afforded 94 mg (94%) of product 3c isolated as a white solid: mp
175.5-176.7 °C; IR (KBr) cm-1 3504, 3078, 3052, 2928, 1673, 1586, 1492, 1470, 1442, 1280, 1162, 1029, 754; 1H
NMR (300 MHz, CD3CN):  8.38 (dd, J 7.5 Hz, 1.8 Hz, 1H), 7.96 (s, 1H), 7.77 (t, J 7.5 Hz, 1H), 7.72-7.59 (m, 3H),
6.98 (d, J 8.4 Hz, 1H), 2.48 (s, 3H), 2.40 (s, 3H); 13C NMR (100 MHz, CD3CN):  169.5, 141.2, 141.1, 140.1, 138.1,
136.0, 134.0, 132.4, 132.3, 129.6, 127.3, 121.5 (q, 1JCF = 318.3 Hz), 114.3, 113.5, 24.5, 20.2; 19F NMR (377 MHz,
CD3CN):  -79.3; HRMS (APCI-positive ionization): calcd for C15H14IO2 ([M-OTf]+): 353.0038, found: 353.0056.
2-Carboxyphenyl(2,3,5,6-tetramethylphenyl)iodonium triflate (3d). Reaction of 1,2,4,5-tetramethylbenzene
2d (107 mg, 0.80 mmol) according to general procedure afforded 100 mg (94%) of product 3d isolated as a
white solid: mp 165.4-166.2 °C; IR (KBr) cm-1 3431, 3050, 2985, 2927, 1676, 1588, 1472, 1443, 1287, 1161,
Page 7
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
1024, 743; 1H NMR (300 MHz, CD3CN):  8.38 (dd, J 7.5 Hz, 1.8 Hz, 1H), 7.80-7.77 (m, 1H), 7.64 (td, J 7.5 Hz, 1.5
Hz, 1H), 7.44 (s, 1H), 6.93 (d, J 8.1 Hz, 1H), 2.48 (s, 6H), 2.40 (s, 6H); 13C NMR (75 MHz, CD3CN):  168.7, 139.9,
137.5, 137.4, 133.6, 131.7, 128.7, 122.1, 120.1 (q, 1JCF = 321.1 Hz), 112.1, 110.0, 23.6, 20.6; 19F NMR (282 MHz,
CD3CN):  -79.3; HRMS (APCI-positive ionization): calcd for C17H18IO2 ([M-OTf]+): 381.0351, found: 381.0355.
2-Carboxyphenyl(4-tert-butylphenyl)iodonium triflate (3e). Reaction of tert-butylbenzene 2e (107 mg, 0.80
mmol) according to general procedure afforded 106 mg (100%) of product 3e isolated as a white solid: mp
172.1-175.0 °C; IR (KBr) cm-1 3466, 3085, 2964, 2910, 1655, 1585, 1469, 1438, 1260, 1171, 1030, 755; 1H NMR
(500 MHz, CD3CN):  8.37 (d, J 8.0 Hz, 1H), 8.02 (d, J 8.0 Hz, 1H), 7.78-7.71 (m, 3H), 7.02 (d, J 8.5 Hz, 1H), 1.40
(s, 9H); 13C NMR (100 MHz, DMSO-d6):  169.1, 156.9, 137.8, 136.5, 132.9, 131.5, 130.0, 129.8, 121.2, (q, 1JCF =
320.0 Hz), 116.34, 109.9, 35.6, 31.3; 19F NMR (377 MHz, DMSO-d6):  -77.7; HRMS (APCI-positive ionization):
calcd for C17H18IO2 ([M-OTf]+): 381.0351, found: 381.0347.
2-Carboxyphenyl(4-methylphenyl)iodonium triflate (3f).44 Reaction of toluene 2f (74 mg, 0.80 mmol)
according to general procedure afforded 95 mg (97%) of product 3f isolated as a white solid: mp 202.1-203.6
1
°C; (lit.44; mp 193-194 °C); IR (KBr) cm-1 3469, 3089, 2990, 1670, 1587, 1472, 1440, 1255, 1166, 1029, 754; H
NMR (300 MHz, CD3CN):  8.37 (d, J 6.9 Hz, 1H), 7.98 (d, J 8.1 Hz, 2H), 7.82-7.64 (m, 2H), 7.53 (d, J 8.1 Hz, 2H),
7.05 (d, J 7.5 Hz, 1H), 2.53 (s, 3H); HRMS (APCI-positive ionization): calcd for C14H12IO2 ([M-OTf]+): 338.9882,
found: 338.9885.
Single crystals of product 3f suitable for X-ray crystallographic analysis were obtained by slow evaporation of
acetonitrile solution. For details on crystal structure of compound 3f see the CIF file in Supporting Information.
Selected crystallographic data for 3f: Monoclinic, P21n, a =11.2493(2) Å, b = 10.31970(10) Å, c = 15.9332(11)
Å, = 104.159(7) V = 1793.48(12) Å3, Z = 4, R (I>2.0/(I)) = 0.0658, Rw (all) = 0.0844, CCDC 2021395.
2-Carboxyphenyl(2,4,6-triisopropylphenyl)iodonium triflate (3g). Reaction of 1,3,5-triisopropylbenzene 2g
(163 mg, 0.80 mmol) according to general procedure afforded 120 mg (100%) of product 3g isolated as a light
brown solid: mp 174.0-175.1 °C; IR (KBr) cm-1 3430, 3078, 2964, 2931, 2876, 1674, 1588, 1465, 1443, 1304,
1170, 1024, 750; 1H NMR (300 MHz, CD3CN):  8.38 (dd, J 7.5 Hz, 1.8 Hz, 1H), 8.20 (brs, 1H), 7.80-7.63 (m, 2H),
7.45 (s, 2H), 6.94 (d, J 7.8 Hz, 1H), 3.24-3.20 (m, 1H), 3.11-3.04 (m, 2H), 1.33 (d, J 6.9 Hz, 6H), 1.28-1.16 (m,
12H); 13C NMR (100 MHz, CD3CN):  169.4, 157.2, 154.3, 137.9, 134.0, 132.3, 129.4, 127.8, 125.8, 121.5 (q, 1JCF
= 318.0 Hz), 117.0, 114.4, 39.4, 34.8, 23.5; 19F NMR (282 MHz, CD3CN):  -79.3; HRMS (APCI-positive
ionization): calcd for C22H28IO2 ([M-OTf]+): 451.1134, found: 451.1136.
2-Carboxyphenyl(3,4-diethylphenyl)iodonium triflate (3h). Reaction of 1,2-diethylbenzene 2h (107 mg, 0.80
mmol) according to general procedure afforded 99 mg (93%) of product 3h isolated as a white solid: mp 193.8-
1
195.6 °C; IR (KBr) cm-1 3462, 2974, 2943, 2880, 1674, 1586, 1473, 1439, 1292, 1176, 1025, 746; H NMR (500
MHz, CD3CN):  8.37 (dd, J 8.0 Hz, 1.8 Hz, 1H), 7.91 (d, J 2.3 Hz, 1H), 7.87 (dd, J 8.0 Hz, 2.3 Hz, 1H), 7.76 (t, J 8.0
Hz, 1H), 7.69 (t, J 8.0 Hz, 1H), 7.51 (d, J 8.0 Hz, 1H), 7.06 (d, J 8.0 Hz, 1H), 2.83 (q, J 7.5 Hz, 2H), 2.78 (q, J 7.5 Hz,
2H), 1.28 (t, J 7.5 Hz, 3H), 1.25 (t, J 7.5 Hz, 3H); 13C NMR (100 MHz, CD3CN):  169.5, 149.8, 148.0, 138.0, 137.9,
136.1, 133.8, 133.1, 132.2, 130.1, 126.9, 121.5 (q, 1JCF = 318.0 Hz), 115.0, 106.2, 25.9, 25.6, 14.7, 14.6; 19F NMR
(377 MHz, CD3CN):  -79.3; HRMS (APCI-positive ionization): calcd for C17H18IO2 ([M-OTf]+): 381.0351, found:
381.0348.
2-Carboxyphenyl(4-methoxyphenyl)iodonium triflate (3i).44 Reaction of methoxybenzene 2i (87 mg, 0.80
mmol) according to general procedure afforded 101 mg (100%) of product 3i isolated as a gray solid: mp
213.6-214.9 °C (lit.44; mp 195-206 °C); IR (KBr) cm-1 3486, 3093, 2984, 2950, 2851, 1668, 1582, 1492, 1464,
1308, 1258, 1164, 1026, 756; 1H NMR (400 MHz, CD3CN):  8.36 (d, J 8.0 Hz, 1H), 8.01 (d, J 8.0 Hz, 1H), 7.76 (t, J
13
8.0 Hz, 1H), 7.70 (t, J 8.0 Hz, 1H), 7.22 (d, J 8.0 Hz, 1H), 7.06 (d, J 8.0 Hz, 1H), 3.94 (s, 3H); C NMR (100 MHz,
Page 8
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
1
CD3CN):  169.7, 164.8, 140.8, 137.9, 133.8, 132.2, 130.0, 127.0, 121.6 (q, JCF = 319.5 Hz), 115.5, 97.8, 56.4;
HRMS (ESI-positive ionization): calcd for C14H12IO3 ([M-OTf]+): 354.9831, found: 354.9833.
2-Carboxyphenyl(4-ethoxyphenyl)iodonium triflate (3j). Reaction of ethoxybenzene 2j (98 mg, 0.80 mmol)
according to general procedure afforded 100 mg (97%) of product 3j isolated as a gray solid: mp 214.8-216.0
1
°C; IR (KBr) cm-1 3463, 3089, 2984, 2897, 1672, 1586, 1493, 1471, 1261, 1179, 1027, 748; H NMR (400 MHz,
CD3CN):  8.36 (d, J 8.0 Hz, 1H), 7.99 (d, J 8.0 Hz, 2H), 7.76 (t, J 8.0 Hz, 1H), 7.70 (t, J 8.0 Hz, 1H), 7.19 (d, J 8.0
Hz, 2H), 7.07 (d, J 8.0 Hz, 1H), 4.20 (q, J 6.5 Hz, 2H), 1.44 (t, J 6.5 Hz, 3H); 13C NMR (100 MHz, DMSO-d6): 
169.3, 162.7, 140.1, 136.7, 133.0, 131.5, 129.7, 129.3, 121.2 (q, 1JCF = 320.0 Hz), 118.8, 116.9, 101.5, 64.4, 14.5;
19F NMR (377 MHz, CD3CN):  -79.4; HRMS (ESI-positive ionization): calcd for C15H14IO3 ([M-OTf]+): 368.9988,
found: 368.9990.
2-Carboxyphenyl(2,4,6-trimethoxyphenyl)iodonium triflate (3k). Reaction of 1,3,5-trimethoxybenzene 2k
(135 mg, 0.80 mmol) according to general procedure afforded 72 mg (64%) of product 3k isolated as a purple
solid: mp 167.7 °C (decomp.); IR (KBr) cm-1 3445, 3100, 2954, 2913, 1672, 1585, 1470, 1418, 1291, 1164, 1028,
750; 1H NMR (400 MHz, CD3CN):  8.28 (dd, J 7.6 Hz, 1.4 Hz, 1H), 7.69 (dd, J 7.6 Hz, 1.4 Hz, 1H), 7.66-7.59 (m,
1H), 7.04 (dd, J 8.4 Hz, 1.2 Hz, 1H), 6.43 (s, 2H), 3.91 (s, 3H), 3.81 (s, 6H); 13C NMR (100 MHz, CD3CN):  169.8,
169.3, 162.4, 137.9, 133.9, 132.0, 128.7, 127.3, 118.4 (q, 1JCF = 317.3 Hz), 113.7, 92.9, 79.7, 57.7, 56.9; 19F NMR
(377 MHz, CD3CN):  -79.4; HRMS (ESI-positive ionization): calcd for C16H16IO5 ([M-OTf]+): 415.0042, found:
415.0026.
Single crystals of product 3k suitable for X-ray crystallographic analysis were obtained by slow evaporation of
methylene chloride-ether solution. For details on crystal structure of compound 3k see the CIF file in
Supporting Information. Selected crystallographic data for 3k: Triclinic, P-1, a = 8.1177(2) Å, b = 8.7075(2) Å, c
= 14.9429(11) Å, = 73.353(5), = 89.458(6), γ= 83.352(6), V = 1004.85(9) Å3, Z = 2, R (I>2.0/(I)) = 0.0438, Rw
(all) = 0.0582, CCDC 2021393.
2-Carboxyphenyl(4-chlorophenyl)iodonium triflate (3l).44 Reaction of chlorobenzene 2l (90 mg, 0.80 mmol)
according to general procedure afforded 78 mg (77%) of product 3l isolated as a white solid: mp 136.7-138.4
°C (lit.44; mp 218-220 °C); IR (KBr) cm-1 3511, 3084, 2880, 1661, 1613, 1472, 1442, 1257, 1171, 1093, 1030, 743;
1H NMR (400 MHz, DMSO-d6):  8.03 (d, J 8.0 Hz, 2H), 8.00-7.93 (m, 2H), 7.88 (d, J 8.0 Hz, 2H), 7.74-7.68 (m,
2H); 19F NMR (377 MHz, CD3CN):  -77.7; HRMS (ESI-positive ionization): calcd for C13H935ClIO2 ([M-OTf]+):
358.9336, found: 358.9312.
One-pot preparation of pseudocyclic diaryliodonium triflates 3 using 2-iodosylbenzoic acid 4 and benzene 2a
using TfOH. Benzene 2a (62 mg, 0.80 mmol) and trifluoromethanesulfonic acid (66 mg, 0.44 mmol) was added
to a solution of 2-iodosylbenzoic acids 4 (0.20 mmol) in dichloromethane (1 mL). The reaction was stirred at
room temperature for 24 hours. After completion of the reaction, the solvent was removed under reduced
pressure and the solid product was washed with diethyl ether several times then dried in vacuum to give the
pure compound 3a, n, o.
2-Carboxyphenyl(phenyl)iodonium triflate (3a). Reaction of 2-iodosylbenzoic acid 4a (53 mg, 0.20 mmol)
according to general procedure afforded 95 mg (100%) of product 3a isolated as a white solid identical to the
same from previous experiment.
4-Methyl-2-carboxyphenyl(phenyl)iodonium triflate (3m). Reaction of 4-methyl-2-iodosylbenzoic acid 4b (56
mg, 0.20 mmol) according to general procedure afforded 96 mg (92%) of product 3m isolated as a white solid:
1
mp 149.3-152.6 °C; IR (KBr) cm-1 3410, 3087, 3061, 2928, 1660, 1574, 1448, 1257, 1167, 1033, 744; H NMR
(400 MHz, CD3OD):  8.27-8.20 (m, 3H), 7.92 (t, J 8.0 Hz, 1H), 7.73 (t, J 8.0 Hz, 1H), 7.73 (t, J 8.0 Hz, 2H), 7.75-
7.49 (m, 1H), 6.88 (d, J 8.0 Hz, 1H), 2.46 (s, 3H); 13C NMR (125 MHz, CD3OD):  169.8, 142.5, 137.7, 137.2,
Page 9
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
1
133.4, 133.4, 132.2, 129.1, 127.1, 120.4 (q, JCF = 317 Hz), 19.21; 19F NMR (377 MHz, CD3OD):  -80.1; HRMS
(ESI-positive ionization): calcd for C14H12IO2 ([M-OTf]+): 338.9882, found: 338.9900.
4-Bromo-2-carboxyphenyl(phenyl)iodonium triflate (3n). Reaction of 4-bromo-2-iodosylbenzoic acid 4c (69
mg, 0.2 mmol) according to general procedure afforded 93 mg (84%) of product 3n isolated as a white solid:
1
mp 186.1-187.5 °C; IR (KBr) cm-1 3463, 3080, 1663, 1620, 1553, 1445, 1256, 1172, 1024, 738; H NMR (400
MHz, CD3CN):  8.48 (d, J 2.2 Hz, 1H), 8.12 (d, J 8.4 Hz, 2H), 7.99-7.89 (m, 1H), 7.80 (dd, J 9.0 Hz, 2.2 Hz, 1H),
7.77-7.65 (m, 2H), 6.90 (d, J 9.0 Hz, 1H); 13C NMR (100 MHz, CD3CN):  168.5, 140.4, 138.7, 136.3, 134.8,
1
133.4, 131.9, 128.8, 126.3, 121.6 (q, JCF = 317 Hz), 113.5, 109.8; 19F NMR (377 MHz, CD3CN):  -79.4; HRMS
(ESI-positive ionization): calcd for C13H979BrIO2 ([M-OTf]+): 402.8831, found: 338.9885.
One-pot preparation of pseudocyclic diaryliodonium triflates 3a using 2-iodobenzoic acid 5 and benzene 2a
using TfOH with mCPBA. Benzene 2a (62 mg, 0.80 mmol), trifluoromethanesulfonic acid (66 mg, 0.44 mmol),
and mCPBA (76 mg, 0.44 mmol) was added to a solution of 2-iodobenzoic acid 5 (50 mg, 0.20 mmol) in
dichloromethane (1 mL). The reaction was stirred at room temperature for 24 hours. After completion of the
reaction, the solvent was removed under reduced pressure and the solid product was washed with diethyl
ether several times then dried in vacuum to give the pure compound 3a; 64 mg (68 %) isolated as a brown
solid identical to the same from previous experiment.
General procedure for preparation of arylbenziodoxolones 6 from pseudocyclic diaryliodonium triflates 3.
Pseudocyclic diaryliodonium triflates 3 was added to dichloromethane (2 mL) and saturated NaHCO3 (1 mL).
The reaction was stirred at room temperature for 1 hour. After completion of the reaction, the solvent was
removed under reduced pressure and the solid product was washed with diethyl ether several times then
dried in vacuum to give the pure compound 6.
1-Phenyl-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6a).42 Reaction of 3a (95 mg, 0.20 mmol) according to general
procedure afforded 64 mg (100%) of product 6a isolated as a white solid: mp 210.1-211.0 °C (lit.42; mp 221-
222 °C); IR (KBr) cm-1 3042, 1609, 1557, 1475, 1340, 738; 1H NMR (300 MHz, CDCl3):  8.40 (dd, J 7.5 Hz, 1.2 Hz,
1H), 8.02 (d, J 7.8 Hz, 2H), 7.77 (t, J 7.5 Hz, 1H), 7.65-7.50 (m, 3H), 7.43-7.32 (m, 1H), 6.74 (d, J 8.4 Hz, 1H); 13C
NMR (75 MHz, CDCl3):  166.6, 137.2, 133.5, 133.4, 132.7, 132.6, 131.8, 130.7, 126.1, 115.6, 115.3; HRMS (ESI-
positive ionization): calcd for C13H10IO2 ([M+H]+): 324.9725, found: 324.9736.
1-Mesityl-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6b).42 Reaction of 3b (103 mg, 0.20 mmol) according to
general procedure afforded 65 mg (89%) of product 6b isolated as a white solid: mp 222.4-223.1 °C (lit.42; mp
223-223.5 °C); IR (KBr) cm-1 3058, 2974, 2948, 2920, 1616, 1558, 1441, 1034, 758; 1H NMR (300 MHz, CD3OD):
 8.31 (d, J 7.8 Hz, 1H), 7.72-7.61 (m, 1H), 7.55-7.44 (m, 1H), 7.29 (s, 2H), 6.79 (d, J 8.1 Hz, 1H), 2.53 (s, 6H),
2.43 (s, 3H); HRMS (ESI-positive ionization): calcd for C16H16IO2 ([M+H]+): 367.0195, found: 367.0210.
1-(2,5-Dimethylphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6c).45 Reaction of 3c (100 mg, 0.20 mmol)
according to general procedure afforded 70 mg (100%) of product 6c isolated as a light yellow solid: mp 110.7-
1
111.8 °C (lit.45; mp 214-214.5 °C); IR (KBr) cm-1 3068, 2970, 2927, 1608, 1489, 1368, 1031, 750; H NMR (500
MHz, CD3OD):  8.46 (d, J 7.5 Hz, 1H), 7.72-7.65 (m, 1H), 7.56-7.45 (m, 1H), 7.43-7.38 (m, 2H), 7.37-7.29 (m,
1H), 6.63 (d, J 8.5 Hz, 1H), 2.40 (s, 3H), 2.43 (s, 3H); HRMS (APCI-positive ionization): calcd for C15H14IO2
([M+H]+): 353.0038, found: 353.0032.
1-(2,3,5,6-Tetramethylphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6d).42 Reaction of 3d (96 mg, 0.18
mmol) according to general procedure afforded 56 mg (82%) of product 6d isolated as a white solid: mp 218.0-
220.4 °C (lit.42; mp 221.5-222.5 °C); IR (KBr) cm-1 3060, 3008, 2963, 2941, 2920, 2850, 1598, 1554, 1466, 1346,
1
1006, 760; H NMR (500 MHz, CDCl3):  8.51 (dd, J 8.0 Hz, 1.5 Hz, 1H), 7.64-7.58 (m, 1H), 7.43-7.37 (m, 1H),
Page 10
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
7.28-7.24 (m, 1H), 7.43-7.38 (m, 2H), 7.37-7.29 (m, 1H), 6.63 (d, J 8.5 Hz, 1H), 2.40 (s, 3H), 2.43 (s, 3H); HRMS
(ESI-positive ionization): calcd for C17H18IO2 ([M+H]+): 381.0356, found: 381.0366.
1-(4-(tert-butyl)phenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6e).42 Reaction of 3e (106 mg, 0.20 mmol)
according to general procedure afforded 72 mg (95%) of product 6e isolated as a white solid: mp 230.9-231.4
1
°C (lit.42; mp 233.5-234 °C); IR (KBr) cm-1 3059, 2959, 2869, 1612, 1556, 1482, 1347, 1058, 748; H NMR (500
MHz, CDCl3):  8.48 (dd, J 7.8 Hz, 1.8 Hz, 1H), 7.88 (d, J 9.0 Hz, 2H), 7.64-7.57 (m, 3H), 7.47-7.41 (m, 1H), 6.82
(d, J 8.0 Hz, 1H), 1.40 (s, 9H); HRMS (ESI-positive ionization): calcd for C17H18IO2 ([M+H]+): 381.0356, found:
381.0366.
1-(p-Tolyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6f).42 Reaction of 3f (88 mg, 0.18 mmol) according to
general procedure afforded 42 mg (69%) of product 6f isolated as a white solid: mp 195.9-197.7 °C (lit.42; mp
217-218 °C); IR (KBr) cm-1 3074, 2977, 2923, 1610, 1557, 1488, 1329, 747; 1H NMR (400 MHz, CDCl3):  8.49 (d,
J 8.0 Hz, 1H), 7.81 (d, J 8.0 Hz, 2H), 7.65-7.56 (m, 1H), 7.47-7.37 (m, 3H), 6.78 (d, J 8.0 Hz, 2H), 2.52 (s, 3H);
HRMS (APCI-positive ionization): calcd for C14H12IO2 ([M+H]+): 338.9882, found: 338.9882.
1-(2,4,6-Triisopropylphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6g). Reaction of 3g (120 mg, 0.20 mmol)
according to general procedure afforded 56 mg (62%) of product 6g isolated as a white solid: mp 197.9-198.8
1
°C; IR (KBr) cm-1 3057, 2962, 2870, 1602, 1552, 1357, 745; H NMR (300 MHz, CDCl3):  8.51 (d, J 7.5 Hz, 1H),
7.61 (t, J 7.5 Hz, 1H), 7.46-7.38 (m, 1H), 7.25 (s, 2H), 6.76 (d, J 8.1 Hz, 1H), 3.19 (sept, J 6.9 Hz, 2H), 3.02 (sept, J
6.9 Hz, 1H), 1.31 (d, J 6.9 Hz, 12H), 1.16 (d, J 6.9 Hz, 6H); 13C NMR (75 MHz, CDCl3):  166.7, 155.0, 153.6,
134.2, 133.5, 133.1, 130.9, 125.4, 123.9, 119.3, 115.2, 37.9, 34.4, 25.1, 23.8; HRMS (APCI-positive ionization):
calcd for C22H28IO2 ([M+H]+): 451.1134, found: 451.1112.
1-(3,4-Diethylphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6h). Reaction of 3h (99 mg, 0.19 mmol)
according to general procedure afforded 47 mg (66%) of product 6h isolated as a white solid: mp 193.8-195.6
°C; IR (KBr) cm-1 3064, 2966, 2936, 2880, 1611, 1558, 1331, 740; 1H NMR (500 MHz, CDCl3):  8.42 (d, J 7.5 Hz,
1H), 7.78-7.73 (m, 2H), 7.55 (t, J 7.0 Hz, 1H), 7.43-7.34 (m, 2H), 6.79 (d, J 7.0 Hz, 1H), 2.83-2.71 (m, 4H), 1.31 (t,
J 7.5 Hz, 3H), 1.28 (t, J 7.5 Hz, 3H); 13C NMR (100 MHz, CDCl3):  166.3, 147.5, 146.3, 136.5, 134.6, 133.5, 132.9,
131.7, 130.8, 125.8, 115.5, 111.5, 25.6, 25.5, 14.9, 14.8; HRMS (APCI-positive ionization): calcd for C17H18IO2
([M+H]+): 381.0351, found: 381.0352.
1-(4-Methoxyphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6i).47 Reaction of 3i (105 mg, 0.20 mmol)
according to general procedure afforded 70 mg (99%) of product 6i isolated as a white solid: mp 159.5-160.1
1
°C (lit.47; mp 212-214 °C); IR (KBr) cm-1 3065, 2941, 2840, 1599, 1489, 1359, 1257, 748; H NMR (400 MHz,
CDCl3):  8.49-8.39 (m, 1H), 7.83 (d, J 8.0 Hz, 2H), 7.62-7.51 (m, 1H), 7.45-7.34 (m, 1H), 6.81-6.69 (m, 1H), 7.06
(d, J 8.0 Hz, 2H), 3.92 (s, 3H); 13C NMR (100 MHz, CDCl3):  163.1, 139.0, 133.5, 132.9, 130.8, 125.7, 117.8,
115.9, 104.0, 55.7; HRMS (ESI-positive ionization): calcd for C14H12IO3 ([M+H]+): 354.9831, found: 354.9847.
1-(4-Ethoxyphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6j). Reaction of 3j (100 mg, 0.19 mmol) according
to general procedure afforded 60 mg (86%) of product 6j isolated as a light brown solid: mp 218.9-219.8 °C; IR
1
(KBr) cm-1 3086, 2977, 2928, 1603, 1488, 1340, 1252, 750; H NMR (400 MHz, CDCl3):  8.48 (d, J 8.0 Hz, 1H),
7.83 (d, J 10.0 Hz, 1H), 7.59 (t, J 8.0 Hz, 1H), 7.42 (t, J 8.0 Hz, 1H), 7.05 (t, J 8.0 Hz, 1H), 6.78 (d, J 8.0 Hz, 2H),
4.15 (7.42 (q, J 7.0 Hz, 2H), 1.50 (t, J 7.0 Hz, 3H); 13C NMR (100 MHz, CDCl3):  166.5, 162.5, 139.0, 133.5,
132.9, 120.8, 125.6, 118.1, 116.0, 103.7, 64.2, 14.6; HRMS (ESI-positive ionization): calcd for C15H14IO3
([M+H]+): 368.9988, found: 368.9999.
1-(2,4,6-Trimethoxyphenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6k). Reaction of 3k (66 mg, 0.12 mmol)
according to general procedure afforded 44 mg (89%) of product 6k isolated as a white solid: mp 249.2-250.3
°C; IR (KBr) cm-1 3100, 3025, 2900, 1615, 1460, 1333, 1238, 752; 1H NMR (400 MHz, CDCl3):  8.45 (d, J 8.0 Hz,
1H), 7.42-7.32 (m, 1H), 6.81 (d, J 8.0 Hz, 1H), 6.26 (s, 2H), 3.94 (s, 3H), 3.83 (s, 6H); 13C NMR (100 MHz, CDCl3):
Page 11
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
 166.9, 162.1, 134.0, 133.02, 132.7, 130.3, 124.7, 115.0, 91.0, 88.3, 56.6, 55.9, 30.9; HRMS (ESI-positive
ionization): calcd for C16H16IO5 ([M+H]+): 415.0042, found: 415.0047.
1-(4-Chlorophenyl)-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6l).42 Reaction of 3l (52 mg, 0.10 mmol) according
to general procedure afforded 10 mg (28%) of product 6l isolated as a white solid: mp 207.7-208.3 °C (lit.42;
mp 226-226.5 °C); IR (KBr) cm-1 3045, 2930, 1611, 1472, 1345, 1087, 738; 1H NMR (400 MHz, CDCl3):  8.49 (d,
J 8.0 Hz, 1H), 7.90 (d, J 8.0 Hz, 2H), 7.69-7.61 (m, 1H), 7.58 (d, J 8.0 Hz, 2H), 7.51-7.42 (m, 1H), 6.77 (d, J 8.0 Hz,
1H); HRMS (ESI-positive ionization): calcd for C13H935ClIO2 ([M+H]+): 358.9336, found: 358.9835.
5-Methyl-1-phenyl-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6m).50 Reaction of 3m (88 mg, 0.18 mmol)
according to general procedure afforded 47 mg (78%) of product 6m isolated as a white solid: mp 235.6-236.8
°C (lit.50; mp 222-223 °C); IR (KBr) cm-1 3049, 2966, 1618, 1454, 1338, 742; 1H NMR (400 MHz, CDCl3):  8.09 (s,
1H), 8.03 (d, J 8.0 Hz, 2H), 7.78 (t, J 8.0 Hz, 2H), 7.60 (t, J 8.0 Hz, 2H), 7.29 (d, J 8.0 Hz, 1H), 6.67 (d, J 8.0 Hz,
1H), 2.41 (s, 3H); HRMS (ESI-positive ionization): calcd for C14H12IO2 ([M+H]+): 338.9882, found: 338.9865.
5-Bromo-1-phenyl-1λ3-benzo[d][1,2]iodaoxol-3(1H)-one (6n).47 Reaction of 3n (30 mg, 0.054 mmol) according
to general procedure afforded 12 mg (55%) of product 6n isolated as a white solid: mp 243.8-244.4 °C (lit.47;
mp 234-236 °C); IR (KBr) cm-1 3045, 2955, 1621, 1443, 1382, 739; 1H NMR (400 MHz, CDCl3):  8.61 (d, J 3.0 Hz,
1H), 7.97 (d, J 8.4 Hz, 2H), 7.80 (t, J 7.6 Hz, 1H), 7.68-7.57 (m, 2H), 7.52 (dd, J 8.6 Hz, 3.0 Hz, 1H), 6.58 (d, J 8.6
Hz, 1H); HRMS (ESI-positive ionization): calcd for C13H979BrIO2 ([M+H]+): 402.8831, found: 402.8805.
Acknowledgements
This work was supported by a research grant from the Russian Science Foundation (RSF-16-13-10081-P) and
National Science Foundation (CHE-1759798). A.S. is thankful to JSPS Fund for the Promotion of Joint
International Research (Grant No 16KK0199) and JST CREST (No. JRMJCR19R2).
Supplementary Material
NMR spectra (1H, 13C and 19F) of products can be found in the supplementary material file.
References
1.
Olofsson, B.; Ilan, M.; Rappoport, Z. Patai’s The Chemistry of Hypervalent Halogen Compounds; John
Wiley & Sons: Chichester, 2019.
2.
3.
Wirth, T.; Ed. Top. Curr. Chem. 2016, 373, 1.
Zhdankin, V. V. Hypervalent Iodine Chemistry: Preparation, Structure and Synthetic Application of
Polyvalent Iodine Compounds; John Wiley & Sons Ltd: 2014.
https://doi.org/10.1002/9781118341155
4.
5.
6.
Parra, A. Chem. Rev. 2019, 119, 12033.
https://doi.org/10.1021/acs.chemrev.9b00338
Muniz, K. Acc. Chem. Res. 2018, 51, 1507.
https://doi.org/10.1021/acs.accounts.8b00137
Yoshimura, A.; Zhdankin, V. V. Chem. Rev. 2016, 116, 3328.
https://doi.org/10.1021/acs.chemrev.5b00547
Page 12
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
7.
8.
9.
10
Le Vaillant, F.; Waser, J. Chem. Sci. 2019, 10, 8909.
https://doi.org/10.1039/C9SC03033F
Hari, D. P.; Caramenti, P.; Waser, J. Acc. Chem. Res. 2018, 51, 3212.
https://doi.org/10.1021/acs.accounts.8b00468
Wang, X.; Studer, A. Acc. Chem. Res. 2017, 50, 1712.
https://doi.org/10.1021/acs.accounts.7b00148
Hyatt, I. F. D.; Dave, L.; David, N.; Kaur, K.; Medard, M.; Mowdawalla, C. Org. Biomol. Chem. 2019, 17,
7822.
https://doi.org/10.1039/C9OB01267B
11.
12.
13.
14.
15.
Charpentier, J.; Fruh, N.; Togni, A. Chem. Rev. 2015, 115, 650.
https://doi.org/10.1021/cr500223h
Merritt, E. A.; Olofsson, B. Angew. Chem., Int. Ed. 2009, 48, 9052.
https://doi.org/10.1002/anie.200904689
Aradi, K.; Toth, B. L.; Tolnai, G. L.; Novak, Z. Synlett 2016, 27, 1456.
https://doi.org/10.1055/s-0035-1561369
Stuart, D. R. Chem. - Eur. J. 2017, 23, 15852.
https://doi.org/10.1002/chem.201702732
Fananas-Mastral, M. Synthesis 2017, 49, 1905.
https://doi.org/10.1055/s-0036-1589483
16.
17.
Wang, M.; Chen, S.; Jiang, X. Chem. - Asian J. 2018, 13, 2195.
https://doi.org/10.1002/asia.201800609
Yusubov, M. S.; Svitich, D. Y.; Larkina, M. S.; Zhdankin, V. V. Arkivoc 2013, (i), 364.
https://doi.org/10.3998/ark.5550190.p008.225
18.
19.
20.
21.
22.
23.
24.
25.
Yoshimura, A.; Saito, A.; Zhdankin, V. V. Chem. - Eur. J. 2018, 24, 15156.
https://doi.org/10.1002/chem.201802111
Stuart, D. R. Synlett 2017, 28, 275.
https://doi.org/10.1055/s-0036-1588683
Yoshimura, A.; Yusubov, M. S.; Zhdankin, V. V. Org. Biomol. Chem. 2016, 14, 4771.
https://doi.org/10.1039/C6OB00773B
Zhdankin, V. V.; Protasiewicz, J. D. Coord. Chem. Rev. 2014, 275, 54.
https://doi.org/10.1016/j.ccr.2014.04.007
Brantley, J. N.; Samant, A. V.; Toste, F. D. ACS Cent. Sci. 2016, 2, 341.
https://doi.org/10.1021/acscentsci.6b00119
Wang, Z.; Jiang, L.; Sarro, P.; Suero, M. G. J. Am. Chem. Soc. 2019, 141, 15509.
https://doi.org/10.1021/acscentsci.6b00119
Qurban, J.; Elsherbini, M.; Alharbi, H.; Wirth, T. Chem. Commun. 2019, 55, 7998.
https://doi.org/10.1039/C9CC03905H
Yudasaka, M.; Maruyama, T.; Yamaguchi, E.; Tada, N.; Itoh, A. Eur. J. Org. Chem. 2018, 2018, 550.
https://doi.org/10.1002/ejoc.201701521
26.
27.
28.
Watanabe, K.; Moriyama, K. J. Org. Chem. 2018, 83, 14827.
https://doi.org/10.1021/acs.joc.8b02676
Wang, Z.; Herraiz, A. G.; del Hoyo, A. M.; Suero, M. G. Nature 2018, 554, 86.
https://doi.org/10.1038/nature25185
Vlasenko, Y. A.; Postnikov, P. S.; Trusova, M. E.; Shafir, A.; Zhdankin, V. V.; Yoshimura, A.; Yusubov, M.
S. J. Org. Chem. 2018, 83, 12056.
https://doi.org/10.1021/acs.joc.8b01995
29.
30.
Boelke, A.; Lork, E.; Nachtsheim, B. J. Chem. - Eur. J. 2018, 24, 18653.
https://doi.org/10.1002/chem.201804957
Yoshimura, A.; Fuchs, J. M.; Middleton, K. R.; Maskaev, A. V.; Rohde, G. T.; Saito, A.; Postnikov, P. S.;
Yusubov, M. S.; Nemykin, V. N.; Zhdankin, V. V. Chem. - Eur. J. 2017, 23, 16738.
Page 13
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
https://doi.org/10.1002/chem.201704393
Yoshimura, A. et al.
31.
Yoshimura, A.; Klasen, S. C.; Shea, M. T.; Nguyen, K. C.; Rohde, G. T.; Saito, A.; Postnikov, P. S.; Yusubov,
M. S.; Nemykin, V. N.; Zhdankin, V. V. Chem. - Eur. J. 2017, 23, 691.
https://doi.org/10.1002/chem.201604475
32.
33.
34.
Geary, G. C.; Hope, E. G.; Singh, K.; Stuart, A. M. RSC Adv. 2015, 5, 16501.
https://doi.org/10.1039/C4RA15733H
Hamnett, D. J.; Moran, W. J. Org. Biomol. Chem. 2014, 12, 4156.
https://doi.org/10.1039/C4OB00556B
Zhu, C.; Yoshimura, A.; Solntsev, P.; Ji, L.; Wei, Y.; Nemykin, V. N.; Zhdankin, V. V. Chem. Commun. 2012,
48, 10108.
https://doi.org/10.1039/c2cc35708a
35.
36.
37.
Zhu, C.; Yoshimura, A.; Ji, L.; Wei, Y.; Nemykin, V. N.; Zhdankin, V. V. Org. Lett. 2012, 14, 3170.
https://doi.org/10.1021/ol301268j
Yoshimura, A.; Nemykin, V. N.; Zhdankin, V. V. Chem.--Eur. J. 2011, 17, 10538.
https://doi.org/10.1002/chem.201102265
Yoshimura, A.; Nguyen, K. C.; Klasen, S. C.; Saito, A.; Nemykin, V. N.; Zhdankin, V. V. Chem. Commun.
2015, 51, 7835.
https://doi.org/10.1039/C5CC02009C
38.
Yoshimura, A.; Nguyen, K. C.; Rohde, G. T.; Saito, A.; Yusubov, M. S.; Zhdankin, V. V. Adv. Synth. Catal.
2016, 358, 2340.
https://doi.org/10.1002/adsc.201600331
39.
40.
Yoshimura, A.; Zhdankin, V. V. Arkivoc (iii), 2017, 32.
https://doi.org/10.24820/ark.5550190.p009.893
Yoshimura, A.; Nguyen, K. C.; Klasen, S. C.; Postnikov, P. S.; Yusubov, M. S.; Saito, A.; Nemykin, V. N.;
Zhdankin, V. V. Asian J. Org. Chem. 2016, 5, 1128.
https://doi.org/10.1002/ajoc.201600247
41.
42.
43.
44.
45.
Merritt, E. A.; Olofsson, B. Eur. J. Org. Chem. 2011, 3690.
https://doi.org/10.1002/ejoc.201100360
Yusubov, M. S.; Yusubova, R. Y.; Nemykin, V. N.; Zhdankin, V. V. J. Org. Chem. 2013, 78, 3767.
https://doi.org/10.1021/jo400212u
Guilbault, A.-A.; Legault, C. Y. ACS Catal. 2012, 2, 219.
https://doi.org/10.1021/cs200612s
Kitamura, T.; Nagata, K.; Taniguchi, H. Tetrahedron Lett. 1995, 36, 1081.
https://doi.org/10.1016/0040-4039(94)02459-O
Yusubov, M. S.; Soldatova, N. S.; Postnikov, P. S.; Valiev, R. R.; Svitich, D. Y.; Yusubova, R. Y.; Yoshimura,
A.; Wirth, T.; Zhdankin, V. V. Eur. J. Org. Chem. 2018, 2018, 640.
https://doi.org/10.1002/ejoc.201701595
46.
47.
Zhdankin, V. V.; Koposov, A. Y.; Su, L. S.; Boyarskikh, V. V.; Netzel, B. C.; Young, V. G. Org. Lett. 2003, 5,
1583.
https://doi.org/10.1021/ol0344523
Almasalma, A. A.; Mejia, E. Eur. J. Org. Chem. 2018, 2018, 188.
48.
49.
50.
Bertho, S.; Rey-Rodriguez, R.; Colas, C.; Retailleau, P.; Gillaizeau, I. Chem. - Eur. J. 2017, 23, 17674.
https://doi.org/10.1002/chem.201704499
Lu, B.; Wu, J.; Yoshikai, N. J. Am. Chem. Soc. 2014, 136, 11598.
https://doi.org/10.1021/ja5059795
Del Mazza, D.; Reinecke, M. G. J. Org. Chem. 1988, 53, 5799.
https://doi.org/10.1021/jo00260a001
Page 14
©AUTHOR(S)

Arkivoc 2020, iv, 0-0
Yoshimura, A. et al.
This paper is an open access article distributed under the terms of the Creative Commons Attribution (CC BY) license
(http://creativecommons.org/licenses/by/4.0/)
Page 15
©AUTHOR(S)
