Heck Reaction Catalyzed by Pd-Modified Zeolites
Laurent Djakovitch*,† and Klaus Koehler
Contribution from the Technische UniVersita¨t Mu¨nchen, Anorganisch-Chemisches Institut,
Lichtenbergstrasse 4, D-85747 Garching b. Mu¨nchen, Germany
ReceiVed March 28, 2000
Abstract: [Pd]-exchanged NaY zeolites have been prepared, characterized, and applied for the first time for
catalytic carbon-carbon coupling reactions. The catalysts exhibit a high activity and selectivity toward the
Heck reaction of aryl bromides with olefins for small palladium concentrations (e0.1 mol % of Pd). The
catalysts can easily be separated from the reaction mixture and reused after washing without loss in activity.
No limitation to the diffusion of adducts in the zeolite cages was observed (for linear alkenes). The electronic
nature of the aryl bromides and the olefins has a dominating effect on the reaction yield and selectivity. The
heterogeneous catalysts quantitatively convert all types of all aryl bromide (complete conversion of
bromobenzene within 30 min) and activated aryl chlorides under standard reaction conditions. Product form
selectivity is observed in the Heck reaction with cyclic olefins.
Introduction
is due to homogeneous (resolved Pd species) or heterogeneous
processes.

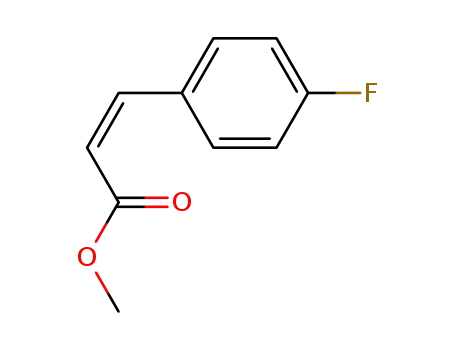

The Heck reaction, a palladium-catalyzed carbon-carbon
bond formation between aryl halides and olefins, became an
excellent tool for the synthesis of elaborated styrene derivatives
due to its tolerance for a wide variety of functional groups on
both reactants1 and the broad availability of aryl bromides and
chlorides.
Very recently, we reported the first heterogeneous Pd-
catalyzed Heck reaction using zeolites as catalyst supports.10
