Change of mechanism with a change of substituents for a Zincke reaction

Article abstract of DOI:10.1016/j.tetlet.2014.03.136

The reaction between N-(2,4-dinitrophenyl)-4-(4-pyridyl)pyridinium chloride and 4-aminothiophenol led to an unexpected displacement of the 2,4-dinitrophenyl group, in contrast with the normal Zincke product formed with other nucleophilic 4-substituted anilines. Evidence for a SET process was obtained from EPR spectra of the reaction mixture.

Full text of DOI:10.1016/j.tetlet.2014.03.136

Tetrahedron Letters 55 (2014) 3097–3099
Contents lists available at ScienceDirect
Tetrahedron Letters
journal homepage: www.elsevier.com/locate/tetlet
Change of mechanism with a change of substituents for a Zincke
reaction
⇑
Marcos Caroli Rezende , Ingrid Ponce, Rubén Oñate, Iriux Almodovar, Carolina Aliaga
Facultad de Química y Biología, Universidad de Santiago, Av. Bernardo O’Higgins 3363, Santiago, Chile
a r t i c l e i n f o
a b s t r a c t
Article history:
The reaction between N-(2,4-dinitrophenyl)-4-(4-pyridyl)pyridinium chloride and 4-aminothiophenol
led to an unexpected displacement of the 2,4-dinitrophenyl group, in contrast with the normal Zincke
product formed with other nucleophilic 4-substituted anilines. Evidence for a SET process was obtained
from EPR spectra of the reaction mixture.
Received 11 March 2014
Revised 26 March 2014
Accepted 31 March 2014
Available online 5 April 2014
Ó 2014 Elsevier Ltd. All rights reserved.
Keywords:
Zincke reaction
4-Substituted anilines
Unexpected displacement product
SET process
The reaction of N-(2,4-dinitrophenyl)pyridinium chloride with
amines to form N-substituted pyridinium salts was described for
the first time by Theodor Zincke nearly a hundred years ago.1
The reaction proceeds via an ANRORC (Attack of Nucleophile
Ring-Opening Ring-Closure) mechanism, with the initial attack of
the pyridinium ring by the nucleophile, followed by ring opening
and subsequent ring closure, with the elimination of a molecule
of 2,4-dinitroaniline.2 The reaction thus provides a way of prepar-
ing N-substituted nitrogen heterocycles from the corresponding,
analogous N-(2,4-dinitrophenyl) salts. If secondary amines are
employed as nucleophiles in aqueous media, formation of the
ring-opened compounds leads to valuable synthetic intermediates
(Zincke aldehydes). Thus, Zincke reaction has found widespread
applications in organic synthesis. Recent reports employing the
reaction include the preparation of N,N0-diaryl-substituted 4,40-
bipyridinium salts,3 pyridinium derivatives of amino acids,4 N-ary-
lated pyridinium salts with reactive groups,5 4-aryl bispyridinium
salts,6 new photochromic dyes,7 and ionic polymers.8 Zincke alde-
hydes have been used as intermediates in a variety of applica-
tions.9 The ‘normal’ Zincke reaction is a formal replacement of
the 2,4-dinitrophenyl substituent by an alkyl or aryl group R
attached to the primary NH2 functionality. This may be called the
‘endocyclic’ pathway to distinguish it from the ‘exocyclic’ displace-
ment of the 2,4-dinitrophenyl substituent by the nucleophile. This
competing process may take place when the pyridinium ring is
substituted by electron-releasing groups.10 However, the reasons
for favoring such a process are still not entirely understood. Zincke
reactions that are anticipated to occur in a ‘normal’ way may turn
out to follow this competing pathway, leading to unexpected prod-
ucts. A dramatic example of this was the report of a ‘normal’ Zincke
reaction, in the preparation of imidazolium salts with a chiral N-
substituent.11 Reinvestigation of the reaction showed that the
formed products were not the reported salts, but resulted from
the displacement of the 2,4-dinitrophenyl substituent by the
nucleophile and the solvent.12 As part of our efforts to develop
organic spacers acting as self-assembled monolayers for modified
electrodes,13,14 we resorted to the Zincke reaction to prepare N-
substituted pyridinium salts 2.
The preparation of compounds 2 employing this procedure had
been described before, for a variety of substituted anilines.5 We

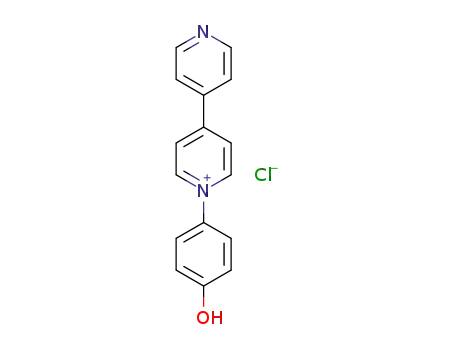

confirmed the formation of a ‘normal’ Zincke product (2a) by the
reaction of 4-aminophenol with the pyridinium salt (1).5 However,
by following the same procedure with 4-aminothiophenol, we
were surprised to obtain 4,40-bipyridyl and the sulfide (3) as the
sole products of the reaction (Scheme 1).
X-ray analysis of the obtained orange crystals confirmed its
unequivocal formation (Fig. 1).
Attempts to modify the reaction conditions, by employing sol-
vent-free conditions,15 led to the same products.
By applying the same reaction conditions with 4-methylthioan-
iline as nucleophile, we obtained the expected Zincke product (2b).
This observation suggested that the acidic proton present in thio-
phenol played a decisive role in diverting the course of the
reaction.
⇑
Corresponding author.
E-mail address: marcos.caroli@usach.cl (M.C. Rezende).
http://dx.doi.org/10.1016/j.tetlet.2014.03.136
0040-4039/Ó 2014 Elsevier Ltd. All rights reserved.

3098
M. C. Rezende et al. / Tetrahedron Letters 55 (2014) 3097–3099
N
N
N
NH2
NH2
S
+
Cl-
NO2
0
10 20 30 40 50 60
Time, minutes
(if X= SH)
Cl-
N
X
NO2
X
NO2
10 gauss
NO2
1
3
2, X = OH (a)
X = SMe (b)
Scheme 1. Reaction of Zincke salt (1) with different 4-substituted anilines.
Figure 2. Epr spectrum of the reaction mixture in ethanol (g value = 2.00802). In
the inset, decay of the recorded signal with time.
N
S-
N
N
+
NH3
3
Cl-
NO2
+
N
Cl-
NO2
N
.
.
S
N
Figure 1. Ortep projection of compound (3).
NO2
NO2
1
Both 4-amino-phenol and -thiophenol are amphiphilic nucleo-
philes, resulting from the equilibria below (Scheme 2).
+
NH3
In the case of 4-aminophenol, the reaction products suggest
that the amino group behaves as a better, or more efficient nucle-
ophile than the phenolate. The opposite, however, occurs with 4-
aminothiophenol, a result which may be explained in terms of
the greater nucleophilicity of ArSꢀ in aromatic nucleophilic substi-
tutions, when compared with ArOꢀ.16 This argument might be
invoked if the reaction mechanism was in fact an SNAr process.
Scheme 3. A possible SET mechanism for the reaction.
been described nearly fifty years ago,17,18 and such a process would
have to circumvent a smaller steric hindrance.
In order to decide between the two mechanistic pathways, we
recorded epr spectra of an equimolar (25 mM) mixture of 1 and
4-aminothiophenol in ethanol. It was evident from the spectra that
a radical intermediate was formed, which collapsed to products
within 10–15 min (Fig. 2).
A possible mechanism for the reaction, compatible with the
above observation, is shown in Scheme 3. A single-electron transfer
from the thiophenolate anion to the N-dinitrophenyl ring leads to
an intermediate radical pair, which collapses to the observed prod-
uct by the elimination of 4,40-dipyridyl.
Another mechanistic possibility involved
a single-electron
transfer (SET) process. This process would be easier for the softer,
and better reducing agent ArSꢀ, than for the harder phenolate mol-
ecule. In addition, a direct nucleophilic attack by the thiophenolate
would have to overcome a significant steric barrier, and would lead
to a highly congested Meisenheimer intermediate. Intermolecular
charge-transfer from thiophenolates to 2,4-dinitrobenzene has
In conclusion, in the present communication we report the
unexpected change of pathways for Zincke salt (1) when reacting
with different 4-substituted anilines. Instead of the normal nucle-
ophilic attack at the 2-position of the pyridinium ring by the
amine, first step of the ANRORC mechanism, a 4-aminothiophenol,
in equilibrium with a zwitterionic thiophenolate, transferred one
electron to the pyridinium group. The resulting radical pair inter-
mediate rapidly collapsed to 4,40-dipiridyl and 2,4-dinitro-40-amin-
odiphenylsulfide (3). The postulated mechanism suggests that
other Zincke salts may undergo the same SET process when react-
ing with aminothiols.
NH3
NH2
X
XH
X = O,S
Scheme 2. Equilibria of 4-amino-phenol and -thiophenol with zwitterionic forms.

M. C. Rezende et al. / Tetrahedron Letters 55 (2014) 3097–3099
3099
3. Bongard, D.; Möller, M.; Rao, S. N.; Corr, D.; Walder, L. Helv. Chim. Acta 2005, 88,
3200–3209.
Acknowledgments
4. Nguyen, T. M.; Sanchez-Salvatori, M. R.; Wypych, J.-C.; Marazano, C. J. Org.
Chem. 2007, 72, 5916–5919.
5. Yamaguchi, I.; Higashi, H.; Shigesue, S.; Shingai, S.; Sato, M. Tetrahedron Lett.
2007, 48, 7778–7781.
6. Papadakis, R.; Tsolomitis, A. J. Phys. Org. Chem. 2009, 22, 515–521.
7. Mahmoodi, N. O.; Mamaghani, M.; Ghanadzadeh, A.; Arvand, M.; Fesanghari,
M. J. Phys. Org. Chem. 2010, 23, 266–270.
8. Yamaguchi, I.; Minamitani, M. React. Funct. Polym. 2012, 72, 904–911.
9. Vanderwal, C. D. J. Org. Chem. 2011, 76, 9555–9567.
10. Kost, A. N.; Gromov, S. P.; Sagitullin, R. S. Tetrahedron 1981, 37, 3423–3454.
11. Ou, W. H.; Wang, Z. Z. Green Chem. 2006, 8, 731–734.
12. Pastre, J. C.; Correia, C. R. D.; Génisson, Y. Green Chem. 2008, 10, 885–889.
13. Ponce, I.; Silva, J. F.; Oñate, R.; Rezende, M. C.; Paez, M.; Pavez, J.; Zagal, J. H.
Electrochem. Commun. 2011, 13, 1182–1185.
This work was financed by FONDECYT projects 1100022,
1110736 and PB0807. I.P. thanks Becas Chile and Conicyt for a doc-
toral fellowship and a postdoctoral Grant (#3140104). We thank
Profs. Gerard Parkin and Luis Campos of Columbia University and
the National Science Foundation (CHE-0619638) for the acquisition
of the X-ray diffractometer employed in confirming the structure
of 3.
Supplementary data
14. Ponce, I.; Silva, J. F.; Oñate, R.; Rezende, M. C.; Paez, M.; Zagal, J. H.; Pavez, J.;
Mendizabal, F.; Miranda-Rojas, S.; Muñoz-Castro, A.; Arratia-Pérez, R. J. Phys.
Chem. C 2012, 116, 15329–15341.
15. Vianna, G. H. R.; dos Santos, I. C.; de Freitas, R. P.; Gil, L.; Alves, R. B. Lett. Org.
Chem. 2008, 5, 396–398.
Supplementary data associated with this article can be found, in
the online version, at http://dx.doi.org/10.1016/j.tetlet.2014.03.
136.
16. Smith, M. B.; March, J. Advanced Organic Chemistry; John Wiley & Sons: New
York, 2001. 5th Ed. p 861.
References and notes
17. Russel, G. A.; Janzen, E. G.; Strom, E. T. J. Am. Chem. Soc. 1964, 86, 1807–1814.
18. Ashby, E. C.; Park, W. S.; Goel, A. B.; Su, W. Y. J. Org. Chem. 1985, 50, 5184–5193.
1. Zincke, Th.; Heuser, G.; Moller, W. Justus Liebigs Ann. Chem. 1904, 333, 296–345.
2. Cheng, W. C.; Kurth, M. J. Org. Prep. Proc. Int. 2002, 34, 585–608.
