Studies of NO3, Ag(P(CH2CH2CN)3)2>NO3 and NO3 by X-Ray Diffraction and Solid-state Nuclear Magnetic Resonance

DOI: 10.1039/DT9950003691

Source and publish data:

Journal of the Chemical Society, Dalton Transactions p. 3691 - 3698 (1995)

Update date:2022-09-26

Topics:

Authors:

Liu, C. W.Liu, C. W.

Pan, HongjunPan, Hongjun

Fackler, John P.Fackler, John P.

Wu, GangWu, Gang

Wasylishen, Roderick E.Wasylishen, Roderick E.

Shang, MaoyuShang, Maoyu

Read Full Text PDF DownLoad Join now for total 90,000,000 free articles

Article abstract of DOI:10.1039/DT9950003691

Solid-state magic angle spinning (MAS) 31P NMR spectra of NO3 1, NO3 2 and Ag(P(C6H4Me-m)3)2>NO3 3 have been obtained.In addition, the crystal structures for 2 and 3 have been determined.The results from the high-resolution NMR study are consistent with the known structure of 1 and the structures of 2 and 3.In each case the 31P NMR spectra exhibit resolved splittings arising from 107Ag and 109Ag with 1J(109Ag31P) values of 524, 564 and 517 Hz for 1, 2 and 3, respectively.In 1 the two phosphorous nuclei are crystallogrphically nonequivalent, thus analysis of the 31P NMR spectrum indicates two chemically shifted phosphorous nuclei, δA 9.50 and δB 7.67, with 2J(31PA31PB) = 125 Hz.The two phosphorous nuclei of 2 are crystallographically and magnetically equivalent in the solid state as evident from the cross polarization/MAS 31P NMR spectrum, δ -9.56.Crystals of 2 are trigonal, space group <*> a = 12.204(2), c = 26.418(5) Angstroem, Z = 6.The Ag and P atoms are located on a three-fold rotation axis with Ag at the centre of inversion.The Ag-P bond distance is 2.383(1) Angstroem.The conformation of the cyanoethylphosphine ligands in 2 is analogous to the ribs of an umbrella in which the silver atom is encapsulated by the six cyano groups with an Ag...N separation of 3.439(2) Angstroem.The two phosphorous nuclei in 3 are crystallographically equivalent but magnetically non-equivalent since the molecule sits on a two-fold axis but lacks a centre of inversion.As a consequence of this symmetry the two phosphorous nuclei have identical chemical shifts, δ 11.2; however, 2J(31P31P) can be determined from slow MAS experiments.For 3 the space group is orthorombic Aba2, a = 15.142(1), b = 24.917(2), c = 10.2536(7) Angstrom, Z = 4.The two phosphorous atoms are related by a crystallographically imposed two-fold axis.The nitrate group is chelated symmetrically to the Ag atom.

View More

Products guided by the article

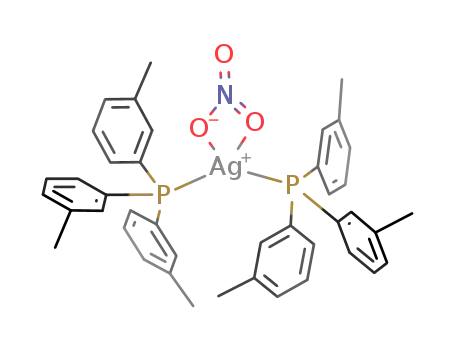

Product name:bis[tris(m-tolyl)phosphine]silver(I) nitrate
