8134 J. Am. Chem. Soc., Vol. 118, No. 34, 1996
Robbins et al.
aqueous solution of NaNO2 (0.67 g, 9.7 × 10-3 mol in 2 mL of H2O)
was added in several aliquots. Reaction was allowed to stir for 1 h
before aqueous NaN3 (0.63 g, 1.0 × 10-2 mol in 2 mL of H2O) was
added. Gas evolution was observed. After addition was complete
reaction was stirred for 20 min at 0 °C. Reaction mixture was extracted
with Et2O (3 × 50 mL). Organic layer was washed with H2O until
aqueous layer was neutral and then concentrated under vacuum. The
residue was taken up in 30 mL of H2O and heated at reflux for 4 h.
Once cooled, the reaction mixture was extracted with Et2O (3 × 25
mL), dried with MgSO4, and concentrated under vacuum. 10f was

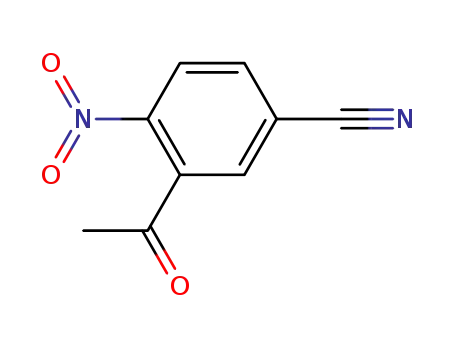

5-Cyano-3-methylanthranil (10g). Amine 8g (0.4 g, 2.3 mmol)
was treated with NaNO2 (0.4 g, 5.5 mmol) and NaN3 (0.4 g, 5.6 mmol)
at 0 °C. Workup was performed as previously indicated. Extraction
of cooled solution yielded a yellow residue which after recrystallization
with CH3OH gave 0.17 g (47%) of 8g as yellow crystals; mp 138-
1
139 °C; H NMR (CD3CN, 200 MHz) δ ) 8.21 (s, 1H), 7.61-7.56
(dd, J ) 9.3, 1.0, 1H), 7.41-7.36 (dd, J ) 9.3, 1.0, 1H), 2.82 (s, 3H);
13C NMR (CD3CN) 172.0, 156.7, 131.5, 119.5, 117.1, 115.8, 107.3,
12.6; MS, m/e (rel intensity, %) 158 (M+, 100), 130 (14), 129 (78),
116 (18), 104 (18), 103 (41); HRMS, m/e 158.04815 (M+ calcd for
C9H6N2O, m/e 158.04802); IR (CH2Cl2) 3960 (m), 3060 (s), 2990, (br,
s), 2600, 2315, 1652 (s), 1550, 1420 (vs), 1255, 895.
5-Cyano-3-methyl-N-tert-butylanthranilium perchlorate (1g). From
cyano substituted anthranil 10g (0.13 g, 7.9 × 10-4 mol) was obtained
1g (0.1 g, 37%), mp 168-170 °C (dec), as white crystals: 1H NMR
(CD3CN, 200 MHz) 8.64 (dd, J ) 0.9, 1.2, 1 H), 8.16-8.10 (dd, J )
1.2, 9.5, 1 H), 8.05-7.99 (dd, J ) 9.5, 0.9, 1 H), 3.08 (s, 3 H), 1.87
(s, 9 H); 13C NMR (CD3CN, 55.1 MHz) 178.2, 146.9, 141.1, 132.9,
119.7, 117.4, 114.2, 111.5, 72.3, 28.7, 14.0; MS, m/z (rel intensity, %)
214 (M+, 0.2), 159 (13), 158 (100), 129 (35), 103 (22), 63 (11), 59
(39), 56 (15); HRMS, m/z 214.10968 (M + 1 - ClO4 calcd for
C13H14N2O, m/z 214.11061); IR (CH2Cl2) 3950 (m), 3045 (br, s), 2995
(s), 2318, 1432 (s), 1299, 910, 800.
Isolation of Photoproducts. The anthanilium ions 1 were dissolved
to ca. 1 M in CH3CN, along with the indicated trapping molecule. The
solutions were purged with N2 for 15 min and then irradiated for the
indicated time with a 450 W medium pressure Hg lamp through a Pyrex
vessel. The reaction mixture was partitioned between Et2O and aqueous
NaHCO3, and the organic fraction was further extracted with H2O and
then dried over MgSO4. The solvent was evaporated, and the residue
was subjected to radial chromatography over silica gel using 20%
EtOAc/hexane.
1
obtained in 57% yield: mp 61-65 °C; H NMR (CDCl3) 7.60-7.38
(m, 8H), 2.82 (s, 3 H);13C NMR (CD3CN) 168.2, 157.4, 140.9, 136.2,
132.9, 129.9, 128.6, 127.7, 118.5, 116.9, 115.8, 12.2; MS, m/z (rel
intensity, %) 209 (100), 196 (19), 181 (42), 180 (80), 179 (11), 167
(16), 166 (18), 154 (20), 153 (13), 140 (15), 139 (20), 70 (13); HRMS,
m/z 209.08268 (M+ calcd for C14H11NO, m/z 209.08406); IR (CH2Cl2)
3700 (br, m), 3060 (br, s), 2999 (w), 2700, 2540, 2420, 1430, 1290,
1230 (s), 800.
5-Methoxy-3-methylanthranil (10e). Amine (8e) (2.04 g, 0.012
mol) was dissolved in 30 mL of glacial acetic acid to which 5 mL of
H2SO4 was added. Reaction mixture was cooled to 0 °C. NaNO2 (3.24
g, 0.049 mol) dissolved in 10 mL of H2O was added in several aliquots,
and the reaction was allowed to stir for 1 h. NaN3 (5.09, 0.078 mol)
was dissolved in 10 mL of H2O and was added dropwise to cold acidic
solution. Gas evolution was observed upon addition. After the addition
was complete, the reaction mixture was stirred for an additional 20
min at 0 °C. Reaction mixture was extracted with Et2O (3 × 50 mL).
In order to remove all glacial acetic acid, the organic layer was washed
with H2O until the aqueous layer ran neutral. Organic solvent was
then removed under vacuum and a reddish oil remained. 2-Azido-5-
methoxy-acetophenone 9e was carried on to the next step without
further purification: 1H NMR (200 MHz, CD3CN) δ ) 7.16-6.98 (m,
3H), 3.89 (s, 3H), 2.60 (s, 3H). The azide 9e was taken up in 30 mL
of H2O and refluxed for 5 h. Aqueous media required that aliquots be
removed from reaction mixture and extracted with Et2O in order to
monitor progress by TLC. Once cooled, the reaction mixture was
extracted with Et2O (3 × 25 mL), dried over MgSO4, and concentrated
under vacuum. A colorless oil remained which was identified as 10e
(40% yield): 1H NMR (200 MHz, CD3CN) δ ) 7.14-7.06 (d, J )
7.13, 1H), 6.57-6.54 (d, J ) 7.13, 1H), 6.57-6.54 (d, J ) 7.13, 1H),
(d, J ) 9.07, 1H), 3.92 (s, 3H), 2.73 (s, 3H); 13C NMR (CDCl3) 165.5,
152.5, 148.0, 123.6, 121.1, 117.3, 111.3, 105.4, 55.6, 12.0; MS, m/z
(rel intensity, %) 163 (100), 162 (25), 161 (8), 148 (11), 120 (14);
HRMS m/z 163.06218 (calcd for C9H9NO2, m/z 163.06332); IR
(CH2Cl2) 3960 (m), 3040 (s), 2930 (s), 2200, 2420, 2320, 1650 (s),
1550 (s), 1430, 1200, 1189, 1060, 895, 780.
Preparative Photolysis of 1f in CH3CN. Salt (1f) (34.0 mg) was
dissolved in 20 mL of freshly distilled CH3CN and irradiated for 90
min. The solvent was evaporated, and the residue was taken up in
1
CD3CN and analyzed by H NMR. The mixture contained 29% 5f
and 25% 4f of another product assigned to rearrangement product.
Iminium salt 5f based on the similarity of its 1H NMR spectrum to
previous examples:20,22 (CD3CN) 7.73-7.79 (m, 3 H), 7.59-7.46 (m,
5 H), 3.75-3.74 (m, 3 H), 2.70 (s, 3 H), 2.44 (br s, 6 H);
Preparative Photolysis of 1f in the Presence of CH3OH. Irradia-
tion of 1f in CH3CN, in the presence of CH3OH (2.1 M), gave four
products 23% 17f, 7% 12f, 45% 13f (nuc ) CH3O), and 8% 14f (nuc
) CH3O). Quinone imine 13f could not be isolated, presumably it
rearranges to 14f upon workup. 2-Acetyl-4-phenyl-N-tert-butyl aniline
(5f): mp 93-95 °C; 1H NMR (400 MHz, CD3CN) δ ) 9.26 (s, broad,
1H), 8.06 (d, J ) 2.4, 1H), 7.64-7.60 (m, 3H), 7.59-7.58 (m, 2H),
7.43-7.39 (m, 1H), 7.30-7.26 (m, 1H), 2.61 (s, 3H), 1.44 (s, 9H);
13C NMR (CD3CN) 201.9, 150.2, 141.0, 133.4, 132.3, 129.6, 127.0,
126, 118.9, 115.5, 51.2, 29.6, 28.4; MS, m/z (rel intensity, %) 267 (72),
253 (20), 252 (100), 234 (49), 220 (27), 211 (57), 210 (16), 196 (61),
167 (30), 91 (44), 56 (47); HRMS, m/z 216.16243 (M+ calcd for C18H21-
NO, m/z 267.16232); IR (CH2Cl2) 3740 (b), 2995 (s), 2840, 2702, 2420,
2348, 1640 (s), 1420, 1280, 1315, 900. 2-Acetyl-6-methoxy-3-phenyl-
N-tert-butylaniline (12f, nuc ) CH3O): mp 72-74 °C; 1H NMR (400
MHz, CD3CN) δ )7.66.7.64 (m, 2H) 7.55 (d, J ) 2.1, 1H), 7.46-
7.42 (m, 2H), 7.34-7.32 (m, 1H), 7.29-7.28 (d, J ) 2.1, 1H), 3.88 (s,
3H), 2.62 (s, 3H), 1.23 (s, 9H); 13C NMR (CD3CN) 203.9, 154.1, 141.4,
140.1, 132.9, 130.2, 56.1, 55.3, 31.3, 30.0; MS, m/z (rel intensity, %)
297 (66), 283 (11), 282 (50), 264 (10), 241 (100), 226 (62), 198 (14);
HRMS, m/z 297.17313 (M+ calcd for C18H21NO, m/z 297.17288); IR
(CH2Cl2) 3740 (s), 3700 (w), 3080, 2990 (s), 2318, 1610 (s), 1420,
1280, 990, 890, 788. 2-Acetyl-4-methoxy-3-phenyl-N-tert-butyl-
aniline (14f nuc ) CH3O): mp 93-95 °C; 1H NMR (400 MHz, CD3-
CN) δ )7.40-7.34 (m, 3H) 7.25-7.22 (m, 3H), 7.07-7.05 (d, J )
9.07, 1H), 7.03-7.00 (d, J ) 9.07, 1H), 3.64 (s, 3H), 1.63 (s, 3H),
1.24 (s, 9H);13C NMR (CD3CN) 206.9, 149.74, 138.7, 138.0, 132.8,
131.4, 129.9, 128.7, 128.3, 120.3, 115.5, 56.8, 52.1, 32.1, 30.2; MS,
m/z (rel intensity, %) 297 (100), 282 (82), 264 (11), 242 (15), 241
(62), 240 (18), 210 (25), 183 (31), 182 (10), 180 (15), 153 (12), 57
(20); HRMS, m/z 297.17294 (M+ calcd for C18H21NO, m/z 297.17288);
IR (CH2Cl2) 3905 (s), 3760 (w), 3058, 2980 (s), 2700, 1720 (s), 1415.
5-Methoxy-3-methyl-N-tert-butylanthranilium Perchlorate (1e).
Methoxy anthranil 10e (0.58 g, 3.58 × 10-3 mol) was dissolved in
CH3NO2 and treated with perchloric acid and tert-butyl alcohol as
indicated above, yielding 0.69 g (60%): mp 136-138 °C dec; 1H NMR
(400 MHz, CD3CN) δ ) 7.59-7.56 (dd, J )7.6, 1.7, 1 H), 7.44-7.43
(dd, J )7.6, 1 H), 7.42 (d, J )1.7 1H), 4.08 (s, 3 H), 2.99 (s, 3 H),
1.87 (s, 9 H); 13C NMR (CD3CN) 173.3, 144.1, 140.8, 128.6, 122.4,
118.4, 114.8, 72.4, 57.3, 29.1, 13.0; HRMS m/z 220.1343 (M + 1 -
ClO4 calcd for C13H18NO2, m/z 220.1338); MS, m/z (rel intensity, %)
M+ 220 (0.3), 163 (100), 162 (50), 148 (31), 144 (19), 121 (18), 120
(62), 107 (10), 78 (20), 65 (13), 51 (14); IR (CH2Cl2) 3700 (m), 3050
(br), 2995, 2315, 2420, 1610 (w), 1420 (br), 1550 (s), 1250 (br), 1102,
900 (s).
5-Phenyl-3-methyl-N-tert-butylanthranilium perchlorate (1f) (1.11
g, 54%) was obtained from 10f (1.17 g, 5.63 × 10-3 mol) using the
method indicated above. Recrystallization with CH3OH yielded tan
crystals: mp 260-261 °C (dec); 1H NMR (CD3CN, 400 MHz) 8.36-
8.26 (dd, J ) 9.4, 1.63, 1 H), 8.26 (s, 1 H), 7.99-7.97 (d, J ) 9.4, 1
H), 3.08 (s, 3 H), 1.88 (s, 9 H); 13C NMR (CD3CN, 110 MHz) 175.8,
146.9, 142.1, 141.9, 138.5, 130.3, 129.9, 128.2, 121.1, 112.8, 70.9,
28.7, 13.6; CIMS, m/z (rel intensity, %) 267 (M + 1, 8), 252 (11), 209
(92), 196 (15), 180 (100), 179 (15), 167 (16), 166 (21), 153 (28), 139
(27), 115 (13), 56 (57); HRMS, m/z 267.16207 (M + 1 - ClO4 calcd
for C18H20NO, m/z 267.16237); IR (CH2Cl2) 3960 (m), 3705, 3060 (s),
2990 (s), 2700, 2430, 2310, 1650 (s), 1458, 1417 (br), 1090.
