Solvent Dependence of the Reaction of (η5-C5Me5)Ir(CO)2 with Aryldiazonium Ions.
Synthesis and Characterization of Mono- and Diiridium Carbonyl Complexes Including the
X-ray Structures of [{(η5-C5Me5)Ir(CO)}2(1-η1-1,2-η2-p-C6H4OMe)][BF4] and
[(η5-C5Me5)(CO)2Ir-Ir(CO)(Cl)(η5-C5Me5)][BF4]
Xiaoqian Yan, Raymond J. Batchelor, Frederick W. B. Einstein, Xiaoheng Zhang,
Ruby Nagelkerke, and Derek Sutton*
Department of Chemistry, Simon Fraser University, Burnaby, British Columbia, Canada V5A 1S6
ReceiVed August 14, 1996X
Reaction of Cp*Ir(CO)2 (3, Cp* ) η5-C5Me5) with [N2Ar][BF4] (Ar ) p-C6H4OMe) in acetone at -78 °C affords
the nitrogen extrusion product [Cp*Ir(CO)2(Ar)][BF4] (5), but in dichloromethane it yields a dinuclear product
[Cp*(CO)2Ir-Ir(Cl)(CO)Cp*][BF4] (6). By carrying out this very reaction in ethanol solution, a nitrogen-retained

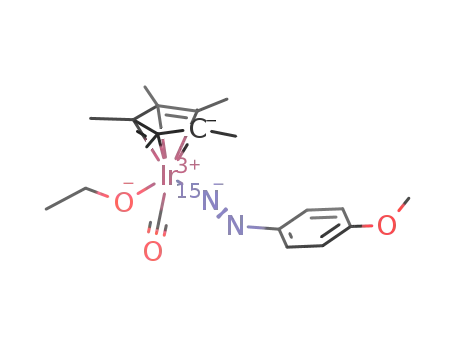

product [Cp*Ir(CO)(OEt)(NHNAr)][BF4] (7) is obtained, containing an aryldiazene ligand. Deprotonation of 7
gives quantitatively the neutral doubly-bent aryldiazenido complex Cp*Ir(CO)(OEt)(N2Ar) (8). The IR ν(CO)
absorptions measured for the dinuclear compound 6 indicate no bridging carbonyl, but a 13C NMR study in
solution shows that 6 is stereochemically nonrigid at ambient temperature; its three carbonyl ligands are all involved
in a fast exchange process, and this process is frozen at -86 °C. Exchange of the CO groups via a terminal-
bridging-terminal process accompanied by rotation about the Ir-Ir axis is suggested. The molecular structure
of 6 in the solid state has been established by single crystal X-ray crystallographic analysis and is consistent with
the solution spectra. By reaction of [N2Ar][BF4] with the dinuclear complex [Cp*Ir(CO)]2 (4) in acetone, the
complex [{Cp*Ir(CO)}2(1-η1-1,2-η2-p-C6H4OMe)][BF4] (9) with a rare σ,π-bridging aryl group has been obtained
and crystallized. The molecular structure containing an asymmetric bridging aryl group is established for 9 in
the solid state by a single crystal X-ray crystallographic analysis. However, the identical 1H NMR features observed
at ambient temperature and -90 °C in solution (i.e., a singlet resonance for the two Cp* ligands and a symmetric
AA′BB′ pattern for the p-C6H4OMe) indicate a static or time-averaged symmetrical molecular geometry for 9.
Compound 6 crystallizes in the monoclinic space group P21/c with a ) 10.583(2) Å, b ) 14.256(3) Å, c )
16.818(4) Å, â ) 95.91 (2)°, V ) 2523.9 Å3, and Z ) 4. Refinement yielded RF ) 0.027 and RwF ) 0.033 for
3299 observed reflections (Io g 2.5σ(Io)) of 4427 unique reflections. Compound 9 crystallizes in the monoclinic
space group P21/n with a ) 11.695(2) Å, b ) 19.911(3) Å, c ) 12.539(2) Å, â ) 96.54(1)°, V ) 2900.8 Å3, and
Z ) 4. Refinement yielded RF ) 0.025 and RwF ) 0.035 for 3444 observed reflections (Io g 2.5σ(Io)) of 4526
unique reflections.
Introduction
However, with a synthetic point of view, we are more
interested in how the stabilities and reactivities of an aryl-
diazenido ligand in a given complex are influenced by a
systematic change of the natures of the metal and the ligands
present in the complex. In this latter regard, our recent research
efforts, both in the experimental arena and in the theoretical
domain, have therefore been directed at investigating the effects
exerted on the aryldiazenido ligand by different ancillary ligands
L in a complex with a general formula [Cp*Ir(L)(p-N2C6H4-
OMe)]n (n ) 0, or +1).4-6 Experimentally, we have to date
demonstrated that the singly-bent aryldiazenido fragment Cp*Ir-
(p-N2C6H4OMe) prefers to bind a weak π-acid as the ancillary
ligand L,5 and when a π-base ligand is used for L, no stable
analogous two-legged piano stool molecule can be obtained.
Especially, in the latter case, when the π-basicity of L is strong
enough, e.g., iodide, a novel asymmetric bis(aryldiazenido)-
bridged diiridium complex is obtained, which is believed to be
formed through a doubly-bent aryldiazenido intermediate species
Since the first transition metal complex containing a stable
aryldiazenido ligand, CpMo(CO)2(N2Ph), was reported by King
and Bisnette in 1964,1 numerous such compounds have been
synthesized and an interesting range of coordination geometries
for the N2Ar ligand has been established from their crystal-
lographic studies.1b,2 With the wealth of the structural chemistry
displayed by these compounds, an understanding of the elec-
tronic interactions engendering the different geometries of the
aryldiazenido ligand is naturally appealing. A valuable theoreti-
cal contribution to this has been made by Hoffmann et al. by
using N2H as the modeling ligand, whereby a general correlation
of the geometric preference of a diazenido ligand to the
electronic structure of the complex has been elucidated.3
