New Bis-bip h osp h ole-Tr a n sition -Meta l Com p lexes:
Sp on ta n eou s Isom er iza tion of tr a n s-m eso- in to
cis-(()-[Ru (tr iflu or oa ceta te)2(1,1′-d ip h en yl-3,3′,4,4′-
tetr a m eth yl-2,2′-bip h osp h ole)2]
Olivier Tissot, Maryse Gouygou,*,† J ean-Claude Daran, and
Gilbert G. A. Balavoine*,‡
Laboratoire de Chimie de Coordination du CNRS, 205 Route de Narbonne,
31077 Toulouse Cedex, France
Received August 3, 1998
Summary: The reaction of [Ru2(O2CCF3)2(µ-O2CCF3)2-
(COD)2(µ-H2O)] with 1,1′-diphenyl-3,3′,4,4′-tetramethyl-
2,2′-biphosphole (1) provides trans-meso-[Ru(trifluoro-
a ceta te)2 (1,1′-d iph en yl-3,3′,4,4′-tetr a m eth yl-2,2′-
biphosphole)2] complex 3, which spontaneously isomerizes
in solution into cis-(()-[Ru(trifluoroacetate)2(1,1′-diphe-
nyl-3,3′,4,4′-tetramethyl-2,2′-biphosphole)2] complex 4.
These new bis-biphosphole-ruthenium complexes have
been characterized by X-ray diffraction.
The structural characterization of 1,1′-diphenyl-
3,3′,4,4′-tetramethyl-2,2′-biphosphole1 (1) (BIPHOS) led
to a renewed interest in the coordination chemistry of
this C2-symmetric bidentate ligand, first described by
Mathey.2 Recently, we have synthesized and fully
characterized new nickel, palladium, and platinum
complexes [MX2(BIPHOS)].3 With Pd(II) and Rh(I), we
obtained the first bis-biphosphole complexes,3 proving
that BIPHOS is a rather good ligand for transition
metals. A similar palladium complex was later described
by Matsuda and co-workers.4 We report here the syn-
thesis, spectroscopic characterization and X-ray struc-
tural analysis of new ruthenium(II) bis-biphosphole
complexes.

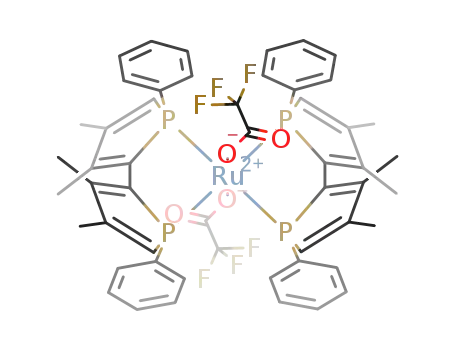

F igu r e 1. Molecular view of complex 3. The ellipsoids are
drawn at 30% probability. Phenyl carbons are omitted for
clarity.
Sch em e 1
[Ru2(O2CCF3)2(µ-O2CCF3)2(COD)2(µ-H2O)]5 (2) is a
good precursor for the preparation of diphosphine di-
carboxylato ruthenium complexes [Ru(O2CCF3)2(P-P)].6
Surprisingly, the reaction of biphosphole 1, prepared
according to the previously described method,7 with
complex 2 in dichloromethane at 30 °C gives in moder-
ate yield a bis-biphosphole-ruthenium complex 3
(Scheme 1), as indicated by elemental analysis and mass
spectroscopy. Crystals of complex 3, suitable for X-ray
analysis, were obtained by slow evaporation from a
dichloromethane solution.
octahedral geometry for ruthenium and mutually trans-
ligated monodentate trifluoroacetate groups. X-ray struc-
tural analysis confirms the formation of [Ru(O2CCF3)2-
(BIPHOS)2] as complex 3. This complex contains the SRR
and RSS absolute configurations of the biphosphole 1
(Figure 2), and it is then the meso diastereomer as
already observed in the [Pd(BIPHOS)2](BF4)2 complex.3
Surprisingly this compound 3 crystallized in the polar
enantiomorphous P21 space group. This non-centrosym-
metry might be induced by the packing arrangement
of the complex with the occurrence of four solvent
molecules. Indeed, it is worth noting that crystals of the
The CAMERON8 plot given in Figure 1 shows a near-
† E-mail: gouygou@lcc-toulouse.fr.
‡ E-mail: balavoin@lcc-toulouse.fr.
(1) Tissot, O.; Gouygou, M.; Daran, J .-C.; Balavoine, G. G. A. J .
Chem. Soc., Chem. Commun. 1996, 2288.
(2) Mercier, F.; Holand, S.; F. Mathey, F. J Organomet Chem. 1986,
316, 271.
(3) Gouygou, M.; Tissot, O.; Daran, J .-C.; Balavoine, G. G. A.
Organometallics 1997, 5, 1008.
(4) Kojima, T. K.; Saeki, K.; Ono, K.; Ohda, M.; Matsuda, Y. J . Chem.
Soc., Chem. Commun. 1997, 1679; 1998, 521.
(5) Albers, M. O.; Liles, D. C.; Singleton, E.; Yates, J . E. J Organomet
Chem. 1984, 272, C62.
(6) Heiser, B.; Broger, E. A.; Crameri, Y. Tetrahedron: Asymmetry
1991, 2, 51.
(7) Deschamps, E.; Mathey, F. Bull. Soc. Chim. Fr. 1992, 29, 486.
(8) Watkin, D. J .; Prout, C. K.; Pearce, L. J . CAMERON; Chemical
Crystallography Laboratory, University of Oxford: Oxford, 1996.
10.1021/om980667i CCC: $15.00 © 1998 American Chemical Society
Publication on Web 12/01/1998

5928 Organometallics, Vol. 17, No. 26, 1998
Notes
F igu r e 2. Configuration of the 2,2′-biphosphole ligand in
complex 3. The projection is along the axis of the C-C bond
linking the phosphole rings. Superscript refers to axial
chirality generated by the biphosphole framework; sub-
script refers to phosphorus central chirality.
Ta ble 1. Selected Bon d Len gth s (Å) a n d Bon d
An gles (d eg) w ith esd ’s in P a r en th eses for
Com p ou n d s 3 a n d 3′
F igu r e 3. Molecular view of complex 4. The ellipsoids are
drawn at 30% probability.
molecule 3
molecule 3′
Ta ble 2. Selected Bon d Len gth s (Å) a n d Bon d
An gles (d eg) w ith esd ’s in P a r en th eses for
Com p ou n d s 4
Ru(1)-P(1)
2.359(1)
2.388(1)
2.379(1)
2.396(1)
2.125(3)
2.129(3)
Ru(1)-P(1)
2.358(4)
2.392(4)
2.372(4)
2.375(3)
2.106(9)
2.112(8)
Ru(1)-P(2)
Ru(1)-P(5)
Ru(1)-P(4)
Ru(1)-O(1)
Ru(1)-O(3)
Ru(1)-P(2)
Ru(1)-P(5)
Ru(1)-P(4)
Ru(1)-O(1)
Ru(1)-O(3)
Ru(1)-P(1)
Ru(1)-P(4)
Ru(1)-O(1)
2.358(4)
2.275(3)
2.173(9)
Ru(1)-P(2)
Ru(1)-P(5)
Ru(1)-O(3)
2.296(4)
2.394(4)
2.130(9)
P(4)-Ru(1)-P(2)
P(4)-Ru(1)-P(1)
P(2)-Ru(1)-P(1)
O(3)-Ru(1)-P(5)
O(1)-Ru(1)-P(5)
P(4)-Ru(1)-P(5)
P(2)-Ru(1)-P(5)
P(1)-Ru(1)-P(5)
94.2(1)
88.6(1)
84.3(1)
82.8(2)
95.0(3)
84.2(1)
98.6(1)
172.4(1)
O(3)-Ru(1)-O(1)
O(3)-Ru(1)-P(4)
O(1)-Ru(1)-P(4)
O(3)-Ru(1)-P(2)
O(1)-Ru(1)-P(2)
O(3)-Ru(1)-P(1)
O(1)-Ru(1)-P(1)
82.8(3)
95.9(2)
178.6(3)
169.9(2)
87.1(2)
95.6(2)
92.1(3)
P(1)-Ru(1)-P(2)
P(1)-Ru(1)-P(5)
P(2)-Ru(1)-P(5)
P(1)-Ru(1)-P(4)
P(2)-Ru(1)-P(4)
P(5)-Ru(1)-P(4)
P(1)-Ru(1)-O(1)
P(2)-Ru(1)-O(1)
P(5)-Ru(1)-O(1)
P(4)-Ru(1)-O(1)
P(1)-Ru(1)-O(3)
P(2)-Ru(1)-O(3)
P(5)-Ru(1)-O(3)
P(4)-Ru(1)-O(3)
O(1)-Ru(1)-O(3)
83.75(5)
179.17(6)
97.06(5)
95.38(5)
178.89(6)
83.80(5)
83.3(1)
81.8(1)
96.7(1)
97.5(1)
96.4(1)
P(1)-Ru(1)-P(2)
P(1)-Ru(1)-P(5)
P(2)-Ru(1)-P(5)
P(1)-Ru(1)-P(4)
P(2)-Ru(1)-P(4)
P(5)-Ru(1)-P(4)
P(1)-Ru(1)-O(1)
P(2)-Ru(1)-O(1)
P(5)-Ru(1)-O(1)
P(4)-Ru(1)-O(1)
P(1)-Ru(1)-O(3)
P(2)-Ru(1)-O(3)
P(5)-Ru(1)-O(3)
P(4)-Ru(1)-O(3)
O(1)-Ru(1)-O(3)
83.4(1)
178.7(1)
97.3(1)
95.8(1)
179.1(1)
83.5(1)
84.8(3)
82.5(3)
96.3(3)
96.9(3)
95.7(3)
98.2(2)
83.1(3)
82.5(2)
179.2(3)
palladium complex [Pd(BIPHOS)2](BF4)2.3 Transforma-
tion of complex 3 was observed in solution, leading to
the formation of a new complex 4 (Scheme 1). By
following the course of this conversion by 31P NMR
spectroscopy, we observed the disappearance of the
singlet at δ ) 54.5 corresponding to four equivalent
phosphorus nuclei in complex 3 concomitant with the
appearance of an ABCD system corresponding to four
nonequivalent phosphorus nuclei in complex 4. Elemen-
97.5(1)
83.7(1)
83.3(1)
179.2(2)
same meso form having only two CH2Cl2 solvent mol-
ecules, compound 3′, belong to the centrosymmetric
space group P21/c. Although unexpected, the monoden-
tate coordination mode of the trifluoroacetate groups is
not unprecedented, and there are many examples of a
such bonding mode for the trifluoroacetate.9 The four
Ru-P bond distances lie in the range 2.32-2.42 Å found
for related ruthenium(II) bisphosphine trans-disubsti-
tuted complexes10 (cf. Table 1).
1
tal analysis, mass spectroscopy, and H NMR spectros-
copy confirmed the formation of a bis-biphosphole-
ruthenium complex 4. The molecular structure deter-
mined by X-ray analysis and represented in Figure 3
shows a chiral near-octahedral geometry for ruthenium.
As in 3, this complex 4 contains the pair of enantiomers
of biphosphole 1 with SRR and RSS absolute configura-
tions but with two cis monodentate trifluoroacetate
groups leading to a chiral arrangement around the
metal atom. The two Ru-P bond lengths corresponding
to the P atoms trans to each other, 2.358(4) and 2.394-
(4) Å, are similar to those observed for 3, whereas for
the two P atoms trans to the trifluoroacetate the Ru-P
distances are much shorter, 2.275(3) and 2.296(4) Å, as
also observed in related complexes11 (cf. Table 2). This
large difference could be the consequence of a strong
trans influence of the trifluoroacetate ligands. We
assume that the formation of the kinetic product 3 is
This meso-Ru complex 3 is stereochemically less
