Catalytic Transformations of Vinylthiiranes by Tungsten Carbonyl
Complexes. A New Route to 3,6-Dihydro-1,2-dithiins
Richard D. Adams* and Joseph L. Perrin
Contribution from the Department of Chemistry and Biochemistry, UniVersity of South Carolina,
Columbia, South Carolina 29208
ReceiVed December 9, 1998
Abstract: W(CO)5(NCMe) (1) has been found to transform vinylthiirane and a series of methyl-substituted
vinylthiiranes into a series of 3,6-dihydro-1,2-dithiin compounds. Two equivalents of the vinylthiirane are
required, and 1 equiv of a butadiene is formed by the transfer of its sulfur atom to the second vinythiirane,
which is then transformed into the dihydrodithiin. The formation of 3,6-dihydro-1,2-dithiin (9) proceeds at 15
turnovers/h at 25 °C using vinylthiirane (4) and 1 as the catalyst. The catalyst is long-lived (up to 2000 turnovers
have been obtained without loss of activity) and relatively insensitive to air. Methyl substitutents on the vinyl
group increase the rate of reaction while methyl substituents on the thiirane ring slow it considerably. The
introduction of phosphine ligands to the catalyst also leads to significant increases in the rate of reaction. The
dithiin complex W(CO)5(SSCH2CHdCHCH2) (13) was isolated from the catalytic reactions and was structurally
characterized. The dihydrodithiin is coordinated to the tungsten atom through one of its two sulfur atoms.
Compound 13 was shown to be a species in the catalytic cycle. A mechanism involving a vinylthiirane
intermediate that undergoes spontaneous ring opening, followed by addition of a second vinylthiirane to the
terminal carbon of the chain, elimination of 1 equiv of butadiene, and formation of a sulfur-sulfur bond
leading to 13 is proposed. The vinylthiirane intermediate is regenerated by ligand substitution which releases
the dihydrodithiin product. Compound 9 readily polymerizes when its pure form is exposed to visible light. If
the polymerization is interrupted at an early stage, 1,2,7,8-tetrathiacyclododeca-4,10-diene (14), a dimer of 9,
can be isolated. Compound 14 was obtained in 5.6% yield and was structurally characterized crystallographically.
Introduction
develop catalytic processes that lead to the formation of
polythioether macrocycles catalytically by ring-opening cycloo-
ligomerization processes involving three or more thietane
molecules, e.g. eq 1.5
The cleavage of carbon-sulfur bonds in cyclic thioethers is
central to the processes relating to the hydrodesulfurization of
petroleum feedstocks.1-3 We have recently been investigating
ring-opening reactions of the strained cyclic thioethers, thietanes,
and thiiranes, which are promoted by coordination of the sulfur
atom to transition metal atoms of certain metal carbonyl
complexes.4-6 For the thietanes, we have even been able to
(1)
(1) (a) Angelici, R. J. Polyhedron 1997, 16, 3071. (b) Bianchini, C.;
Casares, J. A.; Meli, A.; Sernau, V.; Vizza, F.; Sa´nchez-Delgado, R. A.,
Polyhedron 1997, 16, 3099. (c) Jones, W. D.; Vicic, D. A.; Chin, R. M.;
Roache, J. H.; Myers, A. W. Polyhedron 1997, 16, 3115. (d) Wiegand, B.
C.; Friend C. M. Chem. ReV. 1992, 92, 491. (e) Angelici, R. J. Coord.
Chem. ReV. 1990, 105, 61. (e) Rauchfuss, T. B. Prog. Inorg. Chem. 1991,
39, 259. (f) Angelici, R. J. Acc. Chem. Res. 1988, 21, 387. (g) Adams, R.
D.; Pompeo, M. P.; Wu, W.; Yamamoto, J. H. J. Am. Chem Soc. 1993,
115, 8207.
(2) (a) Riaz, U.; Curnow, O. J.; Curtis, M. D. J. Am. Chem. Soc. 1994,
116, 4357. (b) Jones, W. D.; Chin, R. M. J. Am. Chem. Soc. 1994, 116,
198. (c) Bianchini, C. Meli, A.; Peruzzini, M.; Vizza, F.; Moneti, S.; Herrera,
V.; Sa´chez-Delgado, R. A. J. Am. Chem. Soc. 1994, 116, 4370. (d) Chen,
J.; Angelici, R. J. Appl. Organomet. Chem. 1992, 6, 479. (e) Luo, S.; Ogilvy,
A. E.; Rauchfuss, T. B. Organometallics 1990, 10, 1002.
(3) (a) Schuman, S. C.; Shalit, H. Catal. ReV. 1970, 4, 245. (b) Gates,
B. C.; Katzer, J. R.; Schuit, G. C. A. Chemistry of Catalytic Processes;
McGraw-Hill: New York, 1978; Chapter 5. (c) Friend, C. M.; Roberts, J.
T. Acc. Chem. Res. 1988, 21, 394. (d) Markel, E. J.; Schrader, G. L.; Sauer,
N. N.; Angelici, R. J. J. Catal. 1989, 116, 11. (e) Prins, R.; De Beer, V. H.
H.; Somorjai, G. A. Catal. ReV. Sci. Eng. 1989, 31, 1. (f) Sauer, N. N.;
Markel, E. J.; Schrader, G. L.; Angelici, R. J. J. Catal. 1989, 117, 295. (g)
Kwart, H.; Schuit, G. C. A.; Gates, B. C. J. Catal. 1980, 61, 128. (h) Curtis,
M. D.; Penner-Hahn, J. E.; Schwank, J.; Beralt. O.; McCabe, D. J.;
Thompson, L.; Waldo, G. Polyhedron 1988, 7, 2411. (i) Curtis, M. D. Appl.
Organomet. Chem. 1992, 6, 429.
Thiiranes possess ring strain that has been estimated to be
≈19 kcal/mol in the parent molecule.7 They are readily
(4) (a) Adams, R. D.; Pompeo, M. P. Organometallics 1992, 11, 1460.
(b) Adams R. D. J. Cluster. Sci. 1992, 3, 263. (c) Adams, R. D.; Cortopassi,
J. E.; Falloon, S. B., Organometallics 1992, 11, 3794. (d) Adams, R. D.;
Belinski, J. A.; Pompeo, M. P., Organometallics 1992, 11, 3129. (e) Adams,
R. D.; Belinski, J. A., Organometallics 1992, 11, 2488.
(5) (a) Adams, R. D. Catalytic Synthesis of Polythioether Macrocycles.
In Catalysis by Di- and Polynuclear Metal Cluster Complexes; Adams, R.
D., Cotton, F. A., Eds.; Wiley-VCH Publishers: New York, 1998; Chapter
8. (b) Adams, R. D.; Falloon, S. B. Chem. ReV. 1995, 95, 2587. (c) Adams,
R. D.; Falloon, S. B. J. Am. Chem. Soc. 1994, 116, 10540. (d) Adams, R.
D.; Cortopassi, J. E.; Falloon, S. B. Organometallics 1995, 14, 1748. (e)
Adams, R. D.; Falloon, S. B. Organometallics 1995, 14, 4594. (f) Adams,
R. D.; Queisser, J. A.; Yamamoto, J. H. Organometallics 1996, 15, 2489.
(g) Adams, R. D.; Falloon, S. B.; Perrin, J. L.; Queisser, J. A.; Yamamoto,
J. H. Chem. Ber. 1996, 126, 313. (h) Adams, R. D.; Cortopassi, J. E.;
Falloon, S. B., J. Organomet. Chem. 1993, 463, C5.
(6) (a) Adams, R. D.; Yamamoto, J. H.; Holmes, A.; Baker, B. J.
Organometallics 1997, 16, 1430. (b) Adams, R. D.; Queisser, J. A.;
Yamamoto, J. H. J. Am. Chem. Soc. 1996, 118, 10674.
10.1021/ja984249g CCC: $18.00 © 1999 American Chemical Society
Published on Web 04/28/1999

Catalytic Transformations of Vinylthiiranes
J. Am. Chem. Soc., Vol. 121, No. 16, 1999 3985
polymerized when treated with Lewis acids and Lewis bases.8
They also eliminate sulfur to yield elemental sulfur and the
corresponding olefin when heated.8b-d,9 The desulfurization of
thiiranes is promoted by complexation to transition metal atoms
and adsorption onto metal surfaces.10,11
There have been a few reports of transition metal complexes
containing thiiranes as ligands, and some of these have been
characterized structurally by X-ray crystallographic methods.6,12
We have found that the thiiranetungsten pentacarbonyl complex
W(CO)5(SC2H4) reacts with thiiranes catalytically to yield a
series of cyclic disulfides with release of 1 equiv of olefin for
each disulfide unit that is formed (eq 2).6
were recorded on a Varian Mercury 400 spectrometer operating at
100.59, 125.76, and 161.94 MHz, respectively. 31P NMR spectra were
referenced against H3PO4. Mass spectra were obtained using electron
impact ionization. Elemental analyses were performed by Oneida
Research Services (Whitesboro, NY). 3,4-Epoxy-1-butene was supplied
by Eastman and was used without further purification. 2-Methyl-2-
vinyloxirane was purchased from Aldrich and was used without further
purification. The remaining epoxides were prepared by following
procedure reported for the synthesis of 3,4-epoxy-2-methyl-1-butene.15
W(CO)5(NCMe)16 (1), W(CO)5(PPh3),17 and W(CO)5(PMe2Ph)17 were
prepared according to the published procedures. 13CO-enriched tungsten
complexes (labeled with * herein) were prepared in the same manner
as the unenriched complexes starting with 13CO-enriched W(CO)6.5g
Product separations were performed by TLC in air on Analtech 0.25
and 0.50 mm silica gel 60 Å F254 glass plates. Plots of the kinetic data
were fitted using Cricket Graph version 1.3 of Cricket Software on a
Macintosh Power PC.
(2)
Synthesis of the Vinylthiiranes. All vinylthiiranes were prepared
according to the published procedure for the synthesis of thiirane from
the ethylene oxide.18 Spectral data for vinylthiirane (4): 1H NMR (δ
in CDCl3): 5.55 (m, 2H), 5.17 (m, 1H), 3.44 (m, 1H), 2.64 (dd, 2JH-H
) 6.3 Hz, 3JH-H ) 1.6 Hz, 1H), 2.32 (dd, 2JH-H ) 5.5 Hz, 3JH-H ) 1.6
Hz, 1H). 13C NMR (δ in CDCl3): 138.9 (1C), 117.6 (1C), 36.7 (1C),
25.3 (1C).19 The mass spectrum shows the parent ion at 86 m/e, as
well as additional ions with weights of 85, 71, and 64 m+/e. Spectral
data for 3,4-epithia-2-methyl-1-butene (5): 1H NMR (δ in CDCl3): 5.18
In this report, our studies of the transformations of a series
of vinylthiiranes by W(CO)5(NCMe) (1) and its two phosphine

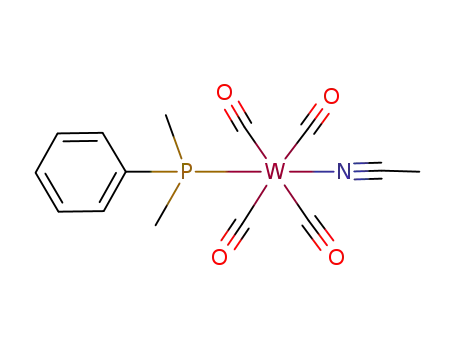

derivatives, W(CO)4(PPh3)(NCMe) (2) and W(CO)4(PMe2Ph)-
