Diastereoselective reduction of N-phthaloyl α-amino ketones: Synthesis of syn-3-amino-1,2-diol derivatives

Article abstract of DOI:10.1016/S0040-4039(00)01993-6

LiAlH(OBu-t)₃ reduction of the chiral-pool derived N-phthaloyl α-amino-α′-acetoxy ketones has led to a facile diastereoselective synthesis of syn-3-amino-1,2-diols (> 75% de).

Full text of DOI:10.1016/S0040-4039(00)01993-6

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 42 (2001) 485–487
Diastereoselective reduction of N-phthaloyl a-amino ketones:
synthesis of syn-3-amino-1,2-diol derivatives†
Saumitra Sengupta* and Debarati Sen Sarma
Department of Chemistry, Jadavpur University, Calcutta 700 032, India
Received 17 August 2000; revised 25 October 2000; accepted 8 November 2000
Abstract—LiAlH(OBu-t)3 reduction of the chiral-pool derived N-phthaloyl a-amino-a%-acetoxy ketones has led to a facile
diastereoselective synthesis of syn-3-amino-1,2-diols (>75% de). © 2001 Elsevier Science Ltd. All rights reserved.
In a study directed towards Ni-catalyzed enantioselec-
tive conjugate additions of diorganozincs to enones, we
required both the syn- and anti-isomers of 3-amino-1,2-
diols as stereocomplementary chiral auxiliaries. Several
methods are available for the synthesis of anti-3-amino-
1,2-diols, notably among which are the ring-opening of
trans-glycidols with amines,1 organometallic addition
reactions to glyceraldehyde imines and nitrones,2 reduc-
tive amination of a-epoxy or glyceryl ketones,3 etc.
However, synthetic routes to syn-3-amino-1,2-diols are
severely limited and currently confined to the chiral
auxiliary controlled Grignard additions to 2-O-benzyl-
glyceraldehyde N-(1-phenylethyl)imines2b,c and ZnBr2
mediated Grignard additions to glyceraldehyde ni-
trones.2e In view of their specialized nature, we looked
for new synthetic avenues to syn-3-amino-1,2-diols and
towards this end, report here a facile synthesis of some
of these derivatives via a highly diastereoselective syn-
reduction of N,N-diprotected a-amino-a%-hydroxy-
ketones. Since anti-3-amino-1,2-diols have already been
used in the synthesis of various bioactive compounds
viz. nor-statines, dipeptide isosteres, a-amino epoxides,
b-amino acids and amino sugars,1 we believe that our
new synthesis of the syn-isomers will provide opportu-
nities for the preparation of the opposite enantiomers
of these important targets.
Scheme 1.
Keywords: a-amino diazoketones; lithium tri-t-butoxyaluminium hydride; syn-reduction; syn-amino diols.
* Corresponding author. Fax: 91 033 4734266.
†
In memory of Professor Amalendu Das.
0040-4039/01/$ - see front matter © 2001 Elsevier Science Ltd. All rights reserved.
PII: S0040-4039(00)01993-6

486
S. Sengupta, D. Sen Sarma / Tetrahedron Letters 42 (2001) 485–487
Scheme 2.
Since Reetz et al. have shown that N,N-diprotected
a-aminoketones, particularly the N,N-Bn2 a-amino ke-
tones, can be reduced via the Felkin-mode with high
syn-selectivity,4 we first decided to study the
diastereoselective reductions of some N,N-Bn2 a-
amino-a%-hydroxyketones. Towards this end, a cata-
lyzed intermolecular OꢀH insertion reaction of the

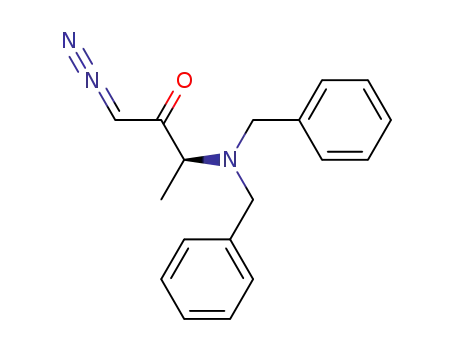

N,N-Bn2 a-aminodiazoketone 2 (readily prepared from
N,N-Bn2 alanine (1)5 in 64% yield) was explored as a
route to the key hydroxyketone 3 (Scheme 1). However,
all attempts at insertion reactions of 2 to HOAc or
MeOH in the presence of various catalysts (Rh2(OAc)4,
Cu(OAc)2, BF3·Et2O) failed to deliver 3, perhaps due to
interference from the a-N,N-Bn2 group via intramolec-
ular nitrogen–ylide formation. Intermolecular SꢀH in-
sertion reactions of 2 to PhSH, however, proceeded
smoothly to give 4 (70%) indicating that formation of
sulfonium ylides (believed to be the initial step in SꢀH
insertion reactions) are favored over that of nitrogen–
ylides. The a-thiophenylketone 4 could be easily re-
NaB(CN)H3 or L-Selectride led to extensive hydride
attack on the phthaloyl and acetate moieties of 8
resulting in complex product mixtures. Moreover, two
equivalents of LiAlH(OBu-t)3 were found to be neces-
sary for complete reductions of 8. The best de’s were
obtained at −78°C, whereas reductions carried out at
0°C to −20°C led to only a 60/40 ratio of the products.
It may also be mentioned here that NHBoc a-
aminoacetoxyketones, prepared from NHBoc a-amino
acids via the above OꢀH insertion route, can be re-
8b,c,10
duced with NaBH4
in THF–MeOH at −78°C to
give the anti-3-amino-1,2-diol products in ]80%
de’s.11 Therefore, via appropriate N-protecting group
tuning, the present methodology, i.e. OꢀH insertion
reactions of a-amino diazoketones followed by stereo-
selective reduction, provides a stereo-complementary
strategy for the synthesis of both the syn- and anti-3-
amino-1,2-diol derivatives.
duced with NaBH4 to give
5 (60%) with high
syn-selectivity (J2,3=9.4 Hz). The latter promises to be
a new amino alcohol based chiral auxiliary having an
additional chalcogenide chelating arm and is under
active investigation.
Acknowledgements
Financial support for this work was provided by DST
(SP/S1/G-14/97) and UGC (senior research fellowship
to D.S.S.).
The failure to synthesize 3 led us to search for other
N,N-diprotecting groups that would not interfere in the
OꢀH insertion step. The N-phthaloyl (NPht) protecting
group appeared to be quite promising in this regard,
especially since we have previously shown that cata-
lyzed OꢀH insertion reactions to NPht a-amino dia-
zoketones can be carried out in good yields.6 In the
event, the NPht a-amino acids 6a–c were first con-
verted to the respective a-diazoketones 7a–c by con-
ventional methods (Scheme 2). Cu(OAc)2 catalyzed
OꢀH insertion reactions of the latter with HOAc then
smoothly produced the key NPht a-amino acetoxy ke-
tones 8a–c in ca. 70% yields. The latter were then
reduced via the Felkin-mode (LiAlH(OBu-t)3, THF,
−78°C) to give the syn-amino diol monoacetates 9a–c
References
1. (a) Castejon, P.; Moyano, A.; Pericas, M. A.; Riera, A.
Chem. Eur. J. 1996, 2, 1001; (b) Pasto, M.; Moyano, A.;
Pericas, M. A.; Riera, A. Tetrahedron: Asymmetry 1996,
7, 243; (c) Pasto, M.; Castejon, P.; Moyano, A.; Pericas,
M. A.; Riera, A. J. Org. Chem. 1996, 61, 6033; (d)
Castejon, P.; Moyano, A.; Pericas, M. A.; Riera, A.
Tetrahedron 1996, 52, 7063; (e) Vidal-Ferran, A.; Moy-
ano, A.; Pericas, M. A.; Riera, A. J. Org. Chem. 1997, 62,
4970; (f) Pasto, M.; Moyano, A.; Pericas, M. A.; Riera,
A. J. Org. Chem. 1997, 62, 8425; (g) Medina, E.; Vidal-
Ferran, A.; Moyano, A.; Pericas, M. A.; Riera, A. Tetra-
hedron: Asymmetry 1997, 8, 1581; (g) Pasto, M.; Moyano,
A.; Pericas, M. A.; Riera, A. Tetrahedron Lett. 1998, 39,
1233; (i) Medina, E.; Moyano, A.; Pericas, M. A.; Riera,
A. J. Org. Chem. 1998, 63, 8574; (j) Alcon, M.; Moyano,
A.; Pericas, M. A.; Riera, A. Tetrahedron: Asymmetry
1999, 10, 4639; (k) Puigjaner, C.; Vidal-Ferran, A.; Moy-
ano, A.; Pericas, M. A.; Riera, A. J. Org. Chem. 1999, 64,
7902.
1
in >75% de’s, as judged by the H NMR (300 MHz)
spectra of the crude reduction products. The minor
anti-isomers were easily separated by chromatography
or recrystallization (for 9c) to give the pure syn-prod-
ucts 9a–c in 60–65% isolated yields.7 The syn-stereo-
chemistry in 9 were clearly evident from the relatively
large coupling constants shown by their H-2 protons (l
4.51–4.70, J2,3=5–7 Hz).7,8 LiAlH(OBu-t)3, a bulky
and chemoselective reducing agent9 was found to be
absolutely essential for these reductions. NaBH4,

S. Sengupta, D. Sen Sarma / Tetrahedron Letters 42 (2001) 485–487
487
2. (a) Franz, T.; Hein, M.; Veith, U.; Ja¨ger, V.; Peters, E.
M.; Peters, K.; Von Schnering, H. G. Angew Chem., Int.
Ed. Engl. 1994, 33, 1298; (b) Veith, U.; Leurs, S.; Ja¨ger,
V. J. Chem. Soc., Chem. Commun. 1996, 329; (c) Meu-
nier, N.; Veith, U.; Ja¨ger, V. J. Chem. Soc., Chem.
Commun. 1996, 331; (d) Remuzon, P.; Dussy, C.; Jacquet,
J.-P.; Roty, P.; Bouzard, D. Tetrahedron: Asymmetry
1996, 7, 1181; (e) Mereino, P.; Franco, S.; Merchan, F.
L.; Tejero, T. Synlett 2000, 442; (f) Mulzer, J.; Anger-
mann, A.; Schubert, B.; Seitz, C. J. Org. Chem. 1986, 51,
5294.
[h]2D5 +8.40 (c 0.5); IR (neat): 3400, 1775, 1740, 1700 cm-1;
lH (300 MHz, CDCl3): 0.91 (d, 3H, J 6.3), 0.94 (d, 3H, J
6.3), 1.33–1.58 (m, 1H), 2.00 (s, 3H), 2.04–2.21 (m, 2H),
3.70 (br d, 1H), 3.99–4.14 (m, 2H), 4.15–4.22 (m, 1H),
4.51 (ddd, 1H, J 5.1, 5.1, 10.3), 7.71–7.77 (m, 2H),
7.82–7.86 (m, 2H). 9c: mp 84–85°C (EtOAc/hexane);
[h]2D5 −57.9 (c 2.0); IR (KBr): 3400, 1770, 1740, 1700
cm−1; lH (300 MHz, CDCl3): 1.98 (s, 3H), 3.25 (d, 2H, J
8.2), 4.02–4.12 (m, 2H), 4.11 (br d, 1H), 4.17–4.24 (m,
1H), 4.70 (dt, 1H, J 4.6, 8.0), 7.14–7.21 (m, 5H), 7.70–
7.74 (m, 4H).
3. (a) Pegorier, L.; Haddad, M.; Larcheveˆque, M. Synlett
1996, 585; (b) Hutin, P.; Petit, Y.; Larcheveˆque, M.
Tetrahedron Lett. 1998, 39, 8277.
8. anti-1,2-Amino alcohols usually show a smaller coupling
constant (J=2–3 Hz) between their amino alcohol pro-
tons, see e.g. (a) Fujita, M.; Hiyama, T. J. Org. Chem.
1988, 53, 5415; (b) Albeck, A.; Persky, R. Tetrahedron
1994, 50, 6333; (c) Albeck, A.; Estreicher, G. I. Tetra-
hedron 1997, 53, 5325.
9. (a) Newmann, H. J. Org. Chem. 1974, 39, 100; (b) Ma´lek,
J. Org. React. 1985, 34, 1; (c) Sengupta, S.; Sen Sarma,
D.; Das, D. Tetrahedron: Asymmetry 1999, 10, 1653; (d)
Sengupta, S.; Sen Sarma, D. Tetrahedron: Asymmetry
1999, 10, 4633; for syn-reductions of NPht a-amino
ketones using chiral oxaboralizidines, see (e) Barco, A.;
Benetti, S.; Bergamini, P.; De Risi, C.; Marchetti, P.;
Pollini, G. P.; Zanirato, V. Tetrahedron Lett. 1999, 40,
7705.
4. Reetz, M. T. Chem. Rev. 1999, 99, 1121.
5. (a) Hoffman, R. V.; Tao, J. J. Org. Chem. 1997, 62, 2292;
(b) Moriarty, R. M.; Tao, A.; Tuladhar, S. Synth. Com-
mun. 1997, 27, 3227.
6. (a) Sengupta, S.; Das, D.; Sen Sarma, D. Tetrahedron
Lett. 1996, 37, 8815; for a review on enantiopure a-amino
diazoketones, see (b) Doyle, M. P.; McKervey, M. A. J.
Chem. Soc., Chem. Commun. 1997, 983.
7. All new compounds gave satisfactory IR, NMR and
microanalytical (C, H, N) data. 9a: oil; [h]2D5 +3.75 (c
0.8); IR (neat): 3400, 1780, 1740, 1700 cm−1; lH (300
MHz, CDCl3): 1.50 (d, 3H, J 7.2), 2.03 (s, 3H), 3.63 (br
d, 1H), 4.07–4.13 (m, 2H), 4.20–4.23 (m, 1H), 4.55 (qnt,
1H, J 7.2), 7.73–7.76 (m, 2H), 7.84–7.86 (m, 2H). 9b: oil;
10. Rotella, D. P. Tetrahedron Lett. 1995, 36, 5453.
11. Sen Sarma, D. Ph.D. Thesis, Jadavpur University.
.
.
