Tris[p-(N-oxyl-N-tert-butylamino)phenyl]amine, -methyl, and borane have doublet, triplet, and doublet ground states, respectively

Article abstract of DOI:10.1021/ja9920819

N,N,N-Tris[p-(N-oxyl-tert-butylamino)phenyl]amine (N) was obtained as dark violet plates by lithiation of tris(4-bromophenyl)amine, followed by reaction with 2-methyl-2-nitrosopropane and oxidation of the resulting tris(hydroxyamine) with Ag₂O.

Full text of DOI:10.1021/ja9920819

J. Am. Chem. Soc. 2000, 122, 2567-2576
2567
Tris[p-(N-oxyl-N-tert-butylamino)phenyl]amine, -methyl, and -borane
Have Doublet, Triplet, and Doublet Ground States, Respectively
Tetsuji Itoh,† Kenji Matsuda,† Hiizu Iwamura,*,†,§ and Kenzi Hori‡
Contribution from the Institute for Fundamental Research in Organic Chemistry, Kyushu UniVersity,
6-10-1 Hakozaki, Higashi-ku, Fukuoka 812-8581, Japan and Department of Applied Chemistry and
Chemical Engineering, Faculty of Engineering, Yamaguchi UniVersity, Tokiwadai, Ube 755-8611, Japan
ReceiVed June 18, 1999
Abstract: N,N,N-Tris[p-(N-oxyl-tert-butylamino)phenyl]amine (N) was obtained as dark violet plates by
lithiation of tris(4-bromophenyl)amine, followed by reaction with 2-methyl-2-nitrosopropane and oxidation of
the resulting tris(hydroxyamine) with Ag2O. An X-ray crystal and molecular structure analysis of the monoclinic
single crystal with space group Cc showed that it has neither C3 symmetry nor zwitterionic quinonoid structure.
An EPR spectrum in MTHF solution at room temperature consisted of seven lines (aN ) 4.06 G (3N) at g )
2.0058). The temperature dependence of the magnetic susceptibility data on N in the range 2-300 K was
analyzed in terms of a triangular coupling model for three S ) 1/2 spins to give a set of best-fit parameters
which placed a doublet state as the ground state with a quartet state lying 559 K () 1.11 kcal mol-1) above
it. B3LYP/6-31G*//B3LYP/6-31G computations were performed on both spin states of a model molecule (N′)
in which all three N-tert-butyl groups in N were replaced with N-methyl groups. The doublet state was found
to be more stable than the quartet state by 0.84 kcal mol-1. Tris[p-(N-oxyl-tert-butylamino)phenyl]methyl (C)
gave a monoclinic single crystal with space group Cc (no. 9) and has been shown to have a benzoquinoneimine
N-oxide type diradical structure. Temperature dependence of its magnetic susceptibility showed that C has a
triplet ground state with a singlet state lying 410 K above the triplet. Reactions of the corresponding
organolithium compounds with BF3‚OEt2 were not applicable to give tris[4-(N-oxyl-tert-butylamino)phenyl]-
borane (B) but its 2,2′,2′′,6,6′,6′′-hexamethyl derivative (B′). In the trigonal crystal with space group R3h (no.
148), the three benzene rings are tilted by 49.2° with respect to the valence plane of the boron atom. The
magnetic susceptibility data on B′ were consistent with a doublet ground state with an energy gap to a quartet
state by 9.9 K () 0.0197 kcal mol-1). All the results together with ab initio MO studies are consistent with
a picture that the ground spin states of title compounds N, C, and B are doublet, triplet, and doublet, respectively.
The electronic structures are explained qualitatively by p-(N-oxyl-tert-butylamino)phenyl homologues of
(•H2C)3X in which X ) N, C‚, and B atoms, and two, one, and no π-electrons are contained, respectively.
Introduction
bis- and quartet tris-aminoxyl radicals formed complexes in
which spins ordered in the range 3.4-46 K.3 New polyradicals
having aminoxyl radicals arranged trigonally in cross-conjuga-
tion are of importance in constructing high TC 2p-3d hybrid
spin magnets.4 To increase basicity of the aminoxyl oxygen
Studies of N,N,N-tris[p-(N-oxyl-N-tert-butylamino)phenyl]-
amine, -methyl, and -borane (N, C, and B, respectively) have
2-fold significance. First, organic free radicals having two or
more basic coordinating centers serve as bridging ligands for
magnetic metal ions to make hybrid-spin chains or networks
consisting of organic 2p and metal 3d spins by self-assembly.1-3
Thus bis(hexafluoroacetylacetonato)manganese(II) with triplet
(2) (a) Caneschi, A.; Gatteschi, D.; Sessoli, R.; Rey, P. Acc. Chem. Res.
1989, 22, 392. (b) Caneschi, A.; Gatteschi, D.; Rey, P. Prog. Inorg. Chem.
1991, 39, 3936. (c) Burdukov, A. B.; Ovcharenko, V. I.; Ikorski, V. N.;
Pervukhina, N. V.; Podberezskaya, N. V.; Grigor’ev, I. A.; Larionov, S.
V.; Volodarsky, L. B. Inorg. Chem. 1991, 30, 972. (d) Caneschi, A.; Chiesi,
P.; David, L.; Ferraro, F.; Gatteschi, D.; Sessoli, R. Inorg. Chem. 1993,
32, 1445. (e) Stumpf, H. O.; Ouahab, L.; Pei, Y.; Grandjean, D.; Kahn, O.
Science 1993, 261, 447. (f) Volodarsky, L. B.; Reznikov, V. A.; Ovcharenko,
V. I. Synthetic Chemistry of Stable Nitroxides; CRC Press: Boca Raton,
1994; Chapter 4.
(3) (a) Inoue, K.; Iwamura, H. J. Am. Chem. Soc. 1994, 116, 3173. (b)
Inoue, K.; Iwamura. H. J. Chem. Soc., Chem. Commun. 1994, 2273. (c)
Mitsumori, T.; Inoue, K.; Koga, N.; Iwamura. H. J. Am. Chem. Soc. 1995,
117, 2467. (d) Inoue, K.; Hayamizu, T.; Iwamura, H. Chem. Lett. 1995,
745. (e) Inoue, K.; Hayamizu, T.; Iwamura, H.; Hashizume, D.; Ohashi, Y.
J. Am. Chem. Soc. 1996, 118, 1803. (f) Iwamura, H.; Inoue, K.; Hayamizu,
T. Pure Appl. Chem. 1996, 68, 243. (g) Inoue, K.; Iwamura. H. AdV. Mater.
1996, 8, 73. (h) Markosyan, A. S.; Hayamizu, T.; Iwamura, H.; Inoue, K.
J. Phys.: Condens. Mater. 1998, 10, 2323. (i) Iwamura, H.; Inoue, K.;
Koga, N. New J. Chem. 1998, 201. (j) Inoue, K.; Iwahori, F.; Iwamura, H.
Chem. Lett. 1998, 737. (k) Uchiyama, R. Iwamura, H. To be published
elsewhere.
† IFOC, Kyushu University.
‡ Yamaguchi University.
§ Present address: National Institution for Academic Degrees, 4259
Nagatsuta-cho, Midori-ku, Yokohama, 226-0026, Japan.
(1) (a) Miller, J. S.; Epstein, A. J.; Reiff, W. M. Chem. ReV. 1988, 88,
201. (b) Miller, J. S.; Dougherty, D. A., Eds. Ferromagnetic and High Spin
Molecular Based Materials. Mol. Cryst. Liq. Cryst. 1989, 176. (c) Gatteschi,
D.; Kahn, O.; Miller, J. S.; Palacio, F., Eds. Magnetic Molecular Materials,
NATO ARI Series E.; Kluwer Academic Publishers: Dordtrecht, 1991;
E198. (d) Iwamura, H.; Miller, J. S. Eds. Chemistry and Physics of
Molecular Based Magnetic Materials. Mol. Cryst. Liq. Cryst. 1993, 232
and 233. (e) Kahn, O. Molecular Magnetism; VCH Publishers: Weinheim,
1993. (f) Gatteschi, D. AdV. Mater. 1994, 6, 635. (g) Miller, J. S.; Epstein,
A. J. Angew. Chem., Int. Ed. Engl. 1994, 33, 385. (h) Miller, J. S.; Epstein,
A. J. Chem. Eng. News, October, 1995, 2, 30. (i) Kahn, O. Magnetism: A
Supramolecular Function, NATO ASI Series C; Kluwer: Dordrecht, 1996.
(j) Turnbull, M. M.; Sugimoto, T.; Thompson, L. K. Eds. Molecule-based
magnetic materials; ACS Symposium Series 644; American Chemical
Society: Washington, DC, 1996. (k) Gatteschi, D. Curr. Opin. Solid State
Mater. Sci. 1996, 1, 192.
(4) Oniciu, D. C.; Matsuda, K.; Iwamura, H. J. Chem. Soc., Perkin Trans.
2 1996, 907.
10.1021/ja9920819 CCC: $19.00 © 2000 American Chemical Society
Published on Web 03/04/2000

2568 J. Am. Chem. Soc., Vol. 122, No. 11, 2000
Itoh et al.
Scheme 1a
-
Figure 1. Ground-state electron configuration in the basic structural
units of N, C, and B.
atoms serving as ligating sites, it was deemed worthwhile to
synthesize tris[p-(N-oxyl-tert-butylamino)phenyl]amine (N).5
a Reagents and conditions: (a) NaNO2, concd H2SO4, CuBr, aq HBr,
53%; (b) Mg, 1,1-dimethylnitrosoethane, Et2O, 31%; (c) tert-butyldi-
methylchlorosilane, imidazole, DMF, 97%; (d) n-BuLi, Et2O, BF3‚Et2O,
13%; (e) AcOH, THF, 54% (f) Ag2O, CH2Cl2, 98%.
Results and Analyses
Synthesis. 1. Triradical N. Tris(4-bromophenyl)amine was
lithiated with excess tert-butyllithium and treated with 2-methyl-
2-nitrosopropane to give the corresponding tris(hydroxyamine).
Triradical N was obtained by oxidation of this hydroxyamine
derivative with Ag2O in CH2Cl2.5
2. Diradical C. Diradical C was prepared as described
previously.4
3. Tris[2,6-dimethyl-4-(N-oxyl-tert-butylamino)phenyl]bo-
rane B′. O-Silylation of N-(p-bromophenyl)-N-tert-butylhy-
droxyamine was followed by lithiation with tert-butyllithium.
The organolithium compound thus obtained was allowed to react
with boron trifluoride etherate to give a complex mixture in
which the expected triarylborane derivative was not found.
Therefore, our recourse was to prepare its 2,2′,2′′,6,6′,6′′-
hexamethyl derivative B′. The synthesis outlined in Scheme 1
started from commercially available 4-bromo-2,6-dimethyl-
aniline which was converted to 1. The Grignard reagent prepared
from 1 and 1.0 equiv of magnesium was coupled with 2-methyl-
2-nitrosopropane to give 2. After protection of the hydroxyamino
group with a tert-butyldimethylsilyl group in quantitative yield,

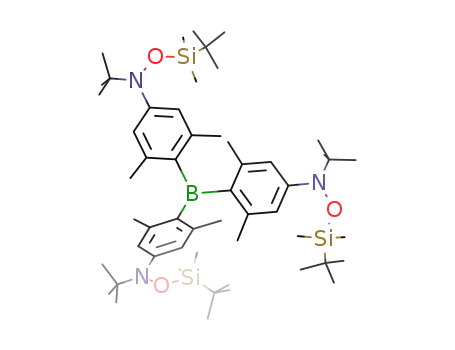

3 was lithiated with tert-BuLi and coupled with 1/3 equiv of
BF3‚Et2O to give triarylborane 4. B′ was obtained by means of
the desilylation of 4 with acetic acid in THF followed by the
oxidation with Ag2O in dichloromethane.
Second, simplified models of B, C, and N by truncation of
three phenylene units and replacement of the N-tert-butylami-
noxyls with •H2C radicals may be regarded as trimethylene
derivatives (•H2C)3X (X ) B, C•, and N) (Figure 1).6 The
carbon analogue is triplet trimethylenemethane (TMM). Since
the corresponding amine has one more π-electron than the
methane, the former is expected to become isoelectronic with
the anion radical of the latter and therefore a doublet mono-
radical. The π-electron is one less in borane analogue B which
corresponds to the cation radical of TMM. It is of great interest
to see if such a simplified picture is applicable to the
understanding of the ground-state electron configuration of N,
C, and B.
X-ray Crystal and Molecular Structure. Crystallographic
data and experimental parameters for radicals N, C, and B′ are
summarized in Table 1.
1. Triradical N.5,7 A single crystal of N for an X-ray
diffraction measurement was obtained by slow evaporation of
a n-heptane-dichloromethane solution of N. The molecular
structure of N is reproduced in Figure 2. The molecule has no
(5) A preliminary account of this paper appeared in Itoh, T.; Matsuda,
K.; Iwamura, H. Angew. Chem., Int. Ed. Engl. 1999, 38, 1791.
(6) (a) Longuet-Higgins, H. C. J. Chem. Phys. 1950, 18, 265. (b)
Greenwood, H. H. Trans. Faraday Soc. 1952 48, 677. (c) Crawford, R. J.;
Cameron, D. M. J. Am. Chem. Soc. 1966, 88, 2589. (d) Yarkony, D. R.;
Schaefer, H. F., III. J. Am. Chem. Soc. 1974, 96, 3754. (e) Feller, D.; Borden,
W. T.; Davidson, E. J. Chem. Phys. 1981, 74, 2256.
(7) The crystallographic data (excluding structure factors) for the structure
have been deposited with the Cambridge Crystallographic Data Center as
supplementary publication no. CCDC-101263. Copies of the data can be
obtained free of charge on application to The Director, CCDC, 12, Union
Rode, GB- Cambridge CB2 1EZ, UK (fax: int. code +(44)1233-336-033;
e-mail: deposit@ccdc.cam.ac.uk).
