A general route to pyridine-modified salicylaldehydes via Suzuki coupling

Article abstract of DOI:10.1016/S0040-4039(01)00106-X

An efficient method for the preparation of 5-(3-pyridyl)- and 5-(4-pyridyl)salicylaldehydes by the palladium-catalyzed cross-coupling reaction of either 4-pyridylboronic acid or diethyl-(3-pyridyl)borane and bromosalicylaldehydes is described.

Full text of DOI:10.1016/S0040-4039(01)00106-X

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 42 (2001) 2093–2096
A general route to pyridine-modified salicylaldehydes via Suzuki
coupling
Gregory A. Morris and SonBinh T. Nguyen*
Department of Chemistry and Institute for Environmental Catalysis, Northwestern University, Evanston, IL 60208, USA
Received 21 November 2000; accepted 12 January 2001
Abstract—An efficient method for the preparation of 5-(3-pyridyl)- and 5-(4-pyridyl)salicylaldehydes by the palladium-catalyzed
cross-coupling reaction of either 4-pyridylboronic acid or diethyl-(3-pyridyl)borane and bromosalicylaldehydes is described.
© 2001 Published by Elsevier Science Ltd.
Our interest in the design of cyclic supramolecular
structures of the Fujita1,2 and Stang3 varieties led us to
investigate the synthesis of a bifunctional salen tem-
plate containing pendant Lewis base groups. Our pri-
mary target was a salen-type ligand featuring a pair of
5,5%-pyridyl groups oriented at 180° with respect to each
other that we envisioned would have the potential to be
used as ‘edges’ in the construction of a supramolecular
complex. It was thought that this highly functionalized
of stannylpyridines and aryl halides,5 and the Pd-cata-
lyzed coupling of pyridylboranes and aryl halides.6 Yet,
after each of these methods gave disappointing results
in our laboratory, we were left searching for better
ways to synthesize the desired 3- and 4-arylpyridines.
Our
first
attempt
at
preparing
the
5-(4-

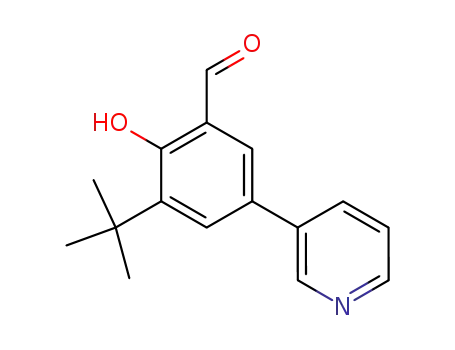

pyridyl)salicylaldehyde 1 involved a Ni-catalyzed cross-
coupling between aryl Grignard 27 and 4-bromopy-
ridine 3 to produce the heterobiaryl product 4 (Eq. (1)).
Even though we took great care in the procedure,
including titrating the Grignard reagent and taking
several steps to ensure that the 4-bromopyridine was
dry after free-basing,8 we were unable to obtain yields
greater than 42% for the coupling. In addition to using
Ni(dppp)Cl2 as a catalyst, we also tried Ni(dppe)Cl2,
Ni(dppf)Cl2, and Ni(PPh3)2Cl2 but were not able
improve on our initial yields. Since others have
reported similar problems due to the well-known insta-
bility of 4-halopyridines,4,9–11 we decided to seek other
means for the synthesis of 4. Although the reverse
Ni-catalyzed cross-coupling could, in theory, be accom-
plished, the nucleophilicity of the necessary reagent,
4-pyridylmagnesium bromide, has been shown to be
significantly weaker than that of typical phenyl or alkyl
Grignard reagents.12 Furthermore, 4-pyridylmagnesium
ligand could be synthesized by reacting
a 5-(4-
pyridyl)salicylaldehyde (1) with a vicinal diamine. Since
salicylaldehydes containing a pyridyl functionality were
not known, we decided to explore the synthetic possi-
bilities for introducing pyridyl substituents.
We set out to prepare a variety of pyridylsalicylalde-
hydes by
a
Ni- or Pd-mediated cross-coupling
approach. Because we wanted to access a variety of
substituted salen ligands in the most efficient manner,
our strategy emphasized the use of a single easily
accessible pyridyl-substituted coupling agent in con-
junction with several 3-substituted salicylaldehydes. A
review of the literature revealed a number of such
methods that might be applicable for the synthesis of
the targeted heterobiaryl framework, including Ni- or
Pd-catalyzed coupling of halopyridines and arylmetallic
compounds (Mg, Zn),4 the Pd-catalyzed cross-coupling
(1)
* Corresponding author. Tel.: 847.467.3347; fax: 847.491.7713; e-mail: stn@chem.nwu.edu
0040-4039/01/$ - see front matter © 2001 Published by Elsevier Science Ltd.
PII: S0040-4039(01)00106-X

2094
G. A. Morris, S. T. Nguyen / Tetrahedron Letters 42 (2001) 2093–2096
bromide must be obtained through a transmetalation
procedure with ethyl or phenylmagnesium bromide,12–14
leaving a halide as a byproduct that could potentially
interfere in the subsequent coupling reaction.
Pd(PPh3)4 as a catalyst, we were able to achieve yields
of only 28%. When we used Pd2(dba)3 with (2-furyl)3P
in THF,16 we were able to improve the yield only
slightly to 32%. While we were aware that there have
been reports of the successful use of trimethyl-(4-
pyridyl)stannane in cross-coupling reactions,17 we ruled
out this reagent due to the unnecessary risks associated
with handling the trimethylstannane reagents.
Next, we investigated the Pd-catalyzed coupling of aryl
halide 5 and tributyl-(4-pyridyl)stannane 615 as a way to
prepare the heterobiaryl product 4 (Eq. (2)). Using
Table 1. Formation of aryl pyridines
Pd catalyst
Ar%B(R)2+ArB ꢀꢀꢀꢀꢀꢀꢀꢀꢁ Ar%ꢀAr
a
4-Pyridylboronic acid (1.1 equiv.), Na2CO3 (1.5 equiv.), Pd(dppf)Cl2 (0.05 equiv.) refluxed for 3–5 h in N2-degassed DME:H2O (3:1) v/v), TLC
analyzed.
b
c
Diethyl-(4-pyridl)borane (1.1 equiv.), NaOH (3 equiv.), Bu4NBr (0.5 equiv.), Pd(PPh3)4(0.05 equiv., refluxed for 3–5 h in THF, TLC analyzed.
Phenylboronic acid (1.1 equiv.), Na2CO3 (1.5 equiv.), Pd(dppf)Cl2 (0.05 equiv.) refluxed for 3–5 h in N2-degassed DME:H2O (3:1) v/v), followed
by TLC.
d
e
f
Prepared by literature procedure.23
Available from Aldrich.
Prepared by literature procedure.24
g
Yields are given for pure products isolated by flash chromatography on silica gel.

G. A. Morris, S. T. Nguyen / Tetrahedron Letters 42 (2001) 2093–2096
2095
(2)
(3)
(4)
Finally, we decided to examine the Pd-catalyzed cross-
coupling reactions of aryl halide 5 with organoboron
reagents as a way to prepare 4. We decided on this
coupling direction because it would allow us to synthe-
size a series of salicylaldehydes from a single pyridylbo-
rane.18 We initially planned to use diethyl-(4-
pyridyl)borane as a coupling reagent. However, the
preparation of this compound proved to be difficult, as
we were unable to reproduce the results of a literature
procedure.6 While we were eventually able to make
diethyl-(4-pyridyl)borane using an alternative proce-
dure,19 the crude yield was a disappointing 41%. As a
result, we turned to the commercially available 4-
pyridylboronic acid 7.20 We were pleased that the
Pd(dppf)Cl2-catalyzed cross-coupling reaction between
7 and aryl halide 5 provided heterobiaryl compound 4
in 74% yield (Eq. (3) and Table 1). The coupled product
4 could then be converted to the targeted salicylalde-
hyde 1 using a two-step procedure consisting of depro-
tection of the hydroxymethyl group followed by
oxidation to the aldehyde.
boron reagents are known to undergo more facile
protodeboronation.22
In conclusion, we have shown that the Pd-catalyzed
cross-coupling reaction between either 4-pyridylboronic
acid or diethyl-(3-pyridyl)borane and bromosalicylalde-
hydes can provide direct access to a variety of highly
functionalized 3- and 4-arylpyridines. This procedure is
quite versatile and makes use of commercially available
organoboron reagents.
Acknowledgements
This work was supported by the National Science
Foundation’s Partnership in Nanotechnology initiative
(NSF grant cCHE-9811334) and by the EMSI pro-
gram of the National Science Foundation and the
Department of Energy (NSF grant cCHE-9810378) at
the Northwestern University Institute for Environmen-
tal Catalysis. STN thanks the Dreyfus Foundation, the
du Pont Company, the Beckman Foundation, and the
Packard Foundation for financial support. We grate-
fully acknowledge Frontier Scientific chemical company
for providing samples of 4-pyridylboronic acid.
Even more gratifying was the fact that salicylaldehyde 1
could also be obtained directly through the Pd(dppf)-
Cl2-catalyzed cross-coupling reaction between bromo-
aldehyde 8 and boronic acid 7 in 67% yield (Eq. (4)).
Thus, this methodology enabled us to prepare the
target biaryl compound in a single step. This method
could be readily applied to a variety of bromosalicyl-
aldehydes such as 9, which produced the biaryl alde-
hyde 10 in 66% yield.21
References
1. Fujita, M.; Ogura, K. Coord. Chem. Rev. 1996, 148,
249–264.
2. Fujita, M. Chem. Soc. Rev. 1998, 27, 417–425.
3. Leininger, S.; Olenyuk, B.; Stang, P. J. Chem. Rev. 2000,
100, 853–907.
4. Pridgen, L. N. J. Heterocyclic Chem. 1975, 12, 443–444.
5. Guillier, F.; Nivoliers, F.; Godard, A.; Marsais, F.;
Queguiner, G.; Siddiqui, M. A.; Snieckus, V. J. Org.
Chem. 1995, 60, 292–296.
Furthermore, we found that the Pd(PPh3)4-catalyzed
coupling reaction between diethyl-(3-pyridyl)borane 11
and aryl halide 9 was a good way to access 5-(3-
pyridyl)salicylaldehydes such as 12 in 64% yield. The
reagent, diethyl-(3-pyridyl)borane 11, is easier to pre-
pare than the 4-substituted isomer and is also commer-
cially available. Results for the Pd-catalyzed
cross-coupling reactions forming various 3- and 4-
arylpyridines are summarized in Table 1. Reactions of
each aryl halide with phenylboronic acid are shown for
comparison. As expected, the yields in the latter reac-
6. Ishikura, M.; Ohta, T.; Terashima, M. Chem. Pharm.
Bull. 1985, 33, 4755–4763.
7. Prepared by sonication of a mixture of halide, Mg, and
THF in an Aldrich SureSeal bottle.
.
tions are slightly higher due to the fact that pyridyl

2096
G. A. Morris, S. T. Nguyen / Tetrahedron Letters 42 (2001) 2093–2096
8. Vaidya, R. A.; Mathias, L. J. J. Am. Chem. Soc. 1986,
40.7 mmol), boronic acid 7 (5.0 g, 40.7 mmol), Na2CO3
(10.5 g, 40.7 mmol), Pd(dppf)Cl2·CH2Cl2 (1.7 g, 2 mmol)
was stirred in DME/H2O (3:1 v/v, 80 mL, degassed with
N2) at (100°C) for 4 h. After cooling to rt, the reaction
contents were poured into H2O (250 mL). The aqueous
mixture was extracted with CH2Cl2 (3×75 mL) and the
combined extracts were dried over Na2SO4 before being
concentrated under reduced pressure. The crude aldehyde
was purified by flash chromatography on silica gel [Et2O
eluent, 9×20 cm silica] to provide the 6.9 g of 10. A white
solid (mp 95–96°C). Yield=66%. IR (KBr): 3041, 2959,
2946, 2861, 1646, 1457, 1441, 1396, 1335, 1272, 1253,
108, 5514–5520.
9. Tamao, K.; Kodama, S.; Nakajima, I.; Kumada, M.;
Minato, A.; Suzuki, K. Tetrahedron 1982, 38, 3347–3354.
10. Minato, A.; Tamao, K.; Hayashi, T.; Suzuki, K.;
Kumada, M. Tetrahedron Lett. 1981, 22, 5319–5322.
11. Negishi, E.; Luo, F. T.; Frisbee, R.; Matsushita, H.
Heterocycles 1982, 18, 117–122.
12. Shibutani, T.; Fujihara, H.; Furukawa, N.; Oae, S. Het-
eroat. Chem. 1991, 2, 521–531.
13. Paradies, H. H.; Goerbing, M. Angew. Chem., Int. Ed.
Engl. 1969, 8, 279.
14. Furukawa, N.; Shibutani, T.; Fujihara, H. Tetrahedron
1164, 1022, 890, 802, 646 cm−1 1H NMR (500 MHz,
.
Lett. 1989, 30, 7091–7094.
15. Peters, D.; Hoernfeldt, A. B.; Gronowitz, S. J. Hetero-
cycl. Chem. 1990, 27, 2165–2173.
16. Farina, V. Pure Appl. Chem. 1996, 68, 73–78.
17. Fujita, M.; Oka, H.; Ogura, K. Tetrahedron Lett. 1995,
36, 5247–5250.
18. We note that the opposite coupling chemistry between an
arylboronic acid and a halopyridine has been reported,
see: Zhang, H.; Kwong, F. Y.; Tian, Y.; Chan, K. S. J.
Org. Chem. 1998, 63, 6886–6890.
CDCl3): 11.94 (s, 1H), 9.99 (s, 1H), 8.67 (d, 2H, J=4.7
Hz), 7.81 (s, 1H), 7.70 (s, 1H), 7.49 (d, 2H, J=4.7 Hz),
1.49 (s, 9H). 13C NMR (125 MHz, CDCl3): 197.1, 162.0,
150.5, 147.2, 139.5, 132.6, 130.3, 129.2, 121.1, 120.9, 35.2,
29.2. EIMS (m/z): 255 (M+, 46), 240 (M+−Me, 100), 212
(36), 172 (13). HRMS (EI): exact mass calcd for
[C16H17NO2]+: 255.1259. Found: 255.1256. Anal. calcd
for C16H17NO2: C, 75.27; H, 6.71; N, 5.49. Found: C,
75.27; H, 6.73, N, 5.39.
22. Fischer, F. C.; Havinga, E. Recl. Trav. Chim. Pays-Bas
1974, 93, 21–24.
19. This procedure involved the reaction of the lithium salt of
4-iodopyridine with diethylmethoxyborane.
20. 4-Pyridylboronic acid is commercially available from
Frontier Scientific chemical company.
23. Effenberger, F.; Jaeger, J. J. Org. Chem. 1997, 62, 3867–
3873.
24. Larrow, J. F.; Jacobsen, E. N.; Gao, Y.; Hong, Y.; Nie,
X.; Zepp, C. M. J. Org. Chem. 1994, 59, 1939–1942.
21. Preparation of 10: A mixture of salicylaldehyde 9 (10.5 g,
.
