Synthesis of multifunctional ligands: A 2,9-diaryl-1,10-phenanthroline/2,2′:6′,2″-terpyridine conjugate

Article abstract of DOI:10.1016/S0040-4039(01)00279-9

The synthesis of a ligand including a 1,10-phenanthroline and a 2,2′:6′,2″-terpyridine separated by a 1,3-phenylene spacer is presented. The different aromatic carbon-carbon bonds have been generated by reactions with organolithium compounds, and by Stille and Suzuki couplings.

Full text of DOI:10.1016/S0040-4039(01)00279-9

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 42 (2001) 2779–2781
Synthesis of multifunctional ligands: a
2,9-diaryl-1,10-phenanthroline/2,2%:6%,2¦-terpyridine conjugate
Nicolas Belfrekh, Christiane Dietrich-Buchecker* and Jean-Pierre Sauvage
Laboratoire de Chimie Organo-Mine´rale, UMR 7513 du CNRS, Universite´ Louis Pasteur, Faculte´ de Chimie,
4, rue Blaise Pascal, 67070 Strasbourg Cedex, France
Received 22 January 2001; accepted 19 February 2001
Abstract—The synthesis of a ligand including a 1,10-phenanthroline and a 2,2%:6%,2¦-terpyridine separated by a 1,3-phenylene
spacer is presented. The different aromatic carbonꢀcarbon bonds have been generated by reactions with organolithium
compounds, and by Stille and Suzuki couplings. © 2001 Elsevier Science Ltd. All rights reserved.
Multifunctional ligands incorporating several coordina-
tion sites are of special interest in coordination chem-
istry because they are useful building blocks in the
templated synthesis of multicomponent molecular
assemblies,1 including motors and machines,1,2 or topo-
logical non-trivial compounds, like catenanes, rotax-
anes and knots.3,4 In particular, 1,10-phenanthroline
and 2,2%:6%,2¦-terpyridine moieties have been extensively
used in the design of such ligands using either Cu(I) or
Fe(II) as templating species.5,6 We would now like to
report a convenient directed synthesis of a dissymmetri-
cal ligand containing two different chelates: a 1,10-
phenanthroline and a 2,2%:6%,2¦-terpyridine connected
by a 1,3-phenylene spacer. In previous work, the meta-
phenylene spacer has been shown to favour the forma-
tion of helical arrangements7 and, when used as a
bridge, to insure a significant level of electronic
communication.8
chloropyridine required for the preparation of boronic
ester 2 (pathway A). This same bromine will be selec-
tively involved in the Suzuki coupling reaction afford-
ing 4 (pathway B). Therefore, both intermediates 6 and
4 still bear an intact 2-chloro substituent and have been
later converted into the trimethylstannanes 8 and 7,
respectively, required for the further CꢀC coupling
reactions (routes C,D and D,E, respectively). Taking
advantage of this striking difference of reactivity, we
were able to build in both a parallel and convergent
way the differently substituted phenanthroline and the
immediate precursor to the terpyridine, which is only
formed in the ultimate connection step (F). Our syn-
thetic strategy, based on a cascade like successive for-
mation of the different carbonꢀcarbon bonds of ligand
10, is depicted in Fig. 1.
Compound 1 was selectively lithiated at the 5 position
with butyllithium in ether at −78°C; further treatment
with B(OMe)3 at −78°C and transesterification with
2,2-dimethylpropane-1,3-diol gave 2 in 74% yield.11
Reaction of 2 with 1 equiv. of the 2,9-disubstituted
phenanthroline 3,12 under Suzuki cross-coupling condi-

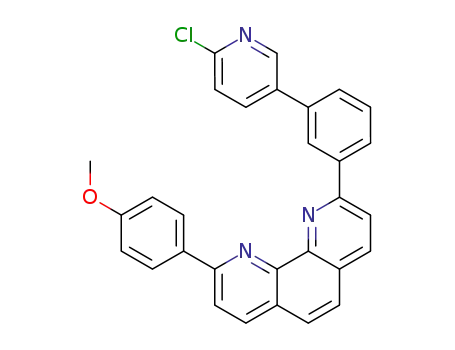

tions,13 afforded compound 6 in 55% yield. The chlo-
rine of compound 6 was then converted into a
trimethylstannyl group by reaction of a suspension of 6
The main difficulty of the synthesis of such a ligand is
related to its unsymmetrical feature. The use of the
non-symmetrical single synthon 5-bromo-2-chloropy-
ridine 19 (Fig. 1) associated with that of NaSnMe3
10
appeared highly beneficial. Indeed, the key synthon 1
bears one bromine and one chlorine which differ
strongly in reactivity. Due to this large difference of
reactivity, only the bromine in the 5-position leads, by
interconversion with butyllithium, to the 5-lithio-2-
10
with a solution of NaSnMe3 in DME. A very short
filtration over dry alumina gave stannane derivative 8
in 80% yield.
Reaction of 1 with 1 equiv. of the ester of p-
methoxyphenylboronic acid,14 under Suzuki cross-cou-
pling conditions (Pd[P(C6H5)3]4 in toluene, aqueous
Na2CO3, 60°C, 40 h), afforded pyridine derivative 4 in
Keywords: 1,10-phenanthroline; 2,2%:6%,2¦-terpyridine; Stille and
Suzuki couplings.
* Corresponding author. Fax: +33 3 90 24 13 68; e-mail: dietrbuc@
chimie.u-strasbg.fr
0040-4039/01/$ - see front matter © 2001 Elsevier Science Ltd. All rights reserved.
PII: S0040-4039(01)00279-9

2780
N. Belfrekh et al. / Tetrahedron Letters 42 (2001) 2779–2781
Br
Cl
N
1
O
H3CO
B
O
A
B
5
O
Cl
B
H3CO
Cl
N
N
O
2: 74%
4: 70%
N
N
D
C
Br
3
H3CO
N
N
N
H3CO
Sn(CH3)3
Cl
N
6: 55%
H3CO
7: 70%
D
E
N
N
N
N
H3CO
Sn(CH3)3
N
Br
9: 50%
8: 80%
H3CO
OCH3
F
Rxn
N
N
N
N
N
H3CO
10: 83%
Figure 1. Conditions: (A) (1) BuLi, Et2O, −78°C, 6 h, (2) B(OMe)3, Et2O, −78°C to rt, 12 h, (3) 2,2-dimethylpropane-1,3-diol,
Et2O, 1 h, 0°C, (4) methanesulfonic acid, Et2O, 0°C, 30 min; (B) 2% Pd[P(C6H5)3]4, C6H5CH3, 2 M Na2CO3, 60°C, 40 h; (C) 2%
Pd[P(C6H5)3]4, C6H5CH3, 2 M Na2CO3, 110°C, 7 h; (D) NaSnMe3, DME, −13°C to rt, 15 h; (E) 2,6-dibromopyridine (1 equiv.),
1% Pd[P(C6H5)3]4, C6H5CH3, 110°C, 15 h; (F) 2% Pd[P(C6H5)3]4, C6H5CH3, 110°C, 15 h.
70% yield. Conversion of the chlorine of 4 into a
trimethylstannyl group with NaSnMe3 in DME gave
stannane derivative 7 after a short column over alu-
mina. The latter was reacted with 1 equiv. of 2,6-dibro-
mopyridine to afford the bipyridine 9 in 50% yield.15 In
a final step, reaction of stannane 8 and bipyridine 9,
under Stille16 cross-coupling conditions, afforded ligand
1017 in 83% yield.
sis of a functionalised bischelate ligand that can be
obtained on a gram scale.
Acknowledgements
The authors would like to thank the CNRS for finan-
cial support and the French Ministry of National Edu-
cation for a fellowship to N.B.
In conclusion, we have developed a convenient synthe-

N. Belfrekh et al. / Tetrahedron Letters 42 (2001) 2779–2781
2781
References
1731–1737.
11. Oh-e, T.; Miyaura, N.; Suzuki, A. J. Org. Chem. 1993,
58, 2201–2208.
12. Compound 3 was synthesised by reaction of 1 equiv. of
1. Transition Metals in Supramolecular Chemistry; John
Wiley and Sons, Chichester, 1999; Vol. 5.
2. Sauvage, J.-P. Acc. Chem. Res. 1998, 31, 611–619.
3. (a) Bissell, R. A.; Co´rdova, E.; Kaifer, A. E.; Stoddart, J.
F. Nature 1994, 369, 133–137; (b) Balzani, V.; Credi, A.;
Raymo, F. M.; Stoddart, J. F. Angew. Chem., Int. Ed.
2000, 39, 3348–3391.
4. Molecular Catenanes, Rotaxanes and Knots; Dietrich-
Buchecker, C.; Sauvage, J.-P., Eds.; Wiley-VCH: New
York, 1999.
5. Chambron, J.-C.; Dietrich-Buchecker, C. O.; Sauvage,
J.-P. In Comprehensive Supramolecular Chemistry;
Sauvage, J.-P.; Hosseini, W., Eds.; Pergamon, 1996; Vol.
9, pp. 43–84.
6. Rapenne, G.; Dietrich-Buchecker, C. O.; Sauvage, J.-P. J.
Am. Chem. Soc. 1999, 121, 994–1001.
7. (a) Constable, E. C.; Hannon, M. J.; Tocher, D. A.
Angew. Chem., Int. Ed. Engl. 1992, 31, 230–232; (b)
Ru¨ttimann, S.; Piguet, C.; Bernardinelli, G.; Bocquet, B.;
Williams, A. F. J. Am. Chem. Soc. 1992, 121, 4230–4237;
(c) Dietrich-Buchecker, C. O.; Sauvage, J.-P.; De Cian,
A.; Fischer, J. J. Chem. Soc., Chem. Commun. 1994,
2231–2232.
8. (a) Dietrich-Buchecker, C. O.; Sauvage, J.-P.; Armaroli,
N.; Ceroni, P.; Balzani, V. Angew. Chem., Int. Ed. Engl.
1996, 35, 1119–1121; (b) Patoux, S.; Launay, J.-P.; Beley,
M.; Chodorowski-Kimmes, S.; Collin, J.-P.; Stuart, J.;
Sauvage, J.-P. J. Am. Chem. Soc. 1998, 120, 3717–3725.
9. (a) Org. Synth. Vol. 44, 1964, 34–39; (b) Org. Synth. Coll.
Vol. II, 1944, 131. A typical procedure for the prepara-
tion of 1 is as follows: 2-amino-5-bromopyridine (6 g,
34.7 mmol) was dissolved in 35 mL of 37% HCl. A
solution of NaNO2 (2.43 g, 35.2 mmol) in 8 mL of water
was then added at such a rate that the temperature was
kept between −5 and 0°C. The white precipitate was
poured on a freshly prepared suspension of CuCl at 70°C
and the resulting mixture was stirred overnight at room
temperature. After steam distillation and extraction with
ether, 1 (2.5 g) was obtained in 40% yield.
2-p-methoxyphenyl-1,10-phenanthroline
in
THF
(Dietrich-Buchecker, C. O.; Nierengarten, J. F.; Sauvage,
J. P.; Armaroli, N.; Balzani V.; De Cola, L. J. Am. Chem.
Soc. 1993, 115, 11237–11244) with 1 equiv. of the mono-
lithio derivative of 1,3-dibromobenzene (Eisch, J. J.;
King, R. B. Organometallic Synthesis; Academic Press:
New York, 1981; Vol. 2, p. 93) at 0°C during 3.5 h
followed by hydrolysis and rearomatisation with MnO2.
13. Miyaura, N.; Suzuki, A. Chem. Rev. 1995, 95, 2457–2483.
14. Wytko, J. A.; Graf, E.; Weiss, J. J. Org. Chem. 1992, 57,
1015–1018.
15. Fallahpour, R.-A.; Neuburger, M.; Zehnder, M. New J.
Chem. 1999, 53–61.
16. Stille, J. K. Angew. Chem., Int. Ed. Engl. 1986, 25,
508–524.
17. Compound 8: 1H NMR (200 MHz, CDCl3, J in Hz): 0.43
(s, 9H), 3.94 (s, 3H), 7.14 (d, 2H, J=9.1), 7.63 (dd, 1H,
J=7.8, J=0.9), 7.68–7.76 (m, 2H), 7.8 (s, 2H), 8.01 (dd,
1H, J=7.6, J=2.5), 8.12 (d, 1H, J=8.4), 8.20 (d, 1H,
J=8.6), 8.29 (d, 1H, J=8.4), 8.35 (d, 1H, J=8.6), 8.40–
8.50 (m, 1H), 8.49 (d, 2H, J=9.1), 8.88 (bs, 1H), 9.23
1
(dd, J=2.3, J=0.9). Compound 9: mp 188°C; H NMR
(200 MHz, CDCl3): 3.89 (s, 3H), 7.05 (d, 2H, J=8.8),
7.50 (dd, 1H, J=7.9, J=0.7), 7.60 (d, 2H, J=8.8), 7.69
(t, 1H, J=7.8), 7.98 (dd, 1H, J=8.3, J=2.3), 8.30–8.50
(m, 2H), 8.88 (dd, 1H, J=2.5, J=0.7). Compound 10:
mp 255°C; 1H NMR (200 MHz, CDCl3): 3.83 (s, 3H),
3.90 (s, 3H), 7.07 (d, 2H, J=8.9), 7.09 (d, 2H, J=8.8),
7.65 (d, 2H, J=8.8), 7.73 (t, 1H, J=7.6), 7.81 (s, 2H),
7.85 (m, 1H), 8.02 (t, 1H, J=7.8), 8.07 (dd, 1H, J=8.2,
J=2.3), 8.13 (d, 1H, J=8.6), 8.25 (d, 1H, J=8.6), 8.30
(d, 1H, J=8.6), 8.35 (dd, 1H, J=8.4, J=2.5), 8.38 (d,
1H, J=8.6), 8.42 (m, 1H), 8.53 (d, 2H, J=8.6), 8.47–8.65
(m, 2H), 8.74 (d, 1H, J=8.4), 8.83 (d, 1H, J=8.1), 8.95
(d, 1H, J=1.7), 9.15 (bs, 1H), 9.24 (d, 1H, J=1.7).
ES-MS: MH+ (m/z) at 700.6 (calcd 700.8). Microanalysis
calcd for C47H33N5O2: C, 80.67; H, 4.75; N, 10.01.
Found: C, 80.77; H, 4.54; N, 9.82.
10. Yamamoto, Y.; Yanagi, A. Chem. Pharm. Bull. 1982, 30,
.
