Mechanistic investigation and implications of a sacrificial aniline
for the tandem cascade synthesis of 4-aza-podophyllotoxin
analogues
⇑
Nagalakshmi Jeedimalla, Jennifer Johns, Stéphane P. Roche
Department of Chemistry and Biochemistry, Florida Atlantic University, Physical Science Building, 777 Glades Road, Boca Raton, FL 33431, United States
a r t i c l e i n f o
a b s t r a c t
Article history:
Mechanistic investigations were pursued to determine a plausible mechanism in the cascade reaction
involving tetronic acid with aldehydes and anilines to generate the 4-aza-2,3-dehydropodophyllotoxin
core structure. The mechanistic driven hypothesis paved the way for a new reaction design using for
the first time a sacrificial electron deficient aniline leading to an optimized cascade protocol (up to three-
fold yield improvement) for the synthesis of novel 4-aza-2,3-dehydropodophyllotoxin analogues.
Published by Elsevier Ltd.
Received 12 July 2013
Revised 9 August 2013
Accepted 19 August 2013
Available online xxxx
Keywords:
Natural product-mimetic scaffolds
Heterolignans
4-Aza-podophyllotoxin
Cascade reaction
Mechanistic investigation
The heterolignan podophyllotoxin (1) is known to inhibit the
assembly of tubulin into microtubules through tubulin binding,1
but high toxicity has limited its therapeutic application making
the development of structural analogues highly desirable.2 While
these efforts have resulted in the development of the commercially
marketed chemotherapeutic agent etoposide (VP-16), the lack of
chemical reactivity of certain building blocks has significantly im-
peded the preparation of diverse structural analogues. Similarly,
the 4-aza-structural analogues 2 (Fig. 1) have also shown impor-
tant biological activity as tubulin assembly inhibitors, insecticides
and vascular-disrupting agents (VDAs).3 Starting a new medicinal
chemistry program, we decided to revisit some structural varia-
tions of the 4-aza-2,3-dehydropodophyllotoxins chemotype 2,
aiming to quickly build up a library. Herein, we report the develop-
ment of an aniline mediated cascade reaction leading to improved
access of 4-aza-2,3-dehydropodophyllotoxins 2, podophyllotoxin
analogues, significantly improving diversity and chemical yield rel-
ative to previous reports (up to threefold yields improvement).
This new process was developed based on a rational mechanism,
supported by control experiments.
activity.4 Since the seminal work from Giorgi–Renault and
Husson,4b several reports have examined the one pot synthesis of
4-aza-2,3-dehydropodophyllotoxins compounds, screening for
solvents effect, temperature and potential catalysts in this reaction.
Recently, scientists at Bayer Cropscience prepared a large library of
4-aza-2,3-dehydropodophyllotoxins (ꢀ140 compounds), reporting
a lack of synthetic efficiency using either the typical or improved
R2
N
OH
H
O
4
3
B
A
C
O
O
2
1
O
R1
H
O
O
D
1
2
MeO
OMe
R3
OMe
4-aza-podophyllotoxins
R2
N
R2
N
O
H
O
H
O
One-pot
Mechanistic studies
R1
R1
O
H
O
3
5
2
OH
In the last decade numerous 4-aza-analogues of podophyllo-
toxin (1) have been prepared due to their important biological
R3
4
R3
Figure 1. General approach to 4-aza-podophyllotoxin analogues.
⇑
Corresponding author.
E-mail address: sroche2@fau.edu (S.P. Roche).
0040-4039/$ - see front matter Published by Elsevier Ltd.
http://dx.doi.org/10.1016/j.tetlet.2013.08.071
Please cite this article in press as: Jeedimalla, N.; et al. Tetrahedron Lett. (2013), http://dx.doi.org/10.1016/j.tetlet.2013.08.071

2
N. Jeedimalla et al. / Tetrahedron Letters xxx (2013) xxx–xxx
O
H
2-pentanol,
120 o
(eq. 1)
HO
C
unproductive pathway
no major product observed af ter 1h
O
MeO
4a
OMe
O
5
OMe
H
N
2-pentanol,
120 o
4a (1.0 equiv.)
HO
HO
HO
NH2
3a
C
(eq. 2)
O
O
O
unproductive
pathway
5
O
6a
5 mins
full conv.
H
OMe
N
H
HO
OMe
OMe
2-pentanol,
120 o
O
5 (1.0 equiv.)
C
(eq. 3)
3a
4a
HO
N
O
MeO
MeO
31% yield
5 mins
f ull conv.
2a
7a
OMe
Scheme 1. Control experiments between the three partners 3–5 involved in the cascade transformation.
one-pot procedures.5 The perfect orchestration in the reaction
between the three components 3–5 remains unclear and the harsh
conditions required in the reaction generate large amounts of
decomposition in a number of cases. While facing similar difficul-
ties in the synthesis of several novel 4-aza-2,3-dehydropodo-
phyllotoxins modified on the A and B rings (most likely due to
electronic effects and/or substitution patterns), we decided to
investigate the reaction mechanism in an attempt to improve the
previous synthetic protocols. To date, several hypothetical mecha-
nisms have been reported in the literature;4b,c,e,f,h,l however, none
have established the importance in the order of addition of the
three partners (aniline 3, benzaldehyde 4 and tetronic acid 5)
engaged in the cascade transformation. While several reaction
pathways may advance simultaneously to the desired 4-aza-2,3-
dehydropodophyllotoxin core,4e,h we began our studies by a thor-
ough examination of the condensation of each reaction component
by sets of two independently (Scheme 1). While the Knoevenagel
condensation product of tetronic acid 5 and 3,4,5-trimethoxy benz-
aldehyde 4a was not formed efficiently (Scheme 1, Eq. 1), both con-
densation between aniline 3a and tetronic acid 5 (Eq. 2), or

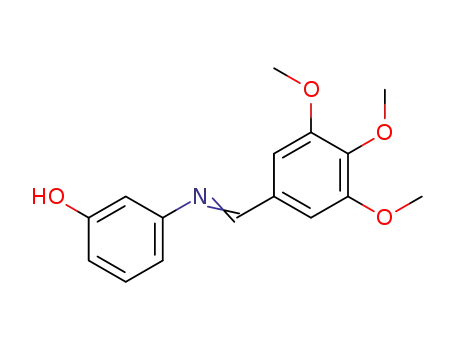

aldehyde 4a (Eq. 3) proceed rapidly to generate respectively enam-
ine 6a and imine 7a in a quantitative manner.6 Surprisingly, in situ
addition of aldehyde 4a to enamine 6a did not afford the desired
cyclized product 2a, demonstrating an unproductive reaction path-
way. On the other hand, imine 7a reacts rapidly with tetronic acid
5 to deliver the desired 4-aza-2,3-dehydropodophyllotoxin 2a in
31% overall yield. These control experiments not only showed that
only one pathway (eq. 3) leads to the desired product 2a, but the
order of addition of each component is also crucial for the success
of the cascade reaction.
