Str u ctu r a l a n d Sp ectr oscop ic Stu d y of th e Dih yd r ogen
Bon d in a n Im in e Tr iosm iu m Com p lex
S. Aime,*,† E. Diana,† R. Gobetto,† M. Milanesio,‡ E. Valls,§ and D. Viterbo‡
Dipartimento Chimica I.F.M., Universita` di Torino, Via P. Giuria 7, 10125 Torino, Italy,
Dipartimento di Scienze e Tecnologie Avanzate, Universita` del Piemonte Orientale,
Corso T. Borsalino 54, 15100 Alessandria, Italy, and Unitat de Quimica Inorganica,
Universitat Autonoma de Barcelona, 08193 Bellaterra, Spain
Received J uly 30, 2001
The presence of an intramolecular XH‚‚‚HM interaction between the imine proton donor
and the terminal hydride in H(µ-H)Os3(CO)10(HNdCPh2) has been investigated by X-ray
analysis, NMR and IR spectroscopy and theoretical calculations. The localization of the
hydrogen atoms in the crystal structure yielded a H‚‚‚H distance of 1.79(6) Å for this
“unconventional” H‚‚‚H interaction; theoretical calculations suggested an H‚‚‚H distance of
1.89 Å in the solid state. A NMR determination of the interproton distance, obtained from
the isolation of the selective H,H dipolar contribution to the hydride relaxation time, afforded
a value of 2.00 ( 0.05 Å. The difference between NMR and solid state determinations may
be explained on the basis of the occurrence, in solution, of a large amplitude oscillatory
motion of the imine ligand along the N-Os coordination axis. Further evidence of the
presence of the favorable N-H‚‚‚H-M intramolecular hydrogen bond interaction has been
obtained from the red shift of the ν(N-H) stretching in H(µ-H)Os3(CO)10(HNdCPh2) with
respect to that of the related Os3(CO)11(HNdCPh2) compound. DFT(B3LYP) calculations
gave results in agreement with the experimental findings and allowed further insight into
the nature of the N-H‚‚‚H-M dihydrogen bond, pinpointing the electrostatic nature of this
interaction and the role of the high polarizability of the Os-H bond.
In tr od u ction
as “unconventional” hydrogen bonds. In particular,
Orlova and Scheiner have demonstrated that such
H‚‚‚H interaction is favored in the case of poor and
moderate proton donors H-X and a strong π acceptor
trans ligand.9 It is easy to foresee that a better under-
standing of the role of these kinds of interactions may
contribute to a better design of reagents and catalysts
in organometallic chemistry.
We have suggested that the Os-H‚‚‚H-N interaction
is responsible for driving the stereochemistry in a series
of adducts containing primary and secondary amines
coordinated to a triosmium cluster.10,11 Moreover it has
been found that the addition of aldehydes or ketones to
the ammonia-containing derivative leads to the forma-
tion of terminally coordinated imine ligands which are
stabilized through the same type of interactions.12
Herein we present an in-depth experimental (using
IR, NMR, and X-ray data) and theoretical characteriza-
tion of the Os-H‚‚‚H-N DHB in the trimetallic cluster

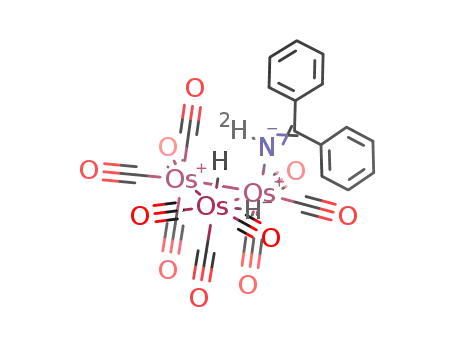

H(µ-H)Os3(CO)10(HNdCPh2) (1 in Chart 1), reporting
the first crystal structure, in which Os-H acts as
H-bond acceptor, with an H‚‚‚H distance below 2.0 Å;
this interaction is the shortest H‚‚‚H distance, among
the Os-H‚‚‚H-X contacts, found in the Cambridge
Structural Database (CSD).13 Our findings allow us to
get a more detailed picture of the structural and
The recent observation of a new type of dihydrogen
bond (DHB) between hydrides (M-H) and classical
hydrogen donor groups, such as N-H or O-H, repre-
sents an important step toward the understanding of
the role of weak interactions in determining the stereo-
chemistry and reactivity of organometallic systems.1-5
The M-H‚‚‚H-X (X ) O, N) linkage may be either
