Impact of N-Alkylamino Substituents on Serotonin Receptor (5-HTR) Affinity and Phosphodiesterase 10A (PDE10A) Inhibition of Isoindole-1,3-dione Derivatives

Article abstract of DOI:10.3390/molecules25173868

In this study, a series of compounds derived from 4-methoxy-1H-isoindole-1,3(2H)-dione, potential ligands of phosphodiesterase 10A and serotonin receptors, were investigated as potential antipsychotics. A library of 4-methoxy-1H-isoindole-1,3(2H)-dione derivatives with various amine moieties was synthesized and examined for their phosphodiesterase 10A (PDE10A)-inhibiting properties and their 5-HT_1A and 5-HT₇ receptor affinities. Based on in vitro studies, the most potent compound, 18 (2-[4-(1H-benzimidazol-2-yl)butyl]-4-methoxy-1H-isoindole-1,3(2H)-dione), was selected and its safety in vitro was evaluated. In order to explain the binding mode of compound 18 in the active site of the PDE10A enzyme and describe the molecular interactions responsible for its inhibition, computer-aided docking studies were performed. The potential antipsychotic properties of compound 18 in a behavioral model of schizophrenia were also investigated.

Full text of DOI:10.3390/molecules25173868

Article
Impact of N-Alkylamino Substituents on
Serotonin Receptor (5-HTR) Affinity and
Phosphodiesterase 10A (PDE10A) Inhibition of
Isoindole-1,3-dione Derivatives
Anna Czopek 1,*, Anna Partyka 2, Adam Bucki 1, Maciej Pawłowski 1, Marcin Kołaczkowski 1,
Agata Siwek 3, Monika Głuch-Lutwin 3, Paulina Koczurkiewicz 4, Elżbieta Pękala 4,
Anna Jaromin 5, Bożena Tyliszczak 6, Anna Wesołowska 2 and Agnieszka Zagórska 1
1
Department of Medicinal Chemistry, Jagiellonian University Medical College, 9 Medyczna Street,
30-688 Krakow, Poland; adam.bucki@uj.edu.pl (A.B.); maciej.pawlowski@uj.edu.pl (M.P.);
marcin.kolaczkowski@uj.edu.pl (M.K.); agnieszka.zagorska@uj.edu.pl (A.Z.)
2
Department of Clinical Pharmacy, Jagiellonian University Medical College, 9 Medyczna Street,
30-688 Krakow, Poland; annairena.partyka@uj.edu.pl (A.P.); a.wesolowska@uj.edu.pl (A.W.)
3
Department of Pharmacobiology, Jagiellonian University Collegium Medicum, 9 Medyczna Street,
30-688 Krakow, Poland; agat.siwek@uj.edu.pl (A.S.); monika.gluch-lutwin@uj.edu.pl (M.G.-L.)
4
Department of Pharmaceutical Biochemistry, Jagiellonian University Collegium Medicum, 9 Medyczna
Street, 30-688 Krakow, Poland; paulina.koczurkiewicz@uj.edu.pl (P.K.); elzbieta.pekala@uj.edu.pl (E.P.)
5
Department of Lipids and Liposomes, Faculty of Biotechnology, Uniwersity of Wroclaw, 14a Joliot-Curie,
50-383 Wroclaw, Poland; anna.jaromin@uwr.edu.pl
6
Faculty of Materials Engineering and Physics, Cracow University of Technology, Institute of Materials
Science, 24 Warszawska Street, 31-155 Krakow, Poland; bozena.tyliszczak@pk.edu.pl
* Correspondence: anna.czopek@uj.edu.pl; Tel.: +48-12-620-5450
Academic Editor: Josef Jampilek
Received: 4 August 2020; Accepted: 23 August 2020; Published: 25 August 2020
Abstract: In this study, a series of compounds derived from 4-methoxy-1H-isoindole-1,3(2H)-dione,
potential ligands of phosphodiesterase 10A and serotonin receptors, were investigated as potential
antipsychotics. A library of 4-methoxy-1H-isoindole-1,3(2H)-dione derivatives with various amine
moieties was synthesized and examined for their phosphodiesterase 10A (PDE10A)-inhibiting
properties and their 5-HT1A and 5-HT7 receptor affinities. Based on in vitro studies, the most potent
compound, 18 (2-[4-(1H-benzimidazol-2-yl)butyl]-4-methoxy-1H-isoindole-1,3(2H)-dione), was
selected and its safety in vitro was evaluated. In order to explain the binding mode of compound 18
in the active site of the PDE10A enzyme and describe the molecular interactions responsible for its
inhibition, computer-aided docking studies were performed. The potential antipsychotic properties
of compound 18 in a behavioral model of schizophrenia were also investigated.
Keywords: benzimidazole derivatives; phosphodiesterase 10A; schizophrenia; antipsychotic
activity
1. Introduction
Isoindole-1,3-diones (phthalimides) and their N-substituted analogs have been a very
interesting and topical research area due to their wide structural diversity and broad-spectrum
biological activities. The sulphonamide and amide derivatives of N-phenyl-phthalimide (compounds
3a–e and 4a–e, Figure 1) displayed potent inhibitory activity on neutrophil recruitment, which
Molecules 2020, 25, 3868; doi:10.3390/molecules25173868
www.mdpi.com/journal/molecules

Molecules 2020, 25, 3868
2 of 19
correlated with their inhibitory effect on tumor necrosis factor α (TNF-α) level [1]. N-1-Adamantyl-
4-aminophthalimide (compound 2′, Figure 1) exhibits anti-HIV-1 and anti-HIV-2 activity in CEM cell
cultures [2]. The N-pyridinyl and N-quinolinyl substituted derivatives of phthalimides (compounds
8′ and 12′, Figure 1) demonstrated cytotoxicity against the growth of a number of cultured cell-lines
[3]. 1,3-Dioxoisoindoline-5-carboxamides (compound 4d′, Figure 1) are potent T-type calcium
channel blockers [4], whereas 1,3-dioxoisoindoline-5-carboxylic acid derivatives (compounds 2c′ and
3c′, Figure 1) are potent xanthine oxidase inhibitors [5]. Moreover, (ZE)-2-[4-(1-hydrazono-
ethyl)phenyl]isoindoline-1,3-dione (compound 12′, Figure 1) has shown remarkable anti-microbial
activity [6]. In the central nervous system (CNS), N-phenylphthalimide derivatives (ADD213063 and
ADD219048, Figure 1) have exhibited original anticonvulsant properties [7]. Pazinaclone (DN-2327,
Figure 1) produces sedative and anxiolytic effects by acting as a partial agonist of GABAA
benzodiazepine receptors [8]. Potent acetylcholinesterase inhibitors (AChEIs) were identified in a
group
of
2-fluorinated-benzylamino-alkyl-isoindoline-1,3-diones
[9],
2-(benzylamino-2-
hydroxyalkyl)isoindoline-1,3-diones [10] (compounds 6′ and 12′, Figure 1) and 2-(2-(4-
benzoylpiperazin-1-yl)ethyl)isoindoline-1,3-dione (compound 4e′, Figure 1) derivatives [11]. NAN-
190 (2-methoxyphenyl)-4-(4-phthalimidobutyl)piperazine, Figure 2) is a selective antagonist of
serotonin 1A subtype receptors (5-HT1ARs) that potently blocks the alfa 2 adrenergic receptor (α2ARs)
[12].
Figure 1. Examples of phthalimide derivatives with various biological activity [1–12].
Schizophrenia is a multifactorial mental illness that affects 1% of the population. Both genetic
and environmental contributions play an important role in the manifestation of a wide range of
behavioral, emotional, and cognitive abnormalities in schizophrenia. Since the introduction of
chlorpromazine, clinical practice has relied upon antipsychotic drugs (APDs) over the past half
century, with numerous first-, second-, and third-generation antipsychotics discovered during this
time. Typical, or first-generation, APDs (chlorpromazine and haloperidol) exhibited high-affinity
dopamine D2 receptor antagonism, which causes both antipsychotic actions and many side effects
e.g., extrapyramidal and endocrine. Atypical, or second generation, antipsychotics (SGAs) were then
developed to avoid the extrapyramidal side effects. SGAs include compounds such as clozapine,
olanzapine, and quetiapine that exhibit relatively moderate affinity for D2 and 5-HT2A receptors or
drugs like risperidone that effectively block both serotonin 5-HT2A and dopamine D2 receptors [13,14].
The first representative of the third generation of APDs was aripiprazole, whose mechanism of action
was ascribed to partial agonism of D2. Although aripiprazole has effects on several other receptors,
this drug is the first “dopamine stabilizer” based on D2 partial agonist properties. However, the data
available on the mechanism of action of aripiprazole are inconsistent with a mode of action related

Molecules 2020, 25, 3868
3 of 19
to the partial agonism of D2. Therefore, a recent hypothesis regarding the functional selectivity of
aripiprazole for D2 has emerged that seems to describe its mechanism of action more accurately
[15,16]. Although all approved antipsychotic drugs show affinity for dopamine D2 receptors, there is
evidence that modulation of the serotonergic system leads to enhanced antipsychotic therapy [17,18].
Partial agonism of 5-HT1A, and antagonism of 5-HT2A, 5-HT6, and 5-HT7 receptors, contributes to a
reduced risk of extrapyramidal side effects and improved specific cognition domains of atypical
antipsychotic drugs [14].
The phosphodiesterase 10A (PDE10A) enzyme is highly expressed in the striatal medium spiny
neurons (MSNs), where it modulates both dopamine D2- and D1-dependent signaling. Striatal MSNs
pathways are divided into direct dopamine D1 receptor-mediated and indirect dopamine D2 receptor-
mediated striatal output pathways [19]. Dopamine D1 receptors in direct pathway MSNs are coupled
with Gs proteins, which activate adenylate cyclase to increase cyclic adenosine monophosphate
(cAMP) concentration, whereas the stimulation of D2 receptors inhibits the activity of adenylyl
cyclase, resulting in a decrease in the level of cAMP. On the other hand, inhibition of PDE10A in the
dendritic membranes of MSNs results in suppression of D2-mediated signaling, which is similar to
the effects of D2 antagonists. Upregulation of cyclic nucleotide levels in indirect pathway MSNs could
be an alternative approach for novel antipsychotics [20,21], whereas activation of direct pathway
MSNs could be associated with improvement of cognitive functions. Thus, in contrast to the marketed
antipsychotics, phosphodiesterase inhibitors (PDEIs) influence both the indirect and direct pathways,
and the additional action of these compounds on the direct pathway could help distinguish them
clinically from D2 antagonists [22]. Moreover, PDEIs may have potential therapeutic utility in the
treatment of cognitive impairment associated with schizophrenia or may be useful as an adjunctive
treatment for negative symptoms in patients with schizophrenia [19].
In complex diseases such as schizophrenia, single-target drugs have turned out as failures,
whereas multi-target drugs have been found to be much more efficacious. In clinical practice, many
combinations of psychotropics have been tried for schizophrenia, based on a trial-and-error
paradigm guided by clinical experience and patient response. An overall superior and safer solution
seems to be the modern concept of designer multiple-targeting ligands (DMLs). The DMLs are also
described as “polypharmacology by design”, which claims parallel modulation of defined multiple
biological targets by designer small molecule drugs [23]. An exemplification of this idea is atypical
antipsychotics, which target a number of G protein-coupled receptors (GPCRs) simultaneously.
Currently, novel strategies in designing drugs effective in treatment of schizophrenia focus on targets
beyond the dopaminergic hypothesis of the disease [24].
In order to search for novel potential antipsychotic agents, we rationally synthesized a series of
N-substituted isoindole-1,3-dione derivatives, which were designed to interact with the serotonin 5-
HT1A/5-HT7 receptor and/or inhibit PDE10A. The core 1H-isoindole-1,3(2H)-dione moiety was
selected from the structure of the 5-HTlA antagonist, NAN-190 (Figure 2). Next, a methoxy moiety
was introduced at position 4 of the isoindole-1,3-dione so as to be able to obtain structural analogs of
PDE10AIs (compound B-3, Figure 2) [25]. The isoindole-1,3-dione core was connected by one to five
methylene linkers with amines. For determining the impact of N-alkylamine substitution of
isoindole-1,3-dione on 5-HTR affinity and PDE10A inhibitory activity, different heterocyclic amine
substituents were investigated. Modifications of amine substituents comprised changes in the size of
the heterocyclic amine ring from 1H-imidazole and pyridine, to benzimidazole, 6,7-dimethoxy-
1,2,3,4-tetrahydro-isoquinoline, 1,2,3,4-tetrahydroisoquinoline, and the decahydroisoquinoline
moiety. Previously, these amines were used in the design of potent 5-HT1A and 5-HT7 ligands
(compound 18 and PZ-376, Figure 2) [26–28], and they are partially saturated analogs of isoquinoline,
which is present in the structure of papaverine, a potent PDE10A inhibitor. Moreover, the
benzimidazole moiety can be found in the structure of numerous PDE inhibitors and serotonin
ligands (compound 10, Figure 2) [29,30]. Finally, a phenyl ring was chosen instead of a heterocyclic
amine group in order to examine the effect of amine substitution on selected 5-HTRs affinity and
PDE10A inhibitory activity.

Molecules 2020, 25, 3868
4 of 19
Figure 2. General structure of novel compounds 3–23, designed based on potent phosphodiesterase
10A (PDE10) inhibitors and active serotonin receptor ligands [20,25,26,28–30]. The phthalimide cores
and amine groups are highlighted in blue and green, respectively.
The series of designed ligands were synthesized and evaluated in adequate biological assays, a
luminescence PDE inhibition assay, as well as a radioligand binding assay for 5-HT1A and 5-HT7
receptors. Computer-aided studies were undertaken to identify the structural elements responsible
for in vitro activity. Finally, for the most active compound, Compound 18, in vitro safety studies were
performed and preliminary in vivo activity was tested in an animal model of schizophrenia.
2. Results and Discussion
2.1. Chemistry
The series of rationally designed 4-methoxy-1H-isoindole-1,3(2H)-dione derivatives (3–23) were
synthesized in average to good yields (30–75%), as shown in Scheme 1. The starting 2,3-
dimethylphenyl methyl ether (1) was synthesized by a procedure published elsewhere [31]. The
intermediate compound, 4-methoxy-2-benzofuran-1,3-dione (2), was obtained from 1, according to a
previously described procedure [32] with slight modifications. The aminoalkylamine moieties
derived
from
6,7-dimethoxy-1,2,3,4-tetrahydroisoquinoline,
1,2,3,4-tetrahydroisoquinoline,
decahydroisoquinoline, and 1H-1,3-benzodiazole were obtained in line with the earlier reported
methods (Scheme 2) [33,34], while those containing 1H-imidazole, pyridine, and phenyl rings were
commercially available.

Molecules 2020, 25, 3868
5 of 19
O
O
O
c1 / c2
N
()n
()n
N
N
R1
compd 3:
compd 4:
compd 6:
compd 7:
O
O
R1/R2= -OCH3/-OCH3, n = 1
R1/R2 = -H/-H, n = 1
R1/R2 = -OCH3/-OCH3, n = 2
R1/R2 = -H/-H, n = 2
R2
c1 / c2
N
O
O
compd 5:
compd 8:
n = 1
n = 2
O
O
O
O
c1
N ()n
OH
O
O
O
compd 9:
compd 12:
compd 16:
n = 0
n = 1
n = 2
O
b
a
O
O
O
compd 2
compd 1
c2
N
N
()n
compd 10:
compd 13:
n = 0
n = 1
O
O
c2
N
N
compd 14
NH
O
O
c2
N
N
()n
compd 11:
compd 15:
compd 17:
compd 18:
compd 19:
n = 0
n = 1
n = 2
n = 3
n = 4
N
H
O
O
O
c2
N
O
N ()n
compd 20:
compd 21:
compd 22:
compd 23:
n = 1
n = 2
n = 3
n = 4
N
H
O
O
Scheme 1. Reagents and conditions of the chemical synthesis route: (a) CH3I, K2CO3, DMF, 75 °C, 12
h; (b) KMnO4, H2O/tBuOH, reflux, 12 h; AcOH, THF, reflux, 4ꢀh; (c1)ꢀappropriate amine, AcOH, reflux,
48ꢀh; (c2) appropriate amine, TEA, 4Å molecular sieves, toluene, reflux, 16ꢀh. 2,3-Dimethylphenol and
phthalic anhydride were commercially available.
Scheme 2. Reagents and conditions of the chemical substitution routes: (a) appropriate amine,
N-bromoalkylphthalimide, K2CO3, MeCN, reflux, 12ꢀh; 40% CH3NH2, 20% NaOH, room temperature,
2ꢀh; (b) appropriate amino acid, 1,2-phenylendiamine, 4N HCl, microwave heating, 100 °C, 40 min
[33,34].

Molecules 2020, 25, 3868
6 of 19
2.2. In Vitro Activity of Compounds 3–23
2.2.1. PDE10A Inhibitory Activity
The novel series of compounds was derived from a 4-methoxy-2,3-dihydro-1H-isoindole-1,3-
dione (4-methoxyphthalimide, Figure 1) fragment, which was connected via different lengths of a
carbon-chain linker (C1–C5) to various amine fragments (e.g., 6,7-dimethoxy-1,2,3,4-
tetrahydroisoquinoline; 1H-imidazole; 1,2,3,4-tetrahydroisoquinoline; 1H-benzimidazole; and
decahydroisoquinoline) or to a phenyl ring (3–17). In this series, seven compounds (7, 8, 11, 12, 15–
17) displayed PDE10A inhibitory activity in the luminescence PDE inhibition assay at a concentration
of 10 µM (7–92%, Table 1). Furthermore, four analogs of the most promising 4-methoxyphthalimide

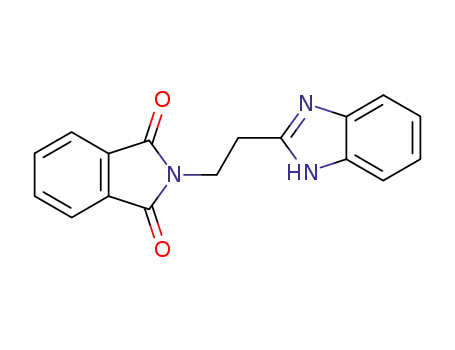

derivatives (15, 17–19), containing the phthalimide moiety, were synthesized (20–23). Among them,
three of the four phthalimide derivatives (21–23) showed moderate activity toward PDE10A (45–73%,
Table 1).
Table 1. Screening data from a luminescence PDE inhibition assay and a radioligand binding assay
for 5-HT1A and 5-HT7 (%) of 4-methoxy-1H-isoindole-1,3(2H)-dione and 1H-isoindole-1,3(2H)-dione
derivatives displaying phosphodiesterase 10A inhibitory activity and binding affinity for serotonin
5-HT1A and 5-HT7 receptors as well as selected IC50 values of the most active compounds for PDE10A.
PDE10A [%] 1
5-HT1A
1 µM 2 ± SEM 3
5-HT7
IC50 PDE10A
[µM] ± SEM 3
Compd
R
n
10 µM
3 µM
0
3
4
A
B
C
A
B
C
D
E
F
2
2
2
3
3
3
1
1
1
2
2
2
2
3
3
4
5
0
0
-
27 ± 3
12 ± 4
25 ± 3
32 ± 4
33 ± 2
28 ± 3
6 ± 2
0 ± 0
0 ± 0
0 ± 0
0 ± 0
51 ± 2
0 ± 0
0 ± 0
0 ± 2
0 ± 1
0 ± 0
0 ± 2
0 ± 0
0 ± 3
14 ± 0
10 ± 3
3 ± 1
6 ± 0
0
-
5
0
0
-
6
0
0
-
7
19
7
18
7
-
8
-
9
0
0
-
O
O
10
11
12
13
14
15
16
17
18 4
19
0
0
-
10 ± 1
39 ± 3
13 ± 2
59 ± 4
21 ± 1
44 ± 5
32 ± 3
16 ± 5
28 ± 3
28 ± 2
15
10
0
7
-
()n
N
D
E
G
F
5
-
R
0
-
O
0
0
-
70
13
86
92
75
40
11
73
79
52
6.710 ± 0.195
-
D
F
1.001 ± 0.009
0.886 ± 0.017
4.305 ± 0.365
F
F
20
21
22
F
F
F
2
3
4
1
0
26 ± 2
27 ± 2
20 ± 3
36 ± 0
14 ± 2
15 ± 2
-
O
45
73
16
47
-
()n
R
N
5.645 ± 0.495
23
F
5
58
26
48 ± 3
34 ± 2
-
O
Papaverine
75
-
54
-
-
-
99 ± 1
-
5.755 ± 0.055
Methiothiepin
DMSO
-
-
100 ± 0
-
0
0
1 The percentage of inhibition was calculated respective to vehicle control (DMSO); A: 6,7-dimethoxy-
1,2,3,4-tetrahydroisoquinoline, B: 1,2,3,4-tetrahydroisoquinoline, C: decahydroisoquinoline, D:
phenyl, E: 2-pyridine, F: 2-benzimidazole, G: 1H-imidazole; 2 % of control specific binding; 3 SEM of
three independent experiments performed in duplicate; 4 Additionally, the percent of inhibition of the
control binding for 5-HT2A and D2 for compound 18 were evaluated. The screening results were 8.8%
and 0%, for 5-HT2A and for D2 receptors, respectively, at a concentration of 1 µM. The screening tests
for 5-HT2A and D2 receptors were performed in the CEREP Laboratories, France—Eurofins Scientific
(www.cerep.fr).

Molecules 2020, 25, 3868
7 of 19
Initially, among compounds with a linker length of one to three methylene units (3–17), the
highest percentage of PDE10A inhibition (70–86%) was exhibited by compounds containing the 1H-
benzimidazole moiety (15, 17). Therefore, the influence of the length of the linker on inhibition of
PDE10A was investigated in this group of compounds. In the case of the 1H-benzimidazole
containing compounds, 11, 15, and 17–19, the elongation of the linker from one to five methylene
groups resulted in an increase and then a decrease in the inhibition of PDE10A. The most active
compound among them, compound 18 (92% inhibition), has a linker of four methylene units that
connects the 4-methoxyphthalimide fragment with the 1H-benzimidazole moiety. The modifications
of the 1H-benzimidazole moiety, such as replacement with 1,2,3,4-tetrahydroisoquinoline fragment
(4, 7), or its saturation (8 vs. 7), as well as removal of one aromatic ring in this part (10, 13, 14)
decreased the observed affinity to PDE10A. Interestingly, compounds 12 and 16, containing a phenyl
moiety at the terminal location, despite the lack of a functional amine group, showed very low activity
toward PDE10A.
In addition, the relevance of the introduction of a 4-methoxyl group to the 4-methoxy-2,3-
dihydro-1H-isoindole-1,3-dione fragment was also verified. For this purpose, a small phthalimide
series without a 4-methoxy group at position 4 (Table 1) connected via an alkylene linker to the 1H-
benzimidazole moiety (20–23) was synthesized. The activity of compounds 20–23 was significantly
lower than that of their 4-methoxy analogs (15, 17–19). Moreover, similar to the 4-methoxy series, the
inhibitory activity of compounds 20–23 increased with the length of the linker up to four methylene
units and then slightly decreased.
In the next step, the five most active compounds chosen (15, 17–19, 22) were quantitatively tested
in the luminescence PDE inhibition assay, alongside papaverine as the reference drug. The
effectiveness of inhibition was expressed as the half maximal inhibitory concentration (IC50) values.
The chosen compounds displayed a percentage of inhibition above 70% at the concentration of 10
µM. All investigated compounds (15, 17–19, 22) displayed satisfactory IC50 values (886 nM–6.71 µM,
Table 1 and Figure 3) in comparison with papaverine (5.755 µM). It is noteworthy that the most potent
PDE10A inhibitor, compound 18 (IC50 = 886 nM), was in-line with the predictions stipulated by
Lipinski’s Rule of Five, which describes “drug-like” parameters of small molecules in terms of
lipophilicity, size, polarity, solubility, flexibility, and saturation [35] (see graph, Figure S1, in
Supporting Materials).
Figure 3. Dose-response curve of the most active compounds 15, 17, 18, 19, 22 and reference drug-
papaverine on PDE 10A activity measured by the luminescence method.
2.2.2. Serotonin Receptor Affinity
In the next phase of the current study, the binding affinities of novel 4-methoxy-2,3-dihydro-1H-
isoindole-1,3-dione derivatives for 5-HT1A and 5-HT7 receptors were determined in a radioligand
binding assay (Table 1). The results revealed that the majority of the tested compounds displayed
very low-to-moderate affinity for the 5-HT1A receptor (6–59%) at a concentration of 1 µM, but only a
few showed any affinity for the 5-HT7 receptor (7, 16–23). The highest 5-HT1A or 5-HT7 receptor
affinity was observed for compounds 13 (59% for 5-HT1A) and 7 (51% for 5-HT7), respectively. Among

Molecules 2020, 25, 3868
8 of 19
the investigated series, three compounds (7, 20, and 23) showed a low but significant (above 20%)
percentage of binding for both 5-HT1A and 5-HT7 receptors (33%, 26%, 48% and 51%, 36%, 34%,
respectively).
In summary, the present study determined that the majority of the 2,3-dihydro-1H-isoindole-
1,3-dione derivatives (3–23) showed affinity toward the 5-HT1A receptor, whereas only few bind at
the 5-HT7 receptor site. In the case of 1H-benzimidazole derivatives (compounds 15, 17–19), which
significantly inhibited PDE10A (IC50 = 886 nM–6.71 µM), low affinity for 5-HT1A receptors (16–44%),
and even lower for 5-HT7 receptors (0–10%) was observed.
Furthermore, because compound 18 contains structural moieties such as benzimidazole and
phthalimide, which are also present in serotonin 5-HT2A and dopamine D2 receptor antagonists [14],
it was decided to test the affinity of Compound 18 to these receptors. The obtained results (appendix
below Table1) revealed that at a concentration of 1 µM compound 18 displayed negligible percentage
of binding for 5-HT2A and none for D2 receptors (8.8% and 0%, respectively).
2.3. Molecular Modeling Studies
In line with in vitro results, the most active 4-methoxy-2,3-dihydro-1H-isoindole-1,3-dione
derivative with a bezimidazol-2-yl butyl moiety (18) was selected to clarify and draw useful
information regarding the nature of the interactions of PDE10A with its ligands, and insights into
structure-activity relationships were investigated. We elucidated putative binding modes of several
derivatives throughout the process of docking to the protein target, which was represented by the
optimized crystal structure of the studied enzyme. As a representative example, binding interactions
were presented for compound 18 (2-[4-(1H-1,3-benzodiazol-2-yl)butyl]-4-methoxy-2,3-dihydro-1H-
isoindole-1,3-dione) (Figure 4).
Figure 4. The predicted binding mode of compound 18 in the active site of phosphodiesterase 10A
(PDB ID: 3SNI). Crucial interactions of the compound in the catalytic site with Gln716 and Phe719, as
well as its positioning in the selectivity pocket (Tyr683) predict inhibitory activity of the series of
rationally-designed derivatives synthesized in this study. Amino acid residues engaged in ligand
binding (within 4 Å from the ligand atoms) are displayed as sticks, whereas crucial residues, e.g.,
forming H-bonds (dotted yellow lines) or π-π stacking (dotted cyan lines), are represented as thick
sticks.
The 2,3-dihydro-1H-isoindole-1,3-dione moiety, bound in the catalytic active site, interacted
with Gln716 (H-bond) and with Phe719 (π-π stacking). In the case of the most active compound (18),
the 4-methoxy group acted as the H-bond acceptor, whereas unsubstituted analogs interacted
through the carbonyl group of the imide moiety. The oxygen atom of the phthalimide was less

Molecules 2020, 25, 3868
9 of 19
electronegative than the one of the methoxy group, thus making the H-bond accepting properties
weaker and disadvantageous in comparison with that of the 4-methoxy-substituted analogs.
Moreover, the H-bond formed by the latter group attracted the heteroaryl ring of the ligand closer to
Phe719/686, thereby facilitating the π-π interaction in the hydrophobic clamp. The 1H-1,3-
benzodiazole fragment accepted the H-bond from Tyr683 in the selectivity pocket. The interaction
was secured by the optimal length of the linker—4 carbon atoms and resulted in favorable scoring
function value −8.885 (glide gscore) (Figure 4). Both longer and shorter aliphatic chains decreased the
inhibitory potential (see Table 1), enforcing suboptimal arrangement of the terminal moieties in the
active site, which resulted in the loss of one of the aforementioned key interactions (e.g., in the case
of compound 19) or decrease in scoring function value (−8.254 for compound 15).
2.4. Cytotoxicity
In the subsequent stage of the study, the safety profile of the most active compound, 18, was
analyzed. Such analysis requires the exclusion of adverse effects of organ toxicity before proceeding
to further in vivo studies. According to the guidelines for the study of biologically active molecules,
cell lines are a good alternative to animal models at the initial stage of the drug cytotoxicity evaluation
process. The two cell lines used in this study, namely, the SHSY-5Y and HepG2 cell lines are approved
in vitro models, which can be used to obtain preliminary results regarding possible neuro- and
hepato-toxicity [36].
The MTT assay, which measures the metabolic status of cells, was used to determine cytotoxicity.
The results of the experiments clearly indicate that compound 18 is safe. Decreasing cell viability
(HepG2/SHSY-5Y) is observed only at higher concentrations of compound 18, while the reference
standard, doxorubicin (DOX), a well-described cytotoxic agent, demonstrated significantly decreased
cell viability already at much lower concentrations (Figure 5).
Figure 5. Viability of SHSY-5Y and HepG2 cells treated with compound 18 in the MTT test;
doxorubicin (DOX) was used as reference control. (A): compound 18 (SHSY-5Y), (B): DOX (SHSY-
5Y), (C): compound 18 (HepG2), (D): DOX (HepG2). Graphs represent the viability of cells as a % of
control (non-treated cells). Values represent means ± SEM of three independent experiments.
Statistical significance (*) vs. control was determined using the Mann-Whitney test, p < 0.05.

Molecules 2020, 25, 3868
10 of 19
2.5. Behavioral Evaluation
For further behavioral characterization, compound 18, with the highest PDE10A inhibitory
activity and satisfactory cytotoxicity profile, was selected. Thus, the potential antipsychotic
properties of compound 18 as an inhibitory effect on PDE10A in a behavioral animal model was
determined. The obtained results revealed that treatment of mice with d-amphetamine (AMPH)
significantly increased horizontal locomotor activity throughout the duration of the test. Papaverine
dose-dependently antagonized this response at both tested doses of 40 and 60 mg/kg for 60 min.
Compound 18 administered at a dose of 60 mg/kg decreased AMPH-induced hyperactivity, but only
for the first 10 min after injection (Figure 6). The lower doses of compound 18, as well as papaverine,
did not change the stimulating effect of AMPH (data not shown). To assess if a nonspecific
suppression of locomotion contributes to the ability of the tested compounds to oppose AMPH-
induced hyperactivity, the influence of these compounds on spontaneous locomotor activity was
measured. The locomotor-suppressing effects were observed after the administration of papaverine
(40 and 60 mg/kg) as well as 18 (60 mg/kg) (see Table S1 in Supporting Materials).
Figure 6. Effects of papaverine and compound 18 on d-amphetamine-induced hyperlocomotor
activity in CD-1 mice. Data are expressed as the mean of the number of movements recorded after 10,
20, 30, and 60 min of the papaverine-treated groups (at doses of 40 and 60 mg, respectively) and the
compound 18-treated group (at a dose of 60 mg) ± S.E.M. * p < 0.05, ** p < 0.01, **** p < 0.0001, versus
the respective vehicle-treated group, ^^ p < 0.01, ^^^ p < 0.001, ^^^^ p < 0.0001, and versus the
respective AMPH-treated group (one way ANOVA followed by Bonferroni’s post-hoc test). AMPH-
d-amphetamine.
In summary, the suppression of AMPH-induced hyperlocomotion suggests antipsychotic-like
properties of compound 18, as well as of papaverine. However, these effects are transient and may
only reflect the decrease in spontaneous locomotor activity. Our findings are consistent with previous
studies conducted with papaverine in rats [19,37], showing that the period of papaverine-induced
suppression of spontaneous locomotor activity fully included time of reversal of hyperlocomotion
produced by AMPH injection. Similar findings are reported by Schmidt et al. [38] for compound TP-
10, which is a PDE-10 inhibitor with improved potency and selectivity. The aforementioned results
suggest that antipsychotic-like properties of PDE10A inhibitors detected with locomotor-based
paradigms need to be treated with caution, due to concurrent inhibition of spontaneous locomotor
activity. Moreover, at this stage of our preliminary study, we can only speculate that the cause of
compound 18′s transient effect on AMPH-induced hyperlocomotor activity may be a result of either
rapid redistribution to the other brain structures or rapid metabolism. In order to overcome possible
pharmacokinetic and metabolic stability problems, we plan to further optimize the leading structure
of compound 18 and conduct extended in vitro and in vivo investigations.

Molecules 2020, 25, 3868
3. Materials and Methods
3.1. Chemistry
11 of 19
All chemicals and solvents were purchased from commercial suppliers (Aldrich, Poznań, Poland
and Chempur, Piekary Śląskie, Poland) and were used without further purification. Melting points
were measured in open capillaries on an Electrothermal 9300 apparatus. Thin-layer chromatography
(TLC) was run on Merck silica gel 60 F254 aluminium sheets (Merck; Darmstadt, Germany), using the
following mixtures of solvents: (S1) dichloromethane (9)/methanol (0.3), (S2) dichloromethane
(9)/methanol (0.7), (S3) dichloromethane (9)/methanol (1). Analytical HPLC was conducted on a
Waters HPLC instrument with a Waters 485 Tunable Absorbance Detector UV, equipped with a
Symetry column (C18, 3.5 µm, 4.6 × 30 mm) using a water/acetonitrile gradient with 0.1%
trifluoroacetic acid (TFA) as the mobile phase at a flow rate of 5 mL/min.
Additionally, the liquid chromatography/mass spectrometry (LC/MS) analysis was performed
on a Waters Acquity TQD system, with a Waters TQD quadrupole mass spectrometer with detection
by UV (DAD) using an Acquity UPLC BEH C18 column (1.7 µm, 2.1 mm × 100 mm). A
water/acetonitrile gradient with 0.1% TFA was used as a mobile phase at a flow rate of 0.3 mL/min.
The UPLC/MS purity of the investigated compounds (3–23) proved to be over 98%. NMR spectra
were recorded on a Varian Mercury 300 MHz spectrometer (Varian Inc., Palo Alto, CA, USA) using
the solvent (CDCl3 or DMSO-d6)signal as an internal standard; chemical shifts are expressed in parts
per million (ppm). Signal multiplets are represented by the following abbreviations: s (singlet), brs
(broad singlet), d (doublet), t (triplet), m (multiplet).
3.1.1. General Procedure for Synthesis of 4-Methoxy-2-benzofuran-1,3-dione (2)
The 4-methoxy-2-benzofuran-1,3-dione was obtained from 1, according to a previously
published procedure [32], with slight modifications. Briefly, 2,3-dimethylphenyl methyl ether (3.4 g,
25 mmol) was dissolved in water (98 mL) and tert-butanol (42 mL). After potassium permanganate
(25 g, 160 mmol) was added, the reaction mixture was refluxed for 12 h. The resulting suspension
was filtered over Celite, concentrated to 50 mL, acidified with 37% hydrochloric acid, and left
standing overnight at room temperature. The 3-methoxybenzene-1,2-dicarboxylic acid crystallized as
a white solid (4.34 g) and was refluxed for 4 h in anhydrous tetrahydrofuran (24 mL) with the addition
of acetic anhydride (7 mL). Upon cooling to room temperature, the reaction mixture was concentrated
in vacuo and the white solid was dried at 50 °C for 48 h, to afford 4-methoxy-2-benzofuran-1,3-dione
(3.82, 97%). HPLC: Rt = 0.931, MS calcd for [M + H]+: C9H6O4 m/z: 178.14, found: 178.97; 1H-NMR (300
MHz, DMSO-d6) δ ppm 3.99 (s, 3 H) 7.59 (dd, J = 9.67, 7.91 Hz, 2 H) 7.90–7.97 (m, 1 H).
3.1.2. General Procedure for Synthesis of the Final Series of Compounds (3–23)
The final compounds (3–23) were obtained within two different pathways, described in
procedures A and B. Procedure A (3–5, 9, 12, 16): a stoichiometric amount of 4-methoxy-2-
benzofuran-1,3-dione (0.196 g, 1.1 mmol) and appropriate amine (1.1 mmol) in glacial acetic acid (2
mL) was refluxed for 48 h, with stirring. Upon cooling to room temperature, the reaction mixture was
extracted with diethyl ether and concentrated in vacuum [39]. Procedure B (6–8, 10, 11, 13–15, 17–23):
an amount of 4-methoxy-2-benzofuran-1,3-dione (0.178 g, 1.0 mmol), along with specific amounts of
an appropriate amine (1.2 mmol), trimethylamine (0.28 mL, 2 mmol), and 4 Å molecular sieves were
added in anhydrous toluene (4 mL) and the mixture was refluxed and stirred overnight. The reaction
mixture was then filtered and the solvent was evaporated in vacuum [40]. All the final compounds
(3–23) were purified by column chromatography using dichloromethane (9)/methanol (0.7) as eluent.
2-[2-(6,7-Dimethoxy-3,4-dihydroisoquinolin-2(1H)-yl)ethyl]-4-methoxy-1H-isoindole-1,3(2H)-dione
(3)
Yellow powdery crystals. Yield: 42%; mp 108–109 °C; TLC: Rf = 0.44 (S1); HPLC: tR = 0.979; MS
calcd for [M + H]+: C22H24N2O5 m/z: 396.17, found: 397.16; 1H-NMR (300 MHz, CDCl3-d) δ ppm 2.72–

Molecules 2020, 25, 3868
12 of 19
2.82 (m, 6 H) 3.62 (s, 2 H) 3.78–3.82 (s, 6 H) 3.84–3.90 (m, 2 H) 3.99 (s, 3 H) 6.52 (d, J = 16.16 Hz, 2 H)
7.12–7.20 (m, 1 H) 7.34–7.43 (m, 1 H) 7.61 (dd, J = 8.46, 7.44 Hz, 1 H).
2-[2-(3,4-Dihydroisoquinolin-2(1H)-yl)ethyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (4)
White powdery crystals. Yield: 75%; mp 157–158 °C; TLC: Rf = 0.27 (S1); HPLC: tR = 0.906; MS
calcd for [M + H]+: C20H20N2O3 m/z: 336.38, found: 337.14; 1H-NMR (300 MHz, CDCl3-d) δ ppm 2.76–
2.87 (m, 6 H) 3.70 (s, 2 H) 3.88 (t, J = 6.54 Hz, 2 H) 3.99 (s, 3 H) 6.96–7.02 (m, 1 H) 7.04–7.11 (m, 3 H)
7.15 (d, J = 8.46 Hz, 1 H) 7.39 (d, J = 7.44 Hz, 1 H) 7.61 (dd, J = 8.46, 7.18 Hz, 1 H).
2-[2-(Octahydroisoquinolin-2(1H)-yl)ethyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (5)
Creamy powdery crystals. Yield: 35%; mp 145–146 °C; TLC: Rf = 0.55 (S2); HPLC: tR = 1.124; MS
calcd for [M + H]+: C20H26N2O3 m/z: 342.43, found: 343.19; 1H-NMR (300 MHz, CDCl3-d) δ ppm 0.79–
1.00 (m, 3 H) 1.08–1.30 (m, 4 H) 1.45–1.71 (m, 6 H) 1.94–2.05 (m, 1 H) 2.57 (t, J = 7.05 Hz, 2 H) 2.79–2.86
(m, 1 H) 2.99 (d, J = 10.77 Hz, 1 H) 3.78 (t, J = 7.05 Hz, 2 H) 4.01 (s, 3 H) 7.18 (d, J = 8.21 Hz, 1 H) 7.42
(dd, J = 7.31, 0.64 Hz, 1 H) 7.64 (dd, J = 8.34, 7.31 Hz, 1 H).
2-[3-(6,7-Dimethoxy-3,4-dihydroisoquinolin-2(1H)-yl)propyl]-4-methoxy-1H-isoindole-1,3(2H)-
dione (6)
Creamy powdery crystals. Yield: 39%; mp 107–109 °C; TLC: Rf = 0.38 (S2); HPLC: tR = 1.018; MS
1
calcd for [M + H]+: C23H26N2O5 m/z: 410.18, found: 411.18; H-NMR (300 MHz, CDCl3-d) δ ppm 1.92
(quin, J = 6.86 Hz, 2 H) 2.53–2.71 (m, 6 H) 3.45 (s, 2 H) 3.72–3.84 (m, 8 H) 3.96 (s, 3 H) 6.45 (d, J = 5.90
Hz, 2 H) 7.08 (d, J = 8.46 Hz, 1 H) 7.35 (d, J = 7.18 Hz, 1 H) 7.56 (dd, J = 8.34, 7.31 Hz, 1 H).
2-[3-(3,4-Dihydroisoquinolin-2(1H)-yl)propyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (7)
Yellow powdery crystals. Yield: 48%; mp 92–93 °C; TLC: Rf = 0.32 (S2); HPLC: tR = 1.006; MS calcd
for [M + H]+: C21H22N2O3 m/z: 350.41, found: 351.36; 1H-NMR (300 MHz, CDCl3-d) δ ppm 1.94 (quin, J
= 6.92 Hz, 2 H) 2.58 (t, J = 7.05 Hz, 2 H) 2.63–2.69 (m, 2 H) 2.74–2.81 (m, 2 H) 3.55 (s, 2 H) 3.77 (t, J =
6.92 Hz, 2 H) 3.96 (s, 7 H) 3.93–3.99 (m, 3 H) 6.92–7.12 (m, 5 H) 7.36 (dd, J = 7.18, 0.51 Hz, 1 H) 7.56
(dd, J = 8.46, 7.18 Hz, 1 H).
2-[3-(Octahydroisoquinolin-2(1H)-yl)propyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (8)
Creamy powdery crystals. Yield: 46%; mp 103–104 °C; TLC: Rf = 0.47 (S3); HPLC: tR = 1.161; MS
calcd for [M + H]+: C21H28N2O3 m/z: 356.21, found: 357.21; 1H-NMR (300 MHz, CDCl3-d) δ ppm 0.78–
0.93 (m, 3 H) 1.12–1.28 (m, 4 H) 1.43–1.71 (m, 6 H) 1.86–1.99 (m, 3 H) 2.48 (t, J = 7.44 Hz, 2 H) 2.82 (d,
J = 9.23 Hz, 1 H) 3.00 (d, J = 11.03 Hz, 1 H) 3.69 (t, J = 6.80 Hz, 2 H) 4.00 (s, 3 H) 7.17 (d, J = 8.21 Hz, 1
H) 7.40 (dd, J = 7.31, 0.64 Hz, 1 H) 7.63 (dd, J = 8.46, 7.18 Hz, 1 H).
2-Benzyl-4-methoxy-1H-isoindole-1,3(2H)-dione (9)
White powdery crystals. Yield: 75%; mp 167–168 °C; TLC: Rf = 0.70 (S1); HPLC: tR = 1.435; MS
calcd for [M + H]+: C16H13NO3 m/z: 267.09, found: 268.09; 1H-NMR (300 MHz, CDCl3-d) δ ppm 4.00 (s,
3 H) 4.81 (s, 2 H) 7.17 (d, J = 7.95 Hz, 1 H) 7.21–7.33 (m, 3 H) 7.40–7.46 (m, 3 H) 7.64 (dd, J = 8.46, 7.44
Hz, 1 H).
4-Methoxy-2-(pyridin-2-ylmethyl)-1H-isoindole-1,3(2H)-dione (10)
Creamy powdery crystals. Yield: 53%; mp 144–145 °C; TLC: Rf = 0.56 (S2); HPLC: tR = 0.755; MS
calcd for [M + H]+: C15H12N2O3 m/z: 268.08, found: 269.09; 1H-NMR (300 MHz, CDCl3-d) δ ppm 4.00 (s,
3 H) 4.97 (s, 2 H) 7.10–7.17 (m, 1 H) 7.18–7.28 (m, 2 H) 7.46 (d, J = 7.95 Hz, 1 H) 7.56–7.69 (m, 2 H) 8.50
(dd, J = 4.87, 2.56 Hz, 1 H).

Molecules 2020, 25, 3868
13 of 19
2-(1H-Benzimidazol-2-ylmethyl)-4-methoxy-1H-isoindole-1,3(2H)-dione (11)
Creamy powdery crystals. Yield: 30%; mp 239–240 °C; TLC: Rf = 0.34 (S3); HPLC: tR = 0.851; MS
calcd for [M + H]+: C17H13N3O3 m/z: 307.30, found: 308.29; 1H-NMR (300 MHz, CDCl3-d) δ ppm 3.96 (s,
3 H) 5.14 (s, 2 H) 7.15 (d, J = 8.46 Hz, 1 H) 7.18–7.28 (m, 3 H) 7.41 (dd, J = 7.18, 0.51 Hz, 1 H) 7.63 (dd,
J = 8.46, 7.44 Hz, 2 H).
4-Methoxy-2-(2-phenylethyl)-1H-isoindole-1,3(2H)-dione (12)
White powdery crystals. Yield: 43%; mp 123–124 °C; TLC: Rf = 0.73 (S1); HPLC: tR = 1.533; MS
calcd for [M + H]+: C17H15NO3 m/z: 281.31, found: 282.05; 1H-NMR (300 MHz, CDCl3-d) δ ppm 2.93–
3.00 (m, 2 H) 3.85–3.92 (m, 2 H) 4.01 (s, 3 H) 7.15–7.32 (m, 6 H) 7.38–7.42 (m, 1 H) 7.63 (dd, J = 8.46,
7.44 Hz, 1 H).
4-Methoxy-2-[2-(pyridin-2-yl)ethyl]-1H-isoindole-1,3(2H)-dione (13)
Creamy powdery crystals. Yield: 71%; mp 155–157 °C; TLC: Rf = 0.24 (S1); HPLC: tR = 0.797; MS
calcd for [M + H]+: C16H14N2O3 m/z: 282.10, found: 283.11; 1H-NMR (300 MHz, CDCl3-d) δ ppm 3.12–
3.19 (m, 2 H) 4.00 (s, 3 H) 4.06 (dd, J = 7.95, 6.67 Hz, 2 H) 7.08–7.20 (m, 3 H) 7.39 (dd, J = 7.31, 0.64 Hz,
1 H) 7.52–7.67 (m, 2 H) 8.49–8.53 (m, 1 H).
2-[2-(1H-Imidazol-4-yl)ethyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (14)
White powdery crystals. Yield: 30%; mp 227–228 °C; TLC: Rf = 0.14 (S2); HPLC: tR = 0.774; MS
calcd for [M + H]+: C14H13N3O3 m/z: 271.27, found: 272.14; 1H-NMR (300 MHz, DMSO-d6) δ ppm 2.81–
2.88 (m, 2 H) 3.74 (t, J = 6.80 Hz, 2 H) 3.92 (s, 3 H) 7.11 (s, 1 H) 7.33–7.47 (m, 2 H) 7.75 (dd, J = 8.46, 7.44
Hz, 1 H) 8.24 (d, J = 1.03 Hz, 1 H).
2-[2-(1H-Benzimidazol-2-yl)ethyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (15)
Creamy powdery crystals. Yield: 40%; mp 197–198 °C; TLC: Rf = 0.37 (S3); HPLC: tR = 0.871; MS
calcd for [M + H]+: C18H15N3O3 m/z: 321.11, found: 322.31; 1H-NMR (300 MHz, DMSO-d6) δ ppm 3.10
(t, J = 7.33 Hz, 2 H) 3.89–3.98 (m, 5 H) 7.05–7.12 (m, 2 H) 7.37 (d, J = 7.62 Hz, 1 H) 7.39–7.47 (m, 3 H)
7.72–7.79 (m, 1 H).
4-Methoxy-2-(3-phenylpropyl)-1H-isoindole-1,3(2H)-dione (16)
White powdery crystals. Yield: 73%; mp 94–95 °C; TLC: Rf = 0.80 (S1); HPLC: tR = 1.572; MS calcd
for [M + H]+: C18H17NO3 m/z: 295.21, found: 296.32; 1H-NMR (300 MHz, CDCl3-d) δ ppm 2.01 (dt, J =
14.68, 7.66 Hz, 2 H) 2.62–2.71 (m, 2 H) 3.71 (t, J = 7.18 Hz, 2 H) 4.01 (s, 3 H) 7.10–7.28 (m, 6 H) 7.41 (dd,
J = 7.18, 0.51 Hz, 1 H) 7.64 (dd, J = 8.34, 7.31 Hz, 1 H).
2-[3-(1H-Benzimidazol-2-yl)propyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (17)
Creamy powdery crystals. Yield: 45%; mp 217–218 °C; TLC: Rf = 0.37 (S2); HPLC: tR = 0.910; MS
calcd for [M + H]+: C19H17N3O3 m/z: 335.13, found: 336.34; 1H-NMR (300 MHz, CDCl3-d) δ ppm 2.12–
2.22 (m, 2 H) 2.88–2.96 (m, 2 H) 3.71–3.80 (m, 2 H) 4.06 (s, 3 H) 7.18–7.28 (m, 4 H) 7.47 (dd, J = 7.31,
0.64 Hz, 1 H) 7.59 (dd, J = 5.51, 2.95 Hz, 1 H) 7.70 (dd, J = 8.46, 7.44 Hz, 1 H).
2-[4-(1H-Benzimidazol-2-yl)butyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (18)
Creamy powdery crystals. Yield: 45%; mp 69–70 °C; TLC: Rf = 0.28 (S2); HPLC: tR = 1.002;
C20H19N3O3 m/z: 349.14, found: 350.17; 1H-NMR (300 MHz, CDCl3-d) δ ppm 1.67–1.92 (m, 4 H) 2.97 (t,
J = 7.33 Hz, 2 H) 3.67 (t, J = 6.74 Hz, 2 H) 3.95 (s, 3 H) 7.12–7.20 (m, 3 H) 7.37 (d, J = 7.03 Hz, 1 H) 7. –
7.55 (m, 2 H) 7.61 (t, J = 7.91 Hz, 1 H); 13C-NMR (75 MHz, CDCl3-d) δ ppm 25.26, 27.83, 28.27, 36.80,
56.28, 115.46, 117.15, 117.52, 122.08, 134.09, 136.21, 154.51, 156.59, 167.36, 168.25.

Molecules 2020, 25, 3868
14 of 19
2-[5-(1H-Benzimidazol-2-yl)pentyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (19)
Creamy powdery crystals. Yield: 50%; mp 108–109 °C; TLC: Rf = 0.38 (S2); HPLC: tR = 1.072; MS
calcd for [M + H]+: C21H21N3O3 m/z: 363.41, found: 364.12; 1H-NMR (300 MHz, CDCl3-d) δ ppm 1.32–
1.46 (m, 2 H) 1.69 (quin, J = 7.18 Hz, 2 H) 1.90 (dt, J = 15.68, 7.69 Hz, 2 H) 2.91 (t, J = 7.33 Hz, 2 H) 3.64
(t, J = 7.03 Hz, 2 H) 4.00 (s, 3 H) 7.14–7.21 (m, 3 H) 7.41 (d, J = 7.03 Hz, 1 H) 7.53 (dd, J = 5.86, 2.93 Hz,
2 H) 7.64 (dd, J = 8.50, 7.33 Hz, 1 H); 13C-NMR (75 MHz, CDCl3-d) δ ppm 26.07, 27.13, 28.03, 29.00,
37.21, 56.28, 115.43, 117.24, 117.47, 122.02, 134.17, 136.15, 154.73, 156.57, 167.35, 168.23.
2-[2-(1H-Benzimidazol-2-yl)ethyl]-1H-isoindole-1,3(2H)-dione (20)
White powdery crystals. Yield: 55%; mp 202–203 °C; TLC: Rf = 0.35 (S3); HPLC: tR = 0.827; MS
calcd for [M + H]+: C17H13N3O2 m/z: 291.30, found: 292.06; 1H-NMR (300 MHz, DMSO-d6) δ ppm 3.14
(t, J = 7.33 Hz, 2 H) 4.00 (t, J = 7.33 Hz, 2 H) 7.06–7.12 (m, 2 H) 7.38–7.46 (m, 2 H) 7.78–7.87 (m, 4 H).
2-[3-(1H-Benzimidazol-2-yl)propyl]-1H-isoindole-1,3(2H)-dione (21)
White powdery crystals. Yield: 66%; mp 190–191 °C; TLC: Rf = 0.37 (S3); HPLC: tR = 0.869; MS
calcd for [M + H]+: C18H15N3O2 m/z: 305.12, found: 306.10; 1H-NMR (300 MHz, CDCl3-d) δ ppm 2.15–
2.27 (m, 2 H) 2.89–2.98 (m, 2 H) 3.74–3.83 (m, 2 H) 7.17–7.25 (m, 2 H) 7.53–7.61 (m, 2 H) 7.71–7.78 (m,
2 H) 7.82–7.89 (m, 2 H).
2-[4-(1H-Benzimidazol-2-yl)butyl]-1H-isoindole-1,3(2H)-dione (22)
Creamy powdery crystals. Yield: 43%; mp 179–180 °C; TLC: Rf = 0.28 (S2); HPLC: tR = 1.001; MS
calcd for [M + H]+: C19H17N3O2 m/z: 319.13, found: 320.10; 1H-NMR (300 MHz, CDCl3-d) δ ppm 1.73–
1.94 (m, 4 H) 3.00 (t, J = 7.33 Hz, 2 H) 3.75 (t, J = 6.74 Hz, 2 H) 7.16–7.23 (m, 2 H) 7.49–7.58 (m, 2 H) 7.
–7.74 (m, 2 H) 7.79–7.86 (m, 2 H).
2-[5-(1H-Benzimidazol-2-yl)pentyl]-1H-isoindole-1,3(2H)-dione (23)
White powdery crystals. Yield: 59%; mp 168–169 °C; TLC: Rf = 0.30 (S2); HPLC: tR = 1.080; MS
calcd for [M + H]+: C20H19N3O2 m/z: 333.15, found: 334.15; 1H-NMR (300 MHz, CDCl3-d) δ ppm 1.37–
1.50 (m, 2 H) 1.74 (quin, J = 7.18 Hz, 2 H) 1.94 (dt, J = 15.39, 7.84 Hz, 2 H) 2.93 (t, J = 7.33 Hz, 2 H) 3.70
(t, J = 7.03 Hz, 2 H) 7.16–7.23 (m, 2 H) 7.54 (dd, J = 5.86, 2.93 Hz, 2 H) 7.67–7.74 (m, 2 H) 7.79–7.86 (m,
2 H).
3.2. Pharmacology
3.2.1. Protocols for Measuring PDE10A Inhibition In Vitro
Test and reference compounds were dissolved in dimethyl sulfoxide (DMSO) at a concentration
of 1 mM and further diluted in assay buffer in order to obtain the final concentration of compounds:
10 µM and 3 µM, respectively. All reactions were carried out at 37 °C in white, half-area 96-well plates
(Perkin Elmer, Waltham, MA, USA). The inhibition of PDE 10A enzyme was measured using the
PDElight HTS cAMP phosphodiesterase assay kit (Lonza) according to the manufacturer’s
recommendations. 2.5 U of PDE 10A enzyme was preincubated either with DMSO (vehicle control)
or compound for 20 min before incubation with the substrate, cAMP (final concentration 1.25 µM),
for 1 h. Then, PDELight AMP Detection Reagent was added. After 10 min incubation, the
luminescence was measured in a multifunction plate reader (POLARstar Omega, BMG Labtech,
Ortenberg, Germany). The results were expressed as percent of inhibition or, for the most active
compounds selected, as the half maximal inhibitory concentration values.
3.2.2. Radioligand Binding Studies
Radioligand binding studies with serotonin 5-HT1A and 5-HT7 receptors were conducted
according to methods previously described [41,42], whereas percent of inhibition of the control

Molecules 2020, 25, 3868
15 of 19
binding for 5-HT2A and D2 were performed according to protocols described online (www.cerep.fr).
Briefly: binding experiments were conducted in 96-well microplates in a total final volume of 250 µL
of appropriate buffers. Reaction mix included 50 µL solution of test compound, 50 µL of radioligand
([3H]8-OH-DPAT for 5-HT1A, and [3H]-LSD for 5-HT7, respectively) and 150 µL of diluted membranes
(see description and Table S2 in Supporting Materials). Specific assay conditions for each receptor are
described elsewhere [41]. The radioactivity was measured in a MicroBeta2 scintillation counter
(PerkinElmer, USA). Each compound was tested in the assay as duplicate samples at 1 µM final
concentrations. Results were expressed as percent inhibition of specific binding.
3.3. Molecular Modeling
The phosphodiesterase 10A model was developed on the basis of the experimental structure of
the enzyme (PDB ID: 3SNI) [43]. The structure was refined using default settings in the Protein
Preparation Wizard. Water molecules (except for the buried water molecules) and hetero groups,
other than the ligand, were deleted and the whole system was minimized (OPLS3 force field). The
model was tested extensively with docking studies involving PDE 10A inhibitors. The resulting
consistent binding modes of the reference compounds of experimentally proven affinity were used
as the basis for verifying the accuracy of the model that served as molecular target in docking studies.
Ligand structures were optimized using the LigPrep tool. The Glide SP flexible docking procedure
was carried out using default parameters. H-bond constraint, as well as centroid of a grid box, were
located on Gln716.
Glide, LigPrep, and Protein Preparation Wizard were implemented in the Small-Molecule Drug
Discovery Suite (Schrödinger, Inc., NY, USA), which was licensed to the Jagiellonian University
Medical College.
3.4. Cytotoxicity
3.4.1. Cells Culture
The HePG2 human liver cancer cell-line, (ATCC® 59195™) and the SH-SY5Y human
neuroblastoma cell-line (ATCC® CRL-2266™) were used in the study. The cells were cultured in
standard conditions (37 °C, 5% CO2), in EMEM (HepG2 and SH-SY5Y), supplemented with 10% fetal
bovine serum (FBS) (Gibco, Thermo Fisher Scientific, Waltham, MA. USA) and antibiotics (Lonza,
Köln, Germany).
3.4.2. Cytotoxicity Analysis—MTT
The MTT assay was used to determine the cytotoxic effects of the analyzed compounds. Cells
were seeded at a density of 2 × 104 in 96-well plates. Following overnight culture, cells were then
treated with increasing concentrations of compound 18 (0.1–100 µM) and incubated for 24 h.
Following cell exposure for 24 h, 10 µL MTT reagent (Sigma Aldrich) was added to each well and,
after 3 h of incubation (37 °C, 5% CO2), the medium was aspirated and the formazan produced in the
cells appeared as dark crystals in the bottom of the wells. Next, Crystal DMSO was added to each
well. Then, the optical density (OD) of each well was determined at 570 nm on a plate-reader (Spectra
iD3, Molecular Devices, San Jose, CA, USA). The number of metabolically active and living cells is
directly proportional to the absorbance of the samples. The results are presented in Figure 5 as the
percentage of control ± SEM. Doxorubicin was used as reference standard (cytotoxic agent).
3.5. In Vivo Studies
The experiments were performed on male CD-1 mice (in the accredited animal facility at the
Jagiellonian University Medical College, Krakow, Poland), and mice were kept in groups of ten in
Makrolon type 3 cages (dimensions 26.5 × 15 × 42 cm). The animals were kept in an environmentally
controlled room (ambient temperature 22 ± 2 °C; relative humidity 50–60%; 12:12 light:dark cycle,
lights on at 8:00). They were allowed to acclimatize with the environment for one week before

Molecules 2020, 25, 3868
16 of 19
commencement of the experiments. Standard laboratory food (Ssniff M-Z) and filtered water were
freely available. All the experimental procedures were approved by the I Local Ethics Commission at
the Jagiellonian University in Krakow (Approval Nos.: 125/2017, 123/2015, and 158/2017).
All the experiments were conducted in the light phase between 09.00 and 14.00 h. Each
experimental group consisted of 7–10 animals per treatment dose. The animals were used only once.
3.5.1. d-Amphetamine-Induced Hyperlocomotor Activity in CD-1 Mice
Locomotor activity was recorded with an Opto M3 multi-channel activity monitor (MultiDevice
Software v.1.3, Columbus Instruments, Columbus, OH, USA). The CD-1 mice were individually
placed in plastic cages (22 × 12 × 13 cm) immediately after drug administration, and then ambulation
was counted during 1 h with data recording every 10 min. The cages were cleaned up with 70%
ethanol after each mouse.
3.5.2. Spontaneous Locomotor Activity in CD-1 Mice
Locomotor activity was recorded according to the method described above.
3.5.3. Drugs
The following drugs were used: d-amphetamine (sulfate, Sigma-Aldrich, Poznań, Poland),
papaverine (hydrochloride, Sigma-Aldrich, Poznań, Poland), and tested compound 18. D-
amphetamine and papaverine were dissolved in distilled water; the tested compound (18) was
suspended in a 1% aqueous solution of Tween 80 immediately before administration. Papaverine and
18 were administered intraperitoneally (ip) and d-amphetamine subcutaneously (sc) just prior to the
test starting. All compounds were injected at a volume of 10 mL/kg. Control animals received a
vehicle injection according to the same schedule. Figure 6 shows only the doses at which the
antipsychotic-like activity of AMPH, papaverine, and compound 18 were observed.
3.5.4. Statistics
All the data are presented as the mean ± SEM. The statistical significance of the results was
evaluated by a one-way ANOVA, followed by a Bonferroni’s Comparison Test.
4. Conclusions
In this study, we describe the synthesis of a library of novel 4-methoxy-2,3-dihydro-1H-
isoindole-1,3-dione derivatives with various aminoalkyl moieties, as potential inhibitors of PDE10A
and serotonin receptor ligands. Among the synthesized and tested compounds, 1H-benzimidazole
derivatives were identified as potent PDE10A inhibitors. Compound 18, the most potent PDE10
inhibitor (IC50 = 886 ± 0.017 nM) of the group, with drug-like properties as defined by Lipinski’s Rule
of five, was selected for further pharmacological evaluation. In order to explain its inhibitory activity
towards PDE10A, the binding mode of compound 18 was determined. Molecular modeling studies
showed that H-bonds formed by the 4-methoxy group in the phthalimide moiety as well as the
optimal length of the carbon linker are crucial for interactions with PDE10A. Preliminary in vitro
neurotoxicity and hepatotoxicity studies revealed that the compound is safe and did not exhibit
noteworthy cytotoxicity. Furthermore, significant antipsychotic properties of 2-[4-(1H-benzimidazol-
2-yl)butyl]-4-methoxy-1H-isoindole-1,3(2H)-dione (compound 18) was identified in the d-AMPH-
induced hyperlocomotor activity test in mice, but further pharmacological studies are needed to
explain the mechanism underlying its antipsychotic activity. This study successfully identified a
number of compounds with significant PDE10A inhibitory activity and provided further information
into the molecular basis of their interaction with PDE10A.

Molecules 2020, 25, 3868
17 of 19
Supplementary Materials: The following are available online, Figure S1: The spider graph of drug-like
parameters of compound 18, Figure S2. Effects of papaverine and compound 18 on d-amphetamine-induced
hyperlocomotor activity in CD-1 mice, Table S1: Effects of papaverine and compound 18 on spontaneous
locomotor activity in CD-1 mice, Table S2. Detailed conditions of the in vitro binding assays for the 5-HT1A and
5-HT7 receptors and examples of NMR spectra.
Author Contributions: Conceptualization, A.C. and A.Z.; methodology, A.C., A.S., M.G.-L., and A.B.; software,
A.B. and M.K.; validation, P.K., M.G.-L., and A.P.; formal analysis, B.T and A.J.; investigation, A.C., A.B, A.P,
and P.K.; data curation, A.C.; writing—original draft preparation, A.C., A.Z., A.B, P.K., and A.P.; writing—
review and editing, A.C. and A.Z.; visualization, A.B., A.P., and M.G.-L.; supervision, M.K., M.P., E.P., and A.W.;
project administration, A.C. and A.Z.; funding acquisition, M.P., A.C., and A.Z. All authors have read and agreed
to the published version of the manuscript.
Funding: This study was co-founded by National Science Centre (NSC) Poland grants (No. DEC-
2012/07/B/NZ7/01173 and 2016/21/D/NZ7/01573) and Funds for Statutory Activity of Jagiellonian University
Medical College (N42/DBS/000104, N42/DBS/0001784, N42/DBS/000020).
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Lima: L.M.; Castro, P.; Machado, A.L.; Fraga, C.A.M.; Lugnier, C.; De Moraes, V.L.G.; Barreiro, E.J.
Synthesis and anti-inflammatory activity of phthalimide derivatives, designed as new thalidomide
analogues. Bioorg. Med. Chem. 2002, 10, 3067–3073, doi:10.1016/S0968-0896(02)00152-9.
Van Derpoorten, K.; Balzarini, J.; De Clercq, E.; Poupaert, J.H. Anti-HIV activity of N-1-adamantyl-4-
aminophthalimide. Biomed. Pharmacother. 1997, 51, 464–468, doi:10.1016/S0753-3322(97)82327-X.
Hall, I.H.; Wong, O.T.; Scovill, J.P. The cytotoxicity of N-pyridinyl and N-quinolinyl substituted derivatives
of phthalimide and succinimide. Biomed. Pharmacother. 1995, 49, 251–258, doi:10.1016/0753-3322(96)82631-
X.
2.
3.
4.
5.
6.
Kim, H.S.; Kim, Y.; Doddareddy, M.R.; Seo, S.H.; Rhim, H.; Tae, J.; Pae, A.N.; Choo, H.; Cho, Y.S. Design,
synthesis, and biological evaluation of 1,3-dioxoisoindoline-5-carboxamide derivatives as T-type calcium
channel blockers. Biorg. Med. Chem. Lett. 2007, 17, 476–481, doi:10.1016/j.bmcl.2006.10.042.
Gunduğdu, Ö.; Noma, S.A.A.; Taskin-Tok, T.; Ateş, B.; Kishali, N. Evaluation of xanthine oxidase inhibitor
properties on isoindoline-1,3-dion derivatives and calculation of interaction mechanism. J. Mol. Struct. 2020,
1204, 127523.
Lamie, P.F.; Philoppes, J.N.; El-Gendy, A.O.; Rarova, L.; Gruz, J. Design, synthesis and evaluation of novel
phthalimide derivatives as in vitro anti-microbial, anti-oxidant and anti-inflammatory agents. Molecules
2015, 20, 16620–16642, doi:10.3390/molecules200916620.
7.
8.
9.
Bailleux, V.; Vallée, L.; Nuyts, J.P.; Vamecq, J. Original anticonvulsant properties of two N-
phenylphthalimide derivatives. Biomed. Pharmacother. 1993, 47, 463–464, doi:10.1016/0753-3322(93)90345-L.
Atack, J.R. The benzodiazepine binding site of GABAA receptors as a target for the development of novel
anxiolytics. Expert Opin. Investig. Drugs 2005, 14, 601–618.
Bajda, M.; Więckowska, A.; Hebda, M.; Guzior, N.; Sotriffer, C.; Malawska, B. Structure-Based Search for
New Inhibitors of Cholinesterases. Int. J. Mol. Sci. 2013, 14, 5608–5632, doi:10.3390/ijms14035608.
10. Panek, D.; Wiȩckowska, A.; Pasieka, A.; Godyń, J.; Jończyk, J.; Bajda, M.; Knez, D.; Gobec, S.; Malawska, B.
Design, synthesis, and biological evaluation of 2-(benzylamino-2-hydroxyalkyl)isoindoline-1,3-diones
derivatives as potential disease-modifying multifunctional anti-Alzheimer agents. Molecules 2018, 23,
doi:10.3390/molecules23020347.
11. Mohammadi-Farani, A.; Abdi, N.; Moradi, A.; Aliabadi, A. 2-(2-(4-Benzoylpiperazin-1-
yl)ethyl)isoindoline-1,3-dione derivatives: Synthesis, docking and acetylcholinesterase inhibitory
evaluation as anti-alzheimer agents. Iran. J. Basic Med. Sci. 2017, 20, 59–64, doi:10.22038/ijbms.2017.8095.
12. Foong, J.P.P.; Bornstein, J.C. 5-HT antagonists NAN-190 and SB 269970 block α2-adrenoceptors in the
guinea pig. Neuroreport 2009, 20, 325–330, doi:10.1097/WNR.0b013e3283232caa.
13. Huttunen, M. The evolution of the serotonin-dopamine antagonist concept. J. Clin. Psychopharmacol. 1995,
15, 4S-10S, doi:10.1097/00004714-199502001-00002.
14. Meltzer, H.Y.; Massey, B.W. The role of serotonin receptors in the action of atypical antipsychotic drugs.
Curr. Opin. Pharmacol. 2011, 11, 59–67.

Molecules 2020, 25, 3868
18 of 19
15. Stahl, S.M. Dopamine system stabilizers, aripiprazole, and the next generation of antipsychotics, part 1:
“Goldilocks” actions at dopamine receptors. J. Clin. Psychiatry 2001, 62, 841–842.
16. Mailman, R.; Murthy, V. Third Generation Antipsychotic Drugs: Partial Agonism or Receptor Functional
Selectivity? Curr. Pharm. Des. 2010, 16, 488–501, doi:10.2174/138161210790361461.
17. McCreary, A.; Newman-Tancredi, A. Serotonin 5-HT1A Receptors and Antipsychotics - An Update in Light
of
New
Concepts
and
Drugs.
Curr.
Pharm.
Des.
2015,
21,
3725–3731,
doi:10.2174/1381612821666150605105215.
18. Kusumi, I.; Boku, S.; Takahashi, Y. Psychopharmacology of atypical antipsychotic drugs: From the receptor
binding profile to neuroprotection and neurogenesis. Psychiatry Clin. Neurosci. 2015, 69, 243–258.
19. Siuciak, J.A.; Strick, C.A. Treating neuropsychiatric disorders with PDE10A inhibitors. Drug Discov. Today
Ther. Strateg. 2006, 3, 527–532.
20. Chappie, T.A.; Helal, C.J.; Hou, X. Current landscape of phosphodiesterase 10A (PDE10A) inhibition. J.
Med. Chem. 2012, 55, 7299–7331.
21. Zagorska, A.; Partyka, A.; Bucki, A.; Gawalskax, A.; Czopek, A.; Pawlowski, M. Phosphodiesterase 10
Inhibitors—Novel Perspectives for Psychiatric and Neurodegenerative Drug Discovery. Curr. Med. Chem.
2018, 25, 3455–3481, doi:10.2174/0929867325666180309110629.
22. Suzuki, K.; Harada, A.; Suzuki, H.; Capuani, C.; Ugolini, A.; Corsi, M.; Kimura, H. Combined treatment
with a selective PDE10A inhibitor TAK-063 and either haloperidol or olanzapine at subeffective doses
produces potent antipsychotic-like effects without affecting plasma prolactin levels and cataleptic
responses in rodents. Pharmacol. Res. Perspect. 2018, 6, doi:10.1002/prp2.372.
23. Proschak, E.; Stark, H.; Merk, D. Polypharmacology by Design: A Medicinal Chemist’s Perspective on
Multitargeting Compounds. J. Med. Chem. 2019, 62, 420–444.
24. Kondej, M.; Stępnicki, P.; Kaczor, A.A. Multi-target approach for drug discovery against schizophrenia.
Int. J. Mol. Sci. 2018, 19, 3105.
25. Christopher, D.C.; BUNDA, J.L.; Broc, A.F.; SHIPE, W. Pyrimidinones as AS PDE10 Inhibitors.
WO2010138585, 2010, 02, 12.
26. Medina, R.A.; Sallander, J.; Benhamú, B.; Porras, E.; Campillo, M.; Pardo, L.; López-Rodríguez, M.L.
Synthesis of new serotonin 5-HT7 receptor ligands. Determinants of 5-ht7/5-ht1a receptor selectivity. J.
Med. Chem. 2009, 52, 2384–2392, doi:10.1021/jm8014553.
27. Zagórska, A.; Bucki, A.; Kołaczkowski, M.; Siwek, A.; Głuch-Lutwin, M.; Starowicz, G.; Kazek, G.; Partyka,
A.; Wesołowska, A.; Słoczyńska, K.; et al. Synthesis and biological evaluation of 2-fluoro and 3-
trifluoromethyl-phenyl-piperazinylalkyl derivatives of 1H-imidazo [2 ,1-f]purine-2,4(3H,8H)-dione as
potential
antidepressant
agents.
J.
Enzyme
Inhib.
Med.
Chem.
2016,
31,
10–24,
doi:10.1080/14756366.2016.1198902.
28. Zajdel, P.; Marciniec, K.; Maślankiewicz, A.; Satała, G.; Duszyńska, B.; Bojarski, A.J.; Partyka, A.; Jastrzbska-
Wisek, M.; Wróbel, D.; Wesołowska, A.; et al. Quinoline- and isoquinoline-sulfonamide derivatives of
LCAP as potent CNS multi-receptor—5-HT 1A/5-HT 2A/5-HT 7 and D 2/D 3/D 4-Agents: The synthesis
and pharmacological evaluation. Bioorg. Med. Chem. 2012, 20, 1545–1556, doi:10.1016/j.bmc.2011.12.039.
29. Kehler, J.; Ritzen, A.; Langgård, M.; Petersen, S.L.; Farah, M.M.; Bundgaard, C.; Christoffersen, C.T.;
Nielsen, J.; Kilburn, J.P. Triazoloquinazolines as a novel class of phosphodiesterase 10A (PDE10A)
inhibitors. Bioorg. Med. Chem. Lett. 2011, 21, 3738–3742, doi:10.1016/j.bmcl.2011.04.067.
30. Chino, A.; Masuda, N.; Amano, Y.; Honbou, K.; Mihara, T.; Yamazaki, M.; Tomishima, M. Novel
benzimidazole derivatives as phosphodiesterase 10A (PDE10A) inhibitors with improved metabolic
stability. Bioorg. Med. Chem. 2014, 22, 3515–3526, doi:10.1016/j.bmc.2014.04.023.
31. Bieszczad, B.; Barbasiewicz, M. The Key Role of the Nonchelating Conformation of the Benzylidene Ligand
on the Formation and Initiation of Hoveyda-Grubbs Metathesis Catalysts. Chem. A Eur. J. 2015, 21, 10322–
10325, doi:10.1002/chem.201501959.
32. Gallagher, Neil, J.; Lyons, John, F.; Thompson, Neil, T.; Yyle, Stephen, M.; Murray, Christopher, W.
Pharmaceutical Combinations. WO2008044041, 2008, 04, 17.
33. Vooturi, S.K.; Firestine, S.M. Solution-phase parallel synthesis of novel membrane-targeted antibiotics. J.
Comb. Chem. 2010, 12, 151–160, doi:10.1021/cc900138h.
34. Elshihawy, H.; Helal, M.A.; Said, M.; Hammad, M.A. Design, synthesis, and enzyme kinetics of novel
benzimidazole and quinoxaline derivatives as methionine synthase inhibitors. Bioorg. Med. Chem. 2014, 22,
550–558, doi:10.1016/j.bmc.2013.10.052.

Molecules 2020, 25, 3868
19 of 19
35. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to
estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev.
1997, 23, 3–25.
36. Venkataramana, M.; Chandra Nayaka, S.; Anand, T.; Rajesh, R.; Aiyaz, M.; Divakara, S.T.; Murali, H.S.;
Prakash, H.S.; Lakshmana Rao, P. V. Zearalenone induced toxicity in SHSY-5Y cells: The role of oxidative
stress evidenced by N-acetyl cysteine. Food Chem. Toxicol. 2014, 65, 335–342, doi:10.1016/j.fct.2013.12.042.
37. Weber, M.; Breier, M.; Ko, D.; Thangaraj, N.; Marzan, D.E.; Swerdlow, N.R. Evaluating the antipsychotic
profile of the preferential PDE10A inhibitor, papaverine. Psychopharmacology 2009, 203, 723–735,
doi:10.1007/s00213-008-1419-x.
38. Schmidt, C.J.; Chapin, D.S.; Cianfrogna, J.; Corman, M.L.; Hajos, M.; Harms, J.F.; Hoffman, W.E.; Lebel,
L.A.; McCarthy, S.A.; Nelson, F.R.; et al. Preclinical characterization of selective phosphodiesterase 10A
inhibitors: A new therapeutic approach to the treatment of schizophrenia. J. Pharmacol. Exp. Ther. 2008, 325,
681–690, doi:10.1124/jpet.107.132910.
39. Kurys, B. E., Fink, D. M., Freed, B., S., Merriman, G.H. N-(pyridinylamino)isoindolines and related
compounds. U.S. Patent No 6,004,977, 29 October 1997.
40. Dhanya, R.P.; Sidique, S.; Sheffler, D.J.; Nickols, H.H.; Herath, A.; Yang, L.; Dahl, R.; Ardecky, R.;
Semenova, S.; Markou, A.; et al. Design and synthesis of an orally active metabotropic glutamate receptor
subtype-2 (mGluR2) positive allosteric modulator (PAM) that decreases cocaine self-administration in rats.
J. Med. Chem. 2011, 54, 342–353, doi:10.1021/jm1012165.
41. Czopek, A.; Zagorska, A.; Kolaczkowski, M.; Bucki, A.; Gryzlo, B.; Rychtyk, J.; Pawlowsk, M.; Siwek, A.;
Satala, G.; Bojarski, A.; et al. New Spirohydanoin Derivatives-Synthesis, Pharmacological Evaluation, and
Molecular Modeling Study. Acta Pol. Pharm. 2016, 73, 1545–1554.
42. Intagliata, S.; Modica, M.N.; Pittalà, V.; Salerno, L.; Siracusa, M.A.; Cagnotto, A.; Salmona, M.; Kurczab, R.;
Romeo, G. New N- and O-arylpiperazinylalkyl pyrimidines and 2-methylquinazolines derivatives as 5-
HT7and 5-HT1Areceptor ligands: Synthesis, structure-activity relationships, and molecular modeling
studies. Bioorg. Med. Chem. 2017, 25, 1250–1259, doi:10.1016/j.bmc.2016.12.039.
43. Malamas, M.S.; Stange, H.; Schindler, R.; Lankau, H.J.; Grunwald, C.; Langen, B.; Egerland, U.; Hage, T.;
Ni, Y.; Erdei, J.; et al. Novel triazines as potent and selective phosphodiesterase 10A inhibitors. Bioorg. Med.
Chem. Lett. 2012, 22, 5876–5884, doi:10.1016/j.bmcl.2012.07.076.
Sample Availability: Samples of the compounds 3–23 are available from the authors.
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons
Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
