274
The Preparation of 7-(Benzyloxy)-2-hydroxy-1-naphthylaldehyde (13)
Vol. 50, No. 2
OCH3), 6.92 (dd, 1H, Jϭ1.8, 9.0 Hz, ArH), 7.16 (d, 1H, Jϭ9.0 Hz, ArH),
7.23 (d, 1H, Jϭ1.8 Hz, ArH), 7.68 (d, 2H, Jϭ9.0 Hz, ArH), 7.92 (br t, 1H,
Jϭ5.1 Hz, ArH), 9.64 (s, 1H, OH). Anal. Calcd for C16H19NO3: C, 70.31; H,
7.01; N, 5.12. Found: C, 70.42; H, 6.87; N, 4.98.
7-Benzyloxy-2-naphthol 12 (5.0 g, 20 mmol) was added to a solution of
NaOH (6.4 g, 0.16 mol) in 40 ml of water and the mixture was heated to
65—70 °C. Chloroform (3.6 ml, 44.8 mmol) was added to the mixture in
three portions at intervals of 15 min. After the addition of CHCl3, the reac-
tion mixture was stirred at 100 °C for 1 h. After cooling, the reaction mixture
was acidified with diluted sulfuric acid and then extracted with CH2Cl2
(3ϫ60 ml). The organic extracts were dried (Na2SO4) and evaporated. The
residue was purified by silica gel chromatography using CH2Cl2–petroleum
ether (3 : 1) as eluent, yielding 0.75 g (14%) of pure aldehyde 13. mp 125—
The Preparation of N-[2-(7-Ethoxy-2-methoxy-1-naphthyl)ethyl]pro-
pionamide (7) To a solution of phenol 6 (100 mg, 0.366 mmol) in acetone
(6 ml) was added K2CO3 (76 mg, 0.55 mmol) followed by ethyl iodide
(0.12 ml, 1.5 mmol). The reaction mixture was refluxed for 18 h and then
cooled, filtered. The filtrate was concentrated in vacuo and the residue was
purified by flash chromatography using ethyl acetate–methylene chloride
1
1
(1 : 1) as the eluent, yielding pure 7 (95 mg, 86 %); mp 119—120.5 °C; H-
126.5 °C; H-NMR (300 MHz, CDCl3) d 5.20 (s, 2H, PhCH2), 6.95 (d, 1H,
NMR (300 MHz, CDCl3) d 1.06 (t, 3H, Jϭ7.5 Hz, CH3), 1.47 (t, 3H,
Jϭ6.9 Hz, CH3), 2.10 (q, 2H, Jϭ7.5 Hz, CH2CO), 3.25 (t, 2H, Jϭ6.7 Hz,
ArCH2), 3.53 (m, 2H, CH2N), 3.93 (s, 3H, OCH3), 4.17 (q, 2H, Jϭ6.9 Hz,
CH2O), 5.79 (br s, 1H, NH), 6.99 (dd, 1H, Jϭ2.1, 9.0 Hz, ArH), 7.09 (d, 1H,
Jϭ9.0 Hz, ArH), 7.26 (d, 1H, Jϭ2.1 Hz, ArH), 7.66 (d, 2H, Jϭ9.0 Hz, ArH).
Anal. Calcd for C18H23NO3: C, 71.73; H, 7.69; N, 4.65. Found: C, 71.52; H,
7.73 ; N, 4.53.
The Preparation of N-[2-(2-Methoxy-7-propoxy-1-naphthyl)ethyl]pro-
pionamide (8) The synthesis of compound 8 is similar to the procedure
for the synthesis of 7 using n-propyl iodide instead of iodoethane (94%
yield); mp 111—112.5 °C; 1H-NMR (300 MHz, CDCl3) d 1.07 (m, 6H,
2ϫCH3), 1.86 (m, 2H, CH2), 2.09 (q, 2H, Jϭ7.5 Hz, CH2CO), 3.26 (t, 2H,
Jϭ6.6 Hz, ArCH2), 3.53 (m, 2H, CH2N), 3.93 (s, 3H, OCH3), 4.05 (t, 2H,
Jϭ6.3 Hz, CH2O), 5.79 (br s, 1H, NH), 6.99 (dd, 1H, Jϭ2.1, 9.0 Hz, ArH),
7.09 (d, 1H, Jϭ9.0 Hz, ArH), 7.25 (d, 1H, Jϭ2.1 Hz, ArH), 7.66 (d, 2H,
Jϭ9.0 Hz, ArH). Anal. Calcd for C19H25NO3: C, 72.35; H, 7.99; N, 4.44.
Found: C, 72.63; H, 7.87; N, 4.51.
The Preparation of N-[2-(7-Butoxy-2-methoxy-1-naphthyl)ethyl]pro-
pionamide (9) The synthesis of compound 9 is similar to the procedure
for the synthesis of 7 using n-butyl iodide instead of iodoethane (76%
yield); mp 92—93 °C; 1H-NMR (300 MHz, CDCl3) d 0.99 (t, 3H, Jϭ7.5 Hz,
CH3), 1.53 (m, 2H, CH2), 1.84 (m, 2H, CH2), 2.09 (q, 2H, Jϭ7.5 Hz,
CH2CO), 3.26 (t, 2H, Jϭ6.6 Hz, ArCH2), 3.54 (m, 2H, CH2N), 3.93 (s, 3H,
OCH3), 4.09 (t, 2H, Jϭ6.3 Hz, CH2O), 5.80 (br s, 1H, NH), 6.99 (dd, 1H,
Jϭ2.1, 9.0 Hz, ArH), 7.09 (d, 1H, Jϭ9.0 Hz, ArH), 7.25 (d, 1H, Jϭ2.1 Hz,
ArH), 7.66 (d, 2H, Jϭ9.0 Hz, ArH). Anal. Calcd for C20H27NO3: C, 72.92;
H, 8.26; N, 4.25. Found: C, 72.88; H, 8.19; N, 4.31.
Jϭ9.0 Hz, ArH), 7.13 (dd, 1H, Jϭ2.1, 9.0 Hz, ArH), 7.43 (m, 5H, ArH),
7.69 (d, 1H, Jϭ9.0 Hz, ArH) 7.72 (d, 1H, Jϭ2.1 Hz, ArH), 7.86 (d, 1H,
Jϭ9.0 Hz, ArH), 10.65 (s, 1H, CHO), 13.15 (s, 1H, OH, D2O exchangeable).
Anal. Calcd for C18H14O3: C, 77.68; H, 5.07. Found: C, 77.46; H, 5.38.

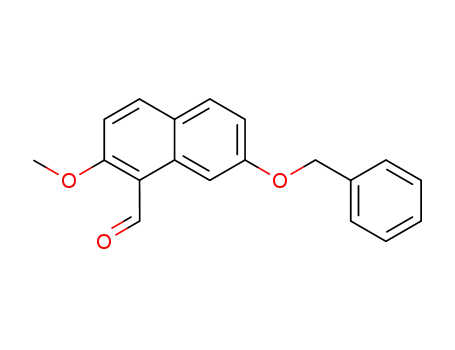

The Preparation of 7-(Benzyloxy)-2-methoxy-1-naphthylaldehyde (14)
To a solution of the aldehyde 13 (1.6 g, 5.76 mmol) in dry acetone (60 ml)
was added methyl iodide (CH3I, 1.2 ml, 19.3 mmol) and K2CO3 (1.2 g,
8.7 mmol). The reaction mixture was refluxed for 20 h and then filtered to re-
move the inorganic salt. Concentration of the filtrate gave the crude product
(as a solid) which was washed with petroleum ether to remove excess methyl
iodide furnishing 1.88 g (95%) of pure 14 after silica gel column chromatog-
raphy (petroleum ether/CH2Cl2, 1 : 2). mp 111.5—112.5 °C; 1H-NMR (300
MHz, CDCl3) d 4.01 (s, 3H, OCH3), 5.22 (s, 2H, CH2Ph), 7.07—7.53 (m,
7H, ArH), 7.65 (d, 1H, Jϭ9.0 Hz, ArH), 7.95 (d, 1H, Jϭ9.0 Hz, ArH), 8.95
(d, 1H, Jϭ2.3 Hz, ArH), 10.87 (s, 1H, CHO). Anal. Calcd for C19H16O3: C,
78.06; H, 5.52. Found: C, 78.03; H, 5.62.
The Preparation of 7-(Benzyloxy)-2-methoxy-1-[(E)-2-nitroethenyl]-
naphthalene (15) A solution of the aldehyde 14 (1.72 g, 5.9 mmol) and
ammonium acetate (0.3 g, 3.9 mmol) in nitromethane (18.4 ml) was refluxed
for 4 h. After evaporation of the solvent in vacuo, the residue was dissolved
in CH2Cl2 (30 ml) and H2O (25 ml) was added. The organic layer was sepa-
rated and the aqueous layer was extracted with CH2Cl2 (2ϫ25 ml). The com-
bined organic extracts were washed with H2O (30 ml) and then dried
(Na2SO4). Evaporation of the solvent under reduced pressure gave 1.97 g
(ϳ100%) of pure product 15; mp 163—164.5 °C; 1H-NMR (300 MHz,
CDCl3) d 4.05 (s, 3H, OCH3), 5.28 (s, 2H, CH2Ph), 7.07 (d, 1H, Jϭ9.0 Hz,
ArH), 7.14 (dd, 1H, Jϭ2.4, 9.0 Hz, ArH), 7.33—7.53 (m, 6H, ArH), 7.70 (d,
1H, Jϭ9.0 Hz, ArH), 7.85 (d, 1H, Jϭ9.0 Hz, ArH), 8.08 (d, 1H, Jϭ13.2 Hz,
CHNO2), 8.68 (d, 1H, Jϭ13.2 Hz, ArH). Anal. Calcd for C20H17NO4: C,
71.63; H, 5.11; N, 4.18. Found: C, 71.82; H, 5.03; N, 4.26.
Acknowledgement This research is supported in part by NIH
R1538873.
The Preparation of N-[2-(7-(Benzyloxy)-2-methoxy-1-naphthyl)ethyl]-
propionamide (10) To a stirred suspension of LiAlH4 (1.0 g, 26.3 mmol)
in anhydrous tetrahydrofuran (THF) (60 ml) at 0 °C was added dropwise a
solution of compound 15 (1.5 g, 4.48 mmol) in THF (20 ml). The reaction
mixture was stirred at 40 °C for 18 h and then cooled to 0 °C. Solutions were
then added to the mixture in the following order: H2O (1.0 ml), 15% NaOH
solution (1.0 ml), EtOAc (50 ml) and H2O (30 ml). The mixture was filtered,
and the filtrate was dried (Na2SO4). The solvent was evaporated in vacuo
and the crude product thus obtained was dried overnight in vacuo and used
for the next step without further purification.
To a solution of the above crude product in anhydrous CH2Cl2 (25 ml) at
0 °C were added triethylamine (1.2 ml, 8.6 mmol) in one portion and then
propionyl chloride (0.5 ml, 5.72 mmol) dropwise. The reaction mixture was
stirred at r.t. for 1 h and was diluted with CH2Cl2 (30 ml), washed with satu-
rated NaHCO3 solution (20 ml) and H2O (20 ml). The organic layer was
dried (Na2SO4) and concentrated. The residue was purified by silica gel
chromatography using petroleum ether : EtOAc (1 : 1) as eluent, yielding
880 mg (54% based on compound 15) of amide 10; mp 121.5—122.5 °C;
1H-NMR (300 MHz, CDCl3) d 1.06 (t, 3H, Jϭ7.5 Hz, CH3), 2.10 (q, 2H,
Jϭ7.5 Hz, CH2CO), 3.23 (t, 2H, Jϭ6.9 Hz, ArCH2), 3.50 (m, 2H, CH2N),
3.93 (s, 3H, OCH3), 5.22 (s, 2H, CH2Ph), 5.76 (br s, 1H, NH), 7.08 (dd, 1H,
Jϭ2.4, 9.0 Hz, ArH), 7.10 (d, 1H, Jϭ9.0 Hz, ArH), 7.32—7.50 (m, 6H,
ArH), 7.67 (d, 1H, Jϭ9.0 Hz, ArH), 7.68 (d, 1H, Jϭ9.0 Hz, ArH). Anal.
Calcd for C23H25NO3: C, 76.01; H, 6.93; N, 3.85. Found: C, 76.15; H, 6.82;
N, 3.96.
References
1) Morgan P. J., Barrett P., Howell H. E., Helliwell R., Neurochem. Int.,
24, 101—146 (1994).
2) Dubocovich M. L., Trends Pharmacol. Sci., 16, 50—56 (1995).
3) Krause D. N., Barrios V. E., Duckles S. P., Eur. J. Pharmacol., 276,
207—213 (1995).
4) Brzezinski A., N. Engl. J. Med., 336, 186—195 (1997).
5) Ting K. N., Dunn W. R., Davies D. J., Sugden D., Delagrange P.,
Guardiola-Lemaitre B., Scalbert E., Wilson V. G., Br. J.
Pharmacology, 122, 1299—1306 (1997).
6) Gozzo A., Lesieur D., Duriez P., Fruchart J. C., Teissier E., Free Radic.
Biol. Med., 26, 1538—1543 (1999).
7) Bucher B., Gauer F., Pevet P., Masson-Pevet M., J. Cardiovasc. Phar-
macol., 33, 316—322 (1999).
8) Dubocovich M. L., Cardinali D. P., Guardiola-Lemaitre R. M., Hagan
R. M., Krause D. N., Sugden D., Vanhoutte P. M., Yocca F. D., “The
IUPHAR Compendium of Receptor Characterization and Classifica-
tion IUPHAR Media,” London, 1998, pp. 187—193.
9) Reppert S. M., Weaver D. R., Ebisawa T., Neuron, 13, 1177—1185
(1994).
10) Reppert S. M., Godson C., Mahle C. D., Weaver D. R., Slaugenhaupt
S. A., Gusella, J. F., Proc. Natl. Acad. Sci., 92, 8734—8738 (1995).
11) Yous S., Andrieux J., Howell H. E., Morgan P. J., Renard P., Pfeiffer B.,
Lesieur D., Guardiola-Lemaitre B., J. Med. Chem., 35, 1484—1486
(1992).
12) Langlois M., Bremont B., Shen S., Poncet A., Andrieux J., Sicsic S.,
Serraz I., Mathe-Allainmat M., Renard P., Delagrange P., J. Med.
Chem., 38, 2050—2060 (1995).
13) Leclerc V., Depreux P., Lesieur D., Caignard D. H., Renard P., Dela-
grange P., Buardiola-Lemaitre B., Morgan, P., Bioorg. & Med. Chem.
Lett., 6, 1071—1076 (1996).
The Preparation of N-[2-(7-Hydroxy-2-methoxy-1-naphthyl)ethyl]pro-
pionamide (6) Amide 10 (1.2 g, 3.3 mmol) in methanol (38 ml) was hy-
drogenated over 10% Pd on activated carbon at r.t. for 18 h. The reaction
mixture was filtered through celite. The filtrate was concentrated and puri-
fied by silica gel chromatography using petroleum ether–EtOAc (1 : 2) as
1
eluent, yielding 0.9 g (ϳ100%) of compound 6; mp 118—120 °C; H-NMR
(300 MHz, CDCl3) d 1.02 (t, 3H, Jϭ7.5 Hz, CH3), 2.07 (q, 2H, Jϭ7.5 Hz,
CH2CO), 3.03 (t, 2H, Jϭ6.6 Hz, ArCH2) 3.18 (m, 2H, CH2N), 3.87 (s, 3H,
14) Mathe-Allainmat M., Andrieux J., Langlois M., Exp. Opin. Ther.
