Assessment of Thermal Stability and Detonation Performance of 4-Amino-1,2,4-triazolium Nitrate as compared to 2,4,6-Trinitrotoluene for Melt-cast Explosives

Article abstract of DOI:10.1002/zaac.202000072

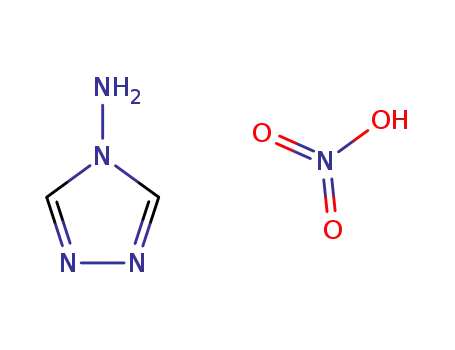

4-Amino-1,2,4-triazolium nitrate (4-ATN) is an energetic and non-sensitive ionic liquid, which was introduced as a good candidate in previous works for the replacement of 2,4,6-trinitrotoluene (TNT) in melt-cast explosives. Since previous studies used pure nitric acid for nitration of 4-ATN, the effect of the use of low price industrial nitric acids (50 %, 70 % and 98 %) is investigated on the percent yields of 4-ATN. The thermogravimetric and differential scanning calorimetry (TGA/DSC) are done on the synthesized 4-ATN with impure nitric acid at a heating rate of 10 K·min^–1 by the vacuum system. The obtained TGA/DSC curves confirm decomposition of 4-ATN involving melting and dissociation. Derivative thermogravimetric (DTG) curves of 4-ATN at various heating rates are applied to obtain activation energy of thermolysis by several model-free techniques. The calculated activation energies are in the range 78.7–87.7 kJ·mol^–1, which are about 10 kJ·mol^–1 more than the reported activation energy of industrial TNT (purity 98.2 %), i.e. 66–70 kJ·mol^–1. Assessments of detonation performance of 4-ATN are also compared with TNT, which show higher detonation performance of 4-ATN. Thus, 4-ATN can be used with nitramine compounds as melt-cast explosives with higher thermal stability and detonation performance than corresponding nitramine compound/TNT explosives.

Full text of DOI:10.1002/zaac.202000072

Title: Assessment of thermal stability and detonation performance of 4-
amino-1,2,4-triazolium nitrate as comapred to 2,4,6-trinitrotluene
for melt-cast explosives
Authors: Mohammad Keshavarz, Leila Makvandi, and Sajjad Damiri
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: Z. anorg. allg. Chem. 10.1002/zaac.202000072
Link to VoR: http://dx.doi.org/10.1002/zaac.202000072

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
1
Assessment of thermal stability and detonation performance of 4-
amino-1,2,4-triazolium nitrate as comapred to 2,4,6-trinitrotluene for
melt-cast explosives
Mohammad Hossein Keshavarz*, Leila Makvandi and Sajjad Damiri
Department of Chemistry, Malek-ashtar University of Technology, Shahin-shahr 83145/115,
Islamic Republic of Iran
*Corresponding author: E-mail: mhkeshavarz@mut-es.ac.ir; keshavarz7@gmail.com
Tel: (0098)-0312-522-5071; Fax: (0098)-0312-522-5068
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
2
Abstract
4- Amino-1,2,4-triazolium nitrate (4-ATN) is an energetic and non-sensitive ionic liquid,
which was introduced as a good candidate in previous works for the replacement of 2,4,6-
trinitrotoluene (TNT) in melt-cast explosives. Since previous studies used pure nitric acid for
nitration of 4-ATN, the effect of the use of low price industrial nitric acids (50%, 70% and 98%)
is investigated on the percent yields of 4-ATN. The thermogravimetric and differential scanning
calorimetry (TGA/DSC) are done on the synthesized 4-ATN with impure nitric acid at a heating
rate of 10°C.min-1 by the vacuum system. The obtained TGA/DSC curves confirm
decomposition of 4-ATN involving melting and dissociation. Derivative thermogravimetric
(DTG) curves of 4-ATN at various heating rates are applied to obtain activation energy of
thermolysis by several model-free techniques. The calculated activation energies are in the range
78.7-87.7 kJ.mol-1, which are about 10 kJ.mol-1 more than the reported activation energy of
industrial TNT (purity 98.2%), i.e. 66-70 kJ.mol-1. Assessments of detonation performance of 4-
ATN are also compared with TNT, which show higher detonation performance of 4-ATN. Thus,
4-ATN can be used with nitramine compounds as melt-cast explosives with higher thermal
stability and detonation performance than corresponding nitramine compound/TNT explosives.
Keywords: 4-Amino-1,2,4-triazolium nitrate; Thermal stability; Activation energy; Detonation
performance
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
3
Introduction
Energetic ion liquids (EILs) can be used in explosive and propellant formulations [1]. They
may provide low sensitivity without adverse effects of the overall performance. Since energetic
ionic liquids have a low melting point, they can be used as melt-cast, the same as 2,4,6-
trinitrotoluene (TNT), in different molds. The presence of high contents of hydrogen and
nitrogen atoms in EILs can reduce the amount of additional oxidant for their combustion. EILs
have some further advantages with respect to non-ionic ones that include lower vapor pressure,
lower melting point and higher density [1d]. Moreover, they are more environmentally friendly
]2[
than TNT . EILs based on azoles are very promising candidates for the replacement of TNT-
based explosives because they can store a large amount of energy in N=N and N-N bonds ]3[. The
thermal stability of triazole ring can be increased by introducing the N-amino group.
[4]
Furthermore, intra- and inter-molecular hydrogen bonding can improve structural stability
.
Since combining oxygen-containing groups in heterocyclic anions may help to improve the
density and oxygen balance, corresponding EILs are suitable candidates [5]. Thus, the synthesis
of EILs with favorable physical properties as well as detonation and combustion performance is
[2, 6]
attractive [5]. Among a different kind of EILs, 4-amino-1,2,4-triazole nitrate (4-ATN)
is a
good candidate to use as 4-ANT-based explosives instead of TNT-based explosives. The pure
nitric acid was used to synthesize 4-ATN in previous works [2, 6]. The purpose of this work is to
study the effect of low price industrial nitric acids (50%, 70% and 98%) on the percent yields of
4-ATN. Since the use of energetic compounds with high thermal stability is essential for military
and civilian applications, thermogravimetric and differential scanning calorimetry (TGA/DSC) is
used to investigate some thermokinetic parameters of the synthesized 4-ATN with industrial
nitric acid. Derivative thermogravimetric (DTG) curves of 4-ATN at various heating rates are
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
4
used to calculate the activation energy of the decomposition process because of the kinetic triplet
(activation energy, pre-exponential factor and reaction model) is useful for assessment of the
chemical lifetime of explosives. The calculated activation energy of the synthesized 4-ATN is
compared with industrial TNT (purity 98.2%). Theoretical assessments of detonation
performance (detonation velocity, detonation pressure and power) of 4-ATN are done and
compared with corresponding data of TNT.
Experimental
Materials and method
Samples and instruments
4-ATN, methanol, acetone, isopropanol with synthetic grade were purchased from Merck
Chemical Co. and industrial nitric acid with 98% purity from Iran's defense industries.
Electrothermal digital melting point apparatus cat no8101 was used to determine the melting
point of the product. A Bruker Avance 400 Ultrashield spectrometer (Bruker Biospin,
1
Rheinstetten, Germany) was used to record H-NMR. A Fourier transform infrared (FTIR)
spectrometer (FT/IR 6300, JASCO, Japan) was also used to determine the FT-IR spectrum in the
wavelength range 400-4000 cm-1 Elemental analyses were performed with Leco-932 (C, H, N, S
.
elemental analyzer, St. Joseph, USA). For analysis of the samples by TGA and DSC, Perkin
Elmer (STA 6000) with alumina pans was used in open-cell under Ar atmosphere at a flow rate
of 2 liters per hour. The DSC/TGA thermograms were simultaneously recorded at a temperature
of 25-450 °C at a heating rate of 10 °C.min-1 where the sample weights were 0.3 mg per test.
[7]
Vyazovkin et al.
have recommended kinetic analysis according to recommendations of the
ICTAC committee. The sample size and heating rates were adopted for kinetic analysis of
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
5
[8]
energetic materials, which have been used in previous studies because the conditions should
be chosen carefully.
Synthesis and characterization of 4-ATN
[2]
The method of Drake et al. was used to synthesize 4-ATN, which is shown in Fig. 1.
The melting point of 4-ATN is 69±2°C where it dissolves in water and methanol at room
temperature. Meanwhile, 4-ATN is insoluble in a mixture of methanol and nitric acid (80% of
nitric acid) at 0C. The yield of 4-ATN depends on the concentration of nitric acid. For 50%,
70% and 98% of nitric acid, percent yields of 4-ATN were 25%, 62% and 88% for one hour at
ambient temperature in methanol solvent. Thus, there is a direct relationship between the
concentration of nitric acid and the amount of product. Elemental analysis of CHN, 1H-NMR and
FT-IR were used to control the 4-ATN quality (Supplementary Information).
Figure 1. Synthesis of 4-ATN [2]
Results and Discussion
Thermal analysis of 4-ATN
The purpose of kinetic analysis of thermally stimulated processes is to establish
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
6
mathematical relationships between the process rate, the temperature, and the extent of
[7]
conversion. According to ICTAC committee recommendations , the most straightforward way
in determining a kinetic triplet, which is a term frequently used to describe a single set of pre-
exponentional factor (A), activation energy (E), and kinetic models or mechanisms f(a) or g(a).
For a single-step process, evaluating a single kinetic triplet according to Eq. (1) should be
sufficient to predict the process kinetics for any desired temperature program:
(1)
TGA/DSC curves of 4-ATN at a heating rate of 10°C.min-1 by vacuum system is shown in
Fig. 2. As seen in Fig. 2, there is a two-step process for melting and decomposition of 4-ATN. In
the first stage, an endothermic peak is observed at 68.41°C, which is caused by the melting of 4-
ATN. The second step appears at 264.19°C, which is due to the decomposition of 4-ATN and the
formation of gaseous products. Onset temperature and end-point temperature for the second step
are 249.50 and 281.03°C, respectively. Since the initial exothermal decomposition temperature
of TNT is 253°C [9], the thermal stability of 4-ATN is good as compared to TNT.
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
7
Figure 1. TGA and DSC curves of 4-ATN at a heating rate of 10°C.min-1
Derivative thermogravimetric (DTG) curves of 4-ATN at various heating rates are
presented in Fig. 3. As indicated in Fig. 3, the exothermic peaks are shifted to higher
temperatures with increasing heating rate. These data allow one to obtain the activation energy of
the decomposition process, which is independent of the reaction model or, in other words, single-
valued. At the heating rate of 10°C.min-1, there is a weight loss associated with the 4-ATN
degradation reaction in the temperature range of 121.04 to 266.2°C.
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
8
0.2
0.0
Rate(6)
-0.2
-0.4
-0.6
-0.8
-1.0
-1.2
-1.4
-1.6
Rate(8)
Rate(10)
Rate(12)
Rate(14)
-1.8
100
200
300
400
Temprature(°C)
Figure 3. DTG thermal analysis curves for 4-ATN combinations at 6, 8, 10, 12 and 14°C.min-1
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
9
Calculation of activation energy of 4-ATN
For a one-step decomposition process of 4-ATN, model-free techniques like Ozawa,
Kissinger, Ozawa-Flynn-Wall (OFW), and Kissinger-Akahira-Sunrose (KAS) methods can be
used to determine activation energy as follows [10]
:
(
Ozawa
Kissinger
OFW
)
(2)
(3)
(4)
(5)
( ) ( ) ( )
(
)
)
KAS
( ) (
where β is heating rate (K.min-1); Ea is activation energy (kJ.mol-1); Ta is the temperature in each
extent of conversion (), Tm is the maximum temperature or peak temperature of DTG curves
(K), A is Arrhenius constant, g(α) is a function that represents the mechanism involved in the
thermal transformation and R is gas constant (8.314 J·K-1·mol-1). The value of Ea can be
evaluated from the slope of the straight line, which gives the best regression coefficients (R2).
For heating rates 6, 8, 10, 12 and 14 °C.min-1, calculation of the activation energy of the 4-ATN
sample decomposition reaction is done based on Eqs. 1 to 4 where the results are given in Table
1.
Table 1. The calculated activation energies obtained from Ozawa, Kissinger, OFW and KAS for
4-ATN and their comparisons with industrial TNT (purity 98.2%)
Ea(kJ.mol-1),
4-ATN
83.4
78.7
83.4
The method of
calculation
Ozawa
R2
Ea (kJ.mol-1),
TNT [10a]
70.2
66.2
70.2
-
0.9994
0.9995
0.9994
0.9995
Kissinger
OFW
87.7
KAS
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
10
As seen in Table 1, the predicted values of R2 values of four models are good. The
calculated activation energies of 4-ATN are also compared with the reported data for industrial
TNT (purity 98.2%) in Table 1 by three models of Ozawa, Kissinger, and OFW. As indicated,
the activation energies of both models Ozawa and OFW are the same for both 4-ATN and TNT,
i.e. 83.4 and 70.2 kJ.mol-1, respectively. The model of Kissinger predicts the values of 78.7 and
66.2 kJ.mol-1, respectively, which are less than those predicted by the other methods. Since all
methods confirm the higher value of activation energy for 4-ATN as compared to industrial
TNT, it can be expected that 4-ATN has higher thermal stability.
Calculation of the changes of activation energy with α by KAS model
The changes in activation energy at a different extent of conversion (α) show a single-
step or multiple steps thermal decomposition. For single-step decompositions, the changes of
activation energies with α are nearly constant because the value of α at different peak
temperatures of heating rates is the same. According to the model of KAS, the activation energy
of thermal decomposition of 4-ATN at different values of α can be calculated. As shown in Fig.
4, the activation energy of 4-ATN decomposition is nearly constant up to α=0.5 and shows
slightly changes for α>0.5. For the assessment of shelf-life energetic compounds, the study of
thermal decomposition at low values of α is appreciable.
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
11
140.0
120.0
100.0
80.0
60.0
40.0
20.0
0.0
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Figure 4. The curve of activation energy versus α for 4-ATN
Determination of kinetic triplet
[7]
According to suggestions of the ICTAC committee , various kinetics models are fitted
by experimental data to obtain the best model as a reaction mechanism. At first, the measured
parameter z(α) is determined. Then, the kinetic model and pre-exponential factor are calculated.
Moreover, the estimated activation energy, by the KAS method based on ICTAC comments for
one-step reactions, is taken as 87.8 kJ mol-1. Different values of α are substituted in f (α) and
g(α) to calculate the theoretical value of z(α) as:
(6)
The experimental value of z(α) is calculated as:
(7)
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
12
where and are defined as:
(8)
(9)
The parameter in Eq. (9) is the calculated activation energy by the KAS method. In Eq. (7),
β is heating rate; Tα is the related temperature of the desired α; dα/dT shows the ratio of
conversion with temperature. A suitable
, which has good matching with
, is selected by drawing
and
versus α. The
model A3/2, f(α)=(3/2(1-α)[-Ln(1-α)]1/3, which belongs to Avrami–Erofeev models, was taken as
a suitable model for 4-ATN. Fig. 5 shows the curve of and
versus α for the selected model. As seen, different curves and maximum of α have nearly the
same trend for
versus the selected model of
.
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0.0
Theoretical
12
10
8
6
0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Figure 5- The curves of the model A3/2 of
and
versus α at four
heating rates for 4-ATN
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
13
For assessment of the reliability of the selected model, the values of the Residual Sum of Squares
(RSS) and S2 at various heating were calculated for the difference between
and
by Eqs. (10) and (11) as:
(10)
(11)
Eq. (12) can predict pre-exponential through distinguishing the reaction model and the use of
derivatives of f (α) as:
(12)
where β is heating rate, Tmax is the peak maximum temperature, αmax is the value of α at the peak
maximum, is the average value of the predicted activation energies by model-free methods.
The predicted value of log A is 17.81.
Assessment of detonation performance
Detonation velocity and pressure are two important parameters for the
[11]
assessment of the detonation performance of high explosives
.
Detonation
velocity is defined as the velocity with which detonation wave travels
through an explosive. Detonation pressure is the pressure produced in the
reaction zone of a detonating explosive and is a function of explosive density
and detonation velocity. These parameters can be calculated by the following
correlations [12]
:
Ddet  5.5204(ng' as )0.5 MwgasQ H O g  0.25 0 1.97
 


det
2
(13)


This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
14
0.5
P  245.5(n' ) MwgasQ H O g  02 11.2
 


det
gas
det
2
(14)


Pdet
Ddet
where
and
are detonation velocity and pressure in km/s and kbar, respectively, is
Mwgas
the number of moles of gaseous detonation products per gram of explosive,
is the average
is in kJ.mol-1 and 0 is the initial

Qdet H O g 
 
molecular weight of the gaseous products in g/mol,
2

density in g.cm-3. The calculated values of
,
and
  are given in Table 2.

Mwgas
Qdet H O g 
2

[13]
The computer code EMDB 1.0
can also be used to assess detonation performance based on
Eqs. (13) and (14). The necessary data for calculation of detonation performance based on Eqs.
(13) and (14) are crystal densities and the condensed phase heats of formation of 4-ATN and
TNT. The predicted detonation performance, as well as crystal densities and the condensed phase
heats of formation of 4-ATN and TNT, are given in Table 2. As seen, detonation velocity and
pressure of 4-ATN are higher than TNT. The Trauzl lead block test is one of the conventional
laboratory tests for assessment of the power of an explosive [11]. The calculated value of the
Trauzl lead block test for 4-ATN by EMDB 1.0 [13] is also given in Table 2. As seen, the relative
power of 4-ATN with respect to TNT (%fTrauzl, TNT)
[11] is slightly higher. Thus, it can be expected
that 4-ATN is suitable for RDX/4-ATN or HMX/4-ATN, the same as corresponding RDX/TNT
or HMX/TNT, where they are melt-cast although the process is not as simple as it sounds.
[6a]
Details of the sensitivity of 4-ATN to different stimuli were reported elsewhere
the high safety assessment of 4-ATN.
that confirm
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
15
Table 2. Comparison of the various properties of 4-ATN with TNT
Property
4-ATN
C2H5N5O3
1.62 [2]
TNT
Molecular formula
C7H5N3O6
1.64 [14]
354 [14]
ρ (g.cm-3)
Tm (K)
343.1 [2]
-41.84 [6a]
0.048
-66.94 [14]
0.044
ΔfH(c) (kJ.mol-1)
(mol.g-1)
(g.mol-1)
21.02
21.51
Mwgas
(kJ.g-1)
-2.86
-2.62
Qdet H O g 
 
2


D (km.s-1)
P (kbar)
7.46
228
105
7.26 (6.93 [14]
)
a
209 (210 [14]
100
)
a
%fTrauzl, TNT
a Experimental values and corresponding reference of TNT are given in parentheses.
Conclusion
In this work, it was shown that 4-ATN can be introduced as a good candidate for the
replacement of TNT. Synthesis and characterization of 4-ATN were investigated under different
conditions. Industrial nitric acid with 98% purity was used to prepare 4-ATN. For this purpose,
thermal stability and performance assessment of 4-ATN have been compared with TNT. Four
model-free techniques including Ozawa, Kissinger, OFW, and KAS methods were used to
calculate the activation energy of thermolysis. The calculated activation energies are in the range
of 78.7-87.7 kJ.mol-1. Since these activation energies are about more than 10 kJ.mol-1 more than
industrial TNT (purity 98.2%), the thermal stability of 4-ATN is higher than industrial TNT.
Assessment of detonation performance of 4-ATN shows that detonation pressure and velocity of
4-ATN are higher than TNT. Thus, 4-ATN is suitable for nitramine compound/4-ATN
explosives with higher detonation performance than corresponding nitramine compound/TNT
explosives as melt-cast.
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
16
Supplementary Information
The requested data of FTIR, NMR, and CHN techniques are given in Supplementary
Information.
References
[1]
[2]
aJ. P. Agrawal, High Energy Materials: Propellants, Explosives and Pyrotechnics, Wiley-VCH,
Cornwall, Great Britain, 2010; bM. H. Keshavarz, T. M. Klapötke, The Properties of Energetic
Materials: Sensitivity, Physical and Thermodynamic Properties, Walter de Gruyter GmbH & Co
KG, 2017; cT. M. Klapötke, Chemistry of High-Energy Materials, Fifth ed., Walter de Gruyter
GmbH & Co KG, Germany, 2019; dT. M. Klapötke, Energetic Materials Encyclopedia, Walter
de Gruyter GmbH & Co KG, 2018; eQ. Zhang, J. M. Shreeve, Chemical reviews 2014, 114,
10527-10574; fM. H. keshavarz, Liquid Fuels as Jet Fuels and Propellants, Nova Science
Publishers, New York, 2018.
G. Drake, T. Hawkins, A. Brand, L. Hall, M. Mckay, A. Vij, I. Ismail, Propellants, Explosives,
Pyrotechnics 2003, 28, 174-180.
[3]
[4]
Z. Xu, G. Cheng, S. Zhu, Q. Lin, H. Yang, Journal of Materials Chemistry A 2018, 6, 2239-2248.
aT. M. Klapötke, D. G. Piercey, J. Stierstorfer, European Journal of Inorganic Chemistry 2013,
2013, 1509-1517; bZ. Zeng, H. Gao, B. Twamley, M. S. Jean'ne, Journal of Materials Chemistry
2007, 17, 3819-3826; cT. M. Klapötke, P. Mayer, A. Schulz, J. J. Weigand, Journal of the
American Chemical Society 2005, 127, 2032-2033.
[5]
[6]
aR. P. Singh, R. D. Verma, D. T. Meshri, J. M. Shreeve, Angewandte Chemie International
Edition 2006, 45, 3584-3601; bJ. T. Wu, J. G. Zhang, X. Yin, M. Sun, T. L. Zhang, Zeitschrift für
anorganische und allgemeine Chemie 2013, 639, 2354-2358; cQ. Ma, H. Gu, J. Huang, F. Nie, G.
Fan, L. Liao, W. Yang, New Journal of Chemistry 2018; dP. W. Leonard, D. E. Chavez, P. R.
Bowden, E. G. Francois, Propellants, Explosives, Pyrotechnics 2018, 43, 11-14.
aA. Brand, T. W. Hawkins, G. Drake, I. M. Ismail, G. Warmoth, L. Hudgens, Air Force Research
Lab Edwards AFB CA Space and Missile Propulsion Div, 2006; bJ. Li, T. A. Litzinger,
Thermochimica acta 2007, 454, 116-127; cZ. Wang, J.-G. Zhang, J.-T. Wu, X. Yin, T.-L. Zhang,
RSC Advances 2016, 6, 44742-44748.
[7]
[8]
aS. Vyazovkin, K. Chrissafis, M. L. Di Lorenzo, N. Koga, M. Pijolat, B. Roduit, N. Sbirrazzuoli,
J. J. Suñol, Thermochimica Acta 2014, 590, 1-23; bS. Vyazovkin, A. K. Burnham, J. M. Criado,
L. A. Pérez-Maqueda, C. Popescu, N. Sbirrazzuoli, Thermochimica acta 2011, 520, 1-19.
aA. Kazemi, M. Hayaty, A. Mousaviazar, K. A. Samani, M. H. Keshavarz, Journal of Thermal
Analysis and Calorimetry 2015, 119, 613-618; bA. Mousaviazar, M. H. Keshavarz, M. Hayaty,
A. Kazemi, Journal of Thermal Analysis and Calorimetry 2016, 126, 681-688; cH. Abusaidi, H.
R. Ghaieni, S. M. Pourmortazavi, S. H. Motamed-Shariati, Journal of Thermal Analysis and
This article is protected by copyright. All rights reserved.

10.1002/zaac.202000072
Zeitschrift für anorganische und allgemeine Chemie
17
Calorimetry 2016, 124, 935-941; dH. R. Pouretedal, S. Damiri, E. F. Ghaemi, Central European
Journal of Energetic Materials 2014, 11; eA. Sheikhpour, S. G. Hosseini, S. Tavangar, M. H.
Keshavarz, Journal of Thermal Analysis and Calorimetry 2017, 129, 1847-1854; fA.
Mousaviazar, M. H. Keshavarz, M. Hayaty, Journal of Thermal Analysis and Calorimetry 2017,
128, 1049-1056.
[9]
S. Zeman, Thermochimica Acta 1980, 41, 199-212.
[10]
aH. R. Pouretedal, S. Damiri, P. Nosrati, E. F. Ghaemi, Defence Technology 2017; bM. I. Khan,
H. U. Khan, K. Azizli, S. Sufian, Z. Man, A. A. Siyal, N. Muhammad, M. F. ur Rehman, Applied
Clay Science 2017, 146, 152-161; cA. Singh, T. C. Sharma, M. Kumar, J. K. Narang, P. Kishore,
A. Srivastava, Defence Technology 2017, 13, 22-32.
[11]
[12]
[13]
[14]
M. H. Keshavarz, T. M. Klapötke, Energetic Compounds: Methods for Prediction of their
Performance, Walter de Gruyter GmbH & Co KG, 2017.
aM. H. Keshavarz, H. R. Pouretedal, High Temperature-High Pressure 2003, 35, 593-600; bM.
H. Keshavarz, H. R. Pouretedal, Thermochimica Acta 2004, 414, 203-208.
M. H. Keshavarz, T. M. Klapötke, M. Sućeska, Propellants, Explosives, Pyrotechnics 2017, 42,
854-856.
B. M. Dobratz, P. C. Crawford, LLNL Explosives Handbook: Properties of Chemical Explosives
and Explosive Simulants Lawrence Livermore National Laboratory, Livermore, CA, 1985.
This article is protected by copyright. All rights reserved.
