Addressing Lead Toxicity: Complexation of Lead(II) with Thiopyrone
and Hydroxypyridinethione O,S Mixed Chelators
Jana A. Lewis and Seth M. Cohen*
Department of Chemistry and Biochemistry, UniVersity of California, San Diego,
La Jolla, California 92093-0358
Received May 14, 2004
The lead(II) ion is regarded as a serious environmental contami-
nant. A considerable need exists to develop selective ligands for
remediation of this metal ion. Herein, the coordination chemistry
of lead(II) is investigated with three O,S donor ligands: thiomaltol,
3-hydroxy-1-methyl-2(1H)-pyridinethione (3,2-HOPTO), and 3-hy-
droxy-1,2-dimethyl-4(1H)-pyridinethione (3,4-HOPTO). The X-ray
structures of [Pb(thiomaltolato)2] and [Pb(3,4-HOPTO)2] have been
solved, revealing the expected 4-coordinate geometries. Electronic
spectra have been obtained for the lead(II) complexes with all
three ligands. Preliminary solution studies show that the thiomaltol
ligand binds lead(II) preferentially over magnesium(II) and calcium-
(II); however, [Pb(thiomaltolato)2] is not stable in the presence of
1 equiv of EDTA. Tetradentate ligands derived from these O,S
chelators are expected to generate higher affinity ligands for lead-
(II) sequestration.
continues to be a primary hypothesis underlying the detri-
mental effects of lead exposure.10,11
In light of the continued interest in understanding lead
toxicity and detecting this widespread contaminant, progress
toward designing and characterizing lead-selective ligands
remains an important topic.1,12 Compounds presently used
for lead chelation therapy, such as 2,3-dimercaptopropanol
(British Anti-Lewisite, BAL) and meso-2,3-dimercapto-
succinic acid (DMSA), were not specifically optimized for
“heavy” metal chelation and suffer from side effects associ-
ated with this lack of selectivity. The identification of high
affinity ligands for lead would prove useful not only for
treating lead poisoning, but also for developing molecular
probes for elucidating the biodistribution and biological
interactions of this ion in living systems. The work of
Raymond and co-workers on thiohydroxamic acids has often
been cited as a noteworthy effort toward the development
of lead(II) specific sequestering agents (Figure 1).13-16 These
mixed O,S donor ligands are proposed to have an optimal
hard/soft Lewis basicity to match the preferences of the lead-
(II) ion and as such have been reported to form extremely
stable lead(II) complexes (log â120 ) 20.7, for N-phenylth-
iobenzohydroxamic acid in 70% aqueous dioxane).17 Despite
these encouraging results, no significant advancements of
these systems have been reported for nearly a decade. Herein,
we report several O,S ligands, including thiopyrones and
hydroxypyridinethiones, which form stable, mononuclear
complexes with lead(II) and may be promising new selective
chelators for this biologically toxic metal ion.
The coordination chemistry of the lead(II) ion has re-
mained a subject of continuing interest due to the persistence
of this metal ion as a high priority environmental toxin,1-3
and substantial effort has been invested in the design of
selective sensors of lead to detect this pollutant.4-7 Significant
advancements, by using both biochemical and model-based
studies,8 have been made in understanding the molecular
mechanisms that cause lead toxicity.9 The ability of lead(II)
to undergo metathesis reactions with zinc(II) and calcium-
(II) metalloproteins resulting in loss of metabolic function
* To whom correspondence should be addressed. E-mail: scohen@
ucsd.edu.
(1) Claudio, E. S.; Magyar, J. S.; Godwin, H. A. In Progress in Inorganic
Chemistry; Karlin, K. D., Ed.; John Wiley & Sons: Hoboken, NJ,
2003; Vol. 51, pp 1-144 and references therein.
(2) Tong, S.; von Schirnding, Y. E.; Prapamontol, T. Bull. World Health
Org. 2000, 78, 1068-1077.
(10) Payne, J. C.; ter Horst, M. A.; Godwin, H. A. J. Am. Chem. Soc. 1999,
121, 6850-6855.
(11) Bouton, C. M. L. S.; Frelin, L. P.; Forde, C. E.; Godwin, H. A.;
Pevsner, J. J. Neurochem. 2001, 76, 1724-1735.
(12) Claudio, E. S.; ter Horst, M. A.; Forde, C. E.; Stern, C. L.; Zart, M.
K.; Godwin, H. A. Inorg. Chem. 2000, 39, 1391-1397.
(13) Abu-Dari, K.; Hahn, F. E.; Raymond, K. N. J. Am. Chem. Soc. 1990,
112, 1519-1524.
(3) Jang, Y.-C.; Townsend, T. G. EnViron. Sci. Technol. 2003, 37, 4778-
4784.
(4) Deo, S.; Godwin, H. A. J. Am. Chem. Soc. 2000, 122, 174-175.
(5) Chae, M.-Y.; Yoon, J.; Czarnik, A. W. J. Mol. Recognit. 1996, 9,
297-303.
(6) Liu, J.; Lu, Y. J. Am. Chem. Soc. 2003, 125, 6642-6643.
(7) Li, J.; Lu, Y. J. Am. Chem. Soc. 2000, 122, 10466-10467.
(8) Bridgewater, B. M.; Parkin, G. J. Am. Chem. Soc. 2000, 122, 7140-
7141.
(14) Abu-Dari, K.; Karpishin, T. B.; Raymond, K. N. Inorg. Chem. 1993,
32, 3052-3055.
(15) Rupprecht, S.; Franklin, S. J.; Raymond, K. N. Inorg. Chim. Acta 1995,
235, 185-194.
(16) Rupprecht, S.; Langemann, K.; Lu¨gger, T.; McCormick, J. M.;
Raymond, K. N. Inorg. Chim. Acta 1996, 243, 79-90.
(17) Dietzel, R.; Thomas, P. Z. Anorg. Allg. Chem. 1971, 381, 214-218.
(9) Needleman, H. Annu. ReV. Med. 2004, 55, 209-222.
6534 Inorganic Chemistry, Vol. 43, No. 21, 2004
10.1021/ic0493696 CCC: $27.50
© 2004 American Chemical Society
Published on Web 09/21/2004

COMMUNICATION
Figure 1. Mixed O,S ligands studied for selective lead(II) complexation.
Thiohydroxamic acids and 1,2-HOPTO ligands (top, outside box) had been
previously synthesized and studied for lead(II) sequestration. New ligands
3,2-HOPTO, 3,4-HOPTO, and thiomaltol (left to right, in box) are presented
here. One-step synthesis of 3,4-HOPTO and 3,2-HOPTO (bottom).

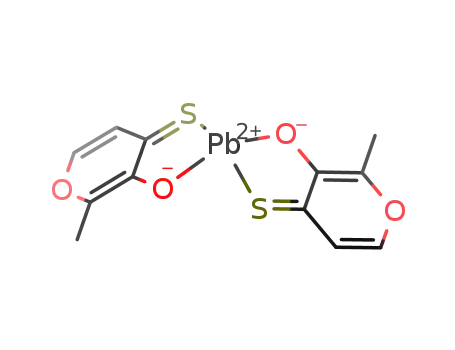

Figure 2. Structural diagram of [Pb(thiomaltolato)2] (top) and [Pb(3,4-
