Isolation and chemistry of aluminum compounds containing (S)-3,3′-bis(triphenylsilyl)-1,1′-bi-2,2′-naphthoxide ligands

Article abstract of DOI:10.1021/om030011b

The reaction of the resolved, bulky binol (S)-3,3′-bis(triphenylsilyl)-2,2′-dihydroxy-1,1′-binaphthyl, (S)-H₂O₂C₂₀H₁₀ {SiPh₃}₂-3,3′ (1), with a variety of alkyl and amide compounds has been investigated. Reaction of 1 with [Al₂Me₆] initially proceeds only in a 1:1 ratio to produce dinuclear [Al₂(O₂C₂₀H₁₀{SiPh₃} ₂-3,3′)(CH₃)₄], (S)-2. Compound 2 contains a [Al(μ-C)(μ-O)] core, Al-Al = 2.739(2) A, with the binaphthoxide ligand oxygen atoms occupying terminal and bridging positions. In the presence of pyridine, 2 reacts further with 1 to produce [Al(O₂C₂₀H₁₀{SiPh₃}₂- 3,3′)(CH₃)(py)], (S)-4. The ethyl analogue of 4, [Al(O₂C₂₀H₁₀{SiPh₃}₂- 3,3′)(CH₃)(py)], (S)-5, was obtained from [Et₂AlCl]. Both 4 and 5 were shown to adopt tetrahedral geometries in the solid state with O-Al-O angles of ～ 107°. Reaction of [LiAl-(NMe₂)₄] with 1 produced a dinuclear compound, [LiAl(O₂C₂₀H₁₀{SiPh₃}₂-3, 3′)(NHMe₂)- (NMe₂)₂], (S)-6, containing a terminal and bridging amino group. The lithium-bound HNMe₂ ligand could be substituted by pyridine to produce [LiAl(O₂C₂₀H₁₀{SiPh₃}₂-3, 3′) (NC₆H₅)-(NMe₂)₂], (S)-7. In the solid state the formally three-coordinated lithium atoms in 6 and 7 are pyramidalized. The sum of the three angles for the LiN₂O core is 305° and 322° for 6 and 7, respectively. This is due to an interaction of the lithium with one arene ring of an SiPh₃ group. In 6 the carbon atoms involved are an ipso- and ortho-carbon, while for 7 the ortho- and meta-carbon atoms of a Ph-Si ring are in close contact.

Full text of DOI:10.1021/om030011b

2318
Organometallics 2003, 22, 2318-2324
Isola tion a n d Ch em istr y of Alu m in u m Com p ou n d s
Con ta in in g
(S)-3,3′-Bis(tr ip h en ylsilyl)-1,1′-bi-2,2′-n a p h th oxid e
Liga n d s
Au J i Ru Son, Matthew G. Thorn, Phillip E. Fanwick, and Ian P. Rothwell*
Department of Chemistry, Purdue University, 560 Oval Drive,
West Lafayette, Indiana 47907-2038
Received J anuary 7, 2003
The reaction of the resolved, bulky binol (S)-3,3′-bis(triphenylsilyl)-2,2′-dihydroxy-1,1′-
binaphthyl, (S)-H2O2C20H10{SiPh3}2-3,3′ (1), with a variety of alkyl and amide compounds
has been investigated. Reaction of 1 with [Al2Me6] initially proceeds only in a 1:1 ratio to
produce dinuclear [Al2(O2C20H10{SiPh3}2-3,3′)(CH3)4], (S)-2. Compound 2 contains a [Al(µ-
C)(µ-O)] core, Al-Al ) 2.739(2) Å, with the binaphthoxide ligand oxygen atoms occupying
terminal and bridging positions. In the presence of pyridine, 2 reacts further with 1 to produce
[Al(O2C20H10{SiPh3}2-3,3′)(CH3)(py)], (S)-4. The ethyl analogue of 4, [Al(O2C20H10{SiPh3}2-
3,3′)(CH3)(py)], (S)-5, was obtained from [Et2AlCl]. Both 4 and 5 were shown to adopt
tetrahedral geometries in the solid state with O-Al-O angles of ∼107°. Reaction of [LiAl-
(NMe2)4] with 1 produced a dinuclear compound, [LiAl(O2C20H10{SiPh3}2-3,3′)(NHMe2)-
(NMe2)2], (S)-6, containing a terminal and bridging amido group. The lithium-bound HNMe2
ligand could be substituted by pyridine to produce [LiAl(O2C20H10{SiPh3}2-3,3′)(NC6H5)-
(NMe2)2], (S)-7. In the solid state the formally three-coordinated lithium atoms in 6 and 7
are pyramidalized. The sum of the three angles for the LiN2O core is 305° and 322° for 6
and 7, respectively. This is due to an interaction of the lithium with one arene ring of an
SiPh3 group. In 6 the carbon atoms involved are an ipso- and ortho-carbon, while for 7 the
ortho- and meta-carbon atoms of a Ph-Si ring are in close contact.
In tr od u ction
easily obtained by adding the corresponding phenol to
AlMe3 and can be generated “in situ” for use. Significant
structural and chemical studies have also been reported
from the Barron group.9 A continuing challenge centers
on the development of chiral analogues for the synthesis
of optically pure compounds.10 A series of aluminum
reagents containing C2-symmetric, chiral aryloxides
were also synthesized and have been applied to asym-
metric Claisen rearrangements, 2 aldol reactions,11 and
aldehyde alkylations. Over the years many studies have
also dealt with the utilization of 2,2′-dihydroxy-1,1′-
binaphthyl ligands (BINOLS) in conjunction with alu-
minum reagents. Despite this extensive literature and
demonstrated utility, there are still few structural
studies of isolated binaphthoxide derivatives of alumi-
num.12 An extensive study of “Noyori’s reagent” did lead
to the structures of a number of LiAl binaphthoxide
compounds.13 As an extension of our work with early
transition metal aryloxide compounds, we have begun
to study resolved 3,3′-disubstituted-1,1′-bi-2,2′-naph-
thoxide compounds of these metals. This work is being
The application of aluminum reagents has made some
significant contributions to organic synthesis. Besides
their application as Lewis acids, aluminum compounds
have also been important as reducing and alkylating
agents.1 In all three areas the reactivity of aluminum
reagents can be modified by the addition of suitable
oxygen donor (typically alkoxide or aryloxide) ligation
into the metal coordination sphere. More recently the
use of bulky aryloxide ligands attached to aluminum to
generate monomeric, “designer” Lewis acid catalysts has
been pioneered by Yamamoto and co-workers.2,3 Impor-
tant examples include the compounds [Al(Me)(OC6H2-
But -2,6-X-4)2] (X ) Me, acronym “MAD”,4,5 and X ) Br,
2
“MABR”6), [Al(Me)(OC6H3Ph2-2,6)2] (“MAPH”7), and [Al-
(OC6H3Ph2-2,6)3] (“ATPH”8). These compounds are all
* Corresponding author. E-mail: rothwell@purdue.edu.
(1) Ooi, T.; Maruoka, K. Lewis Acids Org. Synth. 2000, 1, 191.
(2) Bradley, D. C.; Mehrotra, R. C.; Rothwell, I. P.; Singh, A. Alkoxo
and Aryloxo Derivatives of Metals; Academic Press: London, 2001.
(3) Saito, S.; Yamamoto, H. J . Chem. Soc., Chem. Commun. 1997,
1585.
(4) Maruoka, K.; Itoh, T.; Sakurai, M.; Nonoshita, K.; Yamamoto,
H. J . Am. Chem. Soc. 1988, 110, 3588.
(5) Power, M. B.; Bott, S. G., Atwood, J . L.; Barron, A. R. J . Am.
Chem. Soc. 1990, 112, 3446.
(6) Maruoka, K.; Ooi, T.; Yamamoto, H. J . Am. Chem. Soc. 1989,
111, 6431.
(7) Maruoka, K.; Conception, A. B.; Murase, N.; Oishi, M.; Hirayama,
N.; Yamamoto, H. J . Am. Chem. Soc. 1993, 115, 3943.
(8) Maruoka, K.; Imoto, H.; Saito, S.; Yamamoto, H. J . Am. Chem.
Soc. 1994, 116, 4131.
(9) Healy, M. D.; Power, M. B.; Barron, A. R. Coord. Chem. Rev.
1994, 130, 63.
(10) Wulff, W. D. Lewis Acids Org. Synth. 2000, 1, 283.
(11) Saito, S.; Hatanaka, K.; Kano, T.; Yamamoto, H. Angew. Chem.,
Int. Ed. 1998, 37, 3378.
(12) (a) Arai, T.; Sasai, H.; Yamaguchi, K. C.; Shibasaki, M. J . Am.
Chem. Soc. 1998, 120, 441. (b) Arai, T.; Sasai, H.; Aoe, K.; Okamura,
K.; Date, T.; Shibasaki, M. Angew. Chem., Int. Ed. Engl. 1996, 35, 104.
(13) Noth, H.; Schlegel, A.; Suter, M. J . Organomet. Chem. 2001,
621, 231.
10.1021/om030011b CCC: $25.00 © 2003 American Chemical Society
Publication on Web 04/29/2003

Aluminum Compounds Containing Naphthoxide
Organometallics, Vol. 22, No. 11, 2003 2319
Sch em e 1
Ta ble 1. Selected Bon d Dista n ces (Å) a n d An gles
(d eg) for [Al2(O2C20H10{SiP h 3}2-3,3′)(CH3)4], (S)-2
extended to cover a variety of chiral, main group
derivatives of this ligand set. Recent publications have
dealt with germanium compounds.14 In this paper we
report on the synthesis and structures of a series of
aluminum compounds containing the bulky (S)-3,3′-bis-
(triphenylsilyl)-1,1′-bi-2,2′-naphthoxide ligand, 1.
Al(1)-O(2)
Al(2)-O(1)
Al(1)-C(2)
Al(2)-C(2)
Al(1)-Al(2)
1.748(3)
1.854(3)
2.064(5)
2.175(5)
2.739(2)
Al(1)-O(1)
Al(1)-C(1)
Al(2)-C(4)
Al(2)-C(3)
1.857(3)
1.926(4)
1.940(5)
1.986(5)
O(2)-Al(1)-C(1)
O(2)-Al(1)-C(2)
C(1)-Al(1)-C(2)
O(1)-Al(2)-C(3)
O(1)-Al(2)-C(2)
C(3)-Al(2)-C(2)
Al(1)-O(1)-C(11)
Al(1)-C(2)-Al(2)
114.7(2)
108.5(2)
114.1(2)
114.3(2)
89.8(2)
98.7(2)
118.8(2)
80.5(2)
O(2)-Al(1)-O(1)
O(1)-Al(1)-C(1)
O(1)-Al(1)-C(2)
O(1)-Al(2)-C(4)
C(4)-Al(2)-C(3)
C(4)-Al(2)-C(2)
Al(2)-O(1)-C(11)
Al(2)-O(1)-Al(1)
105.8(1)
118.3(2)
93.2(2)
112.8(2)
123.6(2)
110.7(2)
135.6(2)
95.1(1)
Resu lts a n d Discu ssion
Syn th esis a n d Ch a r a cter iza tion of Meth yl Com -
p ou n d s. Reaction of a toluene solution of [Al2Me6] with
(S)-H2O2C20H10{SiPh3}2-3,3′, 1 (1 binol per 2Al), leads
to the formation of a single new organometallic product,
2 (Scheme 1). Compound 2 does not react further with
1 under ambient conditions. In fact when a solution of
2 and excess 1 is heated at 100 °C for several hours in
C6D6, very little noticeable change (as determined by
NMR) is observed. The solid state structure of 2 (Figure
1, Table 1) shows the presence of an edge-shared, bis-
tetrahedral structure related to that of the [Al2Me6]
substrate. The binol ligand has two protonated methyl
groups and occupies one terminal and one bridging
position. Hence the two tetrahedral aluminum atoms
in 2 have different coordination environments. In con-
trast the addition of monophenols (1 HOAr per Al) to
[Al2Me6] leads to the more symmetric structural motif
with both oxygen atoms bridging and the four remaining
methyl groups being terminal. This is highlighted by
the reaction with 2,6-diphenylphenol, which leads to
compound 3 (Scheme 1), which we have structurally
characterized (Figure 2, Table 2). Compound 3 has been
used as a Lewis acid catalyst/reagent in a number of
organic synthesis applications.15 A ubiquitous stoichi-
ometry, [R2M(µ2-OAr)]2, is well known for all of the
F igu r e 1. Molecular structure of [Al2(O2C20H10{SiPh3}2-
3,3′)(CH3)4], (S)-2.
group 13 (M ) Al, Ga, In, Tl) metals,2 although the
metal coordination number varies from 4 with simple
aryloxides16 to 5 for chelating ligands.17 The only other
structurally characterized compound related to 2 con-
taining a [Al(µ-R)(µ-OX)Al] core is that reported by Scott
et al.18 This also contains a chelating bis(aryloxide)
ligand, although a pair of such units are linked by an
anthracene spacer, resulting in
methanediyl-tetraphenoxide ligand.
a 1,8-anthracene-
(15) (a) Maruoka, K.; Concepcion, A. B.; Murase, N.; Oishi, M.;
Hirayama, N.; Yamamoto, H. J . Am. Chem. Soc. 1993, 115, 3943. (b)
Denmark, S. E.; Cottell, J . S. J . Org. Chem. 2001, 66, 4276. (c)
Denmark, S. E.; Seierstad, M. S. J . Org. Chem. 1999, 64, 1610.
(14) Weinert, C. S.; Fanwick, P. E.; Rothwell, I. P. J . Chem. Soc.,
Dalton Trans. 2002, 2948.

2320 Organometallics, Vol. 22, No. 11, 2003
Son et al.

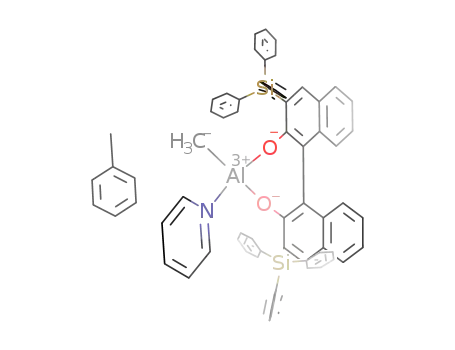

F igu r e 3. Molecular structure of [Al(O2C20H10{SiPh3}2-
