Nucleophilic Ring Enlargement of 2-Substituted-
3-isothiazolones to 1,3-Thiazin-4-ones
*
Stylianos Hamilakis and Athanase Tsolomitis
The Laboratory of Organic Chemistry,
The School of Chemical Engineering,
The National Technical University of Athens,
Athens, Greece
ABSTRACT
1,3-Thiazin-4-ones 9 and 10 have been prepared from the corres-
ponding isothiazolones 7 and 8 by a clean and smooth reaction
with tertiary amines at room temperature. This rearrangement is
attributed to the abstraction of a methine proton from the 2-position
isothiazolone substituent, followed by ring enlargement through
cleavage of the S-N bond.
*Correspondence: Athanase Tsolomitis, Assistant Professor, The Laboratory of
Organic Chemistry, The School of Chemical Engineering, The National Technical
University of Athens, 9, Heroon Polytechniou Str., Zografou Campus, Athens
157 80, Greece; E-mail: tsolom@chemeng.ntua.gr.
4339
DOI: 10.1081/SCC-120026864
Copyright & 2003 by Marcel Dekker, Inc.
0039-7911 (Print); 1532-2432 (Online)
www.dekker.com

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
4340
Hamilakis and Tsolomitis
Key Words: 3-Isothiazolones; 1,3-Thiazin-4-ones; Nucleophilic
ring expansion; Two phase reactions.
The 1,3-thiazin-4-one ring is found in a wide range of biologically
active molecules. Most intensive investigation has focused on the
modification of substituents in the thiazinone ring and on the synthesis
of thiazinones fused with heterocycles. A large number of articles and
patents deal with biochemical properties of these compounds, such as
analgesics,[1,2] antimicrobial agents,[3,4] psychostimulants,[5] and others.
N-Substituted-3-isothiazolones bearing a free 5-position, of the
general formula 1, have been found[6] to be dimerized readily by bases
to 2,4-bismethylene-1,3-dithietanes 3 (Sch. 1). Dithietanes of the general
formula 3 have been also obtained from N-substituted-5-aroyl-3-isothia-
zolones 4. For instance, the reaction of the N-benzyl-5-benzoylisothia-
zolone 4 (Ar ¼ -C6H5, R ¼ -CH2C6H5) with bases (e.g., EtONa/EtOH,
NaOH/H2O) has been found[7] to yield the corresponding dithietane 3
(R ¼ -CH2C6H5). The dimerization was shown to proceed through the
attack of the formed 5-anion 2 on the S-N bond of a second isothiazolone
molecule 1.
In the case of isothiazolone 4, the 5-anion 2 would result from
a nucleophilic displacement of the 5-benzoyl group. In a previous
communication,[8] the partial or the complete transformation of the
isothiazolone 4 to the corresponding dithietane 3, by treatment with
aqueous sodium hydroxide, has been examined. The reaction of a
benzene solution of the same compound with a 10% aqueous solution
of sodium hydroxide (a two phase aqueous-organic system) resulted
H
B:
S
N
R
1
O
S
S
RNHCOCH
CHCONHR
S
N
R
2
O
ArCO
3
B:
S
N
O
R
4
Scheme 1.

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
1,3-Thiazin-4-one Ring
4341
C6H5 CO
(b )
C6H5 CO
O
(a )
(c)
C
6H5COCH2CH 2CO NH CH (C O2Me )2
S
C6H5
O
S
NH
O
N
6
O
5
CH (C O2Me )2
CO 2Me
Me O2
C
(a) HCl.H2NCH(CO2Me)2 and MeCO2Na in EtOH at reflux for 1hr.
(b ) Exess of SOCl2 at room temperature for 2 hours.
(c) Et3N in CHCl3 at room temperature for 10 or 30 minutes.
(d ) 10% aqueous NaOH/benzene
7
(d )
9
O
(c )
S
Me O2
NH
CO 2Me
S
O
N
C
CH (C O2Me )2
8
10
Scheme 2.
easily and quantitatively to the corresponding isothiazolone 1 (R ¼
-CH2C6H5).
Now we have prepared an isothiazolone namely 2-dimethylmalonate-
5-benzoyl-3-isothiazolone (7) from the reaction of ketoamide 6. The
synthesis sequence (Sch. 2) is an application of the general procedure[7]
for the preparation of isothiazolones of the general type 4 (Sch. 1).
When the isothiazolone 7 in a benzene solution was treated with a 10%
aqueous sodium hydroxide at room temperature, a nucleophilic displace-
ment reaction of 5-benzoyl group was occurred and isothiazolone 8 was
obtained quantitavely according to the general method.[8] The same iso-
thiazolone in a chloroform solution when treated with triethylamine at
room temperature or 1,8-bis(dimethylamino)naphthalene in refluxing
xylene, an isomeric compound was isolated in 88% yield. Structure 9
was assigned to this new compound on the basis of its 1H NMR
spectrum; besides the aromatic and aliphatic protons’ signals, one low-
field one-proton’s signal was found to be coupled to an exchangeable N-H
proton. In deuteriochloroform solution, a doublet at 6.60 ppm, J ¼ 1,2 Hz,
was assigned to the C 5 vinylic proton. The coupling between the C 5-H
and the N-H protons would be typical case of long range coupling, as
encountered in unsaturated systems incorporating a planar W-path.
Since the possibility of a nucleophilic displacement of the 5-benzoyl
group in 7 should be excluded, as anticipated, the ring enlargement of
7 into 9 can only be explained by the abstraction of a methine
proton from the dimethylmalonate group to form the anion 11 (Sch. 3).
Under the conditions used for the transformation of the isothia-
zolone 7 to the thiazinone 9, the debenzoylated isothiazolone 8 gave
also quantitatively the corresponding thiazinone 10, though it has the
easily abstracted 5-position ring’s proton (Sch. 1). In this case obviously
the dimethylmalonate anion 11 is formed faster, and is more stabilized,
from the 5-anion of the isothiazolone ring.

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
4342
Hamilakis and Tsolomitis
X
X
O
X
X
R3N
[R3N+H]
S
NH
S
-
S
S
N
O
N
N
O
O
CO Me
MeO C
CH(CO Me)
C(CO Me)
C(CO Me)
-
7, X= C6H5CO-
8, X= H-
9, X= C6H5CO-
10 , X= H-
12
11
Scheme 3.
The anion 11 can then be assumed to give compounds 9 and 10
through the acylimine intermediate 12, an elimination-addition process
(E1cb mechanism). This mechanism however is favored by the labile S-N
bond[9] of the isothiazolone ring system.
In conclusion the nucleophilic displacement of the 5-benzoyl group
of isothiazolone 7 to the corresponding isothiazolone 8 was finally found
to proceed with a simple two phase reaction, though these isothiazolones
have the acidic dimethylmalonate methine proton. These isothiazolones
were converted into the corresponding 1,3-thiazin-4-ones easily in high
yields. We are currently investigating the application of the reactions
sequences (Sch. 2) to the preparation of 1,3-thiazin-4-ones and from
there to fused 1,3-thiazin-ring systems with probable interest as potential
prodrugs.
EXPERIMENTAL
Melting points were determined in capillary tubes and are
1
uncorrected. The H NMR spectra were recorded on a Varian EM-360
60 MHz spectrometer; chemical shifts are given in ppm (ꢀ) downfield
from TMS (internal standard). The IR spectra were obtained with a
Nicolet Magna 560 spectrometer; as nujol mulls and were calibrated
against the polystyrene 1601 cmꢀ1 band, and given in reciprocal
centimetres. Elemental analyses were obtained from the microanalytical
laboratory of CNRS (France).
N-Dimethylmalonate-3-benzoylpropionamide (6)
A mixture of butenolide 5,[10] 13.48 g (84.17 mmol), 15.45 g (84.15
mmol) of aminodimethylmalonate hydrochloride, 7.61 g (92.60 mmol)
of anhydrous sodium acetate in 6 mL of water and 50 mL of ethanol

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
1,3-Thiazin-4-one Ring
4343
refluxed on a steam bath for 1 h. The hot mixture was filtered from the
salts and the filtrate after cooling gave a crystalline solid 19.5 g (75.4%).
M.p. 137–139ꢁ. After further recrystallization from ethanol it gave an
analytically pure sample of ketoamide 6, m.p. 140–142ꢁ. Anal. Calcd.
for C15H17NO6: C, 58.63; H, 5.58; N, 4.56. Found: C, 58.57; H, 5.48;
N, 4.42. IR (Nujol mull, cmꢀ1): 3311, 1739, 1691, 1650, 1597, 1582.
1H NMR (60 MHz, CDCl3); ꢀ 2.78 and 3.36 (two t, J ¼ 6 Hz, 4H,
-CH2CH2-), 3.81 (s, 6H, two -CH3), 5.23 (d, J ¼ 7 Hz, 1H, CH), 6.96
(br d, J ¼ 7 Hz, 1H, -NH-), 7.38–8.16 (m, 5H, aromatic protons).

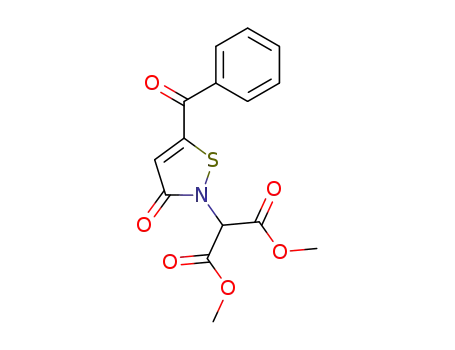

2-Dimethylmalonate-5-benzoyl-3-isothiazolone (7)
Following the general method[7] a solution of the ketoamide 6, 20 g
(65.08 mmol) in 200 mL of thionyl chloride, was stirred at room tempera-
ture for 2 h. The dark green solution was concentrated under vacuum at
room temperature and the solid residue was recrystallized from methanol
to give 16 g (73.3%) of a yellow crystalline product, m.p. 96–99ꢁ. A further
recrystallization from methanol gave an analytically pure sample of
compound 7. M.p. 101–102ꢁ. Anal. Calcd. for C15H13NO6S: C, 53.73;
H, 3.90; N, 4.17; S, 9.56. Found: C, 53.58; H, 3.91; N, 4.20; S, 9.37. IR
1
(Nujol mull, cmꢀ1): 1763, 1748, 1742, 1666, 1650, and 1594. H NMR
(60 MHz, CDCl3): ꢀ 3.90 (s, 6H, two -CH3), 6.13 (s, 1H, CH), 6.75
(s,1H, vinylic proton), and 7.50–8.11 (m, 5H, aromatic protons).
2-Dimethylmalonate-3-isothiazolone (8)
To a solution of the benzoylisothiazolone 7, 1 g (2.98 mmol) in
benzene (20 mL), a 10% aqueous sodium hydroxide solution (20 mL)
was added and the mixture was stirred vigorously at room temperature
for 10 min. The water layer was then separated, acidified with a 10%
hydrochloric acid solution and saturated with NaCl, the precipitated
benzoic acid was filtered, and the filtrate was extracted some times
with chloroform. The chloroform extracts washed with a 0.1% sodium
bicarbonate solution some times and then with a 5% hydrochloric acid
solution and finally with water. The organic layer was dried (magnesium
sulfate) and concentrated under vacuum to give compound 8 as a
1
retinous mass 0.52 g (75%), as evidenced from H NMR spectrum. IR
(as retinous mass, cmꢀ1): 1754, 1647, and 1512. 1H NMR (60 MHz,
CDCl3); ꢀ 3.91 (s, 6H, two -CH3), 6.10 (s, 1H, CH), 6.31 and 8.48 (two
d, J ¼ 6.5 Hz, 2H, vinylic protons).

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
4344
Hamilakis and Tsolomitis
2,2-Dimethoxycarbonyl-6-benzoyl-1,3-thiazin-4-one (9)
To a solution of the benzoylisothiazolone 7, 1 g (2.98 mmol) in 20 mL
of chloroform, 2 mL of triethylamine were added and the solution was left
at room temperature for 10 min. The solution washed with a 10%
hydrochloric acid solution and concentrated under vacuum to give
a quantitative yield of a solid residue, which was shown (1H NMR
spectrum) to be a pure sample of the corresponding thiazinone 9. A recrys-
tallization from benzene/petroleum ether gave an analytical sample 0.88 g
(88%). M.p. 119–121ꢁ. Anal. Calcd. for C15H13NO6S: C, 53.73; H, 3.90;
N, 4.17; S, 9.56. Found: C, 53.74; H, 3.90; N, 4.18; S, 9.76. IR (Nujol mull,
cmꢀ1): 3164, 1760, 1746, 1669, 1650, and 1594. 1H NMR (60 MHz,
CDCl3); ꢀ 3.95 (s, 6H, two -CH3), 6.60 (d, J ¼ 1,2 Hz,1H, vinylic
proton), 7.18 (br s, 1H, -NH-), 7.50–8.00 (m, 5H, aromatic protons).
2,2-Dimethoxycarbonyl-1,3-thiazin-4-one (10)
A solution of 0.48 g (2.07 mmol) of the isothiazolone 8, in 20 mL
chloroform and 1 mL of triethylamine was left at room temperature for
30 min. The solution washed with a 10% hydrochloric acid solution and
concentrated under vacuum to give an almost quantitative yield of a solid
residue which was shown (1H NMR spectrum) to be a pure sample of the
corresponding thiazinone 10. A recrystallization from benzene gave an
analytical sample 0.40 g (83.3%). M.p. 96–97ꢁ. Anal. Calcd. for
C8H9NO5S: C, 41.55; H, 3.92; N, 6.06; S, 13.87. Found: C, 41.55; H,
4.03; N, 6.12; S, 13.63. IR (Nujol mull, cmꢀ1): 3425, 1751, and 1677.
1H NMR (60 MHz, CDCl3); ꢀ 3.93 (s, 6H, two -CH3), 6.15, and 7.10
(two d, J ¼ 10.5 Hz, 2H, vinylic protons), 6.91 (br s, 1H, -NH-).
REFERENCES
1. Wolf, M.; Sellstedt, J.H. U.S. Pat. 3,470,168, 1969; Analgesic 2-
substituted-4H-1,3-benzothiazin-4-ones. Chem. Abstr. 1969, 71,
112949.
2. Nakanishi, M.; Arimura, K. Jpn. Pat. 73/31,114, 1974; Spiro cyclic
compounds. Chem. Abstr. 1974, 80, 27269.
3. Coombs, M.E. U.S. Pat. 4,839,356, 1989; Preparation of thiazinone
derivatives as agrochemical fungicides. Chem. Abstr. 1989, 111,
214497.

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
1,3-Thiazin-4-one Ring
4345
4. Lattrell, R.; Lohaus, G. Attempted total synthesis of cephalosporin
derivatives. III. Synthesis of cephen derivatives by ring closure reac-
tions of cis-3-(phenylacetamide)-4-(alkylthio)-2-azetidinones. Justus
Liebigs Ann. Chem. 1974, 6, 921.
5. Squibb, E.R.; Fr. Pat. 2,047,871, 1972; Pharmacologically active 4H-
1,3-benzothiazines. Chem. Abstr., 1972, 76, 3878.
6. Chan, A.W.K.; Crow, W.D.; Gosney, I. Isothiazole chemistry-VIII
base-catalysed dimerization of N-alkyl-3-isothiazolones a synthesis
of 2,4-bismethylene-1,3-dithietanes. Tetrahedron 1970, 26, 1493.
7. Tsolomitis, A.; Sandris, C. Formation of 5-aroyl-3-(2H) isothiazo-
lones from the reaction of 3-aroyl-propionamides with thionyl
chloride (1). J. Heterocyclic Chem. 1980, 17, 1645.
8. Tsolomitis, A.; Sandris, C. Synthesis of 2-substituted 3(2H)-isothia-
zolones from 2-substituted 5-aroyl-3(2H)-isothiazolones. Hetero-
cycles 1987, 25, 569.
9. Crow, D.W.; Gosney, I. Isothiazole chemistry VI. Reactions of
carbanions with N-ethyl-3-isothiazolone. Aust. J. Chem. 1969, 22,
765.
10. Tsolomitis, A.; Sandris, C. Some observations concerning the lacto-
nization of 3-aroylpropionic acids. J. Heterocycl. Chem. 1983, 20,
1545.
Received in the UK June 19, 2003

MARCEL DEKKER, INC. • 270 MADISON AVENUE • NEW YORK, NY 10016
©2003 Marcel Dekker, Inc. All rights reserved. This material may not be used or reproduced in any form without the express written permission of Marcel Dekker, Inc.
