Syntheses and crystal structures
of ferrocenyl derivatives of biphenyl*
a
a
b
b
b
D. A. Lemenovskii,a M. V. Makarov, V. P. Dyadchenko, A. E. Bruce, M. R. M. Bruce, S. A. Larkin
ꢀ
B. B. Averkiev,c Z. A. Starikova,c and M. Yu. Antipinc
aDepartment of Chemistry, M. V. Lomonosov Moscow State University,
Leninskie Gory, 119992 Moscow, Russian Federation.
Fax: +7 (095) 939 0290. Eꢀmail: dali@org.chem.msu.su
bDepartment of Chemistry, University of Maine,
USA, ME 04469ꢀ5706, Orono, Aubert Hall.
Fax: (207) 581 1191. Eꢀmail: abruce@maine.edu
cA. N. Nesmeyanov Institute of Organoelement Compounds, Russian Academy of Sciences,
28 ul. Vavilova, 119991, Moscow, Russian Federation.
Fax: +7 (095) 135 5085
Arylation of ferrocene with substituted biphenyldiazonium tetrafluoroborates afforded
4ꢀbromoꢀ, 4ꢀnitroꢀ, and 4ꢀcyanoꢀ4´ꢀferrocenylbiphenyls. 4ꢀNitroꢀ and 4ꢀcyanoꢀ4´ꢀferroꢀ
cenylbiphenyls were studied by Xꢀray diffraction analysis. In the crystals of 4ꢀnitroꢀ4´ꢀ
ferrocenylbiphenyl, the molecules are linked via stacking πꢀπ interactions.
Key words: arylation, ferrocene, aryldiazonium tetrafluoroborates, biphenylferrocenes,
Xꢀray diffraction analysis.
Earlier,1 we have reported the synthesis of ferrocenyl
derivatives of biphenyl.
Having rigid rodꢀlike structures, biphenyl derivatives
can serve as precursors of liquidꢀcrystalline materials. The
introduction of an elecꢀ
crossꢀcoupling reactions involving arylboronic acids2 or
organomercury compounds3 have received the most study.
Unfortunately, the synthesis via arylboronic acids by crossꢀ
coupling reactions is a rather complicated process, beꢀ
cause, first, it involves the preparation of 4ꢀbromoꢀ
phenylferrocene and, second, arylboronic acids are synꢀ
thesized with the use of organolithium compounds. Synꢀ
theses based on organomercury compounds are carried
out with the use of toxic diferrocenylmercury. In addiꢀ
tion, this approach requires the preliminary synthesis of
the corresponding 4ꢀXꢀ4´ꢀYꢀbiphenyls.
In the case of biphenyl derivatives, the classical method
for the synthesis of arylferrocenes involving arylation of
ferrocene with diazonium salts was applied only to 4ꢀferroꢀ
cenylbiphenyl.4
In the present study, we examined the possibility of the
preparation of biphenylferrocene derivatives by arylation
of ferrocene with salts of substituted biphenyldiazonium,
found the optimum reaction conditions, and demonstrated
that this approach is highly competitive with known proꢀ
cedures for the synthesis of these compounds.
tronꢀwithdrawing group
and an easily polarizable
electronꢀdonating group
at positions 4 and 4´ of
Fc = (C5H5)Fe(C5H4); X = Br, CN
the biphenyl molecule should lead to the asymmetry of
the electron density distribution. This may facilitate agꢀ
gregation of the molecules both through intermolecular
dipoleꢀdipole interactions and the formation of intermoꢀ
lecular chargeꢀtransfer complexes. The ferrocenyl fragꢀ
ment is a promising donor group in these compounds. In
addition to the ability of ferrocenyl derivatives of bipheꢀ
nyl to undergo intermolecular aggregation, these comꢀ
pounds can also exhibit nonlinear optical properties. Beꢀ
sides, the presence of the ferrocenyl group allows the
molecule to be involved in reversible redox processes.
Recently,2 4ꢀformylꢀ4´ꢀferrocenylbiphenyl derivatives
possessing liquidꢀcrystalline properties have been syntheꢀ
sized. However, approaches to the synthesis of ferrocenyl
derivatives of biphenyl have been poorly developed. The
Results and Discussion
Substituted ferrocenylbiphenyls can be prepared by
arylation of ferrocene with aryldiazonium salts. However,
these reactions performed with the use of aqueous soluꢀ
* Dedicated to Academician I. P. Beletskaya on the occasion of
her anniversary.
Published in Russian in Izvestiya Akademii Nauk. Seriya Khimicheskaya, No. 3, pp. 583—590, March, 2003.
1066ꢀ5285/03/5203ꢀ607 $25.00 © 2003 Plenum Publishing Corporation

608
Russ.Chem.Bull., Int.Ed., Vol. 52, No. 3, March, 2003
Lemenovskii et al.
Scheme 2
tions of aryldiazonium chlorides gave unsatisfactory reꢀ
sults. The arylation products were produced in very low
yields and their isolation presented problems due to a
high degree of resinification. We found that substituted
ferrocenylbiphenyls were readily generated by arylation
of ferrocene with aryldiazonium tetrafluoroborates 1a—c
isolated in the individual form (Scheme 1). In these reacꢀ
tions, the choice of the solvent is of great importance.
The best results were achieved by performing the reacꢀ
tions in an acetic acid—trifluoroacetic acid—dichloroꢀ
ethane mixture.
Scheme 1
Fc = (C5H5)Fe(C5H4); X = Br (a), NO2 (b), CN (c)
X = Br (a), NO2 (b), CN (c)
The structures of compounds 2a—c were established
by IR and 1H NMR spectroscopy. Compounds 2b,c were
also studied by Xꢀray diffraction analysis.
Reagents and conditions: i. 1) CuCN, DMF, 153 °C; 2) FeCl3,
HCl; ii. SnCl2, HCl, and EtOH or NaSH and MeOH.
The synthesis of arylamines, which are necessary for
the preparation of tetrafluoroborates 1a—c, is presented
in Scheme 2.
Scheme 3
Both arylamines 3a—c and intermediates in their synꢀ
thesis have been described earlier.5—9 However, proceꢀ
dures published in the literature often give unsatisfactory
results. We developed wellꢀreproducible procedures for
the synthesis of these compounds.
Diazotization of amines 3a—c was carried out accordꢀ
ing to a standard procedure (Scheme 3).
We attempted to replace the bromine atom in comꢀ
pound 2a by the SH group according to a procedure deꢀ
scribed earlier.10 However, this attempt led only to the

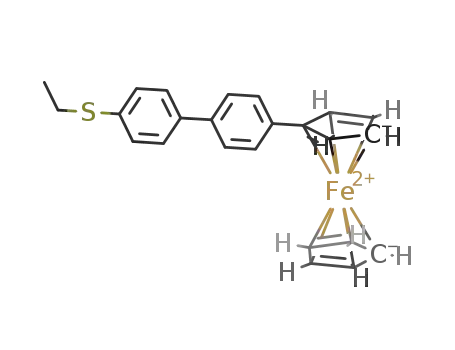

formation of sulfide 4 (Scheme 4).
Under the aboveꢀdescribed conditions, the reaction
ended in the formation of sulfide even in the presence of a
substantial excess of sodium ethylthiolate.
X = Br (a), NO2 (b), CN (c)
Scheme 4
The molecular and crystal structures of ferrocenylꢀ
biphenyls 2b and 2c were established by Xꢀray diffraction
analysis.
The molecular structures of compounds 2b and 2c are
shown in Figs. 1 and 2, respectively. The principal bond
lengths and bond angles are listed in Tables 1 and 2,
respectively.

Synthesis and structure of biphenylferrocenes
Russ.Chem.Bull., Int.Ed., Vol. 52, No. 3, March, 2003
609
O(2)
C(19)
C(18)
C(17)
C(20)
C(21)
C(15)
C(16)
C(6)
C(7)
C(8)
C(14)
C(13)
N(1)
C(10) C(11)
O(1)
C(9)
C(22)
C(12)
Fe(1)
C(2)
C(1)
C(3)
C(5)
C(4)
Fig. 1. Structure of one of the crystallographically independent molecules (A) in the crystal of compound 2b.
C(9)
C(8)
C(19)
C(13)
C(15)
C(12)
C(16)
C(18)
C(10)
C(6)
C(14)
C(11)
C(20)
C(17)
C(7)
Fe(1)
C(3)
C(23)
C(21)
N(1)
C(22)
C(4)
C(5)
C(2)
C(1)
Fig. 2. Molecular structure of compound 2c.
The crystal structure of 2b contains two cystalloꢀ
graphically independent 4ꢀnitroꢀ4´ꢀferrocenylbiphenyl
molecules (A and B, see Fig. 1), which differ by the conꢀ
formation of the Cp—Fe—Cp´ ferrocenyl fragment (Cp
and Cp´ are unsubstituted and substituted cyclopentaꢀ
dienyl rings, respectively). In the molecule A, the cycloꢀ
pentadienyl rings are in an eclipsed conformation
(C(10)—Cnt1—Cnt2—C(5) pseudotorsion angle is 0.7°,
where Cnt1 and Cnt2 are the centroids of the Cp´ and Cp
rings, respectively). In the molecule B, the corresponding
C(10´)—Cnt1—Cnt2—C(5´) angle is 30.1°, which indiꢀ
cates that the cyclopentadienyl rings are in a skewed conꢀ
formation (ideal angle characterizing this conformation
is 36°). The Cp and Cp´ rings are coplanar (angles beꢀ
tween the planes of the rings are 0.2° and 2.6° in the
molecules A and B, respectively). In both molecules, the
Cp´—Ar1—Ar2—NO2 fragments (Ar = C6H4) have idenꢀ
tical structures, all rings of the fragment being nonꢀ
coplanar. The dihedral angles between the planes of Cp´
and Ar1, Ar1 and Ar2, and Ar2 and NO2 are 7.2(3)°,
23.7(2)°, and 5.1(5)° in the molecule A and 10.7(3)°,
21.7(2)°, and 7.4(5)° in the molecule B, respectively.
The Ar1—Ar2—NO2 fragment is slightly bent from the
Cp´ ring toward the unsubstituted Cp ring. The
C(11)...C(14)...C(17)...C(20)...N(1) line forms angles of
2.7° (in the molecule A) and 4.1° (in the molecule B) with
the plane of the Cp´ ring. The molecules A and B (except
for the unsubstituted cyclopentadienyl rings) are related
by a center of a pseudosymmetry.
In the crystal of 4ꢀcyanoꢀ4´ꢀferrocenylbiphenyl (2c),
the rings of the Cp´—Ar1—Ar2 fragment are also nonꢀ
coplanar. The dihedral angles between the Cp´ and
Ar1 planes and the Ar1 and Ar2 planes are 9.9(1)° and
42.39(7)°, respectively. The Cp rings are in a nearly
eclipsed conformation with the C(10)—Cnt1—Cnt2—C(5)
pseudotorsion angle of 7.9°.
In molecules 2b and 2c, all aromatic rings are planar
(average deviations are in the ranges of 0.001—0.003 and
0.002—0.007 Å for the Cp and phenyl rings, respectively).
The bond lengths in 2b and 2c are close to standard
values. The average C—C bond lengths in the phenyl and
Cp rings are 1.39 and 1.42 Å, respectively. The Fe—C

610
Russ.Chem.Bull., Int.Ed., Vol. 52, No. 3, March, 2003
Lemenovskii et al.
Table 1. Selected bond lengths in compounds 2b,c
