Catalytic Photooxidation of 4-Methoxybenzyl Alcohol with a Flavin–Zinc(ii)-
Cyclen Complex
Radek Cibulka,*[a] Rudolf Vasold,[b] and Burkhard Kçnig*[b]
Abstract: Flavin–zinc(ii)-cyclen 10 con-
tains covalently linked substrate
binding site (zinc(ii)–cyclen) and
oxidation is based on photoinduced
electron transfer from the coordinated
benzyl alcohol to the flavin chromo-
phore. This intramolecular process pro-
vides a much higher photooxidation ef-
ficiency, with quantum yields 30 times
those of the comparable intermolecular
process with a flavin chromophore
a
without a binding site. For the reaction
in buffered aqueous solution a quan-
tum yield of F = 0.4 is observed. The
turnover number in acetonitrile is in-
creased (up to 20) by high benzyl alco-
hol concentrations. The results show
that the covalent combination of a
chromophore and a suitable binding
site may lead to photomediators more
efficient than classical sensitizer mole-
cules.
a
chromophore unit (flavin). Upon irra-
diation, compound 10 effectively oxi-
dizes 4-methoxybenzyl alcohol (11-
OCH3) to the corresponding benzalde-
hyde both in water and in acetonitrile.
In the presence of air, the reduced
flavin 10-H2 is reoxidized, and so cata-
lytic amounts of 10 are sufficient for al-
cohol conversion. The mechanism of
Keywords:
flavin
electron transfer
macrocyclic ligands
·
·
·
photooxidation · sensitizers
Introduction
act intramolecularly, thus increasing the efficacy of the elec-
tron-transfer process. The substrate–sensitizer interaction
through coordinative bond formation is reversible, allowing
a catalytic process.
Photoinduced electron transfer (PET) in reversible nonco-
valent assemblies of electron-donor and electron-acceptor
moieties is studied intensively[1,2] because of its importance
for related biological processes. However, utilization of PET
for catalysis or sensitization of chemical reactions has so far
mainly been restricted to diffusion-controlled collision pro-
cesses. Only a limited number of systems with a defined re-
versible interaction between the photosensitizer and the
substrate have been reported.[3,4] To improve the sensitizing
efficiency of a photoactive molecule for a chemical reaction
we have prepared a mediator containing a chromophore co-
valently tethered to a substrate binding site. In such a
system, the bound substrate and the photoactive unit inter-
As a model reaction for investigation of the sensitizing
synthetic receptor, the photooxidation of benzyl alcohols
has been used. The oxidation of alcohols to aldehydes is a
key transformation in the chemical industry and also in biol-
ogy, and numerous stoichiometric and catalytic reactions
and reagents to mediate the process have been developed.[5]
Investigations currently in progress are aimed at attempting
to increase the efficiency of the reaction and to make it
more environmentally benign.[6] New metal complexes[7] and
metal-free systems[8,9] that catalyze oxidations with oxygen
or hydrogen peroxide as the stoichiometric oxidant are
sought after. The flavin–zinc(ii)-cyclen complex reported
here fulfils these criteria.
[a] Dr. R. Cibulka
Institute of Organic Chemistry
Department of Chemical Technology, Prague
Technickµ 5, 16628 Prague 6 (Czech Republic)
Fax : (+420)224-354-288
Results and Discussion
Design and synthesis: Molecule 10 (Scheme 1) consists of
two covalently bound subunits: the flavin chromophore,
which upon irradiation provides the necessary redox energy
to transform the substrate into the product, and a coordina-
tive binding site for the substrate. Riboflavin was selected as
the chromophore because it becomes a strong oxidant upon
irradiation,[10] and riboflavin-2’,3’,4’,5’-tetraacetate has previ-
ously been used for intermolecular PET oxidation of benzyl
E-mail: radek.cibulka@vscht.cz
[b] Dr. R. Vasold, Prof. Dr. B. Kçnig
Institut für Organische Chemie
Universität Regensburg
Universitätsstrasse 31, 93040 Regensburg (Germany)
Fax : (+49)941-943-1717
E-mail: burkhard.koenig@chemie.uni-regensburg.de
Supporting information for this article is available on the WWW
under http://www.chemeurj.org/ or from the author.
6224
ꢀ 2004 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
DOI: 10.1002/chem.200400232
Chem. Eur. J. 2004, 10, 6223 – 6231

6223 – 6231
Scheme 1. Synthesis of flavin–zinc(ii)-cyclen complex 10. Reaction conditions: a) pyridine, reflux (82%); b) acetic acid, RT (52%); c) DCC, CH2Cl2, R T
(72%); d) K2CO3, DMF, RT (88%) e) CH2Cl2, RT (99%); f) 1. H2O, ion exchange (OHÀ); 2. CH3CN, 608C (39%).
alcohols.[9a,b,d] A diethylene glycol substituent was introduced
into the 10-position to increase the solubility in water and
thus to allow oxidation reactions in aqueous solutions.
Zinc(ii)–cyclen was chosen as the binding site for the sub-
strate, in view of the presence and functioning of Lewis acid
zinc(ii) ions in the active site of alcohol dehydrogenase.[11]
Cyclen has a high affinity (lg K = 16.2)[12] for zinc(ii) ions,
which precludes other binding equilibria. Moreover zinc(ii)–
cyclen is known to coordinate Lewis base substrates[13] such
as water, alcohols,[11b,14] imides, or phosphate anions weakly
and reversibly. Similar systems containing a crown ether
unit covalently linked to a flavin moiety have already been
reported.[15] In these cases, however, the crown ether is not a
binding site for a substrate but only coordinates alkali metal
or alkaline-earth metal ions, thus modulating the flavin
redox potential and resulting in changes in the oxidation
quantum yields of benzyl alcohol[15a] or alkali mandelates.[15b]
The flavin part of the molecule (compound 4) was pre-
pared by using the general method developed by Kuhn and
co-workers:[16] synthesis of 1,2-dimethyl-4,5-dinitrobenzene

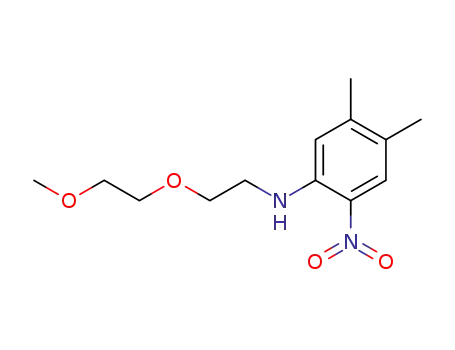

(1), ipso-substitution of the nitro group with 2-(2-methoxy-
ethoxy)ethylamine (2) in pyridine, the reduction of the
second nitro group in 3 with dihydrogen and Pd/C, and sub-
sequent condensation of the obtained diamine with alloxane.
Triply tert-butyloxycarbonyl(Boc)-protected cyclen[17] was
treated with bromoacetic acid in the presence of dicyclohex-
ylcarbodiimide (DCC) to give 7. The alkylation of flavin 4
in its 3-position has to be performed quickly to avoid de-
composition of the molecule, so an excess of compound 7
Abstract in Czech: Flavin-Zn(II)-cyklen 10 obsahuje vazeb-
ˇ
nØ místo pro substrµt (Zn(ii)-cyklen), kterØ je kovalentne
ˇ
ˇ
vµzanØ k chromoforu (flavin). Po ozµrení oxiduje sloucenina
10 4-methoxybenzylalkohol 11-OCH3 na odpovídající alde-
ˇ
ˇ
hyd ve vode a v acetonitrilu. Provµdí-li se reakce v prítom-
´
nosti vzduchu, vznikající redukovany flavin 10-H2 se reoxi-
ˇ
duje a pro oxidaci alkoholu tak postacuje pouze katalytickØ
ˇ
ˇ
mnozství lµtky 10. Mechanismus oxidace je zalozen na fo-
ˇ
˚
toindukovanØm prenosu elektronu z benzylalkoholu koordi-
´
novanØho k cyklenovØ jednotce na flavinovy chromofor.
ˇ
ˇ
ˇ
Tento intramolekulµrní proces podstatne zvysuje fflcinnost
´
´
ˇ
ˇ
´
fotooxidace—její kvantovy vytezek je tricetinµsobny ve
´
´
ˇ
srovnµní s kvantovym vytezkem intermolekulµrní oxidace
flavinem bez vazebnØho místa. V pufrovanØm vodnØm pro-
ˇ
ˇ
´
ˇ
ˇ
stredí bylo dosazeno kvantovØho vytezku F = 0.4. Pocet
˚
ˇ
ˇ
´
´
dosazenych katalytickych cyklu v acetonitrilu se zvysuje s
ˇ
´
koncentrací benzylalkoholu az na hodnotu 20. Vysledky
ˇ
ukazují, ze kovalentní spojení chromoforu a vhodnØho va-
˚
˚
ˇ
zebnØho centra muze vØst k fotomediµtorum, kterØ jsou
ˇ ˇ
ˇ
ˇ
fflcinnejsí nez klasickØ fotosenzibilizµtory.
