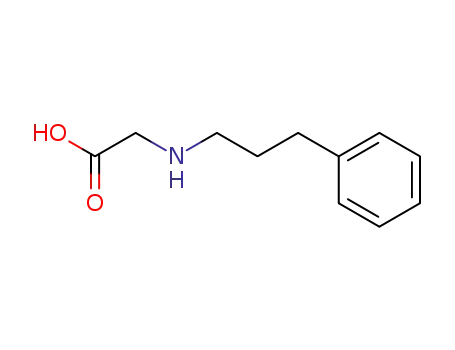

Discovery of potent and orally bioavailable
macrocyclic peptideꢀpeptoid hybrid CXCR7
modulators
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Markus Boehm,† Kevin Beaumont,† Rhys Jones,† Amit S. Kalgutkar,† Liying Zhang,⊥ Karen
Atkinson,‡ Guoyun Bai,‡ Janice A. Brown,‡ Heather Eng,‡ Gilles H. Goetz,‡ Brian R. Holder,‡
Bhagyashree Khunte,‡ Sarah Lazzaro,‡ Chris Limberakis,‡ Sangwoo Ryu,‡ Michael J. Shapiro,‡
‡
‡
#
§
,∥
Laurie Tylaska, Jiangli Yan, Rushia Turner, Siegfried S. F. Leung, Mahesh Ramaseshan,∥
David A. Price,† Spiros Liras,† Matthew P. Jacobson,§ David J. Earp,*,∥ R. Scott Lokey,*,# Alan
M. Mathiowetz,† and Elnaz Menhaji-Klotz*,†
Pfizer Worldwide Research & Development, †Cambridge, Massachusetts 02139, United States
and ‡Groton, Connecticut 06340, United States
#Chemistry and Biochemistry, University of California, Santa Cruz, California 95064, United
States
§Department of Pharmaceutical Chemistry, University of California, San Francisco, California
94158, United States
∥Circle Pharma, South San Francisco, California 94080, United States
