Inclusion of Paracetamol into ˇ-cyclodextrin nanocavities in solution and in the
solid state
Maged El-Kemarya,∗, Saffaa Sobhya, Samy El-Dalyb, Ayman Abdel-Shafic
a Nanochemistry Laboratory, Chemistry Department, Faculty of Science, Kafrelsheikh University, 33516 Kafr ElSheikh, Egypt
b Chemistry Department, Faculty of Science, Tanta University, 31527 Tanta, Egypt
c Department of Chemistry, Faculty of Science, Ain Shams University, 115611 Cairo, Egypt
a r t i c l e i n f o
a b s t r a c t
Article history:
We report on steady-state UV–visible absorption and emission characteristics of Paracetamol, drug used
as antipyretic agent, in water and within cyclodextrins (CDs): ˇ-CD, 2-hydroxypropyl-ˇ-CD (HP-ˇ-CD)
and 2,6-dimethyl-ˇ-CD (Me-ˇ-CD). The results reveal that Paracetamol forms a 1:1 inclusion complex
with CD. Upon encapsulation, the emission intensity enhances, indicating a confinement effect of the
nanocages on the photophysical behavior of the drug. Due to its methyl groups, the Me-ˇ-CD shows
the largest effect for the drug. The observed binding constant showing the following trend: Me-ˇ-
CD > HP-ˇ-CD > ˇ-CD. The less complexing effectiveness of HP-ˇ-CD is due to the steric effect of the
hydroxypropyl-substituents, which can hamper the inclusion of the guest molecules. The solid state
inclusion complex was prepared by co-precipitation method and its characterization was investigated
by Fourier transform infrared spectroscopy, 1H NMR and X-ray diffractometry. These approaches indi-
cated that Paracetamol was able to form an inclusion complex with CDs, and the inclusion compounds
exhibited different spectroscopic features and properties from Paracetamol.
Received 25 January 2011
Received in revised form 19 May 2011
Accepted 25 May 2011
Keywords:
Paracetamol
ˇ-Cyclodextrin
Hydroxypropyl-ˇ-cyclodextrin
Methyl-ˇ-CD
Inclusion complex
© 2011 Elsevier B.V. All rights reserved.
1. Introduction
Recently, the spectroscopy and photophysical properties of
Paracetamol was reported in ␣-, ␤- and ␥-cyclodextrin cavities and
Cyclodextrin (CD) nanocavities are potential candidates for drug
delivery systems through the formation of inclusion complexes
(Scheme 1) on the basis of noncovalent interaction [1], due to their
effect on solubility, dissolution rate, chemical stability and absorp-
tion of drugs. The hydrophobic environment of a CD nanocavity can
lead to the alteration of physical, chemical, and biological proper-
ties of guest molecules [2–8]. As already reported for a large variety
of systems, a CD cavity is able to influence both the fate of the reac-
tion intermediates and the deactivation pathways of the excited
caged drugs [9,10]. This may lead to a decrease in phototoxicity.
Paracetamol (N-acetyl-4-aminophenol, Scheme 2) is a popular
antipyretic agent which also possessed analgesic (pain-relieving)
properties. In several countries, it is most commonly used by people
who are sensitive or allergic to aspirin. Although, it is not effective
against inflammation, compared to Aspirin or Ibuprofen; it is well
tolerated by most people, including children. Paracetamol rarely
causes side effects as long as it is taken as directed. However, pro-
longed or habitual use of Paracetamol may lead to liver damage or
failure.
micellar medium [11]. The systematic study of some modified ˇ-CD
as HP-ˇ-CD and Me-ˇ-CD in solution and in the solid state is also
important. Most CD derivatives are highly water-soluble products.
Among the chemically modified ˇ-CDs, methylated and hydrox-
yalkylated CDs have received considerable attention because their
physicochemical properties and aqueous solubility are significantly
changed and the inclusion behavior is largely magnified, depending
on the degree of substitution [12].
In this paper we present the influence of native and modified ˇ-
CD on the complexation of Paracetamol by the determination of the
corresponding stability constants in the hope of improving some
of the pharmaceutical properties of Paracetamol using UV–visible
absorption and fluorescence spectroscopy. Solid inclusion com-
plexes containing Paracetamol and cyclodextrins were prepared by
co-precipitation method and characterized by Fourier-transform
infrared and X-ray diffractometry techniques.
2. Experimental
2.1. Materials
∗
Paracetamol 99% (Aldrich), diethylether (Sigma–Aldrich), ˇ-CD
(Fluka), HP-ˇ-CD (Fluka) and Me-ˇ-CD (Fluka) were analytical
Corresponding author. Tel.: +20 473 215 174; fax: +20 473 215 175.
E-mail address: elkemary@yahoo.com (M. El-Kemary).
1386-1425/$ – see front matter © 2011 Elsevier B.V. All rights reserved.
doi:10.1016/j.saa.2011.05.084

M. El-Kemary et al. / Spectrochimica Acta Part A 79 (2011) 1904–1908
1905
2.3. Preparation of the physical mixture
Appropriate amounts of drug and CD to give 1:1 molar ratio were
mixed thoroughly in a mortar by geometric dilution technique [13].
The physical mixture was sieved and stored in airtight container.
2.4. Preparation of solid inclusion complexes
The solid inclusion complexes used in this investigation were
prepared by the Co-precipitation method. Amounts of the drug and
CD with 1:1 molar ratios were accurately weighed. Drug was dis-
solved in 20 ml of ether and CD was dissolved in 100 ml of water.
The two solutions were mixed, agitated for 24 h at 28 ◦C and then
cooled to 2 ◦C in a refrigerator. The mixture was filtered, washed
with ether and dried at 25 ◦C under vacuum for 24 h.

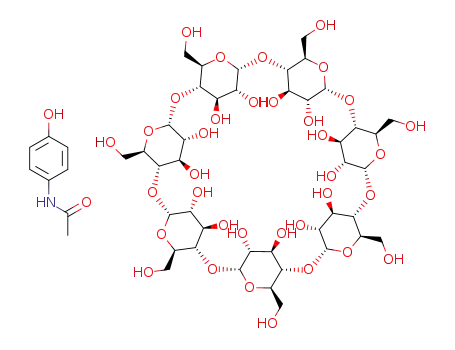

Scheme 1. Schematic view of the process of drug cyclodextrin inclusion.
OH
O
3. Results and discussions
CH
N
H
3
3.1. Steady-state absorption and fluorescence spectra
Fig. 1A displays the UV–visible absorption spectra of Paraceta-
mol drug in neutral water and in the presence of Me-ˇ-CD. A very
small change in the spectra was detected upon addition of Me-ˇ-
CD, suggesting a weak interaction between CD and drug or a small
change in the molar absorption coefficient of the drug. Fig. 1B shows
the steady-state emission spectra of neutral aqueous solution of
Paracetamol and in the presence of different Me-ˇ-CD concentra-
tions, upon excitation at 275 nm. In water, Paracetamol exhibits a
band with a maximum at 302 nm. Upon addition of Me-ˇ-CD, the
emission intensity is enhanced with a small red shift of the band,
suggesting the formation of complex between Paracetamol and Me-
ˇ-CD (Scheme 1). For ˇ-CD and HP-ˇ-CD solutions, the increase in
the emission intensity is relatively weaker.
The fluorescence band maximum of Paracetamol displays also
insignificant shift on going from protic polar water (302 nm) to rela-
tively aprotic non-polar cyclohexane (304 nm; not shown in figure).
A similar spectral change was also observed on the absorption spec-
tra of Paracetamol, reflecting non-polar neutral structure of both
ground and excited states of Paracetamol.
Scheme 2. Paracetamol (N-acetyl-4-aminophenol).
reagent grades and used without further purification. Double dis-
tilled water was used for the preparation of all solutions.
2.2. Apparatus and methods
The absorption and fluorescence spectra were recorded on a Shi-
madzu 2450 UV–visible spectrophotometer and a Shimadzu 5301
PC spectrofluorometer, respectively. Fourier-transform infrared
(FT-IR) spectra were measured with a JASCO spectrometer 4100.
The powder X-ray diffraction (XRD) analysis was made on a Rigaku
2550D/max VB/PC X-ray diffractometer using Cu K␣ radiation
(ꢀ = 0.154056 nm).
NMR spectra were recorded in D2O on a Varian Mercury VX-300
spectrometer. 1H NMR data analysis was carried out using MestReC
4.9.9 software. Chemical shifts have been expressed in parts per
million (ppm) relative to HDO signal as a reference at 4.80 ppm.
For 1H NMR measurements, the concentrations of Paracetamol and
ˇ-CD were about 2 × 10−3 M and 0.02 M, respectively.
The geometry of the molecule was optimized using AM1 of the
MOPAC 97 program.
This result indicates that binding of Paracetamol to CD changes
the local solvation environment (water) in a way similar to chang-
ing the solvent from protic to aprotic medium. Since Paracetamol
has three hydrogen-bonding sites (amino nitrogen, phenolic oxy-
gen as well as carbonyl group, Scheme 2). Upon encapsulation,
Paracetamol experiences a reduced H-bonding interaction with
water.
1.0
A
B
[Me-β-CD] / mM
300
8
7
6
5
4
0.8
[Me-β–CD]/ mM
0.6
8
200
7
3
2
1
6
0.4
5
4
100
0
3
0.2
2
0
0.0
0
280
300
320
340
360
380
400
250
300
350
400
Wavelength / nm
Wavelength / nm
Fig. 1. (A) Absorption and (B) fluorescence spectra of Paracetamol (10−4 M) in water in absence and presence of Me-ˇ-CD at 298 K.
