Journal of Agricultural and Food Chemistry
Article
ether, from 100:0 to 87:13), Fr-2 (eluted with petroleum ether/
diethyl ether, from 87:13 to 0:100), and Fr-3 (eluted with acetone
and methanol). Each fraction containing compounds of the similar
polarity was tested for antifungal activity to identify the most
prominent compounds.
specific metabolites of pollen coat, where they might protect
pollen grains against plant diseases caused by microorganisms
and other results of damage, such as UV radiation and
oxidative stress.9−11
There are a number of publications focusing on the
biological activities of bee pollens and their extracts, even
though they contained thousands of bioactive compounds. The
present study reports the structural analysis of sunflower (
Helianthus annuus L.) bee pollen fractions focusing on close-up
composition of present hydroxycinnamic acid amides. The aim
of this work was to synthesize pure HCAAs of putrescine and
spermidine and to test their activity against widespread
spoilage fungi. Our conclusions may help to understand the
role of secondary metabolites in the microbial protection of
pollen grains.
Synthesis of p-Coumaric and Ferulic Acid Amides of
Putrescine. To a stirred solution of selected phenolic acid (9.0
mmol; 1.48 g of p-coumaric acid, 1.75 g of ferulic acid, respectively)
and N-Boc-1,4-butanediamine (8.5 mmol, 1.60 g) in anhydrous
CH2Cl2 (150 mL) on an ice water bath was added dropwise a
solution of N,N′-dicyclohexylcarbodiimide (DCC, 14.4 mmol, 2.97 g)
in 65 mL of CH2Cl2. The reaction mixture was allowed to warm to
laboratory temperature and stirred for 2 days until the reaction was
completed. Precipitated dicyclohexylurea was filtered off. Monoacy-
lated derivatives of N-Boc-1,4-butanediamine were purified by column
chromatography on silica gel (70−230 mesh). t-Butyl carbamate
group was deprotected by 30 mL of CF3COOH in CH2Cl2 (150 mL)
under an inert atmosphere of argon. After the mixture had been
stirred for 40 min at 25 °C, the solvent was evaporated under reduced
pressure. The residue was taken up in the mixture of methanol (25
mL) with hydrochloric acid (50 mL, 1 mol/dm3) and evaporated to
dryness. The last step was repeated two times. Finally, dissolution of
the resulting phenolamides in abs EtOH and subsequent evaporation
to dryness provided the desired products p-coumaroyl putrescine (1a)
and feruloyl putrescine (1b) in the form of hydrochloride.14 Di-p-
coumaroyl putrescine (2) was synthesized in the same manner with
the exception that amino groups were not protected by t-butyl
carbamate group. p-Coumaroyl putrescine and feruloyl putrescine
were obtained in 93% and 89% yields, respectively.
MATERIALS AND METHODS
■
Reagents and Instrumentation. Ferulic acid, p-coumaric acid,
putrescine, spermidine, N-Boc-1,4-butanediamine, N,N′-dicyclohex-
ylcarbodiimide, tetrahydrofuran, trifluoroacetic acid, and hydrochloric
acid were purchased from Sigma-Aldrich Co. All other reagents and
solvents were of analytical grade. FTIR spectra (spectral region 4000−
400 cm−1, 64 scans, resolution 2 cm−1) of the fractions were recorded
in the form of KBr tablets on Nicolet 6700 FTIR spectrometer
(Thermo Scientific, Waltham, MA) using Omnic 8.0 software. FT
Raman spectra (spectral region 4000−100 cm−1, 1000 scans,
resolution 4 cm−1) of the fractions were recorded with FT Raman
module of FTIR Nicolet iS50 spectrometer (ThermoScientific,
Waltham, MA), equipped with a Nd:YAG laser (excitation line
1064 nm, laser power 100 mW), CaF2 beam splitter, and InGaAs
detector. Obtained spectra were exported to Origin 6.0 (Microcal
Origin, U.S.) software in CSV or TXT format, where they were 5-
point filtered and baseline corrected. The second derivative algorithm

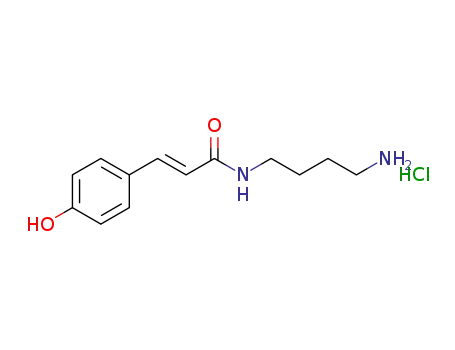

p-Coumaroyl Putrescine Hydrochloride (1a). The product was
obtained in 93% yield as a yellowish-brown solid. Mp = 102−104 °C;
Rf = 0.60 (CH2Cl2/CH3OH/27% aq NH3, 2:2:1); UV (CH3OH) λmax
308 nm; 1H NMR (500 MHz, CD3OD) δ 1.47 (4H, m, H-3, 4), 2.72
(2H, t, J = 7.2 Hz, H-2), 3.16 (2H, t, J = 6.5 Hz, H-5), 6.30 (1H, d, J
= 15.9 Hz, H-8′), 6.57 (2H, d, J = 8.5 Hz, H-3′, 5′), 7.21 (2H, d, J =
8.5 Hz, H-2′, 6′), 7.32 (1H, d, J = 15.9 Hz, H-7′); 13C NMR (126
MHz, CD3OD) δ 25.9 (C-4), 27.0 (C-3), 40.4 (C-2), 40.8 (C-5),
115.2 (C-8′), 117.0 (C-3′, 5′), 127.0 (C-1′), 131.3 (C-2′, 6′’), 144.7
(C-7′), 161.5 (C-4′), 168.7 (C-9′); IR (KBr) 3327, 1211 cm−1 (OH),
3066, 3036, 1167, 980 cm−1 (CH), 2929, 2851, 1448, 1440, 1371,
736 cm−1 (CH2), 1644, 1537, 1344 cm−1 (CONH), 1627, 1601,
1580, 1514 cm−1 (CC), 1132, 828 cm−1 (CNC), 1089, 1048 cm−1
(CC, CN), 641, 515 cm−1 (skeletal); Raman (λex 1064 nm) 3328,
1211 cm−1 (OH), 3066, 3036, 1168, 979 cm−1 (CH), 2935, 2854,
1444, 1347 cm−1 (CH2), 1706 cm−1 (CO), 1643, 1317 cm−1
(CONH), 1627, 1600, 1585, 1517 cm−1 (CC), 1131, 858 cm−1
(CNC), 1074, 1050, 1029 cm−1 (CC, CN), 644, 536, 455, 414, and
372 cm−1 (skeletal); HRESIMS m/z 235.14414 [M + H]+ (calcd for
was used for analysis of overlapped bands. H NMR and 13C NMR
1
APT spectra of the compounds or fractions dissolved in deuterated
solvents were recorded on Bruker Avance 600 and Bruker Avance 500
(Bruker, Inc., Billerica, MA) spectrometers. Working frequencies were
1
600.1 and 499.8 MHz for H, and 150.9 and 125.7 MHz for 13C,
respectively. Correlation spectroscopic 1H,1H-PFG-COSY and
1H,13C-HSQC experiments were applied for resolution and assign-
ment of resonance signals. ESI−MS and APCI−MS spectra were
measured with LC−MS LTQ-Orbitrap Velos (ThermoScientific,
Waltham, MA) and LC−MS TSQ Quantum Access Max Triple
Quadrupole mass spectrometers (Thermo Scientific, Waltham, MA).
Ultraviolet (UV) spectra were recorded using a Cary 50 UV−vis
spectrophotometer (Varian, Inc., Palo Alto, CA). Merck precoated
silica gel F254 plates were used for thin-layer chromatography (TLC).
Spots were detected by heating after spraying with 5% phosphomo-
lybdic acid in EtOH. Melting points were measured on a Boetius hot-
stage microscope and were not corrected.
Sunflower Bee Pollen Samples. Monofloral sunflower bee
pollen was obtained from the Slovak University of Agriculture in
Nitra, Slovak Republic (Assoc. Prof. Jan Brindza). The bee pollen
material was taken from the hive storages and stored in the freezer
until the time of chemical study. The wet bee pollen contained 15.5%
m/m of water, 14.0% m/m of proteins, 6.5% m/m of lipids, 17.0% of
carbohydrates, and 2.2% m/m of ash. Botanical origin of the raw
material was confirmed by scanning electron microscope (SEM)
analyses of the surface of bee pollen granules with a focused beam of
+
C13H19N2O2 = 235.14410).
Feruloyl Putrescine Hydrochloride (1b). The product was
obtained in 89% yield as a yellowish solid. Mp = 113−115 °C; Rf =
0.58 (CH2Cl2/CH3OH/27% aq NH3, 2:2:1); UV (CH3OH) λmax 320
nm; 1H NMR (500 MHz, CD3OD) δ 1.66 (4H, m, H-3, 4), 2.93 (2H,
t, J = 7.3 Hz, H-2), 3.33 (2H, t, J = 6.6 Hz, H-5), 3.84 (3H, s, H-10′),
6.46 (1H, d, J = 15.7 Hz, H-8′), 6.76 (1H, d, J = 8.2 Hz, H-5′), 7.00
(1H, dd, J = 8.2 Hz, 2.0 Hz, H-6′), 7.10 (1H, d, J = 1.9 Hz, H-2′),
7.45 (1H, d, J = 15.7 Hz, H-7′); 13C NMR (126 MHz, CD3OD) δ
24.5 (C-4), 26.0 (C-3), 39.0 (C-2), 39.7 (C-5), 55.0 (C-10′), 110.2
(C-2′), 115.1 (C-5′), 122.3 (C-6′), 126.5 (C-1′), 127.0 (C-1′), 141.8
(C-7′), 148.0 (C-4′), 149.0 (C-4′), 168.4, 169.3, 170.4 (C-9′); IR
(KBr) ν = 3381, 1214 cm−1 (OH), 3020, 1168, 978 cm−1 (CH),
2932, 2856, 1444, 1363, 737 cm−1 (CH2), 1654, 1539, 1337 cm−1
(CONH), 1602, 1582, 1513 cm−1 (C = C), 1131, 830 cm−1 (CNC),
1108 cm−1 (OCH3), 1014 cm−1 (CC, CN), 515 cm−1 (skeletal);
Raman (λex 1064 nm) ν = 3064, 3019, 1168, 973 cm−1 (CH),
2983, 2937, 2867, 2857, 1442 cm−1 (CH2), 1733 cm−1 (CO),
1654, 1315 cm−1 (CONH), 1625, 1602, 1583, 1517 cm−1 (CC),
1222 cm−1 (OH), 1122, 828 cm−1 (CNC), 1081, 1029 cm−1 (CC,
CN), 644, 524, 449, 416, and 377 cm−1 (skeletal); HRESIMS m/z
Extraction and Fractionation of Crude Sunflower Bee
Pollen Extract. Monofloral sunflower bee pollen was pulverized.
Fine powder (12.684 g, moisture: 9.48%) was subjected to solvent
extraction with CHCl3/CH3OH mixture (2:1, v/v) at room
temperature for 6 h and filtered. The filtrate was evaporated under
reduced pressure to afford lipophilic extract (1.157 g), which was
purified by flash chromatography on silica gel (70−230 mesh) column
to yield three fractions: Fr-1 (eluted with petroleum ether/diethyl
+
265.15491 [M + H]+ (calcd for C14H21N2O3 = 265.15467).
B
J. Agric. Food Chem. XXXX, XXX, XXX−XXX
