818
Russ. Chem. Bull., Int. Ed., Vol. 68, No. 4, April, 2019
Lagoda et al.
provide any information on the role of such compounds
in functioning of the catalytic system.12,13
Results and Discussion
Obviously, the question of involvement of phosphine
ligands in catalytically active species can be only elucidated
when studying reactions proceeding under real catalytic
conditions. Studies of patterns of differential selectivity of
catalytic systems can become the most important tool in
such investigations. In contrast to the value of catalytic
activity, which is generally measured in kinetic studies,
the value of differential selectivity is related exclusively to
the nature of catalytically active compounds. Therefore,
assessing this parameter upon controlled change under the
process conditions (particularly, on adding phosphine
ligands to the catalytic system) will help to get an unam-
biguous answer to the question whether the ligand addition
results in changing the nature of an active catalyst.
Earlier, we proposed a method of qualitative and quan-
titative assessment of the reaction differential selectivity
under conditions of competition between two similar
substrates by using the so-called phase trajectories repre-
senting the dependencies between the yields of the products
obtained from the competing substrates.14,15 In this case
a slope to any point of the phase trajectory is a ratio of
accumulation rates of the products of competing reactions,
which is related unambiguously to the value of the dif-
ferential selectivity.15 Therefore, a change in phase trajec-
tories obtained on varying the reaction conditions, such
as ligand addition, is an unequivocal evidence for a change
of the differential selectivity value of the catalytic system,
and consequently, for a change in the nature of the active
catalyst. In turn, a coincidence of phase trajectories can
be considered as a proof of invariability of the catalytically
active species. This requires, however, an additional ex-
perimental verification with a wider set of variable para-
meters because of possible lower sensitivity of the selectiv-
ity to a change in variable parameters.
In most studies, selectivity is assessed based on the
target and side reaction products formed from the same
substrate. At the same time, an approach based on analy-
sis of differential selectivity using two equitype competing
substrates, enables one to recognize the case wherein
competing reactions proceed on the catalytically active
species of the same type. This enhances the validity of an
interpretation of the observed regularities in the differen-
tial selectivity changes. Moreover, using pairs of various
competing reagents (e.g., a pair of anhydrides or a pair of
alkenes in the Heck reaction) makes it possible to elucidate
the nature of active catalyst directly in the steps of the
catalytic cycles, in which the given reagents operate. The
conventional mechanism of the catalytic cycle of the Heck
reaction, that includes aromatic anhydrides (ligands at-
tached to the palladium atom are omitted) is illustrated in
Scheme 1. In Scheme 2 the mechanism for the Heck reac-
tion with two aromatic anhydrides (a) or two alkenes (b)
competing is shown. Scheme 3 represents catalytically
active complexes the nature of which governs the value of
differential selectivity when a pair of aromatic anhydrides
(a) or a pair of alkenes (b) are involved in competition.
The value of differential regioselectivity (c) is also depen-
dent of the complexes.
Experimental
Samples of the reaction mixture were analyzed on a Chrom-
atech-Crystal 5000 gas-liquid chromatograph (Chromatech,
Russia) (FID, column HP-5 15 m) and Shimadzu GC-MS
QP-2010 Ultra gas chromatograph-mass spectrometer (Shimadzu,
Japan) with electron-impact ionization (ionization energy 70 eV,
column GsBP-5MS 0.25 m×0.25 mm×30 m, helium as carrier
gas) and programmed heating from 100 to 250 С. Mass spectra
obtained were compared to the library ones (Wiley, NIST, and
NIST05 mass spectral libraries). Quantitative sample composi-
tions were determined using the internal standard (naphthalene)
method with calibration on authentic samples.
UV spectra of the solutions under investigation were re-
corded on a SF-2000 spectrophotometer (EDO «Spektr», Russia) in
the wavelength range of 190—600 nm in quartz cells with 0.01 cm
optical path length. Concentrations of complex Pd(PPh3)2Cl2
were measured using the absorption intensity at 350 nm. A cali-
bration curve for this wavelength was pre-constructed based on
the spectra of reference solutions of Pd(PPh3)2Cl2 in N-methyl-
pyrrolidone (NMP). Herewith, also through plotting the cal-
ibration curves, the absorbance maximum at 350 nm from

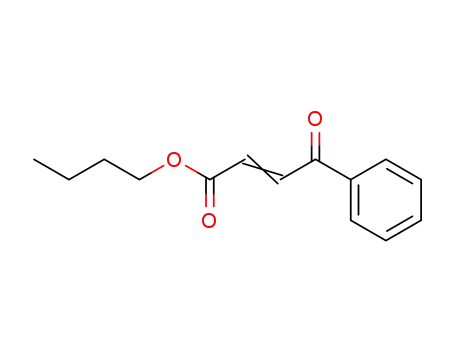

stilbene, 4-methoxystilbene, n-butyl cinnamate, and chalcone
formed in the process was used with quantitites of the said sub-
stances being determined using chromatography-mass spectro-
metry technique.
Catalytic experiments. All experiments reported herein were
run in inert atmosphere (argon). Reagents and solvents in use
were preliminary degassed and stored under argon. Exper-
iments on arylating alkenes with aromatic anhydrides were per-
formed by mixing a pair of competing anhydrides or alkenes
(2.5 mmol each), a common reagent (styrene or benzoic an-
hydride respectively, 5 mmol), a halide salt additive (0.5 mmol),
and naphthalene (0.5 mmol) as an internal standard, in 5 mL of
NMP. The resulting solution was purged with argon and trans-
ferred into a glass reactor, pre-evacuated and filled with argon,
fitted with a rubber membrane and a magnetic stirrer. The reac-
tor with pre-added PdCl2 (0.08 mmol) and in some cases PPh3
(0.16 mmol), was then placed in an oil bath thermostatized
at 140 С. The experiments were run at constant stirring.
Each experiment was carried out in triplicate for a reproduc-
ibility check.
According to the generally accepted concepts, an aro-
matic anhydride is activatied in a catalytic cycle of the
Heck reaction at the step of its oxidative addition to Pd(0)
complexes10 (see Scheme 1, А). Therefore, evaluation of
differential selectivity patterns based on the products of
alkene arylation with two aromatic anhydrides competing
(see Scheme 2, a) enables one to get insight into the nature
of Pd(0) complexes (see Scheme 3, a) involved in the
oxidative addition step. Experiments with competing al-
