Fine Tuning the Anion Binding Properties of
2,6-Diamidopyridine Dipyrromethane Hybrid Macrocycles
Jonathan L. Sessler,*,† Evgeny Katayev,†,‡ G. Dan Pantos,† Pavel Scherbakov,‡
Marina D. Reshetova,‡ Victor N. Khrustalev,§ Vincent M. Lynch,† and
Yuri A. Ustynyuk*,‡
Contribution from the Department of Chemistry and Biochemistry and Institute for Cellular and
Molecular Biology, 1 UniVersity Station - A5300, UniVersity of Texas at Austin,
Austin, Texas 78712-0165, Department of Chemistry, M. V. LomonosoV Moscow State
UniVersity, Leninskie Gory, 119899 Moscow, Russian Federation, and A. N. NesmeyanoV
Institute of Organoelement Compounds, 28 VaViloVa str., 117997 Moscow, Russian Federation
Received April 9, 2005; E-mail: sessler@mail.utexas.edu; yust@nmr.chem.msu.su
Abstract: The synthesis, characterization, and anion-binding properties of a series of 2,6-diamidopyridine
dipyrromethane hybrid macrocycles is presented. As part of this work, a new method for effecting the
oxidation of dipyrromethane-based macrocycles in organic solvents has been developed. The macrocyclic
frameworks presented here stand out because of their ease of synthesis and tunable anion-binding
properties. Evidence for anion binding was obtained from UV-vis spectroscopic titrations carried out in
acetonitrile. The results clearly indicate that by changing the flexibility, cavity size, and directionality of
anion-binding moieties in the macrocyclic framework the anion selectivity may be changed dramatically.
These results are in accord with density functional theory molecular modeling calculations performed on
one member of the series.
Introduction
Anion recognition has emerged as an important theme in
modern supramolecular chemistry.1 The synthesis of artificial
receptors with high affinity and selectivity for specific anions
is an ongoing goal of researchers in the field. In addition to
their academic interest, reflecting in part the inherent challenge
of designing systems that can recognize anions of various shapes
and charges with controlled specificity, there are a number of
potential applications that are stimulating interest in this area.2
These run the gamut from anion sensing to drug development
and radioactive and nonradioactive waste remediation. Over the
past 10 years many groups, including our own, have devoted
considerable effort to the synthesis of novel anion receptors.3
The focus of our attention has largely been on pyrrole-based
systems whose properties can be potentially fine tuned. In this
context, we recently reported the pyridine-2,6-dicarboxamide-
dipyrromethane receptor 1 (Figure 1),4 a system that shows
promise as a sulfate anion receptor. In an effort to build on
these findings, we have sought to prepare other pyridine-2,6-
dicarboxamide dipyrromethane macrocyles and wish to report

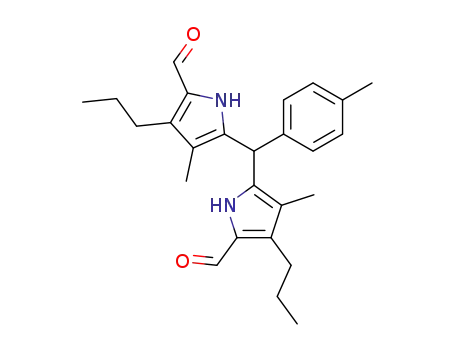

Figure 1. Pyridine 2,6-dicarboxamide dipyrromethane receptor 14.
here the synthesis of compounds 2-4. These systems display
anion-binding properties very different from those of 1.
Macrocycle 14 displays high selectivity for tetrahedral anions
over spherical, linear, or trigonal planar anions. It is thus a good
candidate for sulfate extraction from nitrate-rich mixtures.4
