Heme Carbonyls: Environmental Effects on νC-O and
Fe-C/C-O Bond Length Correlations
Nathan J. Silvernail,† Arne Roth,† Charles E. Schulz,*,‡ Bruce C. Noll,† and
W. Robert Scheidt*,†
Contribution from the Department of Chemistry and Biochemistry, UniVersity of Notre Dame,
Notre Dame, Indiana 46556, and Department of Physics, Knox College,
Galesburg, Illinois, 61401
Received May 13, 2005; E-mail: scheidt.1@nd.edu

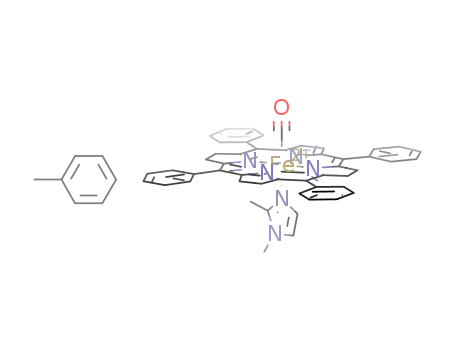

Abstract: The synthesis and characterization of four low-spin (carbonyl)iron(II) tetraphenylporphyrinates,
[Fe(TPP)(CO)(L)], where L ) 1-methylimidazole, 2-methylimidazole, 1,2-dimethylimidazole (unsolvated),
and 1,2-dimethylimidazole (toluene solvate) are reported. The complexes show nearly the same value of
νC-O in toluene solution (1969-72 cm-1) but a large range of CO stretching frequencies in the solid-state
(1926-1968 cm-1). The large solid-state variation results from CO interactions in the solid state, as shown
by an examination of the crystal structures of the four complexes. The high precision of the four structures
obtained allows us to make a number of structural and spectroscopic correlations that describe the Fe-
C-O and NIm-Fe-CO units. The values of νC-O and the Fe-C and C-O bond distances are strongly
correlated and provide a structural, as well as a spectroscopic, correlation of the π back-bonding model.
The interactions of CO described are closely related to the large range of CO stretching frequencies observed
in heme proteins and specific interactions observed in carbonylmyoglobin (MbCO).
Introduction
has been extensively studied by vibrational spectroscopy; the
trends observed in isoelectronic series of carbonyl species are
Studies involving the carbonyl (CO)1 ligand have had a
profound influence in both classical inorganic and organo-
metallic chemistry, as well as bioinorganic chemistry systems,
such as the iron porphyrinate (heme) carbonyls. The carbonyl
ligand has been used to probe the nature of metal-ligand
bonding and to provide information on the nature of the
environment of prosthetic groups in proteins. For inorganic
carbonyl derivatives, it has long been noted that there is a
relationship between the strength of the metal-carbon bond and
that of the carbon-oxygen bond.2 The overall bonding interac-
tion is that any feature that leads to strengthening the C-O
bond concomitantly leads to a weakening of the metal-carbon
bond. This is the basis of the so-called π-back-bonding model
that is widely applied as a general model for bonding in
complexes with π-acceptor (π-acid) ligands. This correlation
a well-known phenomenon.3 In heme carbonyl derivatives,
trends in the Fe-C-O unit vibrations have long been estab-
lished and are known as the “inverse correlation” of the iron-
carbon stretching frequency (νFe-CO) and the carbon-oxygen
stretching frequency (νC-O).4,5 An increase in the Fe-C bond
order is seen to lead to a decrease in the C-O bond order.
Vibrational spectroscopy has been used since the inception
of bioinorganic chemistry to study protein active sites. Vibra-
tional spectroscopic techniques such as infrared (IR),6 resonance
Raman (rR),7 and nuclear resonance vibrational spectroscopy
(NRVS),8 allow the use of diatomic probe ligands to study
bonding and the environment near the binding site in metal-
containing proteins.
The diatomic ligands CO, CN-, NO, and O2 all display ligand
stretches that can be observed with vibrational techniques and
have been extensively employed in the study of hemes and heme
proteins.7-13 The CO ligand has a high affinity for iron(II)
* To whom correspondence should be addressed: E-mail Scheidt.1@nd.edu
(W.R.S.); Fax (574) 631-4044 (W.R.S.).
† University of Notre Dame.
‡ Knox College.
(1) The following abbreviations are used in this paper. Proteins: Mb,
myoglobin; MbCO, myoglobin with coordinated CO; Hb, hemoglobin;
HbCO, hemoglobin with coordinated CO. Porphyrins: Por, generalized
porphyrin dianion; OEP, dianion of octaethylporphyrin; Deut, dianion of
deuteroporphyrin; TpivPP, dianion of meso-R,R,R,R-tetrakis(o-pival-
amidophenyl)porphyrin; TPP, dianion of meso-tetraphenylporphyrin.
Ligands: Im, generalized imidazole; 1-MeIm, 1-methylimidazole; 2-Me-
HIm, 2-methylimidazole; 1,2-Me2Im, 1,2-dimethylimidazole; SEt-, anion
of ethanethiol; THF, tetrahydrofuran; THT, tetrahydrothiophene; Py,
pyridine. Spectroscopic techniques: IR, infrared absorption spectroscopy;
rR, resonance Raman spectroscopy; NRVS, nuclear resonance vibrational
spectroscopy.
(3) Nakamoto, K. Infrared and Raman Spectra of Inorganic and Coordination
Compounds, 3rd ed.; Wiley and Sons: New York, 1978; pp 279-281.
(4) Tsubaki, M.; Ichikawa, Y. Biochim. Biophys. Acta 1985, 827, 268.
(5) Uno, T.; Nishimura, Y.; Masamichi, T.; Makino, R.; Iizuka, T.; Ishimura,
Y. J. Biol. Chem. 1987, 262, 4549.
(6) Alben, J. O.; Fiamingo, F. G. In Optical Techniques in Biological Research;
Rousseau, D. L., Ed.; Academic Press: Orlando, 1984; pp 133-179.
(7) (a) Rousseau, D. L.; Ondrias, M. R. In Optical Techniques in Biological
Research; Rousseau, D. L., Ed.; Academic Press: Orlando, 1984; pp 65-
132. (b) Kerr, E. A.; Yu, N. T. Biological Applications of Raman
Spectroscopy; Spiro, T. G., Ed.; Wiley and Sons: New York, 1988; Vol.
3, pp 39-95.
(8) Scheidt, W. R.; Durbin, S. M.; Sage, J. T. J. Inorg. Biochem. 2005, 99, 60.
(9) Wang, J. H.; Nakahara, A.; Fleischer, E. B. J. Am. Chem. Soc. 1958, 80,
1109.
(2) Cotton, F. A.; Wilkinson, G.; Murillo, C. A.; Bochmann, M. AdVanced
Inorganic Chemistry, 6th ed.; Wiley and Sons: New York, 1999; pp 636-
639.
9
14422
J. AM. CHEM. SOC. 2005, 127, 14422-14433
10.1021/ja053148x CCC: $30.25 © 2005 American Chemical Society

Heme Carbonyls
A R T I C L E S
hemes,9,14-17 and νC-O is conveniently observed.13 Conse-
quently, CO has been widely used as a probe ligand to detect
vacant coordination sites in reduced heme proteins. Carbon
monoxide is also an interesting biomolecule that is a product
of heme catabolism. Accordingly, the background body burden
of CO is relatively high.18 Since CO has a higher binding
constant than that of dioxygen, this natural CO level is
potentially toxic. Nature has solved the toxicity problem by
designing factors into the heme proteins hemoglobin (Hb) and
myoglobin (Mb) so that their CO affinity is reduced by
approximately 2 orders of magnitude compared to that of
analogous iron(II) porphyrinates.19,20
The origin of the molecular basis of the differences (selectiv-
ity) in the O2 and CO affinities between the heme proteins and
low-molecular-weight hemes has been an intensively studied
problem in bioinorganic chemistry. An early prominent idea
was that the environment of the protein ligand binding pocket
somehow imposes constraints on the Fe-C-O unit but not on
the Fe-O-O unit. There has been much discussion about
possible geometric constraints of the Fe-C-O unit in
MbCO.10,21-25 Although a number of protein crystal structures
have supported a rather bent Fe-C-O unit,26-29 more recent
results do not.30,31 Additionally, polarized IR photoselection
measurements on Mb single crystals and in solution support an
only slightly bent Fe-C-O unit.24,25 The original idea of
geometric constraints imposed by the protein has largely shifted
to investigations of the global (electrostatic) environment near
the CO binding site.23 CO has been widely used to investigate
the specific and global (electrostatic) environment.
frequencies has been attributed to varying conformational, and
subsequently, electrostatic environments in the heme pocket.34-36
A complete understanding of these bands is of interest since
they provide information about the relationship of conforma-
tional substates with functional states of the protein.23-29,69
