PROTOTROPIC ISOMERIZATION OF SPIRO[2,3]HEXANES
191
performed by column chromatography on silica gel L 40/
100 (Chemapol). 3-Methylenecyclobutane-1-carbonitrile
(IV) [10], bromomalononitrile [5], dimethyl(ethyl)
diazomalonates [11], potassium tert-butylate [12], and
butyllithium [13] were prepared by published procedures.
E-3-Bromo-3-(2,2-dicyanoethyl)cyclobutane-1-
carbonitrile (Va). Into a quartz vessel was charged
0.93 g (10 mmol) of nitrile I and 1.45 g (10 mmol) of
bromomalononitrile in 10 ml of CH2Cl2. To remove oxygen
a weak argon flow was passed through the solution for
15 min, and then the UV irradiation was switched on
(from a medium pressure mercury lamp). The irradiation
was continued till complete consumption of the
bromomalononitrile (TLC monitoring). The reaction
continued for ~6 h. On removing the solvent the residue
was recrystallized from CH2Cl2. Yield 1.40 g (59%), mp
Dimethyl E- and Z- 5-cyanospiro[2.3]hexane-
1,1-dicarboxylate (Ia) and (Ib). Into a flask was
charged 0.93 g (10 mmol) of nitrile I, 1.58 g (10 mmol)
of dimethyl diazomalonate, 50 mg of anhydrous copper
sulfate, and 10 ml of octane. The air from the system
was replaced by a flow of argon. The mixture was stirred
at heating to 120°C till the end of nitrogen liberation
(~30 min). On cooling the reaction mixture was diluted
with 10 ml of ether for homogenizing, and the solution
obtained was subjected to column chromatography on
silica gel using as eluent a mixture of light petroleum ether
and ethyl ether, 1:1. The collected fraction contained a
mixture of diastereomers Ia and Ib in a ratio ~1:1
(according to 1H NMR data) as a viscous oily fluid. Yield
1
128°C. H NMR spectrum, d, ppm: 4.24 d [1H, CH(CN)2,
J 7 Hz], 3.66 quint (1H, H1, J 9 Hz), 2.893.21 m (4H,
H2,4), 2.67 d (2H, CH2, J 7 Hz). 13C NMR spectrum, d,
ppm: 18.6 (C1), 20.7 [C(CN)2], 43.8 (C2,4), 44.1 (C3),
58.7 (CH2), 111.4 (2 C, CN), 119.5 (CN). Found, %:
C 45.60; H 3.50; N 17.73. C9H7N3. Calculated, %:
C 45.40; H 3.39; N 17.65.

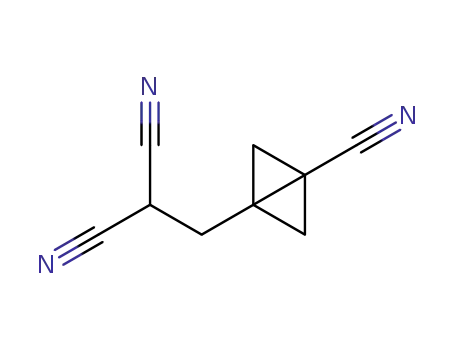

E- and Z-Spiro[2.3]hexane-1,1,5-tricarbonitriles
(IIIa) and (IIIb). a. A solution of 1.67 g (7 mmol) of
bromide Va and 1.0 g (10 mmol) of triethylamine in 10
ml of CH2Cl2 was heated at reflux for 1 h. On cooling
the separated precipitate was filtered off and washed
with dichloromethane (10 ml). The organic layer was
washed with 3% hydrochloric acid, with water, and dried
on sodium sulfate. On removing the solvent we obtained
0.91 g (83 %) of Z-spiro[2.3]hexane-1,1,5-tricarbo-
1
0.91 g (41%). H NMR spectrum, d, ppm: 1.63 s (2H,
H2, Ib), 1.69 s (2H, H2, Ia), 2.422,57 m (4H) and 2.65
2.82 m (4 H), H4,6, Ia + Ib, 3.25 m (1H, H5, Ia), 3.45 m
(1H, H5, Ib), 3.70 s (6H, OCH3, Ia), 3.72 s (6H, OCH3,
Ib). 13C NMR spectra, d, ppm: (Ia) - 17.2 (C5),
25.9 (C2), 32.3 (2 C, C4,6), 33.2 (C3), 35.6 (C1), 52.2 (2C,
OCH3), 121.8 (CN), 167.7 (2C, C=O); (Ib) - 16.6 (C5),
32.5 (C3), 33.1 (2C, C4,6), 35.4 (C1), 52.2 (2C, OCH3),
121.0 (CN), 167.7 (2C, C=O). Found, %: C 59.28;
H 5.73; N 6.12. C11H13NO4. Calculated, %: C 59.19;
H 5.87; N 6.27.
1
nitrile (IIIb), mp 122°C. H NMR spectrum, d, ppm:
1.92 s (2 H, H2), 2.682.82 m (2H) and 2.913.07 m
(2H), H4,6, 3.353.50 m (1H, H5). 13C NMR spectrum,
d, ppm: 9.0 (C1), 16.6 (C5), 28.5 (C2), 31.5 (2 C, C4,6),
34.4 (C3), 112.7 (2 C, CN), 120.0 (CN). Found, %:
C 68.75; H 4.59; N 26.91. C9H7N3. Calculated, %:
C 68.78; H 4.49; N 26.73.
Diethyl E- and Z- 5-cyanospiro[2.3]hexane-1,1-
dicarboxylates (IIa) and (IIb) were prepared by
procedure similar for the above described for compounds
Ia and Ib. On separating the reaction mixture by column
chromatography on silica gel we obtained oily substance
composed of a mixture of diastereomers IIa and IIb in
a ratio ~1:1 (according to 1H NMR data). Yield ~40%.
1H NMR spectrum, d, ppm: 1.36 t (6H, CH3, J 7 Hz,
IIa), 1.47 t (6H, CH3, J 7 Hz, IIb), 1.62 s (2H, H2, IIb),
1.68 s (2H, H2, IIa), 2.432.58 m (4 H) and 2.722.89
m (4H), H4,6, IIa + IIb, 3.25 m (1H, H5, IIb), 3.51 m
(1H, H5, IIa), 4.33 q (4 H, OCH2, J 7 Hz, IIa), 4.48 q
(4H, OCH2, J 7 Hz, IIb). 13C NMR spectra, d, ppm:
(IIa) - 14.0 (2C, CH3), 17.4 (C5), 25.9 (C2), 32.4 (2C,
C4,6), 32.9 (C3), 35.8 (C1), 61.3 (2C, OCH2), 122.1
(CN), 167.5 (2C, C=O); (IIb) - 14.0 (2C, CH3), 16.8
(C5), 26.0 (C2), 32.3 (C3), 33.2 (2C, C4,6), 35.7 (C1), 61.3
(2C, OCH2), 121.3 (CN), 167.5 (2C, C=O). Found, %:
C 61.92; H 7.01; N 5.31. C13H17NO4. Calculated, %:
C 62.14; H 6.82, N 5.57.
b. Likewise using instead of bromide Va the mixture
of bromides Va, Vb recoved from the mother liquor after
recrystallization of bromide Va (see above) we obtained
a mixture of E- and Z-spiro[2.3]hexane-1,1,5-tri-
carbonitriles (IIIa) and (IIIb). From the 13C NMR
spectrum of this mixture by subtracting the signals of
IIIb component was revealed the 13C NMR spectrum
of isomer IIIa, d, ppm: 9.3 (C1), 17.0 (C5), 27.8 (C2),
31.2 (2 C, C4,6), 35.0 (C3), 113.0 (2 C, CN), 120.3 (CN).
Spiro[2.3]hexane-5-carbonitrile (VI). To 100 ml
of diazomethane ether solution prepared from 10.3 g
(0.1 mol) of nitrosomethyl urea was added at cooling to
0°C first 1.40 g (15 mmol) of nitrile IV and then a
dispersion of 0.225 g (1 mmol) of palladium acetate. The
mixture was stirred at 0°C till the end of gas evolution
