Synthesis, crystal structure and magnetic properties of a new 1D cobalt(II) complex with 1,10-phenanthroline and 3,5-dinitrosalicylate acid ligands

Article abstract of DOI:10.1016/j.inoche.2005.07.015

A new cobalt(II) complex, [Co^II(phen){3,5-(NO₂) ₂sal^2-}]_n (1) (3,5-(NO₂) ₂sal^2- = 3,5-dinitrosalicylate anion, phen = 1,10-phenanthroline), the first cobalt(II) complex with 1,10-phenanthroline and 3,5-dinitrosalicylate acid ligands, has been prepared by hydrothermal synthesis and characterized by single crystal X-ray analysis, IR, XPS spectra, TG-DTA analysis and elemental analysis. This compound displays a linear one-dimensional (1D) chain though cobalt atoms and bridging carboxylate groups of 3,5-dinitrosalicylic acid ligands with Co?Co distance of 4.085 ?. Magnetic susceptibility measurements show weak antiferromagnetic interactions in the complexes.

Full text of DOI:10.1016/j.inoche.2005.07.015

Inorganic Chemistry Communications 8 (2005) 983–987
www.elsevier.com/locate/inoche
Synthesis, crystal structure and magnetic properties of a new
1D cobalt(II) complex with 1,10-phenanthroline and
3,5-dinitrosalicylate acid ligands
a
a
a
a
a,
*
Xin He , Ya-Nan Li , Guang-Hua Li , Ya-Zhuo Li , Ping Zhang
,
Jia-Ning Xu ,a, Yue Wang
b
*
a
State Key Laboratory of Inorganic Synthesis and Preparative Chemistry, College of Chemistry, Jilin University, Changchun 130012, PR China
b
Key Laboratory for Supramolecular Structure and Materials of Ministry of Education, Jilin University, Changchun 130012, PR China
Received 13 May 2005; accepted 21 July 2005
Available online 9 September 2005
Abstract
A new cobalt(II) complex, [CoII(phen){3,5-(NO2)2sal2À}]n (1) (3,5-(NO2)2sal2À = 3,5-dinitrosalicylate anion, phen = 1,10-phe-
nanthroline), the first cobalt(II) complex with 1,10-phenanthroline and 3,5-dinitrosalicylate acid ligands, has been prepared by
hydrothermal synthesis and characterized by single crystal X-ray analysis, IR, XPS spectra, TG-DTA analysis and elemental anal-
ysis. This compound displays a linear one-dimensional (1D) chain though cobalt atoms and bridging carboxylate groups of 3,5-
˚
dinitrosalicylic acid ligands with CoÁ Á ÁCo distance of 4.085 A. Magnetic susceptibility measurements show weak antiferromagnetic
interactions in the complexes.
Ó 2005 Elsevier B.V. All rights reserved.
Keywords: Hydrothermal syntheses; Cobalt(II); 3,5-Dinitrosalicylate acid ligands; Magnetic properties
Molecular and supramolecular materials have been
of most interest due to their potential applications and
intriguing structural features [1,2]. Among these materi-
als, a lot of attention has been paid to the metal salicy-
late owing to their biological applications [3–8],
spectroscopic and electrochemical behaviors [9,10]. In
contrast to aromatic dicarboxylate compounds, the
presence of the hydroxyl group in salicylic acid ligand
allows the formation of six-membered rings which can
stabilize the solid networks. Metal–organic frame-
works with salicylic acid ligand and nitrogen-containing
ligands were found to display multipoint diverse struc-
ture types such as discrete clusters [11–21] and one-
dimensional (1D) chain compounds [22–24]. However,
substituted salicylic acid such as 3,5-dinitrosalicylic acid
ligand [25] is much less applied compared with salicylic
acid ligand [26–34]. Recently, 1,10-phenanthroline li-
gand has shown interesting properties for it has two
nitrogen donors and often acts as a chelating ligand
due to their high affinity to metal ions [35,36]. Using
the mixed ligands of 1,10-phenanthroline or its deriva-
tives and multicarboxylate, many discrete clusters and
one-dimensional metal–organic complexes [37,38] have
been prepared. It has been well-documented that the
introduction of terminal ligands into the carboxylate
system can result in the formation of low dimensional
frameworks owing to the terminal ligands reducing the
available metal-ion binding sites to interdict polymer
growth in other directions [39]. Taking advantage of
some interesting properties of 1,10-phenanthroline and
3,5-dinitrosalicylic acid ligands, herein we report a novel
mental–organic complex [CoII(phen){3,5-(NO2)2sal2À}]n
*
Corresponding author. Tel.: +(86) 431 5168471.
E-mail address: zhangping@jlu.edu.cn (P. Zhang).
1387-7003/$ - see front matter Ó 2005 Elsevier B.V. All rights reserved.
doi:10.1016/j.inoche.2005.07.015

984
X. He et al. / Inorganic Chemistry Communications 8 (2005) 983–987
1, which possesses linear one-dimensional (1D) chain
structure.
as a bridging ligand between two cobalt atoms. This
connection mode (l) of salicylic acid or its derivatives be-
tween metal centers is one of the interesting connection
modes (Scheme 1). There are five examples in this con-
nection mode in the literatures [26,28,45,46]. 1 is the first
example with a linear one-dimensional chain structures
compared to other clusters with this connection mode.
The cobalt atoms are joined together forming an infinite
chain by bridging carboxylate groups of 3,5-dinitrosali-
Compound 1 was synthesized hydrothermally [40].
Single crystal X-ray structural analysis as well as the
composition and thermal analysis revealed the formula
of [CoII(phen){3,5-(NO2)2sal2À}]n [41]. The crystal
structure of 1 was constructed from a linear one-dimen-
sional chain consisting of CoII(phen){3,5-(NO2)2sal2À
}
entities (Fig. 1). In 1, each Co atom is in distorted octa-
hedral environment, coordinated by two nitrogen atoms
and four oxygen atoms. Each 1,10-phenanthroline li-
gand as a terminal ligand provides two nitrogen atoms
˚
cylic acid ligands with CoÁ Á ÁCo distance of 4.085 A.
Thus, each 3,5-dinitrosalicylic acid ligand links two
cobalt atoms and each cobalt atom connects two 3,5-
dinitrosalicylic acid ligands to form a linear one-
dimensional chain (Fig. 2). These one-dimensional
chains are parallel to each other along the c axis of the
cell. The linear one-dimensional chain structure of 1 is
similar to three complexes with 1,10-phenanthroline li-
gands [Cu (phen)(H2O)2SO4]n [47], [Zn(Hmal)(1,10-
phen)(H2O)]n [38] and {[Cu(phen)(l4-bta)1/2] Æ H2O}n
[38]. In addition, multipoint very weak hydrogen-bonds
also exist among the linear one-dimensional chains be-
tween C atoms of 1,10-phenanthroline ligands and nitro
O atoms of 3,5-dinitrosalicylic acid ligands. The 2+ oxi-
dation state of cobalt in 1 is consistent with the bond
valance sum (BVS = 2.27) [48]. Photoelectron spectrum
(XPS) measurements of 1 in the energy regions of
˚
with a typical Co–N distance [2.112(4) and 2.134(4) A]
and a N–Co–N chelating angle [78.32(16)°] similar to
some reported examples of Co(II) complexes with
1,10-phenanthroline ligands [43]. Four oxygen atoms
come from 3,5-dinitrosalicylate anion, one from a phe-
nolate group, one from a monodentate carboxylate
group and two from a bidentate bridging carboxylate
group. The Co–O bond lengths ranging from 1.997(3)
˚
to 2.262(3) A are comparable to the Co–O bond lengths
in [Co(1,3-BDC)(bipyen)] [44]. In 1, the 3,5-dinitrosali-
cylic acid has lost both of its two protons and behaves
1=2
2p
3=2
2p
Co and Co
show one peak at 780.8 eV (Fig. S2)
that confirms the valence of Co2+ atoms [49]. The differ-
ence oxidation state of cobalt between the starting mate-
rial ([Co(NH3)6]Cl3) and the title compound may be
attribute to the complexity of hydrothermal synthesis.
A similar example has been found [50]. The IR spectrum
of 1 reveals two strong bonds of the carboxylic groups
at 1608 and 1435 cmÀ1 for the asymmetric vibrations
and symmetric vibrations, respectively. The difference
between the asymmetric and symmetric stretching vibra-
tions (Dm = mas(COOÀ) – ms(COOÀ)) of 173 cmÀ1 indi-
cates that the 3,5-dinitrosalicylate anions coordinated
as a bidentate chelating, or bridging carboxylic group
[51]. The absent of d(O–H) of phenolic group at
1485 cmÀ1 and m(C–OH) at 1255 cmÀ1 shows the –OH
coordinate to Co atoms. A bond at 1520 cmÀ1 is as-
signed to mas(aromatic NO2), a band at 1315 cmÀ1 is as-
signed to ms(aromatic NO2) and a band at 849 cmÀ1 is
assigned to C@N stretching vibration of 1,10-phenan-
throline (Fig. S3). The thermal behavior of the com-
pound was studied from 20 to 800 °C. The TG–DTA
curve indicates that 1 is stable to 300 °C (Fig. S4). A
weight loss of 80.26% (Calc. 82.80%) and an intense exo-
thermic peak between 300 °C to 422 °C represent the
lose and decompositions of a 1,10-phenanthroline ligand
and a 3,5-dinitrosalicylate acid ligand per [CoII(phen)
{3,5-(NO2)2sal2À}]n.
Fig. 1. ORTEP drawing (30% probability level) with the atom-labeling
scheme of a monomer fragment of the one-dimensional chain. H atoms
˚
have been omitted for clarity. Selected band distances (A) and angles
(°): Co1–O3 1.997(3), Co1–O1 2.037(3), Co1–N1 2.112(4), Co1–N2
2.134(4), Co1–O2A 2.152(3), Co1–O1A 2.262(3) and N1–Co1–N2
78.32(16), O3–Co1–O1 88.95(12), O3–Co1–N1 92.44(15), O1–Co1–N1
101.27(14), O3–Co1–N2 169.97(16), O1–Co1–N2 96.62(14).
The variable-temperature magnetic susceptibility for
1 was measured from 2 to 300 K at 5000 Oe. The exper-
imental data plotted as the thermal variation of vM, vMT

X. He et al. / Inorganic Chemistry Communications 8 (2005) 983–987
985
a
e
c
b
d
OH
OH
OH
OH
O
O
O
O
O
O
O
M
O
O
HO
O
M
M
M
M
M
M
f
g
M
O
H
O
O
O
M
O
H
O
M
j
k
l
h
i
O
O
O
O
M
M
O
M
M
O
O
O
O
O
O
O
O
M
O
O
M
M
M
M
n
p
o
m
M
O
O
O
O
M
M
M
M
O
O
O
O
O
O
O
O
M
M
M
M
M
M
M
M
M
Scheme 1. Two groups of co-ordination modes of salicylic acid or its derivatives between metal centers: (1) hydrogensalicylate (HsalÀ): (a) l1 ([3–
5,16,19,21]); (b) l1 ([4,16,17,20,23]); (c) l1 ([21,32]); (d) l2 ([20,23]); (e) l2 ([30]); (f) l2 ([22]); (g) l2 ([15,25,34]). (2) Salicylate ions (sal À): (h) l1
([3,6,9,10]); (i) l2 ([24]); (j) l2 ([25,26]); (k) l2 ([7]); (l) l2 ([26,28,45,46], this work); (m) l3 ([45]); (n) l3 ([8]); (o) l4 ([6]); (p) l4 ([29]).
in Fig. 3(a) and vÀM1 in Fig. 3(b). The value of vMT at
room temperature is 1.98 emu molÀ1 K (leff = 3.97
lB), which is slightly larger than expected for the spin-
only value of high-spin CoII (vMT = 1.87 emu molÀ1
K; S = 3/2) (leff = 3.87 lB; lSO = [4S(S + 1)]1/2; S = 3/
2). This indicates that there is little orbital contribution
[52]. The temperature dependence of vM below 20 K
suggests a ferromagnetic transition or a development
Fig. 2. The infinite one-dimensional chain structure of 1.

986
X. He et al. / Inorganic Chemistry Communications 8 (2005) 983–987
[6] W. Shi, Y.-K. Xu, H.-M. Wang, Y. Liu, Chem. J. Chinese. U. 24
0.16
0.14
0.12
0.10
0.08
0.06
0.04
0.02
0.00
(3) (2003) 516.
2.0
1.5
1.0
0.5
[7] J.H. Thurston, E.M. Marlier, K.H. Whitmire, Chem. Commun.
(2002) 2834.
[8] C. Christmas, J.B. Vincent, H.-R. Chang, J.C. Huffman, G.
Christou, D.N. Hendrickson, J. Am. Chem. Soc. 110 (1988) 110.
[9] V.R.L. Constantino, H.E. Toma, L.F.C. de Oliveira, F.N. Rein,
R.C. Rocha, D. de Oliveira Silva, J. Chem. Soc., Dalton Trans.
(1999) 1735.
x
x
[10] R. Samanta, B. Mondal, P. Munshi, G.K. Lahiri, J. Chem. Soc.,
Dalton Trans. (2001) 1827.
[11] N.G. Charles, E.A.H. Griffith, P.F. Rodesiler, E.L. Amma, Inorg.
Chem. 22 (1983) 2717.
0
50
100
150
T/K
200
250
300
[12] E. Mieczynska, A.M. Trzeciak, J.J. Ziolkowski, T. Lis, Polyhe-
dron 13 (1994) 655.
a
[13] P.S. Pavacik, J.C. Huffman, G. Christou, Chem. Commun. (1986)
43.
[14] J.B. Vincent, K. Folting, J.C. Huffman, G. Christou, Inorg.
Chem. 25 (1986) 996.
[15] T.E. Baroni, J.A. Heppert, R.R. Hodel, R.P. Kingsborough,
M.D. Morton, A.L. Rheingold, G.P.A. Yap, Organometallics 15
(1996) 4872.
[16] N.J. Brownless, D.A. Edwards, M.F. Mahon, Inorg. Chim. Acta
287 (1999) 89.
160
140
120
100
80
60
x
[17] Y.-Y. Lu, J.-Y. Tung, J.-H. Chen, F.-L. Liao, S.-L. Wang, S.-S.
Wang, L.-P. Hwang, Polyhedron 18 (1999) 145.
[18] A.L. Abuhijleh, C. Woods, Inorg. Chem. Commun. 4 (2001) 119.
[19] H. Icbudak, H. Olmez, O.Z. Yesilel, F. Arslan, P. Naumov, G.
Jovanovski, A.R. Ibrahim, A. Usman, H.-K. Fun, S. Chant-
rapromma, S.W. Ng, J. Mol. Struct. 657 (2003) 255.
[20] M.-C. Yin, C.-C. Ai, L.-J. Yuan, C.-W. Wang, J.-T. Sun, J. Mol.
Struct. 691 (2004) 33.
[21] F.E. Jacobsen, S.M. Cohen, Inorg. Chem. 43 (2004) 3038.
[22] C. Xu, H.-Y. Mao, H.-Y. Zhang, H.-L. Liu, Q.-A. Wu, H.-W.
Hou, Y. Zhu, Chinese J. Struct. Chem. 23 (6) (2004) 567.
[23] L.-G. Zhu, S. Kitagawa, H. Miyasaka, H.-C. Chang, Inorg. Chim.
Acta 355 (2003) 121.
40
20
0
0
50
100
150
T/K
200
250
300
b
Fig. 3. (a) Thermal dependence of vM and vMT for 1 and (b) thermal
dependence of vM for 1.
À1
of strong short-range correlation among spins [53]. The
thermal variation of vMT reflects a weak antiferromag-
netic coupling between the CoII ions within the 1D
chain.
[24] L.-G. Zhu, G.-Q. Cai, S. Kitagawa, H.-C. Chang, Chinese J.
Inorg. Chem. 18 (9) (2002) 911.
´
ˇ
[25] D. Valigura, M. Melnık, M. Koman, L. Martiska, M. Korabik, J.
´
Mrozinsky, T. Glowiak, Polyhedron 23 (2004) 2447.
Acknowledgment
[26] J.H. Thurston, K.H. Whitmire, Inorg. Chem. 41 (2002) 4194.
[27] J.H. Thurston, C.G.-Z. Tang, D.W. Trahan, K.H. Whitmire,
Inorg. Chem. 43 (2004) 2708.
[28] J.H. Thurston, A. Kumar, C. Hofmann, K.H. Whitmire, Inorg.
Chem. 43 (2004) 8427.
This work was financially supported by the National
Natural Science Foundation of China (50225313).
[29] F. Wiesbrock, H. Schmidbaur, Inorg. Chem. 42 (2003) 7283.
[30] O. Kristiansson, Eur. J. Inorg. Chem. (2002) 2355.
[31] H.P. Klug, L.E. Alexander, G.G. Sumner, Acta Crystallogr. 11
(1958) 41.
[32] S. Jagner, R.G. Hazell, K.P. Larsen, Acta Crystallogr Sect. B 32
(1976) 548.
Appendix A. Supplementary data
Supplementary data associated with this article can
be found, in the online version, at doi:10.1016/
j.inoche.2005.07.015.
[33] J.-F. Ma, Z.-S. Jin, J.-Z. Ni, Acta Crystallogr. Sect. C 50 (1994)
1010.
[34] C.F. Edwards, W.P. Griffith, A.J.P. White, D.J. Williams,
Polyhedron 11 (1992) 2711.
[35] M.L. Calatayud, J. Sletten, I. Castro, M. Julve, G. Seitz, K.
Mann, Inorg. Chim. Acta 353 (2003) 159.
References
[1] C.T. Chen, K.S. Suslick, Coord. Chem. Rev. 128 (1993) 293.
[2] B. Moulton, M.J. Zaworotko, Chem. Rev. 101 (2001) 1629.
[3] P. Lemoine, B. Viossat, G. Morgant, F.T. Greenaway, A. Tomas,
N.-H. Dung, J.R.J. Sorenson, J. Inorg. Biochem. 89 (2002) 18.
[4] P. Lemoine, B. Viossat, N.-H. Dung, A. Tomas, G. Morgant, F.T.
Greenaway, J.R.J. Sorenson, J. Inorg. Biochem. 98 (2004) 1734.
[5] B. Coyle, M. McCann, K. Kavanagh, M. Devereux, V. McKee,
N. Kayal, D. Egan, C. Deegan, G.J. Finn, J. Inorg. Biochem. 98
(2004) 1361.
[36] M. Devereux, M. McCann, J.F. Cronin, G. Ferguson, V. McKee,
Polyhedron 18 (1999) 2141.
[37] D.-F. Sun, R. Cao, Y.-C. Liang, Q. Shi, W.-P. Su, M.-C. Hong, J.
Chem. Soc., Dalton Trans. (2001) 2335.
[38] X. He, C.-Z. Lu, Y. Yan, Inorg. Chem. Commun. 7 (2004) 851.
[39] X.-J. Li, D.-F. Sun, R. Cao, Y.-Q. Sun, Y.-Q. Wang, W.-H. Bi,
S.-Y. Gao, M.-C. Hong, Inorg. Chem. Commun. 6 (2003) 908.

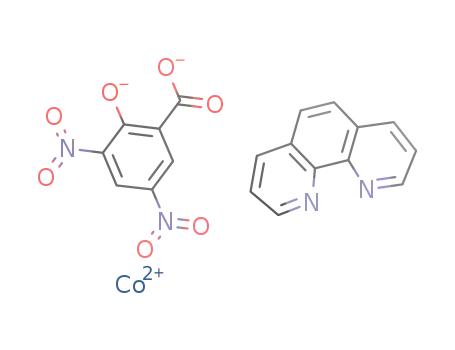

[40] Hydrothermal treatment of Co(NH3)6Cl3 (1 mmol), 1,10-phenan-
throline (1 mmol), 3,5-dinitrosalicylic acid (1 mmol) and H2O

X. He et al. / Inorganic Chemistry Communications 8 (2005) 983–987
987
(6 ml) at 140 °C for 72 h yielded deep red platelet crystals with ca.
70% yield (based on Co). Phase purity of the polymer is sustained
by its powder diffraction pattern, which is consistent with the
simulated one from the X-ray single crystal diffraction data
(Fig. S1). Analysis found: C, 48.44; H, 2.09; N, 11.79. Calc.: C,
49.01; H, 2.15; N, 12.04%.
e-mail: deposit@ccdc.cam.ac.uk or www: http://www.ccdc.cam.
ac.uk).
[42] G.M. Sheldrick, SHELXL-97: A Program for Crystal Structure
Determination, University of Gottingen, Germany, 1997.
[43] D.F. Sun, R. Cao, Y.C. Liang, Q. Shi, W.P. Su, M.C. Hong, J.
Chem. Soc., Dalton Trans. (2001) 2335.
[41] Crystallographic data: Formula: C19H10CoN4O7, FW = 465.24,
[44] S.W. Lee, H.J. Kim, Y.K. Lee, K. Park, J.-H. Son, Y.-U. Kwon,
Inorg. Chim. Acta 353 (2003) 151.
[45] G. Kickelbick, U. Schubert, J. Chem. Soc., Dalton Trans. (1999)
1301.
[46] W.-G. Wang, J. Zhang, L.-J. Song, Z.-F. Ju, Inorg. Chem.
Commun. 7 (2004) 858.
˚
˚
monoclinic, space group Cc, a = 12.1447(10) A, b = 22.372(2) A,
c = 8.1016(7) A, b = 123.367(5)°, V = 1838.4(3) m3, Z = 4,
˚
Dcalc = 1.681 g cmÀ1, l = 0.988 mmÀ1, F(0 0 0) = 940, Goodness
of fit on F2 = 0.778. Data collections were performed on a Rigaku
˚
R-AXIS RAPID diffractometer (Mo Ka radiation, k = 0.71073 A,
graphite monochromator) in the W rotation scan mode. The
structure was solved by the direct methods and refined on F2 by
full-matrix least squares using SHELXTL97 [42]. No adsorption
correction was applied. The hydrogen atoms were placed geomet-
rically and refined using a riding model. All non-hydrogen atoms
were refined anisotropically. Crystallographic data for 1 have been
deposited with the Cambridge Crystallographic Data Centre as
supplementary publication No. CCDC-268205. Copies of this
data can be obtained free of charge on application to CCDC, 12
Union Road, Cambridge CB2 1EZ, UK (fax: (44) 1223-336-033;
[47] L. Xu, E.-B. Wang, J. Peng, R.-D. Huang, Inorg. Chem.
Commun. 6 (2003) 740.
[48] N.E. Brese, M. OꢀKeeffe, Acta Cryst. B 47 (1991) 192.
[49] A.S.K. Sinha, V. Shankar, Ind. Eng. Chem. Res. 32 (1993) 1061.
[50] H.-M. Yuan, J.-S. Chen, G.-S. Zhu, J.-Y. Li, J.-H. Yu, G.-D.
Yang, R.-R. Xu, Inorg. Chem. 39 (2000) 1476.
[51] G.B. Deacon, R.J. Phillips, Coord. Chem. Rev. 33 (1980) 227.
[52] J.W. Raebiger, J.L. Manson, R.D. Sommer, U. Geiser, A.L.
Rheingold, J.S. Miller, Inorg. Chem. 40 (2001) 2578.
[53] I. Shiozaki, J. Magn. Magn. Mater. 177–181 (1998) 261.
