Heck, direct arylation, and hydrogenation: Two or three sequential reactions from a single catalyst

Article abstract of DOI:10.1021/jo0523619

Palladium-catalyzed tandem multifunctional reactions leading to the synthesis of substituted biaryl molecules have been developed including tandem Heck-direct arylation and tandem-sequential Heck-direct arylation-hydrogenation. These reactions occur in go

Full text of DOI:10.1021/jo0523619

Discovering a catalyst and reaction conditions that enable two
or three distinct processes in one pot is far more complex than
independent reaction optimization. In tandem processes, the
order of reaction can have a profound influence on reaction
outcome, and the byproducts of one transformation can have
beneficial or deleterious effects on another in the cascade.3
Furthermore, the catalyst structure may not be static, but change
over the course of one or more steps, making independent
reaction optimization fruitless.
Heck, Direct Arylation, and Hydrogenation:
Two or Three Sequential Reactions from a Single
Catalyst
Jean-Philippe Leclerc, Mathieu Andre´, and Keith Fagnou*
Center for Catalysis Research and InnoVation, Department of
Chemistry, UniVersity of Ottawa, 10 Marie Curie, Ottawa,
Ontario, Canada K1N 6N5
In recent years, increased attention has been focused on the
use of direct arylation reactions as an alternative to the use of
stoichiometric activating groups in the formation of biaryl
molecules.4 Recent work has enabled these reactions to be
performed with a growing number of heterocyclic arenes,5 and
the efficient use of some simple aromatic coupling partners is
now possible.6,7 While direct arylation reactions have appeared
as the terminating event of a catalytic cascade,8 little is known
about the compatibility of these reactions in the context of
sequential, distinct tandem catalytic processes.9 Being aware
of the vast number of palladium-catalyzed transformations10 and
keith.fagnou@science.uottawa.ca
ReceiVed NoVember 15, 2005
(2) For recent reviews, see: (a) Ikeda, S. Acc. Chem. Res. 2000, 33,
511-519. (b) Poli, G.; Giambastiani, G.; Heumann, A. Tetrahedron 2000,
56, 5959. (c) de Meijere, A.; Brase, S. J. Organomet. Chem. 1999, 576,
88. (d) Tietze, L. F. Chem. ReV. 1996, 96, 115. (e) Parsons, P. J.; Penkett,
C. S.; Shell, A. J. Chem. ReV. 1996, 96, 195. (f) Malacria, M. Chem. ReV.
1996, 96, 289. (g) Heumann, A.; Reglier, M. Tetrahedron 1996, 52, 9289.
(h) Wasilke, J.-C.; Obrey, S. J.; Baker, R. T.; Bazan, G. C. Chem. ReV.
2005, 105, 1001. (i) Foff, D. E.; dos Santos, E. N. Coord. Chem. ReV. 2004,
248, 2365.
Palladium-catalyzed tandem multifunctional reactions leading
to the synthesis of substituted biaryl molecules have been
developed including tandem Heck-direct arylation and
tandem-sequential Heck-direct arylation-hydrogenation.
These reactions occur in good yield and have been employed
in the synthesis of a cytotoxic biaryl compound.
(3) Lebel, H.; Paquet, V. J. Am. Chem. Soc. 2004, 126, 11152.
(4) For recent reviews, see: (a) Kakiuchi, F.; Murai, S. Acc. Chem. Res.
2002, 35, 826. (b) Ritleng, V.; Sirlin, C.; Pfeffer, M. Chem. ReV. 2002,
102, 1731. (c) Miura, M.; Nomura, M. Top. Curr. Chem. 2002, 219, 211.
(d) Kakiuchi, F.; Chatani, N. AdV. Synth. Catal. 2003, 345, 1077.
(5) For example, see: (a) Wang, X.; Lane, B. S.; Sames, D. J. Am. Chem.
Soc. 2005, 127, 4996. (b) Lewis, J. C.; Wiedemann, S. H.; Bergmann, R.
G.; Ellman, J. A. Org. Lett. 2004, 6, 35. (c) Park, C.-H.; Ryabova, V.;
Seregin, I. V.; Sromek, A. W.; Gevorgyan, V. Org. Lett. 2004, 6, 1159. (d)
Okazawa, T.; Satoh, T.; Miura, M.; Nomura, M. J. Am. Chem. Soc. 2002,
124, 5286. (h) Kakiuchi, F.; Kan, S.; Igi, K.; Chatani, N.; Murai, S. J. Am.
Chem. Soc. 2003, 125, 1698. (i) McClure, M. S.; Glover, B.; McSorley,
E.; Millar, A.; Osterhout, M. H.; Roschangar, F. Org. Lett. 2001, 3, 1677.
(6) (a) Kalyani, D.; Deprez, N. R.; Desai, L. V.; Sanford, M. S. J. Am.
Chem. Soc. 2005, 127, 7330. (b) Daugulis, O.; Zaitsev, V. G. Angew. Chem.,
Int. Ed. 2005, 44, 2. (c) Ackermann, L. Org. Lett. 2005, 14, 3123 and
references therein. (d) Kakiuchi, F.; Matsuura, Y.; Kan, S.; Chatani, N. J.
Am. Chem. Soc. 2005, 127, 5936 and references therein. (e) Wakui, H.;
Kawasaki, S.; Satoh, T.; Miura, M.; Nomura, M. J. Am. Chem. Soc. 2004,
126, 8658 and references therein. (f) Bedford, R. B.; Coles, S. J.; Hursthouse,
M. B.; Limmert, M. E. Angew. Chem., Int. Ed. 2003, 42, 112.
(7) For our work in this area, see: (a) Campeau, L.-C.; Parisien, M.;
Leblanc, M.; Fagnou, K. J. Am. Chem. Soc. 2004, 126, 9186. (b) Campeau,
L.-C.; Thansandote, P.; Fagnou, K. Org. Lett. 2005, 7, 1857. (c) Leblanc,
M.; Fagnou, K.; Org. Lett. 2005, 7, 2849. (d) Parisien, M.; Valette, D.;
Fagnou, K. J. Org. Chem. 2005, 70, 7578.
(8) For example, see: (a) Campo, M. A.; Huang, Q.; Yao, T.; Tian, Q.;
Larock, R. C. J. Am. Chem. Soc. 2003, 125, 11506. (b) Ohno, H.; Miyamura,
K.; Mizutani, T.; Kadoh, Y.; Takeoka, Y.; Hamaguchi, H.; Tanaka, T. Chem.
Eur. J. 2005, 11, 3728. (c) Faccini, F.; Motti, E.; Catellani, M. J. Am. Chem.
Soc. 2004, 126, 78. (d) Cuny, G.; Bois-Choussy, M.; Zhu, J. Angew. Chem.,
Int. Ed. 2003, 42, 4774. (e) Mauleon, P.; Nunez, A. A.; Alonzo, I.; Carretero,
J. C. Chem. Eur. J. 2003, 9, 1511. (f) Bressy, C.; Alberico, D.; Lautens,
M. J. Am. Chem. Soc. 2005, 127, 13148.
(9) For a seminal example, see: Bedford, R. B.; Cazin, C. S. J. Chem.
Commun. 2002, 2310.
(10) (a) Tsuji, J. Palladium Reagents and Catalysts: InnoVations in
Organic Synthesis; John Wiley & Sons: New York, 1995. (b) Poli, G.;
Giambastiani, G.; Heumann, A. Tetrahedron 2000, 56, 5959. (c) Tsuji, J.
Transition Metal Reagents and Catalysts: InnoVations in Organic Synthesis;
John Wiley & Sons: New York, 2000.
The desire to improve efficiency and minimize waste has
inspired chemists to develop new catalytic reactions that can
substitute the use of stoichiometric reagents with catalytic
entities. In addition to new catalysts and reactions, novel
strategies have emerged that build on the growing wealth of
catalytic transformations. One such strategy involves the use
of single catalysts for multiple one-pot transformations, or so-
called tandem catalysis.1 In the ideal situation, one catalyst
would be able to perform several mechanistically distinct
processes in the same reaction media with little or no alteration
of the reaction conditions. Significant success has been achieved
under this paradigm as illustrated by the growing number of
processes involving two tandem reactions.2 In contrast, examples
of a single catalyst performing three mechanistically distinct
tandem and/or sequential catalytic reactions remain rare.1b
(1) For recent examples of tandem catalysis, see: (a) Yu, H.-B.; Hu,
Q.-S.; Pu, L. J. Am. Chem. Soc. 2000, 122, 6500. (b) Bielawski, C. W.;
Louie, J.; Grubbs, R. H. J. Am. Chem. Soc. 2000, 122, 12872. (c) Evans,
P. A.; Robinson, J. E. J. Am. Chem. Soc. 2001, 123, 4609. (d) Louie, J.;
Bielawski, C. W.; Grubbs, R. H. J. Am. Chem. Soc. 2001, 123, 11312. (e)
Zezschwitz, P.; Petry, F.; de Meijere, A. Chem. Eur. J. 2001, 4035. (f)
Drouin, S. D.; Zamanian, F.; Fogg, D. E. Organometallics 2001, 20, 5495.
(g) Choudary, B. M.; Chowdari, N. S.; Jyothi, K.; Kumar, N. S.; Kantam,
M. L. Chem. Commun. 2002, 586. (h) Teoh, E.; Campi, E. A.; Jackson, W.
R.; Robinson, A. J. Chem. Commun. 2002, 978. (i) van As, B. A. C.;
Buijtenen, J. v.; Heise, A.; Broxterman, Q. B.; Verzijl, G. K. M.; Palmans,
A. R. A.; Meijer, E. W. J. Am. Chem. Soc. 2005, 127, 9964. (j) Thadani,
A. N.; Rawal, V. H. Org. Lett. 2002, 4, 4317. (k) Thadani, A. N.; Rawal,
V. H. Org. Lett. 2002, 4, 4321. (l) Cheung, W. S.; Patch, R. J.; Player, M.
R. J. Org. Chem. 2005, 70, 3741. (m) Arefalk, A.; Larhed, M.; Hallberg,
A. J. Org. Chem. 2005, 70, 938.
10.1021/jo0523619 CCC: $33.50 © 2006 American Chemical Society
Published on Web 01/20/2006
J. Org. Chem. 2006, 71, 1711-1714
1711

SCHEME 1. Substituted Tricyclic Biaryls in Medicinal Chemistry and a Double-Tandem Catalytic Route for Their
Preparation
SCHEME 2. Reaction Development and Optimization
the significant potential of palladium in tandem catalysis,1j-m
we sought to investigate the viability of direct arylation in
conjunction with other mechanistically distinct processes.11
Herein, we describe the development of tandem Heck-direct
arylation reactions and tandem-sequential Heck-arylation-
hydrogenation reactions. During the course of these studies, we
discovered that the optimal catalyst for the tandem processes is
nonoptimal for individually run arylation reactions and is
completely incompatible with independently run hydrogenation
reactions. These results point to a dynamic catalyst structure
under the reaction conditions. Furthermore, these results warn
against the selection of catalysts for tandem processes based
exclusively on discrete reaction phenomena. We also describe
the utilization of these reactions in the synthesis of cytotoxic
biaryl 1.
Inspired by molecules that have emerged from medicinal
chemistry research, 1-4 (Scheme 1),12 we envisioned that
tandem direct arylation-Heck or tandem Heck-direct arylation
(depending on the nature of the halides on 5) could be used to
grant rapid and efficient access to these types of molecules, 6.
Furthermore, if the catalyst could be further employed to conduct
a third transformation, such as hydrogenation, molecules of type
7 could be achieved via a rare tandem-sequential catalytic
variety of ligands were assayed with different ligand-to-
palladium ratios. While tricyclohexylphosphine and di-tert-
butylmethylphosphine were previously shown to be ideal ligands
in the direct arylation reaction,13 these ligands resulted in inferior
outcomes in the tandem reaction. In contrast, tri-tert-butylphos-
phine, which is known to be a good ligand in Heck reactions,14
but inferior in direct arylation,13 gave the best tandem catalysis
results. Optimized reaction conditions (9, styrene (1 equivalent),
Pd(OAc)2 (10 mol %), PtBu3-HBF4 (20 mol %), K2CO3 (four
equivalents) in DMA at 130 °C) give a 70% isolated yield of
the desired product 14 with less than 5% of other side products
being formed. These conditions were employed to investigate
the scope of the tandem Heck-direct arylation reaction (Table
1).
protocol.
Initial reaction screens were conducted to determine which
reaction sequence was optimal for reactivity and selectivity

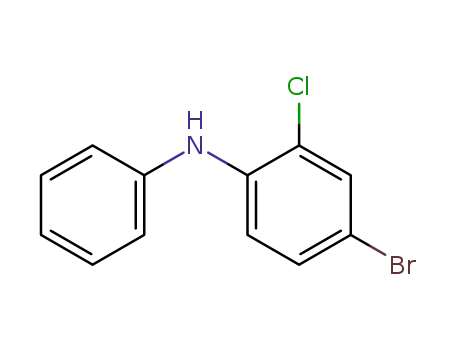

(Scheme 2). These experiments were performed with bromo-
chloro substrates 8 and 9. Under no circumstances were
acceptable results obtained with substrate 8, which requires the
direct arylation to occur first in the catalytic sequence. Even
when the alkene was added after completion of the direct
arylation step, low turnovers in the Heck reaction were observed,
generating 10 and 11-Cl as the major products.
More acceptable outcomes were achieved with substrate 9,
which requires the Heck reaction to occur first. Optimal results
are obtained when 1 equiv of the alkene is added at the reaction
outset, making this a truly tandem catalytic process. With 9, a
In addition to styrene (Table 1, entries 1, 5, 8, and 9),
substituted styrenes (entries 2 and 12) and acrylates (entries 3,
4, 6, 7, 10, and 11) are compatible olefin components. Of note,
a p-acetoxy group on the styrenyl component becomes cleaved
under the reaction conditions. While the species responsible for
this cleavage has not been determined, it may be thermally
induced or through reaction with adventitious water. Both
halides may be on the same aromatic ring (entry 3) and when
(11) While the mechanisms of the Heck reaction and hydrogenation
reactions are well understood, there is still considerable debate about the
precise mechanism of direct arylation of simple arenes. Electrophilic
palladation, C-H insertion, and σ-bond metathesis have all been advanced
as possible mechanisms. See refs 5 and 6.
(12) (a) Maya, A. B. S.; Perez-Melero, C.; Mateo, C.; Alonso, D.;
Fernandez, J. L.; Gajate, C.; Mollinedo, F.; Pelaez, R.; Caballero, E.;
Medarde, M. J. Med. Chem. 2005, 48, 556. (b) Yamamoto, H.; Mukoyoshi,
K.; Hattori, K. US Pat. Appl. US2005/0171101 A1. (c) Toru, Y.; Ibraki,
T.-s.; Minoru, O.; Ibaraki, T.-s.; Isao, K.; Ibaraki, U.-s.; Tsukasa, I.;
Yukitaka, I.; Musafumi, K.; Ibaraki, K.-g. Eur. Pat. Appl. EP 0 820 989
A1. (d) Molinari, A. J.; Ashwell, M. A.; Ridgway, B. H.; Failli, A. A.;
Moore, W. J. Int. Pat. Appl. WO 2004/050631 A1.
(13) Campeau, L.-C.; Parisien, M.; Jean, A.; Fagnou, K. J. Am. Chem.
Soc. 2006, 128, 581.
(14) Littke, A. F.; Fu, G. C. J. Am. Chem. Soc. 2001, 123, 6989.
1712 J. Org. Chem., Vol. 71, No. 4, 2006

TABLE 1. Scope of the Tandem Heck-Direct Arylation Reactiona
a Conditions: Bromochloroarene, Pd(OAc)2 (10 mol %), K2CO3 (4 equiv) added to a flask followed by rapid sequential addition of DMA (0.1 M), a stock
solution of PtBu3-HBF4 (20 mol %) in DMA and the alkene (1 equiv) followed by heating to 130 °C. b Isolated yield. Alkene A ) styrene, B )
4-acetoxystyrene, C ) tert-butyl acrylate.
SCHEME 3. Carbazole Synthesis via Tandem Heck, Direct
Arylation
SCHEME 4. Tandem/Sequential Multifunctional Catalysis:
Heck, Direct Arylation, and Hydrogenation
carbazole 19 in 77% isolated yield. A final ethylation of the
nitrogen atom provides 1 in 54% yield over the three steps.
While palladium catalysts are commonly employed in hy-
drogenation reactions, palladium/phosphine-based catalysts are
rarely used. Concerned that such species would not provide
acceptable reactivity, we evaluated the compatibility of the
tandem Heck-arylation conditions for the hydrogenation of the
isolated Heck/arylation product 14. This concern was borne out,
since no hydrogenation was observed after 16 h. On its own,
this could indicate that a double tandem Heck-arylation-
hydrogenation reaction would not be feasible.
Despite this negative prediction, we were gratified to find
that good yields could indeed be achieved when the reactions
are run in tandem, despite the fact that the catalyst used at the
outset is incompatible with the third reaction of the series. For
example, treatment of 9 with 1 equiv of either styrene or tert-
butyl acrylate under the standard conditions followed by
replacement of the nitrogen atmosphere via hydrogen-filled
balloon and reaction at 100 °C for an additional 12 h provides
20a and 20b in good yield (Scheme 4). This implies that the
catalyst is being transformed under the reaction conditions to
one that is capable of performing alkene hydrogenation. We
observe the formation of insoluble palladium black after the
completion of the Heck and arylation steps, which is a common
mode of catalyst deactivation in palladium-catalyzed processes.
In this case, it is plausible that the palladium colloids are
responsible for the hydrogenation chemistry observed. In this
way, the sequential process is actually taking advantage of a
a m-bromide substrate is employed, high selectivity for direct
arylation at the para position is obtained (entries 4 and 5).15 In
addition to ether substrates, nitrogen-containing compounds may
also be employed. In these cases, both methanesulfonamide
(entries 7 and 9) and pivalamide (entries 6 and 8) functionalities
are compatible. In addition to simple arenes, heterocyclic arenes
such as indoles can also be reacted (entry 10). This method can
also be employed in the synthesis of substituted carbazole
molecules (entries 11 and 12). In these cases, protection of the
N-H functionality is not required.
This tandem protocol was employed in an efficient synthesis
of cytotoxic biaryl 112 (Scheme 3). Reaction of bromochloro-
aniline 16 with benzyne that is generated in situ from arene 15
occurs in high yield to provide the tandem Heck-direct arylation
precursor 17 in 88% yield.16 Treatment of 17 with trimethoxy-
styrene 18 under the standard conditions generates substituted
(15) See the Supporting Information for regiochemical assignment.
(16) Liu, Z.; Larock, R. C. Org. Lett. 2003, 5, 4673.
J. Org. Chem, Vol. 71, No. 4, 2006 1713

d, J ) 7.2 Hz), 7.09 (2H, d, J ) 9.9 Hz), 5.13 (2H, s); 13C NMR
(75 MHz, CDCl3, 293K) 154.5, 137.4, 131.5, 131.3, 129.8, 128.7,
128.47, 128.2, 127.8, 127.5, 127.4, 127.2, 126.3, 124.7, 122.9,
122.0, 121.5, 117.7, 68.6; HRMS calcd for C21H16O (M+) 284.1201,
found 284.1181.
catalyst deactivation mode to create a catalyst that is capable
of carrying out the third reaction in the series. Importantly, this
also implies that the reactivity of a single catalyst in individual
reactions is not necessarily a good predictor of its behavior in
tandem reaction processes. It should also serve as a caution to
researchers who may discard the notion of applying a tandem
catalytic protocol on the foundation that catalyst reactivity in
individual processes is deemed not promising.
In conclusion, we have developed conditions for the prepara-
tion of substituted biaryl molecules via tandem Heck-direct
arylation and have employed this method in the synthesis of a
cytotoxic carbazole compound. We have also reported rare
examples of tandem-sequential catalytic Heck-arylation-
hydrogenation reactions. In the course of these studies, we
discovered that the initial catalyst employed is incompatible with
the hydrogenation reactions of the tandem cascade but becomes
transformed under the reaction conditions to one capable of
achieving the final alkene hydrogenation step.
Experimental Procedure for the Heck-Direct Arylation-
Hydrogenation Reaction: 2-Phenethyl-6H-benzo[c]chromene
(20a). To an oven-dried Schlenk tube were added 1-(2-chloroben-
zyloxy)-4-bromobenzene (106 mg, 0.36 mmol, 1.0 equiv), K2CO3
(197 mg, 1.43 mmol, 4.0 equiv), and Pd(OAc)2 (8 mg, 0.036 mmol,
10 mol %). The mixture was then purged with nitrogen for 10 min.
Degassed DMA was then added, followed by the addition of a stock
solution containing HP(t-Bu)3BF4 (26 mg, 0.071 mmol, 20 mol %)
in DMA bringing the reaction concentration to 0.1 M. The reaction
mixture was allowed to stir at room temperature for 5 min. Styrene
(0.04 mL, 0.36 mmol, 1.0 equiv) was then added, and the reaction
temperature was raised to 130 °C. After 20 h, the atmosphere was
replaced with hydrogen via a hydrogen-filled balloon, and the
reaction was heated for 24 h at 100 °C under a hydrogen
atmosphere. The reaction mixture was then filtered through a short
pad of celite using DCM. DCM was evaporated under reduced
pressure, and DMA was removed using a Kugelrohr apparatus. The
residue was then purified via chromatotron using 5% dichlo-
romethane in hexane (69%): IR (νmax/cm-1) 3062, 3026, 2924,
Experimental Section
Experimental Procedure for the Heck-Direct Arylation
Reaction: 2-Styryl-6H-benzo[c]chromene (14). To an oven-dried
Schlenk tube were added 1-(2-chlorobenzyloxy)-4-bromobenzene
(106 mg, 0.36 mmol, 1.0 equiv), K2CO3 (197 mg, 1.43 mmol, 4.0
equiv), and Pd(OAc)2 (8 mg, 0.036 mmol, 10 mol %). The mixture
was then purged with nitrogen for 10 min. Degassed DMA was
then added, followed by the addition of a solution containing HP-
(t-Bu)3BF4 (26 mg, 0.071 mmol, 20 mol %) in DMA bringing the
reaction concentration to 0.1 M. The reaction mixture was allowed
to stir at room temperature for 5 min. Styrene (0.04 mL, 0.36 mmol,
1.0 equiv) was then added, and the reaction temperature was raised
to 130 °C. After 20 h, the reaction mixture was filtered through a
short pad of Celite using DCM as eluent. DCM was evaporated
under reduced pressure, and DMA was removed using a Kugelrohr
apparatus. The residue was then purified via chromatotron using
1
2855, 1247, 1449, 818, 770; H NMR (300 MHz, CDCl3, 293K,
TMS) δ 7.64 (1H, d, J ) 7.5 Hz), 7.50 (1H, d, J ) 2.1 Hz), 7.39-
7.13 (8H, m), 7.05 (1H, dd, J ) 2.4, 6.0 Hz), 6.91 (1H, d, J ) 8.1
Hz) 5.09 (2H, s), 2.94 (4H, s); 13C NMR 153.0, 141.7, 135.3, 131.5,
130.2, 129.5, 128.5, 128.3, 127.5, 125.9, 124.6, 123.2, 122.6, 121.9,
117.11, 68.5, 38.2, 37.5; HRMS calcd for C21H18O (M+) 286.1358,
found 286.1355.
Acknowledgment. We thank NSERC, the Research Cor-
poration (Cottrell Scholar Award, K.F.), the Ontario government
(Premier’s Research Excellence Award, K.F.) and the University
of Ottawa for financial support.
Supporting Information Available: Detailed experimental
procedures and characterization data. This material is available free
of charge via the Internet at http://pubs.acs.org.
3% dichloromethane in hexane (70%): mp 137-139 °C; IR (νmax
/
1
cm-1) 3025, 2926, 2846, 1497, 1447, 1248, 1016, 820; H NMR
(300 MHz, CDCl3, 293K, TMS) δ 7.86 (1H, s), 7.77 (1H, d, J )
7.8 Hz), 7.52 (2H, d, J ) 7.5 Hz), 7.43-7.20 (6H, m), 7.16 (1H,
JO0523619
1714 J. Org. Chem., Vol. 71, No. 4, 2006
