1668
V. M. Mastranzo et al. / Tetrahedron: Asymmetry 17 (2006) 1663–1670
4.8. (1S,2S)-N,N0-Di-[(S)-a-phenylethyl]cyclohexane-1,2-
diamine, (S,S,S,S)-10
less liquid (1.8 g, 98% yield); [a]D = +15.8 (c 1, CHCl3);
1H NMR (400 MHz, CDCl3) d 0.87–1.00 (m, 8H), 1.36
(d, 6H, J = 6.6 Hz), 2.25–2.34 (m, 2H), 3.60 (q, 2H,
J = 6.6 Hz), 3.77 (s, 2H), 7.28–7.42 (m, 10H); 13C NMR
(100 MHz, CDCl3) d 19.6, 24.5, 31.0, 61.6, 68.7, 71.2,
126.9, 127.7, 128.1, 145.2; HRMS-FAB m/z found
335.2477 [(M+H)+ calcd 335.2487 for C23H31N2].
This (S,S,S,S)-1,2-diamine was prepared from the N-[(S)-
a-phenylethyl]cyclohexene aziridine and (S)-a-phenylethyl-
amine as described in the literature.17
4.9. (1S,2S)-N-[(S)-a-Phenylethyl]-cyclohexane-1,2-diamine
(S,S,S)-11
4.12. (3aS,7aS)-tert-Butyl-3-N-[(S)-a-phenylethyl]-octa-
hydrobenzo[d]imidazole-1-carboxylate, (S,S,S)-14
To

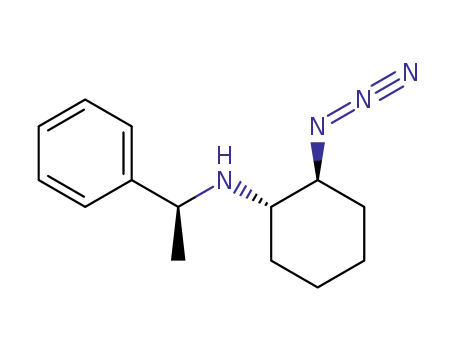

a solution of 2-azido-amine (S,S,S)-20 (0.29 g,
1.2 mmol) in methanol (10 mL) was added Pd(OH)2/C
10% mol (0.11 g). The mixture was stirred for 24 h at rt un-
der H2 atmosphere (1 atm). The crude product was filtered
over Celite and washed with EtOAc (30 mL). The com-
bined organic extract was evaporated and purified by col-
umn chromatography on silica gel [hexanes–EtOAc (1:2)].
The product was recovered as a colorless oil (0.25 g, 96%
yield); [a]D = +28.5 (c 1, CHCl3); 1H NMR (400 MHz,
CDCl3) d 0.78–0.90 (m, 1H), 1.13–1.24 (m, 3H), 1.33 (d,
3H, J = 6.4 Hz), 1.58–1.65 (m, 2H), 1.88–1.93 (m, 2H),
2.16–2.21 (m, 1H), 2.31–2.36 (m, 1H), 2.6 (br, 3H), 3.88
(q, 1H, J = 6.4 Hz), 7.18–7.35 (m, 5H); 13C NMR
(100 MHz, CDCl3) d 23.6, 25.0, 25.5, 32.4, 34.6, 55.7,
55.8, 61.3, 126.3, 126.6, 128.1, 146.8; HRMS-FAB m/z
found 219.1867 (M+H)+ calcd 219.1861 for C14H23N2.
The diamine (S,S,S)-11 (1.8 g, 8.3 mmol), was added to
formaldehyde (37% aqueous solution) (0.45 mL, 17 mmol),
K2CO3 (2.9 g, 21 mmol), and MgSO4 (3.0 g, 25 mmol) in
CH2Cl2 (25 mL) under inert atmosphere and stirred at rt
for 4 h. Di-tert-butyl carbonate, (Boc)2O (2.1 mL,
9.1 mmol) was then added and the resulting solution was
stirred for a further 24 h. The reaction mixture was ex-
tracted with CH2Cl2 (3 · 20 mL). The combined organic
layer was dried with Na2SO4, filtered, and evaporated un-
der reduced pressure. The crude product was purified by
column chromatography on silica gel [hexane–EtOAc
(4:1)]. The product was isolated as white crystals, mp 75–
76 ꢁC (2.7 g, 98% yield); [a]D = +96.1 (c 1, CHCl3); 1H
NMR (200 MHz, CDCl3) d 0.78–0.94 (m, 1H), 1.06–1.26
(m, 4H), 1.33 (d, 3H, J = 6.6 Hz), 10.45 (s, 9H), 1.52–1.66
(m, 2H), 2.09 (dt, 1H, J = 2.8 Hz, J = 10.6 Hz), 2.48 (br,
1H), 3.02–3.12 (m, 1H), 3.46 (q, 1H, J = 6.6 Hz), 3.66 (d,
1H, J = 6.0 Hz), 4.55 (br, 1H), 7.19–7.35 (m, 5H); 13C
NMR (50 MHz, CDCl3) d 22.0, 24.9, 25.3, 29.2, 30.7,
31.0, 61.9, 63.5, 67.9, 71.1, 79.7, 126.7, 126.8, 127.9,
144.8, 154.2; HRMS-FAB m/z found 331.2381 [(M+H)+
calcd 331.2386 for C20H31O2N2].
4.10. tert-Butyl (1S,2S)-2-N-[(S)-a-phenylethylamino]cyclo-
hexylcarbamate, (S,S,S)-12
A solution of diamine (S,S,S)-11 (0.20 g, 0.91 mmol), di-
tert-butyl dicarbonate (0.22 mL, 1.0 mmol), and K2CO3
(0.12 g, 0.91 mmol) in CHCl3 (25 mL) was stirred for
24 h. The mixture was extracted with CH2Cl2
(3 · 15 mL). The combined organic layer was dried with
Na2SO4, filtered, and evaporated under reduced pressure.
The crude product was purified by column chromatogra-
phy on silica gel [hexane–EtOAc (4:1)]. The product was
recovered as a white solid (0.28 g, 98% yield); mp 79–
80 ꢁC; [a]D = ꢀ17.5 (c 1, CHCl3); 1H NMR (CDCl3/
TMS) d 1.05–1.24 (m, 4H), 1.28 (d, 3H, J = 6.6 Hz), 1.47
(s, 9H), 1.54–1.61 (m, 3H), 1.74–1.80 (m, 1H), 2.00–2.05
(m, 1H), 2.15–2.25 (m, 1H), 3.22–3.27 (m, 1H), 3.90 (q,
1H, J = 6.6 Hz), 4.53 (d, 1H, J = 7.0 Hz), 7.15–7.35 (m,
5H); 13C NMR (CDCl3/TMS) d 25.5, 29.2, 33.6, 34.2,
55.9, 57.3, 60.5, 79.4, 126.4, 128.0, 146.5, 155.6; HRMS-
FAB m/z found 319.2378 [(M+H)+ calcd 319.2386 for
C19H31N2O2].
4.13. (4aS,8aS)-1,4-N,N0-Bis[(S)-a-phenylethyl]-octahydro-
quinoxalin-2(1H)-one, (S,S,S,S)-15
Diamine (S,S,S,S)-10 (0.50 g, 1.5 mmol), in CH2Cl2
(10 mL), was added to glyoxal (1.5 mmol, 2.5 mL, 40%
aqueous solution v/v) at rt and the solution was stirred
for 24 h. The mixture was extracted with CH2Cl2
(3 · 20 mL) and the combined organic layer was dried with
K2CO3, filtered, and evaporated under reduced pressure.
The crude product was purified by column chromatogra-
phy on silica gel [hexane–EtOAc (6:1)]. The product was
a yellow liquid (0.53 g, 98% yield); [a]D = +5.0 (c 1,
CHCl3); 1H NMR (200 MHz, CDCl3) d 0.82–0.94 (m,
1H), 1.10–1.17 (m, 3H), 1.24 (d, 3H, J = 6.6 Hz), 1.51–
1.58 (m, 2H), 1.64 (d, 3H, J = 7.3 Hz), 1.90–1.97 (m,
1H), 2.12–2.17 (m, 1H), 2.40–2.48 (m, 1H), 2.97–3.07 (m,
1H), 3.13 (s, 2H), 4.27 (q, 1H, J = 7.0 Hz), 5.48 (q, 1H,
J = 7.0 Hz), 7.15–7.41 (m, 10H); 13C RMN (50 MHz,
CDCl3) d 9.7, 19.4, 24.9, 25.4, 29.1, 31.3, 50.9, 52.8, 53.3,
62.4, 62.7, 126.2, 126.3, 126.8, 127.4, 127.7, 139.5, 142.1,
168.4; HRMS-FAB m/z found 363.2444 [(M+H)+ calcd
363.2436 for C24H31O1N2].
4.11. (3aS,7aS)-1,3-N,N0-Bis-[(S)-a-phenylethyl]-octahydro-
1H-benzo-[d]-imidazole (S,S,S,S)-13
Diamine (S,S,S,S)-10 (1.8 g, 5.6 mmol) was added to a
mixture of 37% aqueous solution of formaldehyde
(0.30 mL, 11 mmol), K2CO3 (2.0 g, 15 mmol), and MgSO4
(2.0 g, 17 mmol) in CHCl3 (25 mL) under argon atmo-
sphere. The reaction mixture was stirred at rt for 24 h.
The mixture was extracted with CH2Cl2 (3 · 15 mL). The
combined organic layer was dried with Na2SO4, filtered
and evaporated under reduced pressure. The crude product
was purified by column chromatography on silica gel [hex-
ane–EtOAc (10:1)]. The product was obtained as a color-
4.14. (1S,2S)-N,N0-Bis-[(S)-a-phenylethyl]-N,N0-bis-
(methylacetate)-1,2-cyclohexanediamine, (S,S,S,S)-16
A solution of 1,2-diamine (S,S,S,S)-10 (3.5 g, 11 mmol), in
acetonitrile (50 mL) and dry Na2CO3 (2.8 g, 26 mmol) was
