Toward structurally novel and metabolically stable HIV-1 capsid-targeting small molecules

Article abstract of DOI:10.3390/v12040452

HIV-1 capsid protein (CA) plays an important role in many steps of viral replication and represents an appealing antiviral target. Several CA-targeting small molecules of various chemotypes have been studied, but the peptidomimetic PF74 has drawn particul

Full text of DOI:10.3390/v12040452

Article
Toward Structurally Novel and Metabolically Stable
HIV-1 Capsid-Targeting Small Molecules
1,†
1,†
2
Sanjeev Kumar V. Vernekar , Rajkumar Lalji Sahani , Mary C. Casey ,
1
1
3
3
3
Jayakanth Kankanala , Lei Wang , Karen A. Kirby , Haijuan Du , Huanchun Zhang ,
Philip R. Tedbury , Jiashu Xie , Stefan G. Sarafianos and Zhengqiang Wang *
3
1
3
1,
1
Center for Drug Design, College of Pharmacy, University of Minnesota, Minneapolis, MN 55455, USA;
vvsanjeev99@googlemail.com (S.K.V.V.); rsahani@umn.edu (R.S.); kankanalajk1@gmail.com (J.K.);
leiwang@dlut.edu.cn (L.W.); jxie@umn.edu (J.X.)
Department of Molecular Microbiology and Immunology, University of Missouri School of Medicine,
2
Christopher S. Bond Life Sciences Center, Columbia, MO 65211, USA; mcc6x2@mail.missouri.edu
Laboratory of Biochemical Pharmacology, Department of Pediatrics, Emory University School of Medicine,
3
Atlanta, GA 30322, USA; karen.kirby@emory.edu (K.A.K.); haijuan.du@emory.edu (H.D.);
huanchun.zhang@emory.edu (H.Z.); philip.tedbury@emory.edu (P.R.T.); stefanos.sarafianos@emory.edu
(S.G.S.)
* Correspondence: wangx472@umn.edu; Tel.: +1-612-626-7025
† These authors contributed equally.
Received: 30 March 2020; Accepted: 14 April 2020; Published: 16 April 2020
Abstract: HIV-1 capsid protein (CA) plays an important role in many steps of viral replication and
represents an appealing antiviral target. Several CA-targeting small molecules of various
chemotypes have been studied, but the peptidomimetic PF74 has drawn particular interest due to
its potent antiviral activity, well-characterized binding mode, and unique mechanism of action.
Importantly, PF74 competes against important host factors for binding, conferring highly desirable
antiviral phenotypes. However, further development of PF74 is hindered by its prohibitively poor
metabolic stability, which necessitates the search for structurally novel and metabolically stable
chemotypes. We have conducted a pharmacophore-based shape similarity search for compounds
mimicking PF74. We report herein the analog synthesis and structure-activity relationship (SAR) of
two hits from the search, and a third hit designed via molecular hybridization. All analogs were
characterized for their effect on CA hexamer stability, antiviral activity, and cytotoxicity. These
assays identified three active compounds that moderately stabilize CA hexamer and inhibit HIV-1.
The most potent analog (10) inhibited HIV-1 comparably to PF74 but demonstrated drastically
improved metabolic stability in liver microsomes (31 min vs. 0.7 min t1/2). Collectively, the current
studies identified a structurally novel and metabolically stable PF74-like chemotype for targeting
HIV-1 CA.
Keywords: HIV-1; capsid-targeting antivirals; PF74; metabolic stability
1. Introduction
Human immunodeficiency virus 1 (HIV-1) encodes a Gag polyprotein which contains multiple
protein domains for viral assembly and release: matrix (p17 MA), capsid (p24 CA), nucleocapsid (p7
NC), p6 and spacer peptides Sp1 and Sp2 [1]. Gag polyproteins assemble to form the immature viral
capsid core, which upon protease cleavage rearranges into a fullerene-shaped mature capsid core [2]
comprising approximately 250 CA hexamers and exactly 12 asymmetrically-distributed CA
pentamers [3]. CA plays essential roles in viral assembly and multiple events during viral replication
Viruses 2020, 12, 452; doi:10.3390/v12040452
www.mdpi.com/journal/viruses

Viruses 2020, 12, 452
2 of 15
[4,5]. CA-CA interactions drive the assembly and disassembly of viral capsid, and capsid core
stability is important for reverse transcription, nuclear entry, and cloaking of the viral DNA product
from host nucleic acid sensing mechanisms in the cytosol [6]. CA interacts with many cellular factors
[7,8], including TRIM5α [9,10], cleavage and polyadenylation specific factor 6 (CPSF6) [11,12]
nucleoporins 153 [13–15] and 358 [16–18] (NUP153, NUP358), MxB [19,20], and Cyclophilin A (CypA)
[21–23]. These interactions enable early viral replication steps, including uncoating, cytoplasmic
trafficking, reverse transcription, nuclear transport, site of integration, and the evasion of innate
immunity [24]. Hence, CA-targeting small molecules could confer both early and late stage antiviral
phenotypes by perturbing the stability of viral capsid core and interfering with important CA-host
interactions.
The CA structure [25–27] is mostly helical (Figure 1A): it comprises 7 helices at the N-terminal
domain (CANTD) and 4 helices at the C-terminal domain (CACTD). Interactions between one CANTD and
the CANTD and CACTD of an adjacent monomer form the molecular basis of stable hexameric lattice
and virus-host interactions. Previous structural studies with CA-bound compounds have revealed a
small molecule binding sites [28], such as the particularly interesting PF74 binding pocket. This
pocket is formed primarily by H3 and H4 of the CANTD (cyan), and the H8 and H9 of the CACTD of an
adjacent monomer (green) (Figure 1A). In addition to accommodating the binding [25,29,30] of PF74
and BI-2, a smaller CA-targeting molecule (Figure 1B), the same pocket is also used by important
cellular factors, including [29,30]: Nup153, a nucleoporin important for nuclear transport of viral
preintegration complexes (PICs); and CPSF6 which transports HIV-1 PICs to transcriptionally active
chromatin [31]. PF74 is a well-characterized [32] peptidomimetic built around a phenylalanine core,
and capped with an aniline moiety at the carboxylate end and an indole-3-acetic acid at the amino
end (Figure 1B). All three components, the core, the aniline moiety (right) and the indole acid moiety
(left), provide key molecular interactions for the binding of PF74 [25]. Consistent with the binding
site and mode, PF74 displayed a concentration-dependent bimodal mechanism [32,33] of action: at
lower concentrations it competes against host factors including CPSF6 and NUP153 to affect nuclear
entry; and at higher concentrations it blocks uncoating and reverse transcription, presumably by
altering inter-hexamer interactions [25].
Figure 1. Structure of HIV-1 capsid protein (CA) and a key CA ligand binding pocket. (A) The
structure of CA dimer (Protein Data Bank code: 4XFZ [25]). The pocket formed around H3 and H4 of
the CANTD (cyan), and H8 and H9 of the adjacent CACTD (green) accommodates the binding of multiple

Viruses 2020, 12, 452
3 of 15
ligands, including host factors Nup153 and CPSF6, and small molecules PF74 and BI-2. Shown in the
pocket is PF74 (pointed to with an arrow); (B) chemical structures of PF74 and BI-2.
Despite the attractive antiviral profile and the unique bimodal mechanism of action, PF74 is not
a viable drug candidate due primarily to its prohibitively poor metabolic stability [34]. In human liver
microsomes (HLMs), the half-life (t1/2) of PF74 was less than 1 min [35,36]. This major deficiency
strongly necessitates targeted efforts to search for structurally novel and metabolically stable small
molecules capable of binding to the PF74 binding pocket. Along this line, the Zhan and Liu group
recently reported PF74-like compounds where an easier and synthetically more accessible 1,2,3-
triazole ring was substituted for the indole moiety [35,36]. However, such compounds were
considerably (> 10-fold) less potent than PF74 in antiviral assays and were essentially as unstable in
HLMs [35,36]. Our current work features a pharmacophore-based shape similarity search approach
based on PF74 (Figure 2A). Molecular similarity [37,38] is an important concept in medicinal
chemistry and drug discovery. Hit generation using similarity search is based on the premise that
similar chemical structure confers similar biological activity. In our search, we extracted the 3D
conformation of PF74 from reported co-crystal structure (PDB: 4XFZ [25]) and defined 7
pharmacophore points (Figure 2A) according to its mode of binding, including two H-bond donors
(D1 and D2), two H-bond acceptors (A1 and A2), as well as three hydrophobic moieties (H1, H2 and
H3). This 3D pharmacophore was then used to screen against a subset of the ZINC database [39]
(100K compounds) using the program PHASE [40,41]. Hit ranking was based on the number of
pharmacophore points satisfied and the lead like properties as predicted by the Lipinski’s rule of 5
[42]. From this similarity search we selected two hits (2 and 22) for analog synthesis and SAR (Figure
2B). Molecular hybridization [43] between hit 2 and PF74 also generated hit 11, which was also
subjected to analog synthesis (Figure 2B). We report herein the analog synthesis and SAR on all three
hits. In the end, our best compound inhibited HIV-1 with an EC50 of 1.6 μM, and more important
exhibited a half-life (t1/2) 44-fold longer than PF74.
Figure 2. Generation of novel compounds targeting the PF74 binding pocket. (A) Initial hits generated
via a pharmacophore and shape similarity search; (B) SAR of two selected hits (2 and 22), as well as a
new hit (11) from the hybridization between 2 and PF74. Compounds 3–10 are variants of 2, with
modifications in the circled regions.
2. Materials and Methods
All analogs were synthesized using procedures described in Scheme 1 and 2, fully characterized
1
13
with H NMR, C NMR, and HRMS, and displayed a purity of ≥95% as determined by HPLC.
Detailed synthetic procedures and compound characterization data are included in Supplemental
Materials.

Viruses 2020, 12, 452
4 of 15
The general synthetic strategy for major analogs (1–39) tested in this work is described here
(Schemes 1 and 2) and the synthesis for others is outlined in supporting information (Schemes S1 and
S2). Commercially available 1H-benzo[d] [1,3]oxazine-2,4-dione (a) was reacted with glycine methyl
ester hydrochloride in the presence of Et3N in DMF to yield intermediate (b). Further treatment of
intermediate (b) with ethyl chloroformate in pyridine and then with NaOH in MeOH/H2O afforded
the carboxylic acid intermediate (c). A subsequent amide coupling of carboxylic acid intermediate (c)
with different L-amino acid methyl ester hydrochlorides in the presence of HATU and DIPEA in DMF
furnished acid intermediates (d) after hydrolysis under LiOH in MeOH/H2O. To synthesize varied
hit 2 analogs, carboxylic acid intermediates (d) were further coupled with L-proline methyl ester
hydrochloride in the presence of PyAOP and DIPEA to produce compounds 2–4, which upon
hydrolysis afforded 5–7. Another coupling with various amines delivered analogs 8–10. Likewise,
acid intermediates (d) were treated with various anilines using HATU and DIPEA in DMF to produce
hit 11 analogs 11–21.
Scheme 1. Synthetic Strategy for Analogs 2–21. Reagents and conditions: (i) glycine methyl ester
hydrochloride, Et3N, DMF, rt, 12 h; (ii) ethyl chloroformate, pyridine, rt, 12 h; (iii) NaOH, MeOH/H2O,
60 ℃, 12 h; (iv) L-amino acid methyl ester hydrochloride, HATU, DIPEA, DMF, rt, 12 h; (v) LiOH,
MeOH/H2O, rt, 12 h; (vi) L-proline methyl ester hydrochloride, PyAOP, DIPEA, DMF, rt, 12 h; (vii)
LiOH, MeOH/H2O, rt, 12 h/60 ℃, 3 h; (viii) amine, PyAOP, DIPEA, DMF, rt, 12 h; (ix) amine, HATU,
DIPEA, DMF, rt, 12 h.
The synthesis of hit 22 analogs 22–39 was achieved with a straightforward approach described

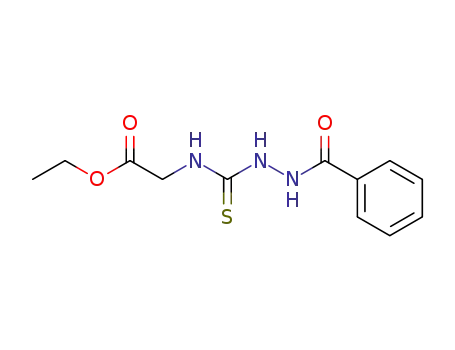

in Scheme 2. Hydrazides (e) reacted with ethyl isothiocyanatoacetate in ACN to give
thiosemihydrazides (f) that were converted to triazole acid derivatives (g) through in situ cyclization
and hydrolysis when treated with aqueous NaOH. Amide coupling of these triazole acid derivatives
(g) with various amines in the presence of HATU and DIPEA in DMF resulted in analogs 22–39.
Scheme 2. Synthetic Strategy for Analogs 22–39. Reagents and conditions: (i) ethyl
isothiocyanatoacetate, ACN, 40 ℃, 3 h; (ii) NaOH, H2O, 100 ℃, 3 h; (iii) Hydrazine, HATU, DIPEA,
DMF, rt, 24 h.

Viruses 2020, 12, 452
5 of 15
2.1. Biology Cells
2.2. Method Details
2.2.1. Thermal Shift Assays (TSAs) to Screen Compounds for Effect on HIV-1 CA Hexamer Stability
Compounds were screened for their effect on CA hexamer stability using purified covalently-
A14C/E45C/W184A/M185A
crosslinked hexameric CA
(CA121). CA121 cloned in a pET11a expression plasmid
was provided by Dr. Owen Pornillos (University of Virginia, Charlottesville, VA). Protein was
expressed in E. coli BL21(DE3)RIL and purified as reported previously [26]. The TSA was conducted
as previously described [46–48] using the PikoReal Real-Time PCR (Thermo Fisher Scientific,
Waltham, MA, USA) or the QuantStudio 3 Real-Time PCR (Thermo Fisher Scientific) systems. Each
reaction contained 10 µL of 15 µM CA121 (7.5 µM final concentration) in 50 mM sodium phosphate
buffer (pH 8.0), 10 µL of 2× Sypro Orange Protein Gel Stain (Life Technologies, Carlsbad, CA, USA)
in 50 mM sodium phosphate buffer (pH 8.0) and 0.2 µL of DMSO (control) or compound. Compounds
were tested at a final concentration of 20 µM. The plate was heated from 25 to 95 °C with a heating
rate of 0.2 °C/10 sec. The fluorescence intensity was measured with an Ex range of 475–500 nm and
Em range of 520–590 nm. The differences in the melting temperature (ΔTm) of CA hexamer in DMSO
(T0) verses in the presence of compound (Tm) were calculated using the following formula: ΔTm =
Tm−T0.
2.2.2. Virus Production
The wild-type laboratory HIV-1 strain, HIV-1NL4-3 [49], was produced using a pNL4-3 vector that
was obtained through the NIH AIDS Reagent Program. HIV-1NL4-3 was generated by transfecting
®
HEK 293FT cells in a T75 flask with 10 µg of the pNL4-3 vector and FuGENE HD Transfection
Reagent (Promega, Madison, WI, USA). Supernatant was harvested 48–72 h post-transfection and
transferred to MT2 cells for viral propagation. Virus was harvested when syncytia formation was
observed, which took 3–5 days. The viral supernatant was then concentrated using 8% w/v PEG 8,000
overnight at 4 °C, followed by centrifugation for 40 min at 3500 rpm. The resulting viral-containing
pellet was concentrated 10-fold by resuspension in DMEM without FBS and stored at −80 °C.
2.2.3. Anti-HIV-1 and Cytotoxicity Assays
Anti-HIV-1 activity of PF74 and related analogs was examined in TZM-GFP cells. The potency
of HIV-1 inhibition by a compound was based on its inhibitory effect on viral LTR-activated GFP
expression compared with that of compound-free (DMSO) controls. Briefly, TZM-GFP cells were
4
plated at density of 1 × 10 cells per well in a 96-well plate. 24 h later, media was replaced with
increasing concentrations of compound. 24 h post treatment, cells were exposed to an HIV-1 strain
(MOI = 1). After incubation for 48 h, anti-HIV-1 activity was assessed by counting the number of GFP
TM
positive cells on a Cytation 5 Imaging Reader (BioTek, Winooski, VT, USA) and 50% effective
concentration (EC50) values were determined.
Cytotoxicity of each compound was also determined in TZM-GFP cells. Cells were plated at a
4
density of 1 × 10 cells per well in a 96-well plate and were continuously exposed to increasing
concentrations of a compound for 72 h. The number of viable cells in each well was determined using
a Cell Proliferation Kit II (XTT), and 50% cytotoxicity concentration (CC50) values were determined.
All the cell-based assays were conducted in duplicate of at least two independent experiments and
the average values were determined.
For calculation of EC50 and CC50 dose response curves, values were plotted in GraphPad Prism
5 and analyzed with the log (inhibitor) vs. normalized response—Variable slope equation. Final
values were calculated in each independent assay and the average values were determined. Statistical
analysis (calculation of standard deviation) was performed using Microsoft Excel.

Viruses 2020, 12, 452
6 of 15
2.3. Microsomal Stability Assay
The in vitro microsomal stability assay was conducted in duplicate in mouse and human liver
microsomal systems, which were supplemented with nicotinamide adenine dinucleotide phosphate
(NADPH) as a cofactor. Briefly, a compound (1 µM final concentration) was pre-incubated, in the
absence or presence of 0.5 µM Cobicistat (CYP 3A inhibitor, purchased from medchemexpress.com
and verified with LCMS), with the reaction mixture containing liver microsomal protein (0.5
mg/mL final concentration) and MgCl2 (1 mM final concentration) in 0.1 M potassium phosphate
buffer (pH 7.4) at 37 °C for 15 min. The reaction was initiated by addition of 1 mM NADPH,
followed by incubation at 37 °C. A negative control was performed in parallel in the absence of
NADPH to measure any chemical instability or non-NADPH dependent enzymatic degradation for
each compound. At various time points (0, 5, 15, 30 and 60 min), 1 volume of reaction aliquot was
taken and quenched with 3 volumes of acetonitrile containing an appropriate internal standard and
0.1 % formic acid. The samples were then vortexed and centrifuged at 15,000 rpm for 5 min at 4 °C.
The supernatants were collected and analyzed by LC-MS/MS to determine the in vitro metabolic
half-life (t1/2).
2.4. Molecular Modeling
Molecular modeling was performed using the Schrödinger small molecule drug discovery suite
2019-1 [50]. The crystal structure of native HIV-1 capsid protein in complex with PF74 [25] was
retrieved from the protein data bank (PDB code: 4XFZ [25]). The above structure was analyzed using
Maestro [51] (Schrödinger; LLC: New York, NY, USA) and subjected to a docking protocol that
involves several steps including preparing protein of interest, grid generation, ligand preparation,
and docking. The crystal structure was refined using the protein preparation wizard [52]
(Schrödinger; LLC: New York, NY, USA.) wherein missing hydrogen atoms, side chains, and loops
were added using Prime and minimized using the OPLS 3e force field [53] to optimize the hydrogen
bonding network and converge the heavy atoms to an rmsd of 0.3 Å. The receptor grid generation
tool in Maestro (Schrödinger; LLC: New York, NY, USA) was used to define an active site around the
native ligand PF74 to cover all the residues within 12 Å. All the compounds were drawn using
Maestro and subjected to Lig Prep to generate conformers, possible protonation at pH of 7 ± 2 that
serves as an input for docking process. All the dockings were performed using Glide XP [54] (Glide:
version 8.2) with the van der Waals radii of nonpolar atoms for each of the ligands were scaled by a
factor of 0.8. The solutions were further refined by post docking and minimization under implicit
solvent to account for protein flexibility. The residue numbers of HIV-1 capsid protein used in the
discussion and the figures were based on the native HIV-1 capsid protein.
3. Results
All analogs synthesized for each hit were assessed first with a biophysical protein stability assay,
or thermal shift assay, where the effect of the compound was measured by the change in protein
melting point compared to the DMSO control (ΔTm). A positive value in ΔTm indicates a stabilizing
effect on the protein and a negative value indicates a destabilizing effect. Of note, the target CA
protein is in a covalently crosslinked hexameric state. Thus, the ΔTm values likely reflect local
changes that may affect stabilization and exclude inter-hexamer effects, which are important
correlates of overall capsid core stability. To simplify presentation of the data, we refer to the effects
of these compounds as stabilization or destabilization of “CA hexamer.” All compounds were then
screened at 20 µM against HIV-1 in a cell-based assay to determine antiviral activity. Compounds
demonstrating significant inhibition were further tested in a dose-response fashion for antiviral EC50
values. All compounds were tested for cytotoxicity either by screening at 100 or 50 µM, or
determination of CC50 values. The benchmark compound PF74 was resynthesized and tested in these
assays (1, ΔTm = 7.4 °C, EC50 = 0.61 μM, CC50 = 76 μM). The best compound (10) was also tested for
liver microsomal stability. Molecular modeling was performed for a few selected compounds to help
understand the SAR.

Viruses 2020, 12, 452
7 of 15
1
2
3.1. SAR of Hit 2 (R and R )
Hit 2 showed only a weak CA hexamer stabilizing effect (ΔTm = 0.5 °C) with no significant
antiviral activity at 20 μM and no cytotoxicity at 100 μM (Table 1). Removing the isopropyl group at
1
R (compound 3) resulted in the complete loss of the CA hexamer stabilizing effect, whereas replacing
it with an indole-7-methyl (compound 4) did not yield significant differences in all three assays. When
1
the ester was hydrolyzed to acid (compounds 5–7), only the analog with an indole-7-methyl at R
(compound 5) weakly stabilized CA hexamer (ΔTm = 0.8 °C); no such effect was observed when R
1
was a benzyl methyl thioether (compound 6) or a bulky alkyl (compound 7). Amidation of the acid
with an aniline yielded more structurally elaborate analogs 8–10. Of these, the analogs with a benzyl
1
methyl thioether (compound 8) or an indole-7-methyl (compound 9) at R showed only weak CA
hexamer stabilization (ΔTm = 0.5 °C for both), whereas a much stronger CA hexamer stabilizing effect
1
was observed with compound 10 which bears a benzyl moiety at R (ΔTm = 2.5 °C). More importantly,
compound 10 inhibited HIV-1 with a potency (EC50 = 1.6 μM) only 2.5-fold less than PF74 (EC50 = 0.61
μM). In addition, compound 10 (CC50 >100 μM) was less cytotoxic than PF74 (CC50 = 76 μM).
Table 1. Anti-HIV-1 activity, cytotoxicity, and CA hexamer stability profiles of 2–10 (R1, R2).
Compd
R1
R2
EC50 (μM)[a]
CC50 (μM)[b]
TSA ΔTm (°C)[c]
1 (PF74)
--
--
0.61 ± 0.2
76 ± 9
7.4
2
3
>20
>20
>100
>100
0.5
0
H
4
5
>20
>20
<100
>100
0.5
0.8
6
7
>20
>20
>100
>100
0
0
8
9
>20
>20
44 ± 5
>100
>100
0.5
0.5
2.5
10
1.6 ± 0.1
a Concentration of compound inhibiting HIV-1 replication by 50%, expressed as the mean ± standard
deviation from at least two independent experiments. b Concentration of compound causing 50% cell
death, expressed as the mean ± standard deviation from at least two independent experiments. c TSA:
thermal shift assay. ΔTm: change of CA crosslinked hexamer melting point in the presence of
compound minus DMSO control.

Viruses 2020, 12, 452
8 of 15
1
3
4
3.2. SAR of Hit 11 (R , R , and R )
Hit 11 was designed from hit 2 and PF74 via molecular hybridization. As a result, the skeleton
of 11 is very similar to that of PF74, except that the indole moiety was replaced with a bioisosteric
1
quinazoline-2, 4-dione moiety. A general SAR observation was that when R was a bulky alkyl group,
compounds (14–21) did not show significant antiviral activity at 20 μM or cytotoxicity at 100 μM
(Table 2), though most analogs weakly stabilized CA hexamer (ΔTm = 0.5–0.7 °C). However, when
1
R was a benzyl group to mimic PF74, the activity profiles changed substantially (analogs 11–13) and
3
3
demonstrated a strong dependence on R . When R was a methyl group, analog 11 (ΔTm = 2.7 °C,
EC50 = 6.9 μM) and analog 13 (ΔTm = 2.4 °C, EC50 = 8.0 μM) both moderately stabilized CA hexamer
3
and inhibited HIV-1, without observed cytotoxicity (CC50 >100 μM). By contrast, when R was a
1
hydrogen, the resulting analog (12) did not show activity in either assay. Overall, SARs around R
3
1
and R within this series strongly indicate that both the benzyl group at R and the methyl group at
3
R are important for potency.
Table 2. Anti-HIV-1 activity, cytotoxicity, and CA hexamer stability profiles of 11–21 (R1, R3, and R4).
EC50
(μM
CC50
(μM)
TSA ΔTm
1
3
4
Compd
R
R
R
)[a]
[b]
[c]
(°C)
1 (PF74)
--
--
--
0.61 ± 0.2
76 ± 9
7.4
11
Me
H
6.9 ± 0.8
>20
>100
<100
>100
2.7
12
13
H
H
F
0
Me
8.0 ± 1.3
2.4
14
15
16
17
Me
H
Me
H
H
H
Me
H
>20
>20
>20
>20
>100
>100
>100
>100
0
0.7
0
0
18
19
20
Me
H
H
H
>20
>20
>20
>100
>100
>100
0.5
0.6
0.5
Me
Cl
21
H
>20
>100
0.6
a Concentration of compound inhibiting HIV-1 replication by 50%, expressed as the mean ± standard
deviation from at least two independent experiments. b Concentration of compound causing 50% cell
death, expressed as the mean ± standard deviation from at least two independent experiments. c TSA:
thermal shift assay. ΔTm: change of CA crosslinked hexamer melting point in the presence of
compound minus DMSO control.
5
6
7
3.3. SAR of Hit 22 (R , R , and R )
Compound 22 is structurally quite different from PF74 and the other two hits (2 and 11), though
it satisfied multiple pharmacophore points (Figure 2A), and hence, could be similar to PF74 in 3D
shape. In addition, the 1,2,4-trazole is a well-known bioisostere [55] of carboxamide, which renders
22 functionally similar to PF74. The SARs of this series were centered around the two aromatic rings
5
7
(R and R ). The most prominent observation was that analogs within this series did not significantly
inhibit HIV-1 at 20 μM, and did not show cytotoxicity at 100 μM (Table 3). However, with the
exception of 23, 32, and 33, all analogs demonstrated an impact on CA hexamer stability, which
essentially validates our hit generation approach as the shape similarity search is target-based. Very
interestingly, a weak CA hexamer destabilizing effect, rather than stabilizing effect, was observed

Viruses 2020, 12, 452
9 of 15
with hit 22 (ΔTm = −0.5 °C). A similar destabilizing effect was also observed with the only other
5
analog featuring a pyridine ring at R (compound 31), though the effect was significantly more
5
prominent (ΔTm = −1.2 °C). All other analogs feature either a phenyl or a biphenyl ring at R , and in
stark contrast, produced CA hexamer stabilizing effect (ΔTm = 0.5—0.9 °C). This weak stabilizing
5
7
effect was not impacted by functional group substitution at either R or R . Finally, N-methyl
substitution of analog 23 (ΔTm = 0 °C) yielded a compound 39 stabilizing CA hexamer (ΔTm = 1.2 °C).
5
These observations strongly indicate that 1) pyridine at R destabilizes the CA hexamer whereas a
5
phenyl or biphenyl moiety at R stabilizes the CA hexamer; 2) a methyl group at the para position of
7
the phenyl ring at R reinforces the destabilizing effect (31 vs. 22) but does not impact the stabilizing
6
effect (28 vs. 24, 30 vs. 36); and 3) a methyl group at R confers a CA hexamer stabilizing effect (39 vs.
23).
5
6
7
Table 3. Anti-HIV-1 activity, cytotoxicity, and CA hexamer stability profiles of 22–39 (R , R , and R ).
5
6
7
[a]
[b]
[c]
Compd
22
R
R
R
EC50 (μM)
CC50 (μM)
TSA ΔTm (°C)
H
>20
>100
-0.5
23
24
25
H
H
H
>20
>20
>20
>100
>100
>100
0
0.7
0.6
26
H
>20
>100
0.7
27
28
29
30
H
H
H
H
>20
>20
>20
>20
~100
>100
>100
>100
0.7
0.7
0
0.8
31
32
H
H
>20
>20
>100
>100
-1.2
0
33
34
H
H
>20
>20
>100
>100
0
0.6
35
36
37
H
H
H
>20
>20
>20
>100
>100
>100
0.5
0.8
1.0
38
H
>20
>100
0.9

Viruses 2020, 12, 452
10 of 15
M
e
39
>20
>50
1.2
a Concentration of compound inhibiting HIV-1 replication by 50%, expressed as the mean ± standard
deviation from at least two independent experiments. b Concentration of compound causing 50% cell
death, expressed as the mean ± standard deviation from at least two independent experiments. c TSA:
thermal shift assay. ΔTm: change of CA crosslinked hexamer melting point in the presence of
compound minus DMSO control.
3.4. Metabolic Stability
To characterize the drug-like property of 10, our most potent antiviral compound from the
current work, we conducted metabolic stability assays in both HLMs and mouse liver microsomes
(MLMs). Metabolic stability is a major absorption, distribution, metabolism and excretion (ADME)
property that profoundly impacts drug bioavailability [56]. Peptidomimetics are particularly
susceptible to phase I metabolism, presumably because they are good substrates [57] for liver
metabolizing enzyme subfamily cytochrome P450 3A (CYP3A), which is responsible for the
metabolism of at least 50% of all current drugs [58]. It is known that PF74 is a severely flawed antiviral
lead due to its prohibitively low metabolic stability [34]. This was confirmed in our metabolic stability
assays, where the half-life (t1/2) of PF74 is less than 1 min in both HLMs and MLMs (Table 4). By
contrast, our compound 10 was decisively more stable, particularly in HLMs where its half-life (t1/2 =
31 min) was 44-fold longer than that of PF74 (t1/2 = 0.7 min). When tested in combination with a CYP3A
inhibitor Cobicistat (Cobi) [59], 10 still exhibited significantly longer half-life than that of PF74. A t1/2
>30 min in HLM generally indicates good in vivo metabolic stability and oral bioavailability.
Collectively, these observations support our compound 10 as a viable antiviral hit, and corroborate
the hypothesis that the poor metabolic stability of PF74 is due to CYP3A-mediated phase I
metabolism.
Table 4. Phase I metabolic stability in liver microsomes t1/2 (min).
a
HLM (+Cobi
a
b
b
c
Compound
HLM
MLM
MLM (+Cobi )
c
)
PF74
10
Verapamil
0.7
31
15
91
>120
--
0.6
2.9
4.2
34
85
--
a HLM: human liver microsome; b MLM: mouse liver microsome; c Microsomal stability measured in
the presence of CYP3A inhibitor Cobi.
3.5. Molecular Modeling
To understand some of the aforementioned SAR, we performed molecular modeling with
selected compounds based on the co-crystal structure of native HIV-1 capsid protein bound to PF74
(PDB code: 4XFZ [25]). Compound 11 (Figure 3A) bearing a quinazoline-2,4(1H,3H)-dione core in
place of the indole ring of PF74 interacted with the same key residues in the CA hexamer as PF74.
Observed key interactions included i) hydrogen-bonding between N57 and the NH and carbonyl
groups of the phenylalanine fragment on compound 11, between K70 and the carbonyl next to the
phenylalanine fragment of 11, and between Q63 and the free NH of the quinazoline-2,4(1H,3H)-dione
core of 11; ii) cation-π interactions between protonated K70 and quinazoline-2,4(1H,3H)-dione
aromatic ring. However, despite sharing the same binding site and similar key interactions,
compound 11 was significantly less potent than PF74. In the meantime, a complete loss in potency
was observed for leucine derived analog 14, which could be attributed to its shifting away from the
binding site (circled), possibly in a binding mode shown in Figure 3B, and hence the loss of key
interactions. This observation signified the importance of the phenylalanine core of these compounds
for potency. In particular, the benzyl group of the phenylalanine core could play an important role
in keeping a molecule inside the PF74-bound cavity through hydrophobic interactions [25] with

Viruses 2020, 12, 452
11 of 15
surrounding residues L56, M66, and L69, as evident from the observed binding mode for compound
11 (Figure 3A). This was consistent with the significant increase in the potency of compound 10 as
well, which bears a benzyl group and an additional L-proline core. Like the PF74 backbone, the benzyl
group of the phenylalanine fragment forces compound 10 to nestle in the cavity in such a way that
the aniline ring of the L-proline core is extended to the adjacent CANTD domain, resulting in an
additional hydrogen-bonding between the carbonyl of the L-proline and NH2 of N53, along with the
typical H-bonding with N57, Q63, and K70 (Figure 3C). Additionally, pyrrolidine core of L-proline is
oriented in such a way that it has maximum interaction with A105, T107, and Y130. Expectedly,
introduction of an L-cysteine derived core having an elongated backbone in place of phenylalanine
in compound 8 forces the entire molecule out of the cavity, diminishing it potency (Figure 3D).
Compound 8 was found to be closer to the adjacent CACTD and CANTD domains, interacting with P34,
R173, Q179, and K182 through H-bonding.
Figure 3. Docking poses of key ligands based on native HIV-1 capsid protein bound to PF74 (PDB
code: 4XFZ [25]). (A) Predicted binding mode of 11. Glide score (kcal/mol): -6.3. (B) Predicted binding
mode of 14 away from the preferred binding site (circled). Glide scores (kcal/mol): -4.2. (C) Predicted
binding and fitting of L-proline analog 10 within the preferred PF74 binding cavity. Glide score
(kcal/mol): -6.3. (D) Predicted binding and fitting of L-cysteine derivative analog 8 away from the
preferred PF74 binding site. Glide score (kcal/mol): -5.2. Ligands numbers 8, 10, 11, and 14 are in pink.
In Figure A and D, H-bond and cation-π interactions are depicted as black dotted lines and double
headed arrow, respectively. In (A) and (B), the capsid protein chain is colored cyan and key residues
around binding site are colored olive. In (C) and (D), CANTD around helices H3 and H4 in chain A are
colored cyan, and CACTD around helices H8 and H9 in the adjacent chain B are colored green. The
nitrogen, oxygen, and sulfur atoms are colored blue, red, and yellow, respectively.

Viruses 2020, 12, 452
12 of 15
4. Discussion
Despite the approval of many HIV-1 antiviral regimens [60], a curative therapy remains elusive
and HIV-1 continues to pose a global healthcare challenge. There is a need to develop new classes of
HIV-1 drugs with distinct mechanisms of action to manage HIV-1 strains resistant to current drugs.
The multifunctional HIV-1 CA represents an attractive target for novel antiviral discovery. PF74 is a
CA-targeting small molecule which binds to a unique pocket between a viral CANTD and the adjacent
CACTD, and competes against a few host factors important for viral replication. The antiviral profile
of PF74 and its mode of CA binding are well characterized. However, PF74 is not a viable antiviral
lead as it suffers from extremely low metabolic stability. Aiming to identify mechanistically similar
yet structurally distinct small molecules with improved metabolic stability, we performed a
pharmacophore-based shape similarity search based on PF74. Subsequently, we conducted analog
synthesis and SAR for two hits (2 and 22) generated from the shape similarity search, as well as a
third hit (11) designed via molecular hybridization. Overall, most of analogs exhibited weak yet
discernible impacts on the stability of CA hexamer, which largely validates our hit generation
approach. Three of the analogs (10, 11, and 13) showed moderate CA hexamer stabilizing effects and
significant anti-HIV-1 activities. Particularly, compound 10 inhibited HIV-1 with an EC50 of 1.6 μM,
which is only 2.5-fold less potent that PF74. More importantly, compound 10 demonstrated
drastically improved metabolic stability over PF74 in HLMs (t1/2 = 31 min for 10 vs. 0.7 min for PF74).
Molecular modeling indicates that our compound 10 binds comfortably in the PF74 binding pocket.
Collectively, our data support 10 as a potent and metabolically stable HIV-1 CA-targeting antiviral
lead.
Supplementary Materials: The following are available online at www.mdpi.com/1999-4915/12/4/452/s1, Scheme
S1: Synthesis of intermediates b–d, and compounds 2–21, Scheme S2: Synthesis of intermediates f–g and
compounds 22–39.
Author Contributions: S.G.S. and Z.W. conceptualized the research. S.K.V., R.S., and L.W. designed, synthesized
and characterized all compounds. J.K. performed the shape similarity search. R.S. conducted molecular docking.
J.X. performed the metabolic stability assays. M.C.C., K.A.K., H.D., H.Z., and P.R.T. performed T.S.A., antiviral
and cytotoxicity assays. R.S. and Z.W. wrote the manuscript. All authors have read and agreed to the published
version of the manuscript.
Funding: This research was funded by the National Institute of Allergy and Infectious Diseases, the National
Institute of Health, grant number R01AI120860 (to SGS and ZW).
Acknowledgments: We thank the Minnesota Supercomputing Institute (MSI) at the University of Minnesota for
providing molecular modeling resources.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
Freed, E.O. HIV-1 assembly, release and maturation. Nat. Rev. Microbiol. 2015, 13, 484–496.
Ganser, B.K.; Li, S.; Klishko, V.Y.; Finch, J.T.; Sundquist, W.I. Assembly and analysis of conical models for
the HIV-1 core. Science 1999, 283, 80–83.
3.
4.
5.
6.
7.
8.
Li, S.; Hill, C.P.; Sundquist, W.I.; Finch, J.T. Image reconstructions of helical assemblies of the HIV-1 CA
protein. Nature 2000, 407, 409–413.
Campbell, E.M.; Hope, T.J. HIV-1 capsid: The multifaceted key player in HIV-1 infection. Nat. Rev.
Microbiol. 2015, 13, 471–483.
Sundquist, W.I.; Krausslich, H.G. HIV-1 assembly, budding, and maturation. Cold Spring Harb. Perspect.
Med. 2012, 2, a006924.
Le Sage, V.; Mouland, A.J.; Valiente-Echeverria, F. Roles of HIV-1 capsid in viral replication and immune
evasion. Virus Res. 2014, 193, 116–129.
Hilditch, L.; Towers, G.J. A model for cofactor use during HIV-1 reverse transcription and nuclear entry.
Curr. Opin. Virol. 2014, 4, 32–36.
Ambrose, Z.; Aiken, C. HIV-1 uncoating: Connection to nuclear entry and regulation by host proteins.
Virology 2014, 454–455, 371–379.

Viruses 2020, 12, 452
13 of 15
9.
Stremlau, M.; Owens, C.M.; Perron, M.J.; Kiessling, M.; Autissier, P.; Sodroski, J. The cytoplasmic body
component TRIM5alpha restricts HIV-1 infection in Old World monkeys. Nature 2004, 427, 848–853.
10. Sayah, D.M.; Sokolskaja, E.; Berthoux, L.; Luban, J. Cyclophilin A retrotransposition into TRIM5 explains
owl monkey resistance to HIV-1. Nature 2004, 430, 569–573.
11. V. Achuthan, J. M. Perreira, G. A. Sowd, M. Puray-Chavez, W. M. McDougall, A. Paulucci-Holthauzen, X.
Wu, H. J. Fadel, E. M. Poeschla, A. S. Multani, S. H. Hughes, S. G. Sarafianos, A. L. Brass, and A. N.
Engelman, Capsid-CPSF6 Interaction Licenses Nuclear HIV-1 Trafficking to Sites of Viral DNA Integration,
Cell Host Microbe, 24 (2018), 392-404 e8.
12. Bejarano, D.A.; Peng, K.; Laketa, V.; Borner, K.; Jost, K.L.; Lucic, B.; Glass, B.; Lusic, M.; Mueller, B.;
Krausslich, H.G. HIV-1 nuclear import in macrophages is regulated by CPSF6-capsid interactions at the
nuclear pore complex. Elife 2019, 8.
13. Woodward, C.L.; Prakobwanakit, S.; Mosessian, S.; Chow, S.A. Integrase interacts with nucleoporin
NUP153 to mediate the nuclear import of human immunodeficiency virus type 1. J. Virol. 2009, 83, 6522–
6533.
14. Matreyek, K.A.; Yucel, S.S.; Li, X.; Engelman, A. Nucleoporin NUP153 phenylalanine-glycine motifs engage
a common binding pocket within the HIV-1 capsid protein to mediate lentiviral infectivity. PLoS Pathog.
2013, 9, e1003693.
15. Buffone, C.; Martinez-Lopez, A.; Fricke, T.; Opp, S.; Severgnini, M.; Cifola, I.; Petiti, L.; Frabetti, S.;
Skorupka, K.; Zadrozny, K.K.; et al. Nup153 Unlocks the Nuclear Pore Complex for HIV-1 Nuclear
Translocation in Nondividing Cells. J. Virol. 2018, 92, e00648-18.
16. Meehan, A.M.; Saenz, D.T.; Guevera, R.; Morrison, J.H.; Peretz, M.; Fadel, H.J.; Hamada, M.; van Deursen,
J.; Poeschla, E.M. A cyclophilin homology domain-independent role for Nup358 in HIV-1 infection. PLoS
Pathog. 2014, 10, e1003969.
17. Dharan, A.; Talley, S.; Tripathi, A.; Mamede, J.I.; Majetschak, M.; Hope, T.J.; Campbell, E.M. KIF5B and
Nup358 Cooperatively Mediate the Nuclear Import of HIV-1 during Infection. PLoS Pathog. 2016, 12,
e1005700.
18. Mamede, J.I.; Damond, F.; Bernardo, A.; Matheron, S.; Descamps, D.; Battini, J.L.; Sitbon, M.; Courgnaud,
V. Cyclophilins and nucleoporins are required for infection mediated by capsids from circulating HIV-2
primary isolates. Sci. Rep. 2017, 7, 45214.
19. Fricke, T.; White, T.E.; Schulte, B.; de Souza Aranha Vieira, D.A.; Dharan, A.; Campbell, E.M.; Brandariz-
Nunez, A.; Diaz-Griffero, F. MxB binds to the HIV-1 core and prevents the uncoating process of HIV-1.
Retrovirology 2014, 11, 68.
20. Xu, B.; Pan, Q.; Liang, C. Role of MxB in Alpha Interferon-Mediated Inhibition of HIV-1 Infection. J. Virol.
2018, 92, e00422-18.
21. Kim, K.; Dauphin, A.; Komurlu, S.; McCauley, S.M.; Yurkovetskiy, L.; Carbone, C.; Diehl, W.E.; Strambio-
De-Castillia, C.; Campbell, E.M.; Luban, J. Cyclophilin A protects HIV-1 from restriction by human
TRIM5alpha. Nat. Microbiol. 2019, 4, 2044–2051.
22. Franke, E.K.; Yuan, H.E.; Luban, J. Specific incorporation of cyclophilin A into HIV-1 virions. Nature 1994,
372, 359–362.
23. Thali, M.; Bukovsky, A.; Kondo, E.; Rosenwirth, B.; Walsh, C.T.; Sodroski, J.; Gottlinger, H.G. Functional
association of cyclophilin A with HIV-1 virions. Nature 1994, 372, 363–365.
24. Novikova, M.; Zhang, Y.; Freed, E.O.; Peng, K. Multiple Roles of HIV-1 Capsid during the Virus Replication
Cycle. Virol. Sin. 2019, 34, 119–134.
25. Gres, A.T.; Kirby, K.A.; KewalRamani, V.N.; Tanner, J.J.; Pornillos, O.; Sarafianos, S.G. STRUCTURAL
VIROLOGY. X-ray crystal structures of native HIV-1 capsid protein reveal conformational variability.
Science 2015, 349, 99–103.
26. Pornillos, O.; Ganser-Pornillos, B.K.; Kelly, B.N.; Hua, Y.; Whitby, F.G.; Stout, C.D.; Sundquist, W.I.; Hill,
C.P.; Yeager, M. X-ray structures of the hexameric building block of the HIV capsid. Cell 2009, 137, 1282–
1292.
27. Zhao, G.; Perilla, J.R.; Yufenyuy, E.L.; Meng, X.; Chen, B.; Ning, J.; Ahn, J.; Gronenborn, A.M.; Schulten, K.;
Aiken, C.; Zhang, P. Mature HIV-1 capsid structure by cryo-electron microscopy and all-atom molecular
dynamics. Nature 2013, 497, 643–646.

Viruses 2020, 12, 452
14 of 15
28. Goudreau, N.; Lemke, C.T.; Faucher, A.M.; Grand-Maitre, C.; Goulet, S.; Lacoste, J.E.; Rancourt, J.;
Malenfant, E.; Mercier, J.F.; Titolo, S.; Mason, S.W. Novel inhibitor binding site discovery on HIV-1 capsid
N-terminal domain by NMR and X-ray crystallography. ACS Chem. Biol. 2013, 8, 1074–1082.
29. Price, A.J.; Jacques, D.A.; McEwan, W.A.; Fletcher, A.J.; Essig, S.; Chin, J.W.; Halambage, U.D.; Aiken, C.;
James, L.C. Host cofactors and pharmacologic ligands share an essential interface in HIV-1 capsid that is
lost upon disassembly. PLoS Pathog. 2014, 10, e1004459.
30. Bhattacharya, A.; Alam, S.L.; Fricke, T.; Zadrozny, K.; Sedzicki, J.; Taylor, A.B.; Demeler, B.; Pornillos, O.;
Ganser-Pornillos, B.K.; Diaz-Griffero, F.; Ivanov, D.N.; Yeager, M. Structural basis of HIV-1 capsid
recognition by PF74 and CPSF6. Proc. Natl. Acad. Sci. USA 2014, 111, 18625–18630.
31. Sowd, G.A.; Serrao, E.; Wang, H.; Wang, W.; Fadel, H.J.; Poeschla, E.M.; Engelman, A.N. A critical role for
alternative polyadenylation factor CPSF6 in targeting HIV-1 integration to transcriptionally active
chromatin. Proc. Natl. Acad. Sci. USA 2016, 113, E1054–E1063.
32. Shi, J.; Zhou, J.; Shah, V.B.; Aiken, C.; Whitby, K. Small-molecule inhibition of human immunodeficiency
virus type 1 infection by virus capsid destabilization. J. Virol. 2011, 85, 542–549.
33. Saito, A.; Ferhadian, D.; Sowd, G.A.; Serrao, E.; Shi, J.; Halambage, U.D.; Teng, S.; Soto, J.; Siddiqui, M.A.;
Engelman, A.N.; et al. Roles of Capsid-Interacting Host Factors in Multimodal Inhibition of HIV-1 by PF74.
J. Virol. 2016, 90, 5808–5823.
34. Xu, J.P.; Francis, A.C.; Meuser, M.E.; Mankowski, M.; Ptak, R.G.; Rashad, A.A.; Melikyan, G.B.; Cocklin, S.
Exploring Modifications of an HIV-1 Capsid Inhibitor: Design, Synthesis, and Mechanism of Action. J. Drug
Des. Res. 2018, 5, 1070.
35. Sun, L.; Huang, T.; Dick, A.; Meuser, M.E.; Zalloum, W.A.; Chen, C.H.; Ding, X.; Gao, P.; Cocklin, S.; Lee,
K.H.; Zhan, P.; Liu, X. Design, synthesis and structure-activity relationships of 4-phenyl-1H-1,2,3-triazole
phenylalanine derivatives as novel HIV-1 capsid inhibitors with promising antiviral activities. Eur. J. Med.
Chem. 2020, 190, 112085.
36. Wu, G.; Zalloum, W.A.; Meuser, M.E.; Jing, L.; Kang, D.; Chen, C.H.; Tian, Y.; Zhang, F.; Cocklin, S.; Lee,
K.H.; Liu, X.; Zhan, P. Discovery of phenylalanine derivatives as potent HIV-1 capsid inhibitors from click
chemistry-based compound library. Eur. J. Med. Chem. 2018, 158, 478–492.
37. Kubinyi, H. Similarity and dissimilarity: A medicinal chemist’s view. Perspect. Drug Discov. 1998, 9–11, 225–
252.
38. Maggiora, G.; Vogt, M.; Stumpfe, D.; Bajorath, J. Molecular similarity in medicinal chemistry. J. Med. Chem.
2014, 57, 3186–3204.
39. Sterling, T.; Irwin, J.J. ZINC 15—Ligand Discovery for Everyone. J. Chem. Inf. Model. 2015, 55, 2324–2337.
40. Dixon, S.L.; Smondyrev, A.M.; Rao, S.N. PHASE: A novel approach to pharmacophore modeling and 3D
database searching. Chem. Biol. Drug Des. 2006, 67, 370–372.
41. Dixon, S.L.; Smondyrev, A.M.; Knoll, E.H.; Rao, S.N.; Shaw, D.E.; Friesner, R.A. PHASE: A new engine for
pharmacophore perception, 3D QSAR model development, and 3D database screening: 1. Methodology
and preliminary results. J. Comput. Aided Mol. Des. 2006, 20, 647–671.
42. Lipinski, C.A. Lead- and drug-like compounds: The rule-of-five revolution. Drug Discov. Today Technol.
2004, 1, 337–341.
43. Harrison, J.R.; Brand, S.; Smith, V.; Robinson, D.A.; Thompson, S.; Smith, A.; Davies, K.; Mok, N.; Torrie,
L.S.; Collie, I.; et al. A Molecular Hybridization Approach for the Design of Potent, Highly Selective, and
Brain-Penetrant N-Myristoyltransferase Inhibitors. J. Med. Chem. 2018, 61, 8374–8389.
44. Lange, M.J.; Lyddon, T.D.; Johnson, M.C. Diphtheria Toxin A-Resistant Cell Lines Enable Robust
Production and Evaluation of DTA-Encoding Lentiviruses. Sci. Rep. 2019, 9, 8985.
45. Rosa, A.; Chande, A.; Ziglio, S.; De Sanctis, V.; Bertorelli, R.; Goh, S.L.; McCauley, S.M.; Nowosielska, A.;
Antonarakis, S.E.; Luban, J.; et al. HIV-1 Nef promotes infection by excluding SERINC5 from virion
incorporation. Nature 2015, 526, 212–217.
46. Lo, M.C.; Aulabaugh, A.; Jin, G.; Cowling, R.; Bard, J.; Malamas, M.; Ellestad, G. Evaluation of fluorescence-
based thermal shift assays for hit identification in drug discovery. Anal. Biochem. 2004, 332, 153–159.
47. Miyazaki, Y.; Doi, N.; Koma, T.; Adachi, A.; Nomaguchi, M. Novel In Vitro Screening System Based on
Differential Scanning Fluorimetry to Search for Small Molecules against the Disassembly or Assembly of
HIV-1 Capsid Protein. Front. Microbiol. 2017, 8, 1413.

Viruses 2020, 12, 452
15 of 15
48. Pantoliano, M.W.; Petrella, E.C.; Kwasnoski, J.D.; Lobanov, V.S.; Myslik, J.; Graf, E.; Carver, T.; Asel, E.;
Springer, B.A.; Lane, P.; et al. High-density miniaturized thermal shift assays as a general strategy for drug
discovery. J. Biomol. Screen. 2001, 6, 429–440.
49. Adachi, A.; Gendelman, H.E.; Koenig, S.; Folks, T.; Willey, R.; Rabson, A.; Martin, M.A. Production of
acquired immunodeficiency syndrome-associated retrovirus in human and nonhuman cells transfected
with an infectious molecular clone. J. Virol. 1986, 59, 284–291.
50. Schrodinger. Schrödinger Small-Molecule Drug Discovery Suite 2015-4, Schrödinger; LLC: New York, NY, USA,
2015.
51. Schrödinger Release 2020-1: Maestro, Schrödinger, LLC, New York, NY, 2020.
52. Sastry, G.M.; Adzhigirey, M.; Day, T.; Annabhimoju, R.; Sherman, W. Protein and ligand preparation:
Parameters, protocols, and influence on virtual screening enrichments. J. Comput. Aid Mol. Des. 2013, 27,
221–234.
53. Jorgensen, W.L.; Maxwell, D.S.; TiradoRives, J. Development and testing of the OPLS all-atom force field
on conformational energetics and properties of organic liquids. J. Am. Chem. Soc. 1996, 118, 11225–11236.
54. Friesner, R.A.; Murphy, R.B.; Repasky, M.P.; Frye, L.L.; Greenwood, J.R.; Halgren, T.A.; Sanschagrin, P.C.;
Mainz, D.T. Extra precision glide: Docking and scoring incorporating a model of hydrophobic enclosure
for protein-ligand complexes. J. Med. Chem. 2006, 49, 6177–6196.
55. Meanwell, N.A. Synopsis of some recent tactical application of bioisosteres in drug design. J. Med. Chem.
2011, 54, 2529–2591.
56. Masimirembwa, C.M.; Bredberg, U.; Andersson, T.B. Metabolic stability for drug discovery and
development: Pharmacokinetic and biochemical challenges. Clin. Pharmacokinet. 2003, 42, 515–528.
57. Wacher, V.J.; Silverman, J.A.; Zhang, Y.; Benet, L.Z. Role of P-glycoprotein and cytochrome P450 3A in
limiting oral absorption of peptides and peptidomimetics. J. Pharm. Sci. 1998, 87, 1322–1330.
58. Eichelbaum, M.; Burk, O. CYP3A genetics in drug metabolism. Nat. Med. 2001, 7, 285–287.
59. Xu, L.H.; Liu, H.T.; Murray, B.P.; Callebaut, C.; Lee, M.S.; Hong, A.; Strickley, R.G.; Tsai, L.K.; Stray, K.M.;
Wang, Y.J.; et al. Cobicistat (GS-9350): A Potent and Selective Inhibitor of Human CYP3A as a Novel
Pharmacoenhancer. Acs Med. Chem. Lett. 2010, 1, 209–213.
60. AIDSinfo FDA-Approved HIV Medicines. Available online: https://aidsinfo.nih.gov/understanding-hiv-
aids/fact-sheets/21/58/fda-approved-hiv-medicines (accessed on March 30, 2020).
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
