Half-sandwich group 4 salicyloxazoline catalysts

Article abstract of DOI:10.1021/om060687h

A new class of zirconium and hafnium half-sandwich complexes bearing Cp* and salicyloxazolinato (L) ligands has been prepared by salt elimination and protonolysis routes. The analogous Cp and indenyl compounds are generally inaccessible, as are the titanium compounds. The molecular structures of four examples [Cp*MLX₂] (variously M = Zr, Hf; X = Cl, Me) reveal chiral-at-metal structures which persist in solution, according to variable-temperature NMR studies; ΔG?₂₉₈ for the racemization process was found to be ca. 75 kJ mol^-1. Treatment of these compounds with MAO, [Ph₃C][B(C₆F₅) ₄], or [PhNMe₂H]-[B(C₆F₅) ₄] leads to catalysts for alkene polymerization, the nature of which depends on the cocatalyst chosen. The anilinium salt smoothly produces a single chiral species, [Cp*ZrLMe][B(C₆F₅)₄], detected also by ¹H NMR spectroscopy, which is a highly active single-site catalyst for polymerization of ethene (and less active for copolymerization of ethene/hexene). The trityl activator produces the same catalyst and at least one other catalytically competent species, as evidenced by NMR spectroscopy and polymer modality. The use of MAO leads to a less well-defined catalyst system. The steric demand of the salicyloxazoline ligand affects the catalyst performance significantly, and computational studies show that access of ethene to either of two inequivalent coordination sites is restricted. This stability of the species [Cp*ZrLMe]⁺ with respect to addition appears to be the limiting factor for catalytic activity. Catalyst stability is addressed, and the steric and electronic factors affecting this are consistent with a mechanism of catalyst death by salicyloxazoline ligand loss.

Full text of DOI:10.1021/om060687h

Organometallics 2006, 25, 6019-6029
6019
Half-Sandwich Group 4 Salicyloxazoline Catalysts
Stuart R. Coles,† Guy J. Clarkson,† Andrew L. Gott,† Ian J. Munslow,†
Stefan K. Spitzmesser,‡ and Peter Scott*,†
Department of Chemistry, UniVersity of Warwick, CoVentry CV4 7AL, U.K., and
INEOS Technologies, Rue de Ransbeek 310, 1120 Brussels, Belgium
ReceiVed July 31, 2006
A new class of zirconium and hafnium half-sandwich complexes bearing Cp* and salicyloxazolinato
(L) ligands has been prepared by salt elimination and protonolysis routes. The analogous Cp and indenyl
compounds are generally inaccessible, as are the titanium compounds. The molecular structures of four
examples [Cp*MLX2] (variously M ) Zr, Hf; X ) Cl, Me) reveal chiral-at-metal structures which persist
in solution, according to variable-temperature NMR studies; ∆Gq for the racemization process was
298
found to be ca. 75 kJ mol-1. Treatment of these compounds with MAO, [Ph3C][B(C6F5)4], or [PhNMe2H]-
[B(C6F5)4] leads to catalysts for alkene polymerization, the nature of which depends on the cocatalyst

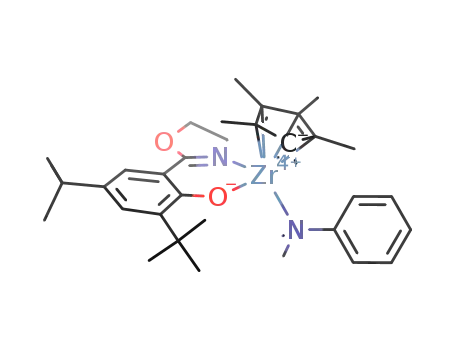

chosen. The anilinium salt smoothly produces a single chiral species, [Cp*ZrLMe][B(C6F5)4], detected
also by 1H NMR spectroscopy, which is a highly active single-site catalyst for polymerization of ethene
(and less active for copolymerization of ethene/hexene). The trityl activator produces the same catalyst
and at least one other catalytically competent species, as evidenced by NMR spectroscopy and polymer
modality. The use of MAO leads to a less well-defined catalyst system. The steric demand of the
salicyloxazoline ligand affects the catalyst performance significantly, and computational studies show
that access of ethene to either of two inequivalent coordination sites is restricted. This stability of the
species [Cp*ZrLMe]+ with respect to addition appears to be the limiting factor for catalytic activity.
Catalyst stability is addressed, and the steric and electronic factors affecting this are consistent with a
mechanism of catalyst death by salicyloxazoline ligand loss.
Introduction
The mechanism of alkene polymerization by group 4 met-
allocene catalysts of the type Cp2MX2 is now quite well
understood.1 In conjunction with cocatalysts such as methyl-
aluminoxane (MAO),2 the species [CpMR]+ are formed which
contain a vacant coordination site cis to the growing polymer
chain R, where the monomer alkene may bind as a precursor
to the 1,2-migratory insertion (propagation) process. Alternative
supporting ligand sets to the various cyclopentadienyls have
been studied intensively.3 Of particular relevance here are the
complexes [(PI)2MX2] (PI ) phenoxy-imine (I)) developed by
Fujita4 and Coates.5 A number of hybrid precatalysts containing
* To whom correspondence should be addressed. E-mail: peter.scott@
warwick.ac.uk. Fax: 024 7657 2710.
† University of Warwick.
one cyclopentadienyl ring and one monoanionic bidentate ligand
have also been developed, including the amidinates, e.g., II,6
and pyridyl-alkoxides, e.g., III.7 Recently, Bochmann explored
a range of phenoxy-imine, e.g., [CpM(PI)Cl2] (IV) and related
catalysts, noting that these inherently chiral systems may allow
stereoselective polymerization of R-olefins.8 Unfortunately,
however, multimodal polymers were produced, indicating the
presence of several catalytically active species, an issue which
‡ INEOS Technologies.
(1) (a) Jordan, R. F. AdV. Organomet. Chem. 1991, 32, 325. (b)
Brintzinger, H. H.; Fischer, D.; Mulhaupt, R.; Rieger, B.; Waymouth, R.
Angew. Chem., Int. Ed. 1995, 34, 1143. (c) Bochmann, M. J. Chem. Soc.,
Dalton Trans. 1996, 255. (d) Chen, E. Y. X.; Marks, T. J. Chem. ReV.
2000, 100, 1391. (e) Resconi, L.; Cavallo, L.; Fait, A.; Piemontesi, F. Chem.
ReV. 2000, 100, 1253. (f) Sillars, D. R.; Landis, C. R. J. Am. Chem. Soc.
2003, 125, 9894. (g) Liu, Z.; Somsook, E.; White, C. B.; Rosaaen, K. A.;
Landis, C. R. J. Am. Chem. Soc. 2001, 123, 11193.
(2) (a) Bryant, P. L.; Harwell, C. R.; Mrse, A. A.; Emery, E. F.; Gan,
Z.; Caldwell, T.; Reyes, A. P.; Kuhns, P.; Hoyt, D. W.; Simeral, L. S.;
Hall, R. W.; Butler, L. G. J. Am. Chem. Soc. 2001, 123, 12009. (b) Zurek,
E.; Ziegler, T. Prog. Polym. Sci. 2004, 29, 107. (c) Zakharov, V. A.; Talzi,
E. P.; Zakharov, I. I.; Babushkin, D. E.; Semikolenova, N. V. Kinet. Catal.
1999, 40, 836.
(4) (a) Furuyama, R.; Saito, J.; Ishii, S.; Makio, H.; Mitani, M.; Tanaka,
H.; Fujita, T. J. Organomet. Chem. 2005, 690, 4398. (b) Makio, H.; Fujita,
T. Bull. Chem. Soc. Jpn. 2005, 78, 52. (c) Mitani, M.; Saito, J.; Ishii, S.-I.;
Nakayama, Y.; Makio, H.; Matsukawa, N.; Matsui, S.; Mohri, J.-I.;
Furuyama, R.; Terao, H.; Bando, H.; Tanaka, H.; Fujita, T. Chem. Rec.
2004, 4, 137. (d) Suzuki, Y.; Terao, H.; Fujita, T. Bull. Chem. Soc. Jpn.
2003, 76, 1493. (e) Makio, H.; Kashiwa, N.; Fujita, T. AdV. Synth. Catal.
2002, 344, 477.
(3) (a) Gibson, V. C.; Spitzmesser, S. K. Chem. ReV. 2003, 103, 283.
(b) Britovsek, G. J. P.; Gibson, V. C.; Wass, D. F. Angew. Chem., Int. Ed.
1999, 38, 428. (c) Ittel, S. D.; Johnson, L. K.; Brookhart, M. Chem. ReV.
2000, 100, 1169.
10.1021/om060687h CCC: $33.50 © 2006 American Chemical Society
Publication on Web 11/16/2006

6020 Organometallics, Vol. 25, No. 26, 2006
Coles et al.
Scheme 1
is rather widespread in olefin polymerization by nonmetal-
locenes. We reasoned that the use of salicyloxazoline ligands
V9 might provide more stable catalysts, but found that the
complexes [CpM(V)X2] were generally inaccessible (vide infra).
We report here that, rather counterintuitively, the bulkier
complexes based on pentamethylcyclopentadienyl can be syn-
thesized readily. Under the appropriate conditions, these com-
plexes provide single-site polymerization catalysts. Stability and
mechanistic studies are also reported.
Results and Discussion
Synthesis of Proligands and Organometallic Complexes.
A range of salicyloxazolines HLn (n ) 1-4) was synthesized
from the corresponding salicylic acids and amino alcohols, as
previously described,9,10 or by similar methods (Scheme 1).
Treatment with excess NaH in THF produced the sodium salts
NaLn‚xTHF in quantitative yields. These were isolated by
filtration and evaporation or used in situ as ligand transfer
reagents.
Subsequent treatment of [Cp*MCl3] (M ) Zr,11 Hf12) with
NaLn‚xTHF produced the complexes [Cp*MLnCl2] (n ) 1-4),
in reasonable to good yields. Analogous reactions of the indenyl
complexes [(η5-C9H7)MCl3] (M ) Ti, Zr, Hf)13 and [CpZrCl3-
(DME)] failed to produce tractable complexes, despite the fact
that the latter is a precursor for the phenoxyimine (PI, vide
supra) complexes [CpZr(PI)Cl2].8 Treatment of [CpTiCl3]14 with
NaL1 gave the complex [CpTiL1Cl2] in good yield, although
the same reaction with the more bulky NaL2 was unsuccessful.
Finally, for comparison with the above, we attempted to
synthesize the hitherto unreported complexes [Cp*M(PI)Cl2] (M
) Zr, Hf) from Cp*MCl3 by various means, but this was
ultimately unsuccessful.
We achieved the syntheses of [Cp*MMe3] (M ) Zr, Hf) by
the methods of Bercaw11 and Marks.15 Direct reactions thereof
with HLn (n ) 1, 2) produced the four complexes [Cp*MLn-
Me2] (Scheme 1). The isolated yields were limited by the
difficulty in crystallizing these rather soluble complexes;
experiments in NMR tubes indicated very high conversions.
Crystallographic Analyses. The molecular structures of
several of the complexes have been determined by X-ray
crystallography. Table 1 gives crystallographic data, while Table
2 compares key structural parameters for all four structures.
Thermal ellipsoid plots are given in Figures 1-3. All of the
complexes have a four-legged piano-stool structure. Unsurpris-
ingly, [Cp*ZrL1Cl2] and [Cp*HfL1Cl2] are isomorphous, having
very similar unit cell and other parameters, and suffer from the
same lattice solvent disorder (vide infra).
We will compare first the three structures of dichloride
complexes (Figures 1 and 2). The M(1)-O(1) distances of ca.
2.02 Å and the C(1)-O(1)-M(1) angles of 137-146° are
consistent with sp2 hybridization at O,16 and thus the alkoxide
acts formally as a three-electron donor. In the structure of
[Cp*ZrL2Cl2] steric interactions between the oxazoline methyl
group at C(29) and the Cp* ligand cause a fold in the metal
chelate ring such that the angle θ between the least-squares
planes defined by N(1)-C(7)-C(8)-C(1)-O(1) and N(1)-
Zr(1)-O(1) is 21.17(50)°. In the complexes [Cp*ML1Cl2] (M
) Zr, Hf), where there is no significant steric pressure in this
region, the angles θ are 8.64(18) and 9.23(22)°, respectively.
The fold angle φ in the oxazoline ring (the angle between the
planes defined by N(1)-C(7)-O(2)-C(9) and N(1)-C(8)-
C(9)) is also the largest for [Cp*ZrL2Cl2]. As a further
consequence, C(1)-O(1)-M(1) for [Cp*ZrL2Cl2] is by far the
lowest of the three chloride complexes at 137.1(4)° and the
M(1)-N(1) distance is the largest. Interestingly, the M(1)-N(1)
distances for the L1 complexes of 2.295(3) and 2.277(4) Å are
rather shorter than those observed for analogous imino-phenolate
systems at ca. 2.35 Å,17 and this may be indicative of a stronger
bond resulting from the presence of the conjugated O atom in
