Chemistry of Heterocyclic Compounds, Vol. 42, No. 8, 2006
AN UNUSUAL REACTION OF ISATOIC
ANHYDRIDE WITH ACETYL- AND BENZOYL-
METHYLENETRIPHENYLPHOSPHORANES
E. N. Kozminykh1, V. I. Goncharov2, R. A. Aitken3, V. O. Kozminykh4, and K. Sh. Lomidze4
Keywords: 2-substituted 2-(triphenylphosphoranylidene)methyl-1,2-dihydro-4H-3,1-benzoxazin-4-
ones, isatoic anhydride, reactions with acetyl- and benzoylmethylenetriphenylphosphoranes.
There are published data on the C-acylation of ethyl triphenylphosphoranylideneacetate with isatoic
anhydride [3,1-benzoxazine-2,4(H)-dione] (1) leading to the formation of 3-(triphenylphosphoranylidene)-
quinoline-2,4(1H,3H)-dione [1,2]. As a result of the reaction of compound 1 with 1-triphenyl-
phosphoranylidene-2-propanone (acetylmethylenetriphenylphosphorane) (2a) or 2-triphenylphosphoranylidene-
1-phenylethanone (benzoylmethylenephosphorane) (2b) we unexpectedly isolated the products from O-acylation
of the latter followed by decarboxylation of the intermediate ylide and heterocyclization, i.e., the 2-substituted 2-
(triphenylphosphoranylidenemethyl)-1,2-dihydro-4H-3,1-benzoxazin-4-ones 3a,b.
+
PPh3
R
PPh3
O
2a,b
O
O
–
O
R
N
H
O
O
1
+
PPh3
+
PPh3
O
O
–
O
R
R
–
– CO2
NH
N
H
CO2
O
O
4
2
O
H
3
5
6
15
O
17
16
1
P
18
19
PPh3
8
N
N
H
14
7
R
9
H
10
13
3
3a,b
11
12
3 b
2, 3 a R = Me, b R = Ph
__________________________________________________________________________________________
1
Moscow State University of Technologies and Management, Perm Branch, Perm 614065, Russia;
2
3
e-mail: kvonstu@yahoo.com. Stavropol State Medical Academy, Stavropol 355023, Russia. St. Andrews
University, Fife KY1695T, Great Britain; e-mail: raa@st-and.ac.uk. Perm State Pedagogical University, Perm
4
614990, Russia; e-mail: kvo@perm.ru. Translated from Khimiya Geterotsiklicheskikh Soedinenii, No. 8,
pp. 1272-1274, August, 2006. Original article submitted February 19, 2006.
0009-3122/06/4208-1107©2006 Springer Science+Business Media, Inc.
1107

The structure of compounds 3a,b is confirmed by the NMR spectra and agrees well with previously
obtained data on the structural features of ylides [3].
Compounds 3a,b have bactericidal activity against standard strains of Staphylococcus aureus P-209 and
Escherichia coli M17, acting on bacterial cultures at a minimum suppressing concentration of up to 62.5 µg/ml.
Reaction of Isatoic Anhydride (1) with Acetyl- or Benzoylmethylenetriphenylphosphoranes. A
mixture of isatoic anhydride 1 (0.82 g, 5.0 mmol) and acetylmethylenetriphenylphosphorane 2a (1.59 g,
5.0 mmol) [4] or benzoylmethylenetriphenylphosphorane 2b (1.90 g, 5.0 mmol) [4] in dioxane (80-100 ml) was
boiled for 3-5 h (TLC). The solvent was evaporated, and the residue was rubbed with ether and
tetrachloromethane and recrystallized from ethyl acetate. Compounds 3a and 3b were obtained.

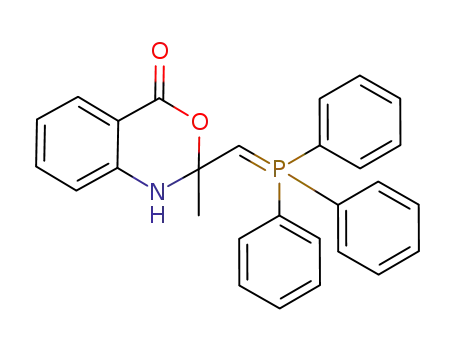

2-Methyl-2-triphenylphosphoranylidenemethyl-1,2-dihydro-4H-3,1-benzoxazin-4-one
(3a).
Yield 1.40 g (64%); mp 139-140°C (ethyl acetate). IR spectrum (Specord M-80, thin layer in vaseline oil),
1
ν, cm-1: 3273 (NH), 1788, 1728 (C=O), 1592, 1570 (C=Carom, Ph3P=CH). H NMR spectrum (RYa-2310, 60
MHz, DMSO-d6, HMDS), δ, ppm: 1.88 (3H, s, CH3); 3.78 (1H, br. s, NH); 4.15 (1H, br. s, CH in Ph3P=CH–);
7.10-7.82 (19H, m, 3C6H5, C6H4). Found, %: C 76.69; H 5.72; N 3.06; P 6.88. C28H24NO2P. Calculated, %:
C 76.87; H 5.53; N 3.20; P 7.08.
2-Phenyl-2-triphenylphosphoranylidenemethyl-4H-3,1-benzoxazin-4-one (3b). Yield 1.89 g (72%);
mp 198-199°C (ethyl acetate). IR spectrum (Specord M-80, thin layer in Vaseline oil), ν, cm-1: 3292 (NH), 1780,
1732 (C=O), 1620, 1584, 1502 (C=Carom, Ph3P=CH). 1H NMR spectrum (Gemini-300, 300 MHz, in
deuterochloroform, TMS), δ, ppm (J, Hz) (the numbering of the carbon atoms is arbitrary, see the scheme): 2.90
(1H, br. s, NH); 4.45 (1H, br. s, C(15)H); 6.79 (1H, d, J = 8.4, C(7)H); 6.91 (1H, t, J = 7.8, C(12)H); 7.10-7.12 (3H,
group of signals, C(4)H, C(5)H, C(6)H); 7.20-7.26 (7H, group of signals, C(10)H, C(14)H, and 5CH in Ph3P=);
7.31-7.35 (3H, group of signals, C(11); C(13); and 1CH in Ph3P=); 7.43-7.50 (6H, group of signals, 6CH in Ph3P=);
7.69-7.72 (3H, group of signals, 3CH in Ph3P=). 13C NMR spectrum (Gemini-300 BB, 75 MHz, TMS,
deuterochloroform), δ, ppm (J, Hz) (the numbering of the carbon atoms is arbitrary, see the scheme): 51.4 (C(15)
,
J = 111.0), 109.3 (C(1)), 115.3 (C(7)), 123.0, 128.8, 128.9, 136.2 (C(4)-C(6), C(12)), 126.0 (C(16), J = 91), 126.3,
127.3 (C(10), C(11)), 128.4 (C(18), J = 13), 131.7 (C(19), J = 2), 132.5 (C(17), J = 11), 141.0, 146.9 (C(3), C(9)), 159.4
(C(8)), 184.2 (C(2)). 31P NMR spectrum (Gemini-300 BB, 121 MHz, H3PO4, deuterochloroform), δ, ppm: +16.6.
Found, %: C 79.11; H 5.37; M 2.65; P 6.03. C33N26NO2P. Calculated, %: C 79.34; H 5.25; N 2.80; P 6.20.
REFERENCES
1.
2.
3.
D. T. Connor and M. von Strandtmann, J. Org. Chem., 38, 1047 (1973).
G. M. Coppola, Synthesis, 505 (1980).
E. N. Koz'minykh, E. S. Berezina, V. O. Koz'minykh, R. A. Aitken, N. Karodia, and T. Messil, Zh.
Obshch. Khim., 68, 420 (1998).
4.
F. Ramirez and S. Dershowitz, J. Org. Chem., 22, 41 (1957).
1108
