Translation of DNA into a Library of 13 000 Synthetic
Small-Molecule Macrocycles Suitable for in Vitro Selection
Brian N. Tse, Thomas M. Snyder, Yinghua Shen, and David R. Liu*
Howard Hughes Medical Institute and the Department of Chemistry and Chemical Biology,
HarVard UniVersity, 12 Oxford Street, Cambridge, Massachusetts 02138
Received July 20, 2008; E-mail: drliu@fas.harvard.edu
Abstract: DNA-templated organic synthesis enables the translation, selection, and amplification of DNA
sequences encoding synthetic small-molecule libraries. Previously we described the DNA-templated
multistep synthesis and model in vitro selection of a pilot library of 65 macrocycles. In this work, we report
several key developments that enable the DNA-templated synthesis of much larger (>10 000-membered)
small-molecule libraries. We developed and validated a capping-based approach to DNA-templated library
synthesis that increases final product yields, simplifies the structure and preparation of reagents, and reduces
the number of required manipulations. To expand the size and structural diversity of the macrocycle library,
we augmented the number of building blocks in each DNA-templated step from 4 to 12, selected 8 different
starting scaffolds which result in 4 macrocycle ring sizes and 2 building-block orientations, and confirmed
the ability of the 36 building blocks and 8 scaffolds to generate DNA-templated macrocycle products. We
computationally generated and experimentally validated an expanded set of codons sufficient to support
1728 combinations of step 1, step 2, and step 3 building blocks. Finally, we developed new high-resolution
LC/MS analysis methods to assess the quality of large DNA-templated small-molecule libraries. Integrating
these four developments, we executed the translation of 13 824 DNA templates into their corresponding
small-molecule macrocycles. Analysis of the resulting libraries is consistent with excellent (>90%)
representation of desired macrocycle products and a stringent test of sequence specificity suggests a high
degree of sequence fidelity during translation. The quality and structural diversity of this expanded DNA-
templated library provides a rich starting point for the discovery of functional synthetic small-molecule
macrocycles.
Introduction
templated synthesis approach to translating DNA sequences into
synthetic small molecules and synthetic polymers in which
Functional molecules emerge in living systems through cycles
of translation, selection, and amplification with mutation.
Scientists have successfully adapted features of biological
evolution to create DNA, RNA, and protein molecules with
tailor-made binding or catalytic properties. The scope of this
approach has traditionally been restricted to biopolymers that
can be accessed through the use of DNA or RNA polymerases1-4
or the ribosome.5-8 The potential benefits of applying translation
and selection-based methods to the discovery of functional
synthetic molecules has inspired new approaches to addressing
the problem of translating DNA sequences into structures not
necessarily compatible with polymerase enzymes or ribosomal
machinery. For example, our laboratory has developed a DNA-
Watson-Crick base pairing to a DNA template recruits DNA-
linked reagents to perform each synthetic step in a sequence-
programmed manner.9-15 Harbury and co-workers have devel-
oped an elegant “DNA display” method in which resin-bound
DNA hybridization directs split-and-pool combinatorial syn-
thesis, and have used DNA display to generate libraries of linear
peptides and peptoids.16-19 Neri and co-workers have used DNA
base pairing to bring together noncovalent combinations of small
pharmacophores that can suggest the synthesis of covalent small
molecules with desired binding properties.20-23
(9) Gartner, Z. J.; Liu, D. R. J. Am. Chem. Soc. 2001, 123, 6961–3.
(10) Gartner, Z. J.; Kanan, M. W.; Liu, D. R. J. Am. Chem. Soc. 2002,
124, 10304–6.
(11) Li, X.; Gartner, Z. J.; Tse, B. N.; Liu, D. R. J. Am. Chem. Soc. 2004,
126, 5090–2.
(1) Ellington, A. D.; Szostak, J. W. Nature 1990, 346, 818–22.
(2) Tuerk, C.; Gold, L. Science 1990, 249, 505–10.
(3) Singer, B. S.; Shtatland, T.; Brown, D.; Gold, L. Nucleic Acids Res.
1997, 25, 781–6.
(12) Calderone, C. T.; Liu, D. R. Angew. Chem., Int. Ed. 2005, 44, 7383–6.
(13) Sakurai, K.; Snyder, T. M.; Liu, D. R. J. Am. Chem. Soc. 2004, 127,
1660–1661.
(4) Shamah, S. M.; Healy, J. M.; Cload, S. T. Acc. Chem. Res. 2008, 41,
130–8.
(14) Rosenbaum, D. M.; Liu, D. R. J. Am. Chem. Soc. 2003, 125, 13924–5.
(15) Gartner, Z. J.; Tse, B. N.; Grubina, R.; Doyon, J. B.; Snyder, T. M.;
Liu, D. R. Science 2004, 305, 1601–5.
(5) Roberts, R. W.; Szostak, J. W. Proc. Natl. Acad. Sci. U.S.A. 1997,
94, 12297–302.
(16) Wrenn, S. J.; Weisinger, R. M.; Halpin, D. R.; Harbury, P. B. J. Am.
Chem. Soc. 2007, 129, 13137–43.
(6) Takahashi, T. T.; Austin, R. J.; Roberts, R. W. Trends Biochem. Sci.
2003, 28, 159–65.
(17) Halpin, D. R.; Harbury, P. B. PLoS Biol. 2004, 2, E173.
(18) Halpin, D. R.; Harbury, P. B. PLoS Biol. 2004, 2, E174.
(19) Halpin, D. R.; Lee, J. A.; Wrenn, S. J.; Harbury, P. B. PLoS Biol.
2004, 2, E175.
(7) Hanes, J.; Pluckthun, A. Proc. Natl. Acad. Sci. U.S.A. 1997, 94, 4937–
42.
(8) Wilson, D. R.; Finlay, B. B. Can. J. Microbiol. 1998, 44, 313–29.
9
10.1021/ja805649f CCC: $40.75
2008 American Chemical Society
J. AM. CHEM. SOC. 2008, 130, 15611–15626 15611

A R T I C L E S
Tse et al.
These approaches to the central problem of translating nucleic
acids into corresponding synthetic compounds are relatively
recent developments, and their ability to provide molecules with
desired functional properties will depend on their applicability
to appropriately sized libraries of synthetic structures. Past
efforts to synthesize and evaluate libraries of synthetic small
molecules have resulted in the discovery of chemical genetic
probes that perturb specific cellular functions in vivo in a
temporally controlled, dose-dependent, and reversible manner,24-30
as well as the discovery of lead compounds for the development
of new therapeutic agents.31-33
Despite these attractive features, the availability and use of
small- and medium-sized macrocycles have been limited by the
challenges associated with their synthesis.31,34,59-62 Macrocy-
clization reactions can be very sensitive to small structural
variations within linear precursors,60,63 can be especially difficult
for small peptide substrates that form medium-sized macro-
cycles,61,64-66 and can be prone to multimeric side-products
arising from intermolecular bond formation.61,62 These chal-
lenges are magnified in a solid-phase library synthesis format
in which the removal of truncated, multimeric, and acyclic
byproducts from desired macrocycles (all of which are linked
to the same bead) can be difficult.
Macrocycles are of special interest for the development of
biologically active small molecules.34-46 The increased rigidity
of macrocyclic compounds can greatly decrease the entropic
cost of their binding to biological targets, resulting in higher
potential binding affinities and specificities than those of
corresponding linear compounds.34,36,41,47-53 In addition, mac-
rocyclic peptide-like structures can possess higher bioavailabil-
ity, membrane permeability, and resistance to in ViVo degrada-
tion than their linear counterparts.34,36,40,41,54-58 These advantages
likely account for the significant representation of macrocyclic
compounds among biologically active secondary metabolites.38,39
We hypothesized that several features of DNA-templated
synthesis could facilitate access to macrocycles. DNA-templated
synthesis is compatible with aqueous solvent,67 extremely low
(nM) reactant concentrations,9 and selection-based purification
methods for bond formation or bond cleavage that are not
available to solid-phase synthesis10s all factors that could
promote macrocycle formation or facilitate macrocycle isolation.
We also anticipated that the ability of base pairing to hold
together relevant reactive groups at elevated effective molarities
during the macrocyclization step would further assist the ring
closure reaction. Indeed, these features enabled the successful
DNA-templated synthesis and model in Vitro selection of a pilot
library of 65 macrocycles.15
Here, we report the DNA-templated synthesis of a large
library of synthetic macrocycles suitable for in Vitro selection.
Achieving this goal required several significant methodological
advances. We developed a more robust and efficient library
synthesis route to these compounds and conducted a thorough

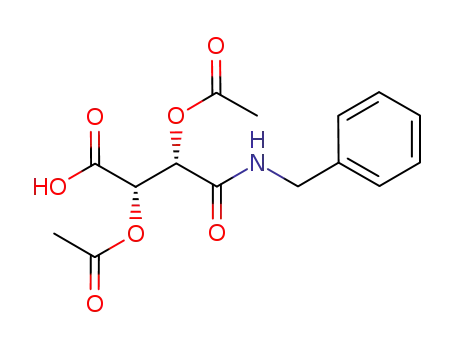

study of the compatibility of 36 building blocks and eight
scaffolds in DNA-templated macrocycle synthesis. Guided by
our previous studies on template secondary structure,68 we
designed a new set of DNA codons to support large-scale library
synthesis. We confirmed the efficacy, quality, and sequence
fidelity of our library synthesis method by examining a series
of small-molecule sublibraries with PAGE and high resolution
(20) Melkko, S.; Scheuermann, J.; Dumelin, C. E.; Neri, D. Nat. Biotechnol.
2004, 22, 568–74.
(21) Dumelin, C. E.; Scheuermann, J.; Melkko, S.; Neri, D. Bioconjug.
Chem. 2006, 17, 366–70.
(22) Melkko, S.; Zhang, Y.; Dumelin, C. E.; Scheuermann, J.; Neri, D.
