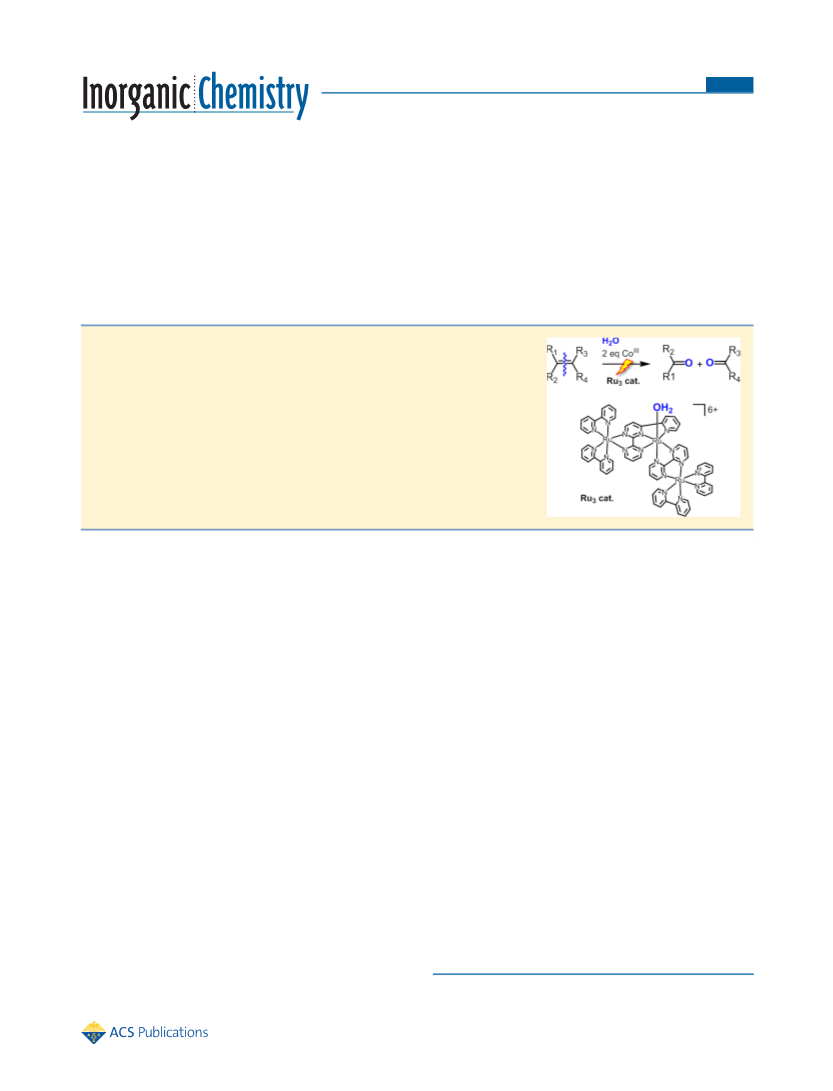

Inorganic Chemistry
Article
3
1
for C61H47B5ClF20N17Ru3, /2CH3NO2, /2diethyl ether: C, 40.36; H,
2.97; N, 13.50. Found: C, 40.09; H, 2.73; N, 13.13.
extracted by water and the water was removed before purified by
recrystallization in MeOH/Et2O (0.1088 g, 0.061 mmol, 78%). H
1
NMR (500 MHz, CD3NO2, RT, δ/ppm): 10.04−9.94 (m, 1 H), 9.08−
8.84 (m, 2 H), 8.72−8.35 (m, 14 H), 8.28−7.99 (m, 11 H), 7.95−7.85
(m, 6 H), 7.79−7.62 (m, 5 H), 7.50−7.10 (m, 10 H). ESI-MS (m/z):
1706.87 [M−BF4]+ (calcd: 1706.06). Anal. Calcd for
C61H49B5ClF20N17Ru3·1.5CH3NO2·H2O: C, 39.46; H, 2.94, N,
13.62. Found: C, 39.65; H, 2.84; N, 13.33.

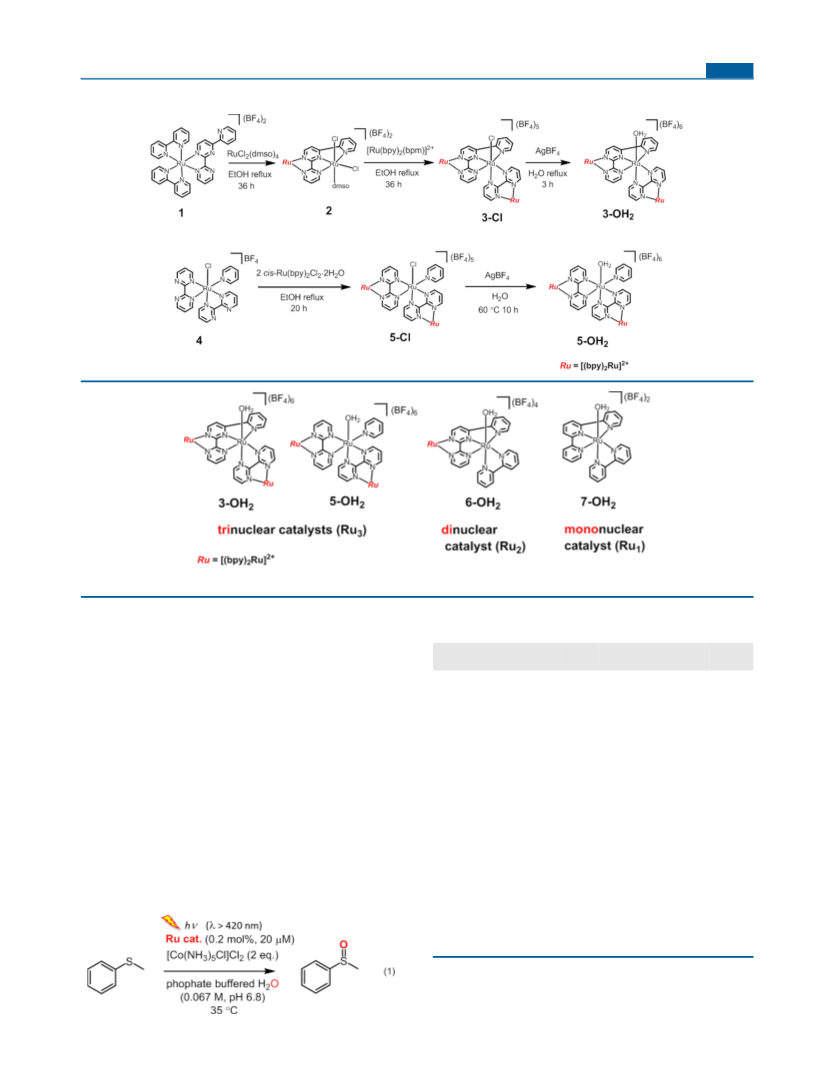

Preparation of 5-OH2. Complex 5-Cl (0.0252 g, 0.01 mmol) and
AgBF4 (0.0160 g, 0.08 mmol) was dissolve in H2O, and the solution
was heated to 60 °C for 10 h. After reaction, water was removed and
the obtained solid was dissolved in CH3NO2 to remove AgBF4 salt
through Celite filtration. Dark green solid powder was precipitated
from CH3NO2/Et2O−CH2Cl2 solution (0.0175 g, 0.01 mmol, 67%).
1H NMR (500 MHz, CD3NO2, RT, δ/ppm): 9.98−9.84 (m, 1 H),
9.07−8.75 (m, 2 H), 8.66−8.37 (m, 15 H), 8.23−7.90 (m, 14 H),
7.84−7.42 (m, 16 H), 7.29−6.96 (m, 1 H). ESI-MS (m/z): 1688.6
[M−BF4]+ (calcd: 1690.9) (M = [(bpy)2RuII(bpm)RuII(OH) (py)
(bpm)RuII(bpy)2](BF4)5).
Preparation of 3-OH2. A mixture of [Ru(bpy)2(pybpm)RuCl-
(bpm)Ru(bpy)2](BF4)5 (3-Cl) (120 mg, 0.0670 mmol), and AgBF4
(23.9 mg, 0.118 mmol) in H2O (6 mL) was refluxed for 3 h. After
cooling to room temperature, the solvent was evaporated and the
residue dissolved in CH3NO2 was filtered through Celite. The filtrate
was concentrated and added excessive amounts of diethyl ether. After
the resulting solid was washed with toluene and CH2Cl2, a blackish-
green solid product was obtained from CH3NO2/diethyl ether
(117 mg, 0.0628 mmol, 93.8% yield). 1H NMR (400 MHz,
CD3NO2, RT, δ/ppm): 10.02−9.98 (m, 1 H), 9.95−9.92 (m, 1 H),
8.71−8.40 (m, 28 H), 8.35−8.04 (m, 29 H), 8.00−7.84 (m, 10 H),
7.81−7.40 (m, 23 H), 7.20−7.06 (m, 2 H). ESI-MS (m/z): 1687.9
[M−BF4]+ (calcd: 1688.16) (M = [(bpy)2RuII(pybpm)RuII(OH)
(bpm)RuII(bpy)2](BF4)5). Anal. Calcd for C61H49B6F24N17ORu3·
3H2O·2CH3NO2: C, 37.16; H, 3.02; N, 13.07. Found: C, 37.03; H,
2.69; N, 12.93.
Preparation of 4.
Anal. Calcd for C61H51B6F24N17ORu3·1.5CH3NO2·2H2O·CH2Cl2:
C, 36.76; H, 2.99; N, 12.49. Found: C, 36.42; H, 2.69; N, 12.19.
ASSOCIATED CONTENT
* Supporting Information
■
S
The Supporting Information is available free of charge on the

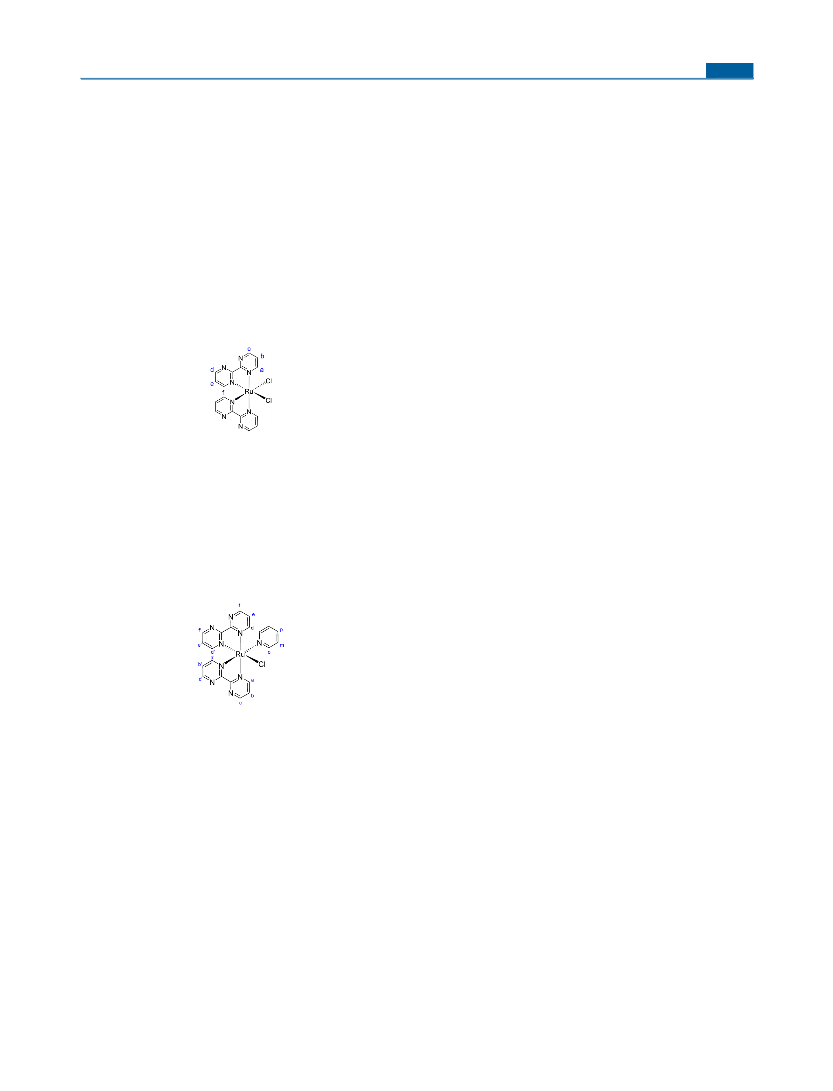

Synthesis of cis-Ru(bpm)2Cl2. 2,2′-Bipyrimidine (0.11 g, 0.67 mmol)
was dissolved in DMSO/EtOH (1/9, 3 mL) and RuCl2(dmso)4
(0.1527 g, 0.32 mmol) was slowly added and refluxed for 5 h.
After Celite filtration, the solvent of the filtrate was removed under
vacuum. The obtained cis-Ru(bpm)2Cl2 was purified by Al2O3 column
chromatography (1/9MeOH−CH3NO2). After recrystallization
by CH3NO2/Et2O twice, cis-Ru(bpm)2Cl2 was obtained as a brown
solid (0.0604 g, 0.12 mmol, 39%). 1H NMR (500 MHz, CD3NO2 RT,
δ/ppm). 10.21 (dd, J = 5.7 and 2.1 Hz, 2 H, Ha), 9.08 (dd, J = 4.7 and
2.0 Hz, 2 H, Hc), 8.74 (dd, J = 4.6 and 1.8 Hz, 2 H, Hd), 8.17 (dd, J =
5.9 and 1.9 Hz, 2 H, Hf), 7.83 (t, J = 5.1 Hz, 2 H, Hb or He), 7.19
(t, J = 5.1 Hz, 2 H, Hb or He).

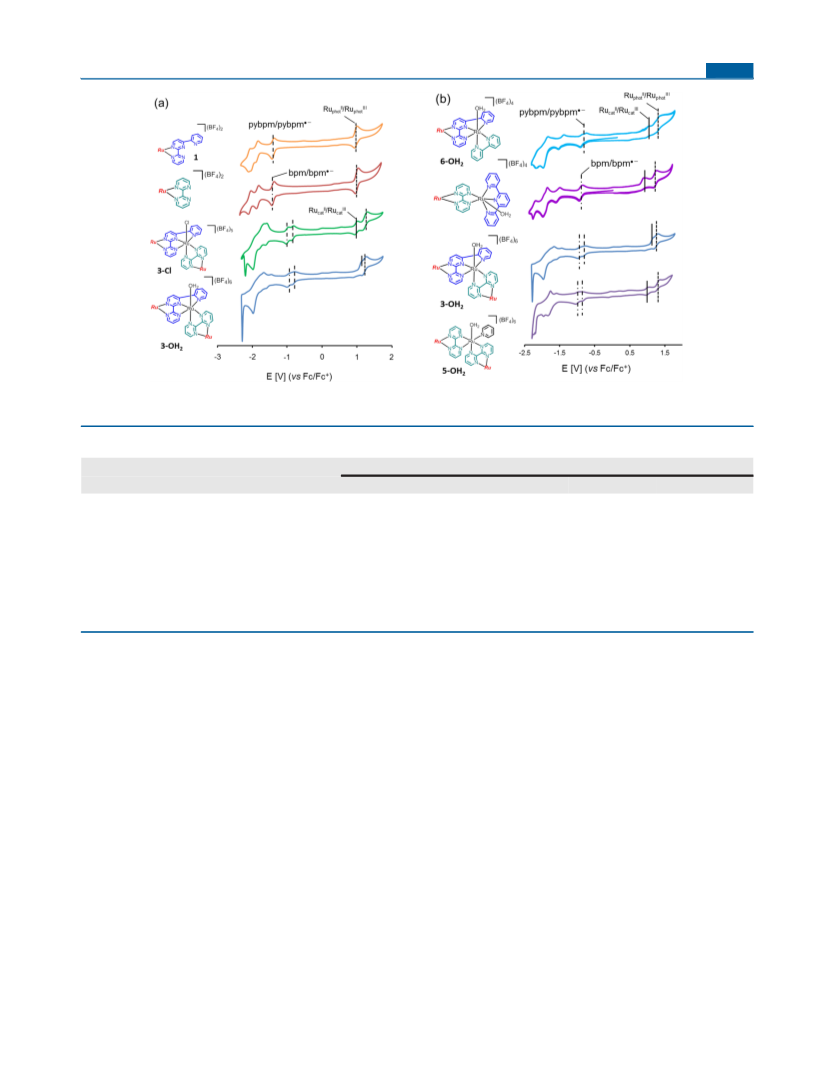

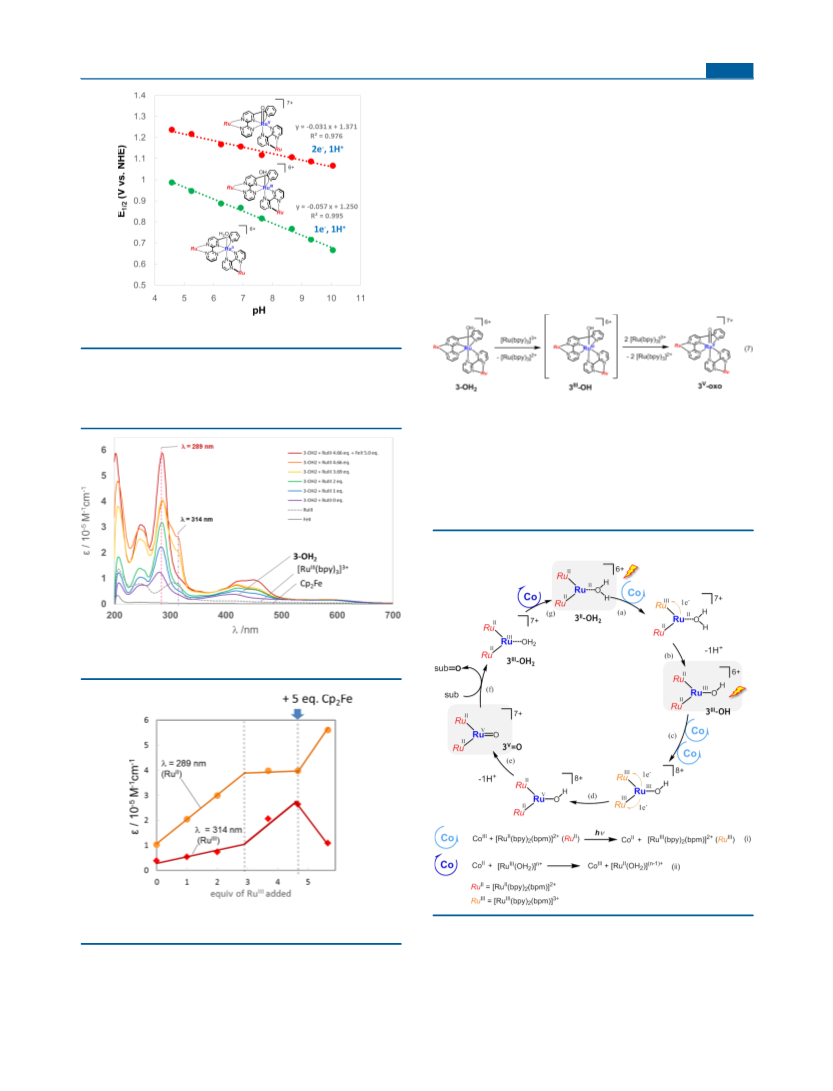

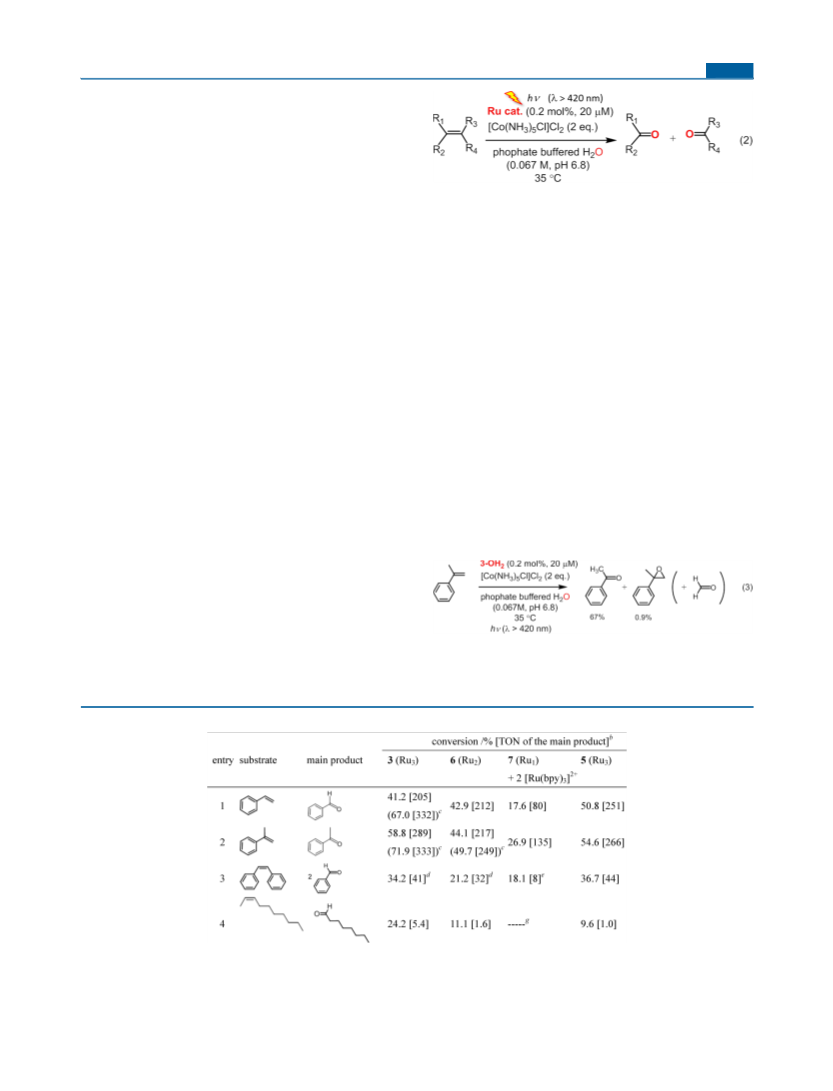

GC-MS data of the oxygenated products, ESI-MS, NMR,
UV-vis absorption, differential pulse voltammograms,
and square wave voltammograms data of compounds,
related intermediates, and reagents used in the experi-
ments. Details for quantum yield measurements, ORTEP
diagram and IR data of the resultant Co salt. (PDF)
AUTHOR INFORMATION
Corresponding Author
■
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
We thank Professor Kotohiro Nomura and Shinsuke Takagi
(Tokyo Metropolitan University) for fruitful discussions. We
gratefully acknowledge the financial support of the Naito
Foundation (A.I.), Cooperative Research Program of “Network
Joint Research Center for Materials and Devices”. A part of this
work was supported by a JSPS Grant-in-Aid for Scientific
Research on Innovative Areas (“3D Active-Site Science”: Grant
No. 26105003) from The Ministry of Education, Culture,
Sports, Science and Technology (MEXT), Japan. S. P. acknowl-
edges the Tokyo Metropolitan government (Asian Human
Resources Fund) for a predoctoral fellowship.
Excess pyridine was added to a cis-Ru(bpm)2Cl2 (0.0336 g,
0.06 mmol) MeOH (2 mL) solution, and the solution was refluxed
for 12 h. After the solution was cooled to room temperature, NH4BF4
(0.0070 g, 0.07 mmol) was added and vigorously stirred for 3 h. The
obtained product (4) was purified by Al2O3 column chromatography
eluting with CH3NO2. Deep red crystal was deposited from recrys-
1
tallization in CH3NO2/Et2O (0.0336 g, 0.05 mmol, 85%). H NMR
(500 MHz, CD3NO2, room temperature (RT), δ/ppm): 10.17 (dd, J =
5.7 and 2.1 Hz, 1 H, Ha), 9.15 (dd, J = 4.7 and 1.9 Hz, 1 H, Hf),
9.11 (dd, J = 4.8 and 2.1 Hz, 1 H, Hc), 8.95 (dd, J = 5.7 and 2.0 Hz,
1 H, Hd), 8.91 (dd, J = 4.7 and 2.0 Hz, 1 H, Hc′), 8.88 (dd, J = 4.7 and
1.9 Hz, 1 H, Hf′), 8.65 (s, 2 H, Ho), 8.50 (dd, J = 5.8 and 1.9 Hz, 1 H,
Hd′), 8.14 (dd, J = 5.8 and 2.0 Hz, 1 H, Ha′), 7.92 (t, J = 5.2 Hz, 1 H,
Hb), 7.83 (tt, J = 7.7 and 1.3 Hz, 1 H, Hp), 7.77 (t, J = 5.3 Hz, 1 H,
He), 7.41 (t, J = 5.3 Hz, 1 H, He′), 7.36 (t, J = 5.2 Hz, 1 H, Hb′), 7.83
(tt, J = 7.1 and 1.3 Hz, 1 H, Hm). ESI-MS (m/z): 531.8 [M-BF4]+
(calcd: 531.9). Anal. Calcd for C21H17BClF4N9Ru·CH3NO2: C, 38.87;
H, 2.97, N, 20.60. Found: C, 39.02; H, 2.90; N, 20.41.

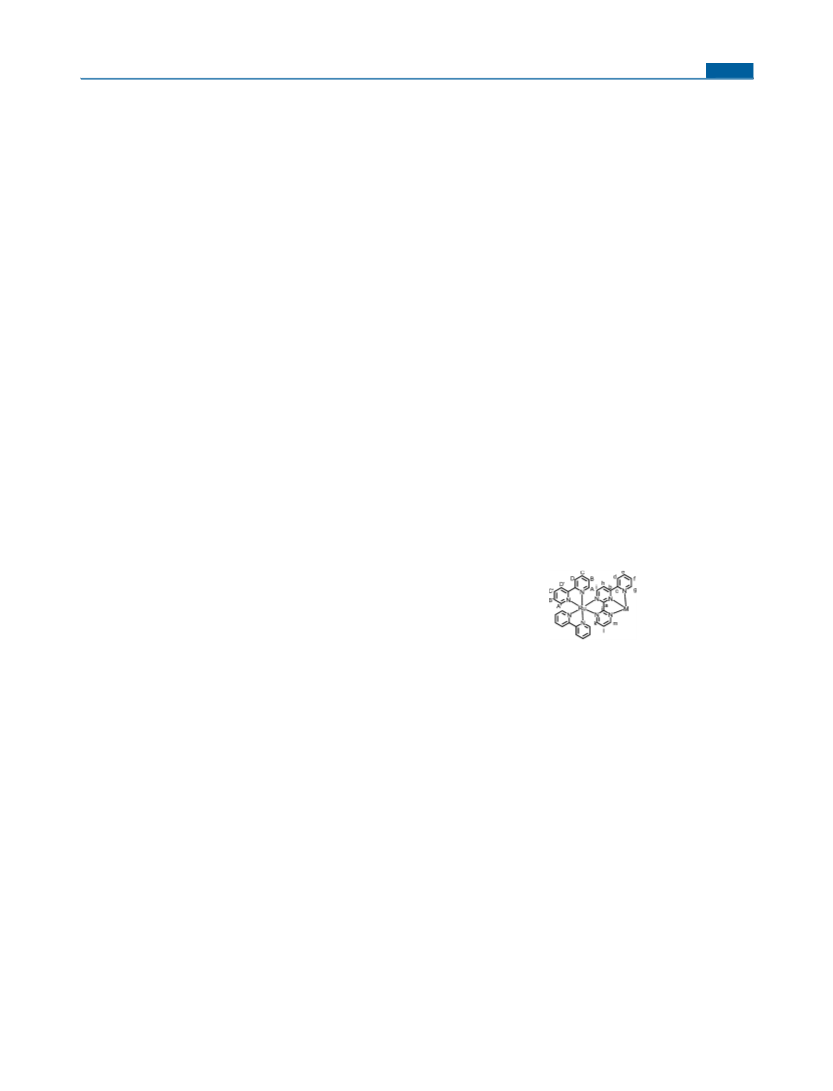

Preparation of 5-Cl. Complex 4 (0.0479 g, 0.08 mmol) and cis-
Ru(bpy)2Cl2·2H2O (0.1497 g, 0.23 mmol) were refluxed in EtOH
(3 mL) for 20 h. After cooled to RT, the solution was stirred with
NH4BF4 0.1043 g (1.00 mmol) for 3 h to obtain the product as a green
powder. The product was washed with EtOH. The product was
