www.eurjic.org
FULL PAPER
Emmett–Teller (BET) surface area of the as-prepared sample was
tonietti, ACS Catal. 2012, 2, 1596–1606; c) X. Wang, X. Chen,
A. Thomas, X. Fu, M. Antonietti, Adv. Mater. 2009, 21, 1609–
determined by physisorption of N
surface area.
2
at 77 K by using a NOVA 3000
1612; d) Y. Wang, J. Zhang, X. Wang, M. Antonietti, H. Li,
Angew. Chem. Int. Ed. 2010, 49, 3356–3359; Angew. Chem.
2010, 122, 3428–3431.
13] a) X. Wang, K. Maeda, A. Thomas, K. Takanabe, G. Xin,
J. M. Carlsson, Nat. Mater. 2009, 8, 76–80; b) A. Thomas, A.
Fischer, F. Goettmann, M. Antonietti, J. O. Müller, R. Schlögl,
J. M. Carlsson, J. Mater. Chem. 2008, 18, 4893–4908.

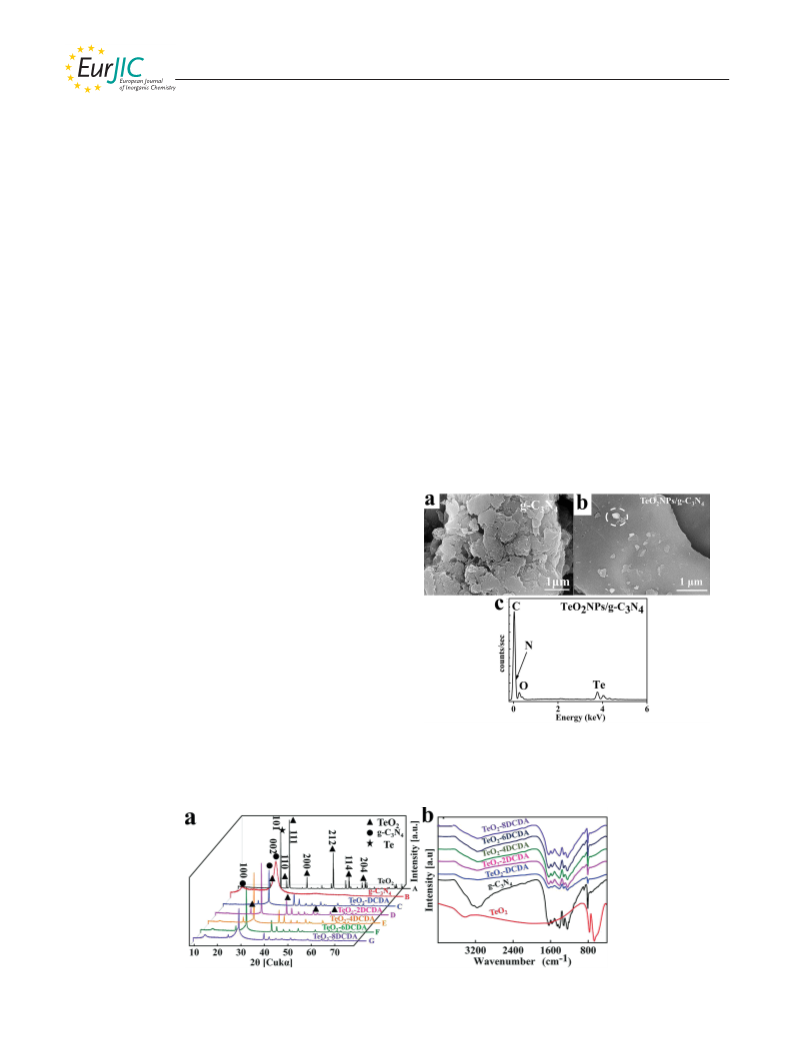

Experimental Methods: The TeO
pared by a general method that involved placing a ground mixture
of highly pure TeO particles and DCDA (molar ratio equal 1:1)
in a tubular furnace atmosphere followed by calcination at 550 °C
2 3 4
NPs/g-C N hybrids were pre-
[
[
2
–1
under argon flow with a heating rate of 2.5 Kmin .
14] a) B. Jürgens, E. Irran, J. Senker, P. Kroll, H. Müller, W.
Schnick, J. Am. Chem. Soc. 2003, 125, 10288–10300; b) C. P.
Grey, N. J. Dupré, Chem. Rev. 2004, 104, 4493–4512; c) G. Al-
gara-Siller, N. Severin, S. Y. Chong, T. Björkman, R. G. Pal-
grave, A. Laybourn, M. Antonietti, Y. Z. Khimyak, A. V. Kra-
sheninnikov, J. P. Rabe, U. Kaiser, A. I. Cooper, A. Thomas,
M. J. Bojdys, Angew. Chem. Int. Ed. 2014, 53, 7450–7455; An-
gew. Chem. 2014, 126, 7580–7585; d) Q. Li, Y. He, R. Peng,
RSC Adv. 2015, 5, 24507–24512; e) T. Ma, Y. Tang, S. Dai,
S. J. Qiao, Phys. Small 2014, 12, 2382–2389.

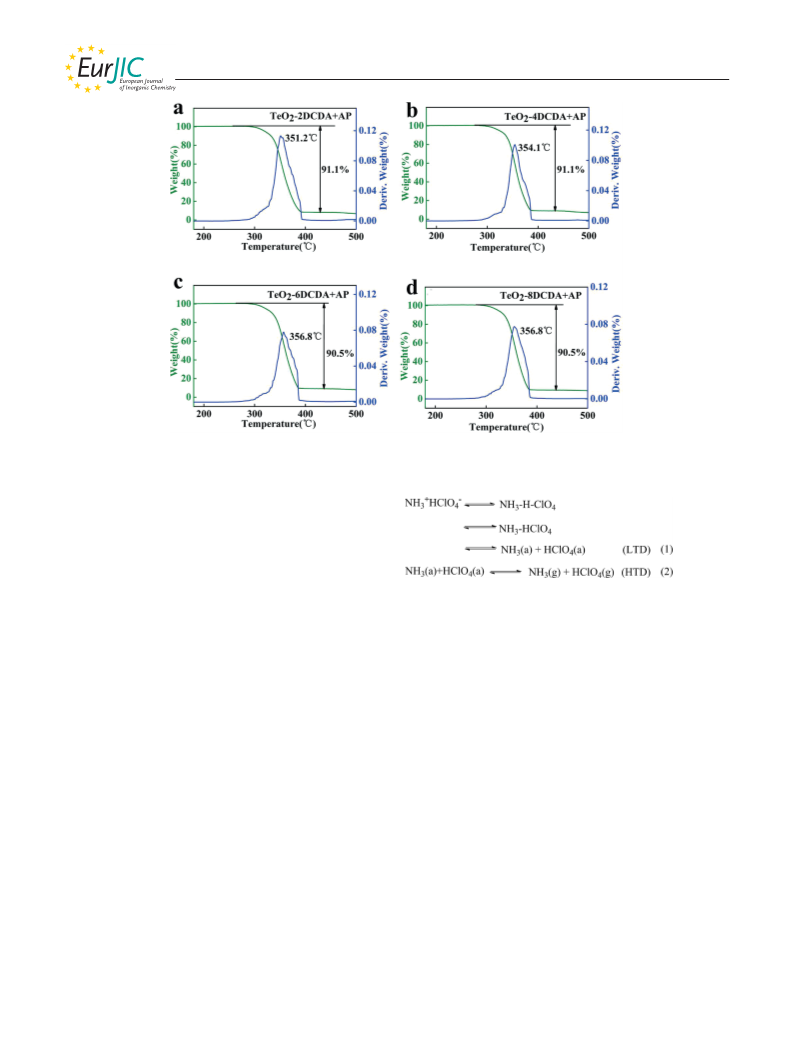

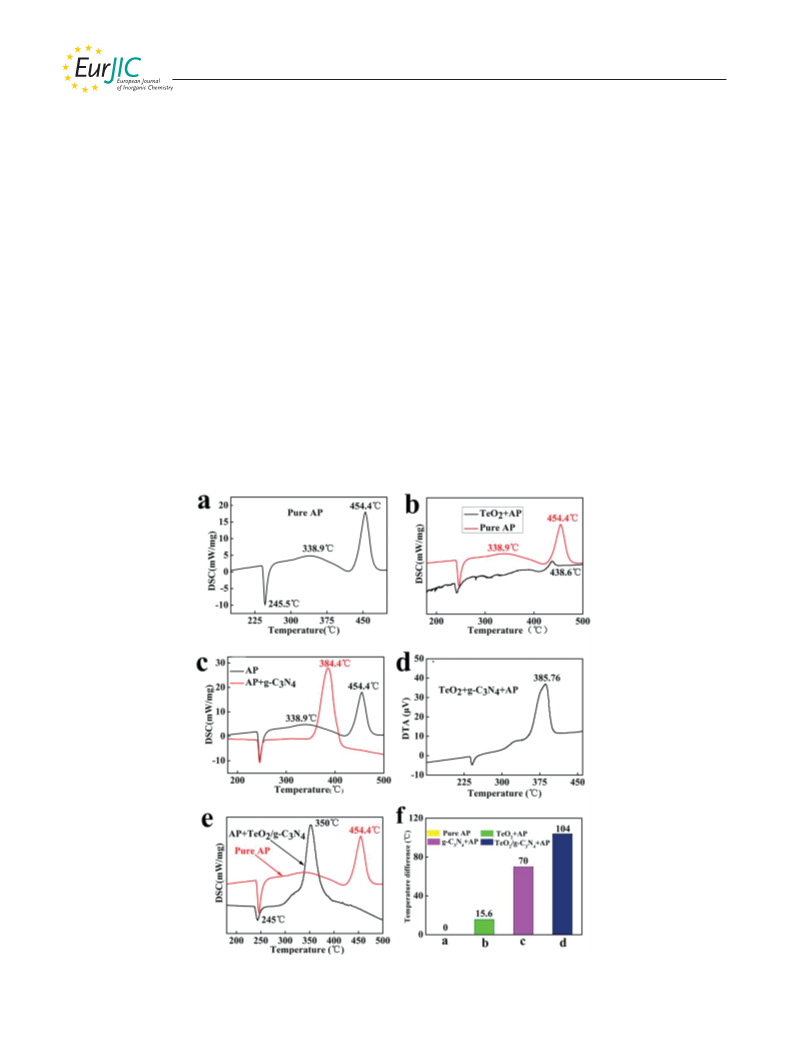

Catalytic Measurements: To test the catalytic effect of the
TeO
and the TeO
2
NPs/g-C
3
N
4
hybrids on the thermal decomposition of AP, AP
hybrids with different weight ratios were
2
NPs/g-C N
3 4
mixed and ground for 1 h. The resulting mixture was detected by
thermogravimetric analysis/differential scanning calorimetry
(
TGA-DSC) by using a Mettler Toledo TGA-DSC1–1100LF and
differential thermal analyzer (DTA QD-600) at a heating rate of
0 °Cmin–1 under a static N
atmosphere over the temperature
1
2
[
[
15] M. Shalom, S. Inal, D. Neherb, M. Antonietti, Catal. Today

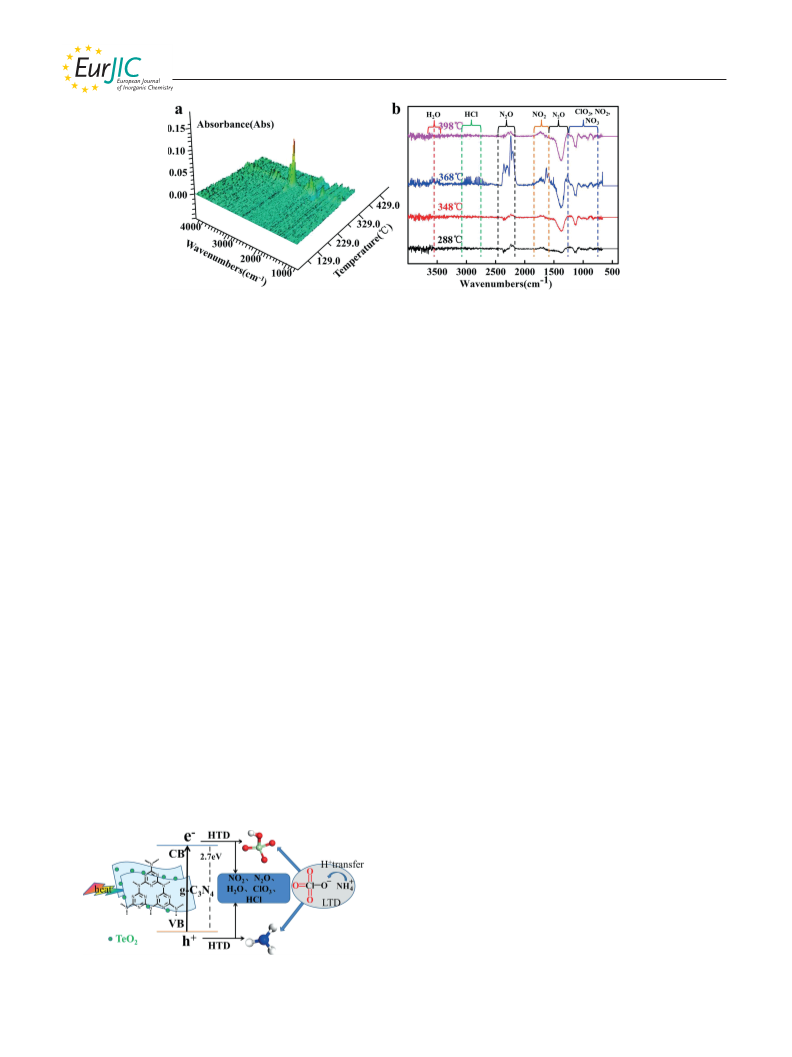

range of 25 to 500 °C. Thermogravimetric analysis–Fourier trans-
form infrared (TGA–FTIR), as a special technic, was used to ana-
lyze the catalytic mechanism of the thermal decomposition of AP
by detecting the products formed during the decomposition process
in real time.
2014, 225, 185–190.
16] a) L. Zhang, D. Jing, X. She, H. Liu, D. Yang, Y. Lu, J. Mater.
Chem. A 2014, 2, 2071–2078; b) D. J. Martin, K. Qiu, S. A.
Shevlin, A. D. Handoko, X. Chen, Z. Guo, J. Tang, Angew.
Chem. Int. Ed. 2014, 53, 9240–9245; Angew. Chem. 2014, 126,
9394–9399.
[
[
[
[
17] S. Zhang, J. Li, M. Zeng, G. Zhao, J. Xu, W. Hu, X. Wang,
ACS Appl. Mater. Interfaces 2013, 5, 12735–12743.
18] S. Ye, L. Qiu, Y. Yuan, Y. Zhu, J. Xia, J. Zhu, J. Mater. Chem.
A 2013, 1, 3008–3015.
19] I. P. Kondratyuk, L. A. Muradyan, Y. V. Pisarevskii, V. I, J. Si-
monov, Kristallografiya 1987, 32, 354–359.
20] a) T. Komatsu, H. Tawarayama, H. Mohri, K. Matusita, J.
Non-Cryst. Solids 1991, 2, 105–113; b) M. A. Hassan, C. A.
Hogarth, J. Mater. Sci. 1988, 23, 2500–2504; c) M. Ceriotti, F.
Pietrucci, M. J. Bernasconi, Phys. Rev. B 2006, 10, 1–20.
Acknowledgments
The authors are grateful for financial support from the National
Natural Science Foundation of China (NSFC) (project numbers
51372211, 10576026, and 21301142), National Defense Fundamen-
tal Research Projects (project number A3120133002), Youth Inno-
vation Research Team of Sichuan for Carbon Nanomaterials (grant
number 2011JTD0017), Applied Basic Research Program of
Sichuan Province (grant number 2014JY0170), and Postgraduate
Innovation Fund Project by Southwest University of Science and
Technology (grant number 15ycx007).
[21] a) O. Noguera, T. Merle-Méjean, A. P. Mirgorodsky, M. B.
Smirnov, P. Thomas, J.-C. Champarnaud-Mesjard, J. Non-
Cryst. Solids 2003, 1, 50–60; b) S.-H. Kim, Y. Yoko, S. Sakka,
J. Am. Ceram. Soc. 1993, 76, 2486–2490.
[22] X. Lu, K. Xu, P. Chen, K. Jia, S. Liu, C. Wu, J. Mater. Chem.
[
1] a) P. W. M. C. Jacobs, H. M. Whitehead, Chem. Rev. 1969, 69,
A 2014, 2, 18924–18928.
551–590; b) I. P. S. Kapoor, P. Srivastava, G. Singh, Propellants
[23] a) A. Vinu, K. Ariga, T. Mori, T. Nakanishi, S. Hishita, D.
Golberg, Y. Bando, Adv. Mater. 2005, 17, 1648–1652; b) Y.
Wang, X. Wang, M. Antonietti, Y. Zhang, ChemSusChem
2010, 3, 435–439; c) B. V. R. Chowdari, P. P. Kumari, J. Non-
Cryst. Solids 1996, 1, 31–40; d) T. Sun, S. P. Buchner, N. E.
Byer, J. Vac. Sci. Technol. 1980, 5, 1067–1073; e) M. K. Bahl,
K. L. Watson, K. J. Irgolic, J. Chem. Phys. 1977, 66, 5526–
5535; f) L. Fan, Y. Hu, J. Maier, P. Adelhelm, B. Smarsly, M.
Antoniettii, Adv. Funct. Mater. 2007, 17, 3083–3087.
[24] D. L. Reid, A. E. Russo, R. V. Carro, M. A. Stephens, A. R.
LePage, T. C. Spalding, Nano Lett. 2007, 7, 2157–2161.
[25] P. W. M. Jacobs, A. Russell-Jones, J. Phys. Chem. 1968, 72,
202–207.
Explos. Pyrotech. 2009, 4, 351–356; c) K. Kishore, G. Prasad,
Def. Sci. J. 2014, 29, 39–54.
[
[
[
2] a) V. Boldyrev, Thermochim. Acta 2006, 443, 1–36; b) S. Vya-
zovkin, C. A. Wight, Chem. Mater. 1999, 11, 3386–3393.
3] L. Chen, G. Li, L. Li, J. Therm. Anal. Calorim. 2008, 2, 581–
87.
4] a) L. Li, X. Sun, X. Qiu, J. Xu, G. Li, Inorg. Chem. 2008, 47,
839–8846; b) M. Zhou, X. Jiang, L. Lu, X. Wang, J. Hazard.
5
8
Mater. 2012, 225–226, 124–130.
[
[
5] S. Lu, X. Jing, J. Liu, J. Wang, Q. Liu, Y. Zhao, J. Solid State
Chem. 2013, 197, 345–351.
6] G. Tang, S. Tian, Z. Zhou, Y. Wen, A. Pang, Y. Zhang, D.
Zeng, H. Li, B. Shan, C. Xie, J. Phys. Chem. C 2014, 118,
[26] E. F. Khairetdinov, V. V. Boldyrev, Thermochim. Acta 1980, 41,
1
1833–11841.
7] W. Zhang, Q. Luo, X. Duan, Y. Zhou, C. Pei, Mater. Res. Bull.
014, 50, 73–78.
8] R. A. Chandru, S. Patra, C. Oommen, N. Munichandraiah,
B. N. Raghunandan, J. Mater. Chem. 2012, 22, 6536–6538.
9] N. Li, Z. Geng, M. Cao, L. Ren, X. Zhao, B. Liu, Carbon
63–68.
[
[
[
[27] a) Y. Zhang, M. Antonietti, Chem. Asian J. 2010, 5, 1307–1311;
b) M. F. Al-Kuhaili, S. M. A. Durrani, E. E. Khawaja, J. Shiro-
koff, J. Phys. D: Appl. Phys. 2002, 35, 910–915; c) S. K. J. Al-
Ani, C. A. Hogarth, Int. J. Electron. 1985, 58, 123–131; d) M.
Abhai, K. Shiv, Thin Solid Films 1988, 161, 101–106.
[28] G. Shen, D. Chen, C. J. Lee, J. Phys. Chem. B 2006, 110, 15689–
15693.
[29] A. M. Stoneham, Rep. Prog. Phys. 1981, 44, 1251–1295.
[30] http://webbook.nist.gov/chemistry/form-ser.html.
Received: May 10, 2015
2
2013, 54, 124–132.
[
10] X. Guan, L. Li, J. Zheng, G. Li, RSC Adv. 2011, 1, 1808–1814.
[11] Y. Wang, J. Zhu, X. Yang, L. Lu, X. Wang, Thermochim. Acta
2005, 437, 106–109.
[12] a) T. Sekine, H. Kanda, Y. Bando, M. Yokoyama, J. Mater.
Sci. Lett. 1990, 9, 1376–1378; b) X. Wang, S. Blechert, M. An-
Published Online: August 6, 2015
Eur. J. Inorg. Chem. 2015, 4062–4067
4067
© 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
