Isotope Labeling Reveals Fast Atomic and Molecular Exchange in
Mechanochemical Milling Reactions
Stipe Lukin,† Martina Tireli,† Tomislav Stolar,† Dajana Barišić,† Maria Valeria Blanco,‡
Marco di Michiel,‡ Krunoslav Užarević,† and Ivan Halasz∗,†
†Division of Physical Chemistry, Ruđer Bošković Institute, Bijenička 54, 10000 Zagreb, Croatia
‡ESRF - the European Synchrotron, 71 Avenue des Martyrs, 38000 Grenoble, France
Received December 30, 2018; E-mail: ivan.halasz@irb.hr
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 1. Cocrystal formation between ba and pyo. Exchangeable
hydrogen atoms of ba, pyo, and bapyo are denoted as H/D.
Abstract: Using tandem in situ monitoring and isotope-labeled
solids, we reveal that mechanochemical ball-milling overcomes
inherently slow solid-state diffusion through continuous com-
minution and growth of milled particles. This process occurs
with or without a net chemical reaction and also occurs be-
tween solids and liquid additives which can be practically used
for highly efficient deuterium labeling of solids. The presented
findings reveal a fundamental aspect of milling reactions and
also delineate a methodology that should be considered in the
study of mechanochemical reaction mechanisms.
where both ba and pyo were deuterated. In all, cocrystal for-
mation proceeds directly from reactants (Figs. S1-S5) and
without amorphization (Figs. S6 and S7).27 In experiments
Ball milling exerts mechanical energy through compres-
ba + pyo and ba-d + pyo-d no isotope exchange could be de-
sion, shearing, and friction to a solid reaction mixture, thus
tected since all exchangeable hydrogen atoms are of the same
coercing materials and molecules to react.1 Early theories
isotope. On the other hand, in experiments where either ba
of such mechanochemical reactions assumed short and local-
or pyo were deuterated, H/D exchange is possible. That
ized, but extreme conditions of highly-elevated temperature
is, ba-d could potentially transfer its deuteron to pyo and
and pressure achieved at the spots of milling ball impacts,
vice versa, pyo-d could transfer its deuteron to ba. These
providing conditions to overcome the high energy barrier of
two experiments resulted with essentially the same Raman
a solid-state reaction.2–5 However, with extension of milling
spectra after 25 min milling (Figs. 1, S8, S9), indicating the
to soft materials,6–8 a different view on mechanochemical
same isotope distribution between ba and pyo molecules in
reactivity is emerging9–12 where mechanochemical reactions
the product cocrystal.
are recognized to exhibit solution-like kinetics,13 intermedi-
Figure 1 depicts the most characteristic bands to assess
ates,14,15 remarkable selectivity16–18 strong temperature de-
H/D exchange in time-resolved Raman spectra. Vibration
pendence,10,19 and can be quite fast.20,21 These features in-
band of carboxylate group bending is found at 793 cm−1 for
dicate that extremely slow diffusion in crystalline solids22–24
ba and at 765 cm−1 for ba-d (S31). For bapyo-hh, the same
may be overcome by milling.
vibration of benzoic acid is now at 800 cm−1, while it is at
We thus hypothesized that molecular or atomic migra-
774 cm−1 in bapyo-dd. Since this is dominantly a vibration
tions among crystallites should be possible through surface
of the benzoic acid moiety, also in the cocrystal, we use it
contacts between milled solid particles, even without a net
to assess its deuteration state. In the ba-d + pyo experi-
chemical reaction. In this work, to address this fundamental
ment the band at 765 cm−1 diminishes, while the band at
aspect of mechanochemical milling, we have applied tandem
774 cm−1 increases in intensity as ba-d becomes incorpo-
in situ monitoring25,26 to milling of isotope-labeled solids
rated in the cocrystal. Importantly, the band at 774 cm−1
and show that milling results in fast exchange of atoms and
reaches ca. half the intensity as in the fully deuterated
molecules between crystallites, thus creating a reaction en-
bapyo-dd indicating that ca. half of deuterons were trans-
vironment that is not restrained by slow solid-state diffu-
ferred from ba-d to pyo in the bapyo-dh cocrystal. Switching
sion. Molecular and atomic exchange occurs both when new
the deuteron label in the ba + pyo-d experiment, the band
phases are formed during milling, but also between milled
at 774 cm−1 also increases in intensity, which can only be
solids which are non-reactive, and extends to milling of solids
due to deuteron transfer from pyo-d to ba, and reaches the
with liquid additives.
same intensity as in the previous ba-d + pyo experiment.
First, we study milling of benzoic acid (ba) and 2-pyridone
Potential deuteron transfer from pyo-d to ba, but without
(pyo) wherein a 1:1 cocrystal (bapyo) is formed (Scheme 1).
cocrystal formation should have been indicated by the emer-
Both ba and pyo bear one exchangeable hydrogen atom: the
gence of the pure ba-d band at 765 cm−1, which we do not
hydrogen of the carboxylate group of ba and the pyridinium
observe.
hydrogen of pyo. Cocrystal formation requires no net trans-
fer of hydrogen atoms as would be the case for example, with
salt formation, but any H/D exchange will influence energies
of molecular vibrations. We have performed experiments
where neither ba nor pyo were deuterated, where either ba
or pyo were deuterated (ba-d and pyo-d, respectively), and
ACS Paragon Plus Environment
1

Journal of the American Chemical Society
Page 2 of 5
Scheme 2. Milling of ba and prc produces no net chemical change.
Exchangeable hydrogen atoms of ba and prc are denoted.
1
2
3
4
5
6
7
8
9
mental evidence for the formation of the cocrystal between
these two compounds agrees with first principle calculations
where the most stable predicted cocrystal was found to
be thermodynamically unfavorable relative to reactants.28
Here, H/D exchange in the bulk could be enabled only
through fast formation of new contact surfaces between crys-
tallites of ba and prc, as a consequence of mixing and contin-
uous particle comminution and growth.29,30 While particle
comminution results from milling ball impacts, growth of
crystalline nanoparticles is here evident from a stable aver-
age particle size of both ba and prc (Fig. 2, S16)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2. (a) Average particle size of ba and prc and b) weight
fractions of ba and prc during milling derived from in situ PXRD
data.
In situ Raman monitoring of milling where either ba or
prc were deuterated revealed changes in intensities of bands
corresponding to vibrations that are affected by H/D ex-
change. Milling ba + prc-d2 decreases intensity of the ba
band at 793 cm−1 and increases intensity of the band at
765 cm−1, as a result of deuteron transfer from prc-d2 to ba
and partial formation of ba-d (Fig 3). Alternatively, milling
of ba-d + prc increases the band at 793 cm−1 of ba and si-
multaneously decreases the band at 765 cm−1 of ba-d. Band
of prc at 796 cm−1 is shifted to 782 cm−1 upon deuteration,
without a change in intensity (Fig 3).
For comparison, milling of ba + prc and ba-d + prc-d2
exhibited no changes in both PXRD and Raman in situ
monitoring (Figs. S12 and S13). Thus, H/D exchange in
milling reactions cannot be merely a consequence of a paral-
lel chemical reaction, but is inherent to the milling process
itself indicating also that a thermodynamic equilibrium be-
tween solids is readily achieved during milling, in accordance
with previously described equilibration of solids,31 as well
polymorph selectivity through particle size reduction29 or
solvation of nanoparticles.32,33 To exclude the possibility of
H/D exchange being facilitated by moisture due to samples
being prepared in air,34 we have milled ba-d + prc where
the sample was prepared in a glovebox in an argon atmo-
sphere. The same H/D exchange was observed here as in
experiments where samples were prepared in air (Fig S17).

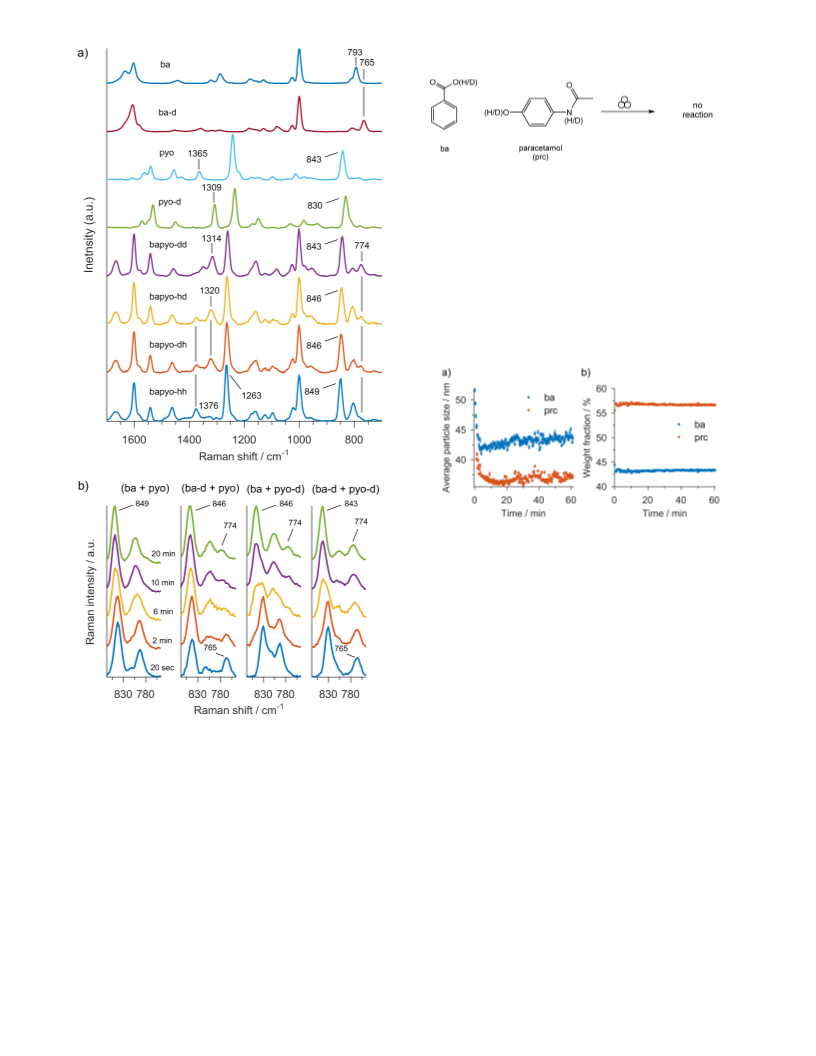

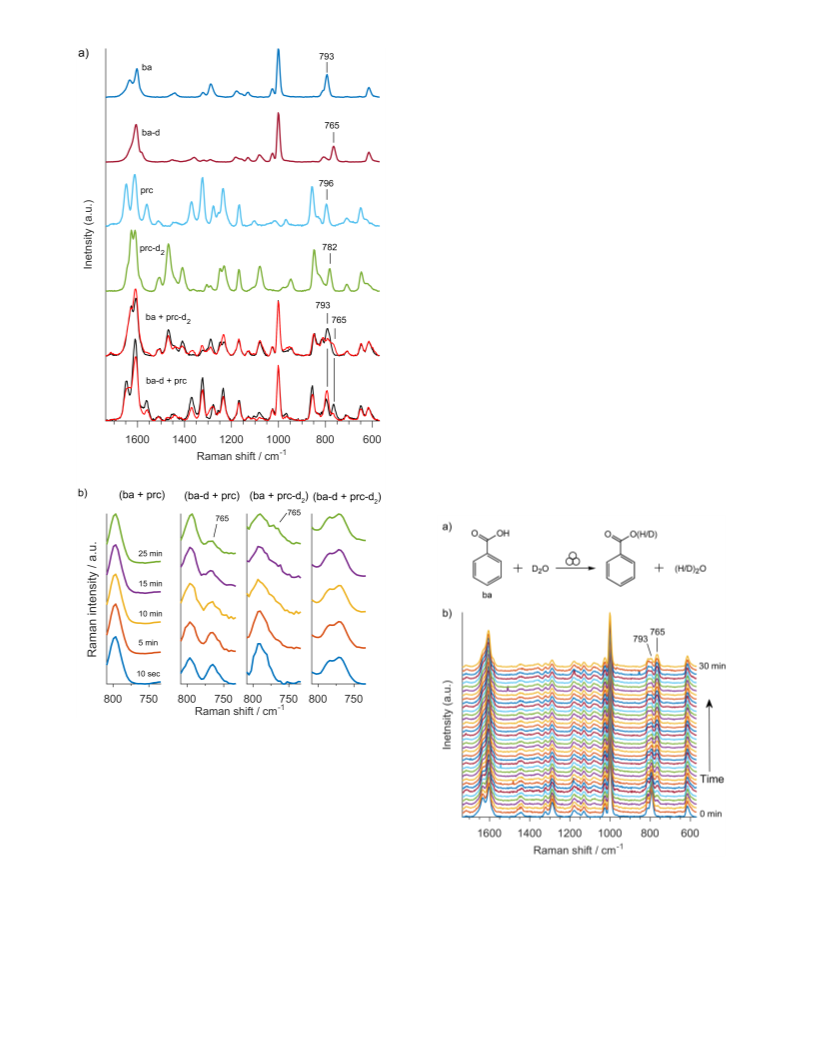

Figure 1. (a) Raman spectra of natural and deuterated reac-
tants and final Raman spectra of variously deuterated cocrystals
obtained after 25 min milling. Labeling: bapyo-xx, (x = h or d)
corresponds to deuteration of starting reactants, e.g. bapyo-hd
designates the product of the reaction ba + pyo-d. (b) Time-
resolved characteristic section of Raman spectra during milling
at room temperature.
NH rocking vibration band is at 1365 cm−1 for pyo and at
1309 cm−1 for pyo-d. This band in the bapyo-hh cocrystal is
found at 1376−1 and at 1314 cm−1 for bapyo-dd. Products
in ba + pyo-d and ba-d + pyo experiments exhibit bands
at 1320 and 1376 cm−1 of similar intensities, again as a
consequence of H/D exchange and indicate equal deuteron
distribution between ba and pyo moieties in the cocrystal.
To further explore the fast exchange of hydrogen atoms
during milling, we have milled the 1:1 mixture of ba and
paracetamol (prc, also known as acetaminophen), which re-
mains a physical mixture (Figs. S12-S15). Lack of experi-
ACS Paragon Plus Environment
2

Page 3 of 5
Journal of the American Chemical Society
tion was faster at 50 ◦C, it was incomplete at low tempera-
1
2
3
4
ture. Overall, we have observed the same H/D exchange as
for milling in ambient conditions (Fig. S21). H/D exchange
in the ba + prc system resulted in a slower H/D exchange at
low temperature, but was comparable for milling at 50 ◦C
and milling started from room temperature.
5
We extend H/D exchange to liquid-assisted grinding
(LAG)41–43 where we have milled ba with D2O in the 1:1
stoichiometric ratio. Deuteration of ba, which is poorly solu-
ble in water at room temperature, could be readily observed
with an increase in intensity of the ba-d band at 765 cm−1
as deuteron is transfered from D2O to ba and a correspond-
ing decrease in intensity of the 793 cm−1 band belonging to
ba. (Fig. 4). On the 2 mmol scale, H/D exchange reached
equilbrium after about 30 min milling with the spectrum
consistent with a distribution of 2/3 of deuterium atoms
on ba. This confirms that D2O interacted chemically with
milled ba and indicates that poor solid’s solubility in the
added liquid is not an obstacle for such an interaction, in
accordance with previous observations of the role of water
in grinding.43
Efficient deuteration of ba inspired us to use LAG for
preparatory deuterium labeling, similar to a milling ap-
proach that has recently been applied to enrich samples with
17O.44 Here, we have been able to deuterate 2 mmol of ba
at room temperature by three-times milling with 4 mmol of
D2O and drying of the solid in between. In total we have
used only 216 µL of D2O to achieve almost full deuteration
of 244 mg of ba, which amounts to at least 60-fold solvent re-
duction as compared to solution deuteration (see Supporting
Information) and no loss of the deuterated solid.
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3. (a) Raman spectra of natural and deuterated ba and
prc and first and final Raman spectra for experiments ba + prc-
d2 and ba-d + prc. Color code: black - first spectrum, red - last
spectrum after 45 min milling. Since prc bears two exchangeable
protons and ba bears one, H/D ratio of exchangeable hydrogens
is 1:2 for the ba + prc-d2 experiment and 2:1 for milling ba-d +
prc, resulting in different final spectra in these two experiments.
(b) Time-resolved characteristic section of Raman spectra during
milling.
Despite recent advances,10,35,36 temperature control in
milling is currently not widely established,37,38 which may
be troublesome since milling is generally self-heating.39,40 In
our milling setup the temperature has gradually risen from
the starting room temperature to ca. 35 ◦C (Fig. S26).
Since H/D exchange involves breaking of chemical bonds,
which must be associated with an energy barrier, its rate
should depend on temperature.10 We have thus explored
H/D exchange at low temperature around nitrogen liquefac-
tion and at 50 ◦C (Figs. S27-S30). While cocrystal forma-
Figure 4. a) scheme shows exchangeable atoms for LAG reaction
with D2O. b) stacked time-resolved Raman spectra for milling of
ba with D2O as a liquid additive in the 1:1 stoichiometric ratio.
Spectra of pure ba and ba-d are given in Fig. 1
Finally, we show whole-molecule exchange by milling ba
and 13C-labeled ba (ba*, Fig. 5). PXRD monitoring showed
no phase transformations while Raman monitoring revealed
fast changes consistent with the formation of the baba*
heterodimer. Figure 5 represents Raman and FTIR-ATR
ACS Paragon Plus Environment
3

Journal of the American Chemical Society
Page 4 of 5
Bučar for critically reading the manuscript, to Nikola Bil-
1
2
3
4
5
6
7
8
iškov and Igor Milanović for their help with the use of a
glovebox, the team at the fine-mechanics workshop of the
Ruđer Bošković Institute and Nikola Cindro, Edi Topić and
Mirta Rubčić for their help with collecting a DSC thermo-
gram. We are also grateful to the Reviewers whose com-
ments and careful reading improved this manuscript. Com-
putations were done on the Isabella cluster at SRCE, Za-
greb. Financial support from the Croatian Science Foun-
dation (Grant No. 4744) and the Adris foundation is grate-
fully acknowledged. SL is supported by the Croatian Science
Foundation.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Supporting Information Avail-
able
Experimental, tandem in situ Raman and PXRD plots,
Rietveld-extracted reaction profiles, temperature profiles,
computational details.
References
(1) Do, J.-L.; Friščić, T. Mechanochemistry: A Force of Synthesis.
ACS Cent. Sci. 2017, 3, 13–19.
(2) Urakaev, F.; Boldyrev, V. Mechanism and kinetics of
mechanochemical processes in comminuting devices: 2. Appli-
cations of the theory. Experiment. Powder Technol. 2000, 107,
197 – 206.
(3) Fernández-Bertran, J. Mechanochemistry: An overview. Pure
Appl. Chem. 1999, 71, 581–586.
(4) Jones, W.;
Eddleston, M. D. Introductory Lecture:
Mechanochemistry,
a
versatile synthesis strategy for new
materials. Faraday Discuss. 2014, 170, 9–34.
(5) Baláž, P.; Achimovičová, M.; Baláž, M.; Billik, P.; Cherkezova-
Zheleva, Z.; Criado, J. M.; Delogu, F.; Dutková, E.;
Gaffet, E.; Gotor, F. J.; Kumar, R.; Mitov, I.; Rojac, T.;
Senna, M.; Streletskii, A.; Wieczorek-Ciurowa, K. Hallmarks
of mechanochemistry: from nanoparticles to technology. Chem.
Soc. Rev. 2013, 42, 7571–7637.

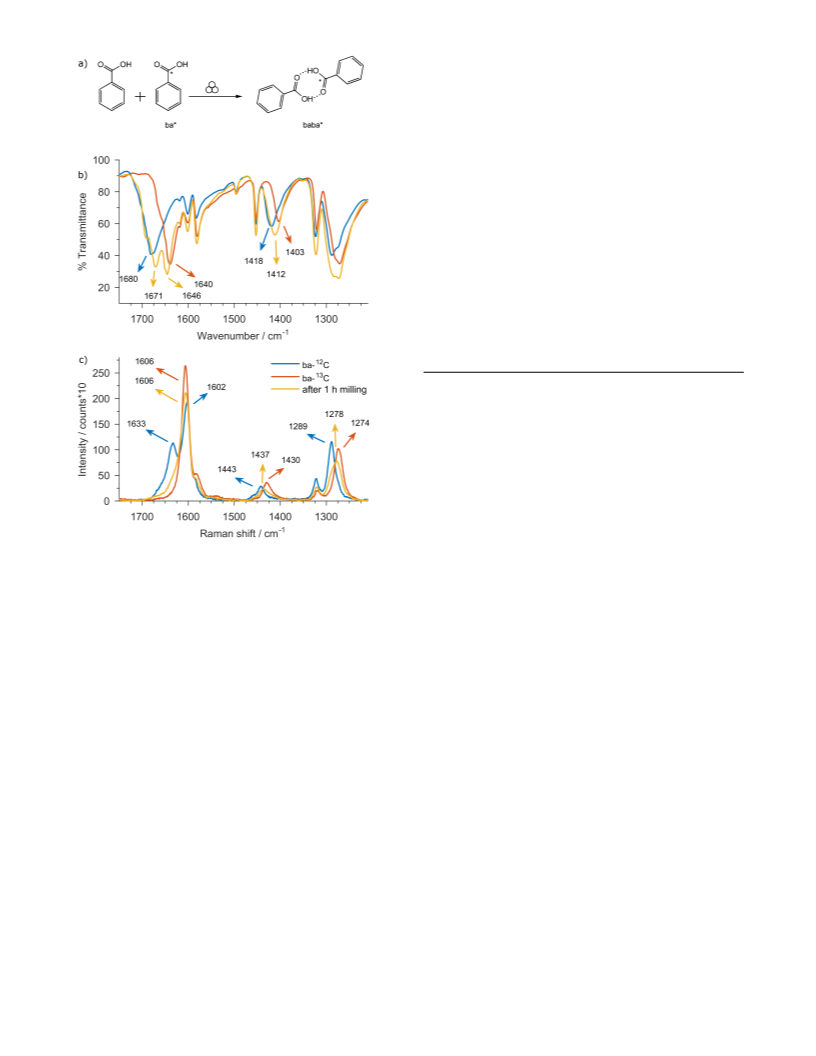

Figure 5. a) Formation of the heterodimer between ba and ben-
zoic acid labeled with a 13C atom (ba*). Labeling position de-
noted with ’*’. b) FTIR-ATR spectra and c) Raman spectra of
the natural and labeled ba and their 1:1 reaction mixture obtained
(6) James, S. L.; Adams, C. J.; Bolm, C.; Braga, D.; Collier, P.;
Friščić, T.; Grepioni, F.; Harris, K. D. M.; Hyett, G.; Jones, W.;
Krebs, A.; Mack, J.; Maini, L.; Orpen, A. G.; Parkin, I. P.;
Shearouse, W. C.; Steed, J. W.; Waddell, D. C. Mechanochem-
istry: opportunities for new and cleaner synthesis. Chem. Soc.
Rev. 2012, 41, 413–447.
after one hour milling. Spectral resolution is 1 cm−1
.
(7) Braga, D.; Maini, L.; Grepioni, F. Mechanochemical preparation
of co-crystals. Chem. Soc. Rev. 2013, 42, 7638–7648.
(8) Do, J.-L.; Friščić, T. Chemistry 2.0: Developing a New, Solvent-
Free System of Chemical Synthesis Based on Mechanochemistry.
Synlett 2017, 28, 2066–2092.
spectra of ba and ba* and their 1:1 mixture after one ho−u1r
−
milling. The O C−O asymmetric stretching at 1437 cm
−
is found between the band for pure ba and pure ba*. Sim-
ilarly, C−C−OH asymmetric stretching at 1278 cm−1 for
the milled mixture is between the corresponding bands for
ba and ba*. Calculations in the gas phase confirm that
the baba* heterodimer will exhibit bands between the corre-
sponding bands for the two homodimers (Figs. 5, S33, S34).
Observed band shifts in ATR spectra similarly indicate for-
mation of the baba* heterodimer.
(9) Takacs, L. What is unique about mechanochemical reactions?
Acta Phys. Pol. A 2014, 126, 1040–1043.
(10) Andersen, J. M.; Mack, J. Decoupling the Arrhenius equation
via mechanochemistry. Chem. Sci. 2017, 8, 5447–5453.
(11) Friščić, T.; Jones, W. Recent Advances in Understanding the
Mechanism of Cocrystal Formation via Grinding. Cryst. Growth
Des. 2009, 9, 1621–1637.
(12) Boldyreva, E. Mechanochemistry of inorganic and organic sys-
tems: what is similar, what is different? Chem. Soc. Rev. 2013,
42, 7719–7738.
(13) Ma, X.; Yuan, W.; Bell, S. E. J.; James, S. L. Better under-
standing of mechanochemical reactions: Raman monitoring re-
veals surprisingly simple ’pseudo-fluid’ model for a ball milling
reaction. Chem. Commun. 2014, 50, 1585–1587.
In conclusion, milled crystalline solids rapidly exchange
hydrogen atoms and whole molecules, with or without a net
chemical reaction. Through continuous particle comminu-
tion and growth during milling, the whole of milled solid par-
ticles thus becomes accessible to the surface, to other milled
particles and also to any liquid present, thus overcoming the
otherwise slow solid-state diffusion. We expect the presented
methodology of using isotope-labeled solids together with in
situ monitoring will become an indispensable tool to study
mechanochemical reaction mechanisms not only on the level
of molecular transformations via kinetic isotope effects,45,46
but also on the level of bulk solids.
(14) Katsenis, A. D.; Puškarić, A.; Štrukil, V.; Mottillo, C.;
Julien, P. A.; Užarević, M. H., K. Pham; Do, T. O.; Kimber, S.
A. J.; Lazić, P.; Magdysyuk, O.; Dinnebier, R. E.; Halasz, I.;
Friščić, T. Nat. Commun. 2015, 6, 6662.
(15) Kulla, H.; Greiser, S.; Benemann, S.; Rademann, K.; Emmer-
ling, F. Knowing When To Stop - Trapping Metastable Poly-
morphs in Mechanochemical Reactions. Cryst. Growth Des.
2017, 17, 1190–1196.
(16) Trask, A. V.; Shan, N.; Motherwell, W. D. S.; Jones, W.;
Feng, S.; Tan, R. B. H.; Carpenter, K. J. Selective poly-
morph transformation via solvent-drop grinding. Chem. Com-
mun. 2005, 880–882.
(17) Lukin, S.; Lončarić, I.; Tireli, M.; Stolar, T.; Blanco, M. V.;
Lazić, P.; Užarević, K.; Halasz, I. Experimental and Theoreti-
cal Study of Selectivity in Mechanochemical Cocrystallization
of Nicotinamide with Anthranilic and Salicylic Acid. Cryst.
Growth Des. 2018, 18, 1539–1547.
Acknowledgement We are grateful to Dejan-Krešimir
ACS Paragon Plus Environment
4

Page 5 of 5
Journal of the American Chemical Society
(18) Fischer, F.; Lubjuhn, D.; Greiser, S.; Rademann, K.; Emmer-
(41) Shan, N.; Toda, F.; Jones, W. Mechanochemistry and co-crystal
formation: effect of solvent on reaction kinetics. Chem. Com-
mun. 2002, 2372–2373.
1
2
3
4
5
6
7
8
ling, F. Supply and Demand in the Ball Mill: Competitive
Cocrystal Reactions. Cryst. Growth Des. 2016, 16, 5843–5851.
(42) Friščić, T.; Childs, S. L.; Rizvi, S. A. A.; Jones, W. The role of
solvent in mechanochemical and sonochemical cocrystal forma-
tion: a solubility-based approach for predicting cocrystallisation
outcome. CrystEngComm 2009, 11, 418–426.
(19) Užarević, K.; Štrukil, V.; Mottillo, C.; Julien, P. A.;
Puškarić, A.; Friščić, T.; Halasz, I. Exploring the Effect of Tem-
perature on a Mechanochemical Reaction by in Situ Synchrotron
Powder X-ray Diffraction. Cryst. Growth Des. 2016, 16, 2342–
2347.
(43) Losev, E.; Boldyreva, E. The role of
a liquid in "dry" co-
grinding: A case study of the effect of water on mechanochemi-
cal synthesis in a "l-serine-oxalic acid" system. CrystEngComm
2014, 16, 3857–3866.
(20) Friščić, T.; Halasz, I.; Beldon, P. A.; Belenguer, A. M.;
Adams, F.; Kimber, S. A. J.; Honkimäki, V.; Dinnebier, R. E.
Real-time and in situ monitoring of mechanochemical milling
reactions. Nature Chem. 2013, 5, 66–73.
(44) Métro, T.-X.; Gervais, C.; Martinez, A.; Bonhomme, C.; Lau-
rencin, D. Unleashing the Potential of 17O NMR Spectroscopy
Using Mechanochemistry. Angew. Chem. Int. Ed. 2017, 56,
6803–6807.
(21) Halasz, I.; Puškarić, A.; Kimber, S. A. J.; Beldon, P. J.; Be-
lenguer, A. M.; Adams, F.; Honkimäki, V.; Dinnebier, R. E.;
9
Patel, B.; Jones, W.; Štrukil, V.; Friščić, T. Real-Time In Situ
Powder X-ray Diffraction Monitoring of Mechanochemical Syn-
thesis of Pharmaceutical Cocrystals. Angew. Chem. Int. Ed.
2013, 52, 11538–11541.
(45) Hermann, G. N.; Becker, P.; Bolm, C. Mechanochemical
Rhodium(III)-Catalyzed C–H Bond Functionalization of Ac-
etanilides under Solventless Conditions in a Ball Mill. Angew.
Chem. Int. Ed. 2015, 54, 7414–7417.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(22) Chezeau, J.; Strange, J. Diffusion in molecular crystals. Physics
Reports 1979, 53, 1 – 92.
(46) Hermann, G. N.; Becker, P.; Bolm, C. Mechanochemical
Iridium(III)-Catalyzed C–H Bond Amidation of Benzamides
with Sulfonyl Azides under Solvent-Free Conditions in a Ball
Mill. Angew. Chem. Int. Ed. 2016, 55, 3781–3784.
(23) Borgschulte, A.; Gremaud, R.; Lodziana, Z.; Züttel, A. Hydro-
gen tracer diffusion in LiBH4 measured by spatially resolved Ra-
man spectroscopy. Phys. Chem. Chem. Phys. 2010, 12, 5061–
5066.
(24) Borgschulte, A.; Züttel, A.; Hug, P.; Racu, A.-M.; Schoenes, J.
Hydrogen–Deuterium Exchange in Bulk LiBH4. J. Phys. Chem.
A 2008, 112, 4749–4753.
(25) Batzdorf, L.; Fischer, F.; Wilke, M.; Wenzel, K.-J. r.; Emmer-
ling, F. Direct In Situ Investigation of Milling Reactions Using
Combined X-ray Diffraction and Raman Spectroscopy. Angew.
Chem. Int. Ed. 2015, 54, 1799–1802.
(26) Lukin, S.; Stolar, T.; Tireli, M.; Blanco, M. V.; Babić, D.;
Friščić, T.; Užarević, K.; Halasz, I. Tandem In Situ Monitor-
ing for Quantitative Assessment of Mechanochemical Reactions
Involving Structurally Unknown Phases. Chem. Eur. J. 2017,
23, 13941–13949.
(27) Halasz, I.; Friščić, T.; Kimber, S. A. J.; Užarević, K.;
Puškarić, A.; Mottillo, C.; Julien, P.; Štrukil, V.; Honkimäki, V.;
Dinnebier, R. E. Quantitative in situ and real-time monitor-
ing of mechanochemical reactions. Faraday Discuss. 2014, 170,
203–221.
(28) Chan, H. C. S.; Kendrick, J.; Neumann, M. A.; Leusen, F.
J. J. Towards ab initio screening of co-crystal formation through
lattice energy calculations and crystal structure prediction of
nicotinamide, isonicotinamide, picolinamide and paracetamol
multi-component crystals. CrystEngComm 2013, 15, 3799–
3807.
(29) Willart, J.-F.; Lefebvre, J.; Danède, F.; Comini, S.; Looten, P.;
Descamps, M. Polymorphic transformation of the Γ-form of d-
sorbitol upon milling: structural and nanostructural analyses.
Solid State Commun. 2005, 135, 519 – 524.
(30) Belenguer, A. M.; Lampronti, G. I.; De Mitri, N.; Driver, M.;
Hunter, C. A.; Sanders, J. K. M. Understanding the Influence
of Surface Solvation and Structure on Polymorph Stability:
A
Combined Mechanochemical and Theoretical Approach. J. Am.
Chem. Soc. 2018, 140, 17051–17059.
(31) Belenguer, A. M.; Friščić, T.; Day, G. M.; Sanders, J. K. M.
Solid-state dynamic combinatorial chemistry: reversibility and
thermodynamic product selection in covalent mechanosynthesis.
Chem. Sci. 2011, 2, 696–700.
(32) Belenguer, A. M.; Lampronti, G. I.; Cruz-Cabeza, A. J.;
Hunter, C. A.; Sanders, J. K. M. Solvation and surface effects
on polymorph stabilities at the nanoscale. Chem. Sci. 2016, 7,
6617–6627.
(33) Belenguer, A. M.; Lampronti, G. I.; Wales, D. J.; Sanders, J.
K. M. Direct Observation of Intermediates in a Thermodynam-
ically Controlled Solid-State Dynamic Covalent Reaction. J.
Am. Chem. Soc. 2014, 136, 16156–16166.
(34) Cinčić, D.; Brekalo, I.; Kaitner, B. Effect of atmosphere on solid-
state amine-aldehyde condensations: gas-phase catalysts for
solid-state transformations. Chem. Commun. 2012, 48, 11683–
11685.
(35) Fischer, F.; Wenzel, K.-J.; Rademann, K.; Emmerling, F. Quan-
titative determination of activation energies in mechanochem-
ical reactions. Phys. Chem. Chem. Phys. 2016, 18, 23320–
23325.
(36) Andersen, J.; Mack, J. Insights into Mechanochemical Reactions
at Targetable and Stable, Sub-ambient Temperatures. Angew.
Chem. Int. Ed. 2018, 57, 13062–13065.
(37) Crawford, D. E.; Miskimmin, C. K. G.; Albadarin, A. B.;
Walker, G.; James, S. L. Organic synthesis by Twin Screw
Extrusion (TSE): continuous, scalable and solvent-free. Green
Chem. 2017, 19, 1507–1518.
(38) Andersen, J.; Mack, J. Mechanochemistry and organic synthesis:
from mystical to practical. Green Chem. 2018, 20, 1435–1443.
(39) Užarević, K.; Ferdelji, N.; Mrla, T.; Julien, P. A.; Halasz, B.;
Friščić, T.; Halasz, I. Enthalpy vs. friction: heat flow mod-
elling of unexpected temperature profiles in mechanochemistry
of metal-organic frameworks. Chem. Sci. 2018, 9, 2525–2532.
(40) Kulla, H.; Wilke, M.; Fischer, F.; Röllig, M.; Maierhofer, C.;
Emmerling, F. Warming up for mechanosynthesis - temperature
development in ball mills during synthesis. Chem. Commun.
2017, 53, 1664–1667.
ACS Paragon Plus Environment
5
