Gases released during the conversion of NH4Zr2(PO4)3 to HZr2(PO4)3

Article abstract of DOI:10.1023/A:1011517811132

Identification of gases released during the conversion of NH₄Zr₂(PO₄)₃ to HZr₂(PO₄)₃ was performed by thermogravimetric analysis and infrared spectroscopy. Acidic gases such as n

Full text of DOI:10.1023/A:1011517811132

Journal of Thermal Analysis and Calorimetry, Vol. 65 (2001) 305–308
GASES RELEASED DURING THE CONVERSION OF
NH Zr (PO ) TO HZr (PO )
4
2
4 3
2
4 3
T. Oi, K. Horio, R. Kikuchi and H. Takahashi
Department of Chemistry, Sophia University, 7-1 Kioicho, Chiyoda, Tokyo 102-8554, Japan
(
Received December 11, 2000; in revised form March 5, 2001)
Abstract
4 2 4 3 2 4 3
Gases released during the conversion of NH Zr (PO ) to HZr (PO ) were identified using an appa-
ratus in which gases released from a sample placed in a thermogravimetric analyzer were directly in-
troduced to a gas cell of an IR spectrometer. Such acidic gases as N O and NO were detected besides
the basic NH gas, and their formation mechanism was discussed.
2
3
2 4 3 4 2 4 3
Keywords: HZr (PO ) , NH Zr (PO ) , TG analyser connected to IR
Introduction
The rhombohedral HZr (PO ) , which has originally been studied as an ion conductor
2
4 3
[
toward alkali metal ions at pH 3.4 is in the decreasing order of Na >Li >Cs >Rb >K
[
1], shows some unique properties as a cation exchanger. The affinity of HZr (PO )
2 4 3
+
+
+
+
+
+
+
2], which should be compared with the sequence of Cs >Rb >K >Na >Li of com-
+
+
+
mercially available organic strongly acidic ion exchangers. Its lithium isotope selec-
tivity is more than ten times larger than those of organic ion exchangers [3].
Experimental
The rhombohedral HZr (PO ) is prepared by a heat treatment of NH Zr (PO ) ;
2
4
3
4
2
4 3
NH Zr (PO ) →HZr (PO ) +NH ,
(1)
4
2
4 3
2
4 3
3
3−
and NH Zr (PO ) is obtained as precipitate from aqueous solution containing PO ,
4
2
4
3
4
2
+
ZrO and oxalic acid with the mole ratio of ZrO and (COOH) being about 2:3
2+
2
[
4, 5].
Concerning conversion (1), Clearfield et al. [1] reported a very interesting ob-
servation. When NH Zr (PO ) was heated at 450°C, the off-gases were acidic while
4
2
4 3
the gases were basic when heated at 700°C. They speculated that acidic gases (nitro-
gen oxides) were formed by the oxidation of NH , with strongly acidic sites created
by the removal of NH (i.e. HZr (PO ) phase) acting as catalyst.
3
3
2
4 3
1
418–2874/2001/ $ 5.00
Akadémiai Kiadó, Budapest
©
2001 Akadémiai Kiadó, Budapest
Kluwer Academic Publishers, Dordrecht

3
06
4 2 4 3 2 4 3
OI et al.: CONVERSION OF NH Zr (PO ) TO HZr (PO )
In order to identify acidic and basic gases released accompanying the conversion
of NH Zr (PO ) to HZr (PO ) and discuss their formation mechanism, we analyzed
4
2
4
3
2
4 3
the released gases directly by infra-red (IR) measurements during thermogravimetric
TG) measurements of NH Zr (PO ) . The apparatus used consisted of a Perkin
(
4
2
4 3
Elmer 2000 IR spectrometer and a Perkin Elmer TGA7 TG analyzer, in which gases
released from a sample placed in a pan of the TG analyzer were directly introduced to
a gas cell of the IR spectrometer by means of a N flow without contacting with the
2
air.
Results and discussion
Figure 1 shows the IR absorbance profiles, as functions of temperature and released
gases in TG measurements of NH Zr (PO ) using a ceramics pan with the heating
4
2
4 3
–
1
rate of 50°C min (Fig. 1a) or 10°C min (Fig. 1b). Contrary to the results of Clear-
–1
–
field et al. [1], only NH (monitored at 966 cm ) is detected regardless of the heating
1
3
rate. It is, thus, reasonable to conclude that HZr (PO ) is formed by reaction (1) un-
der those conditions.
2
4 3
Similar TG measurements were made using a platinum pan instead of the ceram-
ics one, and the results are depicted in Figs 2a and 2b. When the heating rate is fast at
–
1
–1
0°C min (Fig. 2a), releases of N O (monitored at 2244 cm [6]) and NO (moni-
5
tored at 1917 cm [7]) in addition to that of NH are observed between about 300 and
2
–
1
3
–1

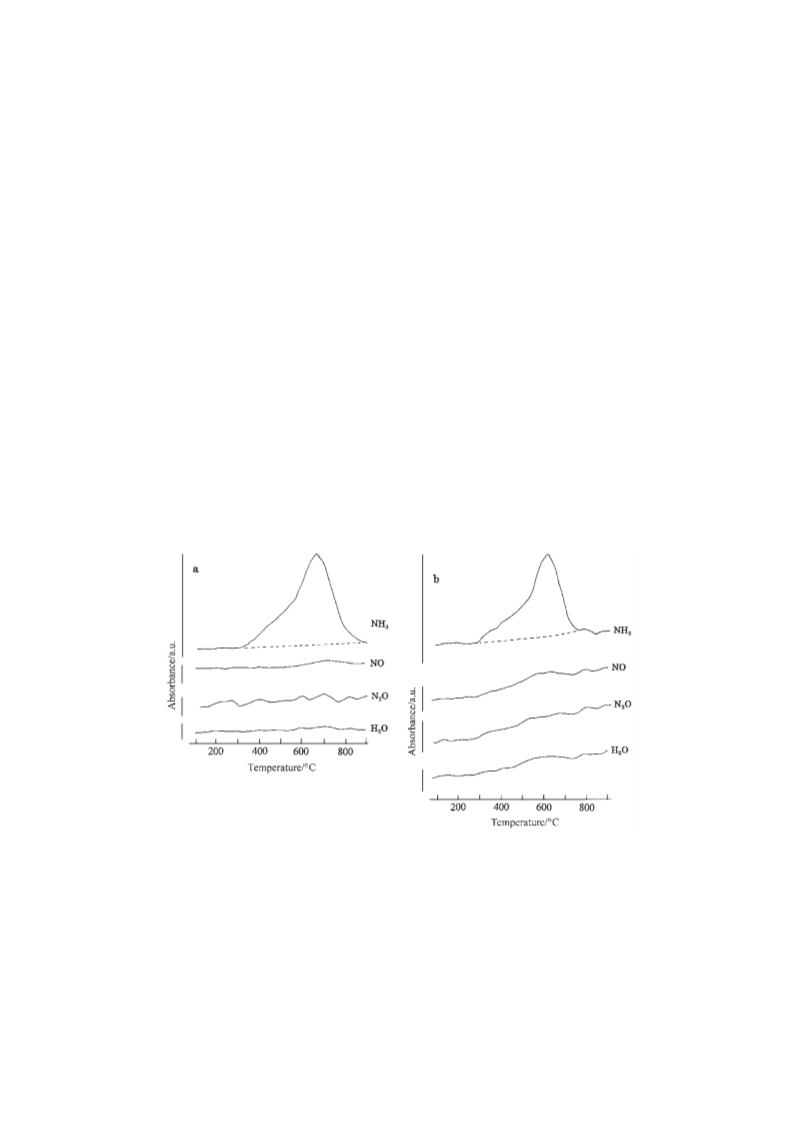

Fig. 1 The IR absorbance profiles of off-gases; a – with the heating rate of 50°C min
–1
and with a ceramics pan, and b – with the heating rate of 10°C min and with a
ceramics pan. Note that the scales of the vertical axis are different from figure to
figure and from gas to gas
J. Therm. Anal. Cal., 65, 2001

OI et al.: CONVERSION OF NH
4
Zr
2
(PO
4
)
3
TO HZr
2
(PO
4
)
3
307
7
lease of H O (monitored at 1597 cm ). A close examination of Fig. 2a reveals that the
00°C and between about 350 and 800°C, respectively, both accompanied by the re-
1
–
2
NH profile has two peaks corresponding to those of N O and NO. The most plausible
reactions of the formations of the two acidic gases, N O and NO, are:
3
2
2
2
NH +2O →N O+3H O
(2)
3
2
2
2
and
4
NH +5O →4NO+6H O
(3)
3
2
2
–
With the decrease in heating rate to 10°C min and with a platinum pan, the
1
peaks of NO and NH disappear and the release of N O is diminished (Fig. 2b). It is
inferred that, when the heating rate is low, the major reaction is;
NH →N +3H
3
2
2
(4)
3
2
2
which is undetectable by IR monitoring. Some catalysts must be required for reac-
tions (2)–(4) to occur.
Our above observation shows that platinum used as the material of the pan of the
TG analyzer acted as a catalyst for the oxidation of NH and contrary to the specula-
tions of Clearfield et al. [1], the HZr (PO ) phase did not catalyse the oxidation. It is
3
2
4 3
unknown what kind of materials participated in the heating experiments by Clearfield
et al. [1]. We claim that HZr (PO ) did not act as catalyst in their experiments, either.
2
4 3
–1
Fig. 2 The IR absorbance profiles of off-gases; a – with the heating rate of 50°C min
–1
and with a platinum pan, and b – with the heating rate of 10°C min and with a
platinum pan. Note that the scales of the vertical axis are different from figure to
figure and from gas to gas
J. Therm. Anal. Cal., 65, 2001

3
08
4 2 4 3 2 4 3
OI et al.: CONVERSION OF NH Zr (PO ) TO HZr (PO )
To summarize, we would like to state that N O and NO were identified as acidic
off-gases accompanying the conversion of NH Zr (PO ) to HZr (PO ) and that the
2
4
2
4
3
2
4 3
HZr (PO ) phase of NH Zr (PO ) had little catalytic capability for the oxidation of
NH3.
2
4
3
4
2
4 3
References
1
2
3
4
5
6
7
A. Clearfield, B. D. Roberts and M. A. Subramanian, Mat. Res. Bull., 19 (1984) 219.
Y. Nakajima and I. Yoshida, Anal. Sci., 12 (1996) 935.
T. Oi, Y. I. Uchiyama, H. Hosoe and K. Itoh, J. Nucl. Sci. Technol., 36 (1999) 1064.
Daiichi Kigenso, Chem. Ind., Co., Japan Patent, 6-53566, (1994) 25 (in Japanese).
Daiichi Kigenso, Chem. Ind., Co., Japan Patent, 7-115851, (1995) 65 (in Japanese).
D. F. Smith, Jr., J. Overend, R. C. Spiker and L. Andrews, Spectrochim. Acta, 28A (1972) 87.
R. H. Gillette and E. H. Eyster, Phys. Rev., 56 (1939) 1113.
J. Therm. Anal. Cal., 65, 2001
