SNAr Nucleophilic substitution of 1,9-dihalodipyrrins by S
and N nucleophiles. Synthesis of new dipyrrins bearing
pendant substituents.1
Evgenia Leushina, Ksenia Tikhomirova, Anastasiya Permyakova, Pavel Ilin, Maria
Terenina, Alexander Anisimov, Andrey Khoroshutin*
a
Chemistry Department, M.V. Lomonosov Moscow State University, 1 Leninskie Gory
Bld. 3, Moscow 119991 Russia
e-mail: khorosh@petrol.chem.msu.ru
Abstract
5-Aryl-1,9-dichlorodipyrrins react with a series of S and N nucleophiles (both alkyl and
aryl containing ones). Reagents with mercapto group yield product of double nucleophilic
substitution of 5-pheny-1,9-dichlorodipyrrin, i.e. the respective 1,9-bis(alkyl- of
arylthio)dipyrrin. On the contrary, 5-(4-nitrophenyl)-1,9-dichlorodipyrrin causes disulfides
formation from the S-aliphatic substrates, whereas nucleophilic substitution remains the main
path of the reaction for S-aryl ones. Reaction of N-Alkyl nucleophiles proceeds as mono-
substitution. UV-Vis spectra feature batochromic shift for bis-S-substituted products and a
hypsochromic shift for mono-N-substituted ones, with respect to the starting dichlrorides.
1
Part of this work was reported at 6th EuCheMS Conference on Nitrogen Ligands in Coordination
Chemistry, Metal-Organic Chemistry, Bioinorganic Chemistry, Materials and Catalysis, Beaune, France, September
13-17.
1

ACCEPTED MANUSCRIPT
Keywords
1,9-dihalo-H-dipyrrins, nucleophilic substitution, S-nucleophiles, N-nucleophiles, UV-
Vis spectra, NMR
Introduction
Dipyrrins (DPs) and their metal complexes [1, 2] are attracting much of researchers
attention, in spite of being somewhat in the shade of their boron derivatives (BODIPY) [3-6].
DP-metal complexes have been studied for applications in dye-sensitized solar cells [7-9],
catalysis[10] and as new fluorescent dyes.[11] They have been studied as prospective substance
of anti-tumor activities[12-14] Besides, DP-metal complexes can govern the geometry and
composition of supramolecular aggregates[15, 16] depending on both the mode of metal
coordination and the geometry and steric demand of a DP ligand. [17-19] These factors also
control the formation of metal-organic frameworks. [20, 21] Extensive studies focused on the
substutients’ influence on the energies of the ground and excited states manifested in their redox
properties and optical spectra. .[22] Additional substituents at the periphery of DP bearing extra
complexing groups had also been shown to drastically change complexes properties. [23, 24]
Known synthetic pathways to substituted DPs include condensation of substituted
pyrroles. [25-32] Also, series of methods such as electrophilic substitution, oxidative couplings,
a direct H-substitution and halogenation-Pd-catalyzed cross coupling sequences have been
shown to work for BODIPY derivatization[33, 34] as well as conversion of a methyl group
adjacent to the electronegative heterocycle to a double bond and nucleophilic substitution at the
BODIPY core. [5] Some examples of these methods applied to non-borylated dipyrrins can be
also found in the literature. [35] Research groups of Thompson, Ravikanth and Hao have
developed synthetic methods leading to H-dipyrrins based on F-BODIPY deborylation by boron
trihalides[36] or other Lewis acids[37], as well as by potassium tert-butoxide [38, 39]. However
2

ACCEPTED MANUSCRIPT
the scope of these methods is rather limited, e.g. no dipyrrins possessing groups with substantial
Lewis basicity are reported to stand these BF2-removal conditions.
On the other hand no accounts on an aromatic nucleophilic substitution in free dipyrrins
are found in the literature, although there are papers on the reactions of C-, S-, N- and O-
nucleophiles with more electrophilic 1,9-dichloroBODIPY.[40] We were interested in the access
to 1,9-disubstituted dipyrrins that possess additional pendant complexing substituents. 1,9-
Modification of the dipyrrin framework was employed for the sterical encumbering to be used in
catalysis[27, 41], the extension of a π-conjugation (regulated both by metal complexation[42]
and hydrogen bonding[38]), used in photophysical applications.
This communication reveals first results of the study. It is aimed at filling this gap, being
focused on the either bulky substrates or those possessing additional coordinating substituents.
As there is an NH acidic proton in the dipyrrin, reaction of 5-aryl-1,9-dichlorodipyrrins 1 with C-
nucleophiles is more difficult to study, so at first we limited the scope to N-, O- and S-
nucleophiles
Materials and Methods
All solvents were distilled before use. Reagents were purchased from Aldrich and Acros
companies, solvents were bought from Reakhim. CH3CN and triethylamine have been distilled
from
CaH2.
1,9-dichloro-5-(4-nitrophenyl)-dipyrromethene,
1,9-dichloro-5-phenyl-
dipyrromethene [43], methyl 2-mercaptobenzoate [44], methyl mercaptoacetate [45], and methyl
3-mercaptopropanoate [46] were prepared according to the literature procedures.
NMR spectra, unless otherwise stated, were recorded on Bruker Avance 400
spectrometer, at 400.13 MHz for 1H (standard – HMDS, 0.05 ppm) and 100.13 for 13C (standard
– 13C signal of the solvent, 77.0 ppm for CDCl3). For APT experiments, signals of secondary and
quaternary atoms are marked with an asterisk.
3

ACCEPTED MANUSCRIPT
LDI-TOF spectra have been collected on Bruker Daltonics Autoflex II spectrometer,
samples were irradiated by N2 laser (λ = 337 nm), accelerating voltage 19 kV. High resolution
mass spectra (HRMS) were measured on a Bruker micrOTOF II instrument using electrospray
ionization (ESI) [47]. The measurements were done in a positive ion mode (interface capillary
voltage – 4500 V); mass range from m/z 50 to m/z 3000 Da; external or internal calibration was
done with Electrospray Calibrant Solution (Fluka). A syringe injection was used for solutions in
methanol (flow rate 3 µL/min). Nitrogen was applied as a dry gas; interface temperature was set
at 180 °C.
TLC has been performed on DC-Alufolien Kieselgel 60 F254 plates (Merck). Kieselgel
60 0.063-0.200 мм (Merck) was used for column chromatography.
UV-Vis spectra were measured on Agilent-8453, in all cases a drop of Et3N had been
added to the sample before measurement. Extinction coefficients were reported for 5 10-5 M
concentrations, unless otherwise stated.
General procedure for nucleophilic substitution.
Dichlorodipyrrin (1 eq.) and dry acetonitrile were placed to three necked round bottom
flask equipped with magnetic stirring bar, stoppered by rubber septa and flushed with argon via
needles. Then a solution of the nucleophile (ca. 4 eq.) in CH3CN and triethylamine (ca. 6 eq.)
have been added by the syringe, reaction flask was immersed into an oil bath heated to 65oC
(unless otherwise specified). After a specified time period, the solvent was removed on rotary
evaporator, the residue was dried on the vacuum line at 5*10-2 Torr at 80-90oC to remove the
base and one of the substrates and processed as cited below.
1,9-bis(methoxycarbonylmethylthia)-5-phenyl dipyrrin (7). 1a (8.9 mg, 30.1 µmol) in 4 ml of
CH3CN and 3a (13.1 mg, 124 µmol) in 6 ml of CH3CN and Et3N (17 µl, 12.4 mg, 122 µmol),
rxn time 48 h, purified by TCL Al2O3 neutral, hexane/CHCl3 2:1 + 1% CH3OH. 7: (6.4 mg,
1
14.93 µmol, 49%). H NMR (CDCl3): δ = 3.79 (6H, s), 3.88 (4H , s), 6.38 (2H, d, J = 4.1 Hz),
4

ACCEPTED MANUSCRIPT
13
6.44 (2H, d, J = 4.1 Hz), 7.36-7.44 (5H, m) ppm. C NMR (CDCl3) δ= 35.56, 52.76, 120.42,
127.60, 128.58, 128.79, 130.77, 134.41, 136.77, 141.76, 147.65, 170.02 ppm. LDI-TOF: m/z =
429 [M+H]+, 467[M+K]+. HRMS (ES): C21H21N2O4S2 Found 429.0921 Calculated 429.0337.
λmax = 453 nm (ε=2.4×104 M-1cm-1).
1,9-bis(2-methoxycarbonylethylthia)-5-phenyl dipyrrin (8). 1a (25.1 mg, 86.8 µmol) in 10 ml
of CH3CN and 3b (41.7 mg, 347 µmol) in 4 ml of CH3CN and Et3N (48 µl, 35.2 mg, 348 µmol),
rxn time 120 h, purified by TCL Al2O3 neutral, hexane/CHCl3 2:1 . 8: (33.0 mg, 72.3 µmol,
83%). 1H NMR (CDCl3): δ = 2.73 (4H, t, J = 7.2 Hz), 2.91 (4H, t, J = 7.2 Hz), 3.69 (6H, s), 6.38
(2H, d, J = 4.1 Hz), 6.44 (2H, d, J = 4.1 Hz), 7.36-7.44 (5H, m) ppm. 13C NMR (CDCl3) δ=
28.87*, 34.42*, 51.88, 120.77, 127.72, 128.44, 128.64, 130.75, 133.61*, 136.63*, 141.91*,
148.24*, 172.06* ppm. LDI-TOF: m/z = 458 [M]+. HRMS (ES): C23H25N2O4S2 Found 457.1242
Calculated 457.1250. λmax = 456 nm (ε=1.9×104 M-1cm-1).
Nucleophilic substitution of 1a with 3b – conversion and products distribution. All the
experiments have been carried out according to the general procedure. After the evaporation and
high vacuum drying reaction mixtures have been analyzed by NMR.
Methyl 3-({(2Z)-2-[(5-chloro-1H-pyrrol-2-yl)(phenyl)methylene]-2H-pyrrol-5-yl}
thio)propanoate (7') 1a (30 mg, 104 µmol) in 8 ml of CH3CN and 3b (50.6 mg, 374 µmol) in
2 ml of CH3CN and Et3N (54 µl, 39.3 mg, 728 µmol), rxn time 17 h. Reaction mixture has been
evaporated to dryness, then oily orange residue has been subjected to heating(95oC, 40 min) at
high vacuum (1·10-2- Torr) for the nucleophile excess to be dried off. The product was isolated
by column chromatography (SiO2 neutral, petroleum ether/ethyl acetate 4:1). 7': (13.5 mg,
34.8 µmol, 33%). ): 1H NMR (CDCl3) δ = 2.83 (2H, t, J = 7.2 Hz), 3.31 (2H, t, J = 7.2 Hz), 3.72
(3H, s), 6.33 (1H, d, J = 4.2 Hz), 6.48 (1H, d, J = 4.2 Hz), 6.25 (1H, d, J = 4.2 Hz), 6.54(1H, d,
J = 4.2 Hz), 7.40 (5H, m). ppm. 13C NMR (CDCl3) δ= 28.63, 29.28, 33.92, 51.5 8, 117.53,
5

ACCEPTED MANUSCRIPT
118.64, 127.36, 128.68, 130.37, 135.62, 171.51 ppm. LDI-TOF: m/z = 373 [M]+. HRMS (ES):
C20H20ClN2O2S Found 373.0778 Calculated 373.0772. λmax = 454 nm (ε=0.9×104 M-1cm-1).
1,9-bis(4-methylphenylthia)-5-phenyl dipyrrin (9). 1a (14 mg, 48.4 µmol) in 8 ml of CH3CN
and 4 (24.1 mg, 194 µmol) in 2 ml of CH3CN and Et3N (27 µl, 19.7 mg, 194 µmol), rxn time
20 h (at 64oC). Purified by column chromatography SiO2, CCl4. 9: (21 mg, 45.2 µmol, 93%). 1H
NMR (CDCl3): δ = 2.30 (6H, s) 6.27 (2H, d, J = 4.1 Hz), 6.44 (2H, d, J = 4.1 Hz), 7.13 (4H, d,
13
J = 8.1 Hz), 7.33 (4H, d, J = 8.1 Hz), 7.37 – 7.41(5H, m), 12.2 (broad s, 1H) ppm. C NMR
(CDCl3) δ= 21.23, 120.35, 127.64, 128.45, 128.57, 129.26*, 130.16, 130.75, 131.65, 134.46*,
136.66*, 136.66*, 138.14*, 141.91* ppm. LDI-TOF: m/z = 465 [M+H]+. HRMS (ES): [M+H]+
C29H24N2S2 Found 465.1464 Calculated 465.1454. λmax = 462 nm (ε = 2.1×104 M-1cm-1).
1,9-bis(2-methoxycarbonylphenylthia)-5-phenyl dipyrrin (10). 1a (14.6 mg, 50.5 µmol) in
8 ml of CH3CN and 5 (43.8 mg, 260 µmol) and Et3N (27 µl, 19.7 mg, 194 µmol), rxn time 72 h
(at 76oC). Purified by column chromatography SiO2, hexane-EtOAc 4:1. Dried residue was
1
chromatographed on Al2O3, hexane-EtOAc. 10: (23 mg, 41.6 µmol, 82%). H NMR (CDCl3): δ
= 3.91 (6H, s), 6.44 (2H, d, J = 4.4 Hz), 6.52 (2H, d, J = 4.4 Hz), 7.10-7.14 (2H, m), 7.21-7.27
(4H, m), 7.38-7.47 (5H, m), 7.85 (2H, dd, J = 7.8 Hz, 1.1 Hz) ppm. 13C NMR (CDCl3) δ= 29.68,
52.25*, 122.60*, 126.50*, 127.73*, 128.65*, 128.79*, 129.55, 130.82*, 130.87*, 132.34*,
134.56, 136.54, 137.13, 147.03, 166.80 ppm. LDI-TOF: m/z = 465 [M+H]+. HRMS (ES):
C29H24N2S2 Found 465.1464 Calculated 465.1454. λmax = 456 nm (ε = 2.1×103 M-1cm-1).

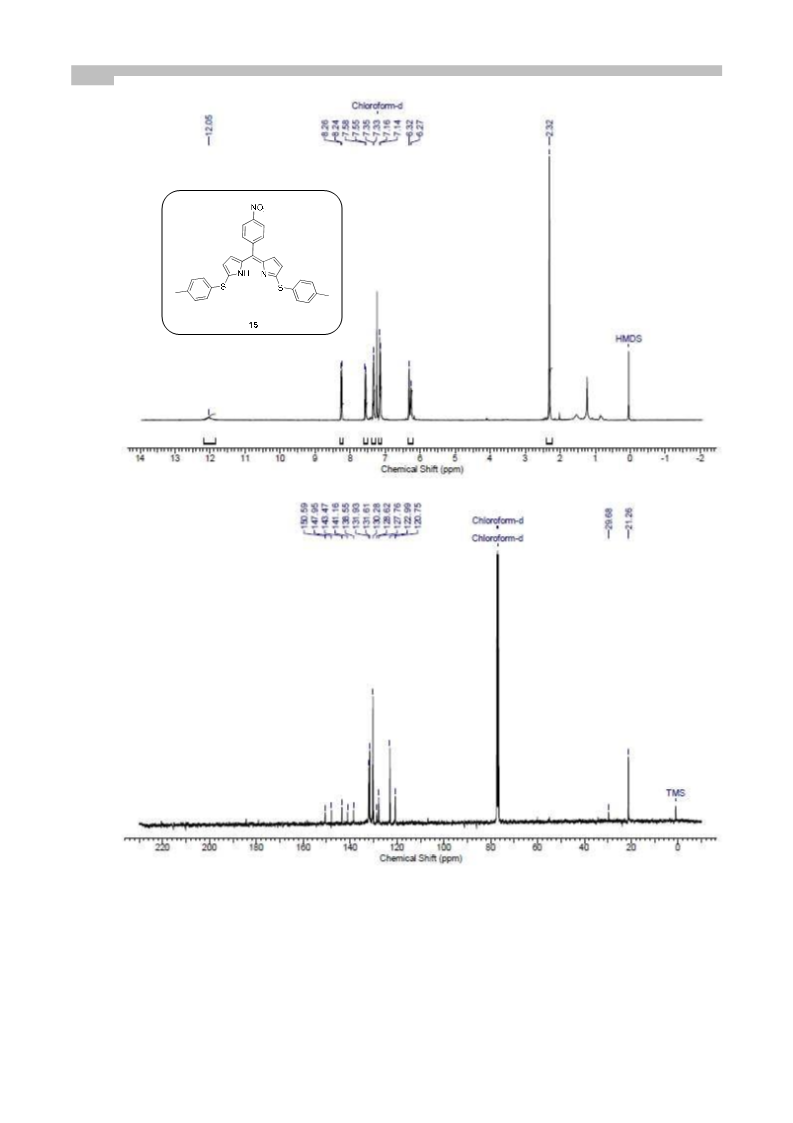

1,9-bis(4-methylphenylthia)-5-(4-nitrophenyl) dipyrrin (15). 1b (33.3 mg, 100 µmol) in 16 ml
of CH3CN and 4 (50.7 mg, 408 µmol) and Et3N (54 µl, 39 mg, 388 µmol), rxn time 48 h (at
65oC). Washed by hot hexanes four times, removing this by decantation 15: (19.6 mg,
38.4 µmol, 39%). 1H NMR (CDCl3): δ = 2.34 (3H, s), 6.27 (2H, d, J = 4.3 Hz), 6.33 (2H, d, J =
4.3 Hz), 7.16 (4H, d, J = 7.9 Hz), 7.35 (4H, d, J = 7.9 Hz), 7.58 (2H, d, J = 8.8 Hz), 8.27 (2H, d,
13
J = 8.8 Hz) ppm. C NMR (CDCl3) δ= 21.26, 120.75, 122.99, 127.76, 128.62, 130.28, 131.61,
6

ACCEPTED MANUSCRIPT
131.93, 138.55, 141.16, 143.47, 147.95, 150.59 ppm. LDI-TOF: m/z = 510.6 [M+H]+. HRMS
(ES): C29H23N3O2S2 Found 510.1298 Calculated 510.1304 λmax = 467 nm (ε = 7.6×103 M-1cm-1).

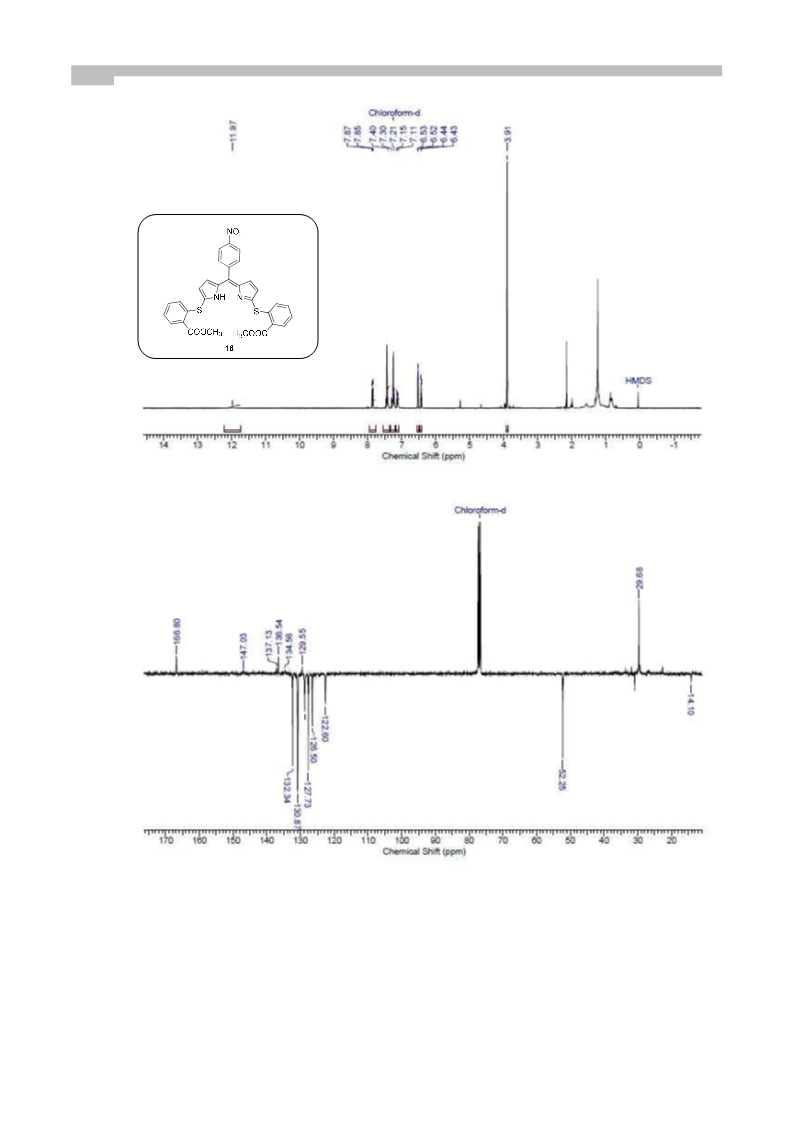

1,9-bis(2-methoxycarbonylphenylthia)-5-(4-nitrophenyl)dipyrrin
(16).
1b
(33.8 mg,
101 µmol) in 16 ml of CH3CN and 5 (68 mg, 550 µmol) and Et3N (54 µl, 40 mg, 380 µmol), rxn
time 4 h (at 70oC). ). Washed by hot hexanes four times, removing this by decantation. 16:
1
(47.4 mg, 79.2 µmol, 79%). H NMR (CDCl3): δ = 3.91 (6H, s), 6.41 (2H, d, J = 4.2 Hz), 6.46
(2H, d, J = 4.2 Hz), 7.12-7.16 (2H, m), 7.24 (the peak is overlaid by the CDCl3 residual one,
confirmed by COSY expt.), 7.63 (2H, d, J = 8.6 Hz), 7.87 (2H, d, J = 7.6 Hz), 8.30 (2H, d,
J = 8.6 Hz), 11.92 (1H, br.s.) ppm. 13C NMR (CDCl3): δ = 52.26, 123.05, 123.38, 126.70,
127.70, 129.59*, 130.88, 130.95, 131.68, 132.37,136.75*, 142.14*, 143.28*, 148.07*, 166.72*
ppm. LDI-TOF: m/z = 598.1 [M+H]+. HRMS (ES): C31H23N3O6S2 Found 598.1051 Calculated
598.1101. λmax = 461 nm (ε=1.7×104 M-1cm-1).
1,9-bis(2-methoxycarbonylmethylthia)-5-(4-nitrophenyl)dipyrrin
(17). 1b
(49.6 mg,
150 µmol) in 28 ml of CH3CN and 3a (63.6 mg, 600 µmol) and Et3N (155 µl, 113 mg,
1.12 µmol), rxn time 21 h (at 70oC). 17: (58,2 mg, 123 µmol, 82%). 1H NMR (CDCl3): δ = 3.75
(6H, s), 3.87 (4H, br.s.), 6.32 (2H, d, J = 4.2 Hz), 6.38 (2H, d, J = 4.2 Hz), 7.58 (2H, d, J =
13
8.6 Hz), 8.26 (2H, d, J = 8.6 Hz). C NMR (CDCl3): δ = 35.35, 52.75, 120.89, 122.88, 128.06,
131.13, 131.60, 140.90, 143.48, 147.84, 148.99, 169.84 ppm. LDI-TOF: m/z = 474 [M+H]+.
HRMS (ES): C21H19N3O6S2 Found 474.0783 Calculated 474.0794. λmax = 458 nm
(ε = 1.9×104 M-1cm-1).
1,9-bis(2-methoxycarbonylethylthia)-5-(4-nitrophenyl)dipyrrin (18). 1b (51.2 mg, 154 µmol)
in 27 ml of CH3CN and 3b (72 mg, 600 µmol) and Et3N (159 µl, 218 mg, 2.16 µmol), rxn time
21 h (at 70oC). 18: (64,8 mg, 129,4 µmol, 84%). 1H NMR (CDCl3): δ = 2.83 (4H, t, J = 7.1 Hz),
3.32 (4H, t, J = 7.1 Hz), 3.70 (s, 6H), 6.37 (4H, t, J = 4.4 Hz), 7.60 (2H, d, J = 8.6 Hz), 8.28 (2H,
d, J = 8.6 Hz), 12.42 (1H, br.s.) ppm. 13C NMR (CDCl3): δ = 28.79, 34.23, 51.89, 121.25,
7

ACCEPTED MANUSCRIPT
123.01, 127.75, 130.30, 131.59, 141.09, 143.36, 147.93, 149.61, 171.88 ppm. LDI-TOF: m/z =
502 [M+H]+. HRMS (ES): C23H23N3O6S2 Found 502.1096 Calculated 502.1107. λmax = 463 nm
(ε=2.1×104 M-1cm-1).
9-chloro-1-((2-hydroxyethyl)amino)-5-phenyldipyrrin (19) 1a (15 mg, 52 µmol) in 8 ml of
CH3CN and 6a (16 mg, 262 µmol) and Et3N (27 µl, 20 mg, 190 µmol), rxn time 163 h (at 70oC).
After the solvent removal on the vacuum line the reaction mixture was dissolved in 10 ml of
CH2Cl2, washed with 0.1M HCl. Water phase was neutralized by an equal volume of saturated
aq. NaHCO3 and extracted with CH2Cl2. Combined organic phases were dried over Na2SO4 and
the solvent was removed on rotary evaporator. The residue was loaded onto silica gel column
(hexane/EtOAc 1:3). Second fraction was collected giving dark orange crystals after drying.
19 (7 mg, 22 mol, 45%).
1H NMR (CDCl3): = 3.69-3.72 (2H, m), 3.94-3.97 (2H, m), 6.00-6.02 (2H, m), 6.15 (1H, d, J =
13
4.7 Hz), 6.71 (1H, d, J = 4.7 Hz), 7.36-7.43 (5H, m) ppm. C NMR (CDCl3): = 45.7*, 62.3*,
108.19, 116.77, 117.72, 120.11*, 127.64, 127.74*, 128.03, 130.94, 132.29*, 137.04*, 137.92,
166.80* ppm. LDI-TOF: m/z = 314.1 [M+H]+. HRMS (ES): C17H16ClN3O Found 314.1055
Calculated 314.1055. λmax = 416 ( ε=9.7×104 M-1cm-1); 521(ε=2.2×104 M-1cm-1) (c = 7.6×10-6
M).
9-chloro-1-((N-2-hydroxyethyl-N-methyl)amino)-5-phenyldipyrrin (20) 1a (15 mg, 52 µmol)
in 8 ml of CH3CN and 6b (16 mg, 213 µmol) and Et3N (27 µl, 20 mg, 190 µmol), rxn time 57 h
(at 70oC). ). After the solvent removal on the vacuum line reaction mixture was dissolved in
10 ml of CH2Cl2, washed with brine and with water. Organic phase was dried over Na2SO4 and
the solvent was removed on rotary evaporator. The dark orange solid of 20 were collected with
1
the quantitative (17 mg, 52 µmol) yield. H NMR (CDCl3): = 3.27 (1H, s), 3.74-3.77 (2H, m),
3.94-3.97 (2H, m), 6.01 (2H, AB system, J = 3.9 Hz), 6.38 (2H, d, J = 4.76 Hz), 6.77 (2H, d, J =
4.76 Hz), 7.36-7.43 (5H, m) ppm. 13C NMR (CDCl3): δ = 37.8, 54.0, 61.4, 108.1, 116.1, 116.3,
119.8, 127.1, 127.6, 127.9, 131.0, 132.7, 137.1, 138.2, 146.5, 168.4 ppm. LDI-TOF: m/z =327
8

ACCEPTED MANUSCRIPT
[M], 328 [M+H]+. HRMS (ES): C17H16ClN3O Found 328.1207 Calculated 328.1211 λmax
=
432 nm (ε =1.9×104 M-1cm-1), 530 (ε =0.49×104 M-1cm-1).
9-chloro-1-((2-hydroxyethyl)amino)-5-(4-nitrophenyl)-dipyrrin (21) 1b (19.4 mg, 61 µmol)
in 10 ml of CH3CN and 6a (19 mg, 310 µmol) and Et3N (32 µl, 23 mg, 230 µmol), rxn time 24 h
(at 73oC). The solvent has been removed on the rotary evaporator, then the residue has been
1
dried on high vacuum line (10-2 Torr) at 77oC for 40 min. 17: (21.5 mg, 59.6 µmol, 96%). H
NMR (CDCl3): δ = 3.68 (2H, m), 3.93 (m, 2H), 6.04 (1H, d, J = 4.0 Hz), 6.13 (1H, d,
J = 4.0 Hz), 6.38 (1H, d, J = 5.1 Hz), 6.64 (1H, d, J = 5.1 Hz), 7.56 (2H, d, J = 8.8 Hz), 8.29
(2H, d, J = 8.8 Hz) ppm. 13C (CDCl3) 45.9, 61.8, 108.9, 116.5, 117.2, 118.5, 121.7, 123.1, 125.1,
130.6, 131.1, 131.8, 131.9, 137.4, 143.9, 147.8, 166.6 ppm. LDI-TOF: m/z = 358 [M]+, 359
[M+H]+. C17H15ClN4O3 [M+H]+ Found 359.0895 Calculated 359.0905 λmax = 424 nm (ε =
1.3×104 M-1cm-1), 523(0.26×104 M-1cm-1).
9-chloro-1-((N-2-hydroxyethyl-N-methyl)amino)-5-(4-nitrophenyl)-dipyrrin (22) 1b (23 mg,
73 µmol) in 11 ml of CH3CN and 6b (24.3 mg, 323 µmol) in 2ml of CH3CN and Et3N (38 µl,
28 mg, 270 µmol), rxn time 24 h (at 73oC). After the solvent removal on the vacuum line (40
1
min at 80oC). The dark orange solid of 22 were collected with 95% (26 mg, 70 µmol) yield. H
NMR (CDCl3): = 3.31 (1H, s), 3.70-3.81 (2H, m), 3.96-3.98 (2H, m), 5.91 (1H, d, J = 3.9 Hz),
6.03 (1H, d, J = 3.9 Hz), 6.45 (1H, d, J = 4.8 Hz), 6.67 (1H, d, J = 4.8 Hz), 7.57(2H, d, J =
8.8 Hz), 8.25(2H, d, J = 8.8 Hz) ppm. 13C NMR (CDCl3): δ = 38.06, 54.35*, 60.81*, 108.9,
116.6, 123.0, 132.0*, 131.8*, 131.9, 134.8*, 137.8, 144.2*, 147.7*, 167.0* ppm. LDI-TOF: m/z
=372 [M], 323 [M+H]+. HRMS (ES): C18H17ClN4O3 Found 372.1001 Calculated 372.0989 λmax
= 441 nm (ε =1.4×104 M-1cm-1); 530 nm (ε =3.4×103 M-1cm-1) .
9

ACCEPTED MANUSCRIPT
Results
Two dipyrrins differing in electrophilicity have been chosen to probe their substitution
reactions, i.e. 5-phenyl-1,9-dichlorodipyrromethene (Ph-DP) 1a, 5-(4-nitrophenyl)-1,9-
dichlorodipyrromethene (NO2Ph-DP) 1b.
Figure 1. Starting compounds used in this study.
R
HS
CH3O
HS
COOCH3
(CH2)n
R'HN
OH
HS
O
NH
N
Cl
Cl
R = H, 1a
NO2, 1b
3a n = 1
3b n = 2
4
5
6a, R=H
b, R=CH3
All reactions have been carried out as for the BODIPY[40] , i.e. in refluxing acetonitrile with
triethylamine as the base. The reactions occurred at much slower rates than their F-BODIPY
counterparts (e.g. 48 h for 7 vs 8h for its BF2 counterpart[40]). Despite the oxygen-free
conditions, formation of the disulfides 11-14 were detected along with disubstituted products in
all cases, indicating that the DP also acts as an oxidant. The results are presented in the
Scheme 1.
10

ACCEPTED MANUSCRIPT
Scheme 1.
Both shorter reaction times and lower excess of 3a give rise to either lower conversion or
to the formation of the mixture of mono- and di-substitution products 7' and 7 (Scheme 2).
However no conditions can be found for selective formation of 7'.
Scheme 2
11

ACCEPTED MANUSCRIPT
Nitrogen nucleophiles – react with 1a and 1b to yield mono-substitution product only. All
attempts to effect disubstitution (severe conditions, long reaction time, solvent variation) failed
(Scheme 3).
Scheme 3
R
R
(C2H5)3N
4 eq.
NHR'
+
CH3CN
reflux
>24 h
argon
OH
NH
NH
N
N
Cl
Cl
NR'
Cl
1
6
HO
Nucleophile, R'
6a, H
6b, CH3
6a, H
DP adduct
19, 45%
20, 99%
21, 99%
22, 95%
R
H
H
NO2
NO2
Entry
1
2
3
4
6b, CH3
No products were observed when reacting 1 with EtOH in similar conditions.
Use of DMF as the solvent caused no substantially different results: all reactions have
been accelerated ca. 1.5 times, no disubstitution in the case of N-nucleophiles has been observed,
no substitution products by O-nucleophiles have been detected.
NMR of the disubstituted products feature much less difference between signals of
pyrrolic protons (0.05 – 0.1 ppm) than in, e.g. 1a (0.27 ppm [29]). Spectra of mono-substituted
ones 19-22 exhibit two pairs of the pyrrolic protons: for pyrrole and pyrrolene units (see the
Supporting Info). One may expect two possible tautomeric forms which distinctly differ in
energy for such compounds (Fig.2). To get more insight to which form (A or B, Fig. 2)
predominates we did the NOESY experiment 22. Its results (see the Supporting Info)
unambiguously indicate that N-methyl-N-(2-hydroxyethyl) group is attached to the doublet with
the splitting of 4.8 Hz, not to the doublet with 3.8 Hz. Mono N-substituted BODIPY [48-51] and
12

ACCEPTED MANUSCRIPT
O-substituted dipyrrins [52] do possess doublets with coupling constants that differ in their
values for ca. 1 Hz. However, no authors appear to discuss this difference in terms of pyrrole-
pyrrolene tautomerism. Analyzing the literature one can make the conclusion that, it's the
pyrrolene ring in dipyrrins that has the constant 4.8 Hz (for instance, as in C [53]), and pyrrole
ring features 3 Hz coupling constant (for instance, as in D [54])
Figure 2. Possible tautomeric equilibrium (A, B) of 20 and NOE correlation (see
Supplementraty Info); literature examples 3J values in pyrrole and pyrrolene rings (C, D).
H
H
H
H
H
H
H
H
NOE
N
HN
NH
N
H
H
H
H
Cl
Cl
N
N
A
B
HO
HO
Thus we assume that 4.8 Hz doublet belongs to the ring existing predominantly in the
pyrrolene form, whereas the residual chlorine substutuent is attached to a "pyrrole-character"
ring. This hypothesis supports the observed complete inability of the chlorine atom to be
substituted after the first reaction occurred.
Tautomerism in the dipyrrin series due to the migration of the inner proton is widely
accepted phenomenon, [55] although there are few papers that discuss possible position of this
equilibrium. For instance, Lightner and Datta [56] discuss the equilibrium in 1-methoxy-3,8-
diethyl-2,7-dimethyldipyrrin (Fig 3). They point out that the equilibrium is shifted to the left, as
judged by the bond lengths in the X-ray structure. Falk et.al. [57] also point out that the
tautomeric form in which the pyrrolene ring is attached to the π-donor substituent predominates.
13

ACCEPTED MANUSCRIPT
Figure 3. Tautomers of 9-methoxy-3,8-dimethyl-2,7-diethyldipyrrin [56]
UV-Vis spectra
UV-Vis spectra (for examples, see Figure 3) show the following trend. First, substitution
of the S atoms for Cl (Table 1, entries 11, 12, 17, 18) yields a bathochromic shift of an
absorption maximum that amounts ca. 30 nm if an additional π-substituent, i.e. p-tolyl group, is
attached (entry 11). On the contrary the introduction of a N-substituent yields a substantial
hypsochromic shift (entries 21-24).
Figure 4. Samples of the UV-Vis spectra (CH3CN) of the starting compound 1a (dashed
line), bis-S-substituted 10 (grey line) and mono- N-substituted 20(solid line).
3.00
2.50
2.00
1.50
1.00
0.50
0.00
300
350
400
450
500
550
600
-0.50
14

ACCEPTED MANUSCRIPT
Table 1. UV-Vis spectral data of DPs in CH3CN at r.t.
Cmpd
Cmpd
λmax (ε)
λmax (ε)
(at 5×10-5M)
461(1.7 104)
458(1.9 104)
463(2.1 104)
416(9.4 104)
521(2.2 104)*)
432(1.9 104);
530(0.49 104)
424(1.3 104)
523(0.26 104)
441(1.4 104)
530(0.34 104)
440(1.4 104)
448(2.4 104)
453(2.4 104)
1a
1b
7
16
17
18
8
456(1.9 104) 19
462(2.1 104) 20
456(2.1 104) 21
9
10
15
467(7.6 103)
22
*) Measured at 7.6×10-6M
This effect of a mono N-substitution has already been observed in the series of BODIPY
dyes [40, 58-63] and reasons for it were comprehensively analyzed. Boens et.al. [50] carried out
solvent-dependent UV-Vis and fluorescence studies of the dye 23, as well as quantum chemical
calculations of the ground and the excited state of the molecule. The authors suggested that the
dipole moment of the exited state being lower than that of the ground state is responsible for the
blue shift of the UV-Vis maximum of 23 with respect to 24. On the other hand, mono S-
substitution does not cause such an effect [40, 64, 65].
15

ACCEPTED MANUSCRIPT
Figure 5. Mono-N-substituted BODIPY 23 [50] and its precursor 24.
N
N
N
N
B
B
Cl
HN
Cl
Cl
F F
F F
23
24
Besides, a low intensity bathochromically shifted band is observed in the UV-Vis spectra
of mono-N-substituted products. However, we currently were are unable to make any plausible
assignment of this band, although it is reproduced in all studied spectra. The analysis of more
data will make it possible to attribute the band.
Conclusions
This study demonstrate that dihalo-H-dipyrrins can undergo the nucleophilic substitution
reaction with S- and N-nucleophiles and are inert to O-nucleophiles. This relatively simple and
mild method for substituted dipyrrins is complementary to the recently emerged "BODIPY
nucleophilic substitution – deborylation" sequence. Also, the specific mono-N-substitution may
be regarded as a reliable and clean procedure both for mono-N-substituted dipyrrins and for
mono-N-substituted BODIPYs , eliminating the need to adjust the reaction conditions and/or the
chromatography isolation of dyes [61, 66]. This work is in progress and will be reported in due
course.
Acknowledgements
The authors are grateful to Prof. A. Masunov (University of South Florida), Sergey
Pisarev (Institute of Physiologically Active compounds, RAS, Chernogolovka, Russia) and Prof.
Andrey Ivanov (The Irkutsk Scientific Center, Siberian Branch of RAS, Irkutsk, Russia) for
16

ACCEPTED MANUSCRIPT
helpful and stimulating discussions. Financial support of Russian Foundation for Basic Research
(Grant No. 14-03-93105) is gratefully acknowledged.
[1]
[2]
Wood TE, Thompson A. Advances in the chemistry of dipyrrins and their complexes.
Chem. Rev. 2007; 107: 1831-1861.
Wood TE, Uddin MI, Thompson A, The Synthesis and Properties of Dipyrrins.
Handbook of Porphyrin Science with Applications to Chemistry, Physics, Materials
Science, Engineering, Biology and Medicine, Vol 8: Open-Chain Oligopyrrole Systems
Vol. 8. SIngapore: World Scientific Publishing Co; 2010; p. 235-291.
[3]
[4]
[5]
[6]
[7]
Loudet A, Burgess K. BODIPY Dyes and Their Derivatives:
Spectroscopic Properties. Chem. Rev. 2007; 107: 4891–4932.
Ulrich G, Ziessel R, Harriman A. The chemistry of fluorescent bodipy dyes: Versatility
unsurpassed. Angew. Chem. Int. Ed. 2008; 47: 1184-1201.
Boens N, Leen V, Dehaen W. Fluorescent indicators based on BODIPY. Chem. Soc.
Rev. 2012; 41: 1130-1172.
Khan TK, Broering M, Mathur S, Ravikanth M. Boron dipyrrin-porphyrin conjugates.
Coord. Chem. Rev. 2013; 257: 2348-2387.
Djurovich PI, Kirlikovali KO, Thompson ME, Trinh C, Bartynski AN, Thompson ME,
Tassone CJ, Toney MF, Burkhard GF, McGehee MD. Efficient energy sensitization of
C60 and application to organic photovoltaics. JACS. 2013; 135: 11920 - 11928.
Li G, Hu K, Yi C, Knappenberger KL, Jr., Meyer GJ, Gorelsky SI, Shatruk M.
Panchromatic Light Harvesting and Hot Electron Injection by Ru(II) Dipyrrinates on a
TiO2 Surface. J. Phys. Chem. C. 2013; 117: 17399-17411.
Syntheses and
[8]
[9]
Hewat TE, Yellowlees LJ, Robertson N. Neutral copper(i) dipyrrin complexes and their
use as sensitizers in dye-sensitized solar cells. Dalton Trans. 2014; 43: 4127-4136.
[10] King ER, Sazama GT, Betley TA. Co(III) imidos exhibiting spin crossover and C-H bond
activation. JACS. 2012; 134: 17858 - 17861.
[11] Baudron SA. Luminescent dipyrrin based metal complexes. Dalton Trans. 2013; 42:
7498-7509.
[12] Gupta RK, Pandey R, Sharma G, Prasad R, Koch B, Srikrishna S, Li P-Z, Xu Q, Pandey
DS. DNA Binding and Anti-Cancer Activity of Redox-Active Heteroleptic Piano-Stool
Ru(II),
Rh(III),
and
Ir(III)
Complexes
Containing
4-(2-
Methoxypyridyl)phenyldipyrromethene. Inorg. Chem. 2013; 52: 3687-3698.
[13] Paitandi RP, Gupta RK, Singh RS, Sharma G, Koch B, Pandey DS. Interaction of
ferrocene appended Ru(II), Rh(III) and Ir(III) dipyrrinato complexes with DNA/protein,
molecular docking and antitumor activity. Eur. J. Med. Chem. 2014; 84: 17-29.
[14] Gupta RK, Sharma G, Pandey R, Kumar A, Koch B, Li P-Z, Xu Q, Pandey DS.
DNA/Protein Binding, Molecular Docking, and in Vitro Anticancer Activity of Some
Thioether-Dipyrrinato Complexes. Inorg. Chem. 2013; 52: 13984-13996.
[15] Beziau A, Baudron SA, Hosseini MW. Heterometallic coordination polymers
incorporating dipyrrin based heteroleptic copper and cobalt complexes: to Ag-pi or not?
Dalton Trans. 2012; 41: 7227-7234.
[16] De S, Mahata K, Schmittel M. Metal-coordination-driven dynamic heteroleptic
architectures. Chem. Soc. Rev. 2010; 39: 1555-1575.
[17] Ma L, Shin J-Y, Patrick BO, Dolphin D. Metal complexes of dipyrromethenes linked by
rigid spacer arms. Crystengcomm. 2008; 10: 1539-1541.
[18] Antina LA, Guseva GB, V'Yugin AI, Antina EV, Berezin MB. meso-spacer influence on
properties of zinc(II) complexes with 2,3'- and 3,3'-bis(dipyrrolylmethenes). Russ. J. Gen.
Chem. 2013; 83: 1143-1150.
17

ACCEPTED MANUSCRIPT
[19] Guseva GB, Dudina NA, Antina EV, V'Yugin AI. Coordination reactions of 3,3 '-
bis(dipyrrolylmethene) with Co(II), Cu(II), and Zn(II) acetylacetonates, valinates, and
dipyrrolylmethenates. Russ. J. Gen. Chem. 2013; 83: 731-737.
[20] Baudron SA. Dipyrrin based homo- and hetero-metallic infinite architectures.
Crystengcomm. 2010; 12: 2288-2295.
[21] Béziau A, Baudron SA, Guenet A, Hosseini MW. Luminescent Coordination Polymers
Based on Self-Assembled Cadmium Dipyrrin Complexes. Chem. Eur. J. 2013; 19: 3215-
3223.
[22] Bröring M, Brandt Carsten D, Lex J, Humpf H-U, Bley-Escrich J, Gisselbrecht J-P.
Molecular and Electronic Structure of (2,2′-Bidipyrrinato)nickel(II) Complexes. Eur. J.
Inorg. Chem. 2001; 2001: 2549-2556.
[23] Sakamoto N, Ikeda C, Yamamura M, Nabeshima T. Structural Interconversion and
Regulation of Optical Properties of Stable Hypercoordinate Dipyrrin−Silicon Complexes.
JACS. 2011; 133: 4726-4729.
[24] Thoi VS, Stork JR, Niles ET, Depperman EC, Tierney DL, Cohen SM.
Diamidodipyrrins: Versatile Bipyrrolic Ligands with Multiple Metal Binding Modes.
Inorg. Chem. 2008; 47: 10533-10541.
[25] Ali AA-S, Cipot-Wechsler J, Crawford SM, Selim O, Stoddard RL, Cameron TS,
Thompson A. The first series of alkali dipyrrinato complexes. Can. J. Chem. 2010; 88:
725-735.
[26] Guseva GB, Dudina NA, Antina EV, V’yugin AI, Semeikin AS. 3,3′-
bis(dipyrrolylmethenes) as new chelating ligands: Synthesis and spectral properties.
Russ. J. Gen. Chem. 2008; 78: 1215-1224.
[27] King ER, Betley TA. C-H bond amination from a ferrous dipyrromethene complex.
Inorg. Chem. 2009; 48: 2361 - 2363.
[28] King ER, Hennessy ET, Betley TA. Catalytic C−H Bond Amination from High-Spin Iron
Imido Complexes. JACS. 2011; 133: 4917-4923.
[29] Liu X, Sun W, Zhan M, Zou L, Xie Z, Li X, Cheng Y, Liu X, Nan H, Sun W, Zhang Q,
Lu C. Synthesis and characterisation of neutral mononuclear cuprous complexes based on
dipyrrin derivatives and phosphine mixed-ligands. Dalton Trans. 2012; 41: 10199 -
10210.
[30] Maeda H, Akuta R, Bando Y, Takaishi K, Uchiyama M, Muranaka A, Tohnai N, Seki S.
Formation and Geometrical Control of Polygon-Like Metal-Coordination Assemblies.
Chem. Eur. J. 2013; 19: 11676-11685.
[31] Miao Q, Shin J-Y, Patrick BO, Dolphin D. Self-assembly of oligomeric linear
dipyrromethene metal complexes. Chem. Commun. 2009; 2541-2543.
[32] Wood TE, Berno B, Beshara CS, Thompson A. 15N NMR Chemical Shifts for the
Identification of Dipyrrolic Structures. J. Org. Chem. 2006; 71: 2964-2971.
[33] Boens N, Verbelen B, Dehaen W. Postfunctionalization of the BODIPY Core: Synthesis
and Spectroscopy. Eur. J. Org. Chem. 2015; 6577-6595.
[34] Bessette A, Hanan GS. Design, synthesis and photophysical studies of dipyrromethene-
based materials: insights into their applications in organic photovoltaic devices. Chem.
Soc. Rev. 2014; 43: 3342-3405.
[35] Ahrens J, Böker B, Brandhorst K, Funk M, Bröring M. Sulfur-Bridged BODIPY
DYEmers. Chem. Eur. J. 2013; 19: 11382-11395.
[36] Lundrigan T, Cameron TS, Thompson A. Activation and deprotection of F-BODIPYs
using boron trihalides. Chem. Commun. 2014; 50: 7028 - 7031.
[37] Lakshmi V, Chatterjee T, Ravikanth M. Lewis acid assisted decomplexation of F-
BODIPYs to dipyrrins. Eur. J. Org. Chem. 2014; 2014: 2105 - 2110.
[38] Jiang T, Zhang P, Yu C, Yin J, Jiao L, Dai E, Wang J, Wei Y, Mu X, Hao E.
Straightforward synthesis of oligopyrroles through a regioselective S NAr reaction of
pyrroles and halogenated boron dipyrrins. Org. Lett. 2014; 16: 1952 - 1955.
18

ACCEPTED MANUSCRIPT
[39] Smithen DA, Baker AEG, Offman M, Crawford SM, Cameron TS, Thompson A. Use of
F-BODIPYs as a protection strategy for dipyrrins: Optimization of BF2 removal. J. Org.
Chem. 2012; 77: 3439 - 3453.
[40] Rohand T, Baruah M, Qin WW, Boens N, Dehaen W. Functionalisation of fluorescent
BODIPY dyes by nucleophilic substitution. Chem. Commun. 2006; 266-268.
[41] King ER, Hennessy ET, Betley TA. Catalytic C-H bond amination from high-spin iron
imido complexes. JACS. 2011; 133: 4917 - 4923.
[42] Ding Y, Li T, Xie Y, Zhu W, Li X. From nonconjugation to conjugation: Novel meso-
OH substituted dipyrromethanes as fluorescence turn-on Zn2+ probes. Org. Biomol.
Chem. 2013; 11: 2685 - 2692.
[43] Li L, Han J, Nguyen B, Burgess K. Syntheses and Spectral Properties of Functionalized,
Water-Soluble BODIPY Derivatives. J. Org. Chem. 2008; 73: 1963-1970.
[44] Choi OK Novel intermediates of voriconazole and preparation method of voriconazole
using the same. Patent (2012), EP 2444298 A2.
[45] Trofimov BA, Sobenina LN, Mikhaleva AI, Sergeeva MP, Nesterenko RN, Golovanova
NI, Polovnikova PI. Addition of addition of methyl mercaptoacetate to n-vynilpyrroles.
Chem. Heterocycl. Compd. 1992; 28: 403-405.
[46] Loccufier J, Schacht E. Convenient method for the preparation of 3-(2-pyridyl dithio)
propionic acid N-hydroxy succinimid ester. Bull. Soc. Chim. Belg. 1988; 97: 535-539.
[47] Belyakov PA, Kadentsev VI, Chizhov AO, Kolotyrkina NyG, Shashkov AS, Ananikov
VP. Mechanistic insight into organic and catalytic reactions by joint studies using mass
spectrometry and NMR spectroscopy. Mendeleev Commun. 2010; 20: 125-131.
[48] Ganapathi E, Madhu S, Chatterjee T, Gonnade R, Ravikanth M. Synthesis, structure,
spectral, electrochemical and sensing properties of 3-amino boron-dipyrromethene and its
derivatives. Dyes Pigm. 2014; 102: 218-227.
[49] Huang J, Wang B, Ye J, Liu B, Qiu H, Yin S. A Highly Copper-Selective Ratiometric
Fluorescent Sensor Based on BODIPY. Chin. J. Chem. 2012; 30: 1857-1861.
[50] Qin W, Leen V, Rohand T, Dehaen W, Dedecker P, Van der Auweraer M, Robeyns K,
Van Meervelt L, Beljonne D, Van Averbeke B, Clifford JN, Driesen K, Binnemans K,
Boens N. Synthesis, Spectroscopy, Crystal Structure, Electrochemistry, and Quantum
Chemical and Molecular Dynamics Calculations of a 3-Anilino Difluoroboron
Dipyrromethene Dye. J. Phys. Chem. A. 2009; 113: 439-447.
[51] Qin WW, Rohand TF, Dehaen W, Clifford JN, Driesen K, Beljonne D, Van Averbeke B,
Van der Auweraer MD, Boens N. Boron dipyrromethene analogs with phenyl, styryl, and
ethynylphenyl substituents: Synthesis, photophysics, electrochemistry, and quantum-
chemical calculations. J. Phys. Chem. A. 2007; 111: 8588-8597.
[52] Halper SR, Stork JR, Cohen SM. Preparation and characterization of asymmetric alpha-
alkoxy dipyrrin ligands and their metal complexes. Dalton Trans. 2007; 1067-1074.
[53] Setsune J-i, Tsukajima A, Watanabe J. Synthesis of isocorrole and the higher
homologues. Tetrahedron Lett. 2006; 47: 1817-1820.
[54] Chepelev LL, Beshara CS, MacLean PD, Hatfield GL, Rand AA, Thompson A, Wright
JS, Barclay LRC. Polypyrroles as antioxidants: Kinetic studies on reactions of bilirubin
and biliverdin dimethyl esters and synthetic model compounds with peroxyl radicals in
solution. Chemical calculations on selected typical structures. J. Org. Chem. 2006; 71:
22-30.
[55] Falk H. The Chemistry of Linear Oligopyrroles and Bile Pigments: Springer; 1989.
[56] Datta S, Lightner DA. Converting dipyrrinones to lactim ethers to fluorescent N,N '-
difluoroboryl derivatives. Monatsh. Chem. 2008; 139: 1519-1529.
[57] Falk H, Gergely S, Grubmayr K, Hofer O. Beiträge zur Chemie der Pyrrolpigmente, XV.
Die Lactam-Lactim-Tautomerie von Gallenpigmenten. Liebeg's Ann. Chem. 1977; 1977:
565-581.
19

ACCEPTED MANUSCRIPT
[58] Dilek Ö, Bane SL. Synthesis of boron dipyrromethene fluorescent probes for
bioorthogonal labeling. Tetrahedron Lett. 2008; 49: 1413-1416.
[59] Burgess K, Li L, Nguyen B. Functionalization of the 4,4-difluoro-4-bora-3a,4a-diaza-s-
indacene (BODIPY) core. Bioorg. Med. Chem. Lett. 2008; 18: 3112 - 3116.
[60] Agarrabeitia AR, Maroto BL, Moreno F, Moya SDL, Ortiz MJ, Sanchez-Carnerero EM,
Arbeloa T, Banuelos J, Lopez-Arbeloa I. Unprecedented induced axial chirality in a
molecular BODIPY dye: Strongly bisignated electronic circular dichroism in the visible
region. Chem. Commun. 2013; 49: 11641 - 11643.
[61] Brizet B, Denat F, Goze C, Volkova YA, Brizet B, Harvey PD, Averin AD. BODIPY
dyes functionalized with pendant cyclic and acyclic polyamines. Eur. J. Org. Chem.
2013; 4270 - 4279.
[62] Cui J, Jia X, Liu W, Qin W, Tang X, Yang X, Yu X. A highly selective copper
fluorescent indicator based on aminoquinoline substituted BODIPY. Dyes Pigm. 2013;
98: 195 - 200.
[63] Jia X, Liu W, Qin W, Yu X, Zhang G. Preparation of a fluorescent sensor based on
BODIPY-functionalized hydroxyapatite nanoparticles and spectroscopic study of the
Cd2+ and Zn2+ complex formation. J. Coord. Chem. 2013; 66: 662 - 670.
[64] Bane SL, Dilek O. Synthesis, spectroscopic properties and protein labeling of water
soluble 3,5-disubstituted boron dipyrromethenes. Bioorg. Med. Chem. Lett. 2009; 19:
6911 - 6913.
[65] Niu L-Y, Guan Y-S, Chen Y-Z, Wu L-Z, Tung C-H, Yang Q-Z, Niu L-Y, Guan Y-S.
BODIPY-based ratiometric fluorescent sensor for highly selective detection of
glutathione over cysteine and homocysteine. JACS. 2012; 134: 18928 - 18931.
[66] Qin WW, Leen V, Rohand T, Dehaen W, Dedecker P, Van der Auweraer M, Robeyns K,
Van Meervelt L, Beljonne D, Van Averbeke B, Clifford JN, Driesen K, Binnemans K,
Boens N. Synthesis, Spectroscopy, Crystal Structure, Electrochemistry, and Quantum
Chemical and Molecular Dynamics Calculations of a 3-Anilino Difluoroboron
Dipyrromethene Dye. J. Phys. Chem. A. 2009; 113: 439-447.
20

ACCEPTED MANUSCRIPT
Supplementary Info
SNAr Nucleophilic substitution of 1,9-dihalodipyrrins by S and N nucleophiles.
Synthesis of new dipyrrins bearing pendant substituents.
Evgenia Leushina, Ksenia Tikhomirova, Anastasiya Permyakova, Pavel Ilyin, Alexander
Anisimov, Andrey Churakov, Andrey Khoroshutin *
21

ACCEPTED MANUSCRIPT
1.NMR spectra of S-substitution products

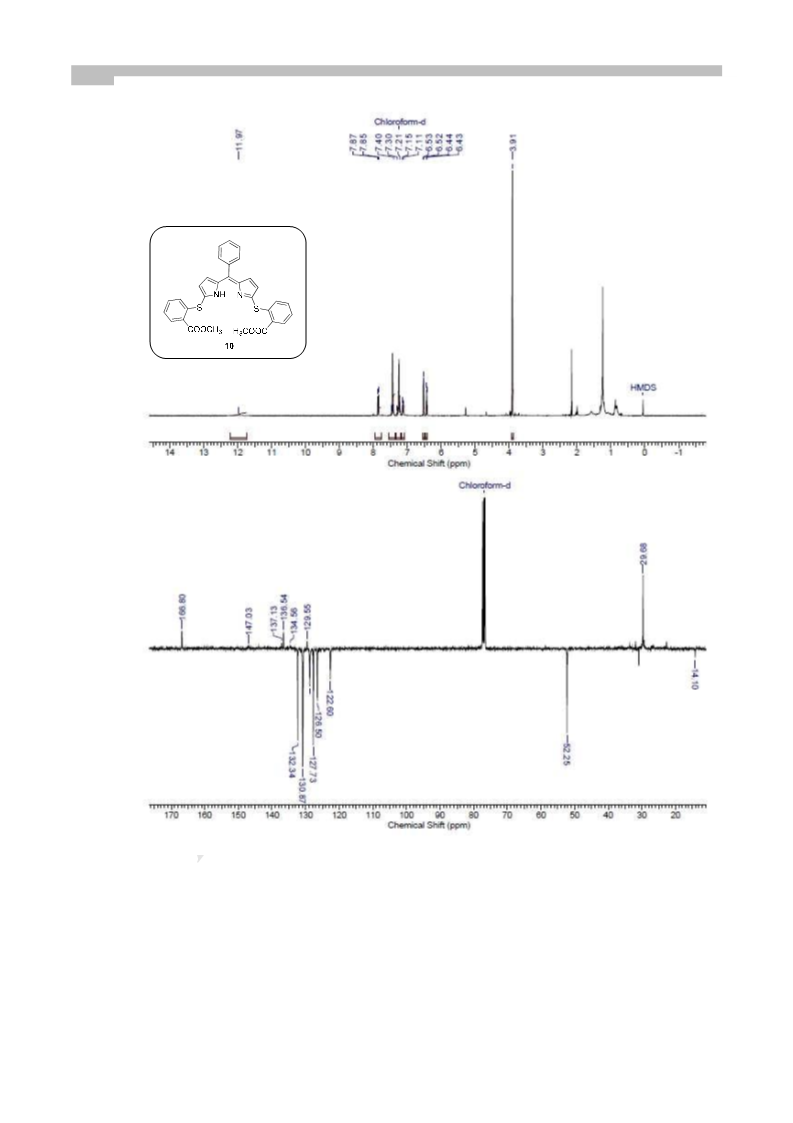

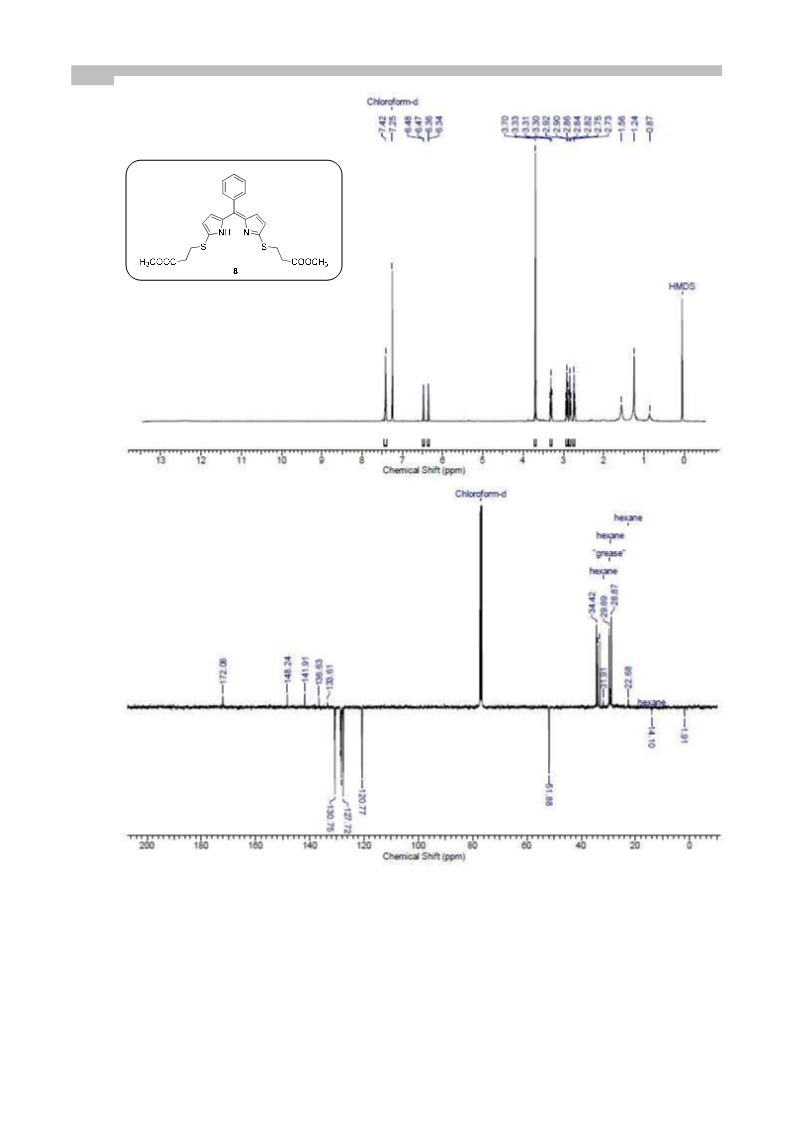

1H and 13C NMR spectra of products:
22

ACCEPTED MANUSCRIPT
23

ACCEPTED MANUSCRIPT
24

ACCEPTED MANUSCRIPT
25

ACCEPTED MANUSCRIPT
26

ACCEPTED MANUSCRIPT
27

ACCEPTED MANUSCRIPT

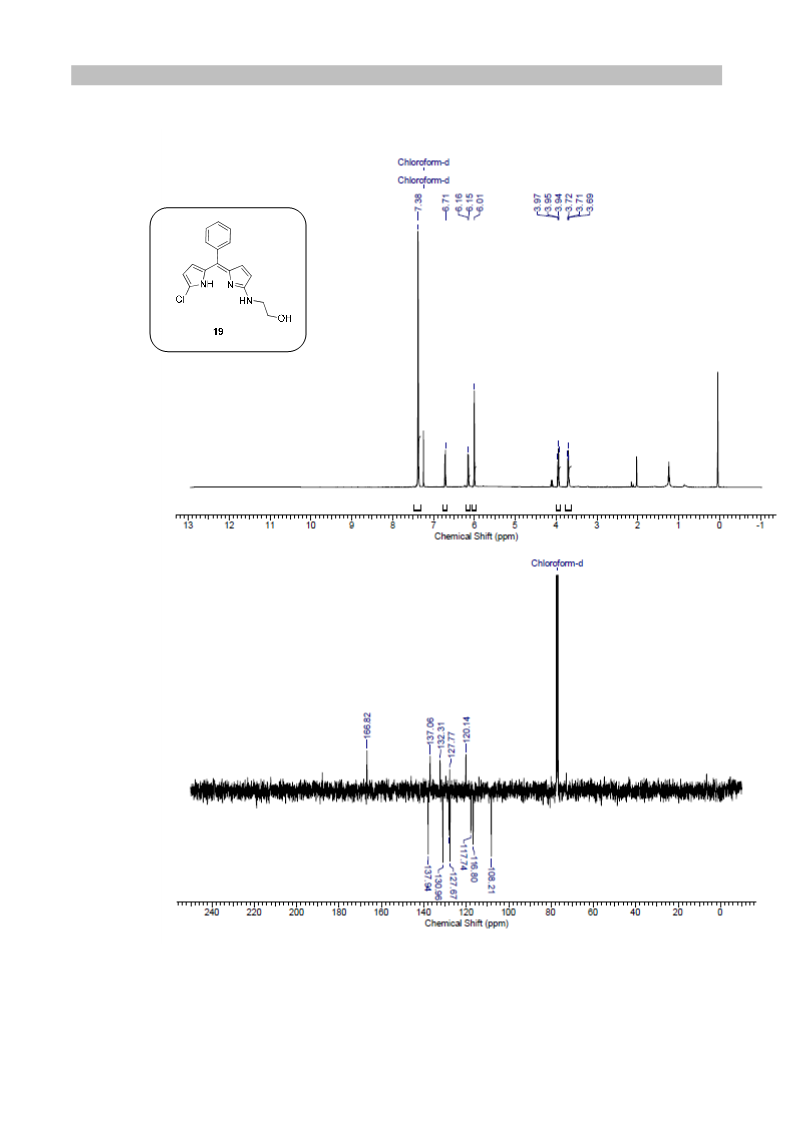

2.NMR spectra of N-substitution products
28
