Metal-Free Synthesis of the Methanol Solvate of (S)-Omeprazole Potassium Salt Using (1 R)-(-)-10-Camphorsulfonyloxaziridine: Oxidation Process Development and Optical Purity Enhancement Strategy

Article abstract of DOI:10.1021/acs.oprd.7b00362

The results of our process development studies to synthesize the methanol solvate of (S)-omeprazole potassium salt (1) through the enantioselective oxidation of pyrmetazole (2) using (1R)-(-)-10-camphorsulfonyloxaziridine (3) are reported. Optical purity

Full text of DOI:10.1021/acs.oprd.7b00362

Subscriber access provided by - Access paid by the | UCSB Libraries
Full Paper
Metal-free Synthesis of the Methanol Solvate of S-Omeprazole
Potassium Salt Using 1R-(-)-10-camphorsulfonyloxaziridine: Oxidation
Process Development and Optical Purity Enhancement Strategy.
Christine Delsarte, Romuald Santraine, Baptiste Fours, and Laurent Petit
Org. Process Res. Dev., Just Accepted Manuscript • Publication Date (Web): 02 Mar 2018
Downloaded from http://pubs.acs.org on March 2, 2018
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
Organic Process Research & Development is published by the American Chemical
Society. 1155 Sixteenth Street N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 16
Organic Process Research & Development
1
2
3
4
5
6
Metal-free Synthesis of the Methanol Solvate of S-Omeprazole Potassium Salt Using
1R-(-)-10-camphorsulfonyloxaziridine: Oxidation Process Development and Optical Purity
Enhancement Strategy.
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Christine Delsarte, Romuald Santraine, Baptiste Fours* and Laurent Petit*
Minakem Recherche, 145 chemin des lilas, 59310 Beuvry la forêt, France.
ACS Paragon Plus Environment

Organic Process Research & Development
Page 2 of 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
For Table of Contents Only
ACS Paragon Plus Environment

Page 3 of 16
Organic Process Research & Development
1
2
3
ABSTRACT
4
5
6
7
8
9
The results of our process development studies to synthesize the methanol solvate of S-omeprazole potassium salt 1
through the enantioselective oxidation of pyrmetazole 2 using 1R-(-)-10-camphorsulfonyloxaziridine 3 are reported.
Optical purity enhancement was achieved by means of a reslurry from methanol, the rationale and development details
of which are also described.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Keywords: Esomeprazole; Davis oxaziridine; scalable; conglomerate; resolution
INTRODUCTION
Camphorsulfonyloxaziridine is a particular member of the very versatile oxaziridine family. These linchpin chemical
entities can participate in many transformations such as the transfer of either an oxygen atom or a nitrogen atom to
various nucleophiles, metal-catalyzed rearrangements and dipolar additions.1,2 It is most notably used in oxygen atom
transfers such as the hydroxylation of metal enolates or the oxidation of sulfides. An industrial process for the
preparation of this chiral oxidant has been developed within Minakem and the S-enantiomer of this reagent has been
used on large scale at Minakem (to convert a densely functionalized
α-β-unsaturated ester into the corresponding α-
hydroxy- -aminoester through a conjugate addition / electrophilic trapping sequence). A literature survey pointed a
β
report by Emcure Pharmaceuticals scientists detailing the use of the R-enantiomer of camphorsulfonyloxaziridine in the
oxidation of prochiral sulfides en route to a group of proton pump inhibitors.3 Esomeprazole, the S-enantiomer of
omeprazole is a prominent member of this class of molecules and is routinely produced on industrial scale in our Dunkirk
facilities. We sought to develop a metal-free straightforward process towards esomeprazole as an alternative to the
current process. The current best industrial route to synthesize esomeprazole is the application of the Kagan and Modena
modification of the Sharpless enantioselective epoxidation protocol to pyrmetazole 2. The most efficient esomeprazole
syntheses include direct enantioselective oxidation of prochiral sulphides using tailor-made ligands4,5. The resolution of
omeprazole via preferential crystallization of conglomerates6 or diastereomeric salts formation is also a known strategy.7
A recent patent also describes the selective precipitation of racemic omeprazole from partially enriched mixtures of
racemic and S-omeprazole.8 Extensive experimentation was set within our company around the Kagan and Modena
procedure, but this work did not end up in the implementation of an efficient process (Scheme 1).9
Scheme 1
However, turning our attention to a metal-free approach using Davis oxaziridine proved much more rewarding. While the
paper published by Emcure Pharmaceuticals lays the basis of the methodology, process optimization was mandatory
before any actual scale up could be envisioned. Indeed, the strict application of the protocols described in this publication
ACS Paragon Plus Environment

Organic Process Research & Development
Page 4 of 16
1
2
3
4
5
led to somewhat disappointing results (extremely tedious work-up, low yield and enantiomeric excess and inefficient
optical purity enhancement).
6
7
8
DISCUSSION AND RESULTS
9
The 2010 report by Emcure Pharmaceuticals established that the best solvent for this reaction was isopropanol and that
an added base has a strong effect on both the conversion and the enantioselectivity of the oxidation. Bicyclic amidine
base 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) was selected as the best candidate from a list of nine commonly
encountered bases. This protocol described the generation of S-omeprazole sodium salt in 67 % yield and 99.0 % e.e.
after optical purity enhancement by means of a reslurry from toluene / acetone. The oxidation protocol involved the
addition of solid 1R-(-)-10-camphorsulfonyloxaziridine 3 (0.95 equiv.) to a pyrmetazole 2 (1.0 equiv.) and DBU (1.05
equiv.) solution in isopropanol at 10-15 °C. The heterogeneous mixture was then stirred at 25-30 °C for 18 h.
Camphorsulfonylimine was filtered (its reoxidation into the corresponding oxaziridine was not described in their
publication) and the filtrate was concentrated to dryness. The residue was dissolved in water and the pH was adjusted to
8.2 with dilute aqueous acetic acid. Extraction into ethyl acetate was followed by a wash with brine and by a concentrated
to dryness, an unsuitable operation on scale. The residue was treated with dilute sodium hydroxide to generate the
water-soluble esomeprazole sodium salt and the aqueous layer was washed with dichloromethane before being
concentrated to dryness. The residue was suspended in a 1:2 acetone / toluene mixture to obtain, after filtration and
drying, S-omeprazole sodium salt in 99.0 % e.e. and 67 % yield. The preparation of crude esomeprazole sodium salt
according to the Emcure Pharmaceuticals process is shown in the form of a process diagram flow below (figure 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Page 5 of 16
Organic Process Research & Development
1
2
3
4
Pyrmetazole
DBU
2-propanol
Cool to 10-15°C
Add at 10-15°C
5
6
7
8
portionwise addition
of Davis oxaziridine
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Stir for 18 h at 25-30°C
Filtration
Camphorsulfonylimine
2-propanol
Concentration to dryness
Water
AcOH
AcOEt
Extraction
Aqueous waste
Aqueous waste
Organicwaste
Brine
Extraction
Dilute NaOH
Extraction
DCM
Extraction
Organicwaste
Concentration to dryness
Aqueous waste
Crude esomeprazole
sodium salt
Figure 1
While this work showed the power of Davis oxaziridine in the generation of the desired product in good yield and useful
level of enantioselectivity, there were critical issues that needed to be adressed before this method could be
implemented on larger scale. Numerous solvent concentrations to dryness and tedious washes lowered the overall
productivity. The enantioselectivity level reached by this method was also lower than the targeted e.e. ≥ 99.6 %. The
latter value ensures the synthesis of esomeprazole magnesium trihydrate (the final API) with the quality requested by the
European and American pharmacopeia. Furthermore, the strict application of this protocol to a 10 g scale reaction gave
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Organic Process Research & Development
Page 6 of 16
1
2
3
4
5
6
7
8
9
only 89 % conversion and 68 % e.e. (in the in-process control). Isolation of the crude product yielded a compound
exhibiting 69 % e.e (no improvement of the optical purity) along with 1 % of remaining pyrmetazole 2. The toluene /
acetone reslurry procedure did not improve the optical purity and two additional reslurries from acetone at 50 °C were
necessary to obtain esomeprazole sodium salt in 50 % yield and 99.2 % e.e. Based on these preliminary observations, we
sought a more robust process for the synthesis of enantiomerically enriched esomeprazole potassium salt (Scheme 2).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 2

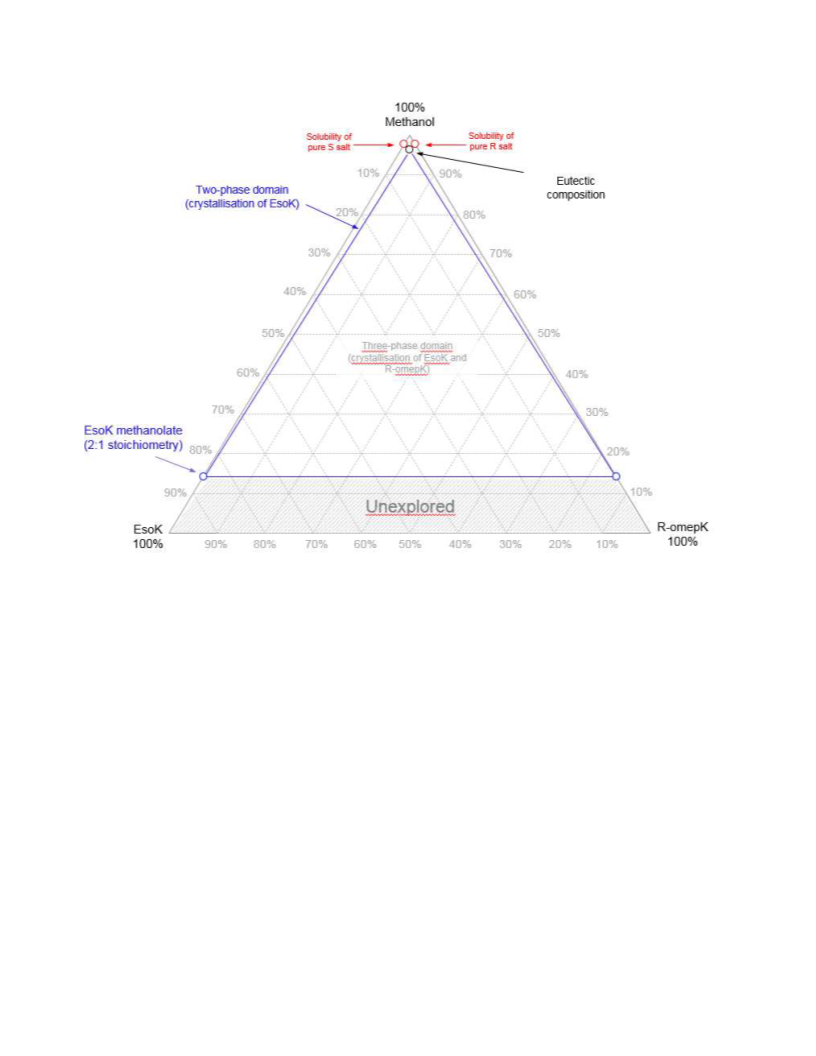

The methanol solvate of the potassium salt of esomeprazole is an isolated intermediate in the industrial process
performed in our Dunkirk plant. This chemical entity appears to be a conglomerate (vide infra) and this feature places us
in a most-favourable position for the enantiomeric excess improvement by either a reslurry or a recrystallization. This
innate solid-state property was perhaps overlooked initially because the current industrial process provides Eso-K.2MeOH
with a very high enantiomeric excess. The pyrmetazole 2 used for our study was available as a ca. 16 wt % solution in
toluene from our production plant in Dunkirk. As described by Emcure Pharmaceuticals, isopropanol was the solvent of
choice for both conversion and enantiomeric excess. It gave far better results than toluene alone however it was
demonstrated that the presence of up to 10 % of toluene in isopropanol (V / V) in the reaction medium had no impact on
the reactivity and the selectivity. Initially, DBU was added to the suspension of pyrmetazole 2 in isopropanol at 10-15 °C
to give the isopropanol soluble DBU salt of pyrmetazole 2’. In some experiments, the salt was not completely soluble at
this temperature and this was addressed by adding DBU at 20-25 °C with no impact on yield and quality (other factors
being equals). Using less than 0.8 equiv. of DBU gave incomplete conversion while using 1.3 equiv. of DBU did not change
the impurity profile. Therefore, the use of 1.1 equiv. of DBU was recommended; Conducting the reaction in the absence
of a base gives a very low conversion (< 15 %) and enantiomeric excess (< 10 %). As described by Emcure Pharmaceuticals
other bases (hexamine, NaOH, dicyclohexylamine, tetraméthylguanidine, DABCO) proved much inferior. In the original
ACS Paragon Plus Environment

Page 7 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
protocol, solid camphorsulfonyloxaziridine was added portionwise to the isopropanol solution of esomeprazole DBU salt
2’ but we deemed this procedure unpractical for large scale application. A reverse addition protocol was developed
where the isopropanol solution of esomeprazole DBU salt was added in a controlled fashion to an isopropanol suspension
of camphorsulfonyloxaziridine 3. This process modification consistently gave higher conversions (≥ 95 % vs. 89 % using the
formerly described addition mode) without generating overoxidation products (sulfone, N-oxide). This is a remarkable
testimony of the mild oxidizing power of Davis oxaziridine. Addition time was also examined in the range 1-10 hours and
was shown to have no impact on the conversion and selectivity. Thermal conversion after the addition was complete was
estimated to be around 25 % only but this does constitute a safety hurdle under the reaction conditions (very slow and
only slightly exothermic reaction). Sampling the reaction mixture every 90 min for chiral HPLC monitoring demonstrated
that the reaction was complete within 10 h as opposed to 18 h as initially reported (see supporting information).
Interestingly, most of the R-enantiomer (12 +/- 2 %) was formed at the beginning of the reaction and remained
unchanged; the subsequent stirring time mainly served to convert residual pyrmetazole 2 into the corresponding S-
enantiomer. The enantiomeric excess observed in solution is ca. 70 %. This HPLC monitoring also showed that the
reaction was not dose-controlled as only a 52 % chemical conversion was observed at the end of the isopropanol
pyrmetazole DBU solution addition. After complete conversion, the reaction medium was proven to be stable at 20-25 °C
over a period of 24 h; similarly, after filtration of the sulfonylimine by-product, the filtrate was stable at 20-25 °C over a
period of 24 h. Calorimetric study gave sufficiently precise data to prove that the reaction could be conducted safely at
10-15 °C under the optimized conditions (see supporting information). After the reaction completion (typical conversion is
≥ 95%) the camphorsulfonylimine 4 by-product was filtered-off and rinsed with isopropanol. The effect of varying reaction
parameters are described summarized in the table below (Table 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Item
Value
Comment
No impact on conversion or
selectivity
Solvent
Toluene – IPA
composition
100 : 0 to 10 : 90 (V / V)
Incomplete solubilization of
Pyrmetazole-DBU salt
Improved solubility of
Pyrmetazole-DBU salt
No impact on yield or selectivity
10-15°C
20-25°C
DBU
temperature
addition
DBU amount
Order of addition
Addition time
0.8 to 1.3 equiv.
Portionwise addition of Davis
oxaziridine onto reaction mixture
Dropwise addition of reaction
mixture onto Davis oxaziridine in IPA
1 to 10 h
Incomplete conversion (≤ 90 %)
Higher conversion (≥ 95 %)
No impact on yield or selectivity
Table 1
ACS Paragon Plus Environment

Organic Process Research & Development
Page 8 of 16
1
2
3
4
5
It was also demonstrated that the camphorsulfonylimine 4 recovered by filtration could be re-oxidized in 87 % yield
following the exact same protocol as the one designed during our internal development program towards Davis
oxaziridine (Scheme 3).
6
7
8
9
38 % peracetic acid (1.1 equiv.)
Aliquat 336 (1 mol %)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
DCM / aq. K2CO3
22 +/- 3 °C
3 steps
telescoped process
N
O
70 % yield
500 kg batches
87 % yield
250 kg batches
N
S
O
O
S
O
S
O
O
O
O
HO
5
3
4
Scheme 3
The oxidation procedure comes from a thorough process optimization of the work published in 1992 by Schering Plough
Research and Werthenstein Chemie AG.10 This is a very important feature of this process as it lowers the global cost of
goods associated with this chiral reagent. The envisioned isolation was executed by a salt-exchange reaction upon
addition of potassium methoxide (16 wt % solution in methanol). The lower solubility of the potassium salt of
esomeprazole drives the equilibrium towards the formation of the product. Concomitantly, the enantiomeric excess
increases from ca. 70 % (in solution) to ca. 75 % upon isolation. This salt exchange reaction works well in toluene and in
isopropanol.11 The former procedure has been applied on 20 kg scale and it was later demonstrated that this exchange
could also be performed in isopropanol only, thus saving a solvent switch from isopropanol to toluene. The partially
enriched methanol solvate of esomeprazole potassium salt was typically obtained in 85-90 % yield from pyrmetazole and
with 75 % e.e. This development study set the stage for the fit-for-purpose optical purity enhancement strategy detailed
in the following section.
STUDY OF THE TERNARY SYSTEM: R AND S OMEPRAZOLE POTASSIUM SALTS IN METHANOL
Suitable crystallisation processes for the resolution of partially enriched enantiomeric mixtures involving conglomerates
or racemic compounds can be designed via the identification of regions in the solubility diagrams, inside which the
enantiomeric enrichment can be achieved. The concentration and enantiomeric ratio of the eutectic (point E) is the
main parameter governing the efficiency and maximum optical enhancement achievable.12 A physicochemical
characterization was therefore initiated for the racemic potassium salt of omeprazole crystallized in methanol. This
preliminary work aimed at unravelling the solid-state nature of the potassium salt system (racemic compound,
conglomerate or solid solution) for the determination of the ternary phase sections, in methanol at 25 °C and 50 °C. For
ternary mixtures consisting of two enantiomers and one solvent, the construction of a ternary phase section requires (at
a given temperature) the determination of the solubility curve. The latter illustrates the composition of the saturated
solution as a function of the total composition of the system. The number and nature of the solid phases in equilibrium
with the solution must also be determined. For each working temperature, the topology of the phase diagram was
determined by 1) Measuring the solubility of the enantiopure esomeprazole potassium salt in the selected solvent (by
gravimetric method) and 2) Studying the composition of the polysaturated solution (eutectic point) by preparing a
ACS Paragon Plus Environment

Page 9 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
suspension of potassium salt mixtures in methanol. The composition of the liquid phase (polysaturated in the potassium
salts involved) was determined by gravimetric method and chiral HPLC of the dry residue (when necessary). This study
was conducted using one sample of enantiopure dry esomeprazole potassium salt (Eso-K) containing less than 0.2 % of R
enantiomer and one sample of racemic potassium salt (made from the corresponding free-acid).13 The two samples of
racemic and enantiopure potassium salts were characterised by X-Ray Powder Diffraction (XRPD) and showed
superimposable profiles suggesting the system could well be a conglomerate (Figure 2).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2
A thermogravimetric analysis (TGA) was carried out from a sample of enantiopure potassium salt between 25-300 °C at
a heating rate of 10 °C / min (see supporting information). A weight loss of 13.9 % of the initial weight was observed
which is consistent with the loss of two molecules of methanol (theoretical weight loss of 14.3 %); the sample of
esomeprazole potassium salt would therefore be a methanol solvate with one molecule of esomeprazole potassium salt
for two molecules of methanol. The thermogram obtained by differential scanning calorimetry (DSC), performed in an
open pan, on the sample of enantiopure potassium salt (20 °C to 300 °C at a heating rate of 10 °C / min) exhibits two
overlapping endothermic events followed by an exothermic event. The first onset (Tonset 1 = 114 °C) can be explained by
the loss of solvent molecules, followed by the melt (Tonset 2 = 131 °C) and the degradation of the sample. The melt of the
esomeprazole potassium salt recorded at ca. 150 - 151˚C, (onset) is higher than the melt of its corresponding racemate
recorded at ca. 138 - 139˚C (onset). This could be consistent with the existence of a conglomerate. The solubility of the
racemic and enantiopure potassium salts in methanol was determined at 25 °C and 50 °C by gravimetry. The
enantiopure S-potassium salt has a solubility of 2.3 wt % at 25 °C and 5.2 wt % at 50 °C while the racemic potassium salt
has a solubility of 3.7 wt % at 25°C and 8.7 wt % at 50 °C. These numbers were used to construct two ternary phase
sections at 25 °C and 50 ˚C assuming the system is a conglomerate (see supporting information). From the experimental
ACS Paragon Plus Environment

Organic Process Research & Development
Page 10 of 16
1
2
3
4
5
6
7
8
9
ternary phase diagram constructed at 25 °C the minimum quantities of methanol needed to isolate enantiopure
potassium salt were calculated for partially enriched mixtures from 80 % to 98 % of esomeprazole. The results are
summarised in Table 2 and the ternary diagram constructed at 25°C is shown in Figures 3 and 4 (close-up). This data
shows that the amount of methanol needed to purify a given S / R mixture of omeprazole potassium salts is almost
linear to the enantiomeric excess of the said mixture.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Isoplethal section
Minimum quantity of methanol needed
investigated
(enantiomeric
excess)
Efficiency = theoretical
expected yield
Wt %
Volumes
60 %
91-92
12-15
75 %
80 %
90 %
96 %
84-85
73-74
54-55
6-7
3-4
1-2
89 %
95 %
98 %
Table 2
ACS Paragon Plus Environment

Page 11 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3
ACS Paragon Plus Environment

Organic Process Research & Development
Page 12 of 16
1
2
3
4
100% methanol
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
toward
100% EsoK
Figure 4
ACS Paragon Plus Environment

Page 13 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
During the pilot scale production, the final reslurry was initially performed in the filter-dryer used for the crude product
isolation. The optical purification results were below the expectations (98.4 % e.e.) and this was attributed to the
somewhat inefficient stirring inherent to such equipment (ca. 30 rpm when performing a reslurry). Indeed, much better
results (99.6 % e.e.) were obtained when the reslurry was performed in a standard reactor (110 rpm). We do not believe
this is a scale dependent result. The geometry and design of the equipment along with the low stirring speed has a clear
influence on the mixing efficiency and consequently on the dissolution / dispersion of the unwanted enantiomer.
CONCLUSION
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
An optimized process for the oxidation of pyrmetazole 2 using camphosulfonyloxaziridine 3 has been developed. The mild
oxidation power of the Davis oxaziridine was pivotal to the implementation of a counter-intuitive reverse addition
protocol that was successfully applied on 20 kg scale. The optical purity of the crude product was increased by means of a
reslurry from methanol. This procedure can be repeated if needed without hampering the yield as the amount of
methanol used (and therefore the expected yield) depends on the level of R-enantiomer to be removed. This was applied
to the preparation of > 1 kg of enantiomerically and chemically pure methanol solvate of esomeprazole potassium salt in
our kilolab facility.
EXPERIMENTAL SECTION
Materials and methods.
The chemical conversion and enantiomeric excess achieved during the oxidation of pyrmetazole was monitored using a
chiral HPLC method (Chiralpak column AD-H 250 x 4.6 mm x 5 ꢀm; 0.8 mL / min rate; Temperature: 30°C; UV detection
wavelength : λ = 302 nm; Eluent (Isocratic) : Hexane 10 / Ethanol 10 /Isopropanol 2 /acetic acid 1). The enantiomeric
excess of isolated esomeprazole potassium salt was determined using a different chiral HPLC method (Chiral AGP column
150 x 4.0 mm x 5 ꢀm; 0.6 mL / min rate; Temperature: 25°C; UV detection wavelength: λ = 302 nm; Eluent (Isocratic) :
acetonitrile 75 / 0.025 M phosphate buffer 425). X-Ray Powder Diffraction patterns were collected on a Bruker D8
diffractometer using Cu Ka radiation (40kV, 40mA), θ-2θ goniometer, a Ge monochromator and a Lynxeye detector. The
instrument is performance checked using a certified Corundum standard. The software used for data collection was
Diffrac. SUITE and the data analysed and presented using Diffrac.EVA. Samples were run under ambient conditions as flat
plate specimens using powder as received without grinding. Approximately 50-100 mg of the sample was lightly pressed
on a glass slide to obtain a flat surface. The sample was rotated in its own plane during analysis. The details of the data
collection are: Angular range: 3 to 32 °2θ; Step size: 0.05 °2θ; Collection time: 0.5 s/step. DSC data were collected on a
Perkin Pyris Diamond DSC. The instrument was calibrated for energy and temperature using certified indium. Typically, 2-
5 mg of each sample, in a pin-holed aluminium pan, was heated at 10 °C/min from 25 °C to 200 °C. A nitrogen purge at 50
ml/min was maintained over the sample. The instrument control and data analysis software was PYRIS Software version
7.0.0.011. TGA data were collected on a Perkin Pyris Diamond TGA. 5-10 mg of each sample was loaded onto a pre-
weighed aluminium crucible and was heated at 10 °C.min-1 from ambient temperature to 400°C. A nitrogen purge at 50
ml.min-1 was maintained over the sample.The instrument control and data analysis software was PYRIS Software version
7.0.0.011.
ACS Paragon Plus Environment

Organic Process Research & Development
Page 14 of 16
1
2
3
4
5
6
7
8
9
Enantioselective oxidation: To a 600 L stainless-steel reactor was added 122 kg of a 16.4 wt % solution of pyrmetazole
(20.0 kg, 60.7 mol, 1.0 equiv.) in toluene (obtained from the Minakem production site at Dunkirk). The solution was
concentrated to low volume (110 L collected) at 40-45 °C under vacuum (150 to 24 mbars). Isopropanol (60 L) was added
and the distillation was carried out under the same conditions (60 L collected). Isopropanol (130 L) was added to the
residue and the temperature was adjusted to 22 +/- 3 °C. DBU (10.2 kg, 66.9 mol, 1.1 equiv.) was then charged in 40 min
at max. 25 °C and the addition funnel was rinsed with isopropanol (5 L). In a separate 600 L reactor were charged
isopropanol (60 L) and 1R-(-)-10-camphorsulfonyloxaziridine (14.7 kg, 64.1 mol, 1.05 equiv.) and the temperature of the
suspension was adjusted to 12 +/- 3 °C. The pyrmetazole solution in isopropanol was added to the oxaziridine suspension
in ca. 60 min at 12 +/- 3 °C via an addition funnel. The latter was then rinsed with isopropanol (5 L). The reaction mixture
was stirred for 10 h at 12 +/- 3 °C and was sampled for conversion check by HPLC. The suspension was transferred to a
160 L filter-dryer and the mother liquors containing the product were collected. The cake was washed twice with
isopropanol (2 x 20 L). The camphorsulfonylimine cake was dried and collected (12.2 kg, 57.2 mol, 89 % recovery yield).
The mother liquors and the cake washes were combined and charged into a 600 L stainless steel reactor and the solvent
was distilled off under vacuum at 40 +/- 5 °C (260 L collected). Toluene (40 L) was added and the distillation was carried
forward (43 L collected). Toluene was added (80 L) and the temperature was adjusted to 33 +/- 2 °C. The 16 wt %
potassium methoxide solution in methanol (31.6 kg, 72.1 mol, 1.2 equiv.) was added at this temperature in ca. 4 h and
the resulting suspension was stirred at 20 +/- 3 °C for 60 min. The mixture was transferred into a 160 L filter-dryer and the
mother liquors were collected. The cake was washed twice with a cold (2 +/- 3 °C) 1 : 1 mixture of toluene and methanol
(20 L) and then with cold (2 +/- 3 °C) methanol (40 L). The solid was partially dried under vacuum at 30 °C to obtain 34.1
kg of wet product containing ca. 32 wt % of methanol (corresponding to 23.2 kg of dry methanol solvate of esomeprazole
potassium salt, 51.8 mol, 85 % yield, 76 % e.e.).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Reslurry from methanol in a filter dryer: Methanol (128 L) and 29.5 kg of partially dried methanol solvate of
esomeprazole potassium salt (corresponding to 20.1 kg of dried material, 44.8 mol) were charged in a 160 L filter dryer.
The agitation speed was set to 40 rpm and the temperature was adjusted to 42 +/- 3 °C. The slurry was stirred under
these conditions for 3 h and it was cooled to 20 +/- 3 °C and stirred for 60 min. The mother liquors were collected and the
cake was washed with 20 L of methanol at 20 +/- 3 °C. The product was dried at 30 °C under vacuum (14.4 kg, 72 % yield,
98.4 % e.e.).
Reslurry from methanol in a reactor: Methanol (13.5 L) and 1.75 kg of partially enriched dried methanol solvate of
esomeprazole potassium salt were charged in a 25 L reactor. The agitation speed was set to 100 rpm and the temperature
was adjusted to 42 +/- 3 °C. The slurry was stirred under these conditions for 5 h and it was cooled to 20 +/- 3 °C and
stirred for 60 min. The suspension was transferred onto a sintered funnel and the cake was washed with methanol (3 x
1.8 L) at 20 +/- 3°C. The product was dried at 30°C under vacuum (1.04 kg of product corresponding to 60 % overall yield;
99.6 % e.e.).
Oxidation of camphorsulfonylimine into camphorsulfonyloxaziridine: Dichloromethane (115 L) was charged in a 600 L
reactor followed by Aliquat®336 (0.44 kg, 1.1 mol, 0.01 equiv.). Camphorsulfonylimine (23 kg, 108 mol, 1.0 equiv.) was
ACS Paragon Plus Environment

Page 15 of 16
Organic Process Research & Development
1
2
3
4
5
6
7
8
9
added and the temperature was adjusted to 2 +/- 3°C. Aqueous potassium carbonate (73.6 kg solid K2CO3 in 110 L of
water, 533 mol, 5.0 equiv.) was added to the reactor in ca. 30 min. Peracetic acid (23.6 kg of a 38 % solution is acetic acid,
119 mol, 1.1 equiv.) was added in ca. 60 min at 2 +/- 3°C. The biphasic mixture was stirred for 60 min and sampled for
conversion check (typically ≥ 99.0 % conversion by HPLC). Sodium sulfite (0.69 kg, 5.5 mol, 0.05 equiv.) was then added at
2+/-3°C and the mixture was stirred for 30 min at this temperature. Water (69 L) was added and the temperature was
allowed to reach 22+/-3°C. The layers were separated, and the organic layer was washed with water (46 L) and then with
a 5 % aqueous solution of sodium bicarbonate at 22+/-3°C. The organic layer was then distilled under vacuum at max.
30°C. Isopropanol (46 L) was added and distilled under vacuum at max. 30°C. To the residue was added isopropanol (138
L) and the suspension was stirred for 30 min at 30 +/- 3°C. The temperature was then adjusted to 2+/-3°C and the
suspension was stirred for 90 min. The suspension was transferred to a 160 L filter-dryer and the cake was washed twice
with isopropanol at 2+/-3°C (12 L). The product was then dried under vacuum (down to 10 mmbars) at 30°C to yield 1R-(-
)-10-camphorsulfonyloxaziridine (21.5 kg, 94 mol, 87 % yield). This protocol has been applied in our plant in Dunkirk to
generate more than 3 MT of Davis oxaziridine (250 kg batches)
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ASSOCIATED CONTENTS
Description of the conversion over time during the oxidation; process safety data; TGA and DSC data; Ternary phase
diagrams at 25°C and 50°C.
AUTHOR INFORMATION:
Corresponding Authors
*E-mail: laurent.petit@minakem.com; baptiste.fours@minakem.com
Notes
The authors declare no competing financial interest
ACKNOWLEDGMENTS
We thank Dominique Delbrayelle for insightful discussions. We also warmly thank Dr. Olivier Jentzer and Frédéric Gauchet
for supporting this work and allowing us to share these results with the chemical community.
REFERENCES
1 Towson, J. C.; Weismiller, M. C.; Lal, G. S.; Sheppard, A. C.; Kumar, A.; Davis, F. A. Org. Synth. 1990, 69, 158.
2 Williamson, K. S.; Michaelis, D. J.; Yoon, T. P. Chem. Rev. 2014, 114, 8016.
3 Mahale, R. D.; Rajput, M. R.; Maikap, G. C.; Gurjar, M. K. Org. Proc. Res. Dev. 2010, 14, 1264.
4 Talsi, E. P.; Rybalova, T. V.; Bryliakov, K. P. ACS Catal. 2015, 5, 4673.
5 Song, W.; Dong, L.; Zhou, Y.; Fu, Y.; Xu, W. Synth. Commun. 2014, 45, 70.
6 Hein, J. E.; Cao, B. H.; Meijden,M. W.; Leeman, M.; Kellogg, R. M. Org. Process Res. Dev., 2013, 17, 946.
7 Stabile, P.; Bertolazzi, M.; Faccin, N.; Rasia, D. Efficient process for the preparation of esomeprazole (S)-binol complex
EP2980086B1 Feb. 3, 2016.
8 Stabile, P.; Rasia, D.; Faccin, N.; Bertolazzi, M. Improved process for the preparation of optically pure esomeprazole
EP3064495B1 Sep. 7, 2016.
9 Cotton, H.; Elebring, T.; Larsson, M.; Li, L.; Sörensen, H.; von Unge, S. Tetrahedron Asym. 2000, 11, 3819.
ACS Paragon Plus Environment

Organic Process Research & Development
Page 16 of 16
1
2
3
4
5
6
7
8
9
10 Mergelsberg, I.; Scherer, D.; DiBenedetto, D.; Tanner, M. Tetrahedron Lett. 1992, 33, 161.
11 Performing the salt exchange in methanol only impaired the isolated yield and did not improve the enantiomeric excess
of the product.
12 J. Jacques, A. Collet, S.H. Wilen, Enantiomers, racemates, and resolutions, N.Y, Wiley, c1981. ISBN 0-89464-876-4
13
Both samples were obtained from the Minakem Dunkirk plant which routinely produces and sells these chemicals on a
multi-ton scale.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment
