Improvement of CdSe quantum dot sensitized solar cells by surface modification of Cu2S nanocrystal counter electrodes

Article abstract of DOI:10.1039/c4ra09154j

We report the improvement of a CdSe quantum-dot-sensitized solar cell (QDSSCs) based on surface modification of Cu₂S nanoparticle counter-electrodes (CEs). In this work, we explored a low-cost, easy method to fabricate counter electrodes by direct deposition of colloidal Cu₂S NCs on conducting FTO glass using drop casting or spin coating. The colloidal Cu₂S NC films provide high surface area, which improves the catalytic activity for the redox couple and enhances the final photovoltaic performance. A CdSe QDSSC based on the 0.1 M EDT treated Cu₂S CE/FTO shows a short-circuit current density (J_SC) of 7.95 mA cm^-2, a fill factor (FF) of 55.44%, and yielded a superior power conversion efficiency (η) of 2.1%, an improvement of 50% over that of the OA-capped Cu₂S CE/FTO CE (1.4%). This journal is

Full text of DOI:10.1039/c4ra09154j

View Article Online
View Journal
RSC Advances
This article can be cited before page numbers have been issued, to do this please use: J. Lee, H. Lee, J.
Park, S. J. Kang and S. Kim, RSC Adv., 2014, DOI: 10.1039/C4RA09154J.
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. This Accepted Manuscript will be replaced by the edited,
formatted and paginated article as soon as this is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the Ethical guidelines still
apply. In no event shall the Royal Society of Chemistry be held
responsible for any errors or omissions in this Accepted Manuscript
or any consequences arising from the use of any information it
contains.
www.rsc.org/advances

Page 1 of 21
RSC Advances
View Article Online
Improvement of CdSe quantum dot sensitized solar cell byDsOIu: 1r0.f10a39c/Ce4RA09154J
modification of Cu2S nanocrystal counter electrode
Jeong-Hyun Park, Sung Jin Kang, Soojin Kim, Hochun Lee, Jong-Soo Lee*
Department of Energy Systems Engineering, Daegu Gyeongbuk Institute of Science &
Technology (DGIST), Daegu, 711-873, Republic of Korea
[E-mail address: jslee@dgist.ac.kr]
Abstract
We report the improvement of a CdSe quantum-dot-sensitized solar cell (QDSSCs) based on
surface modification of Cu2S nanoparticle counter-electrode (CE). In this work, we explored a
low-cost, easy method to fabricate counter electrodes by direct deposition of colloidal Cu2S
NCs on conducting FTO glass using drop casting or spin coating. The colloidal Cu2S NC
films provide high surface area, which improves catalytic activity for the redox couple and
enhances the final photovoltaic performance. CdSe QDSSC based on the 0.1M EDT treated
Cu2S CE/FTO shows a short-circuit current density (JSC) of 7.95 mA/cm2, a fill factor (FF) of
55.44%, and yielded a superior power conversion efficiency () of 2.1%, an improvement of
50% over that of OA-capped Cu2S CE/FTO CE(1.4%).
KEYWORDS: Quantum-dot-sensitized solar cell, Cu2S nanocrystals, counter electrode,
electro-catalysis.
1

RSC Advances
Page 2 of 21
View Article Online
DOI: 10.1039/C4RA09154J
1.Introduction
Quantum-dot-sensitized solar cells (QDSSCs) are the most promising solar energy
conversion devices due to their larger extinction coefficient, to a bandgap tunable by
adjustment of the QD size and composition, and to the generation of multiple excitons from
each photon absorbed.1-4 In the last few years, the power conversion efficiency (PCE) of
QDSSCs has achieved remarkable improvement.5-10 Nevertheless, QDSSCs still show rather
limited efficiency compared to competing systems, including dye-sensitized solar cells
(DSSC),11 perovskite solar cells,12-13 and thin-film-based solar cells.14 The main reason for the
poor efficiency of QDSSCs is the charge recombination required before extracting the carriers,
made necessary by back-electron transfer occurring at the interface between the photo-anode
and electrolyte.15-17 Another critical issue is poor electrical catalytic activity between the
electrolyte and the counter electrode (CE).18-20 To improve the performance of QDSSCs, one
needs to optimize proper charge injection from NCs to the TiO2 photo-anodes, and facile-
charge transfer to the redox couple at the CE. Recently, various Pt-free inorganic
chalcogenide materials (e.g., Cu2S, CoS, PbS), and hybrid graphene-based nano-composites,
have been reported as alternatives for CE made with expensive platinum (Pt).21-25 In particular,
The Cu2S CE is the most commonly used for high efficiency QDSSCs because of its superior
catalytic activity and stability.18,20 A successive ionic layer adsorption and reaction(SILAR)
and spray pyrolysis method are used to deposit Cu2S counter electrode onto FTO. However,
2

Page 3 of 21
RSC Advances
View Article Online
these methods are limited to make uniform counter electrode to improve catalyticDaOcIt:i1v0.i1t0y39a/Cn4dRA09154J
charge transfer.26 The general procedure most often used to fabricate Cu2S CE involves
soaking a thin brass substrate in a polysulfide-electrolyte solution to form Cu2S interfacial
layers on the substrate.18-20 This method, however, may give rise to serious corrosion of the
brass substrate by the polysulfide electrolyte, leading to mechanical instability of the
electrode and to leakage of the electrolyte solution. To overcome these obstacles, we explored
a low-cost method to fabricate a CE by direct deposition of colloidal-Cu2S NCs with high
surface-to-volume ratio onto conducting FTO glass using drop-casting or spin-coating. Long-
chain organic ligands, crucial for colloidal synthesis, provide thick insulating barriers around
each NCs for blocking the charge transport in NC solids. It was recently reported that surface
treatment with shorter ligand like 1,2-ethanedithiol(EDT), hydrazine(N2H4) and metal
chacogenide complexs (MCCs) significantly decrease the interparticle spacing and improve
27-32
electronic transport in NC films.
Cu2S-NC films provide greater surface area, thus
improving catalytic activity for the redox couple and enhancing the final photovoltaic

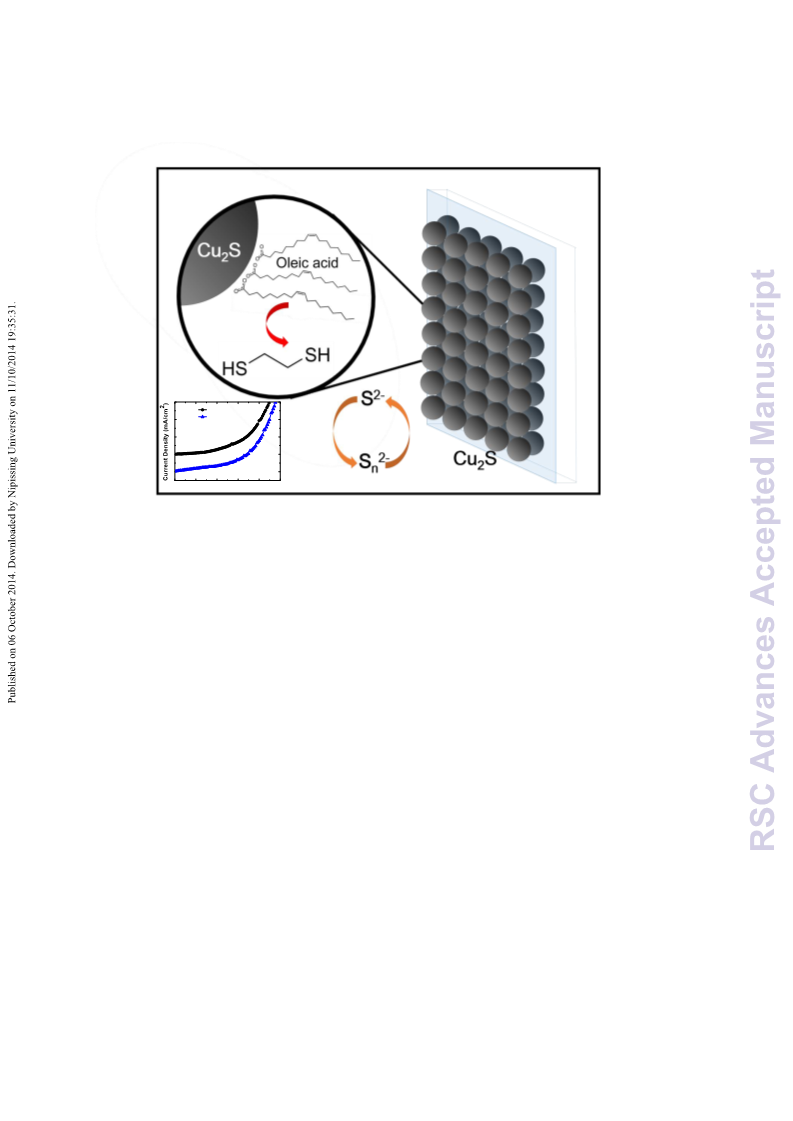

performance. In this paper, we report the effects of surface modification of CE assembled
from colloidal-Cu2S NCs to evaluate the photovoltaic performance of CdSe QDSSCs. Our
results show that CdSe QDSSCs based on 0.1 M-EDT-treated Cu2S NCs/FTO CE provide a
PCE of 2.1%, an improvement of 50% over that of OA-capped Cu2S NCs/FTO CE (1.4%).
Furthermore, the CdSe QDSSCs based on 0.1M EDT-treated Cu2S/FTO CEs show
3

RSC Advances
Page 4 of 21
View Article Online
DOI: 10.1039/C4RA09154J
outstanding mechanical stability in working conditions involving continuous exposure and
illumination for several hours, without drastic reduction of the efficiency.
2. Experimental Procedures
2.1 Materials
All the following chemicals were used as received: selenium (powder, 99.99%, Aldrich),
cadmium oxide (CdO, 99% Aldrich), trioctylphosphine (TOP, 97%, Strem), oleic acid (OA,
90%, Aldrich), trioctylphosphine oxide (TOPO, 99%, Aldrich), 1-octadecene (ODE, 90%,
Aldrich), oleylamine (97%, Aldrich), dodecanethiol (98%, Aldrich), copper (II)
acetylacetonate (99.99%, Aldrich), ammonium diethyldithiocarbamate (Aldrich).
2.2 Synthesis of CdSe QDs
CdSe NCs were synthesized using the hot injection method. The precursor [0.5M Cd(oleate)2]
was prepared by heating CdO (1.45 g, 0.5M) and oleic acid (20 ml) at 240 °C for 30 min
under nitrogen flow. A selenium solution (1M TOP) was prepared by dissolving selenium
shots in TOP under vigorous stirring. For the synthesis of CdSe NCs, 3 ml of Cd(oleate)2 and
2.2 g of TOPO were mixed with 16 ml of ODE in a 3-neck flask. The mixture was heated to
100 °C for 1 h with vigorous stirring under vacuum, and then the temperature was raised to
300 oC under nitrogen flow. When the temperature reached to 300 oC, 6 ml of oleylamine was
injected into the reaction flask, followed by injection of 8 ml of 1M TOP-Se under nitrogen.
4

Page 5 of 21
RSC Advances
View Article Online
The reaction flask was held at this temperature for 5 min followed by removal frDoOmI: 1t0h.1e039h/eCa4RtA09154J
and cooling to room temperature using a water bath. The NCs obtained were re-dissolved in
toluene and centrifuged to remove any insoluble species. Then the product was additionally
precipitated by adding 10–20 ml ethanol and centrifuging. After washing three times with
toluene-ethanol, the NPs were re-dispersed in toluene (6–7 mL).
2.3 Synthesis of Cu2S QDs
The synthesis of the Cu2S NCs involved the mixing of 1.25 mmol of ammonium
diethyldithiocarbamate with 10 mL of dodecanethiol and 17 mL of oleic acid (OA) in a 3-
neck flask. The solution was heated up to 110 °C under nitrogen flow, followed by a quick
injection of a suspension mixture of 1 mmol of copper(II) acetylacetonate and 3 mL of oleic
acid. Then, the solution was quickly heated to 180 °C and kept at this temperature for 10–20
min, followed by cool-down to room temperature. The reaction product was purified by three
washing cycles of precipitation and re-dispersion, adding the anhydrous hexane and ethanol in
a glove-box to avoid any possible oxidation of the NCs.
2.4 Preparation of photo-anode, electrolyte, and counter electrode
For the preparation of photo-anodes, the FTO substrates were sonicated for 10 min each in
ultrasonic baths containing DI water, acetone, and 2-propanol. The cleaned FTO substrates
were immersed in 40 mM TiCl4 at 70 oC for 30 min to deposit a thin TiO2 layer onto the FTO
substrate. The mesoporous TiO2 films were deposited onto the TiO2 pastes on the FTO using
5

RSC Advances
Page 6 of 21
View Article Online
DOI: 10.1039/C4RA09154J
o
the doctor-blading method, followed by calcination at 450 C for 30 min. For the QD
sensitization, the substrates (TiO2/FTO) were immersed in diluted CdSe NCs (4 mg/ml) in
toluene for 24 h, and then rinsed in anhydrous hexane. Finally, a passivation layer of ZnS was
added to the CdSe/TiO2/FTO substrate. To this end, two SILAR cycles in ZnAc2 (0.03 M) and
Na2S (0.03 M) were performed. The immersion time in each precursor was 1 min, followed
by rinsing with DI water, and drying with a N2 gun.
The polysulfide electrolyte was prepared by dissolving Na2S (1 M) and S (1 M) in
purified D.I. water without methanol. For the preparation of CE, Cu2S NC films were formed
by drop-casting a solution of Cu2S NCs in a hexane/octane (~9:1 vol) mixture onto FTO
substrate. Closed-packed OA-capped Cu2S NC films were treated with 1, 2-ethanediol (EDT)
by dipping the counter electrode in 0.1M EDT acetonitrile solution for 30 sec.
2.5 Material Characterization
Transmission electron microscopy (TEM) images were obtained using a Hitachi HF-3300
operating at an acceleration voltage of 300 keV. The FIB instrument is used for preparation of
cross-section specimen of CE. Wide-angle, powder-X-ray-diffraction patterns were collected
using an Empyrean HR-XRD with Cu Ka radiation source. The absorption spectra of the
solutions and films were collected using a Cary 5000 UV-Vis-NIR spectrophotometer. The
transmittance and total reflectance of the thin-film samples were measured using a DRA 2500
diffuse reflectance accessory (integrating sphere).
6

Page 7 of 21
RSC Advances
View Article Online
DOI: 10.1039/C4RA09154J
Photoluminescence (PL) spectra were collected using a FluoroMax-4 spectrofluorometer
(HORIBA Jobin Yvon). Dynamic light scattering (DLS) data were collected using a Zetasizer
Nano-ZS (Malvern Instruments, UK). Fourier-transform infrared (FTIR) spectra were
acquired in transmission mode using a Thermo Scientific spectrometer with a resolution of
0.09 cm-1 and averaging over 64 scans. For the FT-IR measurements, closed-packed Cu2S
NCs were prepared on KBr crystal substrates using concentrated NC solutions. The Cu2S NC
films were treated with 1, 2-ethanediol (EDT) by dipping the counter electrode into 0.1M
EDT in acetonitrile for 30 sec. Hereafter, OA-capped Cu2S NCs, 0.1M EDT treated Cu2S
CEs will be described as OA-, EDT-Cu2S CE, respectively.
o
All the samples were dried at 80 C for 30 min. For quantitative comparison of different
samples, the same mass-per-substrate area was deposited (about 5 mg/cm2) and the spectra
were baseline-corrected.
2.6 Photo-electrochemical Characterization
Photovoltaic current-voltage characteristics of CdSe QDSSCs were measured under 1 Sun
illumination (100 mWcm-2, AM1.5) verified by an AIST-calibrated Si-solar cell. The incident
photon-to-current efficiency (IPCE) was obtained from the photocurrent ratio versus the rate
of incident photons as a function of wavelength. Electrochemical experiments were carried
out with a VSP potentiostat (BioLogic). A standard, three-electrode configuration was
employed. Ag/AgCl and Pt wire served as reference and auxiliary electrodes, respectively.
7

RSC Advances
Page 8 of 21
View Article Online
DOI: 10.1039/C4RA09154J
The active area of the CE was 0.09 cm2, which is same as that of the CE employed for
photovoltaic measurement. The active area was controlled by selectively removing the Cu2S
NC films from the FTO. The removed FTO surface was wrapped with insulating imide tape
(3M) to prevent unwanted secondary reactions. The polysulfide electrolyte, made by
dissolving 1M Na2S and 1M S in deionized water, was employed in all the electrochemical
measurements. Cyclic voltammetry (CV) was performed from −0.4 to −1.0 V at a scan rate
of 50 mVs−1. Electrochemical impedance spectroscopy (EIS) measurements were carried out
at the equilibrium potential of the polysulfide over a frequency range from 100 kHz to 10
mHz, with amplitude of 5 mV.
RESULTS AND DISCUSSION

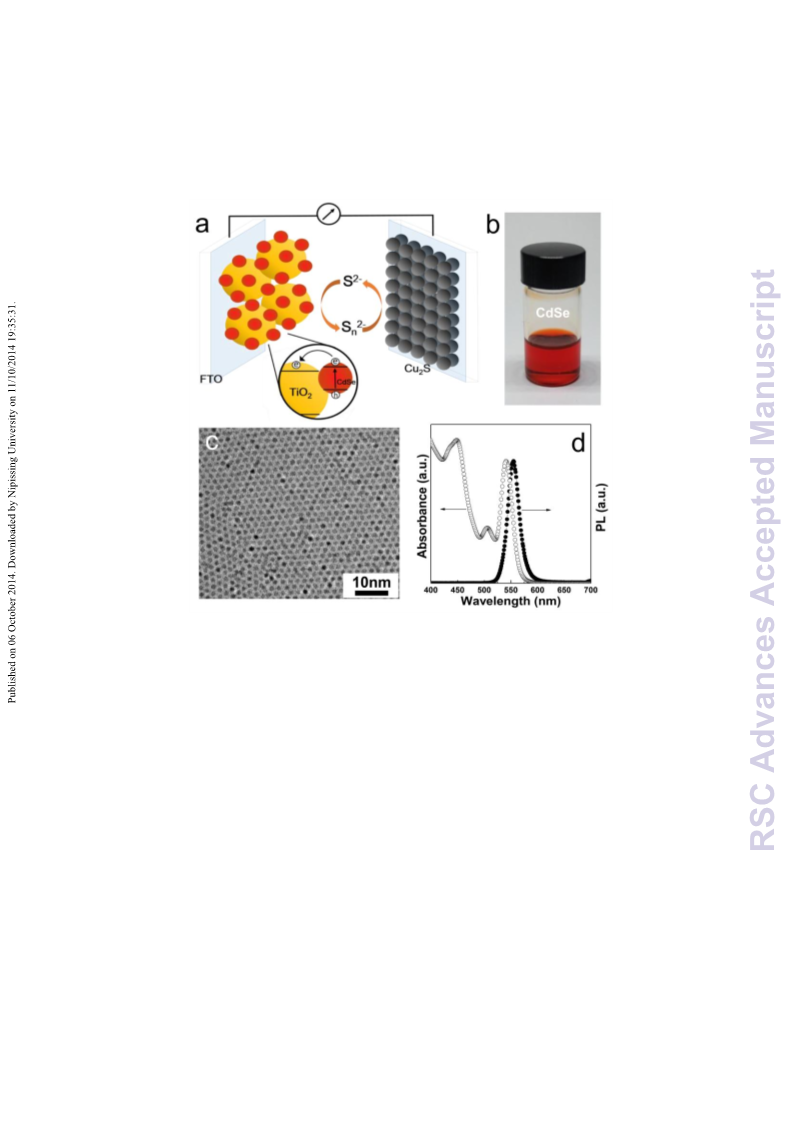

Figure 1a represents the general configuration of the CdSe QDSSCs in this study. The cells
were composed of a CdSe-NC sensitized photo-anode, a CE assembled from mono-dispersed
Cu2S NCs, and polysulfide electrolyte, which is known to be the best shuttle for QDSSCs.
Mono-dispersed colloidal OA-CdSe NCs were used to sensitize mesoporous TiO2 (Fig. 1b).
Figure 1c shows a TEM image of uniform CdSe NCs with an average diameter of 2.85 nm,
with size distribution below 10%. In Figure 1d, the CdSe NCs exhibit sharp excitonic features
corresponding to the zinc-blend structure in the absorption spectra. They also show narrow
photoluminescence associated with the recombination of photo-excited carriers from 1Sh and
8

Page 9 of 21
RSC Advances
View Article Online
DOI: 10.1039/C4RA09154J
1Se quantum-confined states, with full-width at half-maximum (FWHM) of ∼20 nm centered
at 554 nm.
Figure 1. (a) Schematic diagram of QDSSC, (b) Photographic image of colloidal CdSe NCs
dispersed in toluene, (c) TEM image of as-synthesized CdSe NCs, (d) Absorption and
photoluminescence spectrum of colloidal CdSe NCs

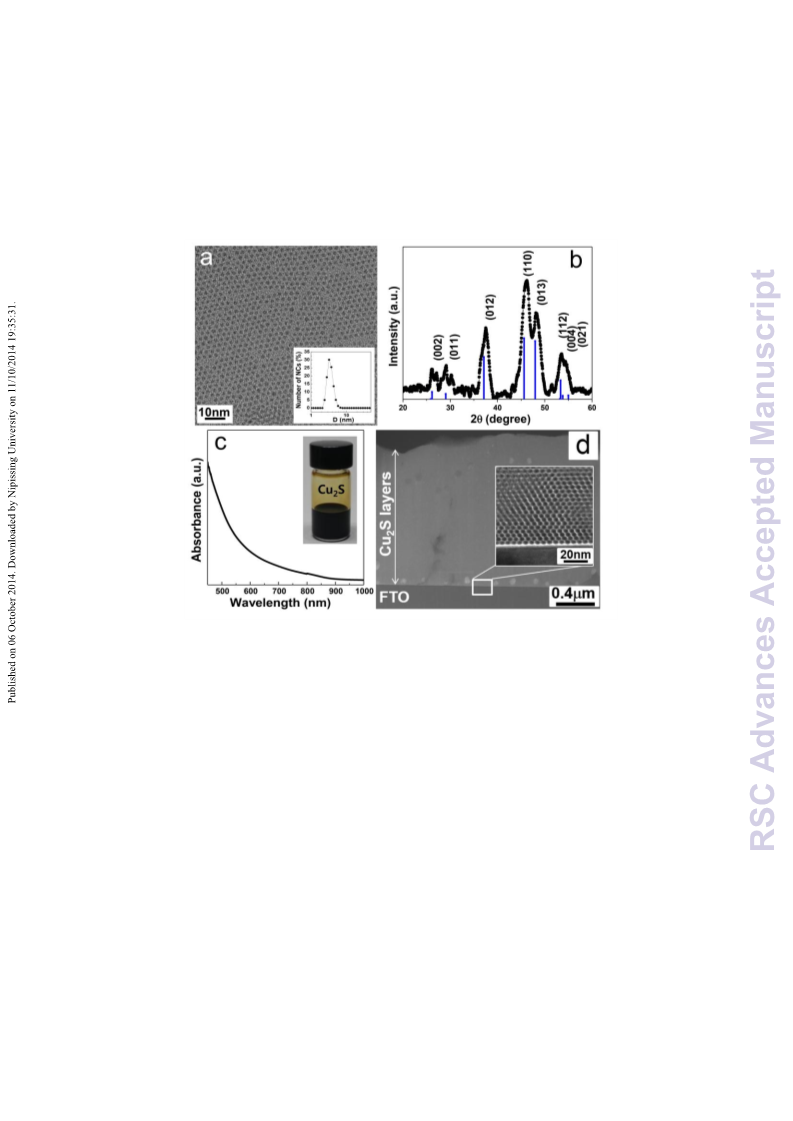

Figure 2 shows a microstructure and optical properties of mono-dispersed Cu2S NCs. As
shown in the TEM image in Figure 2a, the as-synthesized Cu2S NCs were nearly spherical
(average diameter 3.5 nm), which is consistent with the results obtained from DLS
measurement, with size deviation below 10% (inset of Fig. 2a). Due to their enhanced
surface-to-volume ratio, mono-dispersed Cu2S NCs provide the potential to improve catalytic
activity in the interface between polysulfide electrolytes of CEs. The colloidal stability of the
9

RSC Advances
Page 10 of 21
View Article Online
DOI: 10.1039/C4RA09154J
resulting solutions was also evidenced by dynamic light scattering (DLS) and in photographs
of the colloidal Cu2S NCs solution (inset of Fig. 2a and 2c). Figure 2b shows the
representative XRD patterns of as-synthesized Cu2S NCs using the colloidal method. The
corresponding peaks of the crystal planes of Cu2S NCs were indexed as shown in Figure 2b,
and matched the hexagonal phase chalcocite β-Cu2S (JCPDS card no. 46-1195, a = 3.97 Å, c
= 6.8 Å).33 Figure 2c shows the absorption spectrum of Cu2S NC films assembled on glass
substrate. The UV-vis absorption spectra show a steep rise at short wavelengths, a low
intensity onset extending up to ~1000 nm, and negligible NIR extinction. Recently several
groups reported enhanced surface plasmonic effects in stoichiometric copper chalcogenide,
which is prone to oxidation to form more thermodynamically stable nonstoichiometric copper
chalcogenide phases containing both Cu+ and Cu2+ ions.34-35 The extinction spectra of copper
chalcogenide shows drastic enhancement of the NIR band in the NCs, with increasing
oxidation time. The oxidation of NCs may inhibit the charge transport and catalytic activity in
the CE, so the oxidation of NCs has to be restrained. In this experiment, as-deposited Cu2S-
NC films did not show a pronounced NIR band even after several days of exposure to ambient
air. These results imply that CE assembled from Cu2S NCs can suppress the formation of an
oxidation layer on the electrode. This makes them ideal candidates for long-term stability and
good catalytic activity. Figure 2c (inset) shows a photograph of the colloidal Cu2S inks (25
mg/ml) in toluene used to deposit the CE films. Figure 2d shows the cross-section TEM
10

Page 11 of 21
RSC Advances
View Article Online
image of closed-packed EDT-Cu2S CE assembled on FTO substrate. We confiDrmOI:e1d0.10th39a/Ct4aRA09154J
substantially uniform Cu2S nanoparticles were assembled on FTO substrate without
degradation after EDT treatment.
Figure 2. (a) TEM image of as-synthesized Cu2S NCs. The inset shows the average size
distribution of Cu2S NCs based on dynamic light scattering (DLS). (b) XRD patterns of Cu2S
films: the blue line is JCPDS 90-020-0988 (Hexagonal, P63/mmc space group). (c)
Absorption spectra of the Cu2S NCs. The inset shows an image of colloidal Cu2S NCs
dispersed in toluene. (d) Cross-section TEM image of closed-packed EDT-Cu2S CE
assembled on the FTO substrate.
In general, the surface ligands used for synthesis of NCs are functionalized for high
affinity to the NC surface, and stabilize colloidal solutions in nonpolar solvents. Bulky
ligands, however, create a thick insulating barrier around each nanoparticles which can retard
the facile-charge-transport in NC solids. To overcome this limitation, the original surface
11

RSC Advances
Page 12 of 21
View Article Online
DOI: 10.1039/C4RA09154J
ligands have to be replaced with shorter molecular ligands.29-30 This approach provides the
benefit of allowing convenient fabrication of high-quality NC films using colloidal solutions
stabilized by original ligands, followed by soaking the NC film in a solution containing new
capping ligands such as ethanethiol. 29-30

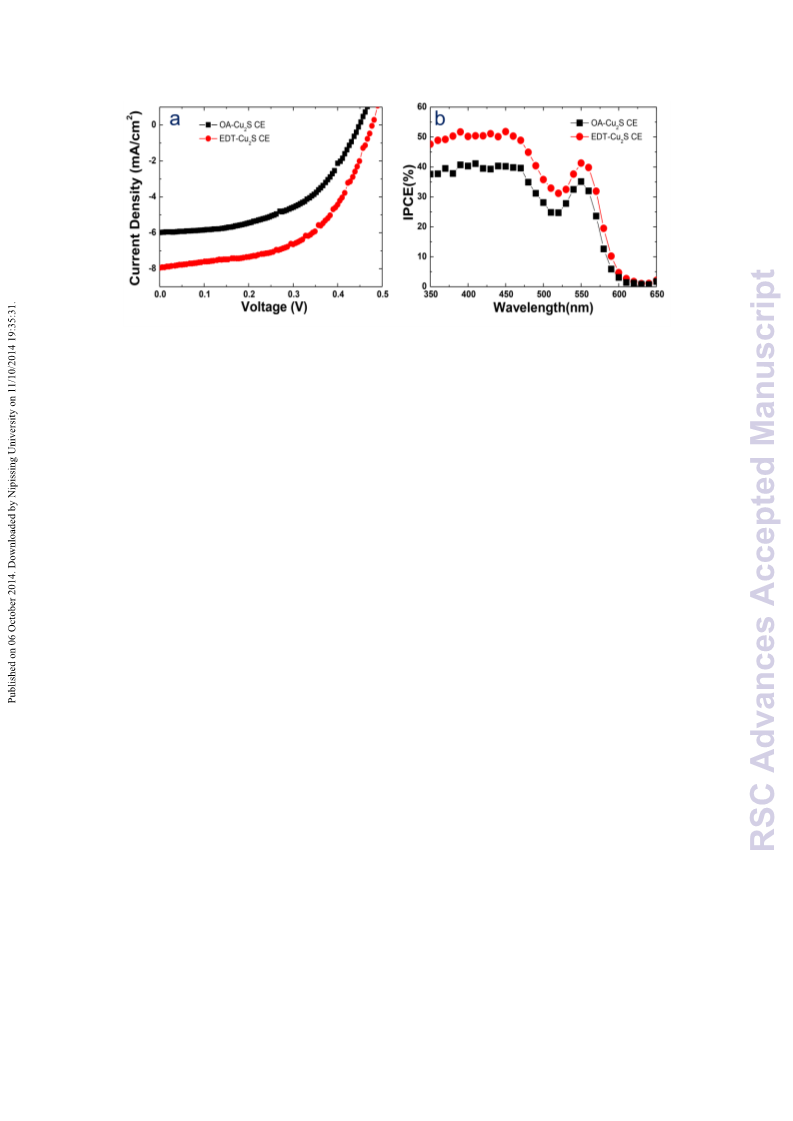

Figure 3 shows the current density-voltage (J-V) curves of the CdSe QDSSCs using OA−
and EDT-Cu2S NCs as the CE, under a standard simulated AM 1.5 illumination (100 mWcm-
2). The corresponding detailed photovoltaic performances are summarized in Table 1.
It is noted that the CdSe QDSSCs employing different CEs exhibited quite different
values of short-circuit current density (JSC), but showed similar values of open-circuit voltage
(Voc). This is consistent with the expected influence of the CEs on QDSSC performance. The
EDT-Cu2S CE based on the QDSSCs, had a short-circuit current density (JSC) of 7.95 mA/cm2,
a fill factor (FF) of 55.44%, and yielded superior power conversion efficiency () of 2.1%. In
contrast, the QDSSCs using OA-Cu2S CEs showed a much inferior device performance of
1.4% with JSC 5.99 mA/cm2 and FF 51.57. The enhanced photovoltaic performance of CdSe
QDSSC with EDT-Cu2S CE is originated from the decreased inter-particle distances, resulting
in improved electronic transport, and also from enhanced catalytic activity in the Cu2S-NC
CE because of the cross-linking between shorter functional groups.29-32
12

Page 13 of 21
RSC Advances
View Article Online
DOI: 10.1039/C4RA09154J
Figure 3. (a) Photocurrent-voltage characteristics of CdSe QDSSCs with Cu2S CE (with EDT,
OA-Cu2S), measured under AM 1.5 illumination (100 mWcm-2); (b) IPCE spectra of the
CdSe QDSSCs using Cu2S CE (with EDT, OA-Cu2S).
Figure 3b shows the IPCE spectra of the CdSe QDSSC obtained from OA- and EDT-Cu2S
CEs. The IPCE spectra were defined as the number of electrons in the external circuit
generated at a given wavelength, divided by the number of incident photons. The IPCE
spectra resembled the absorption spectra of CdSe NCs (Fig. 1d), indicating that the IPCE
results originated from the direct band-gap transition of the CdSe NCs. The IPCE values
measured from 350 to 600 nm showed an order of OA-Cu2S < EDT-Cu2S CE, which is
identical to that of the corresponding efficiency of the QDSSCs employing different CEs. The
short-circuit photocurrents estimated from the integrated IPCE spectra of Fig. 3b are 4.3, 6.0
mA/cm2 for the OA−, EDT-Cu2S CE, respectively. The short-circuit photocurrents were
smaller than the Jsc values obtained from the J-V measurements under one-sun (AM 1.5G)
illumination (Fig. 3a). The discrepancy could be due to light intensity lower than AM 1.5 G
13

RSC Advances
Page 14 of 21
View Article Online
illumination, because of the lower efficiency of charge separation, and of collectiDoOnI,: 1a0t.10l3o9w/Ce4RrA09154J
illumination intensities.

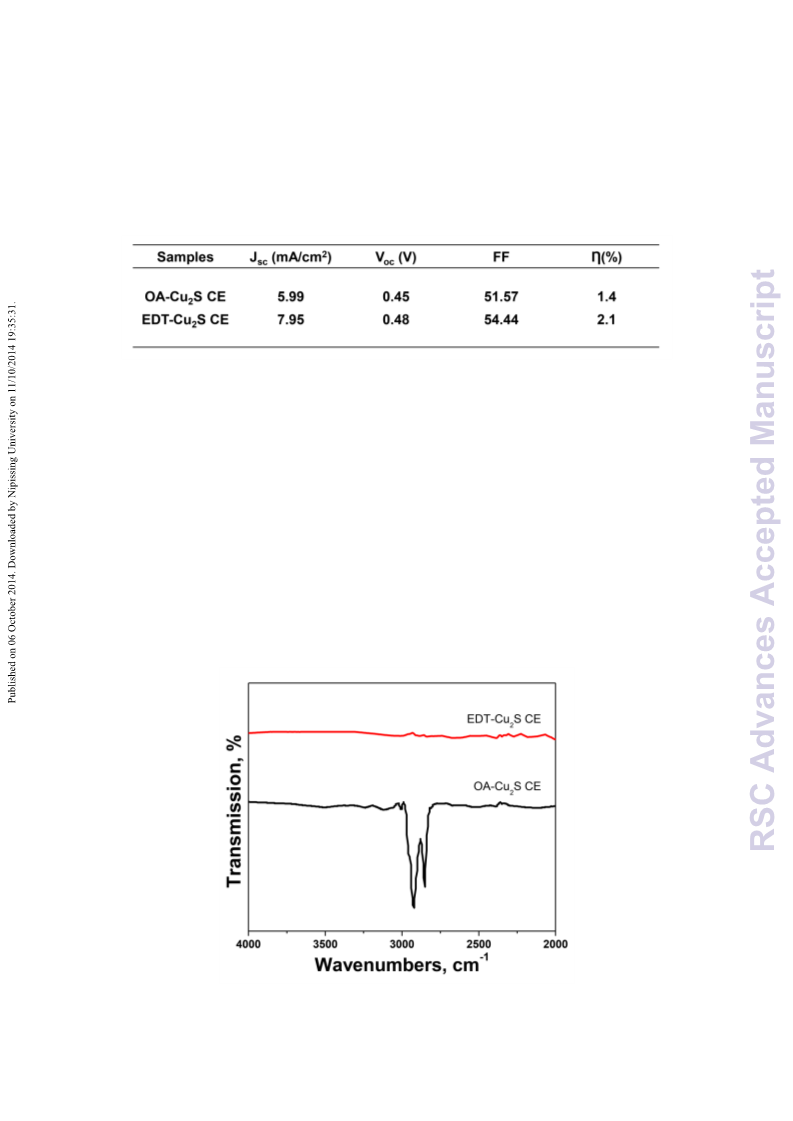

Table 1. Photovoltaic Properties of QDSSCs composed of different counter electrodes
Figure 4 shows a representative FTIR spectra taken before and after ligand exchange with
0.1M EDT for OA-Cu2S NCs, which indicate the strong absorption bands at 2,800–3,000
cm−1 arising from characteristic C-H stretching of the original long-hydrocarbon ligand.29-30
The peaks were completely diminished after the ligand exchange reaction with 0.1M EDT in
acetonitrile, confirming the almost complete removal of organic surfactants from the OA-
Cu2S NC surface.
Figure 4. FT-IR spectra of OA-, EDT-Cu2S NCs annealed at 80 oC for 30 min
14

Page 15 of 21
RSC Advances
View Article Online
DOI: 10.1039/C4RA09154J

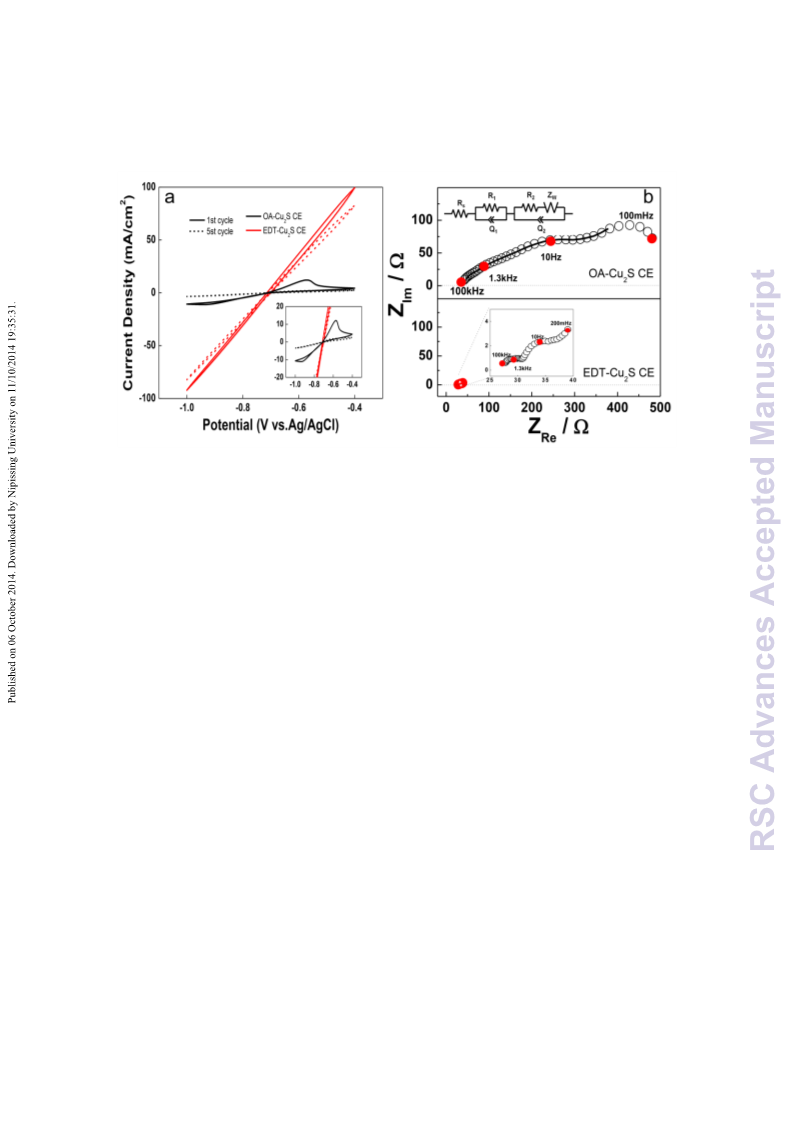

Cyclic voltammetry (CV) was performed to compare the redox properties of OA-, EDT-
Cu2S electrodes in 1M Na2S/1M S electrolyte. The EDT-Cu2S working electrode exhibited
much higher current density than that of OA-Cu2S NCs. Also, the high redox current of EDT-
Cu2S NCs was sustained for five cycles, in contrast to the rapid fading observed with OA-
Cu2S NCs. This demonstrates the superior stability of the EDT-Cu2S CEs. To obtain better
understanding of the interfacial-charge-transport behaviors of Cu2S-CEs EIS measurements
were carried out (Fig. 5b). Each impedance plot shows two semi-circles at high (100 kHz–
100 Hz) and middle (100–1 Hz) frequency ranges, and an inclined line at the low-frequency
end. The high-frequency semicircle is attributed to the charge-transfer reaction at the
Cu2S/electrolyte interface, and the middle-frequency semicircle to the intra-electrode
impedances such as between Cu2S NCs, or at the Cu2S/FTO interface.36 The charge-transfer
resistance (Rct) at the Cu2S/electrolyte interface was extracted from the fitting data using an
equivalent circuit (inset of Figure 5b). The Rct value for EDT-Cu2S (0.23 cm2) was much
smaller than that of the OA-Cu2S ( 5.1cm2), indicating that EDT-Cu2S NCs have excellent
charge transfer. The large Rct value for the OA-Cu2S CE can be attributed to the long alkyl
ligands on the NC surface, which may alter the charge transfer rate. The electrochemical
catalytic activity of CEs can be quantitatively assessed by the exchange current density (J0),
which is equal to J0 = RT/nFRct,37-38 where R is the gas constant, T the absolute temperature in
K, n the number of electrons involved in the electrochemical reaction, and F the Faraday
constant. Assuming n = 2 from the reaction S22- + 2e = 2S2-, the J0 value of EDT-Cu2S CE
would be 54.9 mA/cm2, which is much higher than 2.5 mA/cm2 for OA-Cu2S CEs.. It is
noted that Jo (54.9 mA/cm2) for EDT-Cu2S CE was higher than that of Cu2S/reduced
graphene oxide composite (16 mA/cm2), which is calculated assuming that n = 1.36 These
results are consistent with the higher JSC and FF obtained from EDT-Cu2S CE compared with
OA-Cu2S CE. It seems very possible that the power conversion efficiency of QDSSC using
EDT-Cu2S CE could be further improved by optimizing surface-modification conditions. This
15

RSC Advances
Page 16 of 21
View Article Online
DOI: 10.1039/C4RA09154J
might be done, for example, by employing small molecular ligands or metal chalcogenide
complexes (MCCs), an approach currently being investigated by our group.
Figure 5. (a) Cyclic voltammograms (CVs) of OA-, EDT-Cu2S NCs films measured in
polysulfide (1M Na2S/1M S) solution, at a scan rate of 50 mVs-1. (b) Nyquist plots of OA-,
EDT-Cu2S films measured at the equilibrium potential of the polysulfide. The experimental
spectra are denoted with circles, and the best-fitted results using the equivalent circuit with
solid lines.
CONCLUSIONS
We demonstrated the effects of surface modification of Cu2S CE assembled from colloidal-
Cu2S NCs to evaluate the photovoltaic performance of CdSe Our results showed that EDT-
Cu2S CE based on the QDSSCs exhibited higher short-circuit current density (7.95 mA/cm2)
and higher fill factor of 55.44%, yielding superior power conversion efficiency of 2.1%. The
charge-transfer resistance at the Cu2S/electrolyte interface for EDT-Cu2S (0.23cm2) was
much smaller than that of the OA-Cu2S CE (5.1cm2), indicating that EDT-Cu2S NCs have
16

Page 17 of 21
RSC Advances
View Article Online
DOI: 10.1039/C4RA09154J
excellent catalytic activity. Furthermore, the EDT-Cu2S CE demonstrated superior long-term
stability during the catalytic process.
ACKNOWLEDGEMENT
This work was supported by the Leading Foreign Research Institute Recruitment Program
(Grant No. 2012K1A4A3053565) through the National Research Foundation of Korea (NRF)
funded by the Ministry of Education, Science and Technology (MEST) and the DGIST R&D
Program of the Ministry of Science, ICT & Future Planning (14-BD-0401), and DGIST
MIREBRAIN startup fund. H. Lee is also grateful for financial support from the IT R&D
program of MOTIE/KEIT (10041856, Technology development for life improvement of high-
Ni-composition cathode at high temperature).
REFERENCES
1. W. W. Yu, L. Qu, W. Guo, X. Peng, Chem. Mater., 2003, 15, 2854–2860.
2. P. Wang, S. M. Zakeeruddin, J. E. Moser, R. Humphry-Baker, P. Comte, V. Aranyos, A.
Hagfeldt, M. K. Nazeeruddin, M. Grätzel, Adv. Mater., 2004, 16, 1806–1811.
3. P. V. Kamat, J. Phys. Chem. C, 2007,111, 2834–2860.
4.A. J. Nozik, M. C. Beard, J. M. Luther, M. Law, R. J. Ellingson, J. C. Johnson, Chem. Rev.,
2010, 110, 6873–6890.
5. I. Hod, Z. Tachan, M. Shalom, A. Zaban, J. Phys. Chem. Lett., 2011, 2, 1032–1037.
17

RSC Advances
Page 18 of 21
View Article Online
DOI: 10.1039/C4RA09154J
6. S. Ruhle, M. Shalom, A. Zaban, Chem. Phys. Chem., 2010, 11, 2290–2304.
7. K. Tvrdy, P. V. Kamat, J. Phys. Chem. A, 2009, 113, 3765–3772.
8. I. Mora-Sero, J. Bisquert, J. Phys. Chem. Lett., 2010, 1, 3046–3052.
9. V. Gonzalez-Pedro, X. Xu, I. Mora-Sero, J. Bisquert, ACS Nano, 2010, 4, 5783–5790.
10. L. Liu, J. Hensel, R. C. Fitzmorris, Y. Li, J. Z. Zhang, J. Phys. Chem. Lett., 2010, 1,
155–160.
11. M. Graetzel, Nature, 2001,414, 338.
12. M. Liu, M. B. Johnston, H. J. Snaith, Nature, 2013, 501, 395–398.
13. P. Qin, S. Tanaka, S. Ito, N. Tetreault, K. Manabe, H. Nishino, M. K. Nazeeruddin, M.
Grätzel, Nat. Commun., 2014, 5, 3834.
14. H. Katagiri, K. Jimbo, S. Yamada, T. Kamimura, W. S. Maw, T. Fukano, T. Ito, T.
Motohiro, Appl. Phys. Express, 2008, 1, 041201.
15. M. Shalom, I. Hod, Z. Tachan, S. Buhbut, S. Tirosh, A. Zaban, Energ. Environ. Sci. 2011,
4, 1874–1878.
16.M. Shalom, Z. Tachan, Y. Bouhadana, H. N. Barad, A. Zaban, J. Phys. Chem. Lett., 2011,
2, 1998–2003.
17.I. Hod, V. Gonzalez-Pedro, Z. Tachan, F. Fabregat-Santiago, I. Mora-Sero, J. Bisquert, A.
Zaban, J. Phys. Chem. Lett., 2011, 2, 3032–3035.
18

Page 19 of 21
RSC Advances
View Article Online
18.Z. Tachan, M. Shalom, I. Hod, S. Ruhle, S. Tirosh, A. Zaban, J. Phys. Chem. CD,O2I:0110.110,319/1C54R,A09154J
6162–6166.
19.Z. Yang, C. Y. Chen, C. W. Liu, H. T. Chang, Chem. Commun., 2010, 46, 5485–5487.
20.G. Hodes, J. Manassen, D. Cahen, J. Electrochem. Soc., 1980, 127, 544–549.
21.Q. X. Zhang, Y. D. Zhang, S. Q. Huang, X. M. Huang, Y. H. Luo, Q. B. Meng, D. M. Li,
Electrochem. Commun., 2010, 12, 327–330.
22. T. Loucka, J. Electroanal. Chem., 1972, 36, 355–367.
23.R. Muszynski, B. Seger, P. Kamat, J. Phys. Chem. C, 2008, 112, 5263–5266.
24.K. Jasuja, J. Linn, S. Melton, V. Berry, J. Phys. Chem. Lett., 2010, 1, 1853–1860.
25.K. Vinodgopal, B. Neppolian, I. V. Lightcap, F. Grieser, M. Ashokkumar, P. V. Kamat, J.
Phys. Chem. Lett., 2010, 1, 1987–1993.
26. H. Salaramoli, E. Maleki, Z. Shariatinia, J. Photochem Photobiol A Chem., 2013, 271,
56-64.
27. D. V. Talapin, J.-S.Lee, M.V.Kovalenko, E. V. Shevchenko, Chem. Rev., 2010, 110,
389-458.
28. J. -S. Lee, M. V. Kovalenko, J. Huang, D. Chung, D. V. Talapin, Nat. Nanotechnol., 2011,
6, 348-352.
29. J. M. Luther, M. Law, Q. Song, C. L. Perkins, M. C. Beard, A. J. Nozik, ACS Nano, 2008,
2, 271–280.
19

RSC Advances
Page 20 of 21
View Article Online
30. M. Law, J. M. Luther, Q. Song, B. K. Hughes, C. L. Perkins, A. J. Nozik, J.DAOIm: 10..1C03h9e/Cm4R.A09154J
Soc., 2008, 130, 5974–5985.
31. O. E. Semonin, J. M. Luther, S. Choi, H. Y. Chen, J. Gao, A. J. Nozik, M. C. Beard,
Science, 2011, 334, 1530-1533.
32. J. -S. Lee, M. I. Bodnarchuk, E. V. Schevchenko, D.V. Talapin, J. Am. Chem. Soc.,
2010, 132, 6383-6391. 33.M. Deng, Q. Zhang, S. Huang, D. Li, Y. Luo, Q. Shen, T. Toyoda,
Q. Meng, Nanoscale Res Lett., 2010, 5, 986–990.
34.P. Afanasiev, J. Am. Chem. Soc., 2004, 126, 14678–14678.
35.V. Chakrapani, D. Baker, P. V. Kamat, J. Am. Chem. Soc., 2011, 133, 9607–9615.
36.J. G. Radich, R. Dwyer, P. V. Kamat, J. Phys. Chem. Lett., 2011, 2, 2453–2460.
37.M. Wang, A. M. Anghel, B. Marsan, N. L. Cevey Ha, N. Pootrakulchote, S. M.
Zakeeruddin, M. Graetzel, J. Am. Chem. Soc., 2009, 131, 15976–15977.
38.A. J. Bard, L. R. Faulkner, Electrochemical methods: fundamentals and applications,
second edition, Wiley, New York, 2001, 93–105.
20

Page 21 of 21
RSC Advances
View Article Online
DOI: 10.1039/C4RA09154J
TOC
0
-2
-4
-6
-8
OA-Cu S NCs
2
EDT Cu S NCs
2
0.0
0.1
0.2
0.3
0.4
0.5
Voltage (V)
21
