S. Wang et al. / Catalysis Communications 12 (2011) 1246–1250
1247
on the desired copper content of the catalyst) wasdissolved in deionized
water (300 mL). The solution was then mixed with an appropriate
quantity of urea (the mole ratio of urea to copper was 3:1), and the
mixture was stirred until the urea had dissolved. Subsequently, silica sol
was added to the solution, and the mixture was stirred for a further 4 h.
It was then heated and kept at 90 °C to decompose the urea. When the
pH of the suspension reached 6.5, the heating process was terminated.
The mixture was filtered and the collected solid was washed with
deionized water (500 mL), dried at 120 °C overnight, and calcined in air
at 350 °C for 4 h. The calcined samples were crushed and sieved to 40–
60 mesh. Catalysts with three different copper loadings were prepared,
which we denote as 5 U, 20 U, and 40 U, respectively, where the
numbers 5, 20, and 40 represent the copper loadings (see Table 1).
formed due to the high copper content in the catalyst. In contrast to
that of the 40 U catalyst, the patterns of 5 U and 20 U do not exhibit an
obvious CuO diffraction peak, indicating that the crystalline CuO was
highly dispersed on the SiO2 and was too small to be detected. The
40 U catalyst reduced at 350 °C exhibited four main peaks that can be
assigned to Cu2O at 2θ=36.8°, Cu (111) at 2θ=43.3°, Cu (200) at
2θ=50.4° and Cu (220) at 2θ=74.1° [13]. The peaks of Cu and Cu2O
detected in the reduced 20 U were much weaker and broader than the
peaks in the 40 U. However, there were no visible Cu and Cu2O peaks
in the reduced 5 U, suggesting that the particles were well dispersed
and their sizes were quite small in the 5 U catalyst. The Cu crystallite
size calculated by Scherrer–Warren equation increased from b3 nm to
12.2 nm with the increase of the copper loading (summarized in
Table 1).
2.2. Catalyst characterization

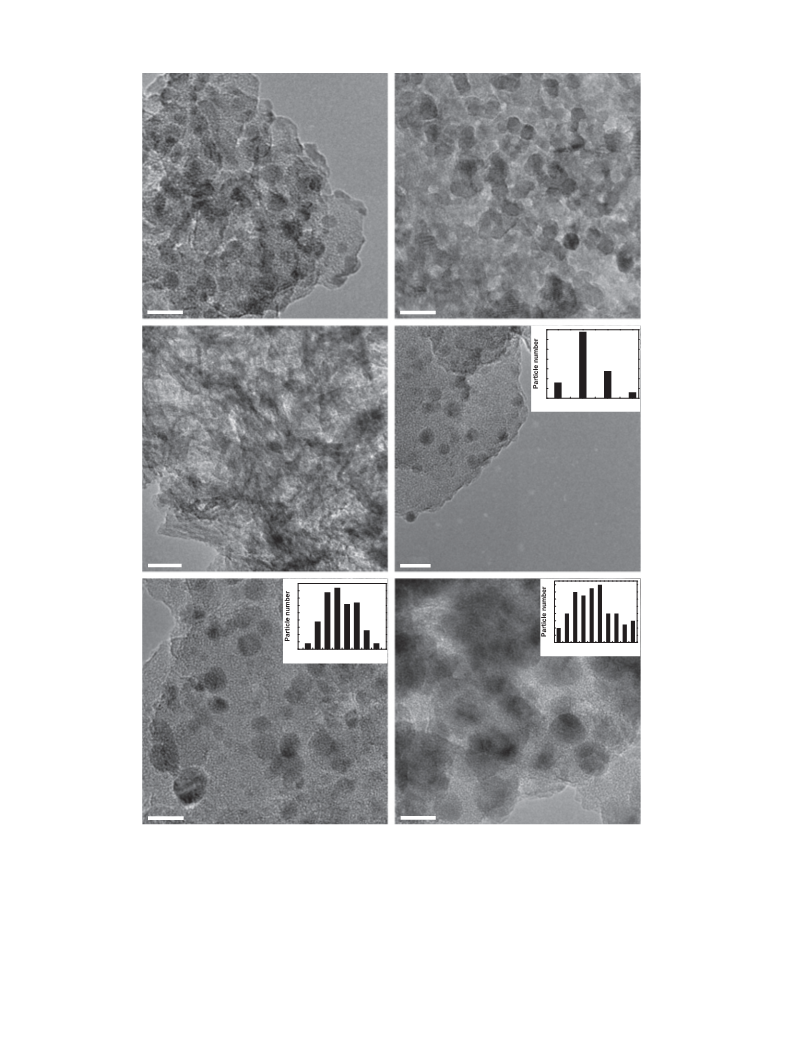

Fig. 2 shows the typical HRTEM images of the calcined and reduced
Cu/SiO2 catalysts. The particle sizes in the calcined samples were in
the range of 3–5 nm in the 5 U and 20 U catalysts. However, a wire-
like structure was observed in the 40 U catalyst, suggesting that a
silicate phase was produced, which is in good agreement with the
results of XRD measurement. The histograms of the particle size
distribution for the reduced catalysts were inserted in the top-right
corner of the HRTEM images. The average particle size of Cu
(summarized in Table 1) was calculated as
The BET surface areas, pore volumes, and pore size distributions of
the prepared catalysts were determined by measuring nitrogen
adsorption–desorption isotherms using a Quantachrom-Autosorb-1-C
apparatus. The real content of copper in the catalyst was analyzed by
inductively coupled plasma atomic emission spectrometry (ICP-AES),
using a Thermo iCAP 6000 device.
Powder X-ray diffraction (XRD) analysis of the prepared catalysts
was carried out on a D/max-Ra X-ray diffractometer with a Cu-Kα
radiation source operated at 40 kV and 30 mA. HRTEM images were
obtained using a Philips Tecnai G2F30 transmission electron
microscope.
∑nid3i
dTEM
=
∑nid2i
Temperature-programmed reduction (TPR) was conducted using an
AutoChem II 2920 instrument. A calcined catalyst sample (30 mg) was
purged with Ar at 100 °C for 30 min and then cooled to room temperature.
The reduction was carried out with 10% H2/Ar (40 mL/min), and the
sample was heated at a rate of 2 °C/min up to 600 °C. The amount of H2
consumed was monitored by a thermal conductivity detector.
where ni is the number of particles having a characteristic diameter di
(within a given diameter range) [14]. Highly dispersed and nano-size
Cu particles were detected in all the catalysts prepared by urea
hydrolysis method. The average sizes of Cu nanoparticles were 4 and
7.6 nm for 5 U and 20 U, respectively. These sizes of Cu nanoparticles
were in good accordance with the unsupported copper nanoparticles
(diameter=3 1.5 nm) and the supported copper nanoparticles on
activated carbon (diameter=6 2 nm) prepared by Francisco et al.
[15,16]. The average particle size of 40 U (17.5 nm) was larger than
the former two.
The physical properties and copper loadings of the prepared Cu/SiO2
catalysts are provided in Table 1. The BET surface area increased from
229 to 336 m2/g when the copper loading was increased from 4.3 to
36.7 wt.%. This might be induced by the formation of copper
phyllosilicate [17]. The N2 adsorption–desorption isotherms of the 5 U,
20 U and 40 U catalysts are shown in Fig. 3A. All of them revealed a type
IV Langmuir adsorption isotherm according to the IUPAC classification,
while the hysteresis loop changed from H1-type to H3-type with copper
2.3. Catalytic activity test
The reactions were carried out in a continuous fixed-bed reactor.
1 g catalyst (about 3 mL) was sandwiched with quartz sand and
packed in a steel tube reactor with an inner diameter of 8 mm. A
thermocouple was inserted into the center of the catalytic bed to
monitor the reaction temperature. Before the reaction, the catalyst
was activated with pure hydrogen at 350 °C for 4 h at a ramping rate
of 4 °C/min. After cooling to the reaction temperature, a solution of
12.5 wt.% DMO in methanol was fed into the preheater by means of a
syringe pump, vaporized, and mixed with the required amount of H2
at 200 °C. The liquid products were condensed and analyzed on an
Agilent 7890 GC equipped with a flame-ionization detector (FID).
3. Results and discussion
3.1. Catalyst characterization
The XRD patterns of the as-prepared and reduced Cu/SiO2 catalysts
are shown in Fig. 1. The peak of SiO2 in the 40 U catalyst was shifted
and broadened, suggesting that amorphous SiO2 and silicate were
Table 1
Physical properties and Cu loadings of the prepared Cu/SiO2 catalysts.
a
Catalyst
Cu loading
(wt.%)
SBET
Vpore
Dpore
(nm)
dCu (nm)
(m2 g−1
)
(cm3 g−1
)
b
TEM
XRD
5 U
20 U
40 U
4.3
15.6
36.7
229
319
336
0.75
0.68
0.86
10.4
6.9
9.3
4
7.6
17.5
b 3
5.1
12.2
a
Measured by ICP-AES.
Calculated according to Scherrer–Warren equation, Cu(111).
Fig. 1. XRD patterns of the as-prepared and reduced Cu/SiO2 catalysts. (a) 5 U, (b) 20 U,
(c) 40 U, (d) 5 U after reduction, (e) 20 U after reduction, and (f) 40 U after reduction.
b
