Solid state multicolor emission in substitutional solid solutions of metal-organic frameworks

Article abstract of DOI:10.1021/jacs.9b05191

Preparing crystalline materials that produce tunable organic-based multicolor emission is a challenge due to the inherent inability to control the packing of organic molecules in the solid state. Utilizing multivariate, high-symmetry metal-organic frameworks, MOFs, as matrices for organic-based substitutional solid solutions allows for the incorporation of multiple fluorophores with different emission profiles into a single material. By combining nonfluorescent links with dilute mixtures of red, green, and blue fluorescent links, we prepared zirconia-Type MOFs and found that the bulk materials exhibit features of solution-like fluorescence. Our study found that MOFs with a fluorophore link concentration of around 1 mol % exhibit fluorescence with decreased inner filtering, demonstrated by changes in spectral profiles, increased quantum yields, and lifetime dynamics expected for excited-state proton-Transfer emitters. Our findings enabled us to prepare organic-based substitutional solid solutions with tunable chromaticity regulated only by the initial amounts of fluorophores. These materials emit multicolor and white light with high quantum yields (-2-14%), high color-rendering indices (>93), long shelf life, and superb hydrolytic stability at ambient conditions.

Full text of DOI:10.1021/jacs.9b05191

Subscriber access provided by AUB Libraries
Article
Solid state multicolor emission in substitutional
solid solutions of metal-organic frameworks
Wesley J. Newsome, Suliman Ayad, Jesus Cordova, Eric W. Reinheimer, Andres
D Campiglia, James K. Harper, Kenneth Hanson, and Fernando J. Uribe-Romo
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.9b05191 • Publication Date (Web): 20 Jun 2019
Downloaded from http://pubs.acs.org on June 20, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 9
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
Solid state multicolor emission in substitutional solid solutions of
metal-organic frameworks
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1§
2§
1
3
1ꢀ
WesleyꢀJ.ꢀNewsome, ꢀSulimanꢀAyad, ꢀJesusꢀCordova, ꢀEricꢀW.ꢀReinheimer, ꢀAndresꢀD.ꢀCampiglia,
1
2*
1*
JamesꢀK.ꢀHarper, ꢀKennethꢀHanson, ꢀFernandoꢀJ.ꢀUribe-Romo. ꢀ
1
2
3
DepartmentꢀofꢀChemistry,ꢀUniversityꢀofꢀCentralꢀFlorida,ꢀ4111ꢀLibraꢀDr.ꢀRm.ꢀ251ꢀPSB,ꢀOrlando,ꢀFLꢀ32816-2366,ꢀUSA.ꢀ
DepartmentꢀofꢀChemistryꢀ&ꢀBiochemistry,ꢀFloridaꢀStateꢀUniversity,ꢀ95ꢀChieftanꢀWay,ꢀTallahassee,ꢀFLꢀ32306-4390,ꢀUSA.ꢀ
RigakuꢀAmericasꢀCorporation,ꢀ9009ꢀNewꢀTrailsꢀDr.,ꢀTheꢀWoodlands,ꢀTXꢀ77381,ꢀUSA.ꢀ
§
ꢀ=ꢀEqualꢀcontribution.ꢀ
Whiteꢀlightꢀemission,ꢀStructure-propertyꢀrelationship,ꢀBroadbandꢀfluorescenceꢀ
ꢀ
ABSTRACT:ꢀPreparingꢀcrystallineꢀmaterialsꢀthatꢀproduceꢀtunableꢀorganic-basedꢀmulticolorꢀemissionꢀisꢀaꢀchallenge,ꢀdueꢀtoꢀ
theꢀinherentꢀinabilityꢀtoꢀcontrolꢀtheꢀpackingꢀofꢀorganicꢀmoleculesꢀinꢀtheꢀsolidꢀstate.ꢀUtilizingꢀmultivariate,ꢀhighꢀsymmetryꢀ
metal-organicꢀframeworks,ꢀMOFs,ꢀasꢀmatricesꢀforꢀorganic-basedꢀsubstitutionalꢀsolidꢀsolutionsꢀallowsꢀforꢀtheꢀincorporationꢀ
ofꢀmultipleꢀfluorophoresꢀwithꢀdifferentꢀemissionꢀprofilesꢀ intoꢀ aꢀ singleꢀ material.ꢀByꢀcombiningꢀnon-fluorescentꢀlinksꢀwithꢀ
diluteꢀmixturesꢀofꢀred,ꢀgreen,ꢀandꢀblueꢀfluorescentꢀlinksꢀweꢀpreparedꢀzirconia-typeꢀMOFsꢀandꢀfoundꢀthatꢀtheꢀbulkꢀmaterialsꢀ
exhibitꢀfeaturesꢀofꢀsolution-likeꢀfluorescence.ꢀOurꢀstudyꢀfoundꢀthatꢀMOFsꢀwithꢀfluorophoreꢀlinkꢀconcentrationꢀofꢀaroundꢀ1ꢀ
mol%ꢀexhibitꢀfluorescenceꢀwithꢀdecreasedꢀinnerꢀfiltering,ꢀdemonstratedꢀbyꢀchangesꢀinꢀspectralꢀprofiles,ꢀincreasedꢀquantumꢀ
yields,ꢀandꢀlifetimeꢀdynamicsꢀexpectedꢀforꢀexcitedꢀstateꢀprotonꢀtransferꢀemitters.ꢀOurꢀfindingsꢀenabledꢀusꢀtoꢀprepareꢀorgan-
ic-basedꢀ substitutionalꢀ solidꢀ solutionsꢀ withꢀ tunableꢀ chromaticityꢀ regulatedꢀ onlyꢀ byꢀ theꢀ initialꢀ amountsꢀ ofꢀ fluorophores.ꢀ
Theseꢀmaterialsꢀemitꢀmulticolorꢀandꢀwhiteꢀlightꢀwithꢀhighꢀquantumꢀyieldsꢀ(~2-14%),ꢀhighꢀcolorꢀrenderingꢀindicesꢀ(>93),ꢀ
longꢀshelfꢀlife,ꢀandꢀsuperbꢀhydrolyticꢀstabilityꢀatꢀambientꢀconditions.ꢀ
ꢀ
ꢀ
Introductionꢀ
matchingꢀ isꢀ aꢀ non-trivialꢀ task.8-9ꢀ Second,ꢀ organicꢀ com-
Multicolorꢀ emissionꢀ inꢀ solutionsꢀ isꢀ aꢀ phenomenonꢀ thatꢀ
poundsꢀ tendꢀ toꢀ formꢀ lowꢀ symmetryꢀ andꢀ unpredictableꢀ
occursꢀ inꢀ aꢀ systemꢀ ofꢀ multipleꢀ emitters,ꢀ whereꢀ theꢀ bulkꢀ
1
0
crystalꢀpackings, ꢀwhichꢀmakesꢀtheirꢀbulkꢀcrystallographicꢀ
characterizationꢀ aꢀ challenge.ꢀ Third,ꢀ asꢀ mentionedꢀ above,ꢀ
mixturesꢀ ofꢀ organicꢀ compoundsꢀ phaseꢀ separateꢀ duringꢀ
crystallization,ꢀsoꢀhomogeneousꢀincorporationꢀofꢀsolutesꢀisꢀ
notꢀ ensured.ꢀDespiteꢀ theseꢀ challenges,ꢀ preparationꢀ ofꢀ or-
ganic-basedꢀSSSꢀwithꢀtunableꢀfluorescenceꢀwouldꢀallowꢀforꢀ
preparingꢀcrystallineꢀmaterialsꢀthatꢀtakeꢀadvantageꢀofꢀtheꢀ
inherentꢀtunabilityꢀofꢀmolecularꢀemitters.ꢀ
fluorescenceꢀ ofꢀ aꢀ solutionꢀ isꢀ theꢀ resultꢀ ofꢀ theꢀ combinedꢀ
emissionꢀ ofꢀ eachꢀ emitter.1-2ꢀ Inꢀ liquidꢀ solutionsꢀ ofꢀ diluteꢀ
organicꢀ fluorophores,ꢀ thisꢀ phenomenonꢀ isꢀ easilyꢀ con-
trolled,ꢀbecauseꢀsolutionsꢀwithꢀexactꢀconcentrationsꢀcanꢀbeꢀ
prepared.ꢀInꢀtheꢀcrystallineꢀsolid-stateꢀ(i.e.,ꢀexcludingꢀpol-
ymerꢀblendsꢀandꢀglasses),ꢀorganic-basedꢀ multicolorꢀ emis-
sionꢀ isꢀ moreꢀ challengingꢀ toꢀ produce,ꢀ becauseꢀ whenꢀ theꢀ
solventꢀ isꢀ removed,ꢀ mixturesꢀ ofꢀ organicꢀ fluorophoresꢀag-
3
-4
gregate, ꢀphaseꢀseparate,ꢀandꢀquench,ꢀproducingꢀhetero-
geneousꢀsolidꢀmixturesꢀwithꢀunpredictableꢀfluorescence.ꢀAꢀ
strategyꢀ toꢀ produceꢀ organic-basedꢀ crystalsꢀ withꢀ tunableꢀ
bulkꢀ multicolorꢀ emissionꢀ isꢀ byꢀ adaptingꢀ theꢀ solid-stateꢀ
chemistryꢀ conceptꢀ ofꢀ substitutionalꢀ solidꢀ solutionsꢀ (SSS).ꢀ
SSSꢀareꢀcrystalsꢀthatꢀformꢀwhenꢀaꢀsoluteꢀatomꢀ(Figureꢀ1a)ꢀ
isꢀincorporatedꢀintoꢀaꢀuniformꢀcrystallineꢀmatrix,ꢀsubstitut-
ingꢀ someꢀ ofꢀtheꢀ matrixꢀatoms,ꢀ soꢀtheꢀ soluteꢀ isꢀ effectivelyꢀ
Multivariateꢀmetal-organicꢀframeworksꢀ(MTVꢀMOFs)ꢀareꢀaꢀ
sub-classꢀofꢀMOFsꢀwhereꢀorganicꢀlinksꢀofꢀvariedꢀfunctional-
izationꢀareꢀincorporatedꢀintoꢀaꢀsingleꢀphaseꢀMOF. ꢀTheseꢀ
11
typesꢀofꢀMOFsꢀareꢀanꢀattractiveꢀplatformꢀforꢀmakingꢀmulti-
colorꢀ emittingꢀ crystalsꢀ becauseꢀ theꢀ crystallineꢀ arrange-
mentꢀofꢀtheꢀorganicꢀlinksꢀisꢀdictatedꢀbyꢀtheꢀstructureꢀofꢀtheꢀ
MOF.ꢀWhenꢀconsideringꢀhigh-symmetryꢀMOFs,ꢀtheꢀorganicꢀ
linksꢀ willꢀ alsoꢀ arrangeꢀ inꢀ aꢀ highꢀ symmetryꢀ environmentꢀ
despiteꢀtheirꢀdifferencesꢀinꢀchemicalꢀfunctionalityꢀ(Figureꢀ
5
dissolvedꢀwithinꢀtheꢀaverageꢀunitꢀcell. ꢀApplicationꢀofꢀthisꢀ
conceptꢀinꢀinorganicꢀmaterialsꢀhasꢀallowedꢀforꢀfine-tunedꢀ
controlꢀofꢀphysicalꢀpropertiesꢀofꢀmaterialsꢀforꢀapplicationsꢀ
1
2
1
b). ꢀHere,ꢀweꢀdemonstrateꢀthatꢀutilizingꢀhigh-symmetryꢀ
multivariateꢀMOFsꢀasꢀmatricesꢀforꢀorganic-basedꢀSSSꢀena-
blesꢀtheꢀpreparationꢀofꢀcrystallineꢀmulticolorꢀemittingꢀma-
terials.ꢀ Byꢀ forcingꢀ theꢀ organicꢀ linksꢀ toꢀ arrangeꢀ inꢀ highꢀ
symmetryꢀenvironments,ꢀ
6
7
suchꢀasꢀlasers ꢀandꢀblueꢀLEDs. ꢀInꢀtheꢀcaseꢀofꢀorganicꢀmate-
rials,ꢀhowever,ꢀtheꢀconceptꢀofꢀpreparingꢀSSSꢀdoesꢀnotꢀgen-
erallyꢀapplyꢀforꢀseveralꢀreasons.ꢀFirst,ꢀunlikeꢀatoms,ꢀorgan-
icꢀmoleculesꢀareꢀnon-spherical,ꢀsoꢀmatrix-dopantꢀ
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 9
ꢀ
TheꢀMOFꢀmatrixꢀutilizedꢀhereꢀconsistsꢀonꢀtheꢀzirconia-typeꢀ
PPPP-PIZOFꢀMOFꢀ(FigureꢀS1),ꢀanꢀinterwovenꢀface-centeredꢀ
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
1
3
cubicꢀnetworkꢀ(spaceꢀgroupꢀFd-3m) ꢀꢀbuiltꢀwithꢀtetrame-
thylꢀ quarterphenyldicarboxylateꢀ (Figureꢀ 1c)ꢀ thatꢀ isꢀ non-
fluorescentꢀ inꢀ theꢀ visibleꢀ region.ꢀ Thisꢀ MOFꢀ typeꢀ isꢀ waterꢀ
stableꢀandꢀallowsꢀ forꢀtheꢀ incorporationꢀ ofꢀ linksꢀ ofꢀ variedꢀ
1
2
nature. ꢀBasedꢀonꢀESPTꢀdyesꢀdesignedꢀbyꢀParkꢀetꢀal.,ꢀtheꢀ
multivariateꢀ linksꢀ areꢀ composedꢀ ofꢀ quarterphenylꢀ chainsꢀ
bearingꢀ 1,2-diarylphenanthro[9,10-d]imidazoleꢀ fluoro-
phores.14-15ꢀThisꢀmoietyꢀwasꢀutilizedꢀasꢀaꢀtemplateꢀforꢀitsꢀ
stabilityꢀtoꢀMOFꢀsyntheticꢀconditions,ꢀhighꢀquantumꢀyield,ꢀ
andꢀeaseꢀofꢀcolorꢀvariabilityꢀthroughꢀsynthesis.ꢀWhenꢀtheꢀ
arylꢀatꢀtheꢀ2ꢀpositionꢀisꢀanꢀo-phenolꢀderivative,ꢀtheꢀdyeꢀcanꢀ
existꢀasꢀanꢀenolꢀorꢀketoꢀtautomerꢀ(Figureꢀ1d)ꢀbyꢀtransfer-
ringꢀtheꢀphenolicꢀprotonꢀtoꢀtheꢀunsubstitutedꢀnitrogenꢀofꢀ
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
16
theꢀimidazoleꢀring. ꢀInꢀtheꢀgroundꢀstate,ꢀtheseꢀdyesꢀexistꢀinꢀ
theꢀ enolꢀtautomer.ꢀ Afterꢀexcitation,ꢀaꢀ protonꢀ transferꢀ canꢀ
occurꢀproducingꢀtheꢀexcitedꢀstateꢀketoꢀformꢀthatꢀinducesꢀaꢀ
largeꢀ apparentꢀ Stokesꢀ shift,ꢀ thatꢀ variesꢀ accordingꢀ toꢀ theꢀ
molecularꢀstructureꢀofꢀtheꢀphenol.ꢀAsꢀsuch,ꢀanꢀunsubstitut-
edꢀphenolꢀhasꢀaꢀsmallꢀshift,ꢀemittingꢀinꢀtheꢀblue,ꢀaddingꢀaꢀ
phenylꢀ groupꢀ shiftsꢀemissionꢀtoꢀgreen,ꢀandꢀ changingꢀtoꢀ aꢀ
naphtholꢀgroupꢀfurtherꢀshiftsꢀemissionꢀtoꢀred.ꢀAfterꢀrelax-
ingꢀviaꢀemission,ꢀtheꢀdyeꢀreadilyꢀrevertsꢀtoꢀtheꢀenolꢀform.ꢀ
ThisꢀlargeꢀapparentꢀStokesꢀshiftꢀisꢀadvantageousꢀforꢀmixedꢀ
fluorophoreꢀ systemsꢀ becauseꢀ itꢀ allowsꢀ forꢀ singleꢀ wave-
lengthꢀexcitationꢀofꢀtheꢀhighꢀenergyꢀꢀ
ꢀ

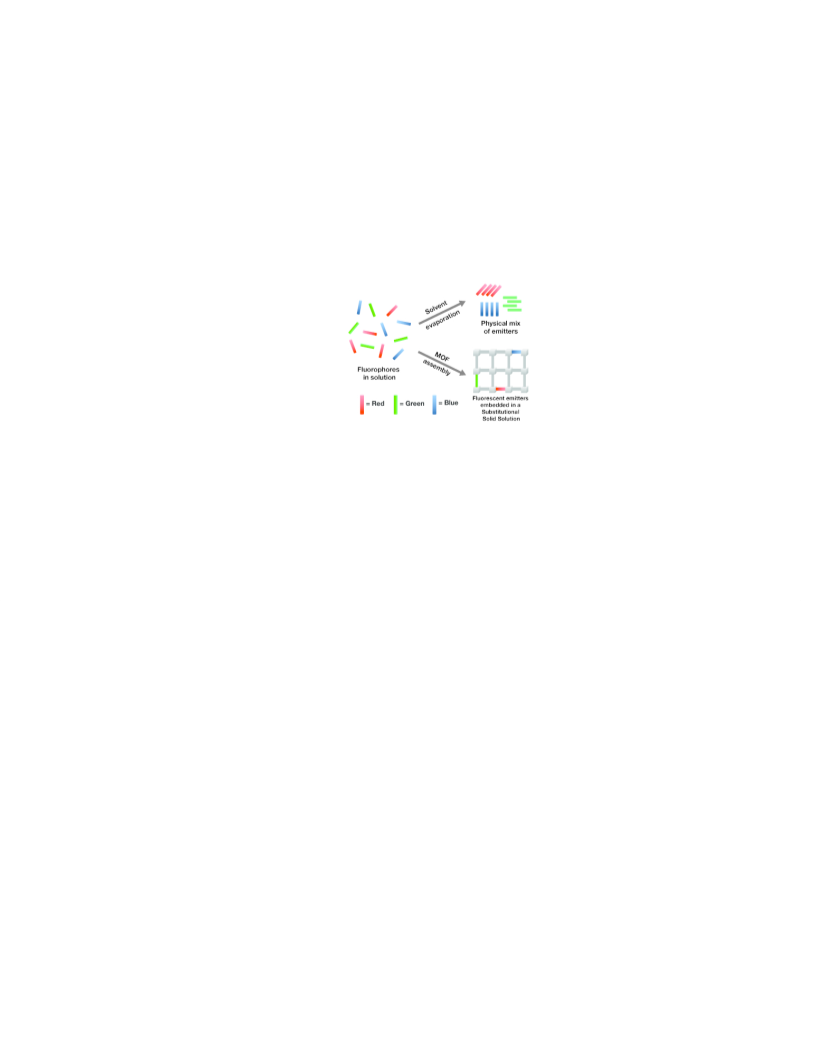

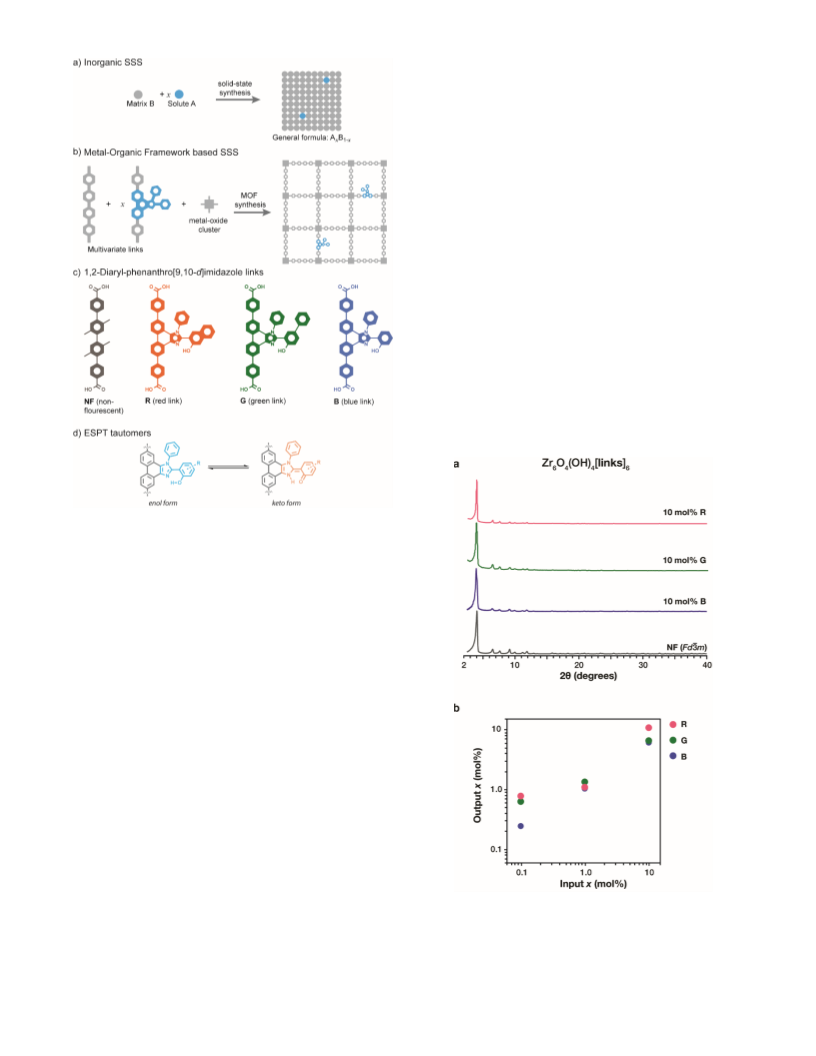

Figure 1 (a) Scheme of inorganic-based substitutional solid solu-
tion (b) Scheme of organic-based substitutional solid solution
formation in MOFs. (c) Organic links used in this study. (d) Ex-
cited state proton transfer (ESPT) enol and keto tautomers.
aꢀhigherꢀlevelꢀofꢀsyntheticꢀcontrolꢀcanꢀbeꢀachieved,ꢀbecauseꢀ
theseꢀMTVꢀMOFsꢀcircumventꢀtheꢀproblemsꢀassociatedꢀwithꢀ
organic-basedꢀSSSꢀ (seeꢀ above).ꢀ Alsoꢀ usingꢀ highꢀ symmetryꢀ
MOFsꢀ(e.g.ꢀcubic)ꢀfacilitatesꢀcrystallographicꢀcharacteriza-
tionꢀviaꢀcrystalꢀsimulationsꢀandꢀpowderꢀdiffractometry.ꢀWeꢀ
demonstrateꢀ thatꢀ incorporationꢀ ofꢀ linksꢀ thatꢀ containꢀred,ꢀ
greenꢀandꢀblueꢀ(RGB)ꢀfluorescentꢀmoietiesꢀ(Figureꢀ1b)ꢀintoꢀ
aꢀnon-fluorescent,ꢀhigh-symmetryꢀMOF,ꢀresultsꢀinꢀtheꢀfor-
mationꢀ ofꢀ fluorescent,ꢀ organic-basedꢀ SSS.ꢀ Theꢀ observedꢀ
organicꢀSSSꢀbehaviorꢀallowsꢀtunableꢀmulticolorꢀemissionꢀinꢀ
bulkꢀcrystalsꢀwithꢀemissiveꢀpropertiesꢀdictatedꢀexclusivelyꢀ
byꢀtheꢀinputꢀconcentrationꢀofꢀRGBꢀfluorophoreꢀlinks,ꢀpro-
ducingꢀmaterialsꢀthatꢀfluoresceꢀwithꢀmanyꢀdifferentꢀcolors,ꢀ
includingꢀ whiteꢀ light,ꢀwithꢀ easy-to-tuneꢀ colorꢀ parametersꢀ
(e.g.ꢀ chromaticityꢀ andꢀwhite-lightꢀ temperature),ꢀandꢀ veryꢀ
highꢀ colorꢀ renderingꢀ indices.ꢀ Theꢀ preparedꢀ materialsꢀ re-
tainꢀ theirꢀ crystallinityꢀ atꢀ roomꢀ temperatureꢀ forꢀ monthsꢀ
underꢀnormalꢀlaboratoryꢀconditions,ꢀandꢀevenꢀafterꢀdirectꢀ
exposureꢀ toꢀ water.ꢀ Weꢀ foundꢀ thatꢀ dilutionꢀ ofꢀ fluorescentꢀ
linksꢀatꢀaroundꢀ1.0ꢀmol%ꢀdisplayedꢀtypicalꢀsolutionꢀbehav-
ior,ꢀ includingꢀ decreasedꢀ innerꢀ filtering,ꢀ highꢀ quantumꢀ
yields,ꢀ tunableꢀ chromaticities,ꢀ excitation-emissionꢀ inde-
pendence,ꢀ concentrationꢀ dependentꢀ energyꢀ transfer,ꢀ asꢀ
wellꢀ asꢀ emissionꢀ phenomenaꢀ expectedꢀ fromꢀ theꢀ fluoro-
phores,ꢀsuchꢀasꢀexcited-stateꢀprotonꢀtransferꢀ(ESPT).ꢀ
Figure 2 (a) Powder X-ray diffraction (PXRD) patterns of NF
and RGB-containing MOFs, indicating their isoreticular nature.
(b) Substitutional input-output plot for 3 sets of single fluorophore
MOFs with x in mol%.
ACS Paragon Plus Environment

Page 3 of 9
Journal of the American Chemical Society
ꢀ
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0

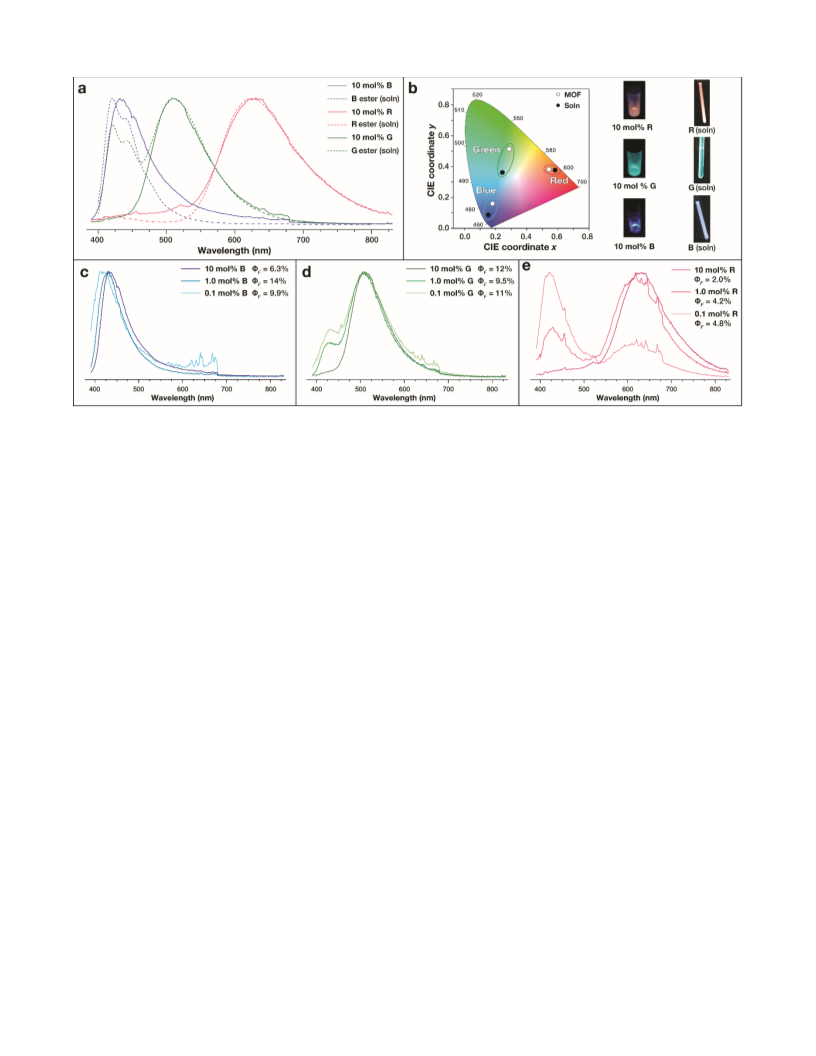

Figure 3 (a) Overlay of toluene-solvated fluorophore esters (compounds S7, S13, and S16, dashed lines) and x = 10 mol% input single
fluorophore MOFs (solid lines). (b) CIE chromaticity coordinates of prepared x = 10 mol% MOFs (open circles) and solvated ester links
(closed circles), and optical image of MOF powders and solvated links under UV light. (c-e) Emission profiles of B, G, and R MOFs, re-
spectively at varied dilution (0.1 ≤ x ≤ 10 mol%) indicating their excited-state lifetimes and quantum yields (λex = 365 nm).
enolꢀ formꢀ andꢀ emissionꢀ fromꢀ theꢀ lowꢀ energyꢀ ketoꢀ formꢀ
withꢀ minimalꢀ spectralꢀ overlap.16-17ꢀFurthermore,ꢀcovalentꢀ
attachmentꢀ ofꢀ diaryl-phenanthroimidazoleꢀ toꢀ theꢀ quater-
phenylꢀlinksꢀensuresꢀthatꢀfluorophoresꢀwillꢀnotꢀdiffuseꢀorꢀ
linksꢀ inꢀ theꢀ SSS,ꢀ previousꢀ workꢀ onꢀ high-symmetryꢀ MTVꢀ
MOFsꢀhasꢀshownꢀthatꢀtheꢀdistributionꢀofꢀtheꢀMTVꢀlinksꢀisꢀ
,ꢀ
highlyꢀdependentꢀonꢀtheꢀdilutionꢀrangeꢀofꢀtheꢀdopantꢀlink. ꢀꢀ
Inꢀourꢀcase,ꢀhighꢀfluorophoreꢀdilutionꢀlikelyꢀresultsꢀinꢀMOFꢀ
18-19
12
leachꢀoutꢀofꢀtheꢀsolid.
ꢀTheꢀSSSꢀwereꢀpreparedꢀusingꢀtheꢀ
withꢀhomogeneousꢀdistribution, ꢀwithꢀtheꢀ10ꢀmol%ꢀMOFsꢀ
2
0
multivariateꢀlinksꢀshownꢀinꢀFigureꢀ1b,ꢀhereinꢀreferredꢀtoꢀasꢀ
NFꢀ(non-fluorescent),ꢀRꢀ(red),ꢀGꢀ(green),ꢀandꢀBꢀ(blue).ꢀꢀꢀ
potentiallyꢀformingꢀalternatingꢀapportionments. ꢀFurtherꢀ
studiesꢀusingꢀmultidimensionalꢀsolid-stateꢀNMRꢀonꢀisotop-
icallyꢀenrichedꢀMOFsꢀwillꢀprovideꢀthisꢀinformation.ꢀNone-
theless,ꢀconsistentꢀandꢀreproducibleꢀfluorescenceꢀwasꢀob-
servedꢀ inꢀ theꢀ bulk,ꢀ indicatingꢀ littleꢀ effectꢀ fromꢀ theꢀ linksꢀ
distribution.ꢀ
ResultsꢀandꢀDiscussionꢀ
CrystallineꢀsingleꢀfluorophoreꢀMOFsꢀofꢀNFꢀwithꢀR,ꢀG,ꢀorꢀBꢀ
producedꢀsolidsꢀsamplesꢀwithꢀformulasꢀZr
,ꢀ Zr (OH) [G ,ꢀ andꢀ Zr (OH)
substitutionalꢀ inputꢀ xꢀ valuesꢀ betweenꢀ 0.10ꢀ andꢀ 10ꢀ mol%ꢀ
SeeꢀSIꢀforꢀmethods).ꢀForꢀsimplicity,ꢀsamplesꢀwithꢀaꢀsingleꢀ
fluorophoreꢀ willꢀ beꢀ referredꢀ toꢀ asꢀ x%-fluorophore,ꢀ i.e.,ꢀ
0%-B,ꢀ10%-G,ꢀandꢀ10%-RꢀforꢀMOFsꢀwithꢀaꢀ10%ꢀfluoro-
6
O
4
(OH)
4
[R
x
NF1-
]
x 6
6
O
4
4
NF1-x]
x 6
6
O
4
4
[B NF1-x]
x 6
ꢀ withꢀ
Despiteꢀ havingꢀ similarꢀ absorptionꢀ profilesꢀ (Figureꢀ S2),ꢀ
uponꢀexcitationꢀatꢀ365ꢀnm,ꢀMOFsꢀmadeꢀwithꢀ10%-R,ꢀ10%-
G,ꢀandꢀ10%-B,ꢀexhibitꢀsolid-stateꢀemissionꢀmaximaꢀatꢀ430,ꢀ
510,ꢀandꢀ630ꢀnmꢀ(Figureꢀ3a),ꢀrespectively,ꢀwithꢀrelativelyꢀ
highꢀ colorꢀ purityꢀ (Figureꢀ 3b).ꢀ Theꢀ emissionꢀ profilesꢀ ofꢀ
theseꢀ MOFsꢀ areꢀ drasticallyꢀ differentꢀ thanꢀ theꢀ neatꢀ solidꢀ
linkersꢀ(FigureꢀS3).ꢀInꢀcontrast,ꢀtheꢀlowꢀenergyꢀketoꢀemis-
sionꢀinꢀtheꢀMOFsꢀcloselyꢀresemblesꢀthatꢀofꢀtheꢀesterꢀformsꢀ
ofꢀ theꢀ RGBꢀ linksꢀ solvatedꢀ inꢀ tolueneꢀ (Figureꢀ 3a,ꢀ dashedꢀ
lines),ꢀ suggestingꢀ thatꢀ theꢀ poreꢀ microenvironmentꢀ ofꢀ theꢀ
MOFꢀ moreꢀ closelyꢀresemblesꢀtheꢀtoluene-solvated,ꢀ ratherꢀ
thanꢀneatꢀsolidsꢀofꢀtheꢀlinker.ꢀꢀ
(
1
phoreꢀ input.ꢀ Allꢀ samplesꢀ wereꢀ preparedꢀ utilizingꢀ sol-
13
vothermalꢀ MOFꢀ crystallizationꢀ conditions ꢀ andꢀ exhibitedꢀ
theꢀ sameꢀ powderꢀ X-rayꢀ diffractionꢀ (PXRD)ꢀ patternꢀ ofꢀ theꢀ
pureꢀNFꢀMOFꢀ(Figureꢀ2a).ꢀPredictableꢀandꢀadjustableꢀlinkerꢀ
incorporationꢀ wasꢀ demonstratedꢀ fromꢀ theꢀ syntheticꢀ in-
put/structuralꢀoutputꢀplotꢀshownꢀinꢀFigureꢀ2bꢀwithꢀoutputꢀ
1
compositionꢀvaluesꢀdeterminedꢀbyꢀsolutionꢀ HꢀNMRꢀofꢀdi-
gestedꢀ MOFꢀ samplesꢀ (Sectionꢀ S6).ꢀ Attemptsꢀ toꢀ prepareꢀ
MOFsꢀ withꢀ higherꢀ fluorophoreꢀcontentꢀ (>10ꢀ mol%)ꢀ wereꢀ
unsuccessful,ꢀ producingꢀ amorphous,ꢀ non-porousꢀ solidsꢀ
withꢀ inconsistentꢀ fluorophoreꢀ content.ꢀ Thisꢀ observationꢀ
indicatesꢀthatꢀtheꢀMOFꢀmatrixꢀhasꢀaꢀlimitedꢀtoleranceꢀforꢀ
stericallyꢀcrowdedꢀlinks.ꢀFurthermore,ꢀitꢀalsoꢀsuggestsꢀthatꢀ
itꢀ isꢀ unlikelyꢀ thatꢀ aꢀ mix-phaseꢀ MOFꢀ compositeꢀ isꢀ formedꢀ
Theꢀfluorophoreꢀmimicsꢀliquid-phaseꢀsolutionꢀbehaviorꢀinꢀ
thatꢀtheꢀRGBꢀlinksꢀshowꢀconcentrationꢀdependentꢀchangesꢀ
inꢀ theꢀ emissionꢀ profilesꢀ forꢀ allꢀ threeꢀ fluorophoreꢀ MOFsꢀ
(Figureꢀ3c-e).ꢀTheseꢀchangesꢀareꢀmostꢀnotableꢀinꢀRꢀandꢀG
ꢀ
containingꢀMOFs,ꢀwhereꢀthereꢀisꢀaꢀgradualꢀincreaseꢀinꢀtheꢀ
highꢀ energyꢀ enolꢀemissionꢀ withꢀ decreasingꢀconcentrationꢀ
andꢀaꢀ shiftꢀ inꢀtheꢀCIEꢀ (Commissionꢀ Internationaleꢀ deꢀ l'E-
clairage)ꢀchromaticityꢀcoordinatesꢀfromꢀtheꢀredꢀandꢀgreenꢀ
(e.g.,ꢀclusteredꢀRGBꢀMOFꢀcrystalsꢀmixedꢀwithꢀpureꢀNFꢀMOFꢀ
crystals).ꢀ Regardingꢀ theꢀ homogeneityꢀ ofꢀ theꢀ fluorescentꢀ
ACS Paragon Plus Environment

Journal of the American Chemical Society
regionsꢀ towardsꢀ theꢀ blueꢀ portionꢀ ofꢀ theꢀ diagramꢀ (Figureꢀ
Page 4 of 9
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
S4).ꢀForꢀBꢀandꢀR,ꢀtheꢀspectralꢀchangesꢀareꢀaccompaniedꢀbyꢀ
anꢀemissionꢀlifetimeꢀandꢀquantumꢀyieldꢀincreaseꢀfromꢀxꢀ=ꢀ
10ꢀtoꢀ1.0ꢀmol%ꢀ(Figureꢀ3cꢀandꢀ3e,ꢀTableꢀS3).ꢀTheseꢀobser-
2
1
vationsꢀ areꢀ consistentꢀ withꢀ anꢀ energyꢀ transferꢀ event ꢀ
whereꢀ spectralꢀ overlapꢀ betweenꢀ enolꢀ emissionꢀ andꢀ enolꢀ
absorptionꢀinhibitsꢀtheꢀhigherꢀenergyꢀlightꢀfromꢀexitingꢀtheꢀ
solid.ꢀAꢀsimilarꢀeffectꢀcanꢀbeꢀobservedꢀinꢀconcentratedꢀso-
lutionsꢀ butꢀ isꢀ presumablyꢀ greatlyꢀ enhancedꢀ byꢀ theꢀ highꢀ
2
2
localꢀconcentrationꢀofꢀtheꢀfluorophoresꢀinꢀtheꢀMOF. ꢀMoni-
toringꢀ theꢀ excitedꢀ stateꢀ dynamicsꢀ inꢀ theꢀ MOFꢀ usingꢀ sub-
nanosecondꢀ transientꢀ absorptionꢀ measurementsꢀ willꢀ beꢀ
necessaryꢀ toꢀ definitivelyꢀ establishꢀ anꢀ energyꢀ transferꢀ
mechanism.ꢀRegardless,ꢀtheꢀsimilarityꢀinꢀlifetimeꢀandꢀquan-
tumꢀyieldꢀbetweenꢀ1.0%-Bꢀandꢀ0.1%-B,ꢀasꢀwellꢀas,ꢀ1.0%-
Rꢀandꢀ0.1%-Rꢀ(Figureꢀ 3cꢀandꢀ3e)ꢀsuggestsꢀthatꢀtheꢀinnerꢀ
filteringꢀ effectꢀ isꢀ minimalꢀ atꢀ concentrationsꢀ ofꢀ xꢀ =ꢀ 1.0ꢀ
mol%.ꢀTheseꢀconcentrationsꢀofꢀfluorophoreꢀresultꢀinꢀMOFsꢀ
withꢀ quantumꢀ yieldsꢀwhichꢀareꢀ upꢀtoꢀanꢀ orderꢀ ofꢀ magni-
tudeꢀgreaterꢀthanꢀpreviouslyꢀpreparedꢀbroadbandꢀemittingꢀ
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
2
3-25
MOFs.
ꢀandꢀareꢀsimilarꢀtoꢀtheꢀsolubleꢀesterꢀformsꢀofꢀtheꢀ
linkersꢀinꢀaꢀtolueneꢀsolutionꢀ(TableꢀS2).ꢀꢀ
Thisꢀdilutionꢀcanꢀbeꢀinterpretedꢀinꢀtermsꢀofꢀmolarꢀconcen-
trationꢀ ofꢀ theꢀ linksꢀ inꢀ theꢀ MOF,ꢀ sinceꢀ [links]maxꢀ =ꢀ 1.34ꢀ Mꢀ
(
singleꢀcrystalꢀanalysisꢀofꢀNFꢀMOFꢀevidencesꢀ48ꢀlinksꢀperꢀ
ꢀ
3
unitꢀcellꢀwithꢀaꢀcellꢀvolumeꢀofꢀ58,400ꢀÅ ,ꢀequivalentꢀtoꢀ1.34ꢀ
mollinksꢀdm ).ꢀAsꢀsuch,ꢀ10%-B,ꢀ1.0%-B,ꢀandꢀ0.1%-Bꢀhaveꢀ

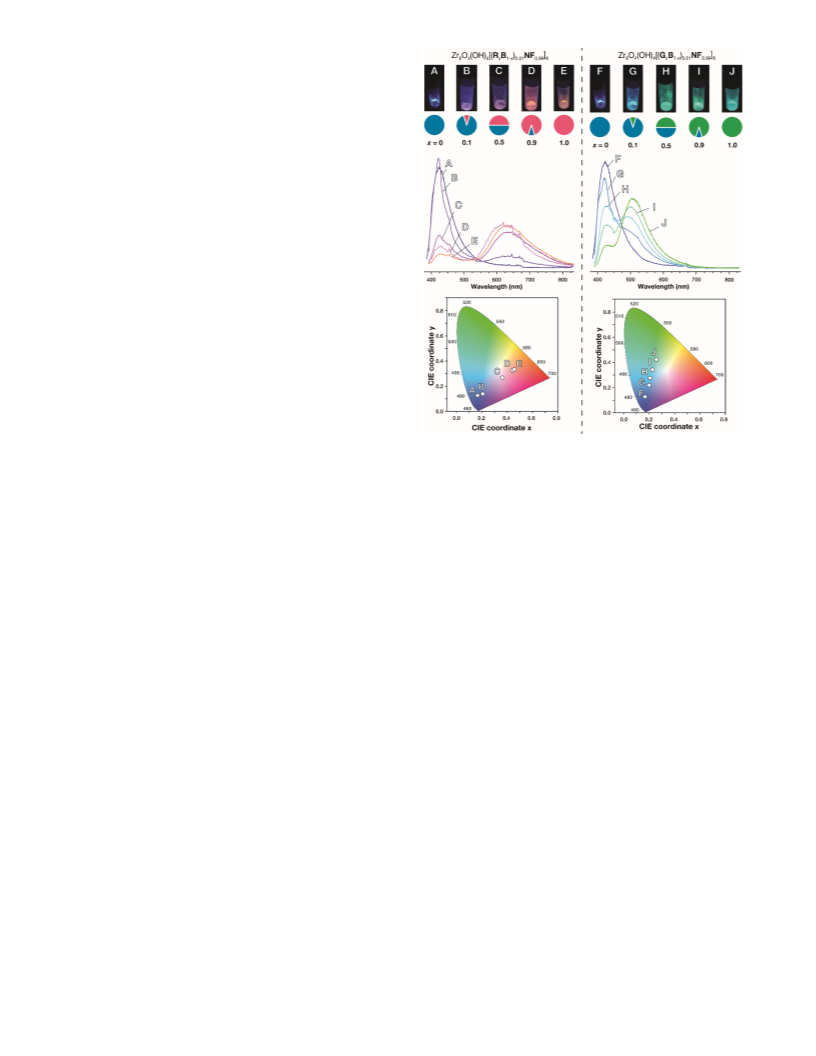

Figure 4 Two component SSS MOFs: (Top) Optical images of
samples under λex = 365 nm indicating their fluorophore composi-
tion, (middle) emission profiles with λex = 365 nm, and (bottom)
CIE chromaticity coordinates of mixtures of R and B (left), and
mixtures of G and B (right).
-3
molarꢀconcentrationsꢀofꢀ[B]ꢀ=ꢀ134ꢀmM,ꢀ13.4ꢀmM,ꢀandꢀ1.34ꢀ
mM,ꢀ respectively.ꢀ Theseꢀ molarityꢀ valuesꢀ forꢀ 1.0%-Bꢀ andꢀ
0.1%-Bꢀ fallꢀ closeꢀ toꢀ aꢀ dilutionꢀ rangeꢀ withꢀ reducedꢀ innerꢀ
filtering,ꢀ andꢀ theꢀ 10%-Bꢀ resemblesꢀ aꢀ concentratedꢀ solu-
tionꢀwhereꢀtheꢀemissionꢀisꢀdominatedꢀbyꢀthisꢀinnerꢀfilter-
ing.ꢀꢀ
Theꢀ three-fluorophoreꢀ systemꢀ withꢀ aꢀ compositionꢀ ofꢀ
Zr (OH) (R NF1-y,ꢀ exhibitedꢀ emissionꢀ profilesꢀ
6
O
4
4
x
G
1-2x x y
B )
thatꢀ dependꢀ onꢀ theꢀtotalꢀ fluorophoreꢀ concentrationꢀ y.ꢀ Asꢀ
expectedꢀforꢀyꢀ=ꢀ0.10,ꢀtheꢀemissionꢀ isꢀ stronglyꢀ dependentꢀ
onꢀ theꢀexcitationꢀ wavelengthꢀ (Figureꢀ S6-8)ꢀandꢀ generallyꢀ
dominatedꢀbyꢀyellowꢀemissionꢀ(Rꢀ+ꢀG)ꢀwithꢀminimalꢀhighꢀ
energyꢀcontributionꢀ (B)ꢀ dueꢀ toꢀ strongꢀ innerꢀ filterꢀ effects.ꢀ
Incorporationꢀ ofꢀ twoꢀ andꢀ threeꢀ fluorophoresꢀ resultedꢀ inꢀ
MOFsꢀthatꢀexhibitꢀ theꢀcombinedꢀemissionꢀ ofꢀeachꢀ fluoro-
phore.ꢀ Forꢀ Zr
6
O
4
(OH)
4
(R
B )
x 1-x y
NF1-y,ꢀ Zr
6
O
4
(OH)
4
(G
B
x 1-
)
x y
NF1-yꢀ withꢀ yꢀ =ꢀ 0.01,ꢀ underꢀ 365ꢀ nmꢀ excitation,ꢀ weꢀ ob-
servedꢀ aꢀ sumꢀ ofꢀ theꢀ individualꢀ componentsꢀ andꢀ aꢀ linearꢀ
transitionꢀfromꢀRꢀtoꢀBꢀorꢀGꢀtoꢀBꢀasꢀxꢀvariesꢀfromꢀ0.9ꢀtoꢀ0.5ꢀ
toꢀ0.1ꢀ(Figureꢀ4).ꢀTheꢀexcitation-emissionꢀmapsꢀ(FigureꢀS5)ꢀ
asꢀwellꢀasꢀCIEꢀcoordinateꢀdiagramsꢀwithꢀrespectꢀtoꢀλexꢀ(Fig-
ureꢀS4)ꢀindicateꢀthatꢀemissionꢀfromꢀtheꢀmixedꢀfluorophoreꢀ
systemsꢀareꢀexcitationꢀwavelengthꢀindependent.ꢀTheꢀaddi-
tiveꢀ natureꢀ ofꢀ theꢀ emissionꢀ profilesꢀ andꢀ theꢀ wavelengthꢀ
independentꢀ CIEꢀ chromaticityꢀ coordinatesꢀ areꢀ consistentꢀ
withꢀminimalꢀenergyꢀtransferꢀinꢀtheꢀyꢀ=ꢀ0.01ꢀMOFs.ꢀConse-
quently,ꢀselectiveꢀcolorꢀgenerationꢀalongꢀtheseꢀaxesꢀcouldꢀ
beꢀachievedꢀbyꢀtuningꢀtheꢀfluorophoreꢀratio.ꢀ
Forꢀ theꢀ Zr
6
O
4
4
(OH) [(R0.33
G
B
0.33 0.33
)
0.10NF0.90] ꢀ MOFꢀ (Figureꢀ
6
S7ꢀandꢀTableꢀS3),ꢀexcitedꢀstateꢀlifetimesꢀforꢀBꢀ(τ460ꢀnmꢀ=ꢀ1.5ꢀ
ns),ꢀGꢀ(τ560ꢀnmꢀ=ꢀ1.8ꢀns),ꢀandꢀRꢀ(τ660ꢀnmꢀ=ꢀ1.9ꢀns)ꢀwereꢀsimilarꢀ
toꢀthatꢀofꢀ10%-Rꢀ(τ660ꢀnmꢀ=ꢀ1.5ꢀns)ꢀbutꢀnotablyꢀshorterꢀthanꢀ
forꢀ10%-Gꢀ(τ560ꢀnmꢀ=ꢀ3.1ꢀns)ꢀandꢀ10%-Bꢀ(τ460ꢀ nmꢀ=ꢀ5.7ꢀns).ꢀ
Theꢀsimilarityꢀinꢀlifetimesꢀofꢀtheꢀthreeꢀpeaksꢀisꢀsymptomat-
icꢀ ofꢀ anꢀ energyꢀtransferꢀequilibriumꢀ conditionꢀ whereꢀ theꢀ
collectiveꢀemissionꢀdecayꢀkineticsꢀareꢀdictatedꢀbyꢀtheꢀemit-
26
terꢀwithꢀtheꢀfastestꢀradiativeꢀdecayꢀrateꢀ(i.e.,ꢀR). ꢀThatꢀis,ꢀBꢀ
energyꢀtransferꢀtoꢀRꢀandꢀG,ꢀGꢀenolꢀenergyꢀtransferꢀtoꢀRꢀandꢀ
B,ꢀ andꢀ Rꢀ enolꢀ energyꢀ transferꢀ toꢀ Gꢀ andꢀ B,ꢀ withꢀ allꢀ theseꢀ
processesꢀoccurringꢀinꢀparallel.ꢀInꢀcontrast,ꢀanꢀoverallꢀfluo-
ꢀ
rescentꢀ
Zr (OH)
.9,ꢀ2.6,ꢀandꢀ1.6ꢀnsꢀforꢀB,ꢀG,ꢀandꢀR,ꢀrespectively,ꢀmoreꢀclose-
linkꢀ
dilutionꢀ
toꢀ
1.0ꢀ
mol%,ꢀ
6
O
4
4
(R0.33
G
0.33
B
0.33
)
0.01NF0.99,ꢀresultedꢀ inꢀ lifetimesꢀ ofꢀ
3
lyꢀresembleꢀtheꢀsingleꢀcomponentꢀsystemsꢀwithꢀnoꢀenergyꢀ
transfer.ꢀꢀꢀ
Theꢀexcitation-emissionꢀmapsꢀ(FigureꢀS5)ꢀshowꢀaꢀdecreaseꢀ
inꢀexcitationꢀwavelengthꢀdependence,ꢀasꢀseenꢀinꢀotherꢀdi-
luteꢀsamples.ꢀAtꢀtheseꢀlowerꢀconcentrationsꢀanꢀincreaseꢀinꢀ
theꢀenolꢀemissionꢀisꢀobserved,ꢀmostꢀstronglyꢀforꢀR,ꢀ whichꢀ
resultsꢀinꢀdeviationsꢀfromꢀtheꢀlinearꢀtrendꢀinꢀtheꢀCIEꢀchro-
ACS Paragon Plus Environment

Page 5 of 9
Journal of the American Chemical Society

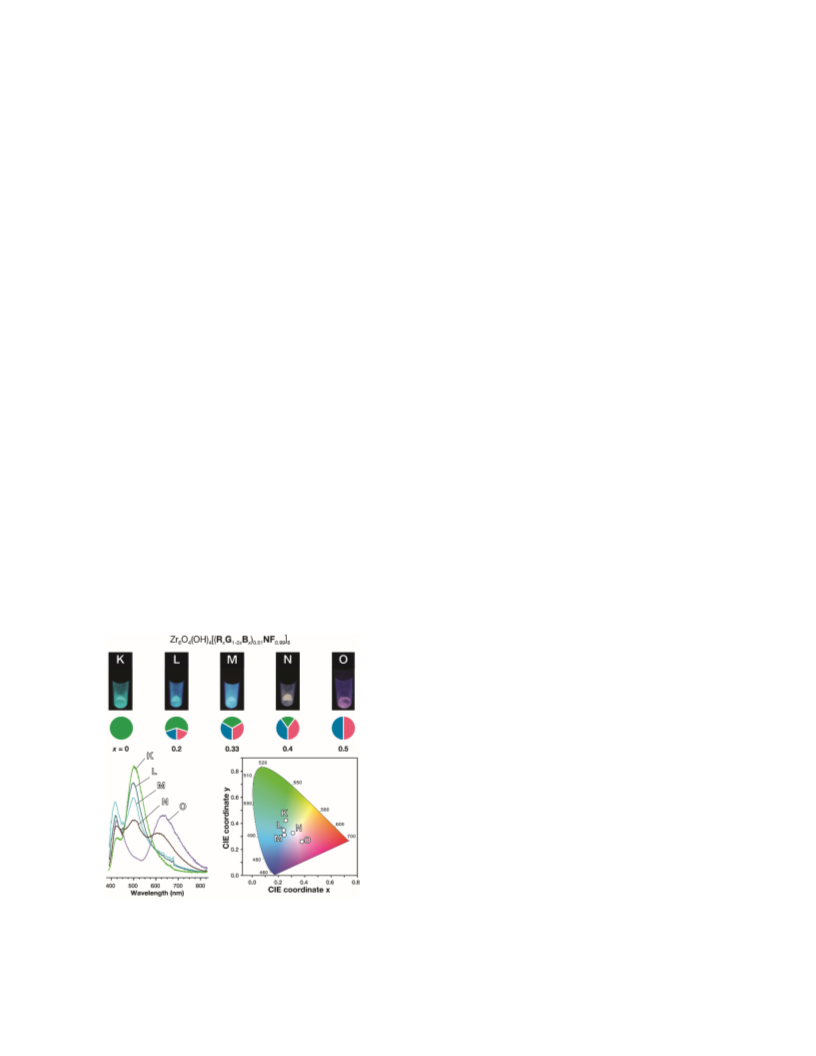

maticityꢀcoordinatesꢀ(pointsꢀLꢀandꢀM,ꢀFigureꢀ5).ꢀOnceꢀtheꢀ
concentrationꢀ ofꢀ Rꢀ isꢀ sufficientlyꢀ increasedꢀ
(Zr (OH) 0.01NF0.99)ꢀ theꢀ lowꢀ energyꢀ ketoꢀ
emissionꢀ becomesꢀ predominantꢀ (Figureꢀ 5,ꢀ pointꢀ N).ꢀ Thisꢀ
sampleꢀ exhibitsꢀ theꢀ combinedꢀ broadbandꢀ emissionꢀ fromꢀ
RGB,ꢀwithꢀCIEꢀchromaticityꢀcoordinatesꢀcloseꢀtoꢀtheꢀcenterꢀ
ofꢀ theꢀ whiteꢀlightꢀregionꢀ (0.31,ꢀ 0.33),ꢀ aꢀ quantumꢀ yieldꢀ ofꢀ
=ꢀ365ꢀnm,ꢀandꢀ(bottomꢀright)ꢀCIEꢀchromaticityꢀcoordinatesꢀ
ofꢀeachꢀsample.ꢀ
1
2
3
4
5
6
7
8
9
O
6 4
4
(R0.4
G
0.2
0.4
B )
AllꢀtheꢀMOFsꢀsynthesizedꢀareꢀporous,ꢀstableꢀtoꢀwater,ꢀhu-
midity,ꢀandꢀupꢀtoꢀ400ꢀºCꢀ(FigureꢀS91),ꢀandꢀalsoꢀcompletelyꢀ
composedꢀofꢀearth-abundantꢀelements.ꢀForꢀexample,ꢀ10%-
Bꢀ andꢀ Zr
6
O
4
(OH)
4
[(R0.33G
0.33
B
0.33
)0.01NF0.99
]
6
ꢀ haveꢀ Brunau-
4.3%,ꢀandꢀaꢀcorrelatingꢀblack-bodyꢀtemperatureꢀofꢀ6480ꢀK.ꢀ
er–Emmett–Tellerꢀ(BET)ꢀsurfaceꢀareasꢀofꢀSBETꢀ=ꢀ1620ꢀandꢀ
2
-1
Thisꢀtemperatureꢀisꢀnearlyꢀidenticalꢀtoꢀthatꢀofꢀnaturalꢀday-
1600ꢀ m ꢀ g ꢀ respectivelyꢀ (Tableꢀ S6).ꢀ Waterꢀ stabilityꢀ inꢀ
10%-Bꢀ wasꢀ demonstratedꢀ byꢀ followingꢀ changesꢀ inꢀ theꢀ
diffractionꢀpatternꢀ(FigureꢀS56)ꢀandꢀBETꢀsurfaceꢀareaꢀbe-
foreꢀandꢀafterꢀexposureꢀtoꢀwaterꢀ(FigureꢀS56-57ꢀandꢀTableꢀ
S6).ꢀ Furthermore,ꢀ theꢀ long-shelfꢀ lifeꢀ ofꢀtheꢀ materialsꢀwasꢀ
demonstratedꢀ byꢀtheꢀ lackꢀ ofꢀchangesꢀ inꢀ theirꢀ PXRDꢀevenꢀ
afterꢀ 10ꢀ monthsꢀ ofꢀ storageꢀ underꢀ laboratoryꢀ conditionsꢀ
(FigureꢀS58ꢀforꢀ10%-B).ꢀꢀ
2
7
lightꢀ(6500ꢀK) ꢀandꢀcanꢀbeꢀadjustedꢀbasedꢀonꢀtheꢀfluoro-
phoreꢀconcentrationꢀ orꢀ theꢀ ratioꢀ ofꢀ theꢀ fluorescentꢀ links.ꢀ
Byꢀincreasingꢀtheꢀoverallꢀconcentrationꢀofꢀtheꢀfluorophoresꢀ
toꢀ 10%ꢀ aꢀ warmerꢀ whiteꢀ lightꢀ canꢀ beꢀ achievedꢀ inꢀ
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Zr
6
O
4
(OH)
4
[(R0.40
G
0.20
B
0.40
)
0.10NF0.90] ꢀ whichꢀ hasꢀ CIEꢀ chro-
6
maticityꢀ coordinatesꢀ ofꢀ (0.43,ꢀ 0.39)ꢀ andꢀ aꢀ correspondingꢀ
temperatureꢀofꢀ3060ꢀK.ꢀAdditionally,ꢀutilizingꢀaꢀtwoꢀcom-
ponentꢀsystem,ꢀtakingꢀadvantageꢀofꢀtheꢀlowꢀconcentrationꢀ
enolꢀemissionꢀfromꢀR,ꢀcoolꢀwhiteꢀlightꢀcanꢀbeꢀachievedꢀinꢀ
Otherꢀmethodsꢀutilizingꢀmetal-organicꢀmaterialsꢀforꢀprepa-
rationꢀofꢀsolid-stateꢀemissionꢀoftenꢀbringꢀsignificantꢀdraw-
Zr
6
O
4
(OH)
4
[(R0.5
G
0.5
)
0.01NF0.99] ꢀ withꢀ CIEꢀ chromaticityꢀ co-
6
backs.ꢀForꢀinstance,ꢀCu I ꢀisꢀaꢀclusterꢀusedꢀtoꢀcreateꢀemis-
4
4
ordinatesꢀofꢀ(0.29,ꢀ0.33)ꢀandꢀaꢀcorrespondingꢀtemperatureꢀ
ofꢀ7820ꢀKꢀ(Figureꢀ S9).ꢀToꢀ ourꢀ knowledge,ꢀthisꢀ isꢀtheꢀ firstꢀ
exampleꢀ ofꢀ crystallineꢀ bulkꢀ materialsꢀ whoseꢀ fluorescentꢀ
propertiesꢀwereꢀadjustedꢀfollowingꢀtheꢀdilutionꢀstrategiesꢀ
usedꢀinꢀliquidꢀphaseꢀfluorescence.ꢀꢀ
siveꢀmaterials,ꢀwhichꢀhasꢀbecomeꢀaꢀgrowingꢀfieldꢀinꢀrecentꢀ
years.ꢀ Theseꢀ materialsꢀ offerꢀ similarꢀ quantumꢀ yieldsꢀ forꢀ
3
0-31
pureꢀ colors,ꢀ ca.ꢀ 9%,
ꢀ butꢀ crystalizeꢀ inꢀ lowꢀ symmetry,ꢀ
ꢀclusterꢀisꢀlessꢀridgedꢀ
unpredictableꢀspaceꢀgroups.ꢀTheꢀCu
I
4 4
comparedꢀtoꢀtheꢀzirconiumꢀcluster,ꢀwhichꢀresultsꢀinꢀclusterꢀ
deformationꢀwhenꢀdifferentꢀligandsꢀareꢀboundꢀcreatingꢀlowꢀ
AsꢀaꢀcomplimentꢀtoꢀtheꢀCIEꢀcoordinates,ꢀtheꢀcolorꢀrender-
ingꢀ indexꢀ (CRI)ꢀ isꢀ aꢀ criticalꢀ parameterꢀ inꢀ describingꢀ howꢀ
faithfullyꢀaꢀlightꢀsourceꢀrepresentsꢀtheꢀtrueꢀcolorꢀofꢀanꢀob-
jectꢀwithꢀaꢀscoreꢀofꢀ100ꢀbeingꢀaꢀsourceꢀidenticalꢀtoꢀstand-
32-33
symmetryꢀ complexꢀ crystalꢀ systems.
ꢀ Otherꢀ emissiveꢀ
materialsꢀincludeꢀMOFsꢀwhereꢀallꢀtheꢀorganicꢀlinksꢀinꢀtheꢀ
3
4
frameworkꢀ areꢀ emissiveꢀ fluorophores. ꢀ Thisꢀ resultsꢀ inꢀ
unpredictableꢀandꢀinefficientꢀfluorescenceꢀdueꢀtoꢀhighꢀin-
nerꢀfilteringꢀeffectsꢀpresentꢀinꢀtheꢀmaterial.ꢀImpregnatingꢀ
MOFsꢀwithꢀfluorescentꢀguestꢀdyesꢀcanꢀproduceꢀmulticolorꢀ
2
8
ardizedꢀdaylight. ꢀTheꢀCRIꢀvaluesꢀforꢀtheꢀaboveꢀwhiteꢀlightꢀ
MOFsꢀwereꢀcalculatedꢀandꢀtheꢀresultsꢀareꢀreportedꢀinꢀTableꢀ
S4.ꢀ
Zr
andꢀ theꢀ twoꢀ componentꢀ R/Gꢀ systemꢀ withꢀ formulaꢀ
Zr (OH) 0.01NF0.99ꢀ hadꢀaꢀCRIꢀ ofꢀ 95.ꢀForꢀcontext,ꢀ
typicalꢀ fluorescentꢀ bulbsꢀ areꢀ aroundꢀ 50ꢀ andꢀ whiteꢀ LEDsꢀ
Remarkably,ꢀ
sampleꢀ
Nꢀ
withꢀ
formulaꢀ
19
6
O
4
(OH)
4
(R0.4
G
0.2
B
0.4
)0.01NF0.99ꢀdemonstratedꢀaꢀCRIꢀ ofꢀ 93ꢀ
emission; ꢀ however,ꢀ guestꢀ diffusionꢀ raisesꢀ questionsꢀ ofꢀ
homogeneityꢀandꢀlong-termꢀstabilityꢀofꢀtheꢀmaterials.ꢀOth-
erꢀ MOF-basedꢀ emissiveꢀ materialsꢀ utilizeꢀ expensiveꢀ rare-
6
O
4
4
(R0.5
0.5
G )
earthꢀelementsꢀtoꢀachieveꢀgreenꢀandꢀredꢀfluorescence,ꢀwithꢀ
quantumꢀ yieldsꢀ rangingꢀ fromꢀ 2-50%;35-37ꢀ yet,ꢀ rare-earthꢀ
2
9
oftenꢀ scoreꢀ >80. ꢀ Theseꢀ resultsꢀ indicateꢀ thatꢀ theꢀ mixedꢀ
emitterꢀMOFsꢀareꢀcapableꢀofꢀbothꢀtunableꢀemissionꢀchro-
maticity,ꢀasꢀwellꢀasꢀaccurateꢀcolorꢀrendition.ꢀꢀ
elementsꢀ areꢀ unsustainable,ꢀ limitingꢀ theirꢀ useꢀ asꢀ appliedꢀ
38
materialsꢀinꢀtheꢀlongꢀterm. ꢀꢀAsꢀsuch,ꢀtheꢀMOFsꢀandꢀmeth-
odologyꢀpresentedꢀhereinꢀoffer:ꢀanꢀeaseꢀofꢀcharacterizationꢀ
dueꢀ toꢀtheꢀ highꢀ symmetryꢀcrystalꢀ system,ꢀtunableꢀ fluoro-
phoreꢀ concentrationꢀ toꢀ achieveꢀ higherꢀ quantumꢀ yieldsꢀ
withꢀ lessꢀ innerꢀ filtering,ꢀ andꢀ usingꢀ earthꢀ abundantꢀ ele-
ments.ꢀ
Conclusionsꢀ
Applyingꢀ theꢀ conceptꢀ ofꢀ SSSꢀ toꢀ organic-basedꢀ materialsꢀ
wasꢀaccomplishedꢀusingꢀhighꢀsymmetryꢀMOFsꢀasꢀmatrices.ꢀ
Thisꢀapproachꢀallowsꢀforꢀcircumventionꢀofꢀcommonꢀchal-
lengesꢀassociatedꢀwithꢀemissiveꢀMOFsꢀ including:ꢀ highꢀ in-
nerꢀ filteringꢀ effectsꢀ thatꢀ causeꢀ complexꢀ emission,ꢀ dueꢀ toꢀ
highꢀ fluorophoreꢀ concentration,ꢀ andꢀ highꢀ syntheticꢀ costsꢀ
dueꢀtoꢀinclusionꢀofꢀlanthanides.ꢀThisꢀapproachꢀwillꢀfurtherꢀ
enableꢀtheꢀabilityꢀtoꢀstudyꢀotherꢀsimilarꢀorganic-basedꢀmo-
lecularꢀ phenomenaꢀ inꢀ solids,ꢀ andꢀ canꢀ provideꢀ organic-
basedꢀSSSꢀmaterialsꢀforꢀhighꢀprecisionꢀapplicationsꢀsuchꢀasꢀ
inꢀphotonicꢀdevices,ꢀandꢀhigh-definitionꢀdisplays.ꢀꢀ
Figureꢀ5ꢀThreeꢀcomponentꢀSSSꢀMOFs:ꢀ(Top)ꢀOpticalꢀimag-
esꢀofꢀsamplesꢀunderꢀλexꢀ=ꢀ365ꢀnmꢀindicatingꢀtheirꢀfluoro-
ASSOCIATED CONTENT
SupportingꢀInformation.ꢀMaterialsꢀandꢀmethods,ꢀfullꢀmateri-
alsꢀandꢀphotophysicalꢀcharacterization,ꢀsingleꢀcrystalꢀcrystal-
phoreꢀcomposition,ꢀ(bottomꢀleft)ꢀemissionꢀprofilesꢀwithꢀλex
ꢀ
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 9
lographicꢀ informationꢀ file.ꢀ Thisꢀ materialꢀ isꢀ availableꢀ freeꢀ ofꢀ
chargeꢀviaꢀtheꢀInternetꢀatꢀhttp://pubs.acs.org.ꢀ
13. Lippke, J.; Brosent, B.; von Zons, T.; Virmani, E.; Lilienthal,
S.; Preuße, T.; Hülsmann, M.; Schneider, A. M.; Wuttke, S.;
Behrens, P.; Godt, A., Expanding the group of porous
interpenetrated Zr-organic frameworks (PIZOFs) with linkers of
different lengths. Inorganic Chemistry 2017, 56 (2), 748-761.
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
AUTHOR INFORMATION
Corresponding Author
14. Nayak, M. K., Synthesis, characterization and optical
properties of aryl and diaryl substituted phenanthroimidazoles.
Journal of Photochemistry and Photobiology A: Chemistry 2012,
241, 26-37.
15. Park, S.; Kwon, J. E.; Park, S. Y., Strategic emission color
tuning of highly fluorescent imidazole-based excited-state
intramolecular proton transfer molecules. Physical Chemistry
Chemical Physics 2012, 14 (25), 8878-8884.
16. Kwon, J. E.; Park, S.; Park, S. Y., Realizing molecular pixel
system for full-color fluorescence reproduction: RGB-emitting
molecular mixture free from energy transfer crosstalk. Journal of
the American Chemical Society 2013, 135 (30), 11239-11246.
fernando@ucf.edu,ꢀandꢀhanson@chem.fsu.eduꢀꢀ
Author Contributions
Theꢀmanuscriptꢀwasꢀwrittenꢀthroughꢀcontributionsꢀofꢀallꢀau-
thors.ꢀAllꢀauthorsꢀhaveꢀgivenꢀapprovalꢀtoꢀtheꢀfinalꢀversionꢀofꢀ
theꢀmanuscript.ꢀꢀ
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
Funding Sources
Synthesisꢀofꢀmaterialsꢀ(CHE-1665257,ꢀFJU-R)ꢀandꢀPhotophysi-
calꢀmeasurementsꢀ(CHE-1531629,ꢀKH)ꢀwereꢀsupportedꢀbyꢀtheꢀ
NationalꢀScienceꢀFoundation.ꢀ
ꢀ
1
7. Kwon, J. E.; Park, S. Y., Advanced organic optoelectronic
materials: harnessing excited-state intramolecular proton transfer
ESIPT) process. Advanced Materials 2011, 23 (32), 3615-3642.
8. Han, S.; Wei, Y.; Valente, C.; Lagzi, I.; Gassensmith, J. J.;
(
1
ACKNOWLEDGMENTS
Coskun, A.; Stoddart, J. F.; Grzybowski, B. A., Chromatography
in a single metal−organic framework (MOF) crystal. Journal of
the American Chemical Society 2010, 132 (46), 16358-16361.
19. Ullman, A. M.; Brown, J. W.; Foster, M. E.; Léonard, F.;
Leong, K.; Stavila, V.; Allendorf, M. D., Transforming MOFs for
Energy Applications Using the Guest@MOF Concept. Inorganic
Chemistry 2016, 55 (15), 7233-7249.
Weꢀ wouldꢀ likeꢀ toꢀ thankꢀ Dr.ꢀ Markꢀ Maricꢀ (UCF)ꢀ forꢀ technicalꢀ
assistanceꢀandꢀDr.ꢀTitelꢀJurcaꢀ(UCF)ꢀforꢀhelpfulꢀdiscussions.ꢀꢀ
REFERENCES
1
. Görl, D.; Zhang, X.; Würthner, F., Molecular Assemblies of
Perylene Bisimide Dyes in Water. Angewandte Chemie
International Edition 2012, 51 (26), 6328-6348.
2. Huo, S.; Duan, P.; Jiao, T.; Peng, Q.; Liu, M., Self-Assembled
Luminescent Quantum Dots To Generate Full-Color and White
Circularly Polarized Light. Angewandte Chemie International
Edition 2017, 56 (40), 12174-12178.
20. Kong, X.; Deng, H.; Yan, F.; Kim, J.; Swisher, J. A.; Smit, B.;
Yaghi, O. M.; Reimer, J. A., Mapping of Functional Groups in
Metal-Organic Frameworks. Science 2013, 341 (6148), 882-885.
21. Valeur, B., Molecular fluorescence. 1 ed.; Wiley-VCH:
Weinheim, Germany, 2002.
3
. Ryu, J.-H.; Hong, D.-J.; Lee, M., Aqueous self-assembly of
aromatic rod building blocks. Chemical Communications 2008,
9), 1043-1054.
22. Zhao, J.; Ji, S.; Chen, Y.; Guo, H.; Yang, P., Excited state
intramolecular proton transfer (ESIPT): from principal
photophysics to the development of new chromophores and
applications in fluorescent molecular probes and luminescent
materials. Physical Chemistry Chemical Physics 2012, 14 (25),
8803-8817.
23. He, J.; Zeller, M.; Hunter, A. D.; Xu, Z., White Light
Emission and Second Harmonic Generation from Secondary
Group Participation (SGP) in a Coordination Network. Journal of
the American Chemical Society 2012, 134 (3), 1553-1559.
(
4. Kaeser, A.; Schenning, A. P. H. J., Fluorescent Nanoparticles
Based on Self-Assembled π-Conjugated Systems. Advanced
Materials 2010, 22 (28), 2985-2997.
5
. West, A. R., "Solid solutions" in solid state chemistry and its
applicatins Wiley and Sons: 1984.
6
1
7
. Maiman, T. H., Stimulated optical radiation in ruby. Nature
960, 187 (4736), 493-494.
. Nakamura, S.; Mukai, T.; Senoh, M., Candela-class high-
24. Haider, G.; Usman, M.; Chen, T.-P.; Perumal, P.; Lu, K.-L.;
brightness InGaN/AlGaN double-heterostructure blue-light-
emitting diodes. Applied Physics Letters 1994, 64 (13), 1687-
Chen, Y.-F., Electrically Driven White Light Emission from
Intrinsic Metal–Organic Framework. ACS Nano 2016, 10 (9),
8366-8375.
1
8
689.
. Desiraju, G. R., Crystal engineering: from molecule to crystal.
25. Qu, M.; Li, H.; Zhao, Y.; Zhang, X.-M., Single-Component
Journal of the American Chemical Society 2013, 135 (27), 9952-
Color-Tunable Gd(pic)3: Eu3+ Phosphor Based on a Metal–
Organic Framework for Near-UV White-Light-Emitting Diodes.
ACS Omega 2019, 4 (2), 3593-3600.
9
9
967.
. Zhen, Y.; Tanaka, H.; Harano, K.; Okada, S.; Matsuo, Y.;
Nakamura, E., Organic Solid Solution Composed of Two
Structurally Similar Porphyrins for Organic Solar Cells. Journal
of the American Chemical Society 2015, 137 (6), 2247-2252.
26. Zhou, C.; Yuan, L.; Yuan, Z.; Doyle, N. K.; Dilbeck, T.;
Bahadur, D.; Ramakrishnan, S.; Dearden, A.; Huang, C.; Ma, B.,
Phosphorescent Molecular Butterflies with Controlled Potential-
Energy Surfaces and Their Application as Luminescent Viscosity
Sensor. Inorganic Chemistry 2016, 55 (17), 8564-8569.
1
0. Price, S. L., Control and prediction of the organic solid state: a
challenge to theory and experiment. Proceedings of the Royal
Society A: Mathematical, Physical and Engineering Sciences
27. Judd, D. B.; MacAdam, D. L.; Wyszecki, G.; Budde, H. W.;
2
018, 474 (2217), 20180351.
Condit, H. R.; Henderson, S. T.; Simonds, J. L., Spectral
Distribution of Typical Daylight as a Function of Correlated Color
Temperature. J. Opt. Soc. Am. 1964, 54 (8), 1031-1040.
1
1. Deng, H.; Doonan, C. J.; Furukawa, H.; Ferreira, R. B.;
Towne, J.; Knobler, C. B.; Wang, B.; Yaghi, O. M., Multiple
functional groups of varying ratios in metal-organic frameworks.
Science 2010, 327 (5967), 846-850.
28. Method of measuring and specifying colour rendering
properties of light sources. CIE Central Bureau: Austria:
Commission internationale de l'éclairage, 1995.
1
2. Schrimpf, W.; Jiang, J.; Ji, Z.; Hirschle, P.; Lamb, D. C.;
Yaghi, O. M.; Wuttke, S., Chemical diversity in a metal–organic
framework revealed by fluorescence lifetime imaging. Nature
Communications 2018, 9 (1), 1647.
29. Color Rendering Index For White Light Sources.
http://www.architecturalssl.com/sslinteractive/media/256/ArchLE
D%20CRI_CQS%20mark.pdf (accessed 6-16-2019).
ACS Paragon Plus Environment

Page 7 of 9
Journal of the American Chemical Society
3
0. Liu, G.-N.; Zhao, R.-Y.; Xu, R.-D.; Zhang, X.; Tang, X.-N.;
Dan, Q.-J.; Wei, Y.-W.; Tu, Y.-Y.; Bo, Q.-B.; Li, C., A Novel
Tetranuclear Copper(I) Iodide Metal–Organic Cluster
Cu (Ligand) ] with Highly Selective Luminescence Detection of
Antibiotic. Crystal Growth & Design 2018, 18 (9), 5441-5448.
1. Lapprand, A.; Dutartre, M.; Khiri, N.; Levert, E.; Fortin, D.;
Rousselin, Y.; Soldera, A.; Jugé, S.; Harvey, P. D., Luminescent
P-Chirogenic Copper Clusters. Inorganic Chemistry 2013, 52
(14), 7958-7967.
1
2
3
4
5
6
7
8
9
[
4
I
4
5
3
32. Yu, Y.-D.; Meng, L.-B.; Chen, Q.-C.; Chen, G.-H.; Huang,
X.-C., Substituent regulated photoluminescent thermochromism
in a rare type of octahedral Cu
Chemistry 2018, 42 (11), 8426-8437.
3. Hu, G.; Mains, G. J.; Holt, E. M., Correlation of structure and
emission in solid state copper(I) complexes; [Cu (CH CN) (L) ],
4
I
4
clusters. New Journal of
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
3
4
I
4
3
2
2
L = aniline derivative. Inorganica Chimica Acta 1995, 240 (1),
559-565.
3
4. Cornelio, J.; Zhou, T.-Y.; Alkaş, A.; Telfer, S. G., Systematic
tuning of the luminescence output of multicomponent metal–
organic frameworks. Journal of the American Chemical Society
2
018, 140 (45), 15470-15476.
3
5. White, K. A.; Chengelis, D. A.; Gogick, K. A.; Stehman, J.;
Rosi, N. L.; Petoud, S., Near-infrared luminescent lanthanide
MOF barcodes. Journal of the American Chemical Society 2009,
131 (50), 18069-18071.
3
6. Cui, Y.; Yue, Y.; Qian, G.; Chen, B., Luminescent Functional
Metal–Organic Frameworks. Chemical Reviews 2012, 112 (2),
1
3
126-1162.
7. White, K. A.; Chengelis, D. A.; Zeller, M.; Geib, S. J.;
Szakos, J.; Petoud, S.; Rosi, N. L., Near-infrared emitting
ytterbium metal–organic frameworks with tunable excitation
properties. Chemical Communications 2009, (30), 4506-4508.
3
8. McLellan, B. C.; Corder, G. D.; Golev, A.; Ali, S. H.,
Sustainability of the Rare Earths Industry. Procedia
Environmental Sciences 2014, 20, 280-287.
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 9
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
For Table of Contents Onlyꢀ
8
ACS Paragon Plus Environment

Page 9 of 9
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
6
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
1
2
3
4
5
6
7
8
9
0
TOC
ACS Paragon Plus Environment
