Group 12 dithiocarbamate complexes: Synthesis, characterization, and X-ray crystal structures of Zn(II) and Hg(II) complexes and their use as precursors for metal sulphide nanoparticles

Article abstract of DOI:10.1080/15533174.2015.1137589

Zn(II), Cd(II), and Hg(II) dithiocarbamate complexes were synthesize and characterized by elemental analysis, thermogravimetric analysis, UV-Vis, FTIR, and¹H- and¹³C-NMR spectroscopy. Single-crystal X-ray crystallography revealed that the Zn complex has a centrosymmetric dimeric structure while the Hg complex crystallizes with two monomeric molecules of the mercury complex and two molecules of toluene solvent in the asymmetric unit. The compounds were used as single molecule precursors to synthesize HDA capped metal sulfides nanoparticles with average crystallite size ranging from 7 to 22 nm. The optical properties of the nanoparticles showed evidence of quantum confinement.

Full text of DOI:10.1080/15533174.2015.1137589

Synthesis and Reactivity in Inorganic, Metal-Organic, and
Nano-Metal Chemistry
ISSN: 1553-3174 (Print) 1553-3182 (Online) Journal homepage: http://www.tandfonline.com/loi/lsrt20
Group 12 dithiocarbamate complexes: Synthesis,
characterization and X-ray crystal structures
of Zn(II) and Hg(II) complexes and their use as
precursors for metal sulfide nanoparticles
Peter A. Ajibade, Johannes Z. Mbese & Bernard Omondi
To cite this article: Peter A. Ajibade, Johannes Z. Mbese & Bernard Omondi (2016): Group
12 dithiocarbamate complexes: Synthesis, characterization and X-ray crystal structures
of Zn(II) and Hg(II) complexes and their use as precursors for metal sulfide nanoparticles,
Synthesis and Reactivity in Inorganic, Metal-Organic, and Nano-Metal Chemistry, DOI:
10.1080/15533174.2015.1137589
To link to this article: http://dx.doi.org/10.1080/15533174.2015.1137589
Accepted author version posted online: 27
May 2016.
Published online: 27 May 2016.
Submit your article to this journal
Article views: 1
View related articles
View Crossmark data
Full Terms & Conditions of access and use can be found at
http://www.tandfonline.com/action/journalInformation?journalCode=lsrt20
Download by: [University of Nebraska, Lincoln]
Date: 30 May 2016, At: 00:48

ACCEPTED MANUSCRIPT
Group 12 dithiocarbamate complexes: Synthesis, characterization and X-ray crystal structures of
Zn(II) and Hg(II) complexes and their use as precursors for metal sulfide nanoparticles
*,a
a
b
Peter A. Ajibade , Johannes Z. Mbese , Bernard Omondi
a
Department of Chemistry, University of Fort Hare, Private Bag X1314, Alice 5700, South
Africa
b
School of Chemistry, University of KwaZulu-Natal, Westville Campus, Private Bag X54001,
Durban 4000, South Africa
*
Corresponding author. E-Mail: pajibade@ufh.ac.za
Abstract
Zn(II), Cd(II) and Hg(II) dithiocarbamate complexes were synthesize and characterized by
1
13
elemental analysis, thermogravimetric analysis, UV-Vis, FTIR, H- and C-NMR spectroscopy.
Single crystal X-ray crystallography revealed that the Zn complex has a centrosymmetric dimeric
structure while the Hg complex crystallizes with two monomeric molecules of the mercury
complex and two molecules of toluene solvent in the asymmetric unit. The compounds were
used as single molecule precursors to synthesize HDA capped metal sulfides nanoparticles with
average crystallite size ranging from 7-22 nm. The optical properties of the nanoparticles showed
evidence of quantum confinement.
Keywords
Dithiocarbamates; crystal structures; metal sulfides; chalcogenides; nanoparticles.
1
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
INTRODUCTION
Semiconductor nanoparticles have been of particular interest because of their size-dependent
properties as compared to those of bulk materials [1-5]. Metal sulfide nanoparticles are important
compound semiconductor with wide ranging properties and applications [6, 7]. For example,
ZnS is a group II–VI semiconductor with a wide direct band gap of about 3.65 eV depending on
the crystalline phase (cubic or wurtzite). They have found practical applications in optoelectronic
devices operating in the region from visible to near infrared such as optical coatings, solar cells,
lasers, electro-optic modulators, photoconductors, field effect transistors, sensors, transductors
and photonic crystal devices [8-18].
Among group II–VI semiconductor, CdS has been widely studied and has a direct band gap of
2
.42 eV [19-22]. It has potential technological applications similar to those of ZnS [23, 24]. HgS
is a technologically important nanocrystalline which has pronounced dichorism, photoelectric,
acousto-optic properties and electrostatic image properties. Despite these applications of HgS
nanoparticles, relatively scarce studies are available due to difficulty in synthesis and being
extremely toxic. In this study, we present the synthesis and characterization of Zn(II), Cd(II) and
Hg(II) dithiocarbamate complexes and their use as single source precursors [25-28] to synthesize
ZnS, CdS and HgS nanoparticles. The complexes were characterized by analytical and
spectroscopy techniques and the Zn(II) and Cd(II) complexes were characterized by single
crystals X-ray crystallography. The optical and structural properties of the resulting nanocrystals
were studied with optical absorption and emission spectroscopy, powder X-ray diffraction
(XRD), transmission electron microscopy (TEM), scanning electron microscopy (SEM) and
energy dispersive X-ray spectroscopy (EDS).
2
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
EXPERIMENTAL
Materials and physical measurements
All chemicals and reagents were of analytical grade and used as obtained without further
1
purification. The ammonium salt of the ligands, N-phenyldithiocarbamate (L ) and N-ethyl-N-
2
phenyldithiocarbamate (L ) were prepared using modified literature method [29]. Elemental
analysis was carried out on Fission elemental analyser. FTIR on Bruker Tensor 27 and NMR
spectra were recorded on Bruker ultrasheild 400 NMR spectrometer operating at frequencies of
1
13
4
00.1 MHz for H and 100.6 MHz for C nuclei. The thermogravimetric analysis was performed
using on Perkin Elmer thermogravimetric analyzer (TGA 7) fitted with a thermal analysis
○
-1
controller (TAC 7/DX). A flow of nitrogen was maintained with a heating rate of 10 C min
○
between ambient temperature and 900 C using about 10-16 mg mass of each samples.
Perkin Elmer Lambda 25 UV–Vis spectrophotometer and LS 45 fluorimeter was used to measure
the optical properties. Powder X-ray diffraction patterns were recorded on Bruker-D8 advance
powder X-Ray diffractometer instrument operating at a voltage of 40 kV and a current of 30 mA
with Cu Kα radiation. The X-ray diffraction data were analysed using EVA (evaluation curve
fitting) software and the phase identification was done with standard in JCPDS database. The
transmission electron microscopy (TEM) images were obtained using a ZEISS Libra 120
electron microscope operated at 120 kV. The samples were prepared by placing a drop of a
solution of the sample in toluene on a carbon coated copper grid (300 mesh, agar). Images were
recorded on a mega view G2 camera using iTEM Olympus software. The scanning electron
microscopy (SEM) images were obtained on a Joel, JSM-6390 LV apparatus, using an
accelerating voltage between 15-20 kV at different magnifications. Energy dispersive spectra
3
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
were processed using energy dispersive X-ray analysis (EDS) attached to a Joel, JSM-6390 LV
SEM with Noran system Six software.
1
Synthesis of ammonium N-phenyldithiocarbamate, NH [C H (H)NCS ], L
4
6
5
2
This compound was prepared by a modified literature method [29]. In a typical experiment, 30
mL concentrated ammonium hydroxide was added slowly to 9.13 mL (0.1 mol) aniline in an ice
cold mixture at 0-5°C. To this mixture, 6.04 mL (0.1 mol) of carbon disulfide was added drop-
wise with constant stirring for 1 hour in an ice bath and another 1 hour at room temperature. The
resulting yellowish solid obtained was filtered by suction and rinsed three times with cold
ethanol. The product is air and thermally unstable.
2
Synthesis of ammonium N-ethyl-N-phenyldithiocarbamate, NH [C H (C H )NCS ], L
4
6
5
2
5
2
The ligand was prepared according to a reported procedure [29]. To a mixture of 12.88 mL
0.1mol) of N-ethyl aniline and concentrated aqueous ammonia (30 mL) in ice, was added 6.00
(
mL (0.1 mol) of ice cold carbon disulfide. The yellowish green liquid mixture was stirred for 6-7
h given yellowish white solid product which was filtered by suction and rinsed three times with
cold ethanol given thermally unstable, moisture and air-sensitive, ammonium salt of N-ethyl-N-
phenyldithiocarbamate which was stored in the refrigerator.
Synthesis of metal dithiocarbamate complexes
1
2
Equimolar (1.25 mmol) concentration of ligands L and L dissolved in 30 mL of water was
added to 1.25 mmol of the metal salt, MCl [M = Zn, Cd, Hg] in 25 mL of water. The reaction
2
mixture was stirred for 1 h at room temperature and the products filtered, washed with water and
dried in vacuo.
1
2
o
ZnL L . Complex was obtained as white solid. Yield: 1.90 g (90 %), m.p. 190-210 C.
4
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
1
H NMR (DMSO) δ 7.45‒7.25 (m, 8H, –C H ), 3.36 (s, 2H, –CH ), 1.15, 1.13, 1.12 (3H, –
6
5
2
13
CH ). C NMR (DMSO) δ 144.93, 129.22, 128.48, 127.85, 126.96 (–C H ), 53.46 (–CH ), 12.12
3
6
5
2
-
1
(
–CH ), 206.33 (–CS )Selected IR, (cm ): 1500 v(C=N), 1248 (C ‒N), 900, 1020, 1063 (C=S).
3
2
2
Anal. Calc. for C H N S Zn (427.95): C, 44.87; H, 3.77; N, 6.54; S, 29.88. Found: C, 44.85; H,
1
6
16
2 4
1
2
3
.76; N, 6.52. Recrystallization of complex, ZnL L in toluene solvent gave colourless single
,
crystals suitable for X-ray analysis.
1
2
o
CdL L . Complex was obtained as yellow solid. Yield: 2.43 g (98 %), m.p. 200-210 C.
1
H NMR (DMSO) δ 7.43‒7.23 (m, 8H, –C H ), 3.35 (s, 2H, –CH ), 1.17, 1.15, 1.14 (3H, –
6
5
2
13
CH ). C NMR (DMSO) δ 146.02, 129.15, 127.58, 126.88 (–C H ), 54.69 (–CH ), 12.13 (–CH ),
3
6
5
2
3
-1
2
07.60 (–CS ). Selected IR, (cm ): 1467 v(C=N), 1189 (C ‒N), 980, 995, 1001 (C=S).
2 2
Anal. Calc. for C H N S Cd (476.97): C, 40.17; H, 3.37; N, 5.86; S, 26.76. Found: C, 40.24; H,
1
6
16
2 4
1
2
3
.74; N, 5.70. Recrystallization of complex, CdL L in toluene solvent gave colourless single
,
crystals suitable for X-ray analysis.
1
2
o
HgL L . Complex was obtained as black solid. Yield: 2.63 g (93 %), m.p. 150-160 C.
1
13
H NMR (DMSO) δ 7.46–7.22 (m, 10H, –C H ), 3.35 (s, –CH ). C NMR (DMSO) δ 129.55,
6
5
3
1
28.65, 127.78, 126.57 (–C H ), 54.69 (–CH ), 11.89 (–CH ), 208.30 (–CS )
6 5 2 3 2
-1
Selected IR, (cm ): 1432 v(C=N), 1289 (C ‒N), 909, 1009, 1012, 1020, 1080 (C=S)
2
Anal. Calc. for C H N S Hg (565.17): C, 39.92; H, 2.85; N, 4.95; S, 22.60. Found: C, 33.90; H,
1
6
16
2 4
1
2
2
.85; N, 4.93. Recrystallization of complex, HgL L in toluene solvent gave colourless single
,
crystals suitable for X-ray analysis.
X-ray crystallography
5
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Crystals
of

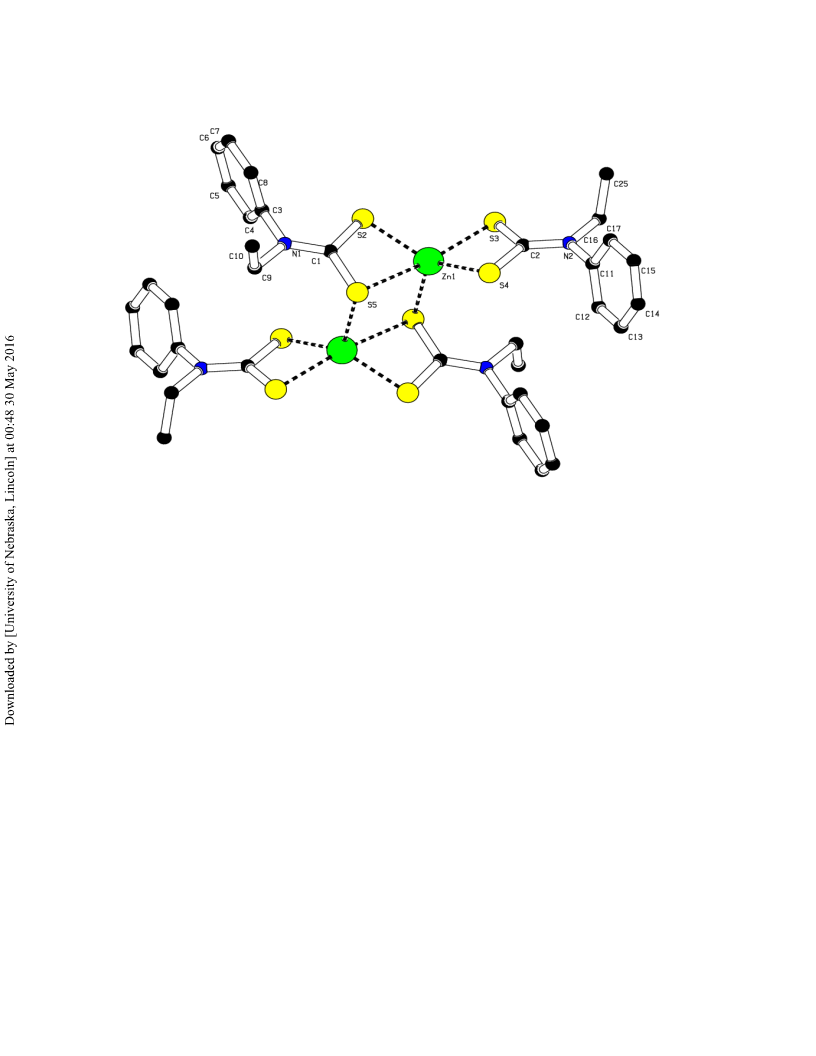

bis(μ -N-ethyl-N-phenyldithiocarbamato-S,S:S’)-bis(N-Ethyl-N-
2
phenyldithiocarbamato-S,S’)-di-zinc(II) suitable for single crystal X-ray diffraction studies were
grown by slow evaporation of the solutions of the compounds in dry CH Cl were layered with a
2
2
fourfold of excess diethyl ether and allowed to stand undisturbed in the dark at room temperature
for 24 h. Crystals of the two polymorphs were selected and glued on to the tip of glass fibers.
The crystals were then mounted in a stream of cold nitrogen at 100(1) K and centered in the X-
ray beam by using a video camera.
The crystal evaluation and data collection were performed on a Bruker Smart APEXII
diffractometer with Mo Kα radiation (λ = 0.71073 Å). The diffractometer to crystal distance was
set at 4.00 cm. The initial cell matrix was obtained from three series of scans at different starting
angles. Each series consisted of 12 frames collected at intervals of 0.5º in a 6º range about with
the exposure time of 10 seconds per frame. The reflections were successfully indexed by an
automated indexing routine built in the APEXII program suite [30]. The final cell constants were
calculated from a set of 6460 strong reflections from the actual data collection. Data collection
method involved ω scans of width 0.5°. Data reduction was carried using the program SAINT
plus [30]. The structure was solved by direct methods using SHELXS [30] and refined. All
structures were checked for solvent-accessible cavities using PLATON [31] and the graphics
were performed with the DIAMOND [32] visual crystal structure information system software.
Non-H atoms were first refined isotropically and then by anisotropic refinement with full-matrix
2
least-squares calculations based on F using SHELXS. All H atoms were positioned
geometrically and allowed to ride on their respective parent atoms. The carboxyl H atoms were
located from the difference map and allowed to ride on their parent atoms. All H atoms were
6
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
refined isotropically. The absorption correction was based on fitting a function to the empirical
transmission surface as sampled by multiple equivalent measurements [32]. Crystal data and
structure refinement information for Complexes 1 (Hg) and 2 (Zn) are summarized in Table 1.
Crystal data and structure refinement information for Complexes 3, a polymorph of complex 2,
are included for comparison purposes.
Synthesis of metal sulfide nanoparticles
Synthesis of the metal sulfide nanoparticles, chemically passivated with hexadecylamine was
carried out as follows: 0.7 g of each metal complex was dissolved in TOP (15 mL). This solution
was then injected into 7.5 g of hot HDA at a temperature of 180 °C. A subsequent decrease in
temperature of about 30 °C was observed. The solution was then allowed to attain 180 °C and
then heated for a further 60 mins. The solution was then allowed to cool to 70 °C, and methanol
was added to remove any excess HDA. The as-synthesized flocculent precipitate was separated
by centrifugation and was redispersed in toluene. The solvent was then removed by evaporation
under reduced pressure to give HDA-capped ZnS nanoparticles. The particles were again washed
with methanol and redispersed in toluene for spectroscopic measurements.
RESULTS AND DISCUSSION
Synthesis
In this study, the synthesis of dithiocarbamate complexes was done by mixing equimolar
concentrations of two different ligands and metal salts solutions and stirred thoroughly.
1
Ammonium N-phenyldithiocarbamate (L ) and ammonium N-ethyl-N-phenyldithiocarbamate
2
(
L ) were mixed stoichiometrically with the respective metal salts to form N- phenyl-N, N-
7
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
methyl phenyl dithiocarbamato)M(II) complexes, where M = Zn, Cd or Hg. The formation of the
complexes can be represented as shown below [33].
1
2
1 2
MCl + NH L + NH L MLL + 2NH Cl
2
4
4
4
Where M = Zn, Cd and Hg
Electronic spectra of the metal complexes
The electronic spectra of the ligands show bands at 286 nm, 300 nm and 339 nm due to
intraligand π → π* transitions located on the N-C=S group, π → π* transitions within the S-C=S
group and n → π* electronic transitions located on the sulfur atoms respectively [34, 35]. In
electronic spectra of Zn(II), Cd(II) and Hg(II) complexes, the bands are below 350 nm
confirming the presence of intra ligand π- π * transitions, mainly associated with N-C=S and S-C
=
S groups [36].
Infrared spectra studies of the metal complexes
1
2
The dithiocarbamate ligands (L and L ) show two diagnostic bands in the infrared spectra. First
-1
is the band due to ν(C–N) thiouride vibration which is observed in the region 1498–1548 cm
37]. The special feature of dithiocarbamate ligands is an additional n-electron flow from
[
nitrogen to sulfur via a planar delocalized π-orbital system [38]. The high vibrational frequencies
of this band in the complexes indicate a partial double bond character of the CN group arising
from mesomeric drift of electrons from the dithiocarbamate moiety towards the M(II) ion centre
[
38] and the contribution of resonance structure of the dithiocarbamate ligands in the thiouride
-1
form. The second single band which appears in the region 964–973 cm corresponds to ν(C–S)
and indicates that the dithiocarbamate coordinate the metal ions through the sulfur atoms [38].
8
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
-1
The v(C=S) appeared as single sharp band at 755-758 cm and this confirm that the ligands acted
as bidentate chelating modes. The M-S bond stretching vibrations appeared in the range 325-384
-1
-1
cm [39]. The band observed at about 3436 cm is assigned to the N-H stretching frequency for
the complexes. This simply indicates that the nitrogen to metal bonds is not present and therefore
the bonding in this complex is between the sulfur and metal ions. The bonding of sulfur to metal
ion is expected to increase the contribution of the highly polar structure to the dithiocarbamates,
resulting in a greater double bond character for the nitrogen to carbon bond and a greater single
-1
bond character for the carbon to sulfur bond. The bands observed in between 1635-1028 cm are
-1
due to ν(C-N) stretching, the ν(C=S) was observed at 757 cm in the ligands. These bands
-1
-1
shifted to lower frequency by 1 cm and 6 cm in the complex respectively. This behaviour
signify a decrease in the double bond character of the C=S bond which confirms the metal ions
are coordinated to sulfur [40].
NMR spectra studies
1
2
The H NMR for the methylene carbon bonded directly to N atom of L (N-CH ) were observed
2
in the range of 4.25-4.31 ppm and the ethyl protons appeared between 2.96-3.01 ppm. The
aromatic protons showed multiplex peaks appearing from 7.29-6.46 ppm [41] and the peak due
13
2
to solvent was found at 2.49 ppm. The C NMR of L reveal the signal due to α-carbon of the –
CH group was found at 37.28 ppm and the –CH - carbon signal at 50.96 ppm. The six signals
3
2
for aromatic carbons were found in the region between 112-129 ppm. The signal due to –CS2
appeared at 214.53 ppm. The Zn complex showed a quartet signals at δ 4.09, 4.10, 4.12 and 4.14
ppm, corresponding to ethyl group protons. The multiplex peaks for aromatic rings protons
appeared at 7.25-7.45 (8H, m, –C H ) ppm. A sharp peak of one proton at 3.36 ppm (1H, s)
6
5
9
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
1
ascribed to (N – H) proton of L ligand. The pick at δ 2.49 ppm was observed for DMSO. The
Cd complex showed a quartet signals at δ 4.09, 4.10, 4.12 and 4.14 ppm, corresponding to ethyl
group protons.
The multiplex peaks for aromatic rings protons appeared at 7.23-7.43 (8H, m, –C H ) ppm. A
6
5
1
sharp peak of one proton at 3.35 ppm (1H, s) ascribed to (N – H) proton of L ligand. The peak at
δ 2.49 ppm was observed for DMSO. The Hg complex showed a multiplex signals at δ 4.07 –
4
.17(8H, m, –C H ) ppm assigned to ethyl group protons. The multiplex peaks for aromatic rings
2 5
protons appeared at 7.22 ‒7.46 (8H, m, –C H ) ppm. A sharp peak of one proton at 3.35 ppm
6
5
1
(
1H, s) ascribed to (N – H) proton of L ligand. The pick at δ 2.49 ppm was observed for DMSO.
1
3
The C NMR signals of Zn, Cd and Hg dithiocarbamate complexes revealed the multiplex peaks
for aromatic rings carbon appeared at 126.96 – 129.22 ppm. The peak corresponding to ethyl
group carbons bonded to N atom appeared at 53.46 ppm. The primary methyl carbon in ethyl
was assign to the peak that appear at 12.12 ppm.
Thermal decomposition studies
The thermal decomposition of the metal complexes was investigated by thermogravimetric
analysis and the superimposed TG profiles results is presented in Figure 1. The thermal
decomposition patterns of the Zn(II) complex show two steps that is equivalent to about 70 %
weight loss associated with the decomposition of the dithiocarbamate ligands. This
decomposition led to the formation of zinc sulfide (ZnS) with about 30 % residue, which was 7
%
more than calculated value of 23 %. In the thermal decomposition profile of the Cd complex,
three main decomposition steps with a total weight loss of about 80 % were observed. The first
o
decomposition step below 100 C is due to the loss of entrap solvent molecules within the
1
0
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
complex crystallite lattice. The last two steps are associated with the decomposition of the
ligands. The residue (CdS) of 20 % was obtained at the end of analysis and is 10% less than the
expected value of 30 % [42-47]. Three main decomposition steps with a total weight loss of
about 95 % corresponding to the formation of the HgS were observed in the TG curve of the
mercury complex. The TG/DTG reveals the high volatility of the sample at the temperature
o
range of 280-460 C but the complex can still be used as a precursor for the synthesis of HgS
[
42, 44, 45].
Molecular structure of Zn and Hg Complexes
The Hg compound is a pseudo-polymorph of a previously reported bis(μ -N-ethyl-N-
2
phenyldithiocarbamato-S,S’)-bis-N-phenyldithiocarbamato-S,S’)-di-mercury(II) (1) [48] that
crystallizes in P2 /c space group as centrosymmetric dimeric structure, The Hg complex in this
1
paper crystallizes in P-1 space group with two monomeric molecules of the Hg(II) compound
and two molecules of toluene solvent in the asymmetric unit. One of the toluene solvent
molecules is located in a general position, while the second one is disordered about an inversion
centre. In both Hg molecules, the Hg centre is strongly coordinated by two S atoms with two
short Hg—S bond distances of 2.3834(6) and 2.3985(6) for molecule 1 and 2.3848(6) and
2
.4091(6) Å for molecule 2 and interact with the other two S atoms through two long Hg…S
interactions 2.8139(6) and 2.8850(6) for molecule 1 and 2.7880(6) and 2.9348(6) Å for molecule
showing the tendency of Hg to prefer linear coordination geometry. The long Hg…S
2
interactions in both molecules are possibly responsible for the deviation from ideal linear
geometry as seen in the S5—Hg1—S8 and S1—Hg2—S4 angles of 166. 58(2) and 165.47(2)°
respectively. Comparatively all bond distances and angles are similar to those of previously
1
1
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT

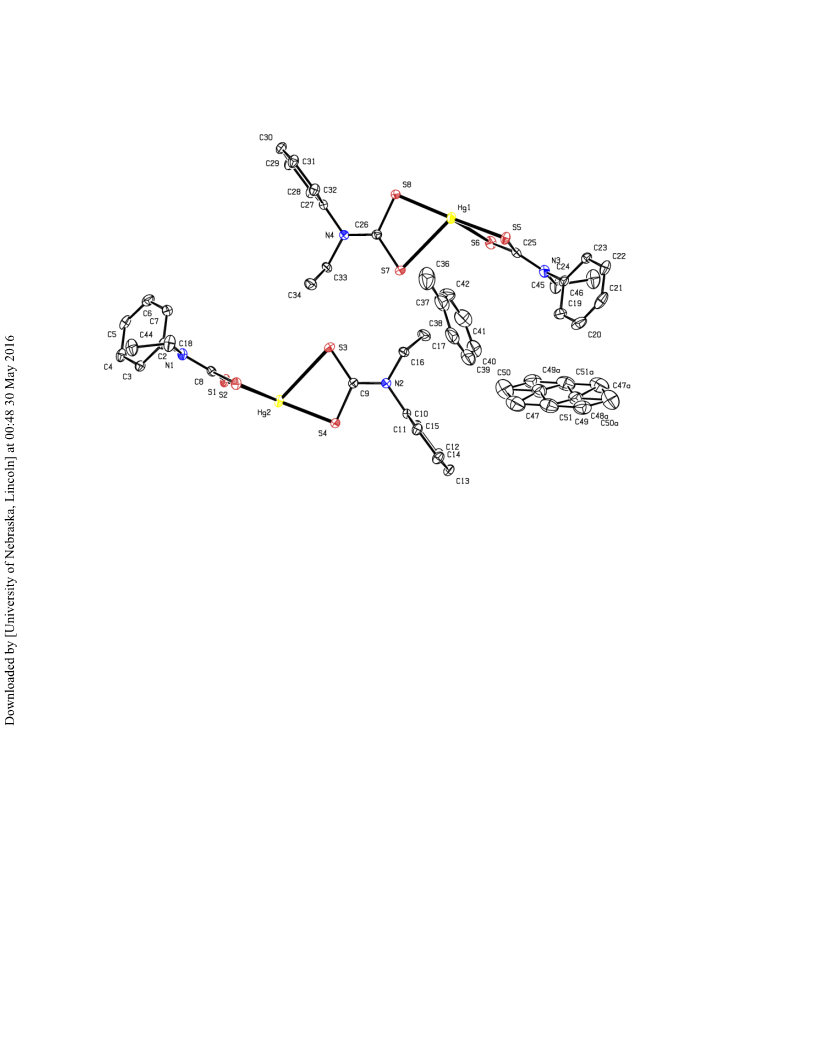

reported related complexes. Figure 6 shows the root mean square deviation overlay of the two
cations. The root mean square deviation for the two cations is 0.0678. This value is relatively
low and is probably due to the difference in the orientation of mainly the ethyl and phenyl
moieties.
The Zn compound, 2 is a polymorph of another Zn complex, 3 [29] and is similar to a number of
similar dithiocarbamates in literature such as diisopropyldithiocarbamate zinc [49] and
diethyldithiocarbamate zinc [50]. The molecular structure is shown in Fig. 4 while important
bond distances and angles are shown in Table 2. Compound Zn has a centrosymmetric dimeric
structure in which the Zn atom symmetrically chelated by one terminal bidentate dithiocarbamate
anion and non-symmetrically coordinated by the other dithiocarbamate anion. The coordinated
dithiocarbamate uses the second S atom to bridge the two Zn(II) centers resulting in a binuclear
dimeric complex. The two Zn—S chelating and the coordinating bond distances are 2.3333(11),
2
.4647(11) and 2.3200(10) Å. The chelation and coordination behaviour of these ligands can also
be confirmed by Δd and θ which are 0.1 Å and 3.6° respectively for the chelating ligand and 0.5
Å and 17.3° for the monodentate ligand.
The bridging S atom interacts with the next Zn atom across an inversion center, forming a short
Zn—S bond length of 2.3927(11) Å [symmetry code: 1-x, -y, 1-z] and this results in an eight-
member symmetric metallacycle containing the two Zn(II) centers and the coordinating
dithiocarbamate S and C atoms. Another Zn—S interaction is longer, 2.8539(11) Å and is
comparable to corresponding values found in similar zinc dithiocarbamates [29, 51]. The Zn(II)
centre shows a strongly distorted tetrahedral geometry, but if the long Zn—S bond distance is
taken into account, then the Zn(II) center shows a distorted square pyramidal geometry, in which
1
2
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
the square base is made up of CS —Zn—S C; the dihedral angle between the N—CS Zn planes
2
2
2
is 39.3(3)°. The analogous Zn—S interaction in 3 is slightly shorter, 2.7513(6) Å while the
dihedral angle is 41.8(2)°. Two of the tetrahedral angles deviate significantly (76.02(3)° and
1
37.33(4)° from the ideal 109°.
Optical properties of the HDA-capped ZnS, CdS and HgS nanoparticles
The absorption and emission spectra of the HDA-capped ZnS, CdS and HgS nanoparticles are
shown in Figure 7. The energy bands and their corresponding parameters are tabulated in Table
4
. The UV-Vis spectra exhibited blue-shift with respect to that of the bulk samples due to the
quantum confinement [52]. The photoluminescence spectra showed narrow emission curves with
the emission maximum at 385, 393 and 399 nm, for ZnS, CdS and HgS nanoparticles
respectively. ZnS emission maximum is blue shifted to the absorption band edges while CdS and
HgS gave emission maxima that are red shifted to the absorption band edges [53].
XRD studies of HDA-capped metal sulfide nanoparticles
The XRD patterns of the nanoparticles are shown in Figure 8. The ZnS nanoparticles (Figure
8
A), shows three important peaks at 28.5º, 47.6º and 56.4º respectively corresponding to the
(111), (220) and (311) planes indicates characteristic peaks of cubic crystal structure of ZnS
nanoparticles [54]. The peaks observed in the XRD patterns correspond well with those of the β-
ZnS (cubic) reported in the JCPDS 01-07921. The calculated average crystallite size from these
peaks using Scherer's formula is 5.3 nm. The XRD pattern of CdS nanoparticles (Figure 8B)
exhibited narrow peaks at 26.79, 29.72, 44.02, 48.58 and 52.20 ° assignable to the (111), (220),
(311) and (400) Miller indices respectively, suggesting small crystallite sizes CdS nanoparticles
in hexagonal phase. The XRD pattern of HgS nanoparticles (Figure 8C) exhibits diffraction
1
3
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
peaks which correspond to the (111), (220), (311), (222), and (400) planes of HgS
(metacinnabar, syn), and are in good agreement with the pattern JCPDS 00-006-0261. All the
peaks with the (*) are due to HDA.
TEM studies of HDA-capped ZnS, CdS and HgS nanoparticles
The TEM micrograph of the ZnS nanoparticles (Figure 9A) shows well-defined nanoparticles
having a diameter of about 9 nm. Generally the shape of nanoparticles are mainly close-to-
spherical and some are elongated with some crystalline and others agglomerate [55]. The TEM
image of the CdS nanoparticles showed nanoparticles with different shapes ranging from
spherical to hexagonal with particle size diameter range of 7 to 14 nm. The particles have some
aggregation due to the attraction between the spherical nanoparticles as a result of dipole-dipole
interactions between their surfaces. One of the advantages of using single source precursor’s
methods is that it can give nanoparticles with increased size control, dramatic decreases in
reaction times, improved product crystallinity, reactions exhibiting good reproducibility and high
yields [56]. The TEM micrograph of the HgS nanoparticles (Figure 9C) showed highly
agglomerated nanoparticles with nearly spherical and triangular shapes. The average size of the
HgS nanoparticles ranges from 8 to 22 nm. The determination of exact dimension of HgS
nanoparticles is a challenge due to high degree of agglomeration observed [57].
SEM and EDX studies of the nanoparticles
The surfaces of the particles in Figure 9 ((a) and (b)) showed cluster of particles which are nearly
spherical and agglomerated due to high surface energy of the particles as a results of their small
crystallite sizes [58]. The EDS spectrum of the ZnS nanoparticles (Figure 9 A) reveals
predominant peaks of Zn and S. The morphologies of the as-prepared CdS nanoparticles from
1
4
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
the SEM micrograph reveal that the particles are porous with uniform particle dimension. This
porosity may be due to the fact that the sample was completely dry and the uniformity of
particles is due to the method of synthesis used. The porous and rough surface morphology is
evident which makes it difficult to estimate the crystallite size due to agglomeration of the
particles [59]. EDS spectrum of HDA-capped CdS nanoparticles reveal that the prepared samples
are mainly composed of Cd and S, confirming the presence of CdS nanoparticles in hexagonal
phase [59]. Other traces of elements like C, O, Al and P are observed were observed in both ZnS
and CdS. The carbon observed in both samples is attributed to the carbon from the capping agent
hexadecylamine (HDA) or the carbon grid of the sample holder, Al is from aluminium-carbon
grid used during coating, O may be due to oxidation of S atom to O atom while the P is due to
the trioctyl phosphine (TOP).
The SEM images reveal that the surface of HgS sample is fairly smooth indicating almost
uniform particles. Both the particles tend to aggregate to secondary particles indicating that the
alkyl groups play a very important role in controlling the morphology of the as-prepared
nanoparticles [60]. Figure 9 (c) shows typical EDS patterns of the HgS particles. As expected,
the observed major peaks are due to the presence of mercury and sulfur indicating the presence
of HgS particles in the sample.
CONCLUSION
Zn(II), Cd(II) and Hg(II) complexes of diakylphenyl dithiocarbamates were synthesized and
characterize by elemental analyses and spectroscopic techniques. The single crystal X-ray
structures of the Zn complex revealed that the Zn atoms are bonded to four sulfur atoms and
crystallized as a dimeric molecule with a distorted tetrahedral geometry around each Zn atom.
1
5
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
The single crystal X-ray structure of the Hg complex shows two mercury compounds in the
monomeric unit and toluene molecules within the crystal lattice. The metal complexes were used
as single source precursors to synthesized HDA capped ZnS, CdS and HgS nanoparticles with
sizes ranging from 7-22 nm. The XRD patterns indicates that ZnS nanoparticles existed in the
cubic phase with average crystallite size of 9 nm, the CdS nanoparticles contained small
crystallites in the hexagonal phase with size ranges from 7-14 nm while the HgS nanoparticles
existed in hexagonal phase with crystallite sizes of 8-22 nm. The optical absorption and emission
spectra of the as-synthesized particles showed quantum confinement with absorption that is blue
shifted.
Supplementary Materials
CCDC 907752 and 907753 contains the supplementary crystallographic data for this paper.
These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via
www.ccdc.cam.ac.uk/data_request/cif or from The Director, CCDC, 12 Union Road, Cambridge,
CB2 1EZ, UK (Fax: + 44-1223-336-033; e-mail: deposit@ccdc.cam.ac.uk ).
ACKNOWLEDGEMENT
PAA and JZM gratefully acknowledge financial support from GMRDC, University of Fort Hare,
South Africa. BO acknowledges School of chemistry, University of KwaZulu-Natal Westville
campus for financial support.
1
6
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
REFERENCES
1
. Z. Li, J.; Zhang, Du, J.; Mu, T.; Liu, Z.; Chen, J.; Han, B. J.Appl. Poly.Sci. 94 (2004) 1643-
648.
1
2
3
4
. R.M. Ma, X.L.Wei, L. Dai, H.B. Huo, G.G. Qin, Nanotech. 18 (2007)1-5.
. G. Fasol, Sci. 280 (1998) 545-546.
. P.S. Nair, T. Radhakrishnan, N. Revaprasadu, G.A. Kolawole, P. O’Brien, J. Mater. Chem.
1
2 (2002) 2722-2725.
5
6
7
8
9
1
1
. R. Mahtab, J.P. Rogers, C.J. Murphy, J. Am. Chem. Soc. 117 (1995) 9099-9100.
. Y.F. Hao, G.W. Meng, Z.L. Wang, C.H. Ye, L.D. Zhang, Nano Lett. 6 (2006) 1650-1655.
. X.D. Gao, X.M. Li, W.D. Yu, Thin Solid Films 468 (2004)43-47.
. A.M. Derfus, W.C.W. Chan, S.N. Bhatia, Nano Lett. 2004, 4, 11-18.
. B. Xia, I.W. Lenggoro, K. Okuyama, Chem. Mater. 2002, 14, 4969-4974.
0. Y.F. Nicolau, M. Dupuy, M. Bruuel, J. Electrochem. Soc. 137 (1998) 2915-2924.
1. T. Arai, S.I. Senda, Y. Sato, H. Takahashi, K. Shinoda, B. Jeyadevan, K. Tohji, Chem.
Mater. 20 (2008) 1997-2000.
1
2. B. Elidrissi, M. Addou, M. Regragui, A. Bougrine, A. Kachoune, J.C. Bernecde, Mater.
Chem. Phys. 68 (2001) 175–179.
1
1
1
1
1
3. U. Gangopadhyay, K. Kim, D. Mangalaraj, J. Yi, Appl. Surf. Sci. 230 (2004) 364-370.
4. R.N. Bhargava, D. Gallagher, X. Hong, D. Nurmikko, Phys. Rev. Lett. 72 (1994) 416-419.
5. W. Tang. D.C. Cameron, Thin Solid Films 280 (1996) 221-226.
6. Z.W. Quan, Z.L. Wang, P.P. Yang, J. Lin, J.Y. Fang, Inorg. Chem. 46 (2007)1354-1360.
7. A.A. Bol, A. Meijerink, Phys. Rev. B 58 (1998) R15997-R6000.
1
7
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
1
1
2
2
8. I. Tsuji, A. Kudo, J. Photochem. Photobio. Chem. 156 (2003) 249-252.
9. M.K. Chinnu, L. Saravanan, R. Jayavel, Inter. J. Nanosci. 10 (2011) 441-445.
0. R. Maity, K.K. Chattopadhyay, J. Nanopart. Res. 8 (2006 125-130.
1. A.B. El- Bially, A.A. Seoudi Eisa, S.I. Shabaka Soliman, R.K. Abd El-Hamid, R.A.
Ramadan, J. Appl. Sci. Res. 8 (2012) 676-685.
2
2
2
2
2
2
2. Y.C. Zhang, G.Y. Wang, X.Y. Hu, J. Alloys Compd. 437 (2007) 47-52.
3. B.S. Rao, B.R. Kumar, V.R. Reddy, T.S. Rao, Chalco. Lett. 8 (2011) 177-185.
4. V. Singh, P. Chauhan, Chalco. Lett. 6 (2009) 421- 426.
5. P. O’Brien, J.H. Park, J. Waters, Thin Solid Films 431 (2003) 502-505.
6. R. Maity, K.K. Chattopadhyay, J. Nanopart. Res. 8 (2006) 125-130.
7. M. Ethayaraja, C. Ravikumar, D. Muthukumaran, K. Dutta, R. Bandyopadhyaya, J. Phys.
Chem. C 111 (2007) 3246-3252.
2
8. N. Soltani, E. Saion, M. Erfani, K. Rezaee, G. Bahmanrokh, G.P.C. Drummen, A. Bahrami,
M.Z. Hussein, Int. J. Mol. Sci. 13 (2012) 12412-12427.
2
3
3
3
3
9. P.A. Ajibade, B.C. Ejelonu, Spect. Chim. Acta Mol. Biomol. Spectr. 113 (2013) 4044-414.
0. Bruker-AXS, Bruker-AXS, Madison, Wisconsin, USA, 2009.
1. G.M. Sheldrick, Acta Cryst. A A64 (2008) 112–122.
2. A.L. Spek, Acta Cryst. D65 (2009) 148–155.
3. D. C. Onwudiwe, P. A. Ajibade. Synth. React. Met.-Org. Inorg. Nano- Met Chem. 40, (2010)
2
79-284.
3
3
4. S.A. Al-Sabaawi, Col. B. Edu. Res. J. 11 (2011) 765-776.
5. M. Padmaja, J. Pragathi, B. Anupama, C.G. Kumari, E.-J.Chem. 9 (2012) 2145-2154.
1
8
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
3
3
3
6. W. Beck, M. M. Giunth Castilo, H. Zippel, Chem. Ber. 111 (1978) 1246-1252.
7. P.A. Ajibade, O.G. Idemudia, A.I. Okoh, Bull. Chem. Soc. Ethiop. 27 (2013) 77-84.
8. N. Moloto, N. Revaprasadu, M.J. Moloto, P. O’Brien, J. Raftery, S. Afr. J. Sci. 105 (2009)
2
58–263.
9. SA.A. Nami, A. Husain, I. Ullah, Spectrochim. Acta Part A: Mol. Biomol. Spectr. 118
2014) 380–388.
3
4
(
0. C.V. Rodarte de Moura, A.P.G. de Sousa, R.M. Silva, A. Abras, M. Horner, A.J. Bortoluzzi,
C.A.L. Filgueiras, J.L. Wardell, Polyhedron 18 (1999) 2961-2969.
4
4
1. J.J. Criado, I.; Fernandez, B. Macias, Inorg. Chim. Acta. 174 (1990) 67-75.
2. M.M. Ahamad, R.M. Rao, E.V.SKumar, A. Jayaraju, N.T Begum, J. Sreeramulu, J. Chem.
Pharm. Res. 4 (2012) 1601-1605.
4
4
4
4
3. S. Khan, S.A.A. Nami, K.S. Siddiqi, J. Mol. Struct. 875 (2008) 478–485.
4. F. Bonati, R. Ugo, J. Organomet. Chem. 10 (1967) 257- 268.
5. K.B. Pandeya, R. Singh, K. Mathur, R.P. Singh, Transition Met. Chem. 11 (1986) 340-350.
6. A. Manohar, K. Ramalingam, K. Karpagavel, A. Kulandaisamy, Int. J. Chem. Tech Res. 4
(
2012) 1023-1032.
7. P.; Gajanan, H.K. Sharma, Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 40 (2010) 312-
18.
4
3
4
4
5
5
8. D. Ondrusova, M. Pajtasova, M. Jona, M. Komani, Solid State Chem. 90-91 (2003) 383-388.
9. H. Miyamae, M. Ito, H. Iwasaki, Acta Cryst. B35 (1979) 1482-1486.
0. E.R.T. Tiekink, Zeits. Fur. Krist. –New Crtyst. Struct. 215 (2000) 445-446.
1. M.J. Cox, E.R.T. Tiekink, Rev. Inorg. Chem. 19 (1997) 1-23.
1
9
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
5
2. N.; Ramamurthy. K.M.; Rajesh, G. Murugadoss, Nanosci. Nanotech: An Inter. J. 1 (2011)
2-16.
1
5
5
5
5
3. M. Dhanam, B. Kavitha, N. Jose, D.P. Devasia, Chalco. Lett. 6 (2009)713-722.
4. S.M. Soosen, B. Lekshmi, K.C. George, Chem. Rev. 14 (2009) 57-65.
5. K. Kandasamy, H.B. Singh, S.K. Kulshreshtha, J. Chem. Sci. 121 (2009) 293-296.
6. C. Sun, R.D. Westover, G. Long, C. Bajracharya, J.D. Harris, A. Punnoose, R.G. Rodriguez,
J.J. Pak. Inter. J. Chem. Eng. (2011) 1-8.
5
5
5
6
7. H. Wang, J.-J. Zhu, Ultrason. Sonochem. 11 (2004) 293-300.
8. J.H. Bang, K.S. Suslick, Adv. Mater. 22 (2010) 1039-1059.
9. T. Ahamad, S.M. Alshehri, Nano. Hybrids 1 (2012) 45-56.
0. S.K. Mehta, S. Kumar, S. Chaudhary, K.K. Bhasin, Nanoscale 2 (2010) 145-152.
2
0
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 1: Crystal data and structure refinement for Complexes 1 and 2 (polymorphs I and
II)
1
2
3 (56)
Empirical formula
Formula weight
Temperature (K)
Wavelength
Crystal system
Space group
Unit cell dimensions
a (Å)
b (Å)
c (Å)
α (°)
β(°)
C H N S Hg C H N S Zn
C H N S Zn
2
915.94
173(2)
0.71073
Triclinic
P-1
93
96
8
16
4
36 40
4
8
2
36 40
4
8
2641.26
173(2)
0.71073
Triclinic
P-1
915.94
173(2)
0.71073
Monoclinic
P2 /c
1
10.9135(2)
15.3173(3)
15.6160(3)
10.2405(6)
17.8168(10)
14.6214(8)
8.7163(3)
10.5618(3)
12.0172(3)
66.341(2)
79.577(2)
83.156(2)
995.26(5)
1
101.0320(10)
101.4750(10)
99.1740(10)
2457.50(8)
1
132.510(3)
γ (°)
Volume (Å )
3
1956.53(19)
2
Z
-3
Dcalc (Mg m )
1.785
1.547
1.528
1.657
-
Absorption coefficient (mm 6.616
1.677
1
)
F (0 0 0)
1286
944
472
Crystal size (mm)
θ range (°)
Limiting indices
0.31 x 0.20 x 0.15 0.28 x 0.28 x 0.28 0.20 x 0.18 x 0.16
1.95 to 28.00
-14<=h<=14,
2.21 to 28.00
-13<=h<=13,
-23<=k<=23,
-19<=l<=18
29865
3.10 to 28.28
-11<=h<=11,
-14<=k<=14,
-16<=l<=16
31692
-
-
20<=k<=20,
20<=l<=20
Reflections collected
Independent reflections
51370
11661
4679
4931
[
R(int) = 0.0283]
[R(int) = 0.0462]
[R(int) = 0.0341]
Completeness to θ = 28.45°
98.3
98.5
99.8
(
%)
Max. and min. transmission
Data / restraints / parameters 11661 / 0 / 564
0.4369 and 0.2335 0.6509 and 0.6509 0.7022 and 0.3245
4679 / 2 / 228
1.134
4471 / 28 / 235
1.111
2
Goodness-of-fit on F
1.075
Final R indices [I > 2 (I)]
R1 = 0.0187,
R1 = 0.0511,
R1 = 0.0127,
wR = 0.0451
wR = 0.1308
wR = 0.0322
2
2
2
R indices (all data)
R1 = 0.0232,
R1 = 0.0627,
R1 = 0.0135,
wR2 = 0.0482
wR2 = 0.1367
wR2 = 0.0326
2
1
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Largest diff. peak & hole 1.165 and -1.120
2.171 and -0.621
0.462 and -0.621
3
(e.Å )
Absorption correction - Semi-empirical from equivalents; Refinement method - Full-matrix
2
least-squares on F .
2
2
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 2: Bond distances and angles (Å / °) for the two Hg complexes in compound 1
Molecule 1
Molecule 2
Molecule 1
Molecule 2
Bond
distances
Hg—S
2.3834(6)
2.3985(6)
1.708(2)
1.748(2)
2.3848(6)
2.4091(6)
1.710(2)
1.746(2)
Hg—S
Hg—S
C—S
2.8139(6)
2.8850(6)
1.693(2)
1.758(2)
2.7880(6)
2.9348(6)
1.689(2)
1.755(2)
Hg—S
C—S
C—S
C—S
Bond angles
S—Zn—S
S—Zn—S
S—Zn—S
S—C—S
68.437(17)
69.348(18)
93.550(17)
119.42(13)
67.492(17)
69.652(18)
95.875(17)
119.47(14)
S—Zn—S
S—Zn—S
S—Zn—S
S—C—S
114.191(18) 114.297(18)
124.056(19) 124.879(19)
166. 58(2)
120.53(13)
165.47(2)
120.17(13)
2
3
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 3: Bond distances and angles (Å / °) for Zn complex and the polymorph
2
3 (56)
2
3 (56)
Bond
distances
Zn—S
2.3200(10)
2.4647(11)
2.8539(11)
1.716(4)
2.3501(7)
2.3659(6)
2.7513(6)
Zn—S
Zn—S
2.3333(11)
2.3927(11)
2.4007(5)
2.4431(6)
Zn—S
Zn—S
C—S
C—S
C—S
1.718(4)
1.738(4)
C—S
1.737(4)
Bond angles
S—Zn—S
S—Zn—S
S—Zn—S
S—Zn—S
S—Zn—S
S—C—S
69.41(3)
76.02(4)
89.03(3)
94.99(4)
104.98(4)
S—Zn—S
S—Zn—S
S—Zn—S
S—Zn—S
S—Zn—S
S—C—S
106.34(4)
108.39(4)
114.74(4)
137.12(4)
164.33(4)
2
4
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 4: Energy band gaps of ZnS, CdS and HgS nanoparticles
*
Nanoparticles h
C
λc
eV
Eg
ZnS3
CdS3
HgS3
6.63E-34
3.00E+08
3.00E+08
3.00E+08
3.35E-07
3.29E-07
3.16E-07
5.934E-19
6.042E-19
6.291E-19
3.71
3.78
3.93
6.63E-34
6.63E-34
2
5
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
1
1
20
00
ZnL1L3
CdL1L3
HgL1L3
80
60
40
20
0
0
100
200
300
400
500
600
700
800
900
o
Temperature ( C)
Figure 1: Superimposed thermogravimetric analysis profiles of the metal complexes.
2
6
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 2: Molecular structure of the mercury complex (1)
2
7
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 3: Packing diagram of the mercury complex
2
8
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Figure 4: Molecular structure of the zinc complex (2)
2
9
ACCEPTED MANUSCRIPT
