Diindenopyrazines: Electron-Deficient Arenes

Article abstract of DOI:10.1002/chem.202100372

The syntheses, properties and application of the air-stable electron acceptors, diindenopyrazines 4 a–g are reported demonstrating the introduction of functional aryl groups in the 6- and 12-positions. The targets are accessible on the hundred milligram to gram scale. The structure of the aryl groups in 4 a–g modulates their solubility, redox potentials and optical properties. The introduction of electron-poor aryl groups to the electron-poor diindenopyrazine backbone reduces the electron affinity to ?4 eV, making the compounds attractive as n-semiconductors. A simple organic field-effect transistor of 4 e –without optimization– shows electron transport with a mobility of up to 0.037 cm² V^?1 s^?1.

Full text of DOI:10.1002/chem.202100372

Accepted Article
Accepted Article
Title: Diindenopyrazines: Electron-Deficient Arenes
Authors: Victor Brosius, Svenja Weigold, Nikolai Hippchen, Frank
Rominger, Jan Freudenberg, and Uwe Heiko Bunz
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: Chem. Eur. J. 10.1002/chem.202100372
Link to VoR: https://doi.org/10.1002/chem.202100372
0
1/2020

Chemistry - A European Journal
10.1002/chem.202100372
COMMUNICATION
Diindenopyrazines: Electron-Deficient Arenes
[a]
[a]
[a]
[a]
[a]
Victor Brosius, Svenja Weigold, Nikolai Hippchen, Frank Rominger, Jan Freudenberg,* and
Uwe H. F. Bunz*[a]
So far, diradicaloid[12] and closed shell indenofluorene-type
compounds[13,15] were applied in organic field effect transistors as
ambipolar charge transport systems.[
1, 3 and 4d were prepared from 5a,b or 6 (Figure 1c) by double
addition of an aryl Grignard followed by reductive deoxygenation
Abstract: We report the syntheses, properties and application of air
stable, electron acceptors, the diindenopyrazines 4a-g. We
demonstrate introduction of functional aryl groups in 6,12-position.
The targets are accessible on the hundred milligrams to the gram
scale. The structure of the aryl groups in 4a-g modulate the solubility,
redox potentials and optical properties. Introduction of electron poor
aryl groups to the electron poor diindenopyrazine backbone reduces
the electron affinity to -4 eV, attractive as n-semiconductors. A simple
organic field-effect transistor - without optimization - of 4e shows
16]
2
of the intermediate biscarbinol with SnCl . While this is a time-
tested method, the yields are variable and for the synthesis of 4d
did not exceed 20%. We are interested in structures of the type 4
and present three different routes that lead to 4 featuring seven
different phenyl-substituents. Reaction of 7 with an excess of
lithium bis(trimethylsilyl)amide and reaction of the dianion with
fluorobenzene, hexafluorobenzene or 4-flurobenzonitrile gave the
2
electron transport with a mobility of up to 0.037 cm /Vs.
Diindenoacenes[1-3] are quinoidal systems
[4,5]
with the possibility
[6-8]
of diradical (-oid) character.
Such diradicals display attractive
magnetic,[ optical and theoretical properties. The diradical
character is prominent, when the central core is an anthracene.[12]
Indenofluorene 1 is a quinoidal closed shell system, as the
aromatization energy of benzene – around 21 kcal/mol – is not
sufficient to enforce the diradical character,[13] while
diindenoanthracene 2 displays a diradical ground state (Figure
9]
[10]
[11]
[
12]
1
a). N-Heterocyclic indenofluorenes are sparsely investigated
and only recently, Wang et al. described compounds of the type
and 4d.[ Their electron affinity is increased in comparison to
14]
3
that of 1. 3 is a triplet diradical while 4d is a closed-shell singlet,
easily understood, as 3 gains two Clar sextet upon “radicalization”,
while 4d, analogously to indenofluorene will only gain one of them
(
Figure 1b).
Scheme 1. Synthesis of diindenopyrazines 4a-g. i) LHMDS, F-Ara,e,g in THF,
r.t., 16 h. ii) one pot synthesis: LHMDS, F-Ara,e,g, chloranil in THF, r.t., 16 h. iii)
Pd
2
(dba)
3
, DavePhos, Br-Ara,b,c,d, Cs
2
CO
3
in DMAc, 80°C, 16 h. iv) PPA, 120 °C,
t
4
h. v) DDQ in PhMe, 100°C, monitored by thin layer chromatography or KO Bu,
chloranil in THF, r.t. 1 h.
compounds 9a,e,g after aqueous workup. Instead of quenching
the in situ generated dianions of 9a,e,g with water, addition of
chloranil forms 4a,e,g in a one pot synthesis in in 30-45% yield as
stable crystalline materials without diradical character. For e and
[
12,13]
Figure 1. a) Previous work from Haley et. al.
b)Previous work from Pei et
[
14]
al. c) Reactants for the synthesis of 1 (from 5a), 3 (from 5b), and 4d (from 6).
N
g the S Ar-mechanism is probably addition-elimination i.e.
associative. For fluorobenzene, an elimination-addition-mecha-
nism cannot be excluded. b,c and f gave inseparable mixtures of
compounds, probably due to the presence of an elimination-
addition reaction, which gives mixtures of stereoisomers,[
whereas d did not react at all.
17]
[
a]
MSc. V. Brosius, MSc. S. Weigold, MSc. N. Hippchen, Dr. F.
Rominger, Dr. J. Freudenberg, Prof. Dr. U.H. F. Bunz
Organisch-Chemisches Institut, Ruprecht-Karls-Universität
Heidelberg, Im Neuenheimer Feld 270, 69120 Heidelberg,
Direct arylation via C-H activation of the diindenopyrazine works
a-d
0
well for Br-Ar in the presence of a Pd source and the biphenyl-
(
Germany)
based ligand DavePhos giving 9a-d in yields between 25% and
E-mail: uwe.bunz@oci.uni-heidelberg.de , freudenberg@oci.uni-
heidelberg.de
65%. The reaction does not work well with electron deficient
arylbromides, probably due to competing C-H activation of the aryl
bromide. Oxidation of 9a-g with DDQ in toluene at reflux gave
Supporting Information for this article is given via a link at the end of
the document.
This article is protected by copyright. All rights reserved.

Chemistry - A European Journal
10.1002/chem.202100372
COMMUNICATION
moderate yields of 4a-g. The dianions of 9a-g, generated in situ
by the addition of KOtBu, were oxidized by DDQ in yields > 85%.

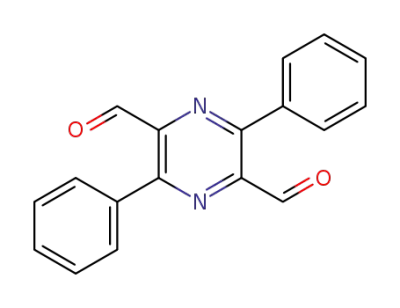

The third method employs the 2,5-dialdehyde of para-
diphenylpyrazine. Addition of an aryl Grignard reagent followed
by dehydration of the carbinol by polyphosphoric acid gives 9 in
phenyl rings with respect to the diindenopyrazine. The other
phenyl-substituents display more planar geometries, i.e. enlarge
the -system. The pyrazine ring allows for a larger degree of
planarization, as the peri-hydrogens of the indenofluorenes are
absent. The observed red-shift – when compared to the
indenofluorenes 1 – is a result of the decreased torsion angle but
also due to an electronic effect of the pyrazine. Compared to 1,
HOMO and LUMO levels of 4 are stabilized by the electron poor
pyrazine core (Figure 3).
N
40-70% yield. The. S Ar and C-H activation allow the introduction
of aryl substituents that do not survive Grignard formation,
necessary to transform 5 or 6 into 1,3 or 4.
On a scale above 50 mg 4 and 9 were purified by crystallization
(
exception 4c, 9c); but we also note that 5 the starting material
used by Pei et.al. is synthesized by oxidation of 7, which we use
directly.[
14]
We obtained single crystalline specimen from 4c and 4d
o
(
Figure 4); 4c displays a torsion angle of only 28 , while mesityl
o
substituted 4d displays an angle of 63 . The larger twist compared
to 4c is caused by steric pressure of the ortho-methyl groups and
weakens the conjugation of the backbone to the aryl groups (see
above). This leads to the already mentioned blue-shift of 4d, as
1.0
0.8
0.6
0.4
0.2
0.0
4
4
4c
a
b
4
4
d
e
A
well as larger HOMO-LUMO / IP-E gaps (Table 1). The crystal
[14]
structure of 4d has been reported.
4f
4g
400
450
500
550
600
650
700
Wavelength [nm]
Figure 2. Normalized UV-Vis spectra of 4a-g in DCM.
Figure 4. Single crystal structure a,c) and packing b,d) of 4c and 4d,
respectively.
Figure 3. DFT- Calculated FMO levels (B3LYP/def2TZVP) of the compounds
a-4g. Dashed lines represent the FMOs of the indenofluorenes 1a,b,d-f, taken
4
from [12].
Both the single crystal structures but also the quantum chemical
calculations confirm the quinoidal and non-diradical character of
derivatives of 4. The molecules of 4c pack in one-dimensional
oblique stacks with -contacts between parallel diindenopyrazine
units, the attached phenyl rings however are oriented
perpendicular to those of the adjacent molecules, thus showing
CH--contacts among each other. In contrast, the two
independent centrosymmetric molecules of 4d show no parallel
Non-fluorescent compounds 4a-g absorb visible light up to
7
5
00 nm, with their absorption maxima λmax ranging between
37 nm (opt. gap 2.31 eV) for d and 586 nm (opt. gap 1.92 eV)
for b, c. (Figure 2, Table 1). The mesityl and the perfluorophenyl-
substituted diindenopyrazines display the most blue-shifted
features in their absorption spectra, due to the twisting of the
This article is protected by copyright. All rights reserved.

Chemistry - A European Journal
10.1002/chem.202100372
COMMUNICATION
stacking motif in the crystal lattice. In 4c the distance between the
-systems is 3.2 and 3.5 Å, i.e. below the van der Waals radius.
Figure 6. Synthesis, UV-Vis and single crystal structure of 4dH 2
as counterion.
+
with SbCl -
6
2
Figure 5. a) drop-casted film of 4e from chloroform (0.38 mg/mL), 50x darkfield
microscopy; b) schematic device architecture c) transfer characteristics of
bottom-gate/top-contact FET (Vds = 50 V) d) output characteristics.
We investigated the reduction of 4e with potassium anthracenide.
The radical anion formed easily; its EPR spectrum is in good
agreement with the simulated spectrum (Supporting Information)
and the UV-Vis spectrum displays an absorption at 1103 nm
(Figure 7). In air, the signal disappears after 90 minutes.
We built a transistor with a bottom gate top contact geometry of
4e, due to its sufficient solubility and thus good film forming
properties. We used a silicon substrate with successive layers of
1
1
00 nm thermally grown silica, solution processed alumina and
2-cyclohexyldodecylphosphonic acid (CDPA) as self-
a
[18]
assembled monolayer to modify the dielectric. A solution of 4e
was drop-cast on the substrate from chloroform (0.38 mg/mL)
resulting in a crystalline thin-film (Figure 5a). 40 nm silver was
evaporated through
a shadow mask to form the contact
electrodes. Figure 5b) shows the schematic device architecture.
4
e displays low hysteresis in the transfer curves and is without
-
hysteresis in the output curves, with a top mobility of µmax = 0.037
cm /Vs (Figure 5c,d). The average mobility is 0.022 cm /Vs (6
2
2
channels, 2 substrates). Compared to the literature known 1e,
+
-4
which displays ambipolar behaviour with µMax = 7x10 cm²/Vs,
-
-3
µ
Max = 3x10 cm²/Vs as single crystal transistor the mobility of 4e
[
13]
is an order of magnitude higher.
Reaction of 4d with SbCl
acetonitrile quantitatively gave the protonated species 4dH
identified by X-ray single crystal structure and UV-Vis spectrum
5 6
or NOSbF in dichloromethane/
2
+
2
,
2
+
(
Figure 6). 4dH
2
4
was obtained by reaction of 4d with HBF .
2
+
Addition of water to 4dH
2
re-forms 4d quantitatively. Oxidation
into the radical cation or the dication of 4d did not occur, probably
due to the instability of fluorenyl cation in addition to the
destabilizing pyrazine-core and lack of conjugation into the
mesityl substituents. For
derivative, Haley et. al. suggested
a
quinoidal diindenonaphthalene
higher degree of
a
delocalization of the positive charge compared to that of the
negative charge, localized at the fluorenyl-position.[19]
Figure 7. Reduction of 4e with potassium anthracenide in THF (top) and UV-Vis
-
spectrum of 4e∙ (bottom).
This article is protected by copyright. All rights reserved.

Chemistry - A European Journal
10.1002/chem.202100372
COMMUNICATION
In conclusion, we present three efficient routes towards
diindenopyrazines using S Ar, C-H activation and ring closure
N
reactions. Compounds 4, lacking diradical character, yet display
attractive properties. Particularly 4e is an n-channel
semiconductor, which even in un-optimized proof of concept
2
transistors display mobilities of up to 0.037 cm /Vs.
Table 1. Experimental and calculated properties of 4a-g.
Ox
E1
Red
[c]
[c]
[d]
[d]
compound
λ
max, abs
Opt.gap
[eV]
IP [eV]
E
A
[eV]
HOMO [eV]
LUMO [eV]
HOMO-LUMO
gap [eV]
E1/2
/2
[c]
[
b]
[
nm][
[c]
[
V]
[V]
a]
(DCM)
a
b
c
d
e
f
576
1.98
1.92
1.92
2.31
2.12
1.98
1.94
0.76
0.81
0.85
0.93
-1.12
-1.18
-1.18
-1.30
-0.88
-0.87
-0.90
-5.56
-5.61
-5.65
-5.73
-3.68
-3.62
-3.62
-3.50
-3.92
-3.93
-3.90
-5.37
-5.28
*
-3.43
-3.30
*
1.94
1.98
*
584
586
537
550
577
586
-5.53
-6.23
-6.05
-3.32
-3.98
-4.10
-4.02
2.21
2.25
1.95
1.97
[
[
[
e]
e]
e]
[e]
-
-
-
-
[e]
-
[e]
g
-
-5.99
Ox
Red
[
a] Measurements were performed in DCM. [b] Calculated from λonset, abs. [c] Oxidation E1/2and reduction E1/2 half-wave potentials measured
−1
4 6 A
by cyclic voltammetry (CV) in DCM with Bu NPF
as the electrolyte against Fc/Fc+ as the internal standard (−4.80 eV) at 0.2 Vꢀs . IP and E
estimated from cyclovoltammetric (CV) measurements [IP/EA CV= −4.80 eV – EOx/Red
] [d] Obtained from quantum-chemical calculations with
.
DFT/B3LYP/def2-TZVP. [ Not in the accessible stability window of the solvent. * It is not expected, that the longer alkyl group of 4c compared
e]
to 4b has a significant influence on the geometry or energy levels. Therefore, no separate calculation was performed.
(
m, 2H) ppm. 13C NMR (Tetrachloroethane-d
2
, 125 MHz): δ =
65.1, 142.2, 141.8, 138.0, 133.2, 129.7, 129.5, 128.5, 126.3,
23.3, 122.7, 120.2 ppm. IR: ν = 2960, 2920, 2851, 1659, 1632,
459, 1439, 1425, 1259, 1089, 1060, 1017, 850, 798, 778, 744,
1
1
1
7
5
5
̃
Experimental Section
-1
36, 719, 704, 683, 669, 661 cm . λmax, abs = 550 nm, λonset, abs
=
+
+:
86 nm. HR-MS (DART+): m/z: [M+H] : calcd. for C30
87.0528; found 587.0596, correct isotope distribution.
8 10 2
H F N
Gram scale synthesis of 4e:
6,12-dihydrodiindeno[1,2-b:1',2'-e]pyrazine
(7)
(1.50 g,
5
.85 mmol, 1.00 eq.) was dissolved in dry THF (500 mL) and
Crystallographic data
Deposition Numbers CCDC 2058078 (for 4c), CCDC 2058079
LHMDS (1 M in THF, 35.1 mL, 35.1 mmol, 6.00 eq.) and
hexafluorobenzene (4.36 g, 23.4 mmol, 4.00 eq.) was added
slowly. The reaction was stirred for 16 h at room temperature and
afterwards chloranil (8.63 g, 35.1 mmol, 6.00 eq.) was added.
Recrystallization from chlorobenzene gave 4e as a dark purple
2+) </url> contain the
(
for 4d), and CCDC 2058080 (for 4dH
2
supplementary crystallographic data for this paper. These data
are provided free of charge by the joint Cambridge
Crystallographic Data Centre and Fachinformationszentrum
1
solid. Yield 1.10 g, 1.88 mmol, 32%. H NMR (Tetrachloroethane-
2
d , 400 MHz): δ = 7.59 (m, 2H), 7.23 (m, 2H), 7.18 (m, 2H), 6.96
Karlsruhe
Access
Structures
service
<url
This article is protected by copyright. All rights reserved.

Chemistry - A European Journal
10.1002/chem.202100372
COMMUNICATION
[
[
17] X.Ji, T. Huang, W. Wu, F. Liang, S. Cao, Org. Lett., 2015, 17, 20, 5096–
href="https://www.ccdc.cam.ac.uk/structures/?">www.ccdc.cam.
ac.uk/structures</url
5099.
18] X. Xu, Y. Yao, B. Shan, X. Gu, D. Liu, J. Liu, J. Xu, N. Zhao, W. Hu, Q.
Miao, Adv. Mater., 2016, 28, 5276-5283.
[
19] H.; Hayashi, J. E. Barker, A. C. Valdivia, R. Kishi, S. N. MacMillan, C. J.
Gꢂmez-García, H. Miyauchi, Y. Nakamura, M. Nakano, S.-I. Kato, M.
M. Haley, J. Casado, J. Am. Chem. Soc. 2020, 142, 48, 20444–20455.
Acknowledgements
Victor Brosius thanks the ‘Studienstiftung des Deutschen
Volkes‘ for a scholarship. We thank the DFG (SFB 1249) for
generous support.
Conflict of Interests
The authors declare no conflict of interests.
Keywords: electron acceptors, organic field effect transistors,
quinoidal heteroaromatics, semiconductor, synthetic methods
[
[
1]
2]
A. Shimizu, R. Kishi, M. Nakano, D. Shiomi, K. Sato, T. Takui, I. Hisaki,
M. Miyata, Y. Tobe, Angew. Chem. Int. Ed. 2013, 52, 6076-6079.
J. J. Dressler, Z. Zhou, J. L. Marshall, R. Kishi, S. Takamuku, Z. Wei, S.
N. Spisak, M. Nakano, M. A. Petrukhina, M. M. Haley, Angew. Chem. Int.
Ed. 2017, 56, 15363-15367.
[3]
[4]
[5]
[6]
C. K. Frederickson, B. D. Rose, M. M. Haley, Acc. Chem. Res., 2017, 50,
4, 977–987.
A. G. Fix, P. E. Deal, C. L. Vonnegut, B. D. Rose, L. N. Zakharov, M. M.
Haley, Org. Lett. 2013, 15, 1362–1365.
B. D. Rose, L. E. Shoerb, M. R. Wasielewski, M. M. Haley, Chem. Phys.
Lett. 2014, 616-617, 137-141.
P. Hu, S. Lee, T. S. Herng, N. Aratani, T. P. Gonꢁalves, Q. Qi, X Shi, H.
Yamada, K. Huang, J. Ding, D. Kim, J. Wu, J. Am. Chem. Soc. 2016, 138,
3, 1065–1077.
[
[
7]
8]
J. J. Dressler, M. M. Haley, J. Phys. Org. Chem., 2020, 33, 11, e4114.
Z. Zeng, X. Shi, C. Chi, J. T. López Navarrete, J. Casado, J. Wu,
Chem. Soc. Rev., 2015,44, 6578-6596.
[
9]
X. Fu, H. Han, D. Zhang, H. Yu, Q. He, D. Zhao, Chem. Sci., 2020, 11,
5565–5571.
[
10] C. K. Frederickson, J. E. Barker, J. J. Dressler, Z. Zhou, E. R. Hanks, J.
P. Bard, L. N. Zakharov, M. A. Petrukhina, M. M. Haley, Synlett, 2018,
2
9, 2562-2566.
11] K. Fukuda, T. Nagami, J. Fujiyoshi, M. Nakano, J. Phys. Chem. A, 2015,
19, 10620−10627.
[
[
1
12] G. E. Rudebusch, J. L. Zafra, K. Jorner, K. Fukuda, J. L. Marshall, I.
Arrechea-Marcos, G. L. Espejo, R. P. Ortiz, C. J. Gómez-García, L. N.
Zakharov, M. Nakano, H. Ottosson, J. Casado, M. M. Haley, Nat. Chem.,
2016, 8, 753-759.
[
13] D. T. Chase, A. G. Fix, S. J. Kang, B. D. Rose, C. D. Weber, Y. Zhong,
L. N. Zakharov, M. C. Lonergan, C. Nuckolls, M. M. Haley, J. Am. Chem.
Soc., 2012, 134, 25, 10349–10352.
[
[
14] Z. Wang, Y. Dai, L. Ding, B. Dong, S. Jiang, J. Wang, J. Pei, Angew.
Chem. Int. Ed., 2021, 60, 4594-4598.
15] A. M. Zeidell, L. Jennings, C. K. Frederickson, Q. Ai, J. J. Dressler, L. N.
Zakharov, C. Risko, M. M. Haley, O. D. Jurchescu, Chem. Mater. 2019,
31, 17, 6962–6970.
[
16] G. E. Rudebusch, G. L. Espejo, J. L. Zafra, M. Peña-Alvarez, S. N.
Spisak, K. Fukuda, Z. Wei, M. Nakano, M. A. Petrikhina, J. Casado, M.
M. Haley, J. Am. Chem. Soc., 2016, 138, 12648-12654.
This article is protected by copyright. All rights reserved.

Chemistry - A European Journal
10.1002/chem.202100372
COMMUNICATION
Entry for the Table of Contents (Please choose one layout)
Layout 1:
COMMUNICATION
Electron deficient diindenopyrazines
with different aryl substituents were
synthesized and characterized.
Introduction of electron poor aryl
groups reduce the electron affinity to
Victor Brosius,[a] Svenja Weigold,
[a]
[a]
[a]
Nikolai Hippchen, Frank Rominger,
[
a]
Jan Freudenberg,* and Uwe H. F.
Bunz*[
a]
Page No. – Page No.
-
4 eV, making them attractive as n-
semiconductors. 4e was tested in a
Diindenopyrazines: Electron-
Deficient Arenes
OFET showing electron mobilities up
2
to 0.037 cm /Vs.
This article is protected by copyright. All rights reserved.
