Synthesis and properties of novel heat-resistant fluorescent conjugated polymers with bisindolylmaleimide

Article abstract of DOI:10.1016/j.cclet.2017.08.019

Conjugated polymers with bisindolylmaleimide (BIM) backbone are obtained by the condensation polymerization of methyl and octanyl N-substituted BIMs with 4,4'-difluoro-diphenylsulfone and 4,4'-difluoro-diphenylketone. The structures of polymers are confirmed by FTIR and NMR spectroscopy. The polymers exhibit both high glass transition temperatures (T_g > 175 °C) and high decomposition temperatures (T₅ > 395 °C). Meanwhile, The UV–vis absorption and fluorescence spectra of the polymers are similar to the corresponding substituted BIMs. The quantum chemistry calculations indicate that the first excited states of polymers are mostly contributed by BIM structures.

Full text of DOI:10.1016/j.cclet.2017.08.019

Accepted Manuscript
Title: Synthesis and properties of novel heat-resistant
fluorescent conjugated polymers with bisindolylmaleimide
Authors: Qianfeng Zhang, Guanjun Chang, Lin Zhang
PII:
S1001-8417(17)30303-0
DOI:
Reference:
http://dx.doi.org/10.1016/j.cclet.2017.08.019
CCLET 4168
To appear in:
Chinese Chemical Letters
Received date:
Revised date:
Accepted date:
1-4-2017
8-8-2017
13-8-2017
Please cite this article as: Qianfeng Zhang, Guanjun Chang, Lin
Zhang, Synthesis and properties of novel heat-resistant fluorescent
conjugated
polymers
with
bisindolylmaleimide,
Chinese
Chemical
Lettershttp://dx.doi.org/10.1016/j.cclet.2017.08.019
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

Please donot adjust the margins
Communication
Synthesis and properties of novel heat-resistant fluorescent conjugated polymers with
bisindolylmaleimide
Qianfeng Zhanga, Guanjun Changb, Lin Zhanga, *
a
Research Center of Laser Fusion CAEP, China Academy of Engineering Physics, Mianyang 62100, China.
Southwest University of Science and Technology and Research Center of Laser Fusion, Mianyang 621010, China.
b
 Corresponding author.
E-mail address: zhlmy@sina.com
Graphical abstract
Novel conjugated polymers with bisindolymaleimide were synthesized via simple metal-free condensation polymerization. The
polymers exhibited high glass transition temperatures and decomposition temperatures with considerable luminescent properties.
ARTICLE INFO
ABSTRACT
Article history:
Conjugated polymers with bisindolylmaleimide (BIM) backbone are obtained by the
condensation polymerzation of methyl and octanyl N-substituted BIMs with 4,4'-difluoro-
diphenylsulfone and 4,4'-difluoro-diphenylketone. The structures of polymers are confirmed by
FTIR and NMR spectroscopy. The polymers exhibit both high glass transition temperatures
(Tg>175 oC) and high decomposition temperatures (T5>395 oC). Meanwhile, The UV-vis
absorption and fluorescence spectra of the polymers are similar to the corresponding substituted
BIMs. The quantum chemistry calculations indicate that the first excited states of polymers are
mostly contributed by BIM structures.
Received 5 April 2017
Received in revised form 14 June 2017
Accepted 4 August 2017
Available online
Keywords:
Bisindolylmaleimide
Heat-resistant polymer
Photoluminescence
DFT calculations
Organic light-emitting diodes (OLED) have attracted great interest as thin, large-area, high energy efficiency, high brightness and
contrast, and full color display materials in recent few decades [1]. Among the three primary colors necessarily for full color display,
red light-emitting materials lag behind blue and green ones in terms of luminescent efficiency and good color fidelity [2]. The low
HOMO-LUMO gap in red luminescent materials bring difficulties in design and synthesis and make them easy to quench because of
aggregation. As a result, most red luminescent materials are the dopants such as 4-(dicyanomethylene)-2-methyl-6-[4-
(dimethylaminostyryl)-4H-pyran] (DCM) series [3], polyacene-based materials [4], and rare-earth complexes [5]. However the
optimum concentration for dopants is very low and hard to control and it is hard to achieve long lifetime for the device [6].
Bisindolylmaleimide (BIM) derivatives (arcyriarubins A) belong to a family of pigments isolated from slime molds (Myxomy-cetes)
[7]. Although mostly studied for biological applications, for example as protein kinase C (PKC) inhibitors, they are also excellent red

Please donot adjust the margins
luminescent materials [8-11]. BIM perform red emissions even in solid states for its twisted structure of two indole rings. Meanwhile, it
is easy to modify emission color and performance by substitution on maleimide and indole rings [12]. These properties make BIM
derivatives permission potential as non-doped red luminescent materials and applications on OLEDs. However, the glass transition
o
temperatures (Tg) of BIM derivatives are usually below 100 C and the low Tg may result unstable and short lifetime of the devices.
Polymerization is always a good strategy to improve glass transition temperatures and heat resistance. Meanwhile, due to the special
electronic and optical properties, conjugated polymers and relayed π-molecules have been paid much attention for the applications in
various domains like OLED [13], organic photovoltaics (OPVs) [14-16], charge carrier media [17], etc. However, the synthesis and
assembly procedure of these conjugated polymers are usually complex and need catalyst with heavy metal such as Cu and Pd. In our
previous works, 4-hydroxyindole can be polymerized with activated difluoro monomers via a catalyst-free polycondensation reaction.
These polymers exhibit high Tg of >180 oC and high thermal stability (Tdsꢀ>ꢀ420 °C) [18]. and BIM can easily be polymerized via NH
group in the two indole rings.
Thus, we designed red luminescent polymers with BIM structure in the main chain in the aim of improving the glass transition
temperatures and thermal stability of BIM derivatives. The NH groups in indole rings of BIM are designed for polycondensation with
difluoro monomers. In this case the NH group in maleimide must be substituted by an inert group like alkyl. Here we choose methyl
and n-octyl to investigate the effect of the long side alkyl chain to solubility, thermal and fluorescence properties of the polymers. 4,4'-
difluoro-diphenylsulfone and 4,4'-difluoro-diphenylketone are selected as co-monomers for they are popular structural unit in heat
resistant polymers and easy to coupling with indole ring at NH group. Moreover, the polymerization reaction is metal-free because
both of the difluoro monomers are activated by the electron-withdrawing group of sulfonyl and carbonyl. After polymerization of
substituted BIM with 4,4'-difluoro-diphenylketone, a conjugated polymer will be produced due to the planar molecular of the ketone.
This may benefit the fluorescence properties of the polymers. Besides, so far as we know, this is the first report of conjugated polymers
with BIM structure in the main chain.
The synthetic route of the designed polymers is shown in Scheme 1.
Scheme 1. Synthesis route of polymers with BIM backbone.
Bisindolylmaleimide (BIM) is synthesized via literature procedure with a total yield of 68%. As maleimide is a stronger acid than
indole, the selective alkylation of BIM can be successfully performed in a proper condition with yields of 89% and 65% for methyl and
n-octyl, respectively. The polymerization reactions are carried out with 4,4'-difluoro-diphenylsulfone and 4,4'-difluoro-diphenylketone
via a simple poly-condensation reaction. The molecular weights of the polymers measured by GPC are listed in Table 1. The Mn vary
from 38,000 to 45,000 when Mw vary from 184,000 to 316,000. The distributions of molecular weight are ranging from 4.84 to 7.52.
The comparison of 1H NMR spectra of BIM, MeBIM and PMBS in Fig. S1 in Supporting information exhibit good agreements with
the proposed structures. The disappearance of signal of NH in maleimide in MeBIM proves the success of selective substitution
reaction. Meanwhile, the absence of any signal in the area of δ>9 indicate that the BIM monomers are fully polymerized. The signals
of indole ring in PMBS are shifted downfield for the electron-withdrawing effect of sulfonyl group. Another concern in the
polymerization is the possible unstabilization of imide in the condensation condition. The FTIR spectra of BIM, MeBIM and PMBS in
Fig. S2 in Supporting information all show the existence of both weak symmetric stretching vibration at about 1750 cm-1 and strong
antisymmetric stretch vibration at about 1700 cm-1 of C=O in imide. These peaks are typical characteristic absorption bands of C=O in
circular imide. These IR absorption peaks would move to 1750-1850 cm-1 for being hydrolyzed into anhydride. Otherwise the weak
symmetric stretching vibration peak would disappear for being hydrolyzed into carboxylic acid or carboxylate. So the stability of the

Please donot adjust the margins
IR absorption peaks at 1700-1750 cm-1 proves that the imide of MeBIM is stable in polymerization. Besides, the appearance of
antisymmetric and symmetric stretch and out-of-plane bending vibration of O=S=O in diphenylsulfone at 1310 cm-1, 1150 cm-1,
598cm-1, respectively, also indicate the success of polymerization.
The solubility of the polymers are investigated in varies solvents. All the polymers show good solubility in aprotic dipolar solvents
such as N, N-dimethylformamide (DMF), dimethyl sulfoxide (DMSO) and N-methyl-2-pyrrolidone (NMP). This result indicates
potential for these polymers applied in spin-on and casting processes.
Table 1. Molecular weights, thermal properties and optical properties of BIM polymers
g
Mn
Mw
Mw/Mn
Tga (oC)
T5b (oC)
T10c (oC)
Residuald (%)
λabse /nm
λemf /nm
ΦF
BIM
MeBIM
OBIM
PMBS
PMBK
POBS
POBK
-
-
-
130
119
52
158
262
281
433
399
395
431
234
364
378
468
470
431
473
35
7
367, 453
370, 464
371, 465
329, 453
330, 448
329, 447
323, 452
576
601
600
593
592
587
592
0.131
0.098
0.102
0.069
0.066
0.010
0.106
-
-
-
-
-
-
7
3.8×104
4.4×104
4.2×104
4.5×104
1.8×105
2.6×105
3.2×105
2.7×105
4.7
5.9
7.6
6.0
>300
279
217
175
60
69
43
51
a Glass transition temperature in nitrogen;
b Temperature of 5% weight loss in nitrogen;
c Temperature of 10% weight loss in nitrogen;
d The remaining of the polymer at 800oC in nitrogen;
e Absorption maximumin in DMF solution (1.0×10-4 mol/L);
f Emission maximum in DMF solution (1.0×10-5mol/L, λex = 452 nm;
g Fluorescence quantum yield, determined using quinine sulfate (ΦF = 0.55 in 1 mol/L H2SO4) as standard.

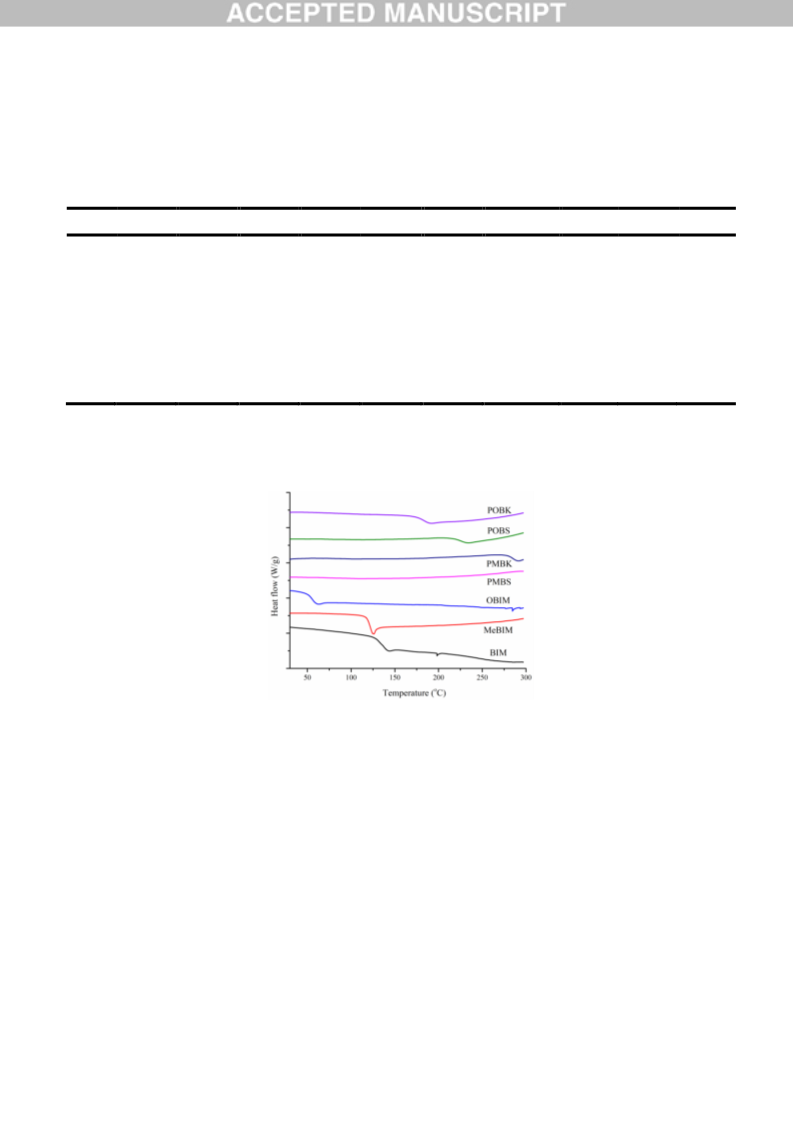

Fig. 1. DSC curves of BIM derivatives and polymers in nitrogen.
The thermal properties are evaluated via thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) and the
results are summarized in Table 1. All the polymers show high thermal stability in nitrogen. The TGA curves of the polymers (Fig. S3
in Supporting information) indicate that these polymers are thermally stable up to 400-430 oC, and avoid the sublimation phenomenon
o
of BIM monomers. Polymer POBK exhibit the lowest glass transition temperatures (Tg) of 175 C, which is still much higher than
corresponding monomer OBIM (Fig. 1). This result can be explained by combination of the blocking effect of n-octyl and the twisted
polymer chain induced by planar diphenylketone. All of the Tg of the polymers are much higher than BIM derivatives, which proves
the effectivity of polymerization in improving thermal properties of BIM derivatives.
The UV-vis spectra of the polymers and corresponding monomers are demonstrated in Fig. 2 and the optical properties are listed in
Table 1. For the first absorption peaks, all the polymers are slightly blue shifted for about 15 nm. Moreover, the first absorption peaks
of polymers with diphenylketone are rather weak. For the second absorption peaks, all the polymers arise a new peak at about 330 nm.
This phenomenon can be explained by the electron-withdrawing effect of sulfonyl and carbonyl group and conjugation effect between
BIM and diphenyl derivatives. The diphenylketone has a planar structure, so the conjugation effect is much stronger leading to
significant reduced characteristic absorption peak of BIM at 465 nm.

Please donot adjust the margins

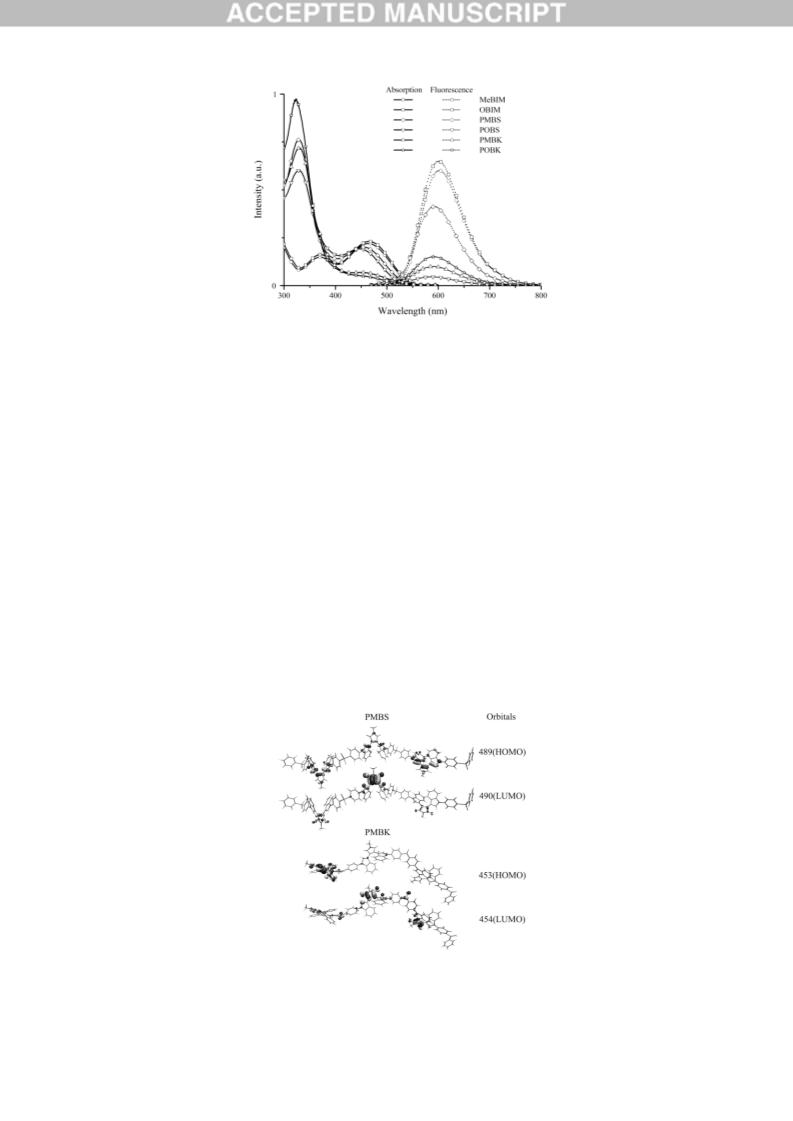

Fig. 2. UV-vis absorption spectra (1.0×10-4 mol/L) and fluorescence spectra (1.0×10-5 mol/L, λex = 452 nm) of BIM polymers and monomers in DMF solutions
The fluorescence spectra of the polymers and corresponding monomers in Fig. 2 show that PMBS exhibit considerable intensities to
the monomer MeBIM and slightly blue shifted for 8 nm. This suggest promising potential of PMBS for application on luminescent
materials. We suppose that the relatively low fluorescence intensity of POBS is resulted by faster internal conversion caused by
conformational Interconversion and vibration of n-octyl group.
To further investigate the characters of the exciting process and the structure of the polymers, we perform quantum chemistry
calculations on fragments of PMBS and PMBK. All DFT and TDDFT calculations were performed by ORCA 3.0.3 [19], the results
were analyzed by Multiwfn 3.3.5 [20], and the graphs of orbitals were drawn by VMD [21]. The optimizing of the structure of the
polymer fragment was calculated at BLYP/def2-SVP level using RI-J approximation [22] and DFT-D3 dispersion correction with BJ-
damping [23]. The orbitals were obtained by a single point energy calculation at BLYP/def2-TZVP level using RI-J and DFT-D3. The
excitation calculations were performed at M06-2X/def2-SVP level using RIJCOSX, DFT-D3 and cosmo solution model [24] with
DMF as solvent.
The fragment for calculation contain three BIM structure and four diphenyl sulfone or ketone for reliable simulation results. The
calculated energies of first excited states of PMBS and PMBK are 430.5 and 435.3, and fit well with the experimental data of 453 and
448, respectively (Table S1 in Supporting information). This proves the reliability of our calculations. The optimized structures and
HOMO/LUMO orbitals related to the first excited state of PMBS and PMBK (Fig. 3) are also demonstrated (full color and
other orbitals related to the first excited state are available in Figs. S4 and S5 in Supporting information). The PMBS chain is more
twisted and have less conjugation between BIM and phenyl than PMBK. The orbitals involved in first excited state of PMBS are nearly
all linear combination of orbitals of BIMs in the polymer chain. This explains the similar absorption and emission spectra between
PMBS and MeBIM. However, the orbitals of diphenylketone are merged into the orbitals involved in first excited state of PMBK.
Especially the LUMO (orbital 454) of PMBK include the antibonding orbital of carbonyl, and the HOMO/LUMO gap is slightly
reduced. This result matches the abnormal of first absorption peak.
Fig.3. The optimized structures and calculated HOMO and LUMO orbitals of a segment of PMBS and PMBK
In summary, we have design, synthesis and characterized a novel series of polymers with bisindolylmaleimide (BIM) structure in the
main chain, PMBS, POBS, PMBK and POBK. It is the first report of conjugated polymers with BIM core. All of the polymers

Please donot adjust the margins
demonstrate good solubility and good thermal stability with high decomposition temperatures and glass transition temperatures of up to
395 oC and 175 oC, respectively. The UV-vis absorption and fluorescence spectra of PMBS exhibit similar and considerable intensities
to the monomer. These result show promising potential of PMBS for application on luminescent materials and take advantage of high
thermal stability and spin-on and casting processes. We also perform quantum chemistry calculations to discuss the mechanism of the
first excited state of the polymer. The calculations indicate the existence of conjugation effect in the first excited state of PMBK which
cannot be observed in PMBS. The results explain the difference of absorption spectra between PMBS and PMBK.
Acknowledgment
This research was financially supported by the Research Fund for the Doctoral Program of Southwest University of Science and
Technology (No. 15zx7137), the Research Fund for Joint Laboratory for Extreme Conditions Matter Properties (Nos. 13zxjk04,
14tdjk03).
References
[1] V.C. Bender, T.B. Marchesan, J.M. Alonso, IEEE Ind. Electron. M. 9 (2015) 6-16.
[2] H. Jeong, H. Shin, J. Lee, et al., J. Photon. Energy 5 (2015) 057608-057608.
[3] C.W. Tang, S.A. VanSlyke, C.H. Chen, J. Appl. Phys. 65 (1989) 3610-3616.
[4] Y. Sakakibara, S. Okutsu, T. Enokida, T. Tani, Appl. Phys. Lett. 74 (1999) 2587-2589.
[5] C.-L. Ho, H. Li, W.-Y. Wong, J. Organomet. Chem. 751 (2014) 261-285.
[6] Q. Zhao, J.Z. Sun, J. Mater. Chem. C 4 (2016) 10588-10609.
[7] W. Steglich, B. Steffan, L. Kopanski, G. Eckhardt, Angew. Chem. 92 (1980) 463-464.
[8] C.-W. Chiu, T.J. Chow, C.-H. Chuen, H.-M. Lin, Y.-T. Tao, Chem. Mater. 15 (2003) 4527-4532.
[9] X. Li, J. Chen, D. Ma, Q. Zhang, H. Tian, Proc. SPIE 5632 (2005) 357-364.
[10] T.-S. Yeh, T.J. Chow, S.-H. Tsai, C.-W. Chiu, C.-X. Zhao, Chem. Mater. 18 (2006) 832-839.
[11] Z. Ning, Y. Zhou, Q. Zhang, et al., J. Photoch. Photobio. A 192 (2007) 8-16.
[12] M. Nakazono, S. Nanbu, A. Uesaki, et al., Org. Lett. 9 (2007) 3583-3586.
[13] C. Zhan, G. Yu, Y. Lu, et al., J. Mater. Chem. C 5 (2017) 1569-1585.
[14] Z. Wu, C. Sun, S. Dong, et al., J. Am. Chem. Soc. 138 (2016) 2004-2013.
[15] H. Bin, Z.-G. Zhang, L. Gao, et al., J. Am. Chem. Soc. 138 (2016) 4657-4664.
[16] N. Kazuhiro, Y. Masaya, M. Hideharu, Bull. Chem. Soc. Jpn. 88 (2015) 222-226.
[17] C. Yoshiki, T. Kazuo, Bull. Chem. Soc. Jpn. 88 (2015) 633-643.
[18] G. Chang, L. Yang, J. Yang, et al., J. Polym. Sci., Part A: Polym. Chem. 52 (2014) 313-320.
[19] F. Neese, WIREs Comput. Mol. Sci. 2 (2012) 73-78.
[20] T. Lu, F. Chen, J. Comput. Chem. 33 (2012) 580-592.
[21] W. Humphrey, A. Dalke, K. Schulten, J. Mol. Graph. 14 (1996) 33-38.
[22] R. Izsák, F. Neese, J. Chem. Phys. 135 (2011) 144105.
[23] S. Grimme, S. Ehrlich, L. Goerigk, J. Comput. Chem 32 (2011) 1456-1465.
[24] S. Sinnecker, A. Rajendran, A. Klamt, M. Diedenhofen, F. Neese, J. Phys. Chem. 110 (2006) 2235-2245.
